P2S Poop Chute & Basket - No-Stick Slope Design

Tired of poop getting stuck on your chute? This P2S-specific design solves it!

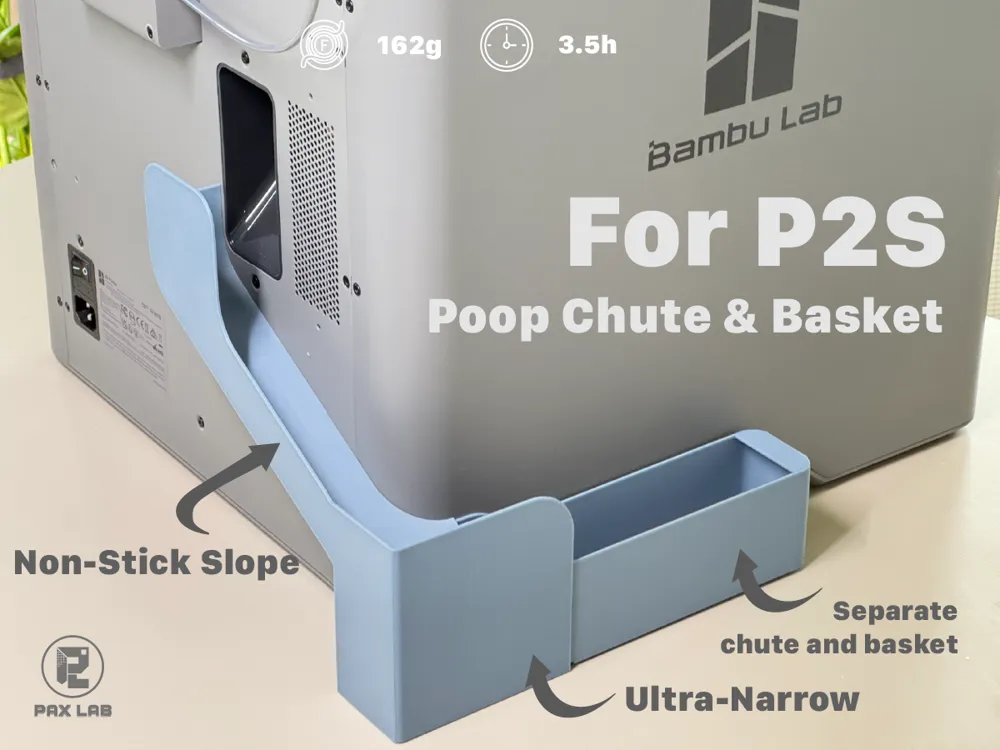

This is a properly engineered poop chute and basket system specifically for the Bambu Lab P2S.

Unlike other designs, this chute prints horizontally (lying down), which means the layer lines run in the same direction as the poop slides

 No more stuck purge blocks!

You will need:

Round Magnet 6x3mm or 8x3mm ---- x 5 (3 also works)

Key Features:

✅ P2S-specific design - Perfectly sized for your P2S (not P1S/X1C)

✅ Ultra-narrow profile - Perfect for multi-printer farms or limited desk space

✅ Edge-safe design - No table surface needed behind printer! Works even when printer back is flush with table edge

✅ Magnetic mounting - Attaches securely to printer back, no screws needed!

✅ Horizontal printing orientation - Layer lines aligned with poop flow for smooth sliding

✅ Separate chute and basket - Easy to empty and clean

✅ Dual-slope basket design - Encourages purge blocks to stack neatly instead of jamming

Why this design is better:

🔹 Space-Saving: The narrow footprint is ideal when you have multiple printers lined up side-by-side or limited table space

🔹 Edge-Compatible: This chute works perfectly even when your printer sits at the table edge with its back flush to the edge

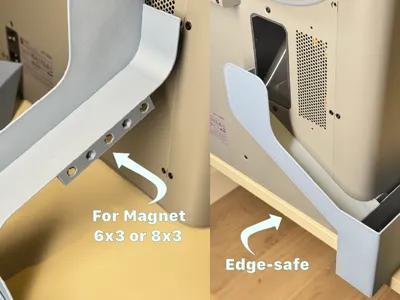

🔹 No-Screw Installation: Uses 5x (or 3x) magnets (6x3mm or 8x3mm rounded) that press-fit into designated holes. Just snap it on and off whenever needed!

🔹 Smooth Sliding Surface: By printing horizontally, the layer lines create a smooth pathway that lets poop flow freely instead of catching on rough vertical layers

Required Hardware:

• 5× Round magnets (6x3mm OR 8x3mm) - press-fit into holes

Print Settings:

• No supports needed
• 0.2mm layer height recommended
• 15-20% infill
• Any filament (PETG or ABS recommended for durability, PLA is also fine)

Give your P2S the poop management it deserves! 💩✨
