TwistNOpen Pill container
Print Profile(1)
Bill of Materials
Description

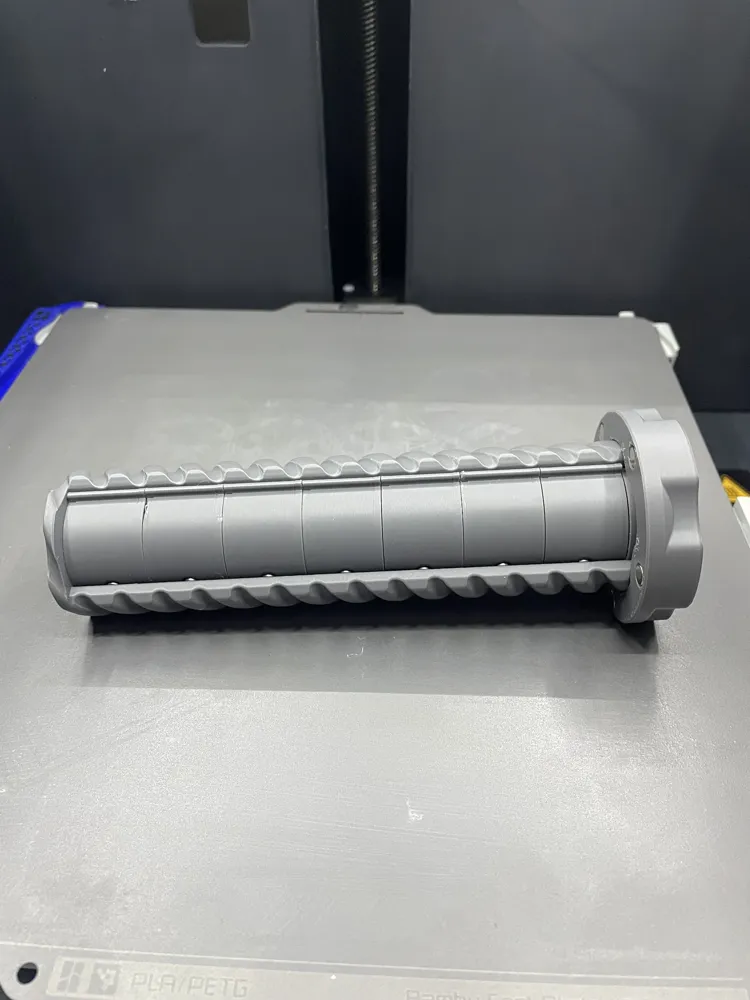

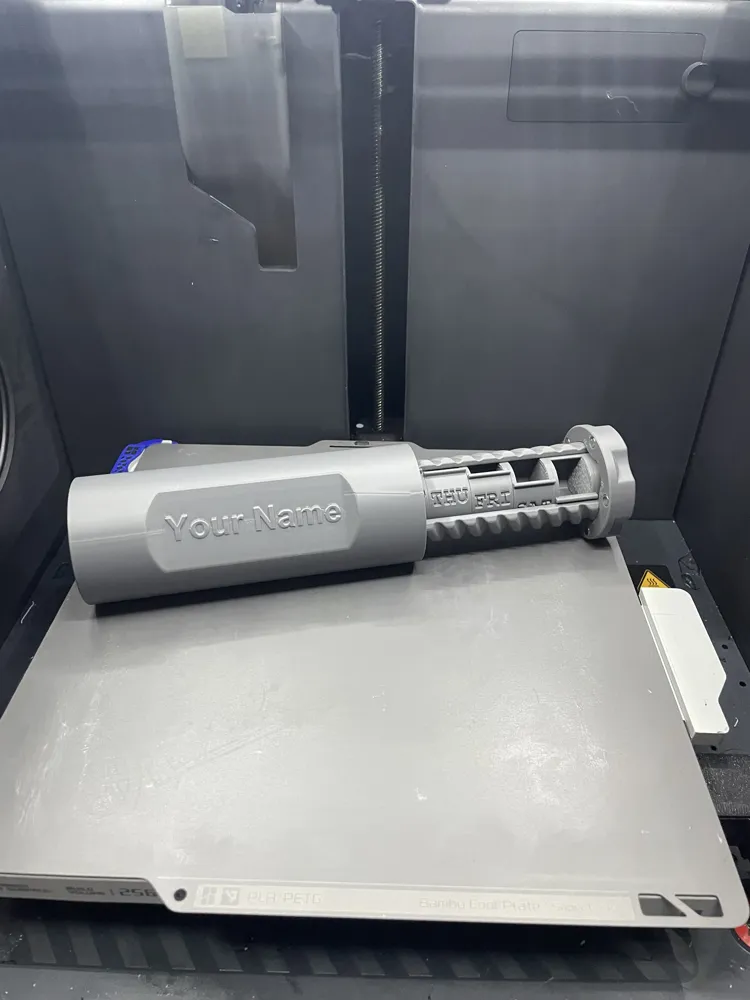

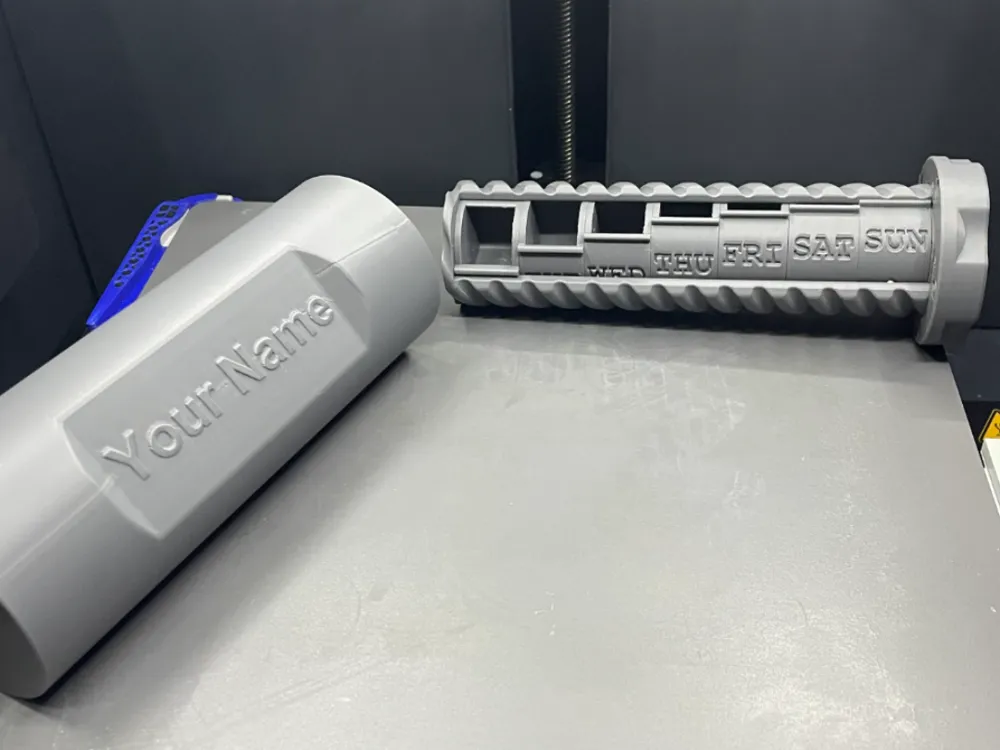

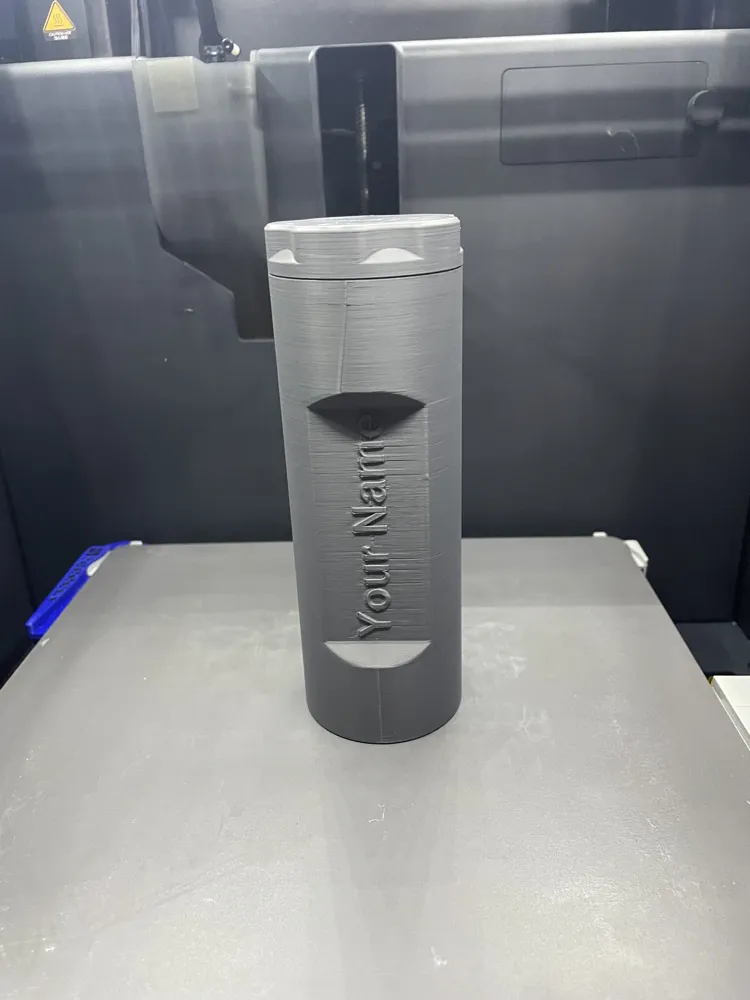

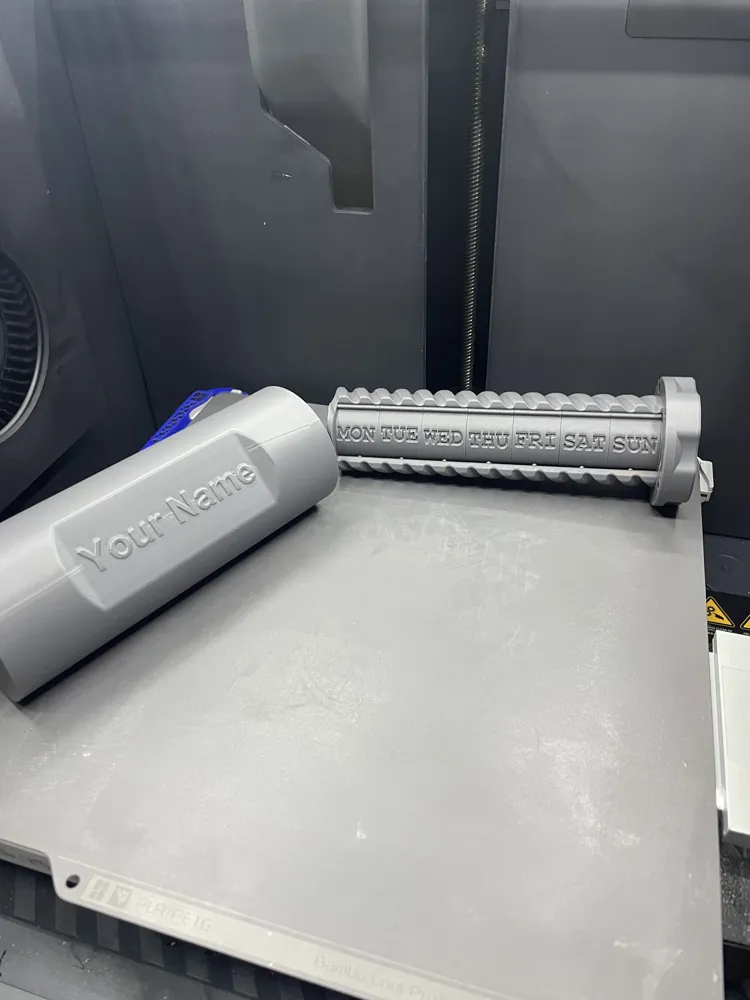

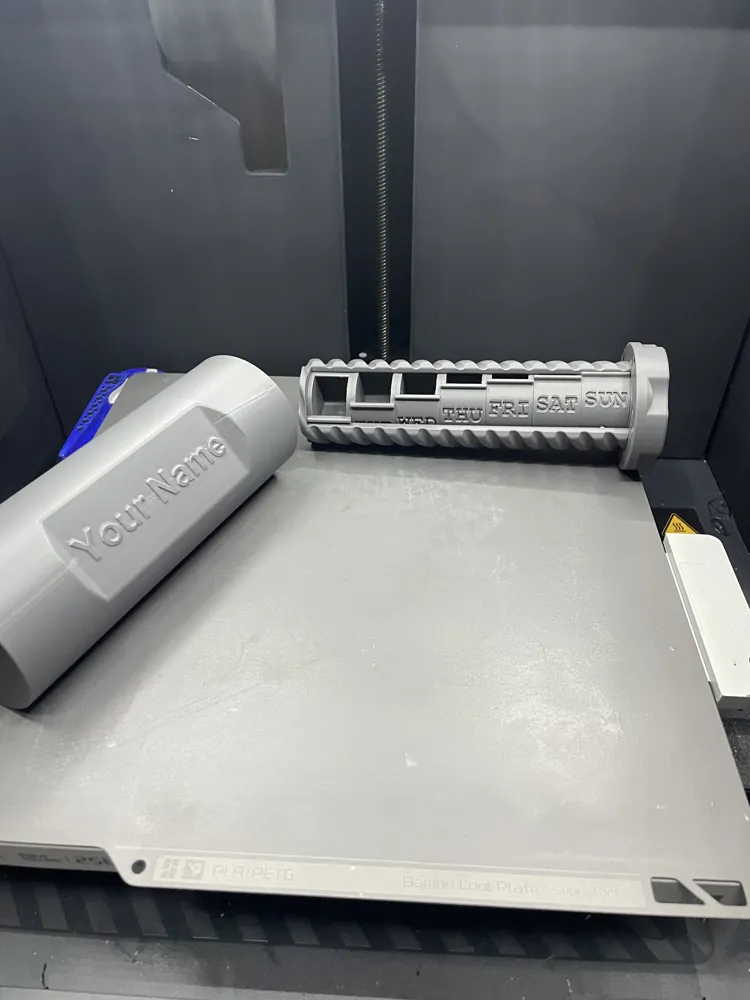

The TwistNOpen pill container is an innovative solution for the safe and easy handling of medication. With the unique rotating mechanism, you can easily open your pill box and close it again simply with the magnets without having to worry about safety or handling.
Size: outer diameter=56mm outer length 160mm

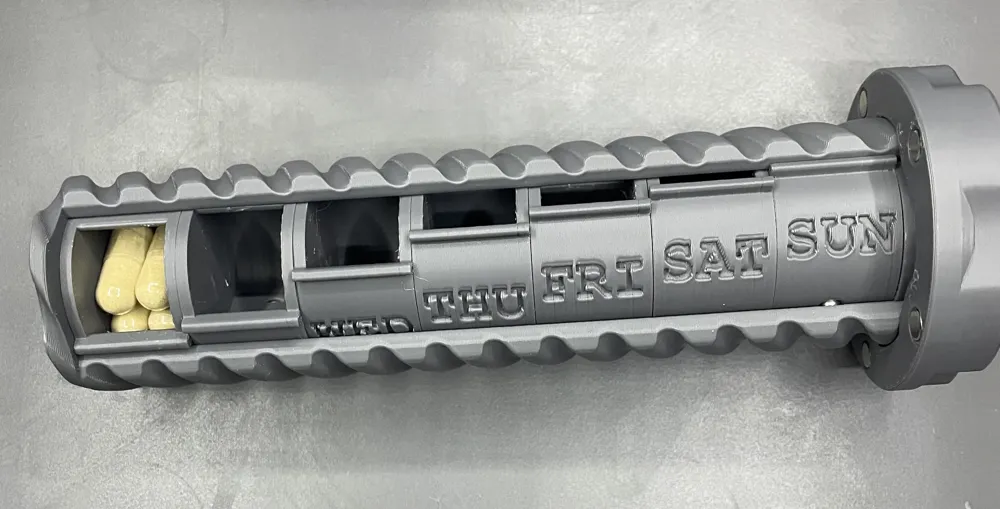

Container size: diameter=25mm height=15.5mm (enough to fit up to four large pills)
Assembly instructions: First, take your Smooth Ball Spring Plunger and insert it into the hole of the compartment where the pills go (you might need to use pliers). Then do this for all seven. After that, take your lid, your casing, and the 5mm x 6mm magnets, or alternatively the 5mm x 3mm ones. Stack two magnets on top of each other and make sure, while pressing the magnets into the lid and casing, that they all point in the correct direction so that the lid is attracted to the casing. Finally, insert the compartments into the smaller casing, making sure that the push ball plungers are in the groove when closed, then forcefully twist the lid on, and then you are done. (:
Boost Me (for free)
Do you like my Model then you can do me a favor and leave a Boost it would help me a lot. (:
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
