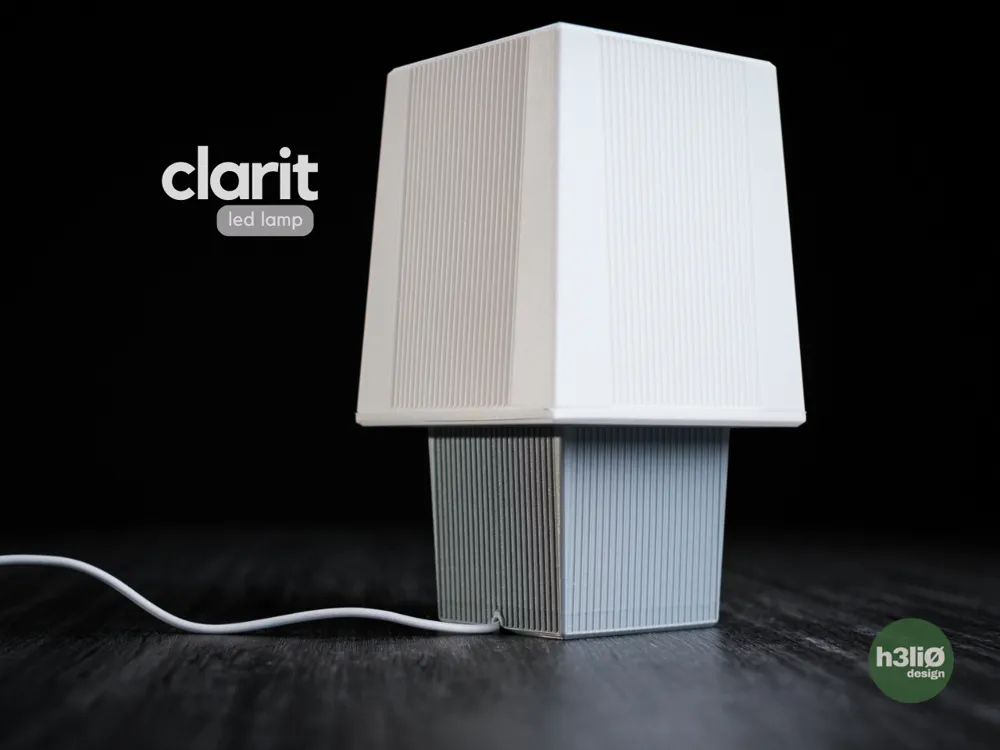

clarit · led lamp
small modern minimalist desk lamp design for the LED kit
important · make sure that:
- your filament is dry and calibrated
- your build plate is properly clean so that there aren't adhesions issues and lifts during the print
- the connector requires supports to print cleanly, i highly recommend to use a non bonding material as a raft and interface layer - in this case connector is PETG and the interface layers are PLA, and the print profiles is configured as such. If you choose not to have a different material as support interface you'll need to adjust the support settings accordingly, and ensure you clean-up completely after support removal, which can be challenging given the small area, recommend using needle nose pliers

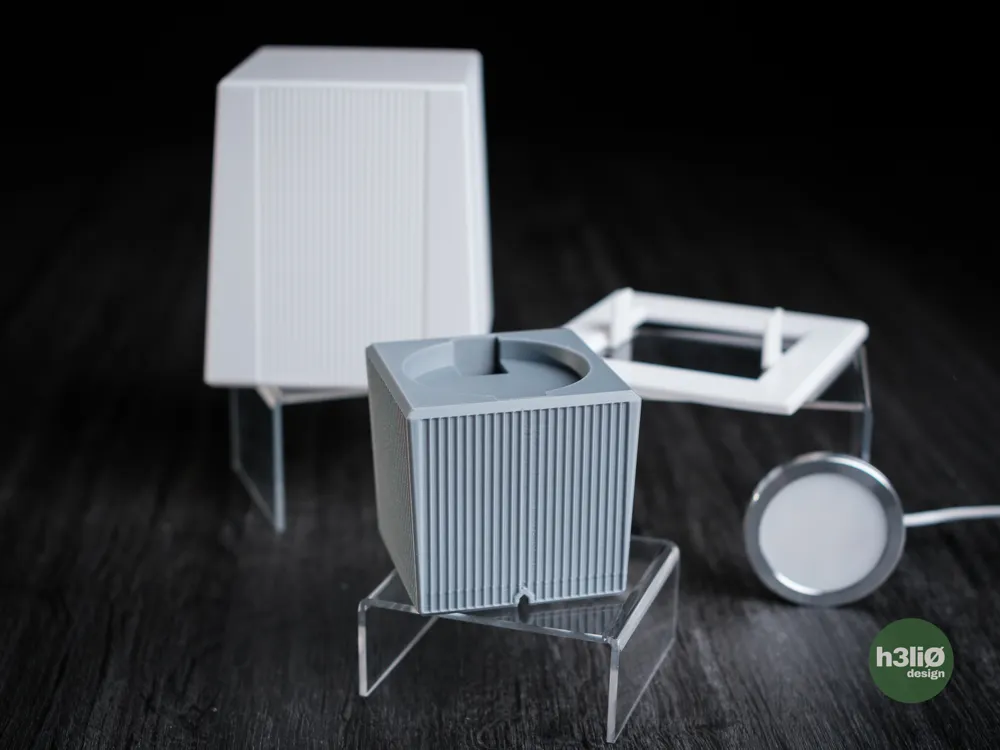

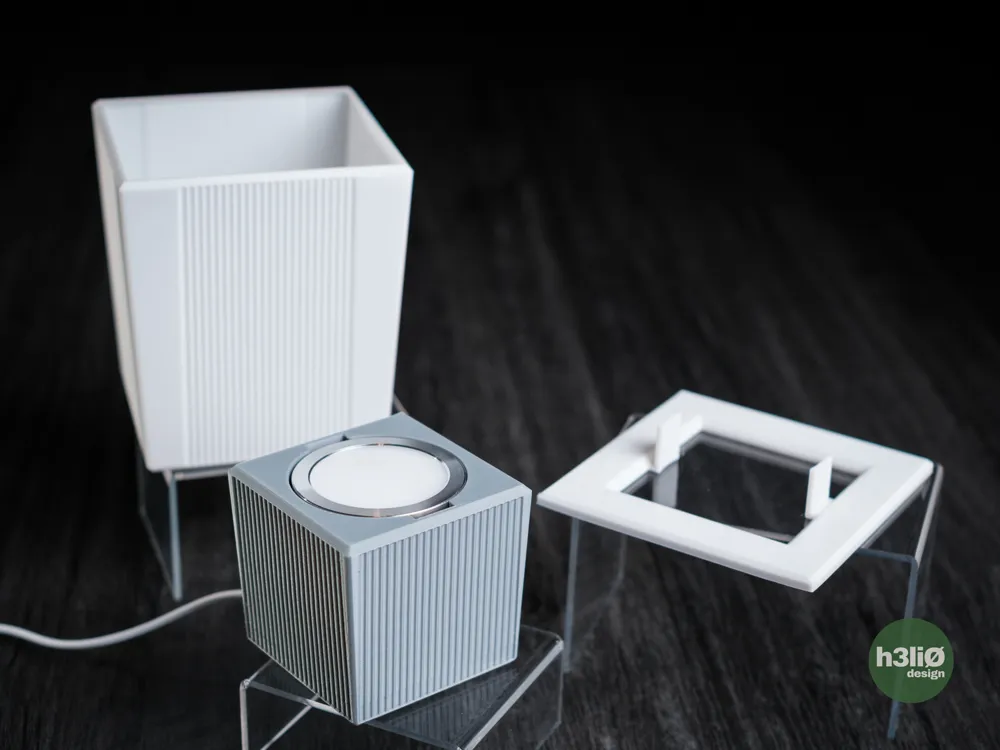

assembly

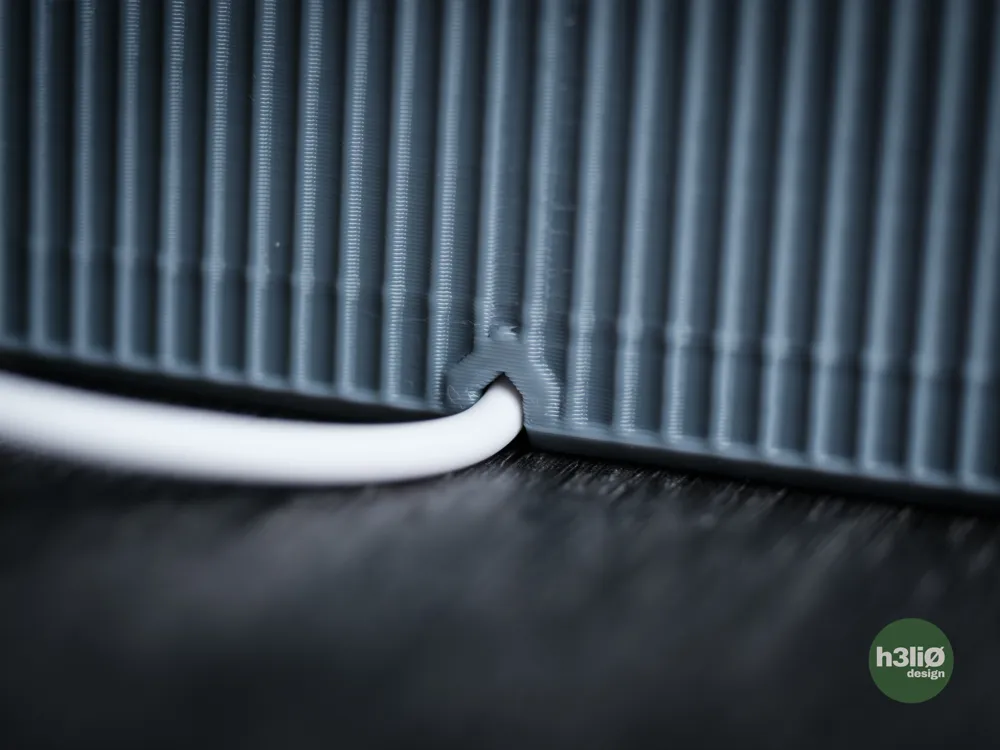

- pass the LED kit cable from one of the slots on the base top and place the led light in position

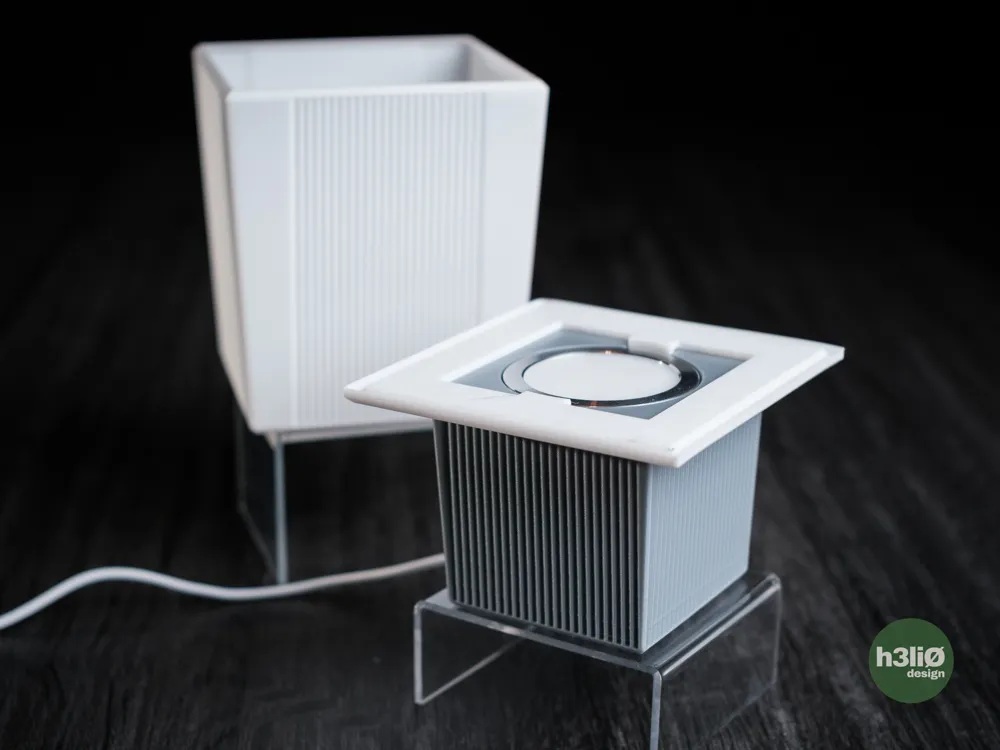

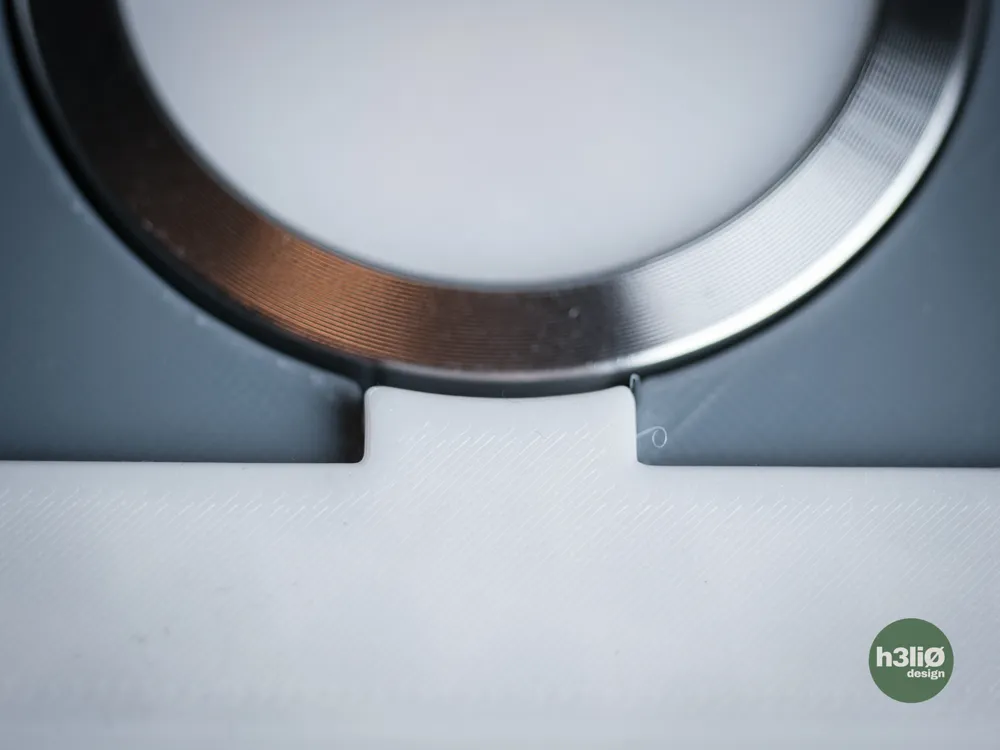

- insert the connector with the tabs matching the respective slots on the base
- place the shade in the connector

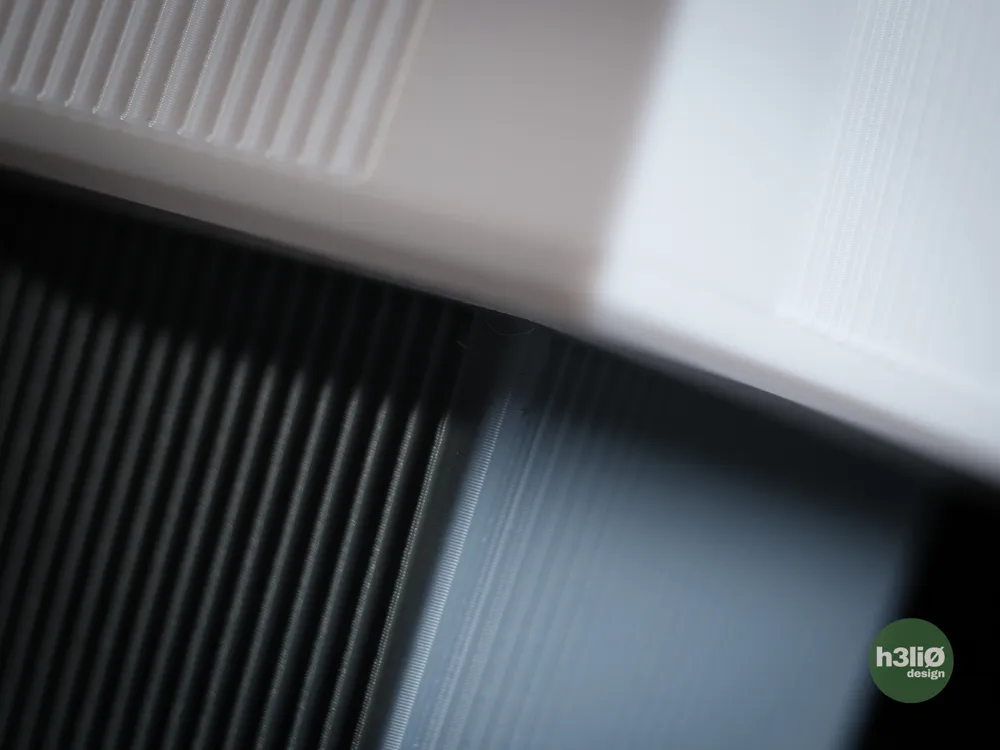

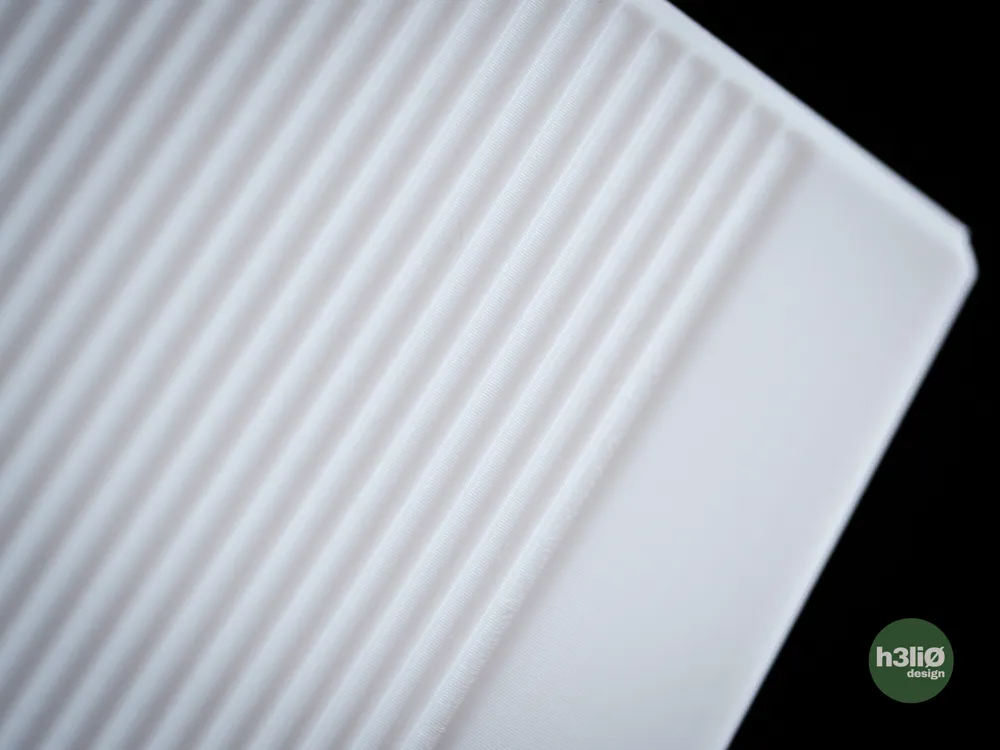

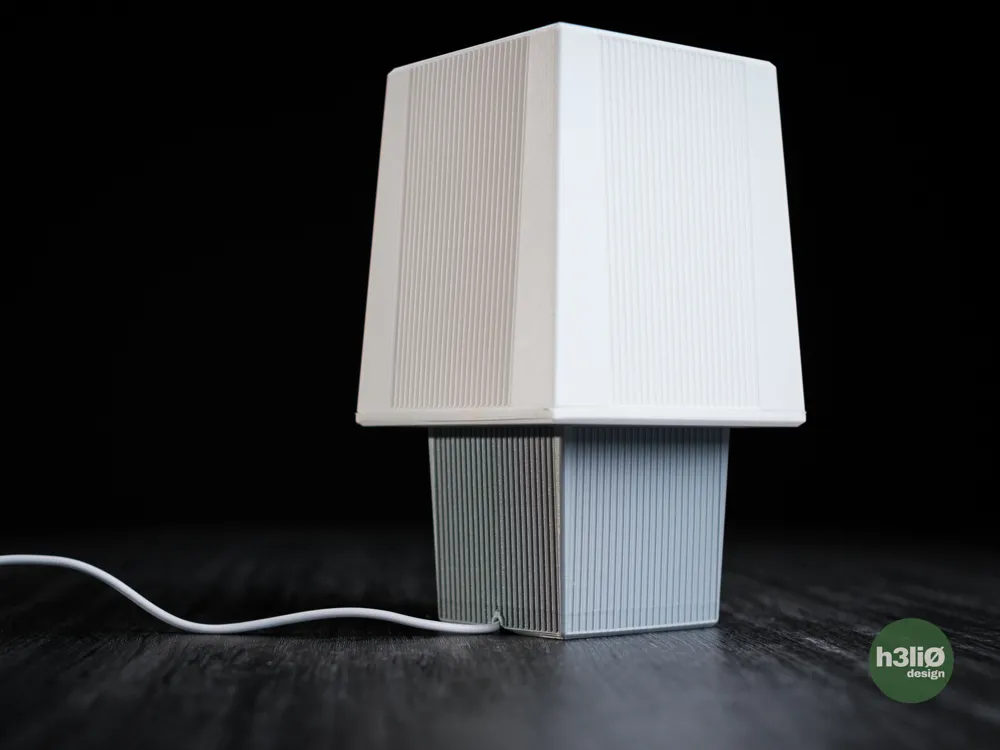

photos show printed in matte PLA and PETG-HF
- .40mm nozzle
- adaptive layer height on the base and .2 layer height on connector and shade
- 15% cubic infill
- supports on the connector with PLA as raft and interface layer - settings adjusted accordingly
- normal supports on the base
- brim ears
notes
- includes bambu studio 3mf files and STLs
- all photos uploaded are of the actual printed model, and are copyright protected
- if you enjoy this model please consider to buy me a coffee
- commercial licence membership available on the link below or on my patreon
