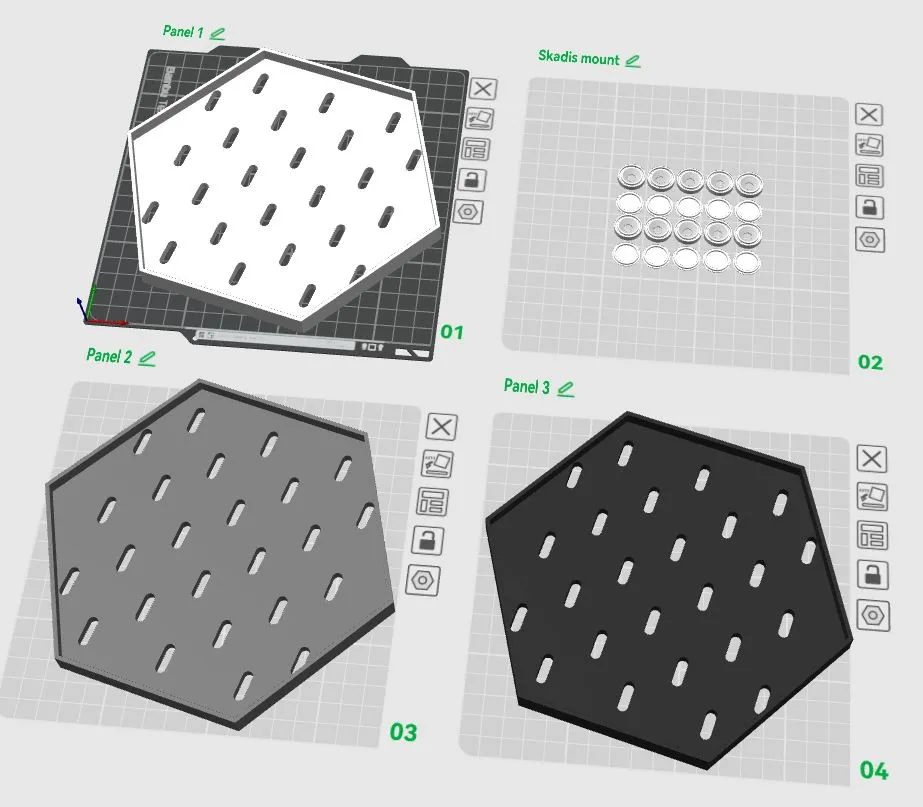

0.2mm layer, 3 walls, 10% infill

Designer

4.3 h

4 plates

4.9(47)

Open in Bambu Studio

Boost

1067

3135

1.2 k

530

Released

Description

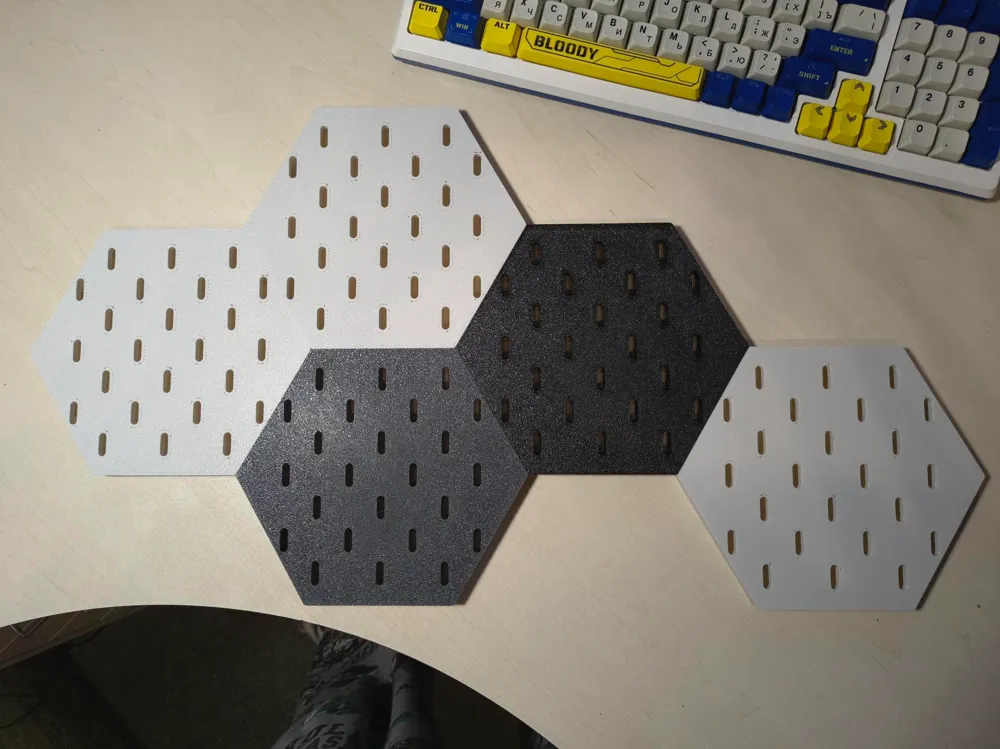

I designed my Skadis board for A1 mini in hexagonal shapes. They are fully compatible with the original board elements and have holes of the appropriate size.

Advantages of my model:

• Maximum print size for A1 mini

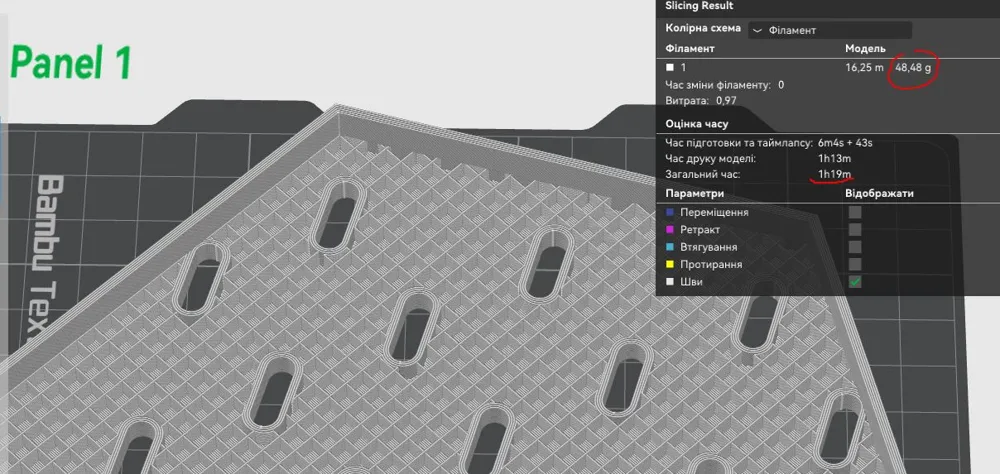

• Light weight around 50 grams

• Thickness 5 mm like IKEA, total thickness 12 mm

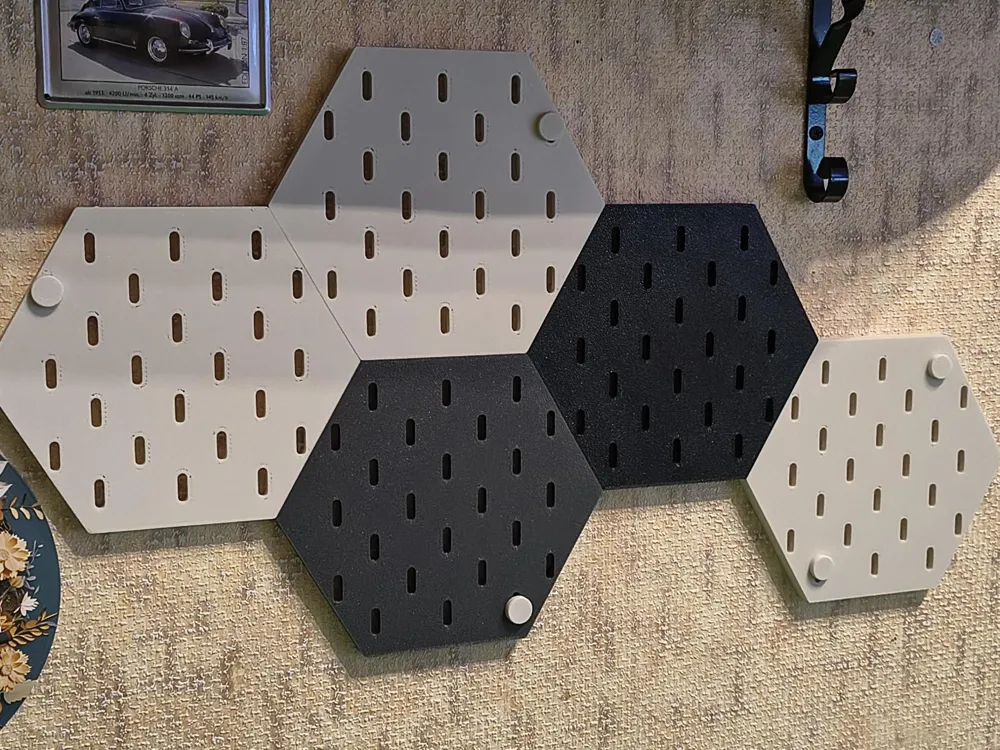

• Elements can be connected in any shape seamlessly just by gluing side surfaces to each other

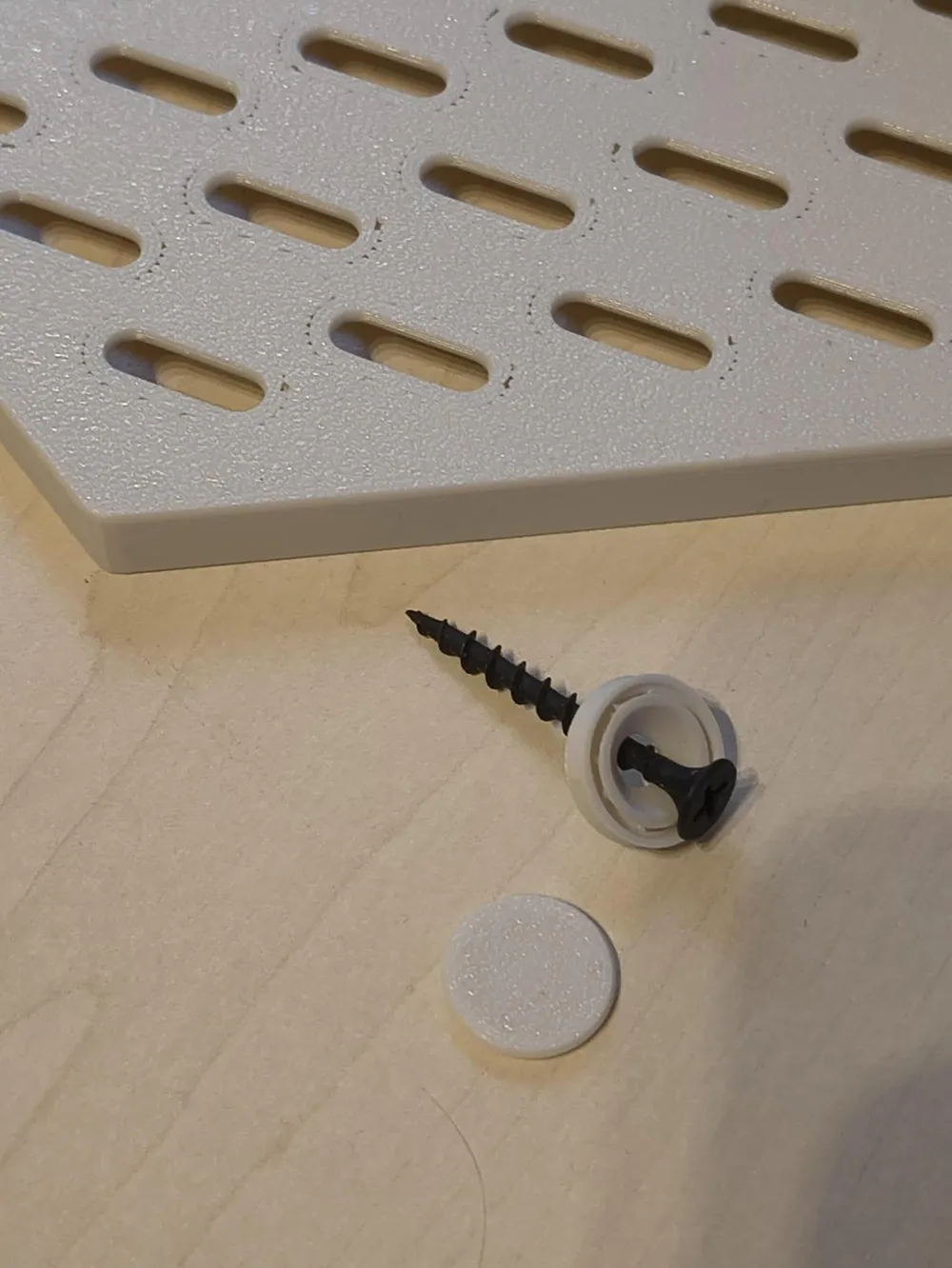

• Wall mounting elements that hide the screws

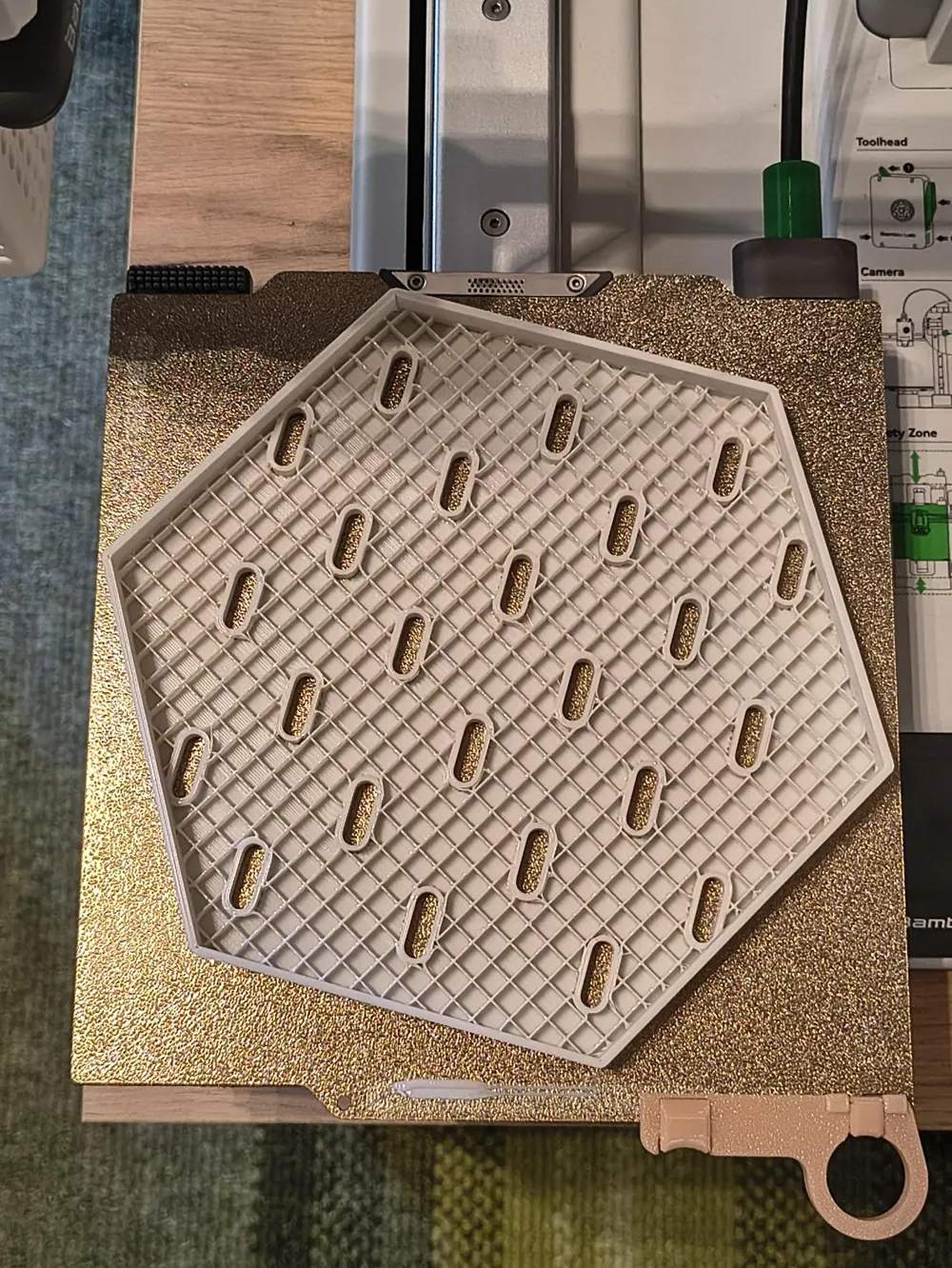

• No back wall layers to reduce plastic waste

Thank you fot boost!

look for my model Skadis Hex-storage box (https://makerworld.com/uk/models/1951797-skadis-hex-storage-box#profileId-2097309)

look for my model Tri-Hex skadis 36g per block (https://makerworld.com/uk/models/2049123-tri-hex-skadis-36g-per-block#profileId-2211363)

Comment & Rating (59)

@user_1362587047

adding one by one, love it

@user_1574296666

pretty nice

@raringvt

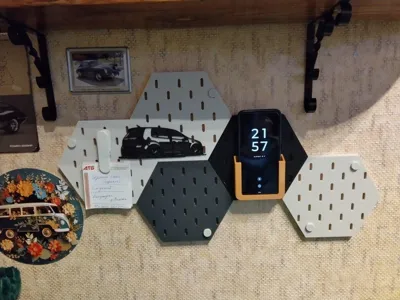

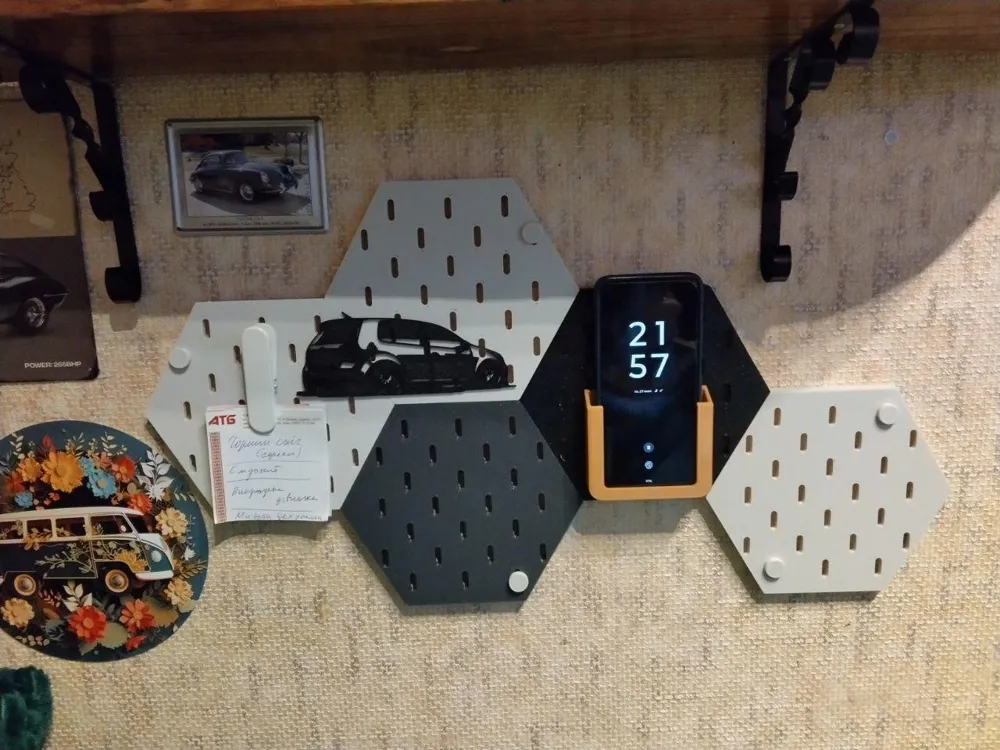

went all out making a little hexagon wall next to my printer, I love it. would be nice if the holes from one plate to the next would align as if a single sheet, but this works great for my application.

@user_507846272

Boosted

Print Profile

0.2mm layer, 3 walls, 10% infill

Perfekt for small stuff

@user_3287656130

prints really well! might be worth adding an option to mount without the need for drilling the wall

@VolvoT50

Print Profile

0.2mm layer, 3 walls, 10% infill

printed in Silk+. Super good 💪 Depending on the wall, I can recommend simply nailing the parts into the wall with large nails. It is invisible and holds very well. I glued the parts beforehand

(Edited)

Show original

@user_1579947547

Print Profile

0.2mm layer, 3 walls, 10% infill

@user_1273194911

Enjoying the prototyping process using these for a project I’m working on. I only wish they could be seamless / same distance between holes when moving from one plate to the next. Otherwise great model.
