Classic Mini Fog Light Mount and Base Custom LED
Print Profile(1)
Description
ok noticed my current fog light mount was rusty , i had a spared LED “f1” fog light from ebay laying around so i combined the two
https://www.ebay.co.uk/itm/276470949331

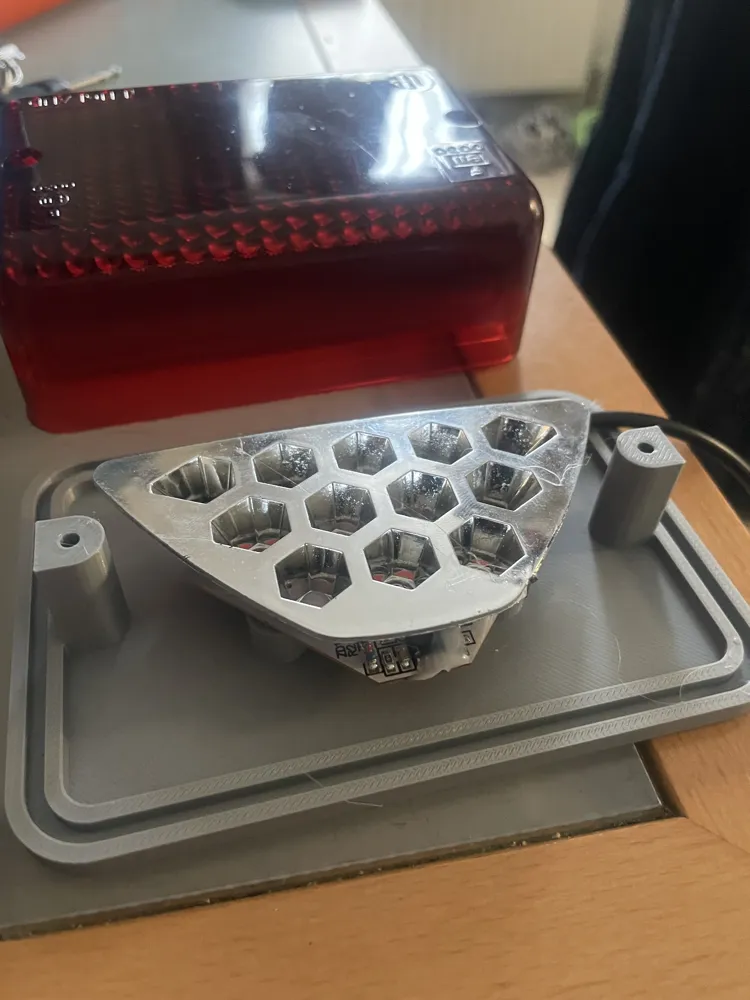

if you have a different LED bulb you will have to tweak fog light holder a bit , wont be hard

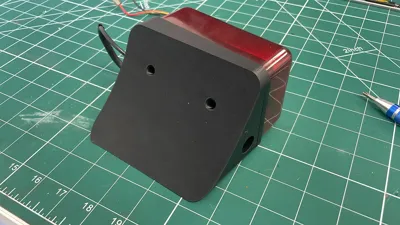

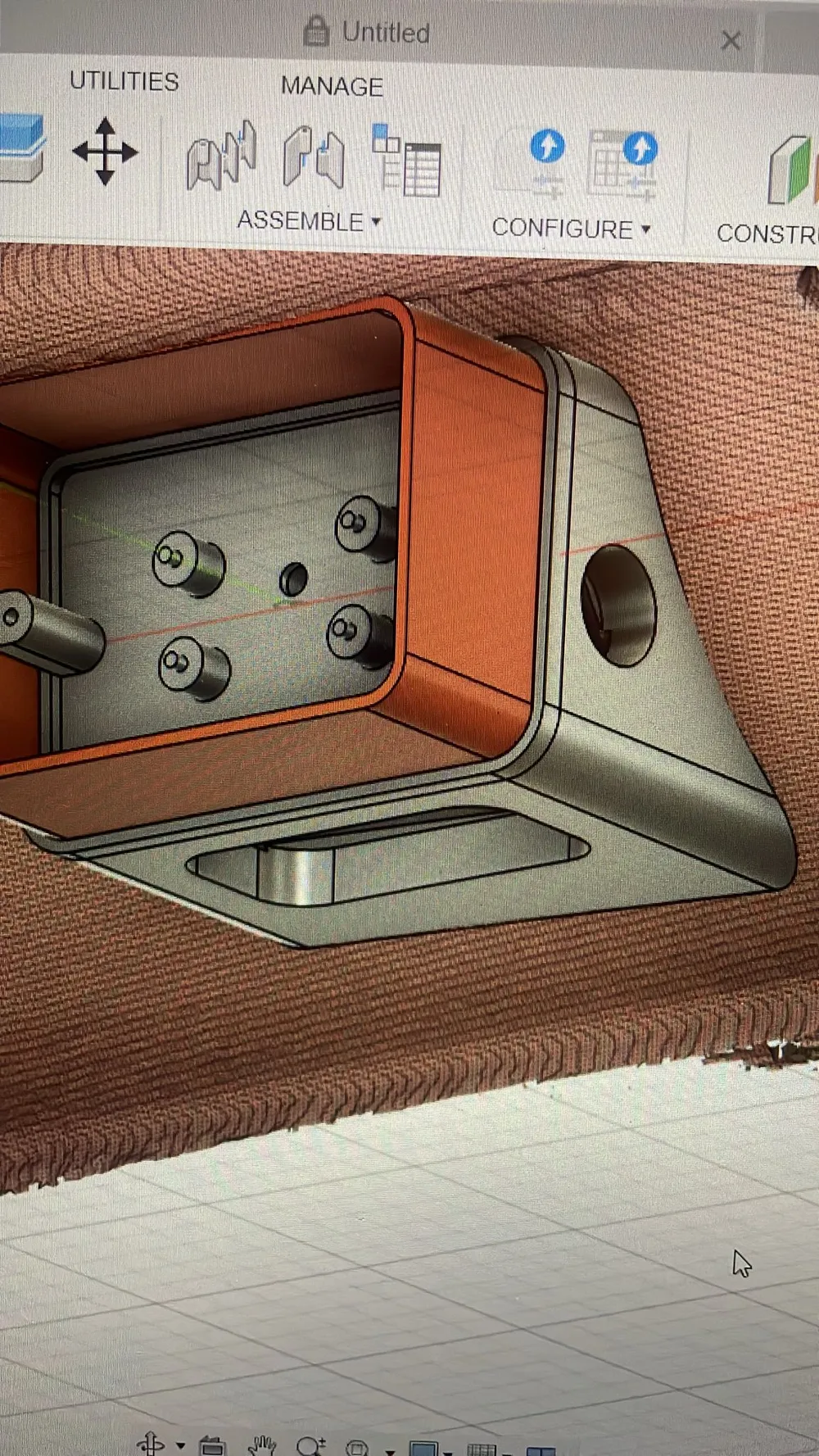

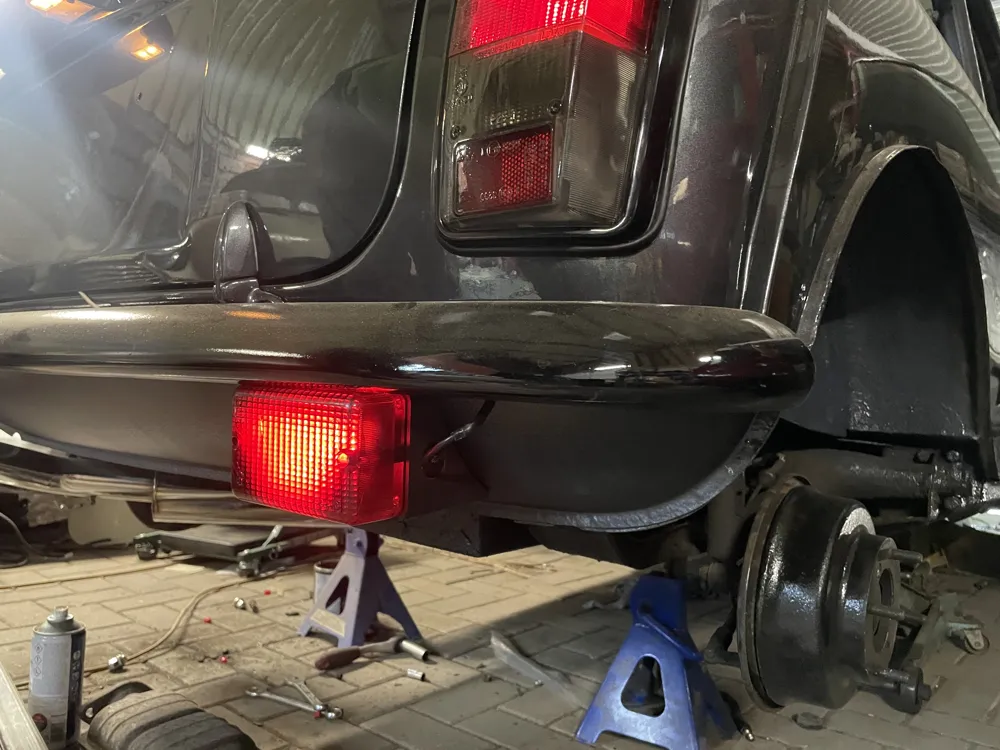

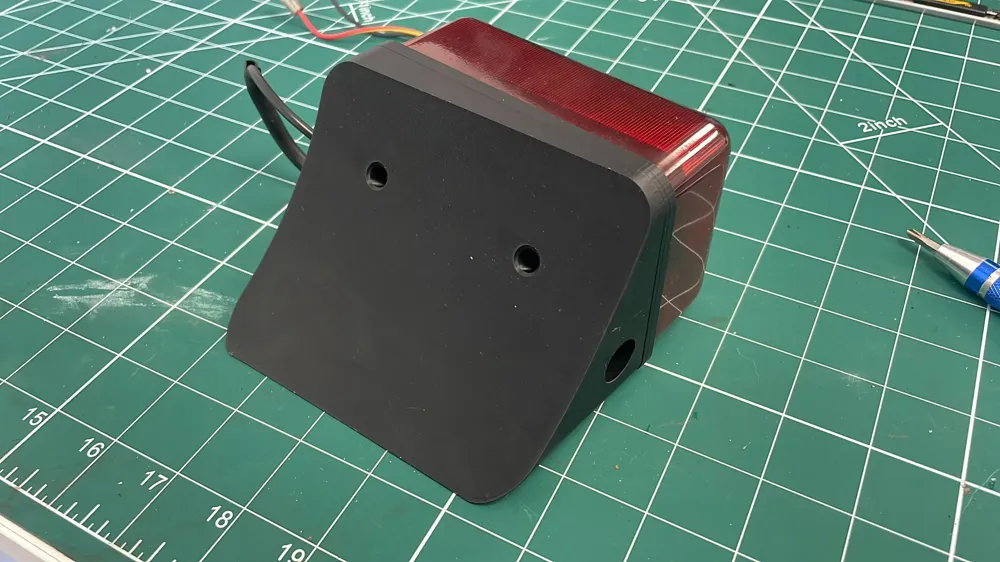

I 3d scanned the mini rear valance , then created a mount that sits flush and up close to the rear bumper i wanted it tucked in , i fixed mine with two rivnuts , then once that bolted on you can then screw Lamp base to that , i printed a TPU gaskest , then the standed mini lens is re used and screwed in .
does NOT use original holes , you will need to drill new holes
made from PTEG to help it last
