Switching Power Supply Holder/Case Profitec-MW7H50GS

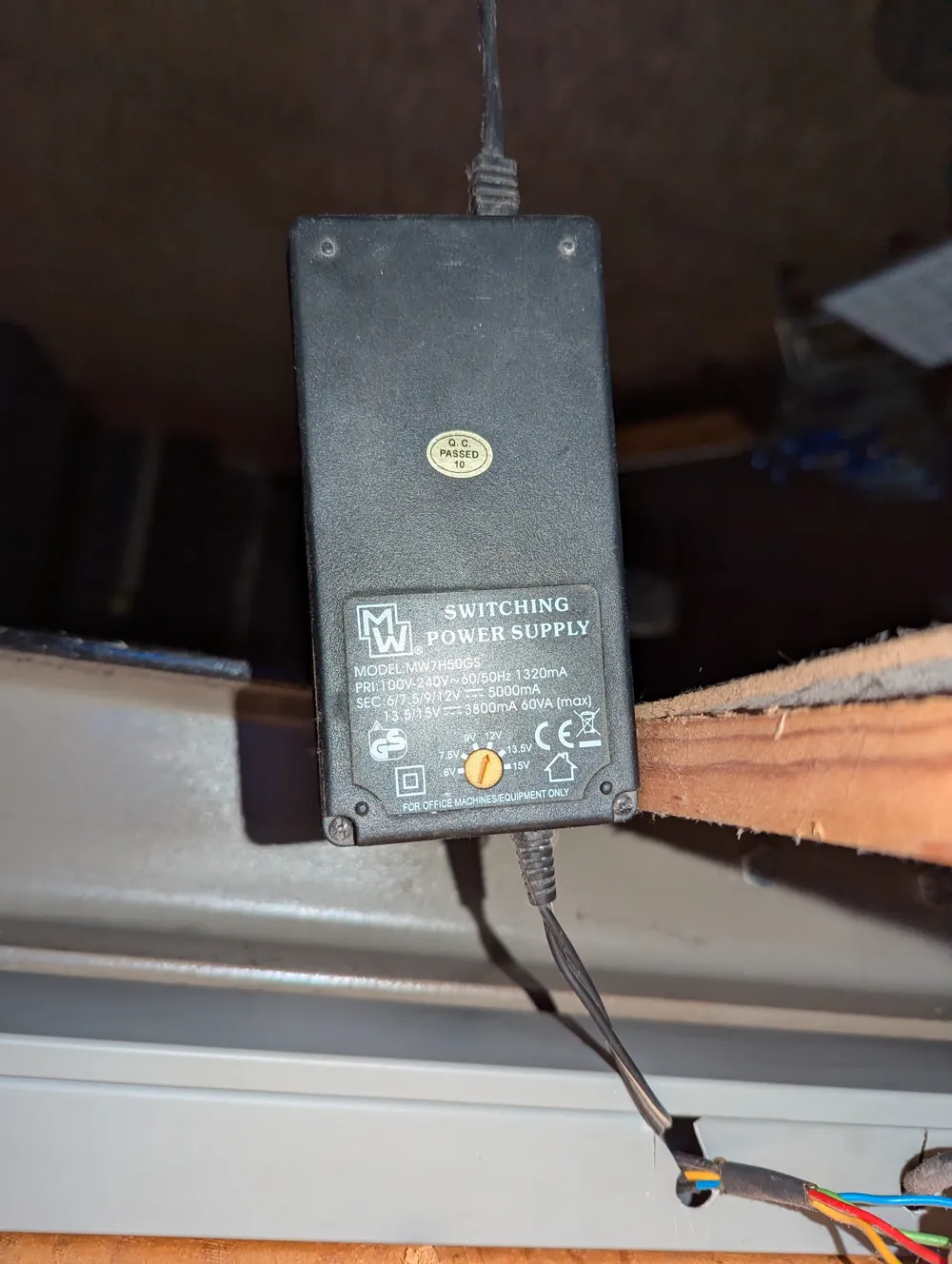

The case is for the power supply (see photos as well) PROFITEC Switching Power Supply MW7H50GS.

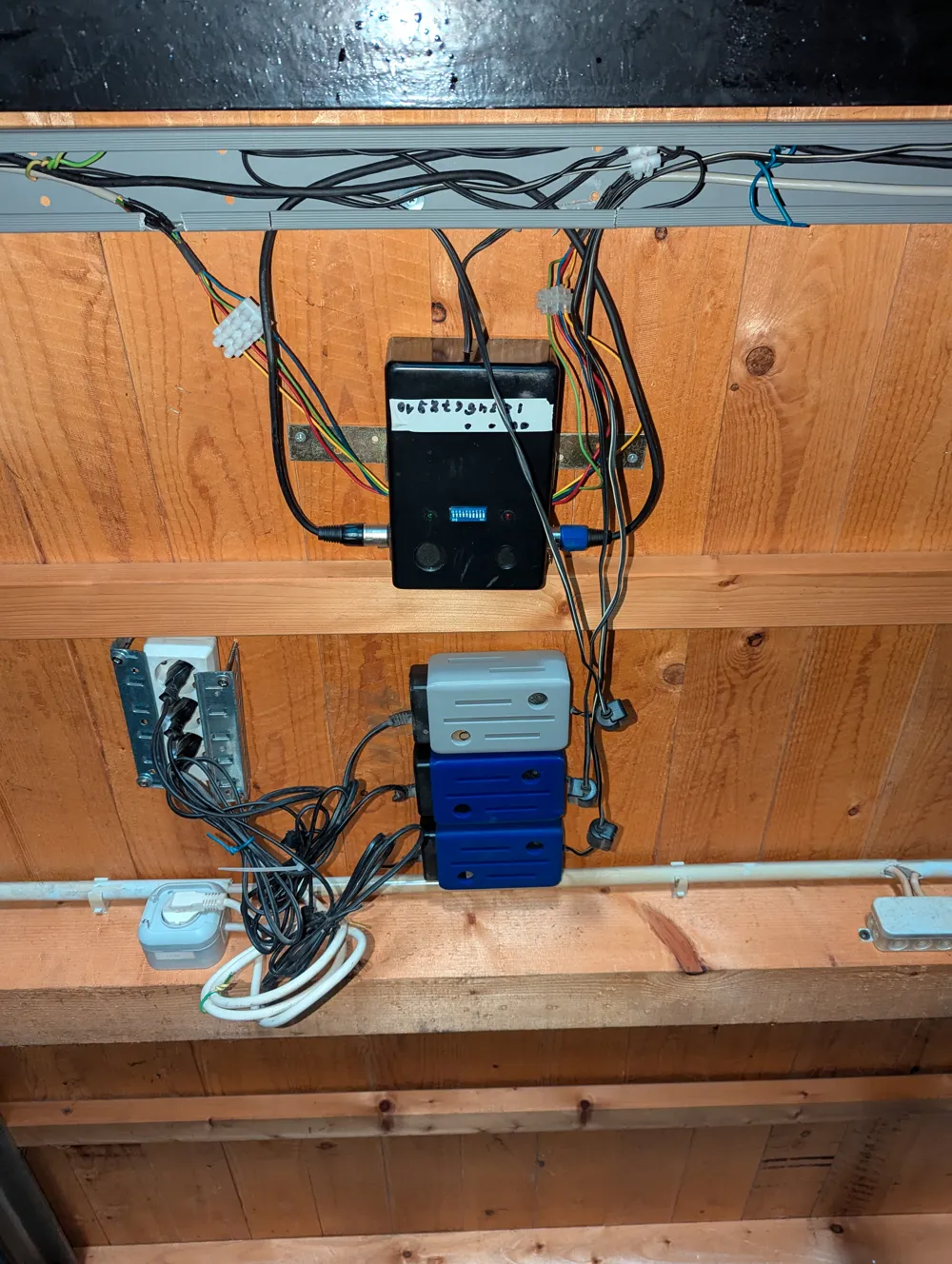

In my case, the power supply case was screwed to the ceiling,
but it can be attached anywhere else. Tidy equals a happy life. :)

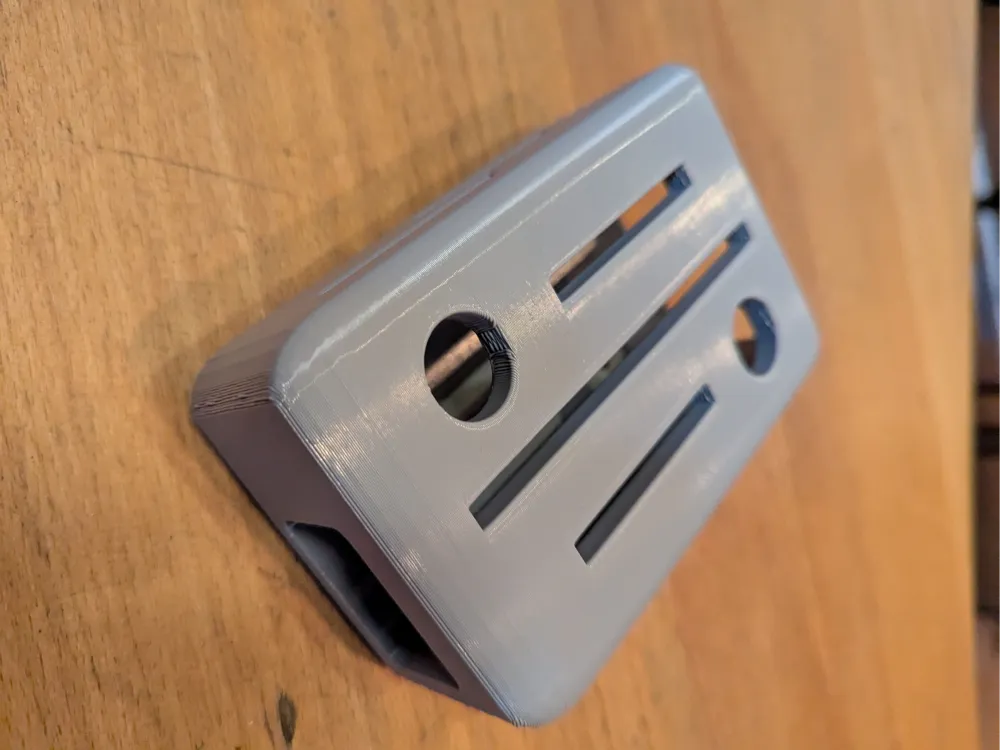

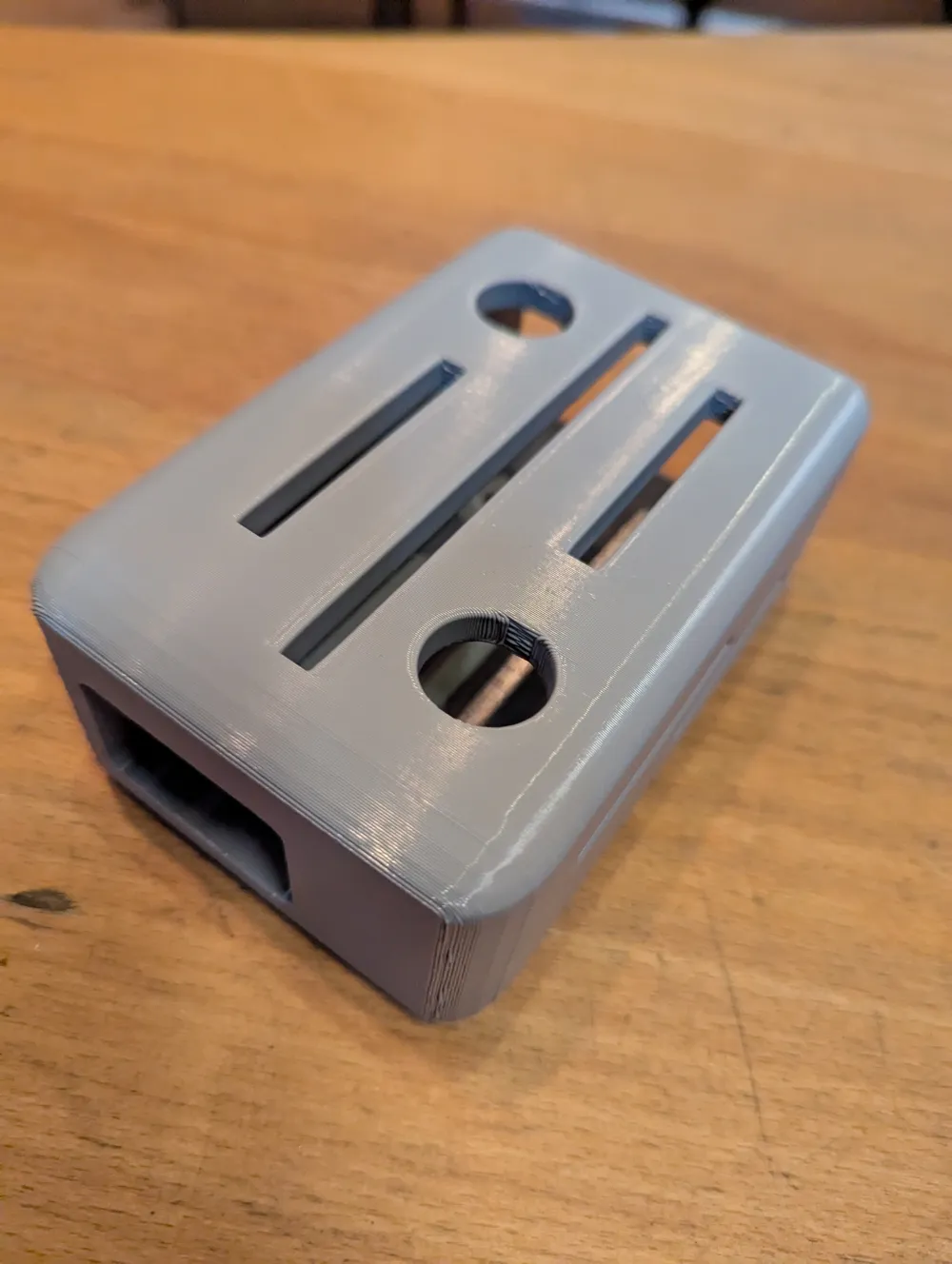

If you look at the case from above (see 3D view), you will see two large openings,
enough space to drive a screw into wood with a screwdriver through the opposite
opening.

Once that is done, there are two openings sideways, a small one where you can pull
the low-voltage end through, and a larger opening to slide
the power supply into the case.

If the power supply gets warm, ventilation slots are provided on the sides.

I printed the case upright, with the small opening facing downwards,
so no supports are needed. It can be printed in PLA or PETG of your choice.

I have also included a dummy of the Profitec power supply, in case you have a
similar model and don't want to reinvent the wheel to use
such a solution. Otherwise, delete it from the print plate.

The dimensions are: X=120mm / Y 38.25mm / Z=70mm

In Bambu Studio, you could push the dummy into the case and scale it to
the desired size of your power supply.

Otherwise, have fun :)
