Yamaha XSR900 Winglets

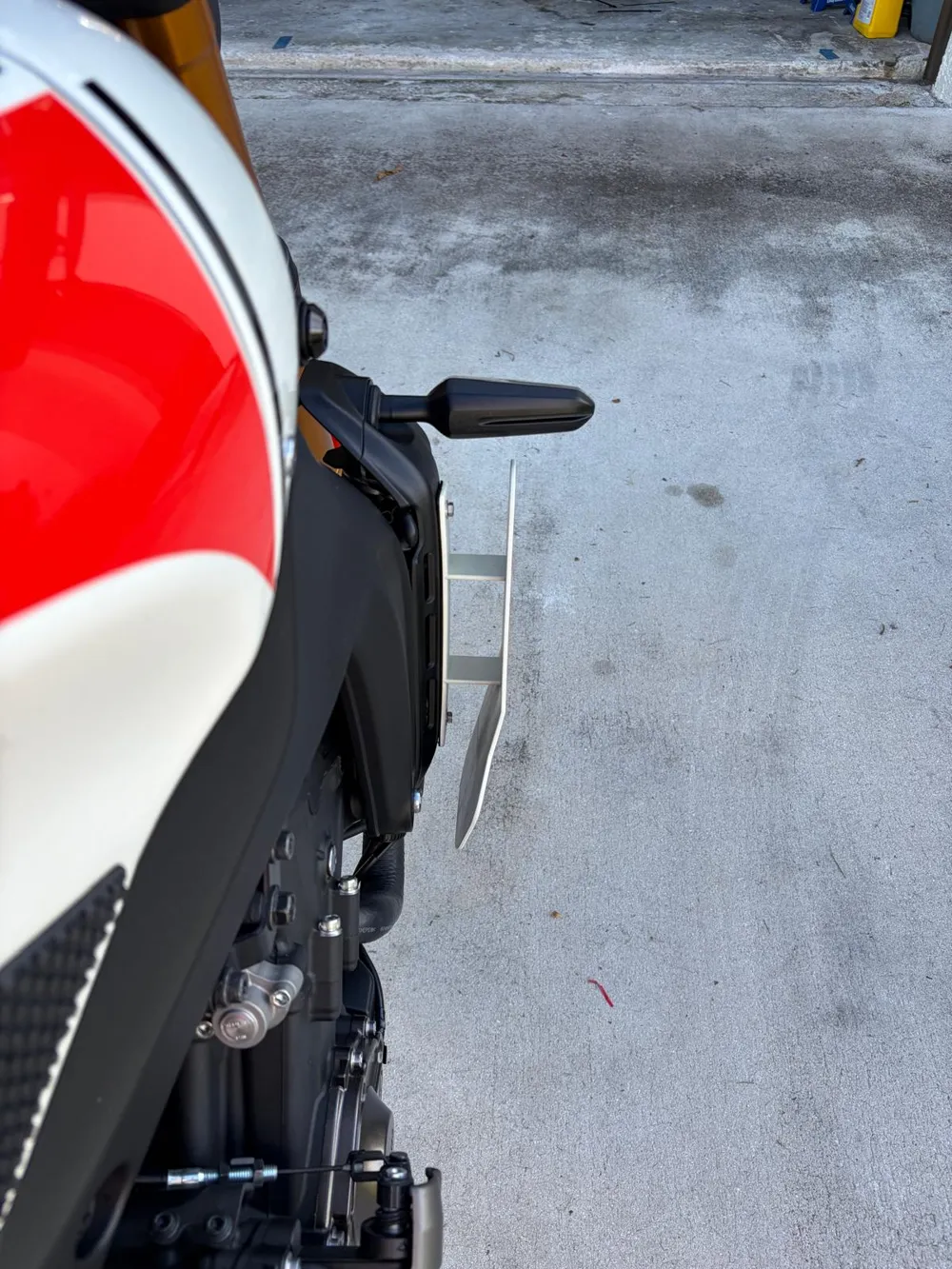

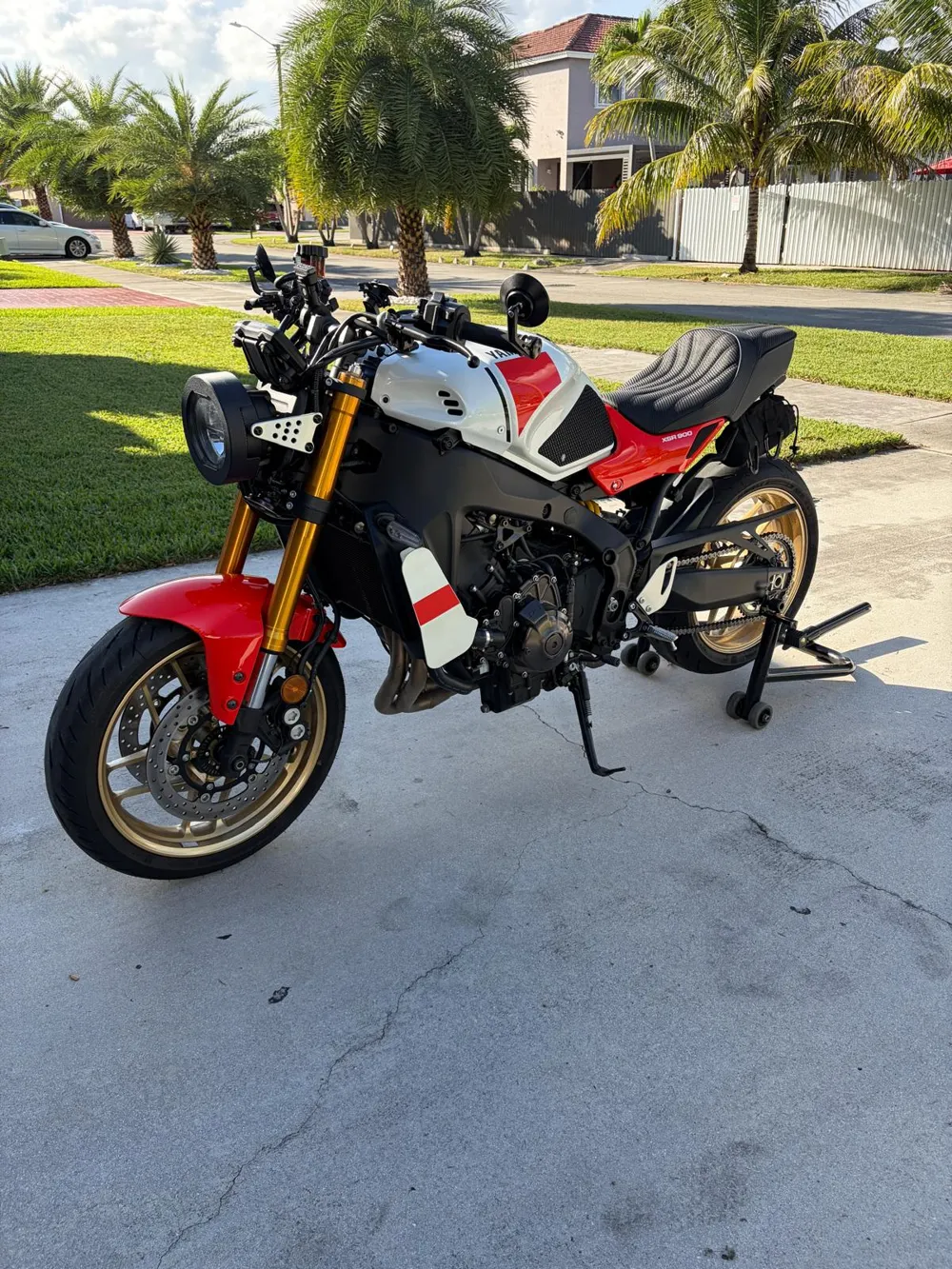

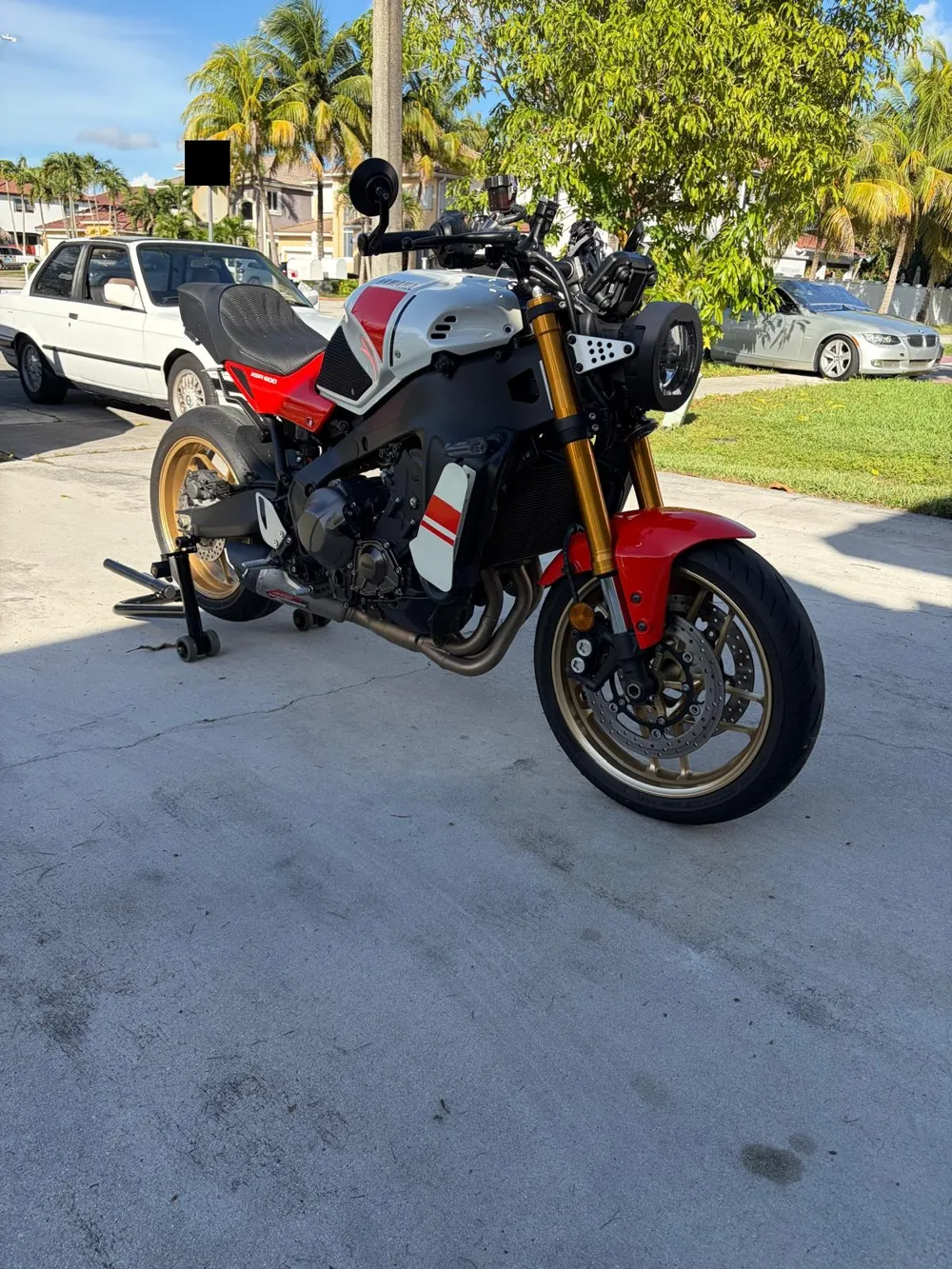

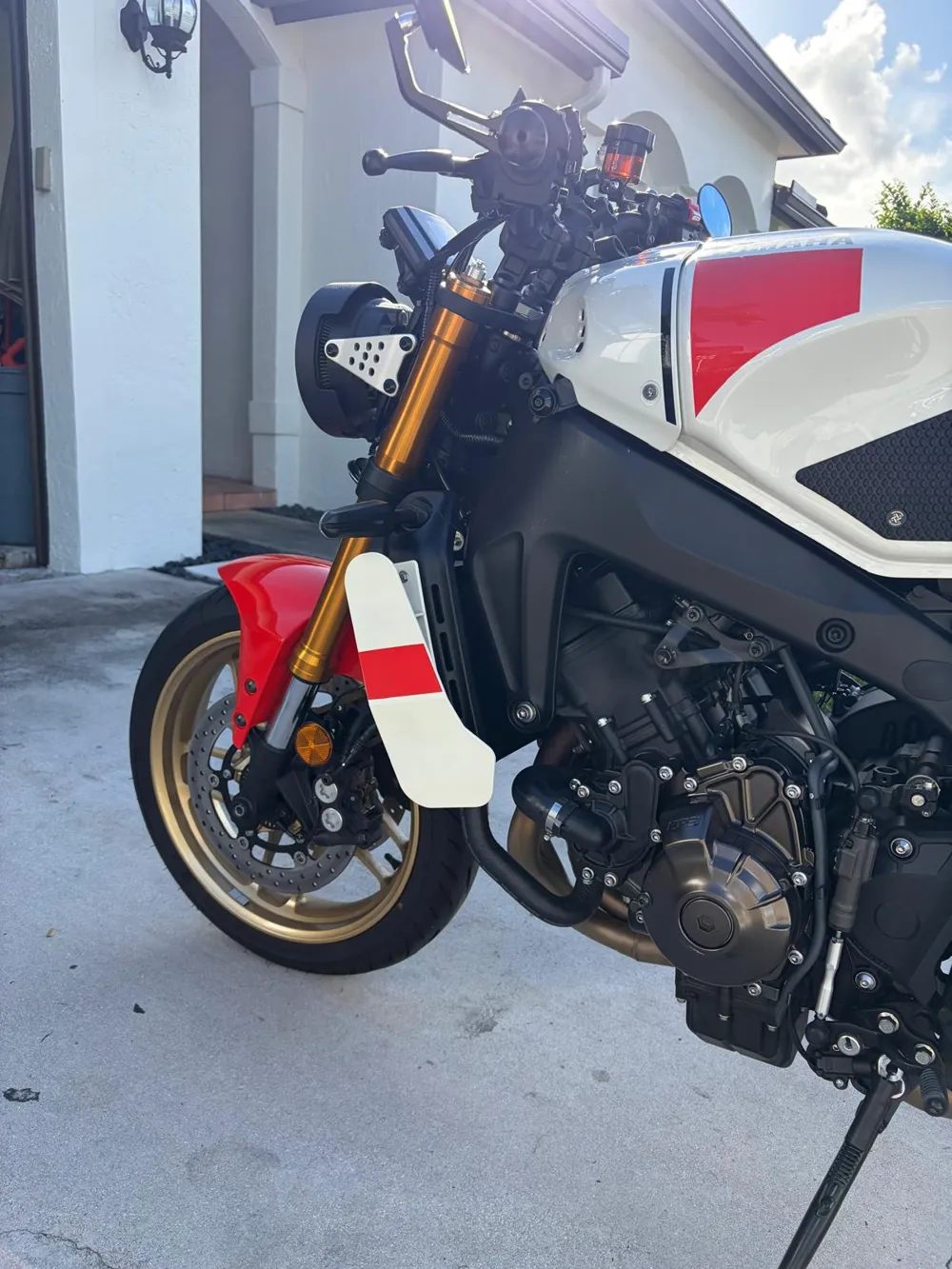

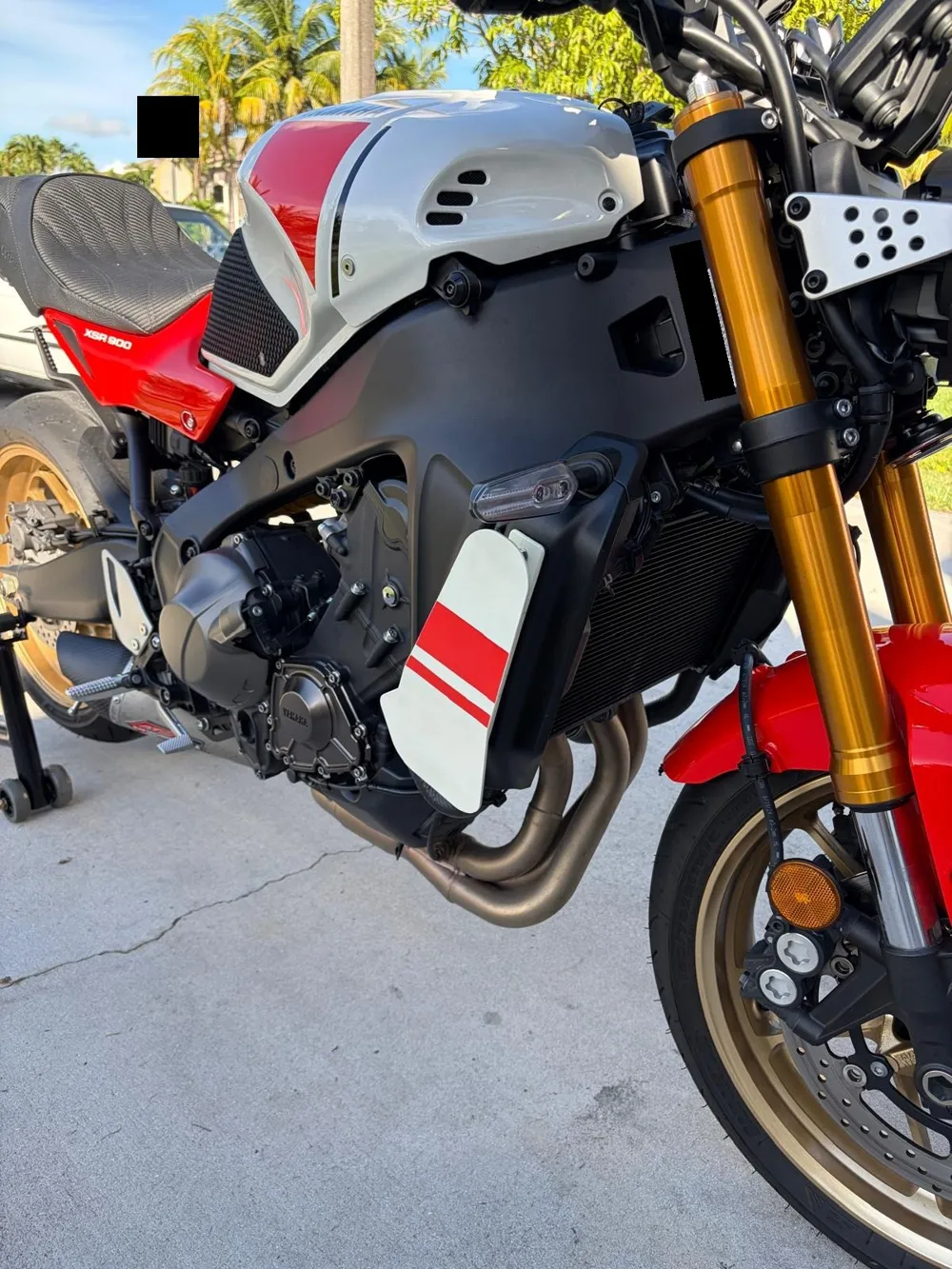

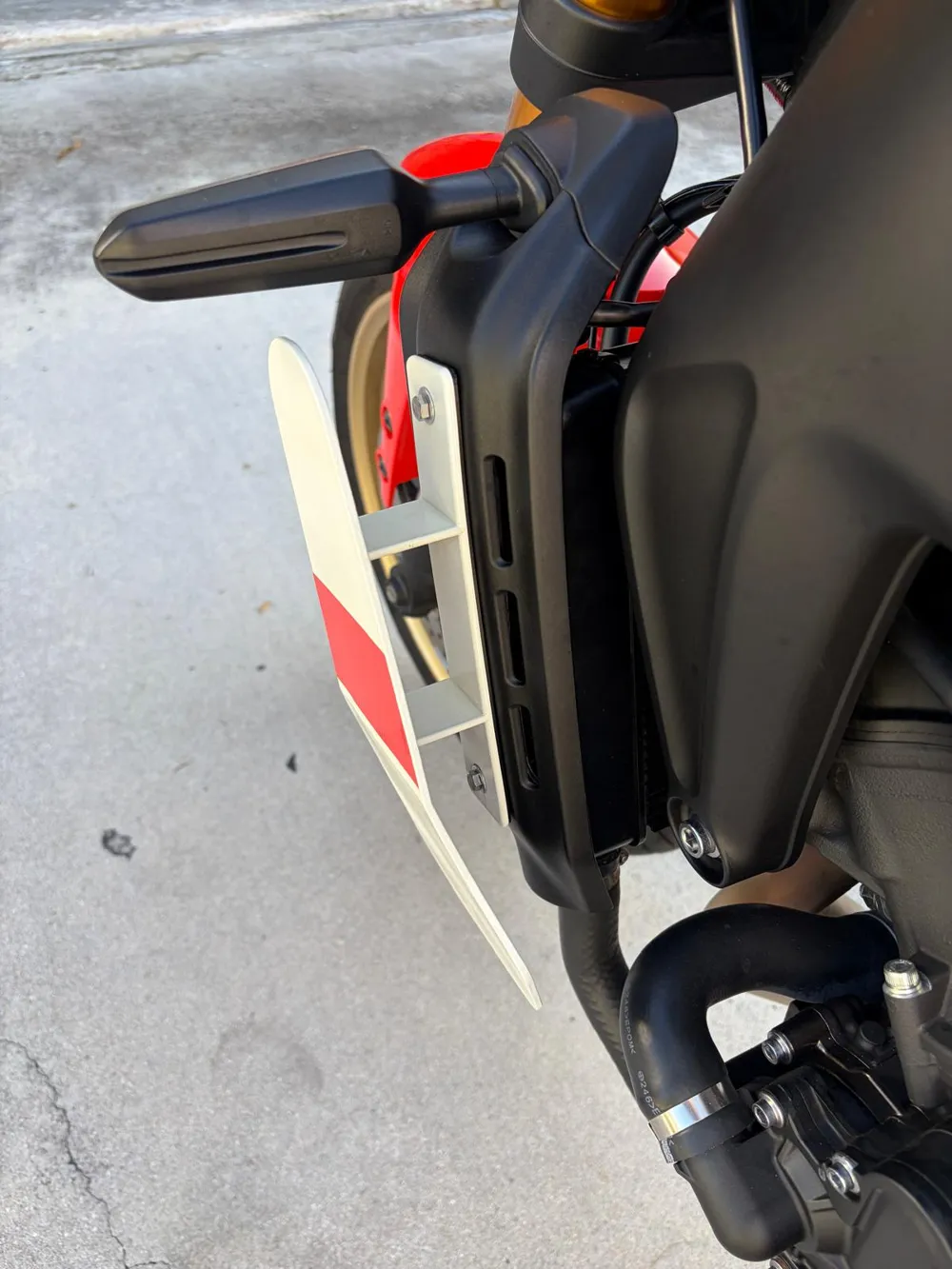

Custom XSR900 Winglets. Want to give your XSR900 a more unique and flashy look? These 3D-printable parts provide a direct, bolt-on aesthetic upgrade to elevate your bike's style with a race-inspired edge.

Item Information

Name of Item: Winglets
Motorcycle Model & Year: 2022 - 2024 Yamaha XSR900
Purpose/Function: Aesthetics ONLY
Material Used: Polymaker PolyLite ASA, Overture TPU

Print Settings

Winglet

Material Used: Polymaker PolyLite ASA
Printer Used: Bambu X1C
Nozzle Size: 0.4 hardened steel nozzle
Slicer: Bambu Studio
Printer Preset: 0.20mm Standard @BBL X1C
Infill %: 99%
Wall Loops: 3
Sparse infill pattern: Adaptive Cubic
Supporteeded: Yes
Type: Tree (auto)
Style: Default
Threshold angle: 30°
Estimated Print Time: 3h 6min
Estimated Filament: 101.94g

Gasket (Optional)

Recommended to protect OEM radiator cover surface

Material Used: Overture TPU
Printer Used: Bambu X1C
Nozzle Size: 0.4 hardened steel nozzle
Slicer: Bambu Studio
Printer Preset: 0.20mm Strength @BBL X1C
Infill %: 25%
Wall Loops: 6
Sparse infill pattern: Adaptive Cubic
Support Needed: No
Estimated Print Time: 1h 29min
Estimated Filament: 18.74g

Washer

(ONLY if using gasket)

Material Used: Polymaker PolyLite ASA
Printer Used: Bambu X1C
Nozzle Size: 0.4 hardened steel nozzle
Slicer: Bambu Studio
Printer Preset: 0.20mm Standard @BBL X1C
Infill %: 15%
Wall Loops: 2
Sparse infill pattern: Adaptive Cubic
Support Needed: No
Estimated Print Time: 10m 20s
Estimated Filament: 1.01g


View the attached documentation for additional details.
