Modular Self-Watering Pot

Self-Watering Plant Pot – Modular Core Design

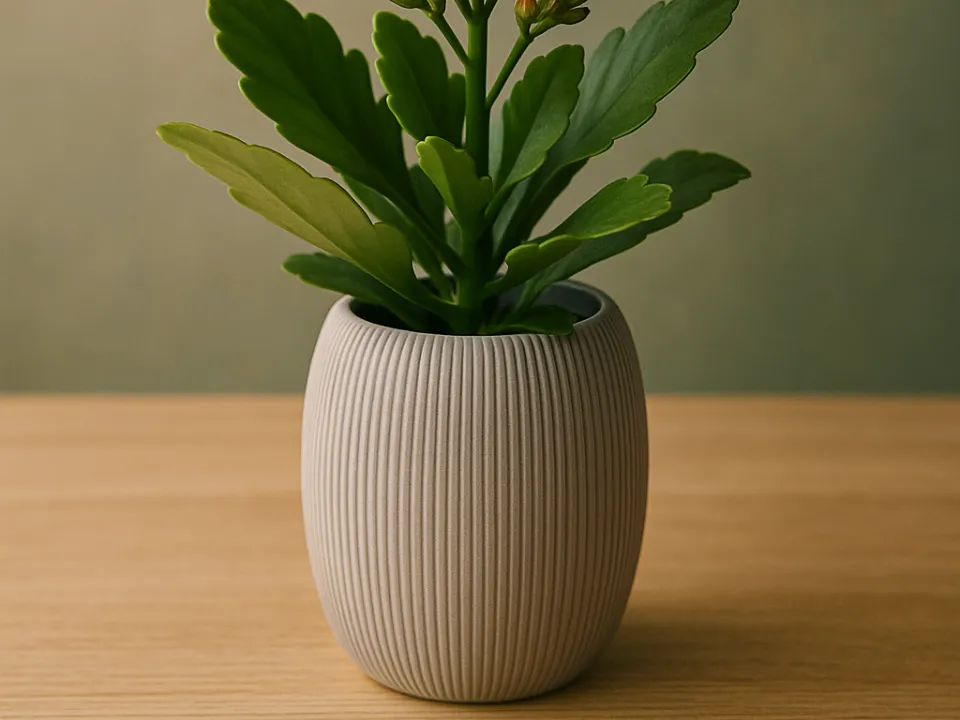

This is a functional 3D printed self-watering plant pot with a reusable modular core system. The inner core contains an integrated water reservoir and a simple wick system that provides consistent moisture to the plant roots. The pin works as a water level indicator so you always know when to refill.

The design allows you to reuse the core and change the outer style of the pot without replanting. Clean, practical, and easy to print.

✅ Features

• Self-watering system using cotton wick
• Modular design – change pot style without repotting

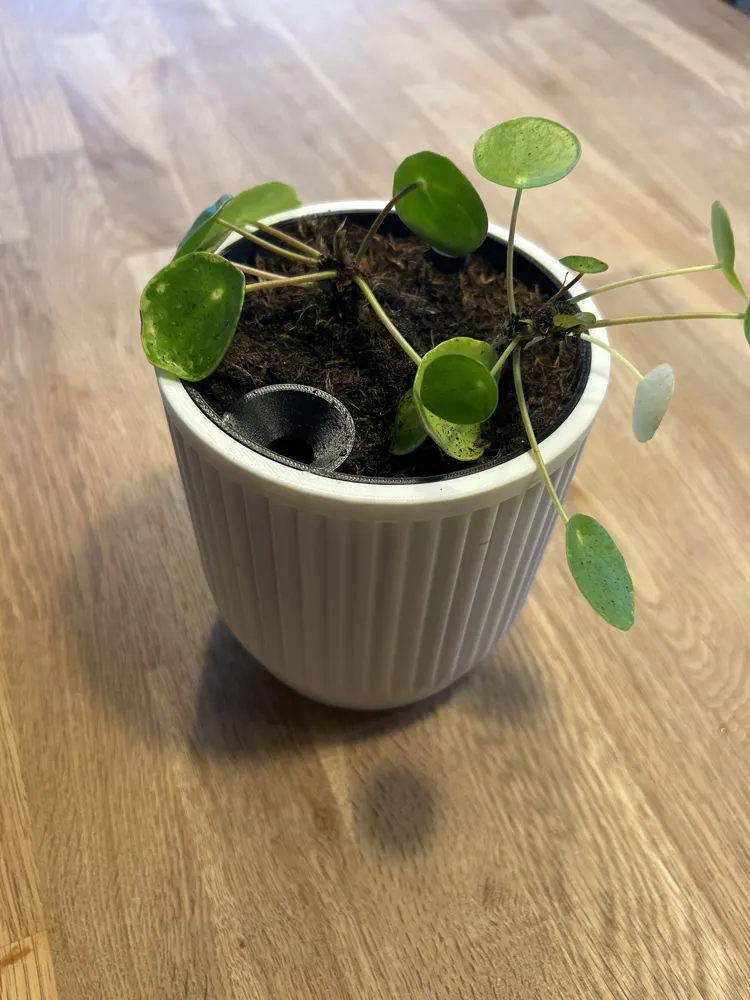

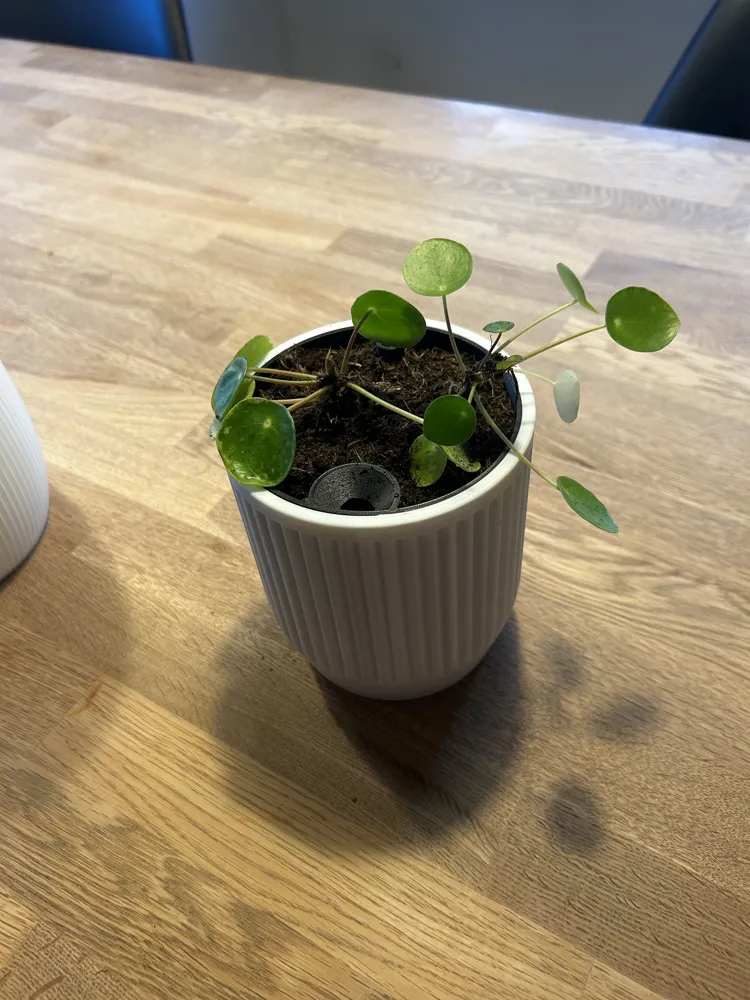

• Integrated filling channel in the core

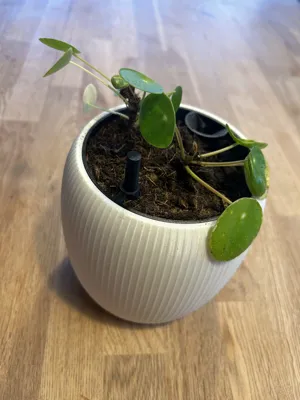

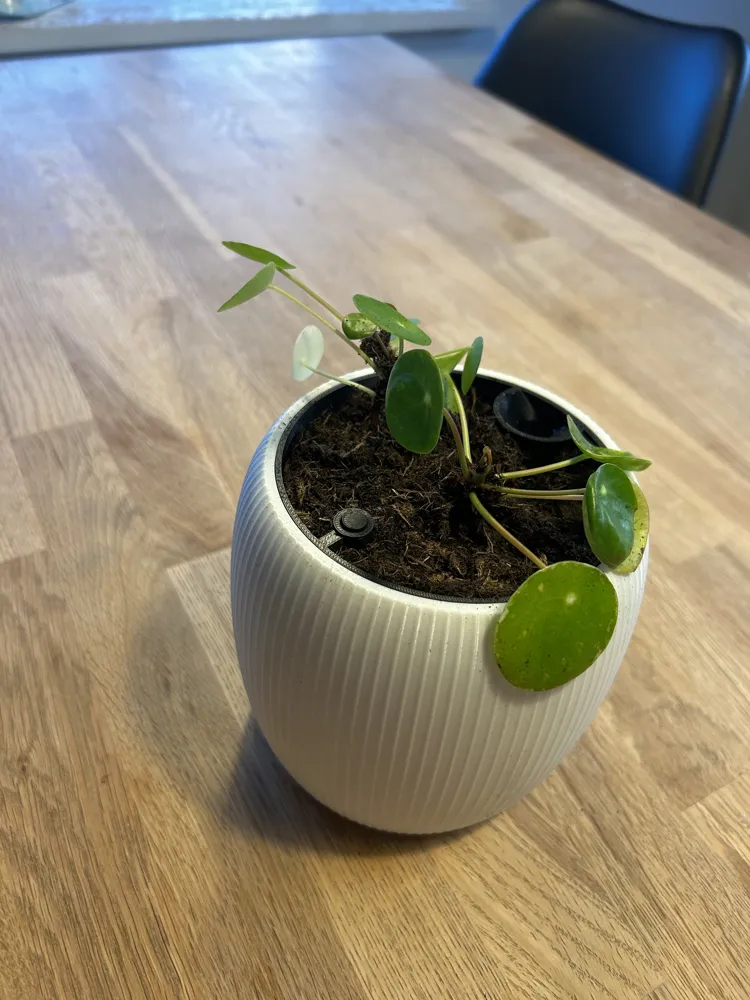

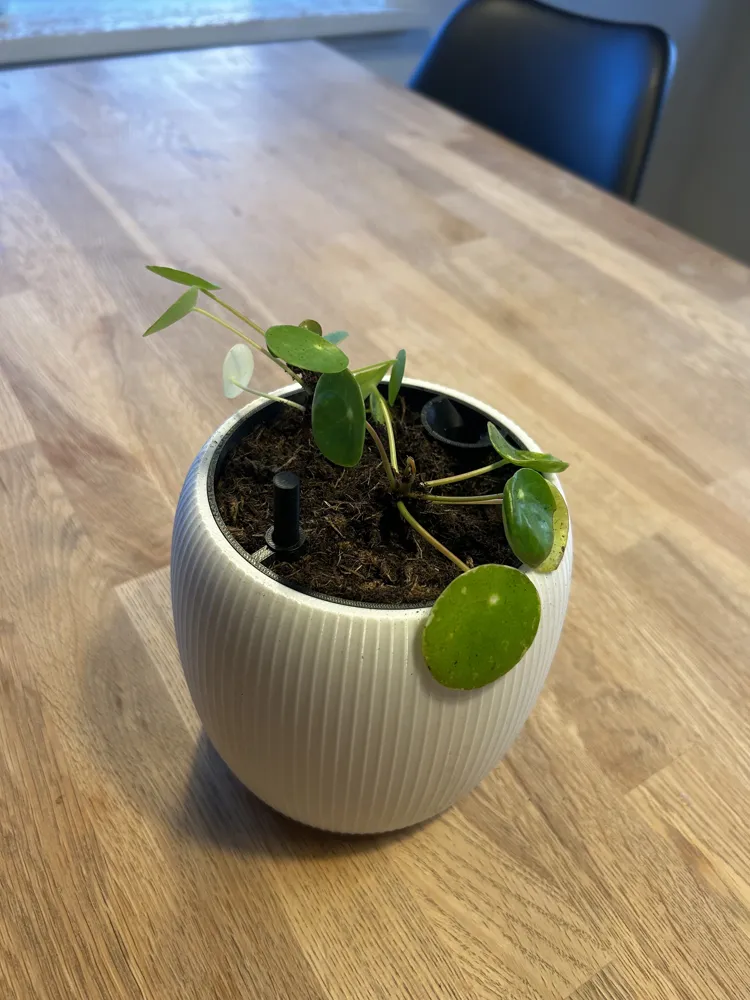

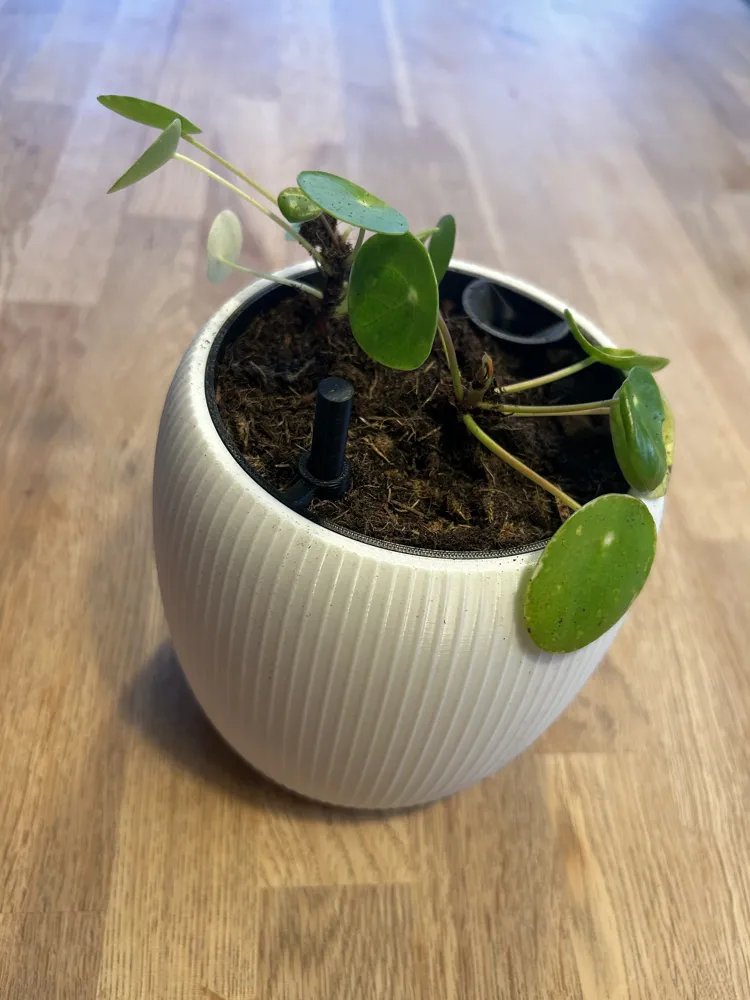

• Water level indicator pin
• Easy to print – no supports
• Fits small to medium indoor plants (e.g. Pilea)
• Designed for long-term use

✅ Recommended Print Settings

• Material: PLA or PETG
• Layer height: 0.2 mm
• Nozzle: 0.4 mm
• Infill: 15–20%
• Perimeters: 3
• Supports: Not required
• Print orientation: Upright
• Bed adhesion: None or skirt

✅ Assembly

1. Insert the water level indicator pin in core.
2. Place the core inside the pot.
3. Fill the water reservoir through the side opening.
4. Add soil and plant.
5. Ready to use ✅

✅ Notes

• Suitable for small indoor plants like Pilea, herbs, and succulents.
• Designed by EmPed – copyright, no remix.
