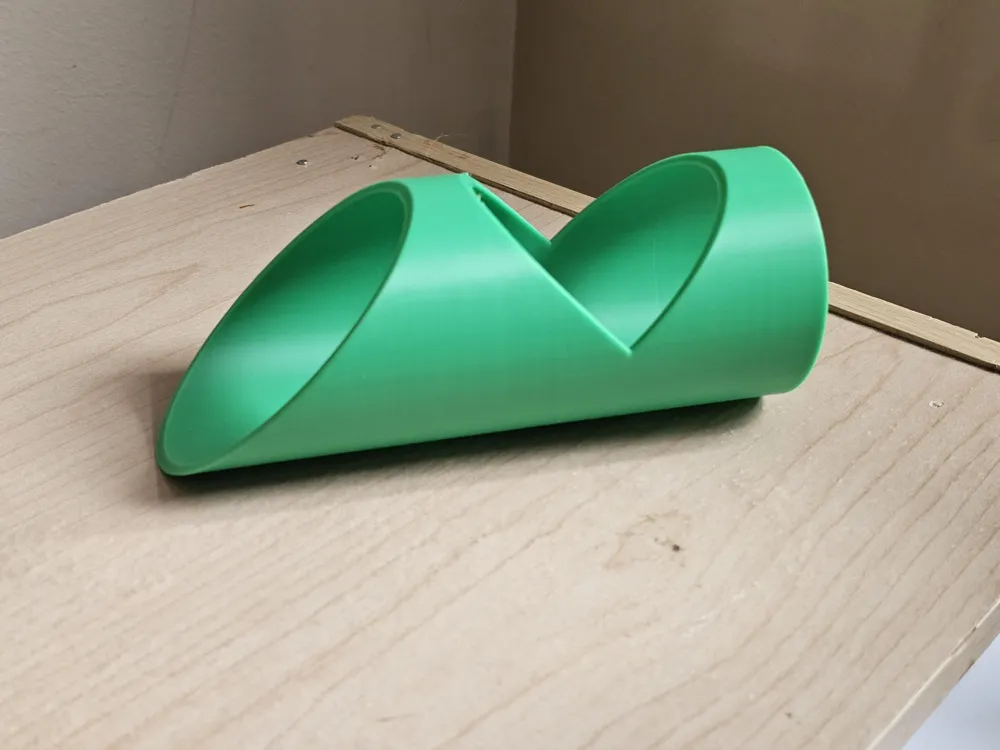

Lagging Tool - Parametric

Parametric Lagging Tool for Easy Pipe Installation Cutting. Great tool for making clean, precise, and repeatable angled cuts on foam pipe lagging.

Easy tool to make 90 degree elbows and 45 degree miter cuts.

Instructions:

1. Slide pipe into the jig
2. Use angled guides to make perfect cuts with a utility knife
3. Have a perfect cut

Parametric Model: The model is parametric so you can customize it to fit the exact diameter of the pipe insulation you are using

This is my first attempt at a Parametric Model so let me know if there are any issues.
