Speakon Connection Panel
Print Profile(1)
Description
A simple connection panel for speakers.

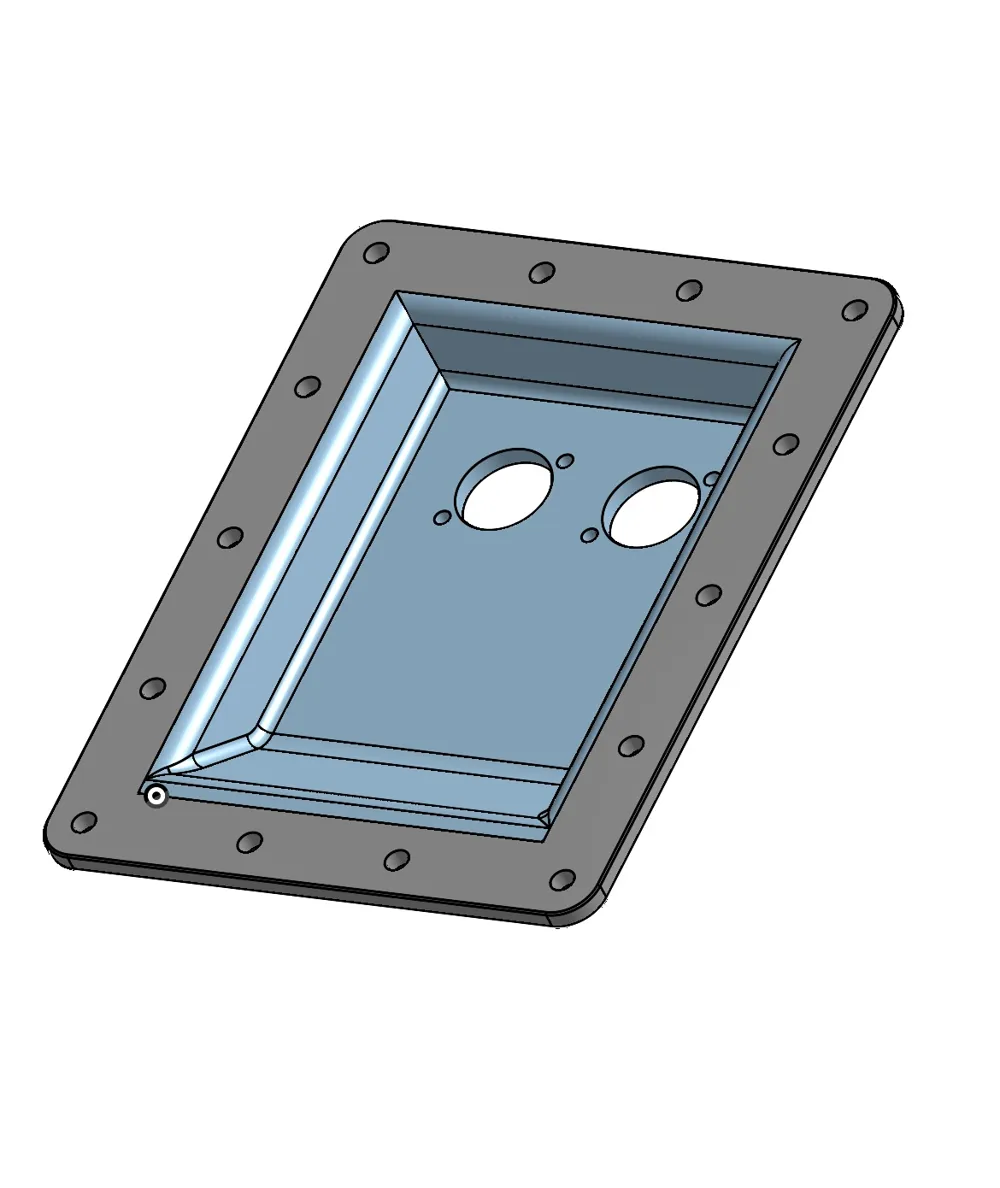

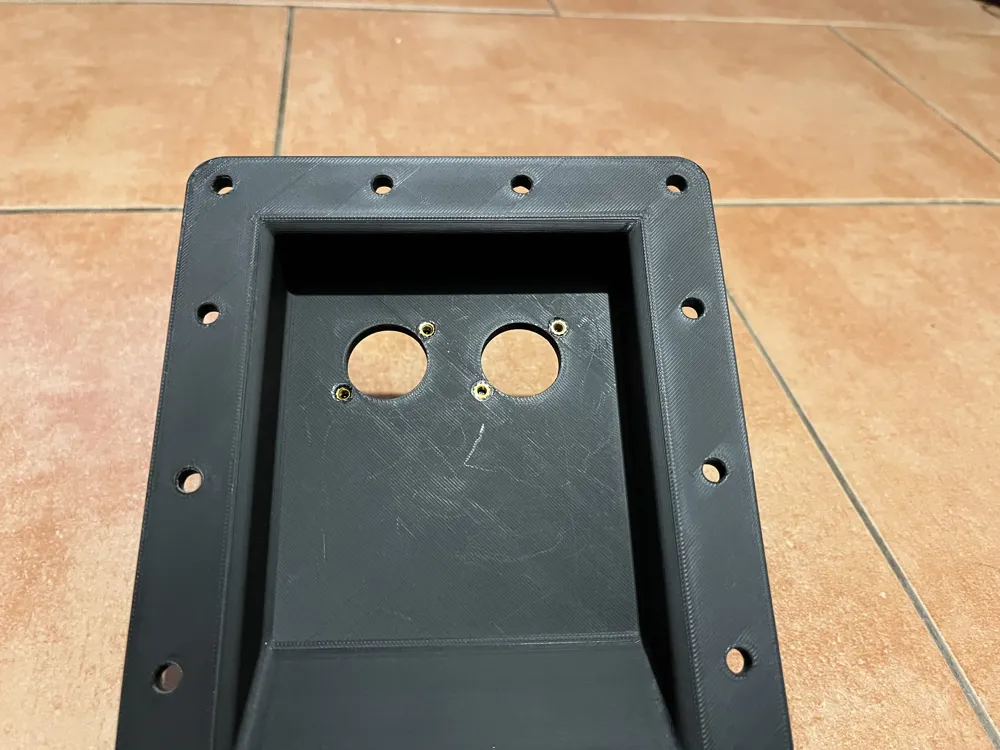

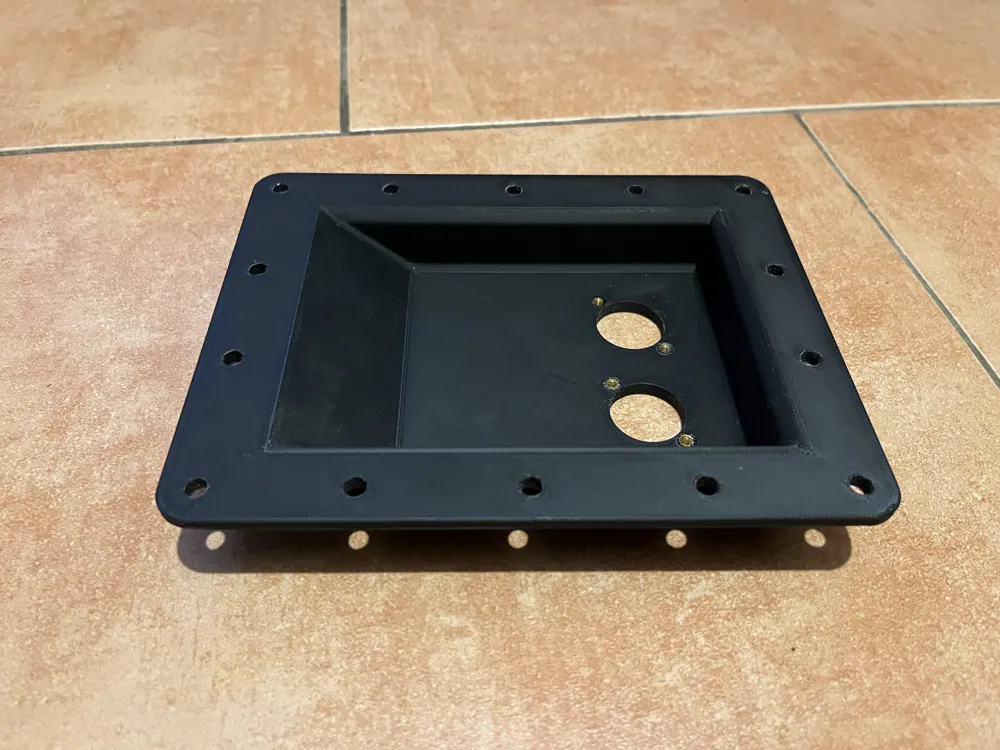

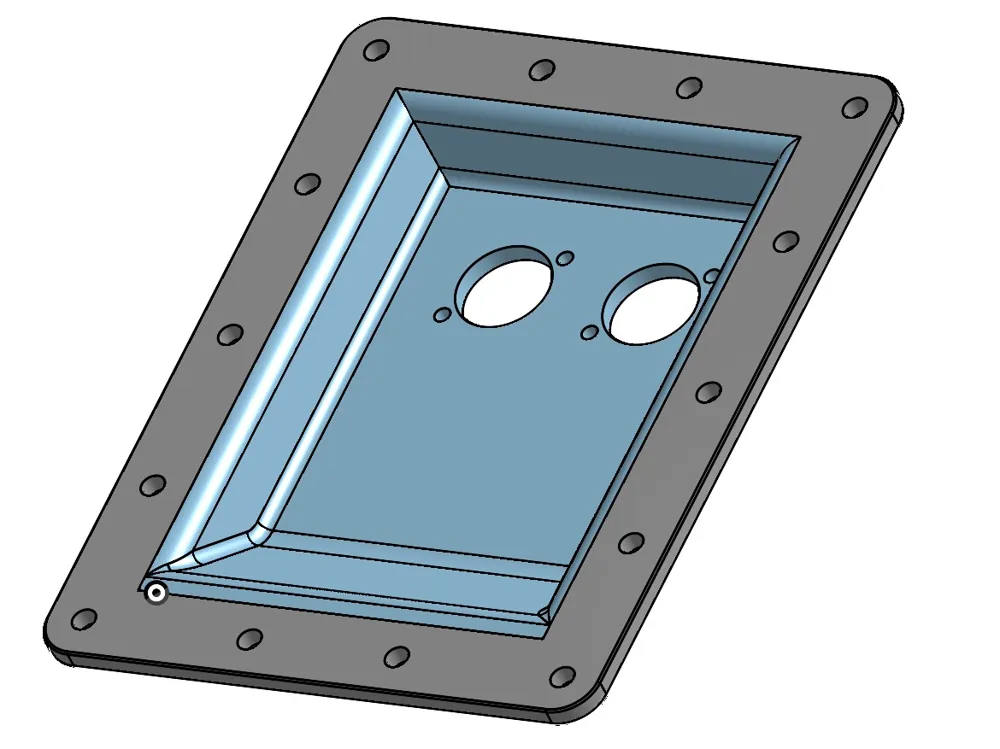

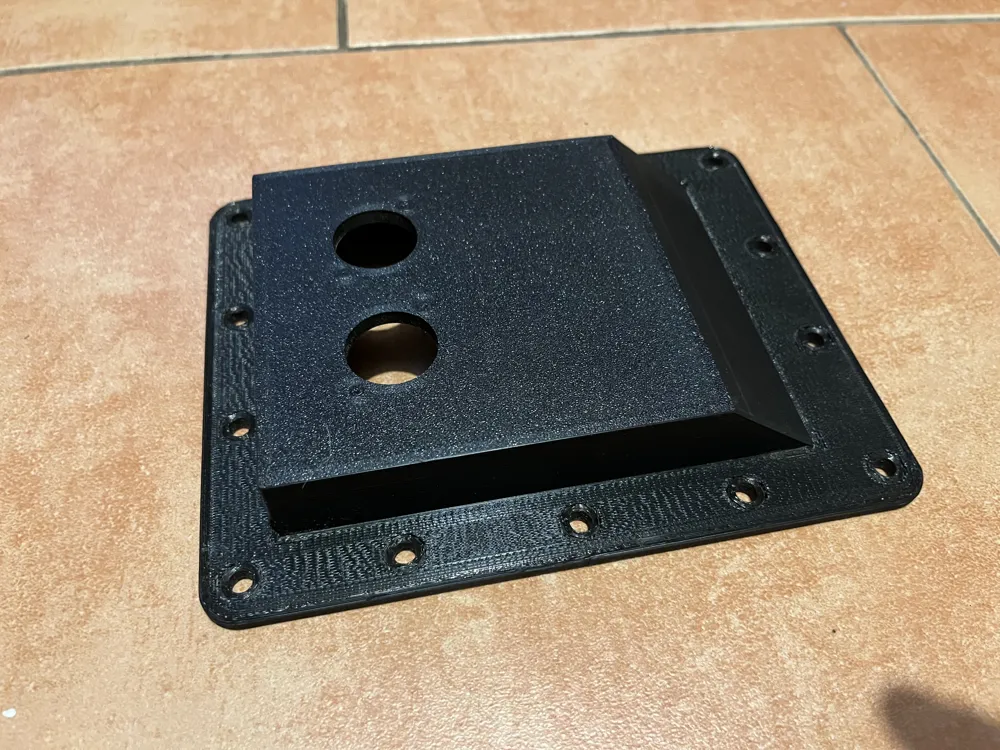

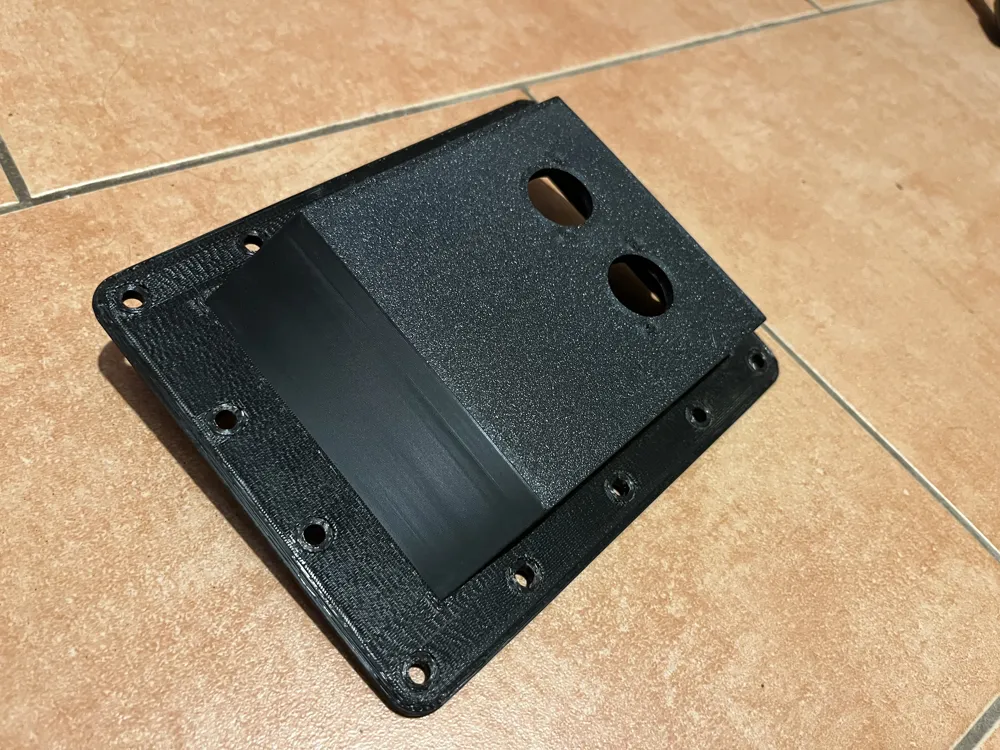

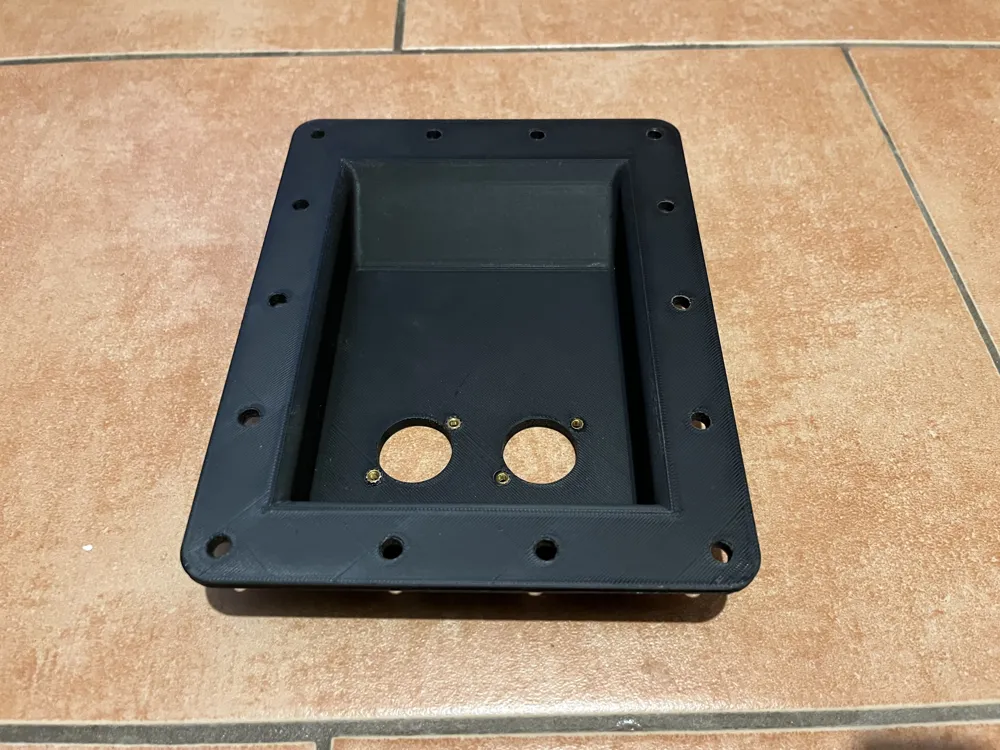

This is a simple connection panel for DIY speaker or subwoofer builds. It is designed for 2 Speakon sockets, which can be easily inserted and screwed in. The small holes are for small M3 threaded inserts to simplify assembly and disassembly. The outer dimensions are 150mm x 190mm, and the dimensions for the cutout in the speaker should be 110mm x 150mm. To set the connection panel flush with the surface, the outer edge should be lowered by 5 mm.
