Wheel center to fender gauge, vehicle height
Print Profile(4)
Description
Boost Me (for free)
If you like this model, feel free to leave a BOOST I would be very happy :-)

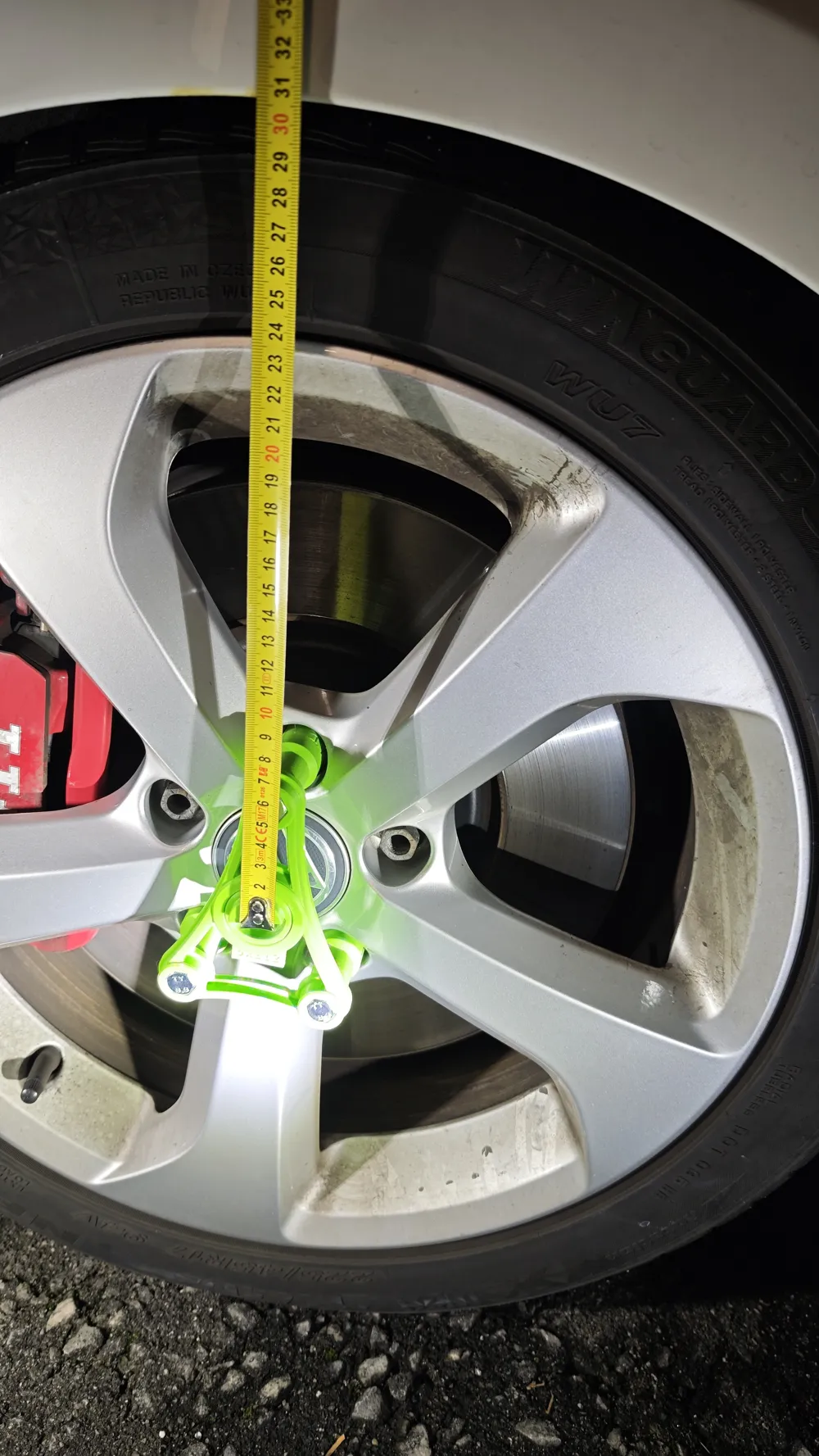

This tool is used to measure the distance between the fender and the wheel hub of a car

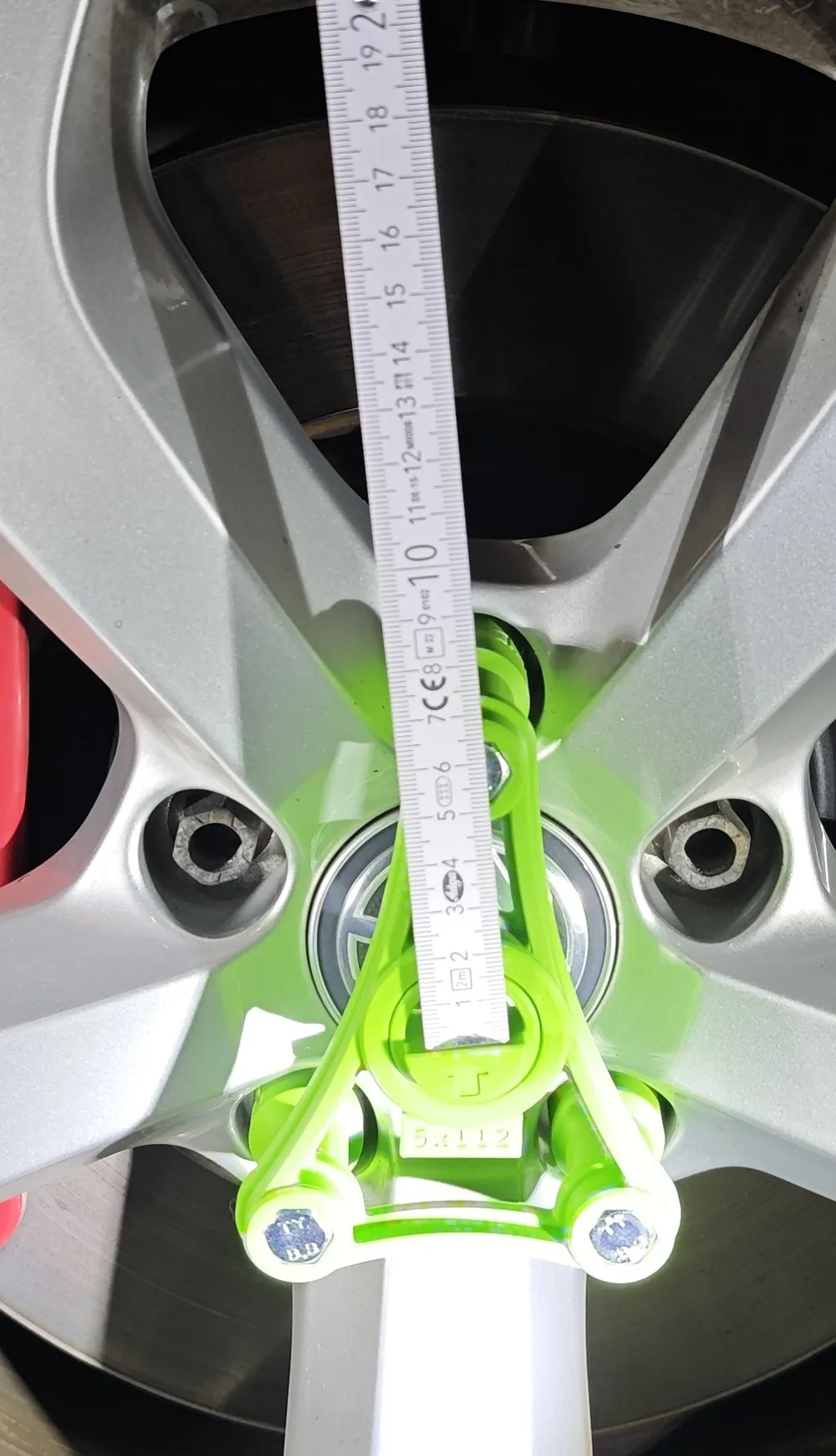

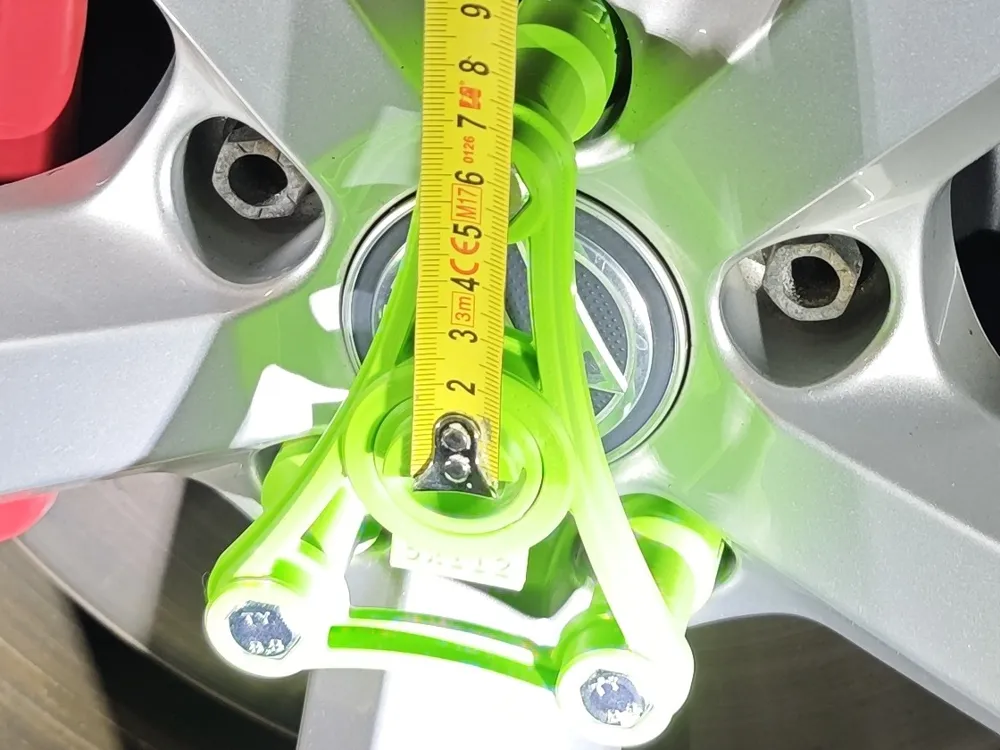

It can be used with a tape measure and a folding rule

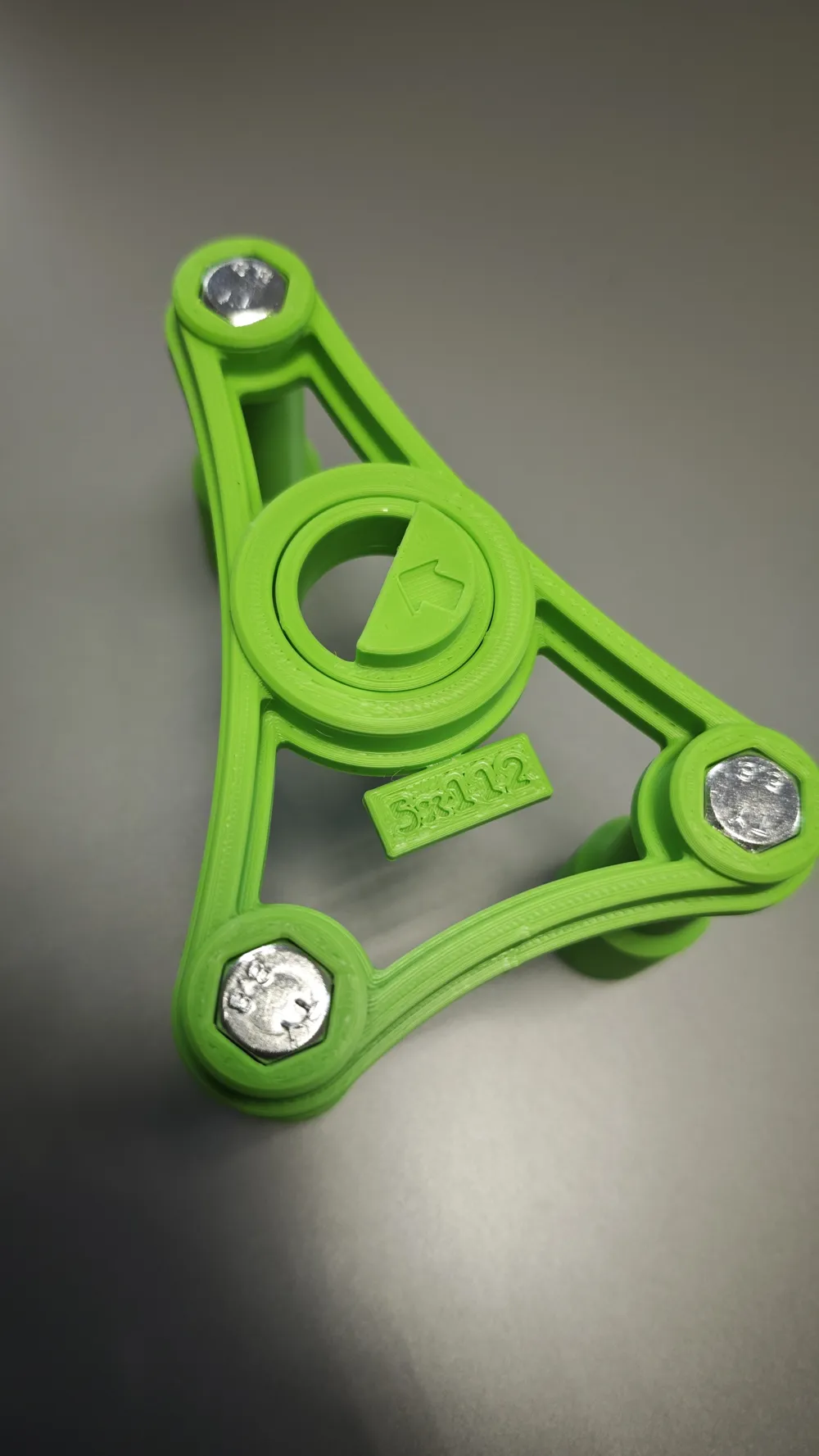

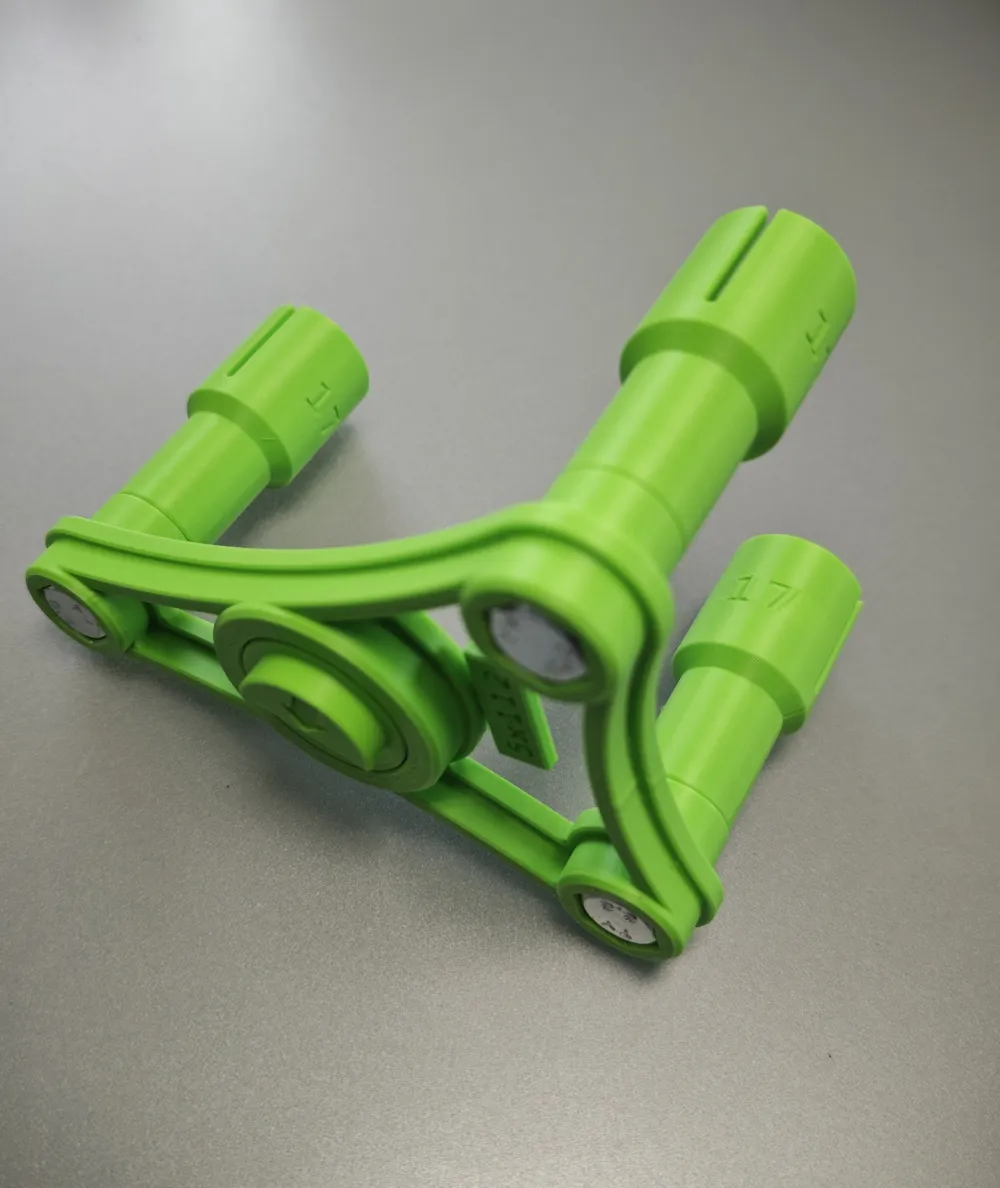

The middle part is freely movable

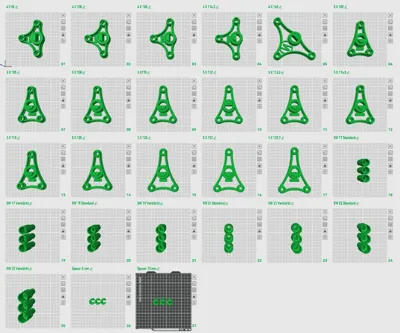

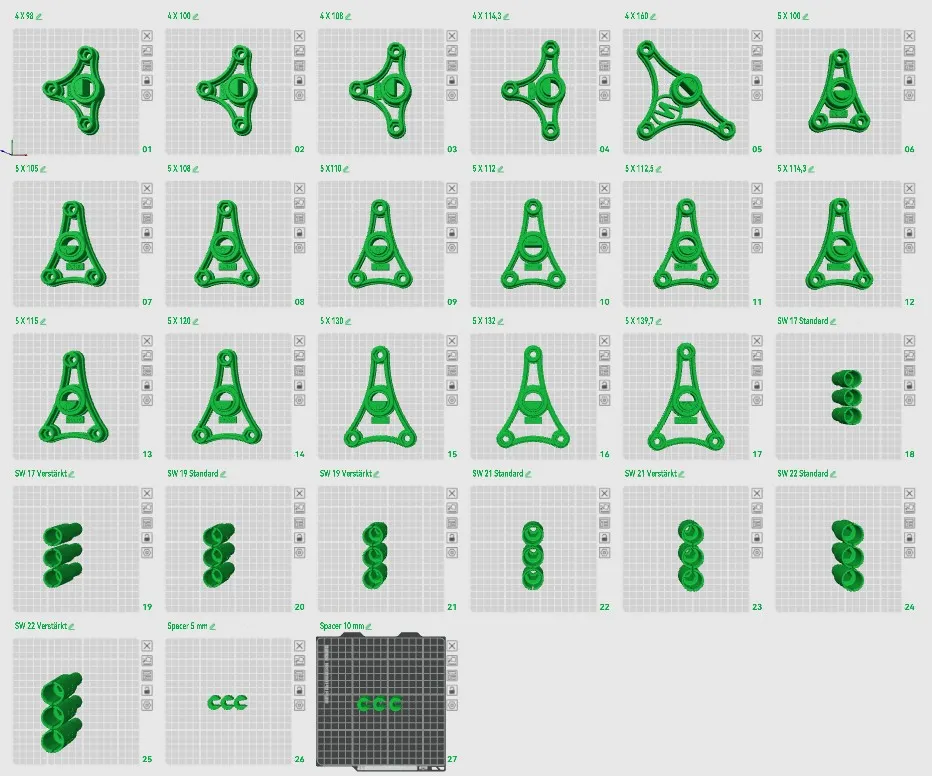

Matching bolt patterns: 4x98; 4x100; 4x108; 4x114.3 4x160; 5x100; 5x105; 5x108; 5x110; 5x112; 5x112.5; 5x114.3; 5x115; 5x120; 5x130; 5x132; 5x139.7

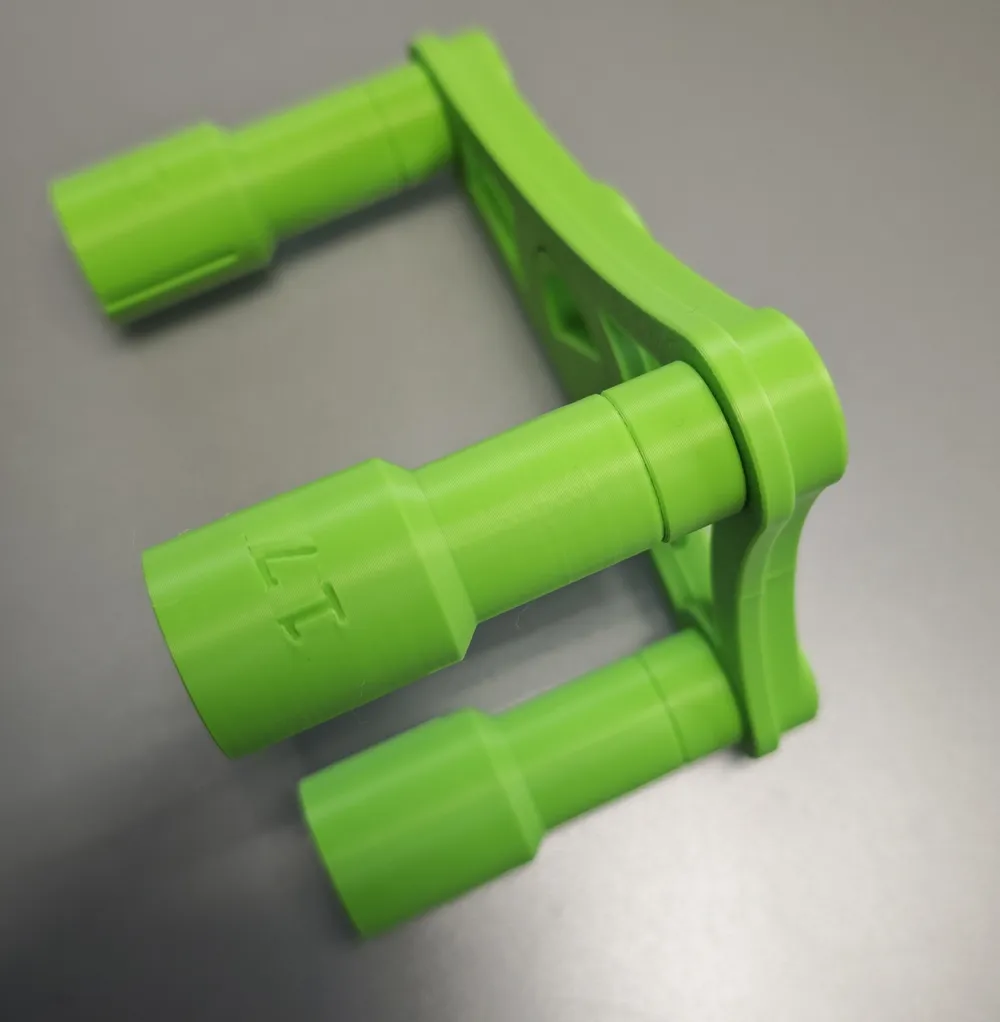

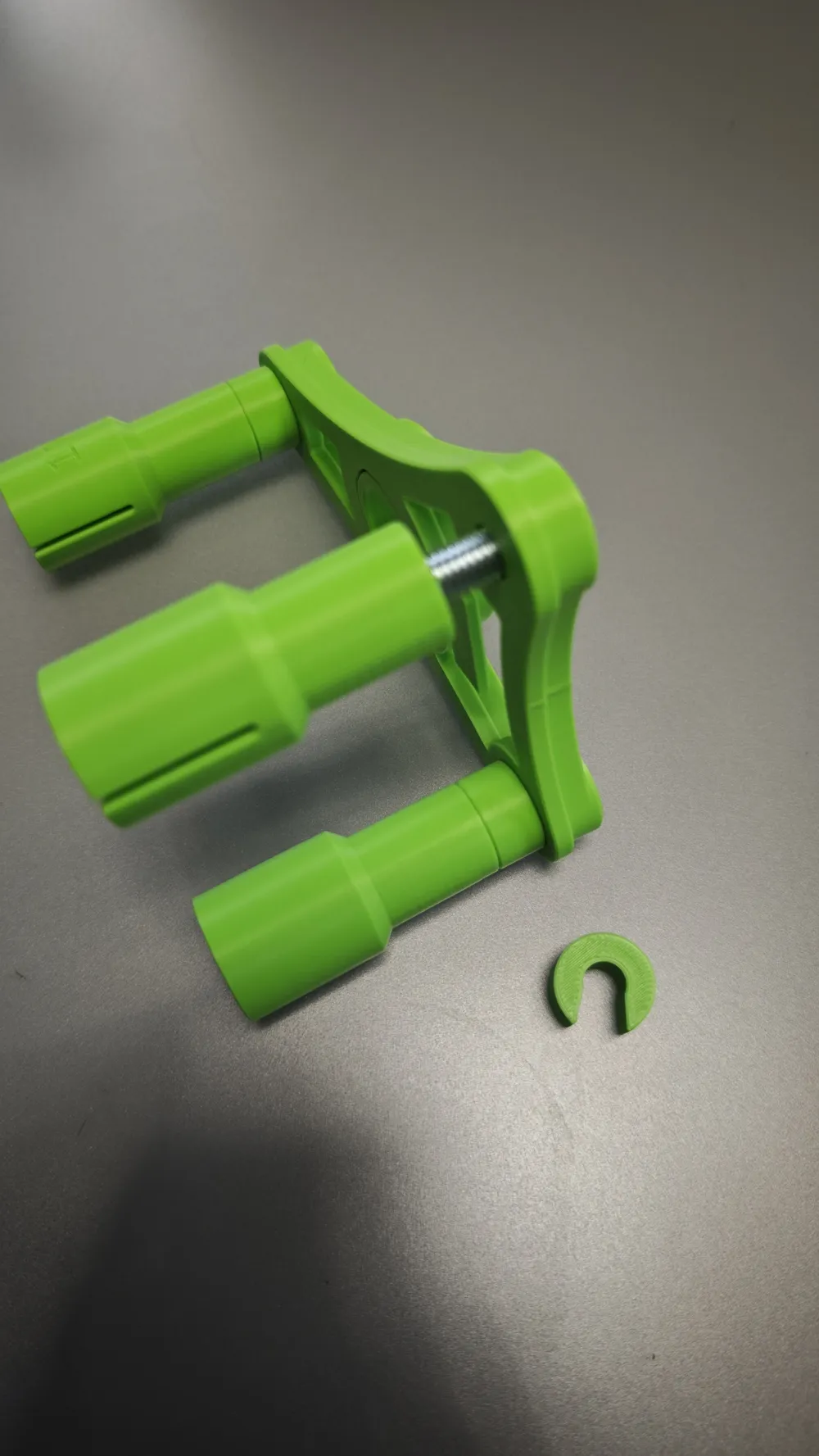

Matching wheel bolts: wrench size 17mm; 19mm; 21mm; 22mm (standard and reinforced)

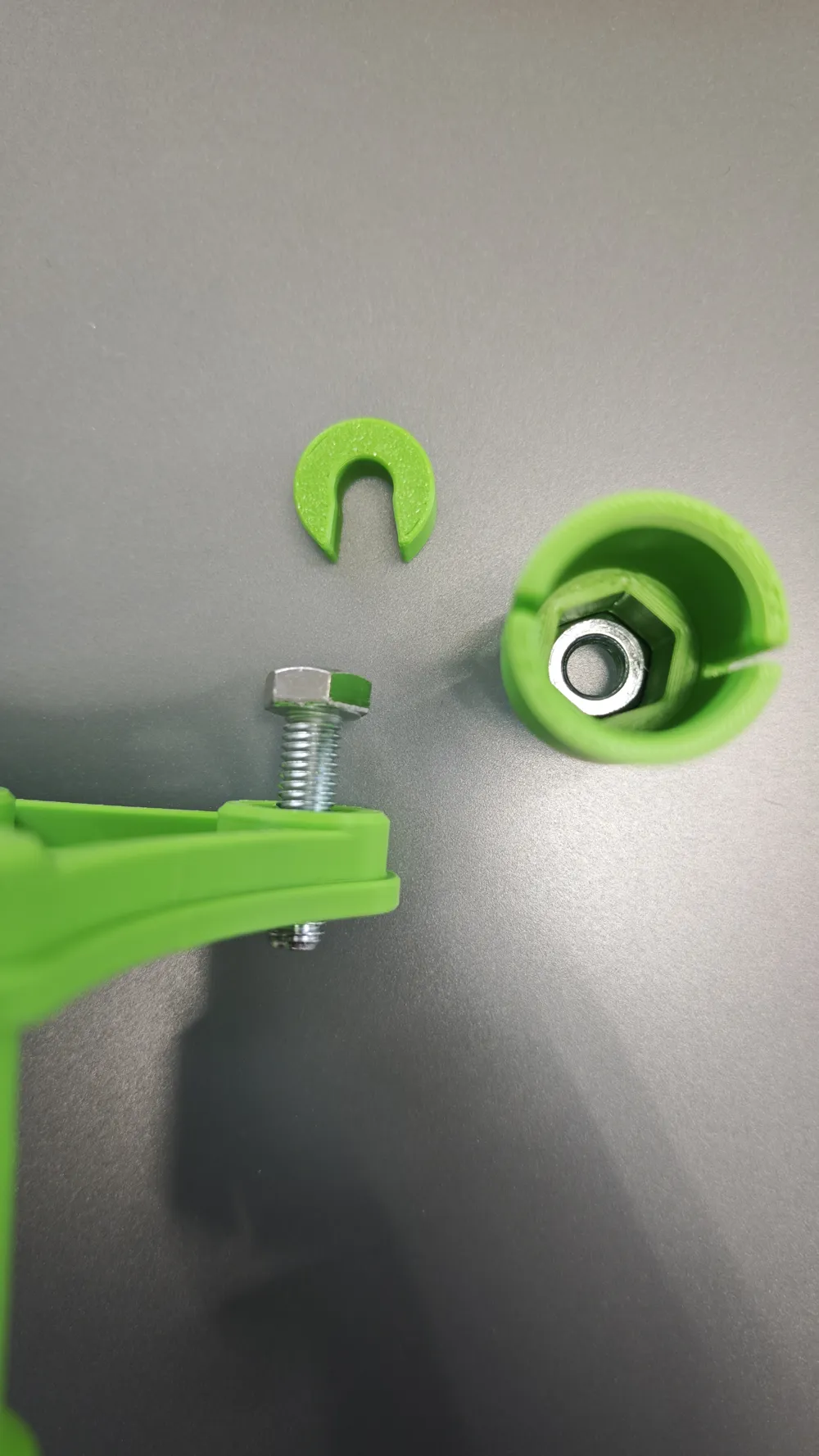

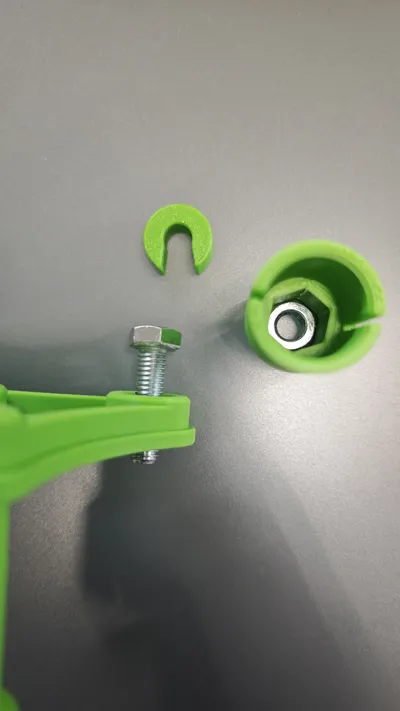

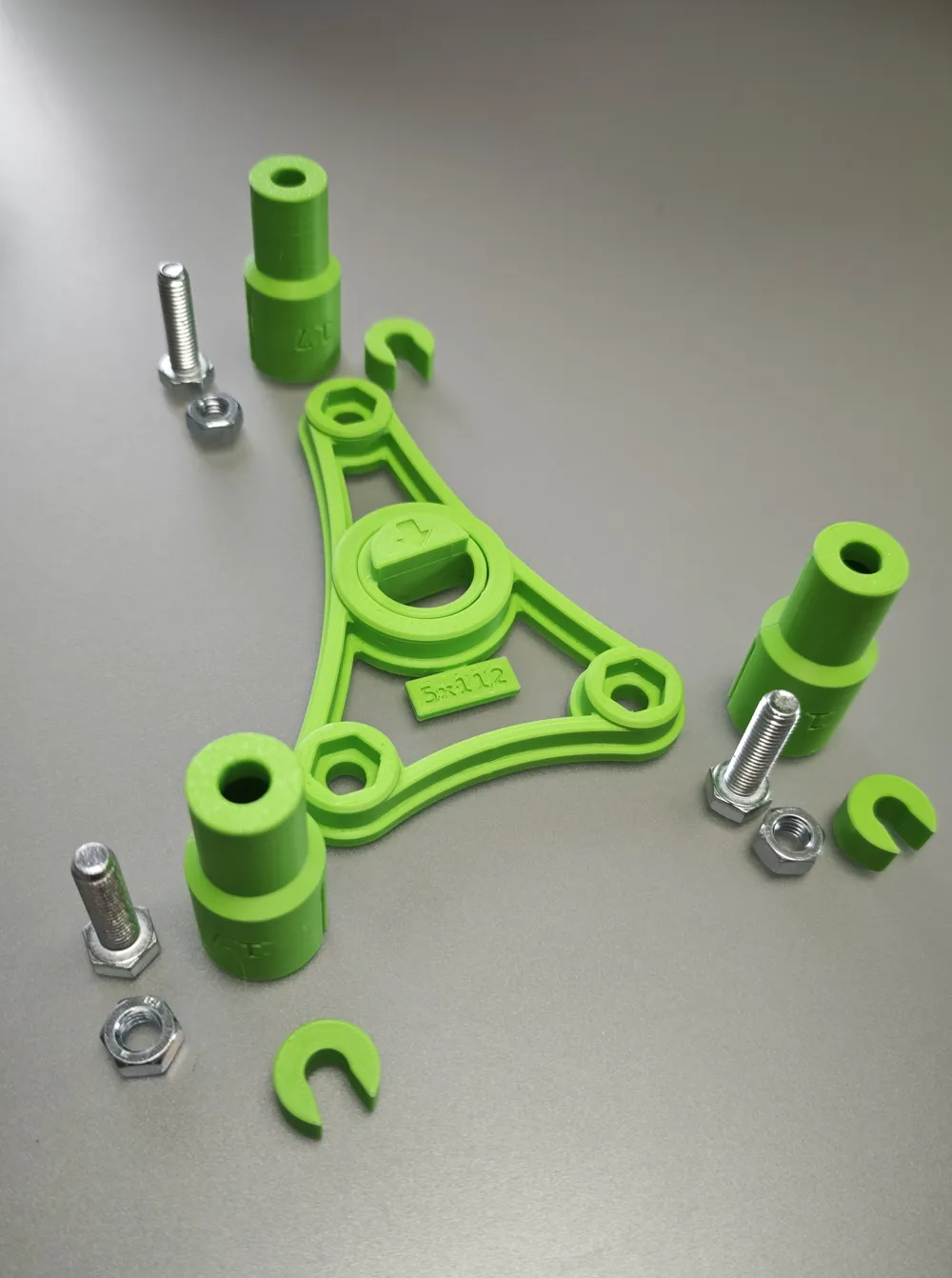

Required: 3x hex head screws M8x30 (longer if needed); 3x M8 nuts
