Vario-Elemente für Gridfinity

I needed a flexible solution for my own organization system – so I designed and optimized these Gridfinity-compatible parts myself

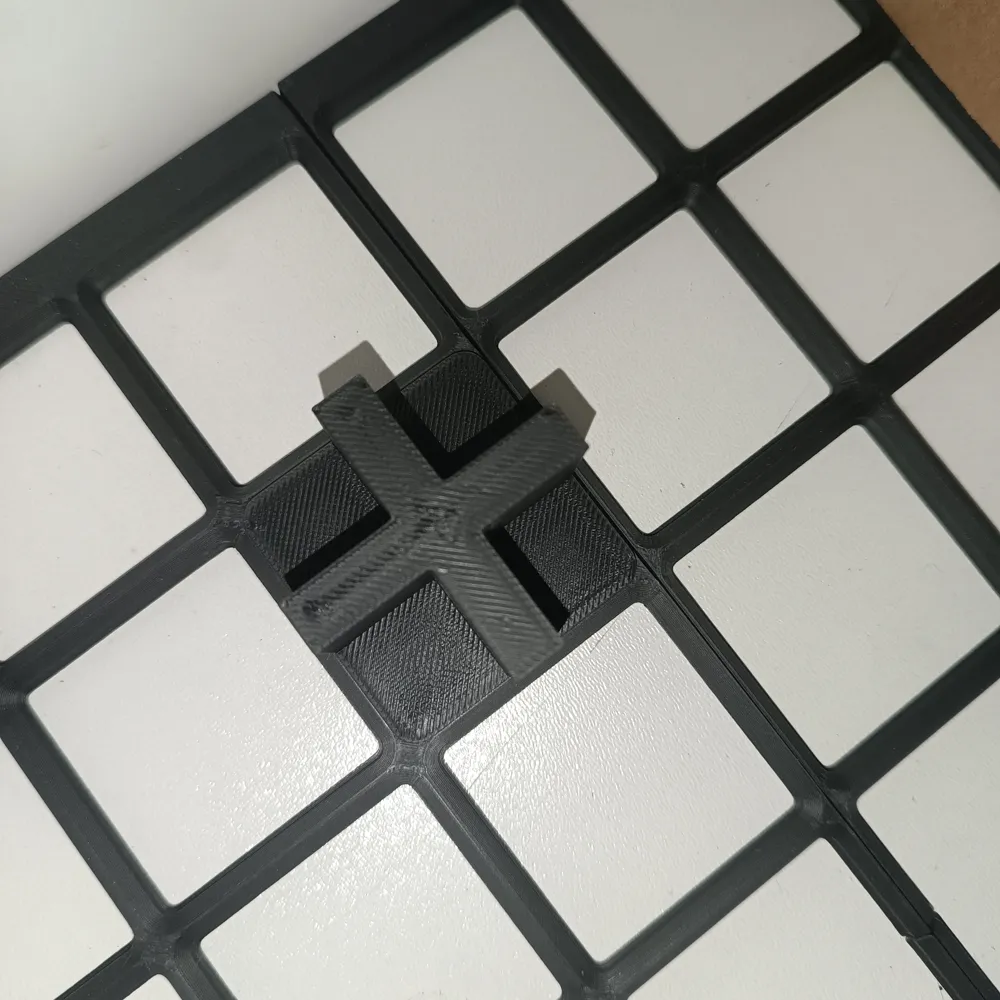

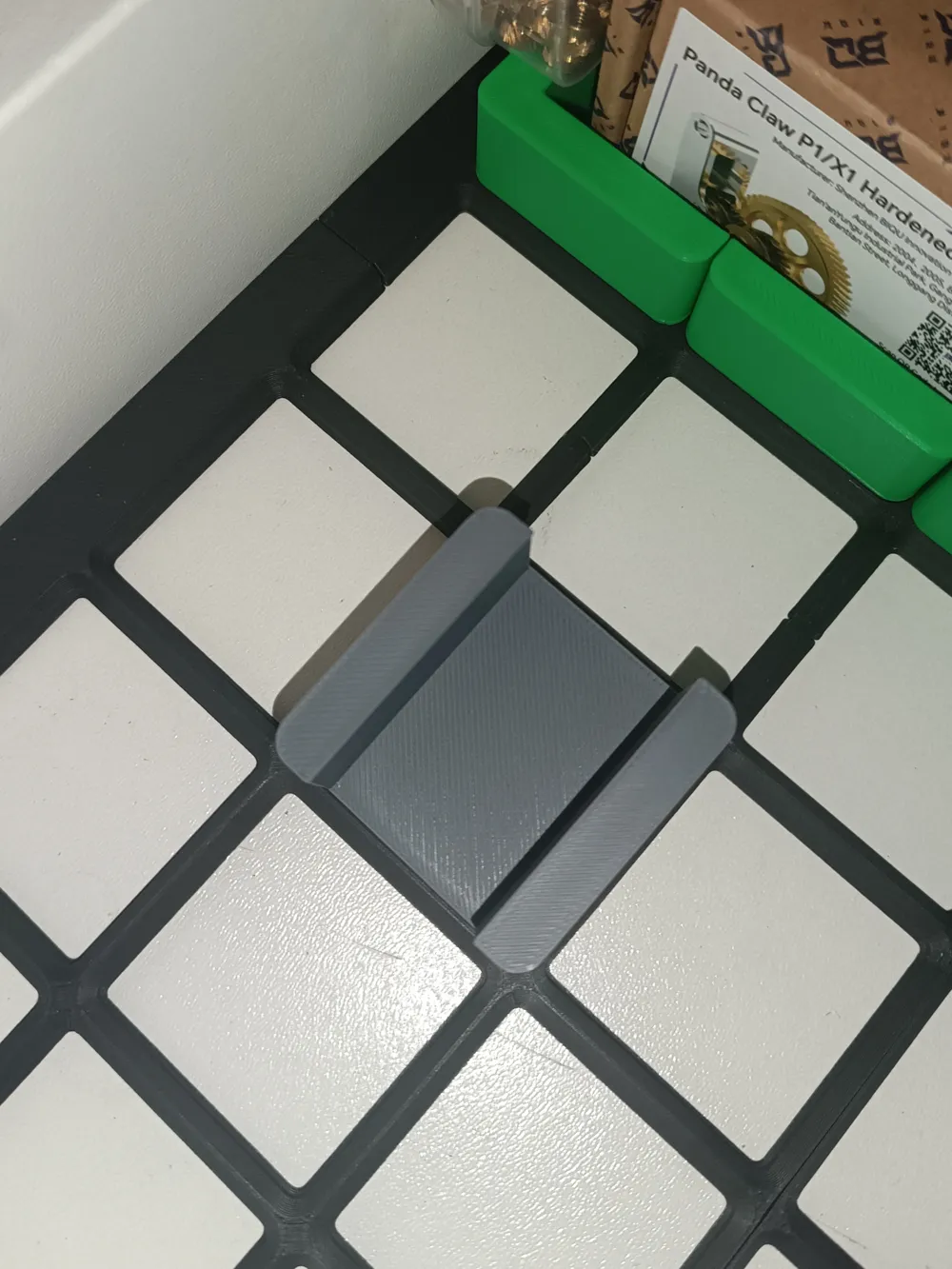

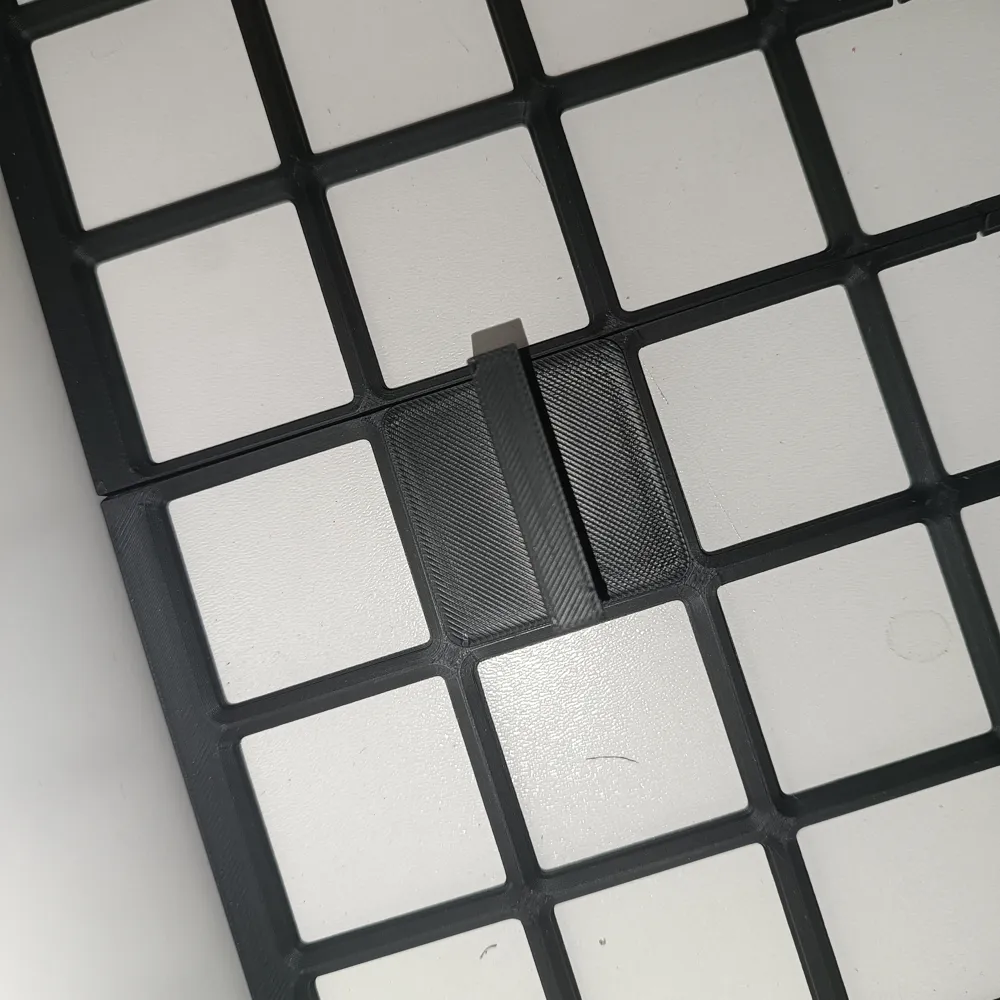

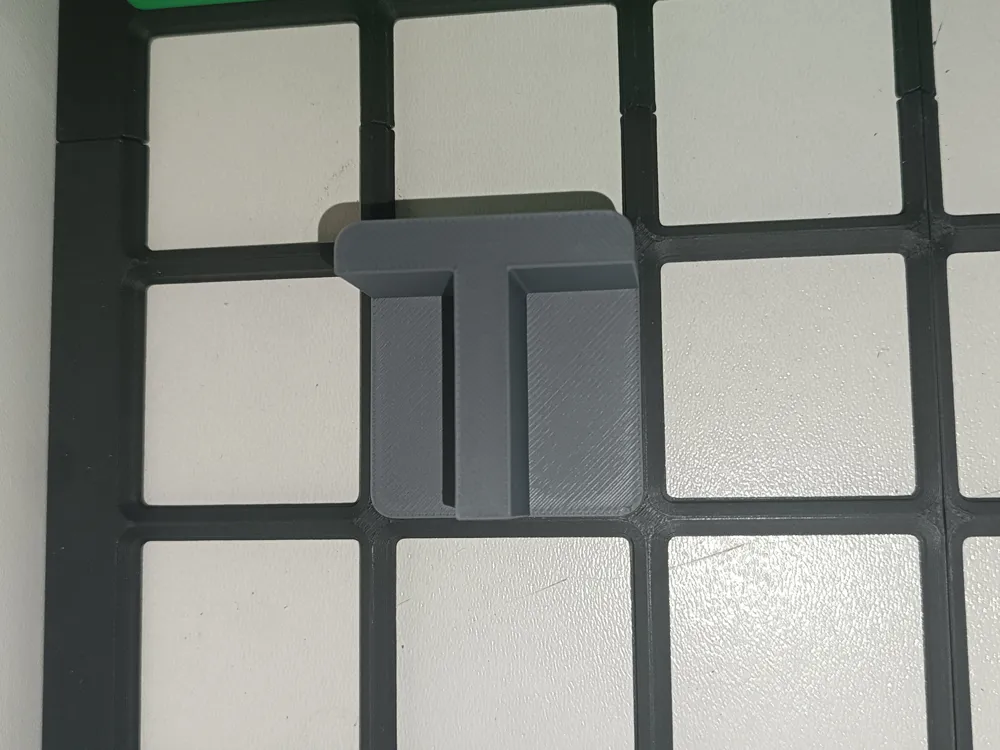

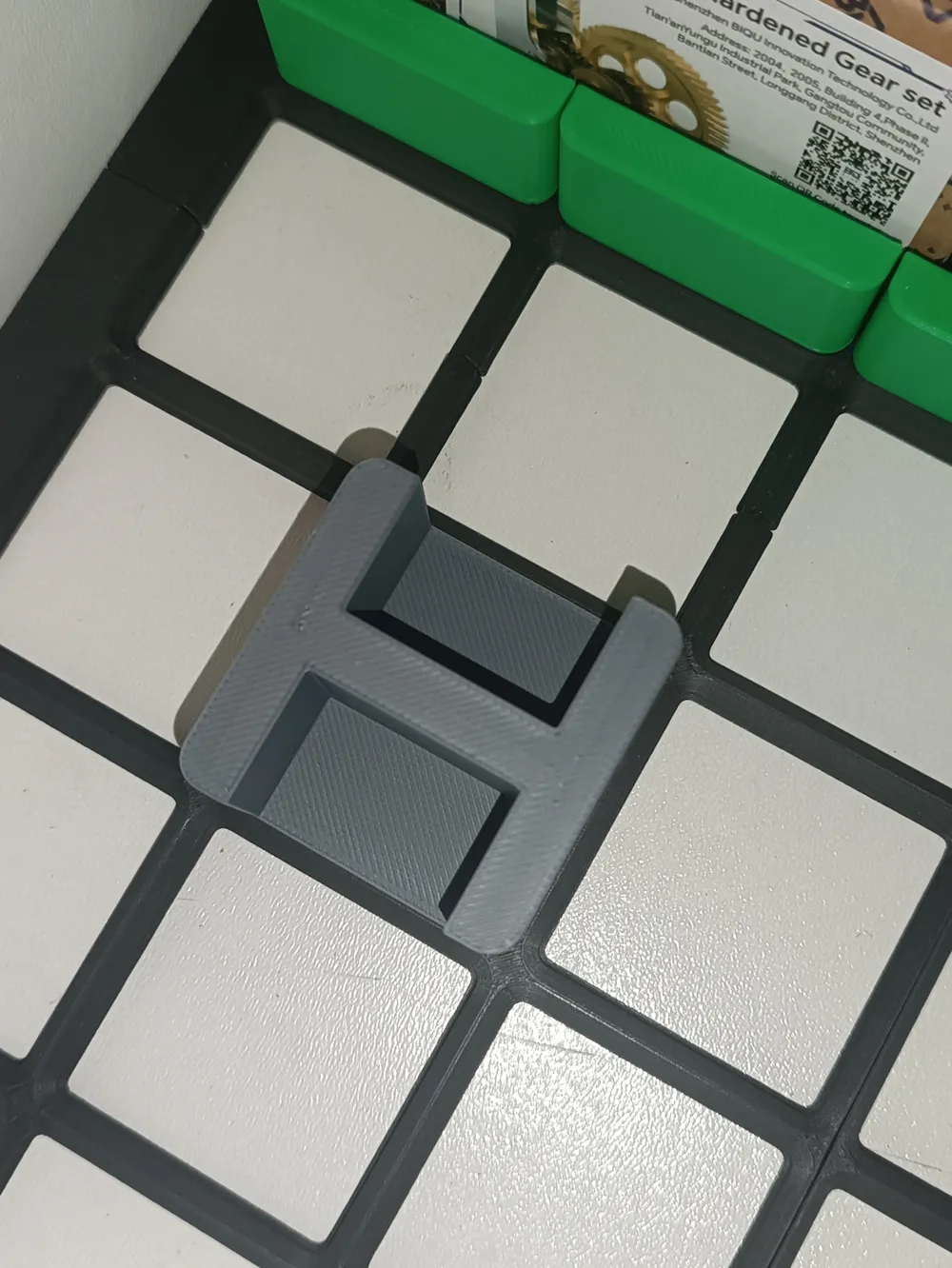

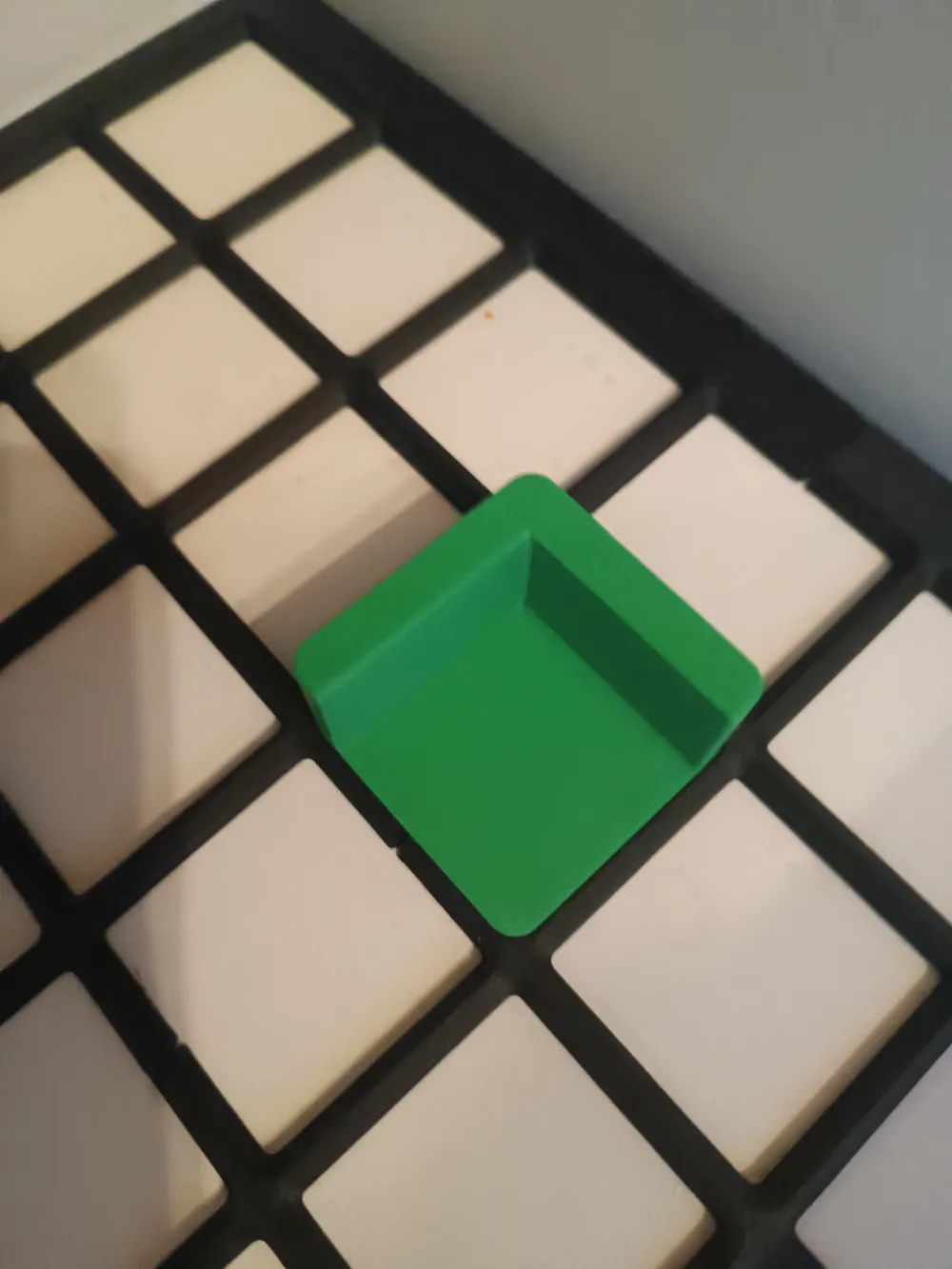

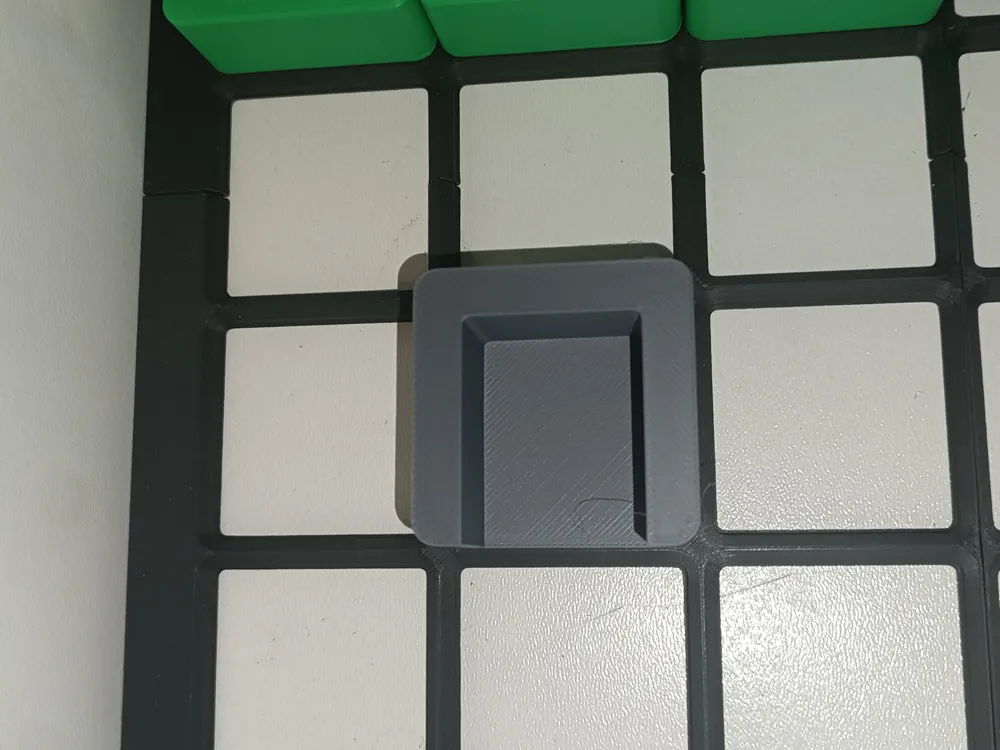

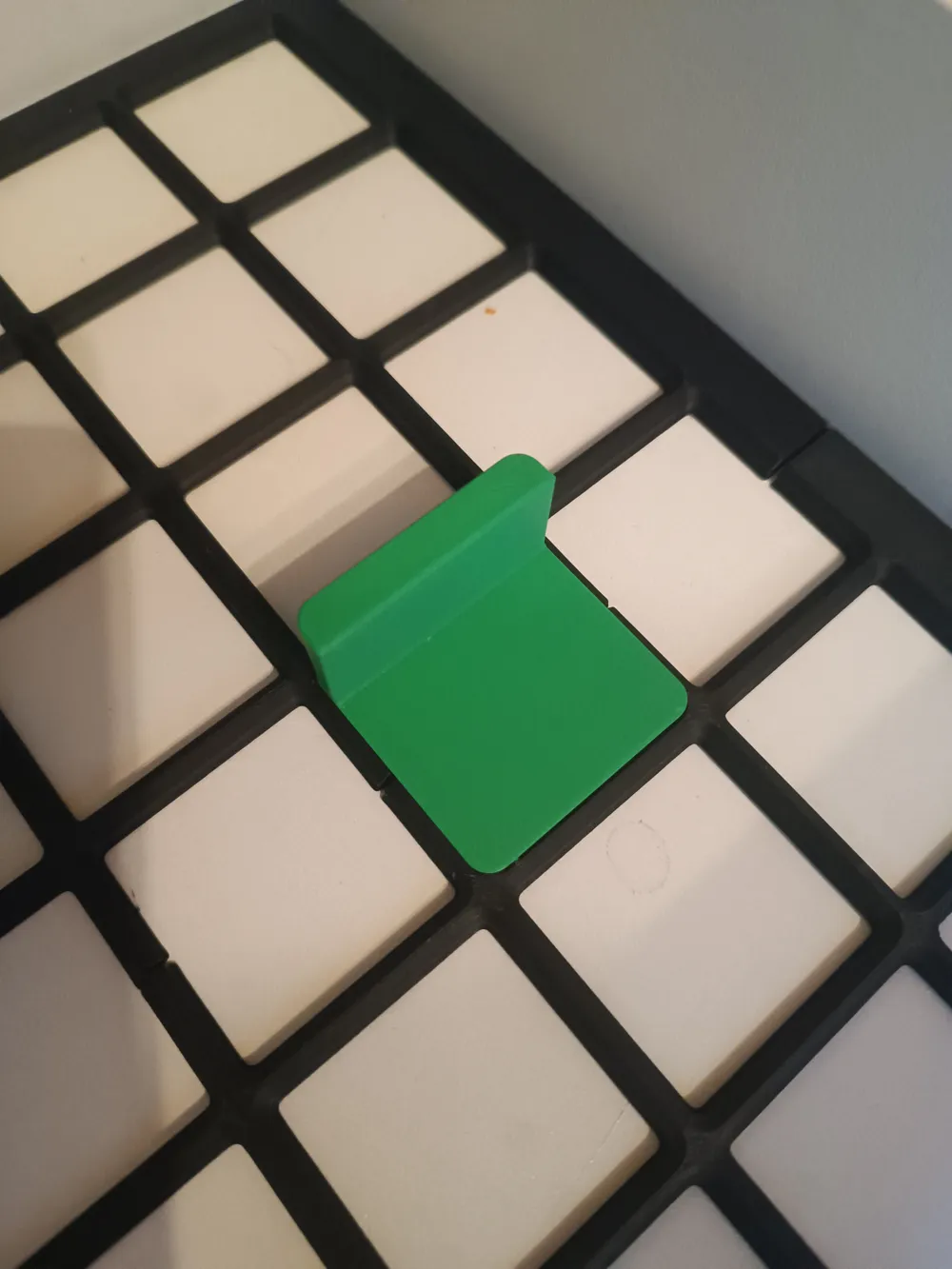

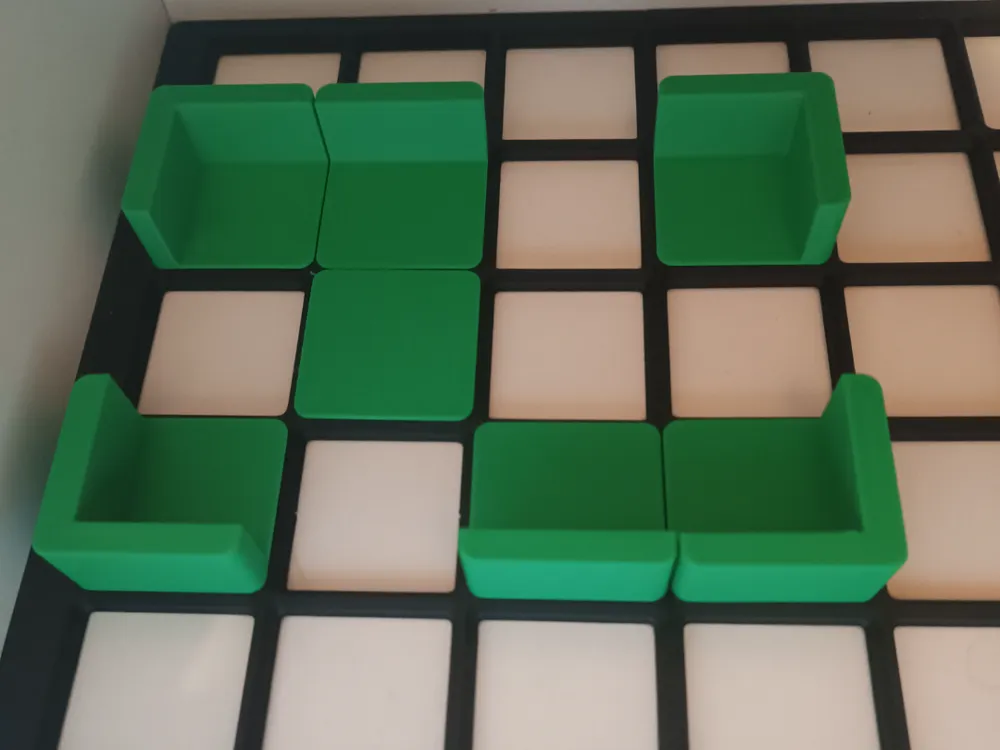

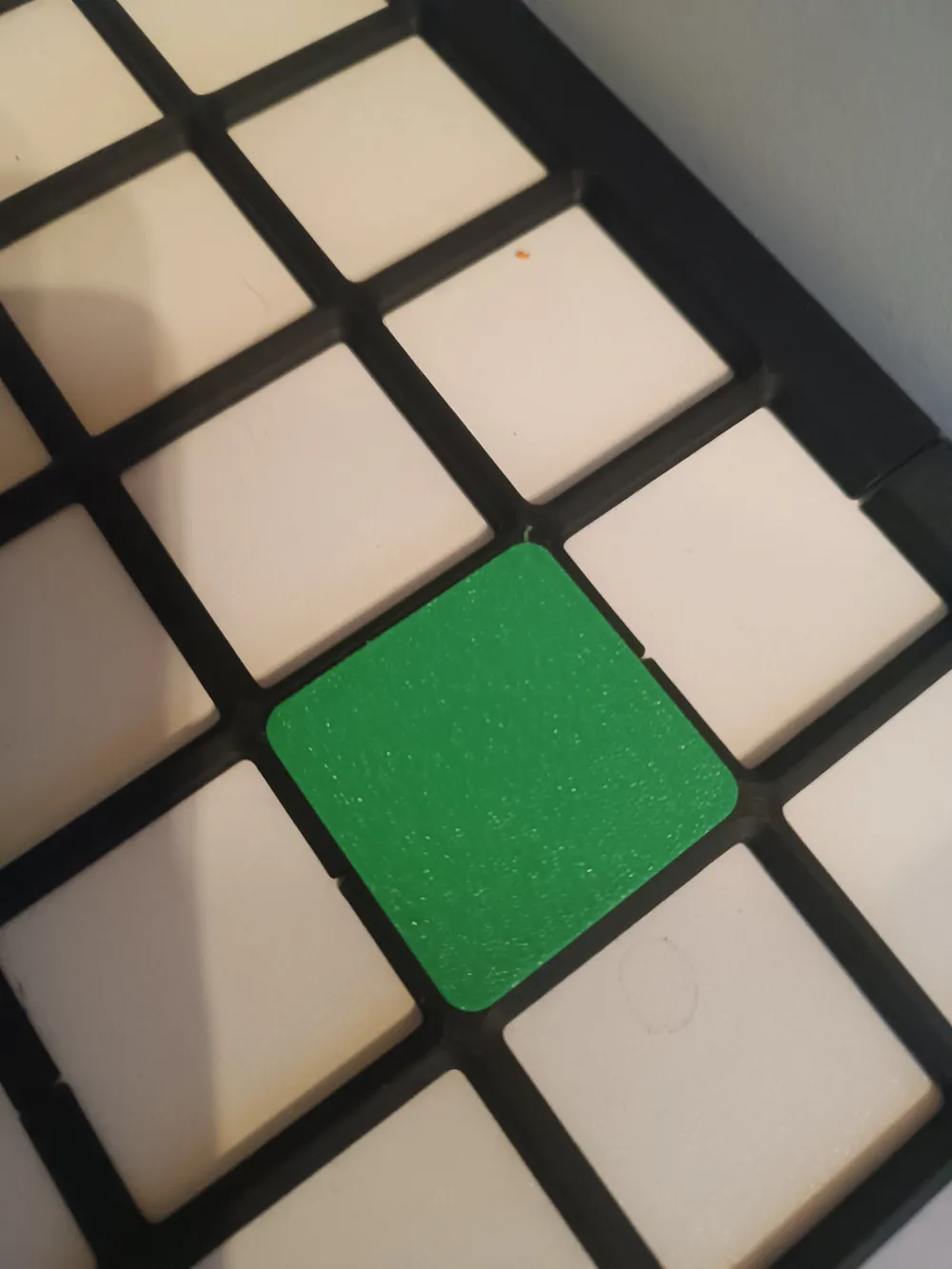

These components are based on the Gridfinity system and allow for modular, flexible organization. Featuring a precise grid, as well as magnet and screw/pin slots, the corners, walls, and baseplates can be individually combined and expanded. Ideal for the workshop, hobby room, or desk – just print, assemble, and customize

🖨️ Printing Instructions

1. Select File:
   This project includes multiple elements (e.g., corners, walls, baseplates). Select the desired part or the corresponding printing plate in your slicer
2. Print Settings:
   • Layer Height: 0.2 mm (Standard Quality)
   • Infill: 15–25% (depending on desired stability)
   • Material: PLA or PETG
   • Supports: not required
   • Bed Temperature: 60 °C (PLA) / 80 °C (PETG)
3. Start Print:
   Print only the selected element or the matching printing plate. If needed, multiple parts can be arranged on the build plate at the same time
4. Post-Processing:
   Carefully remove any stringing or excess material. The components are directly Gridfinity-compatible and can be used or combined immediately

-------------------------------------------------------------
