Description

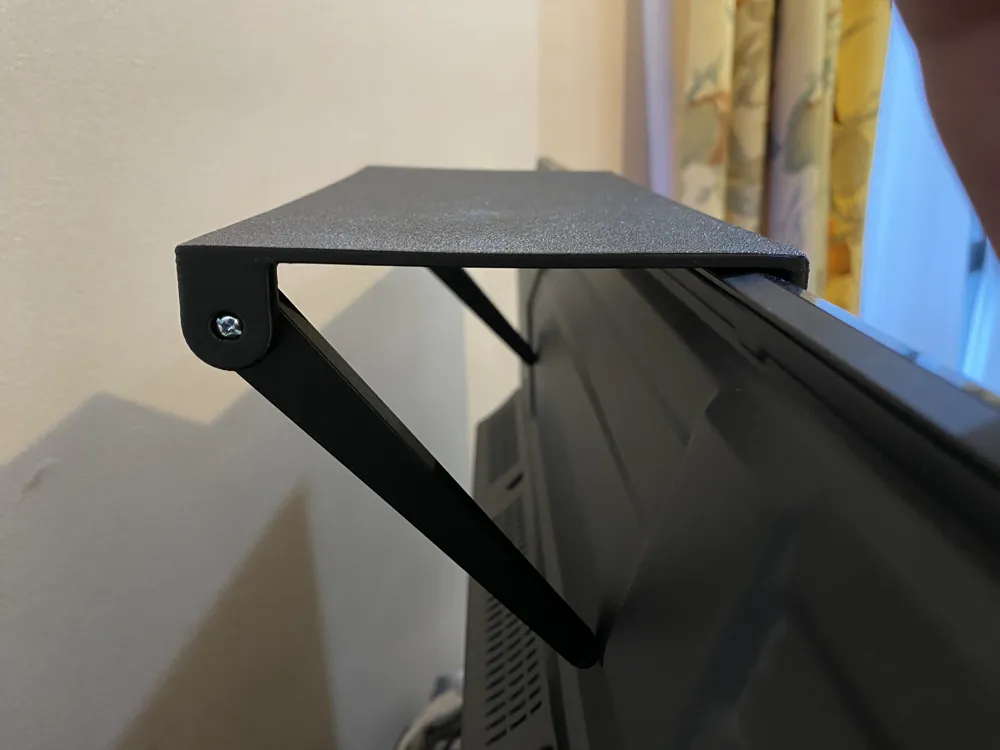

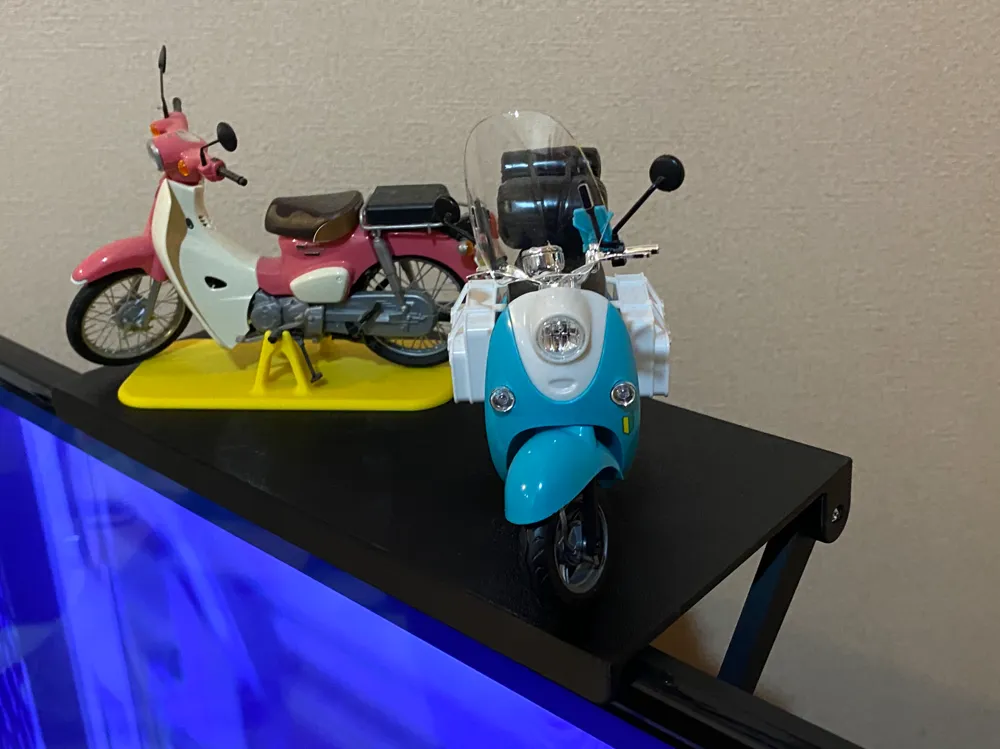

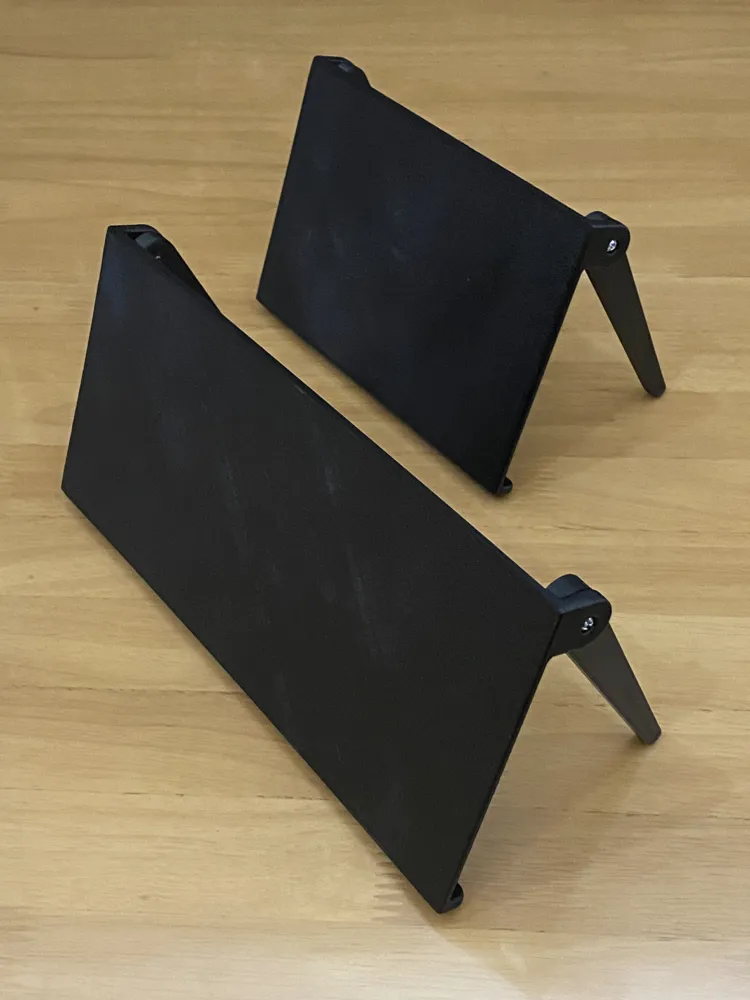

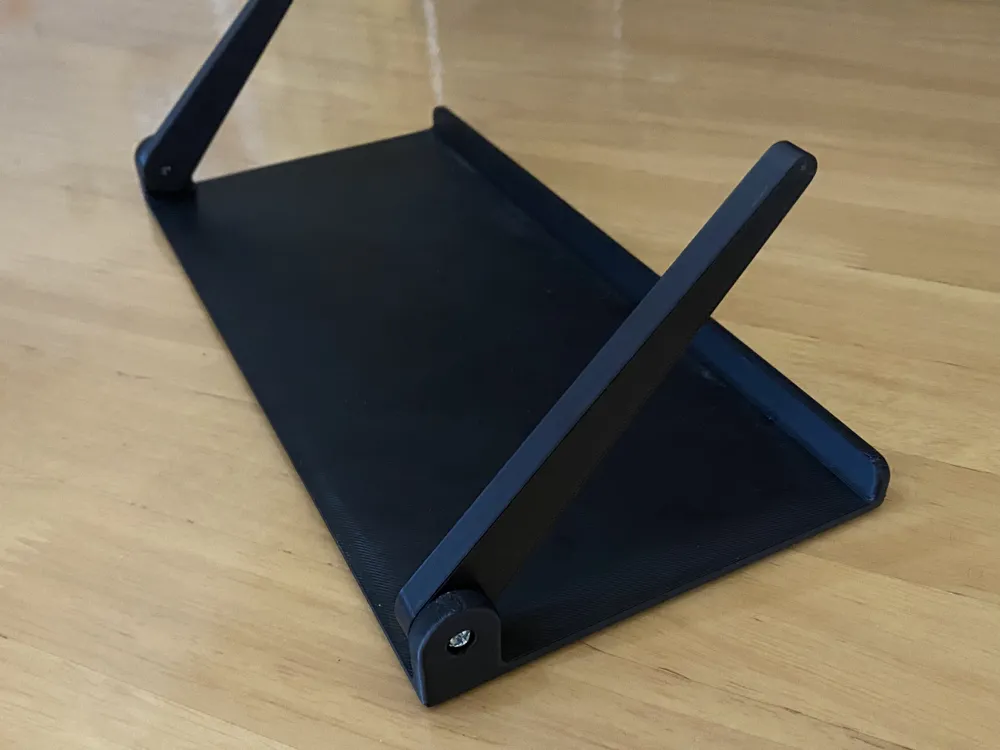

This is a small shelf to be placed on top of FPDs such as TVs or monitors
The angle adjustment arm is designed to stop every 8 degrees
Please adjust the arm's angle so that the shelf is roughly level with the thickness of your TV or monitor
(The durability of the 8-degree clicks is not very high Please avoid frequent adjustments)

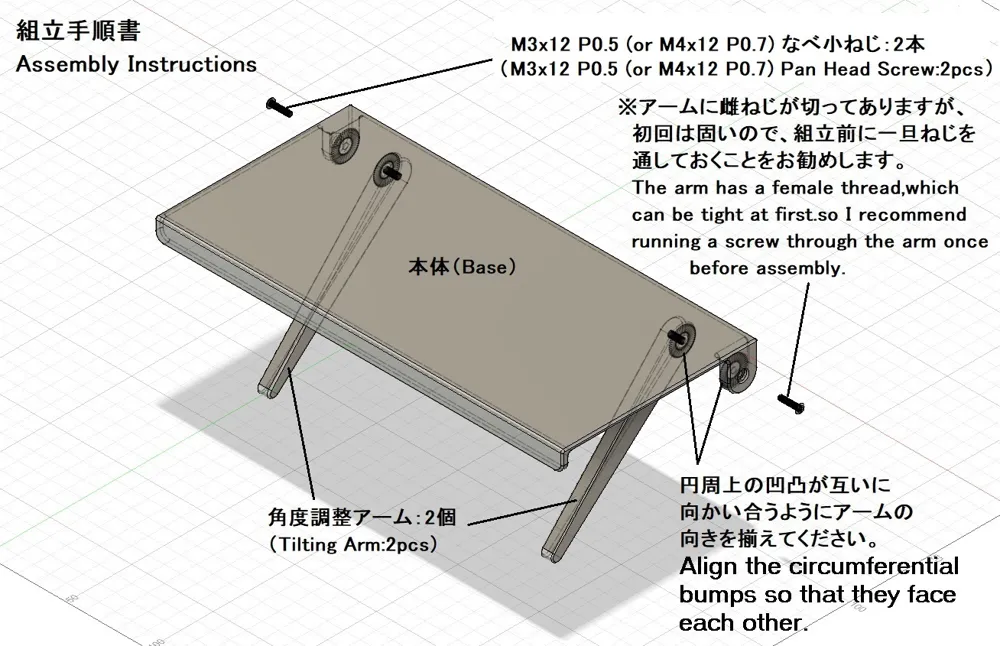

For assembly, please refer to the assembly instructions (assembly guide)

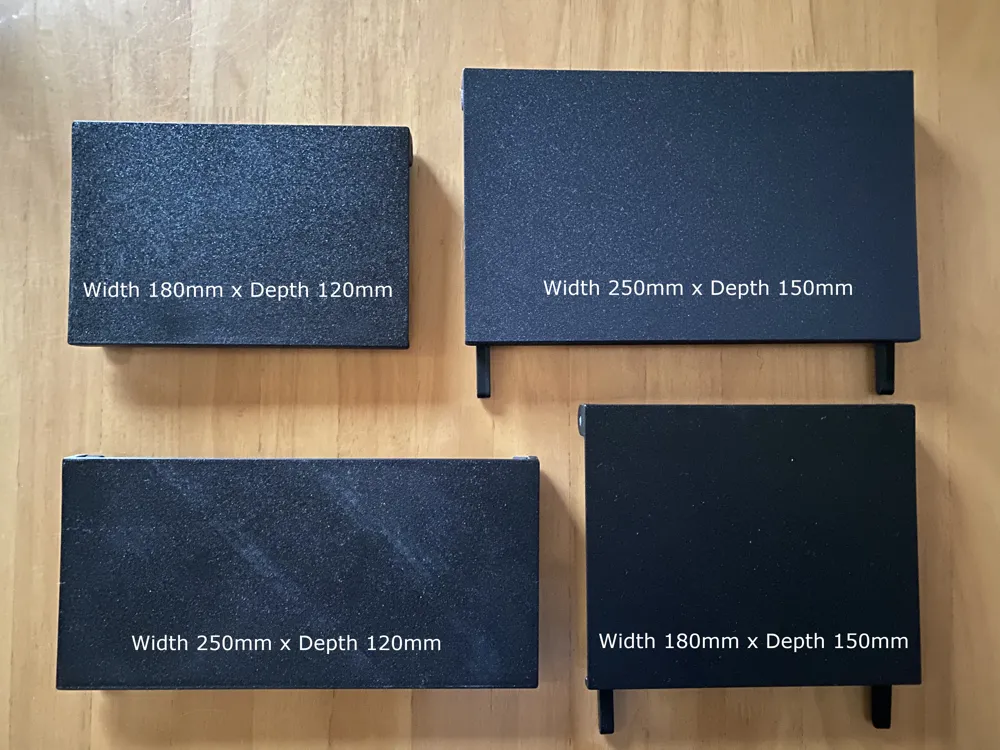

There are four types of profiles, with combinations of 250mm/180mm width and 120mm/150mm depth
* With the A1 mini, only the two types with 180mm width can be printed

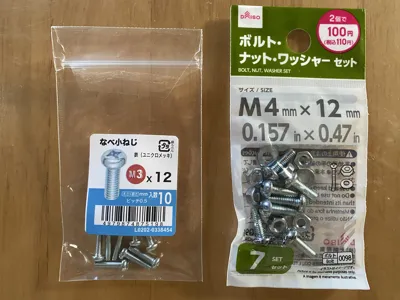

Two M3x12 P0.5 or M4x12 P0.7 pan head screws are required
Please prepare them separately
Boost Me (for free)
If you like it, boosting me would be a great encouragement for the future!
* Revised on 2025/11/3 Added M4 pan head screw version

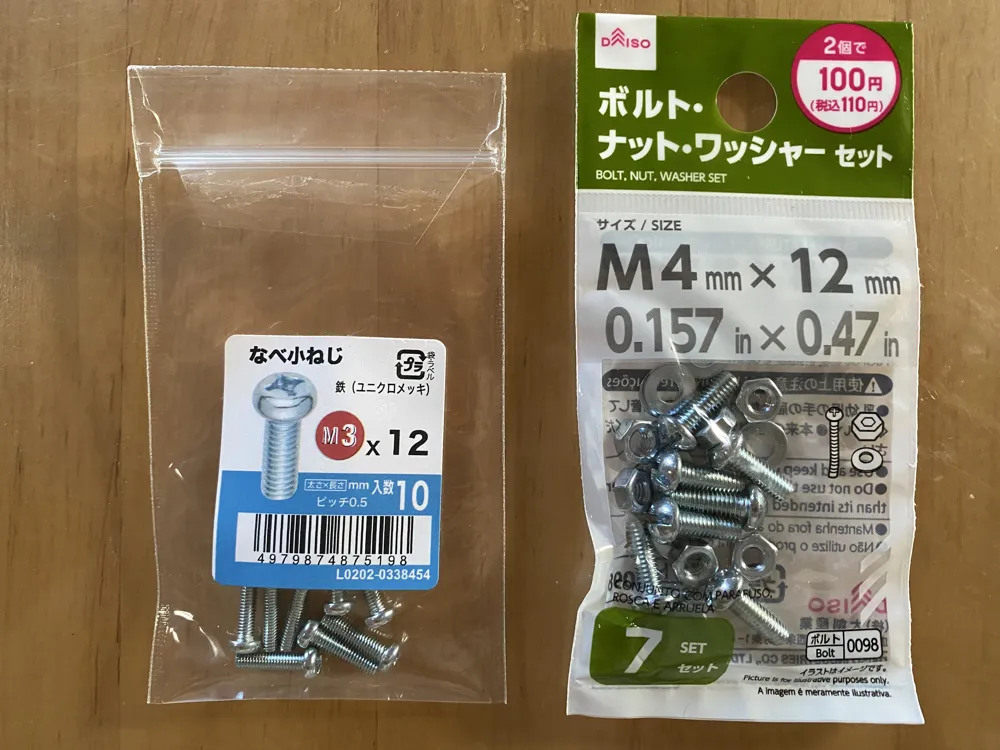

As it was pointed out that M3 pan head screws are difficult to find at 100-yen shops, an M4 pan head screw version has been added
Plate 1: M3 pan head screw version
Plate 2: M4 pan head screw version
* Revised on 2026/5/1 Added 150mm depth version
Profiles with increased shelf depth have been added (120mm → 150mm)
Due to the difference in width, there are still two types of profiles: 180mm and 250mm

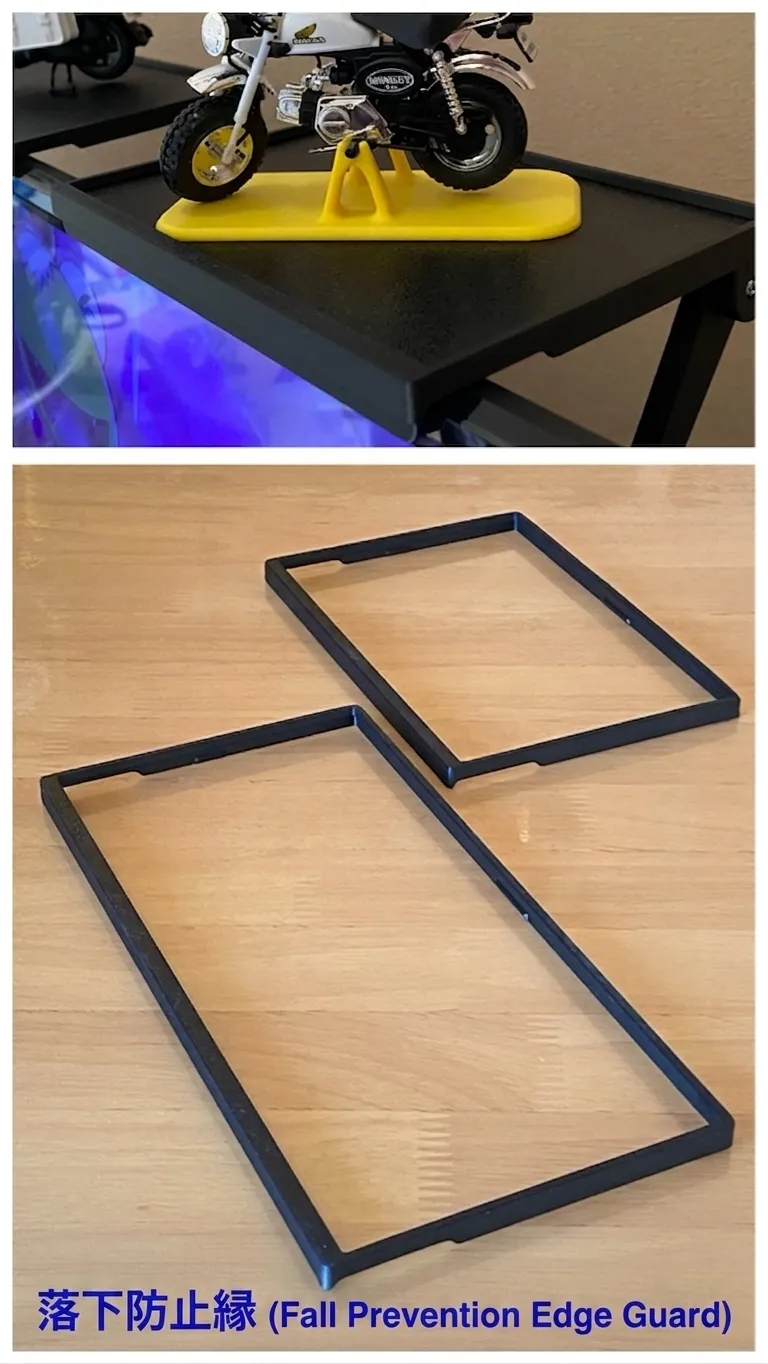

* Revised on 2026/5/10 Added Edge Guard
Two types (Plate3,4) for the 150mm depth version have been added to the Standard Edge Guard
A new A1 mini Exclusive Edge Guard profile has been added
