KRG Bravo Cheek Piece Spacers
Print Profile(0)
Description
If you like my models and feel inclined, I could always use more filament for test prints. https://ko-fi.com/plaid_brad

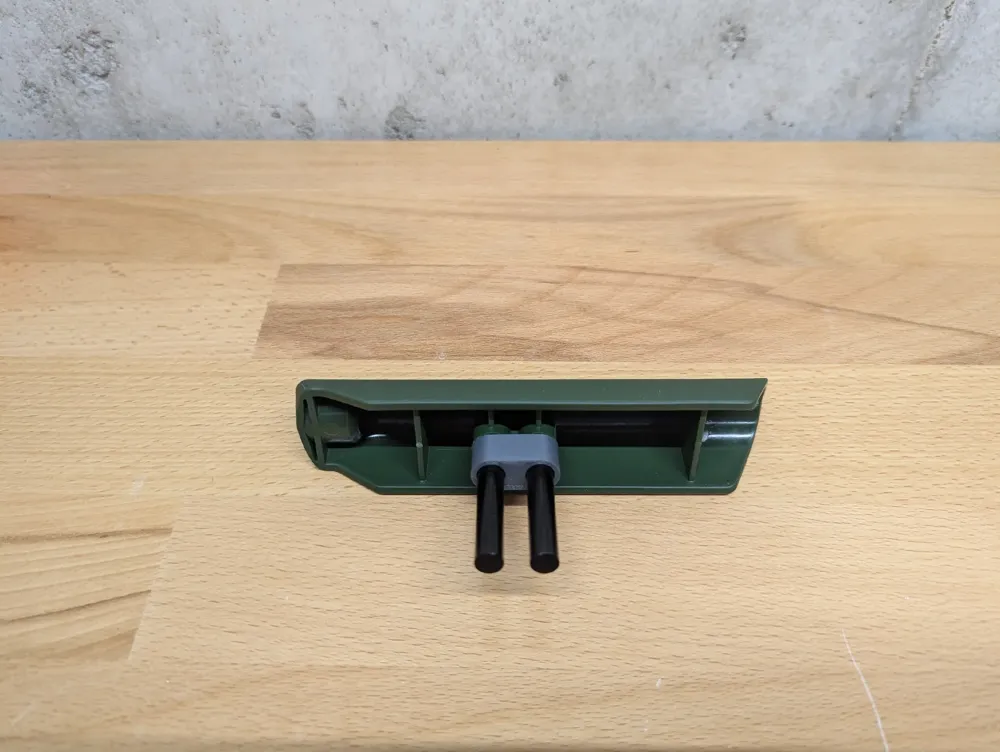

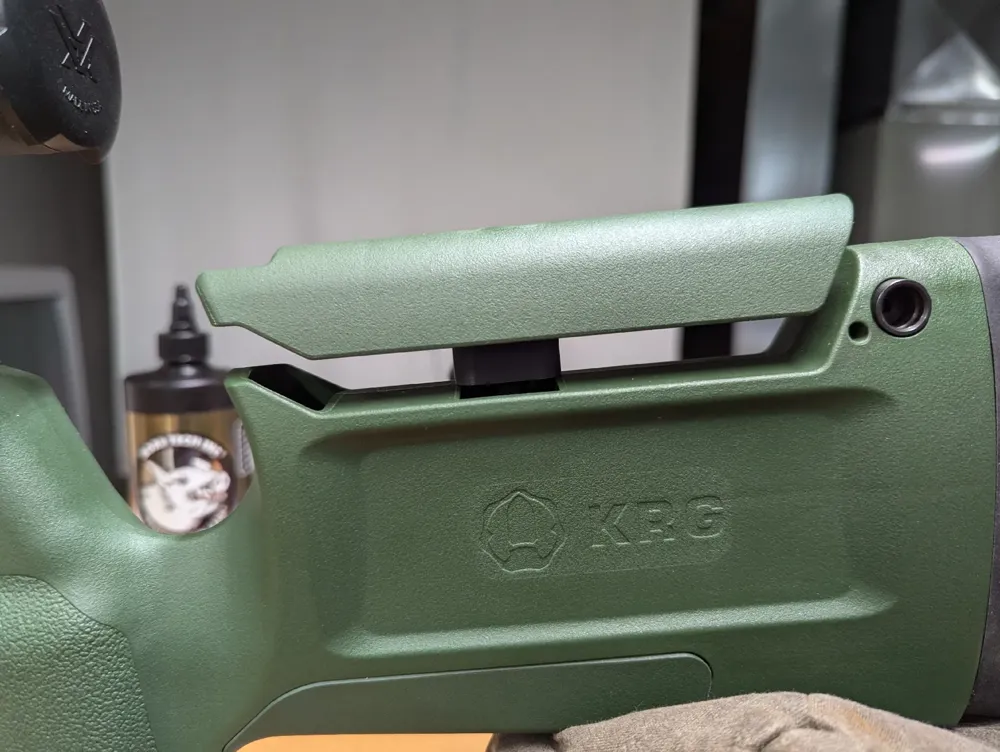

The KRG Bravo rifle chassis has an adjustable cheek piece, but there are no index marks or detents like on other systems. Consequently, returning to same height after removing the cheek piece for cleaning can be cumbersome.

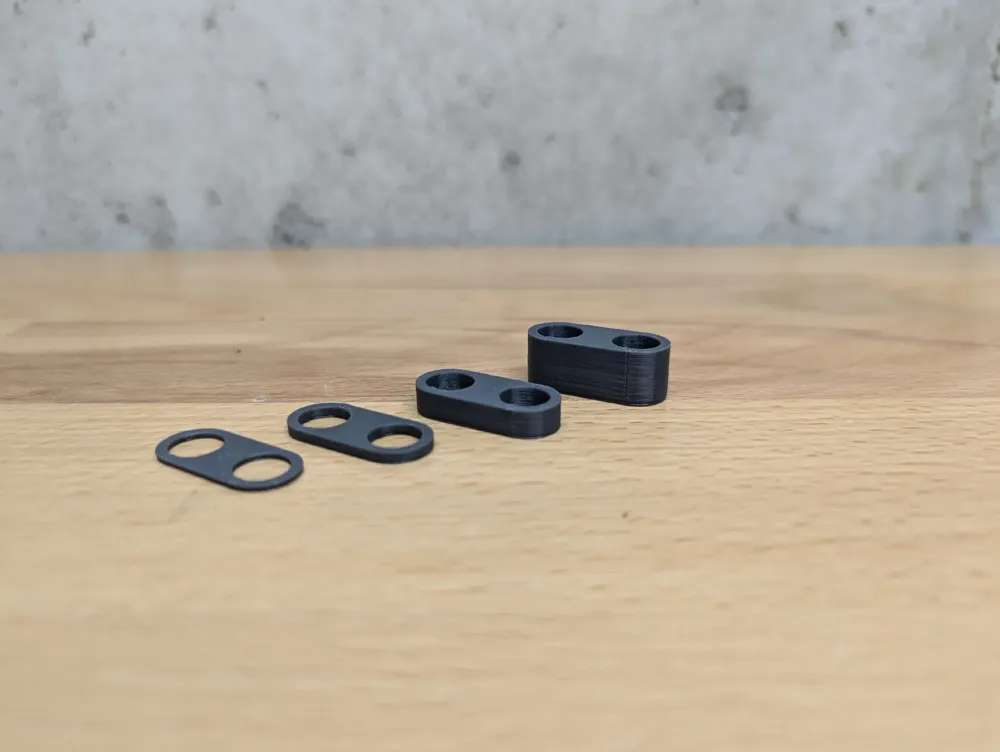

These spacers aim to solve that. The files are for different heights, 1mm, 2mm, 5mm and 10mm. By printing different combinations, you can achieve spacer height from 1mm to as tall as the cheek piece will allow in 1mm increments. For those in the back, if you need 9mm of rise, print a 5mm and two 2mm spacers. If you need 13mm, print a 10mm, 2mm and 1mm.
These are small parts and print quickly, I suggest a large number of top and bottom layers and perimeters for durability. IE, top 5, bottom 5, perimeter 4.

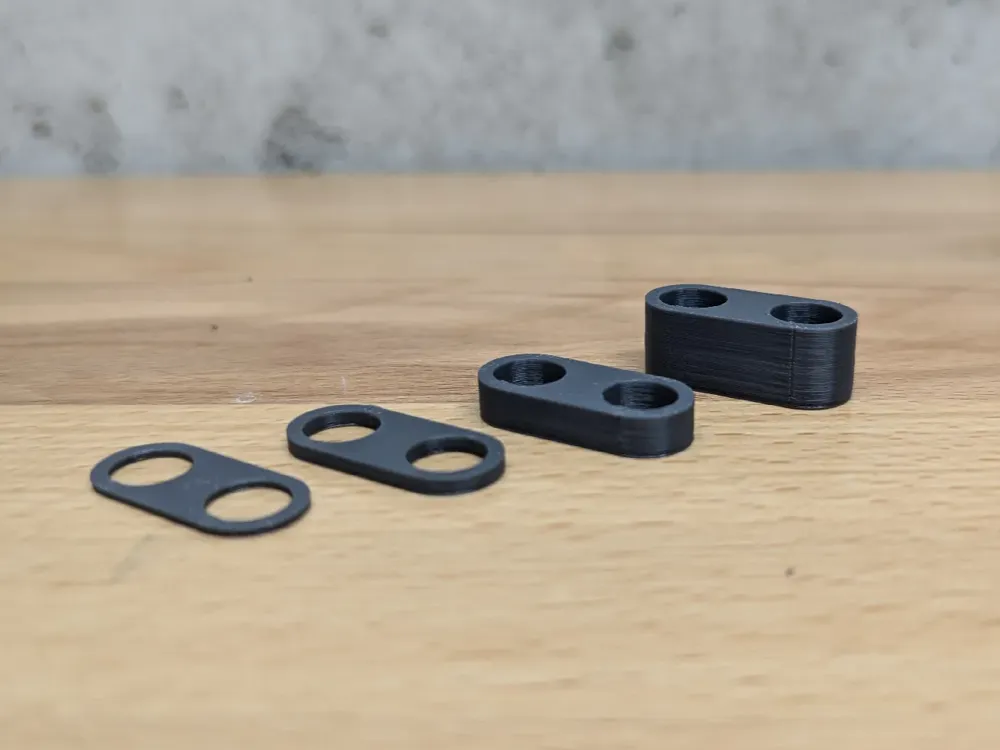

Sample pieces printed in Polymaker Polylite PLA Pro - Dark Grey.
