Description

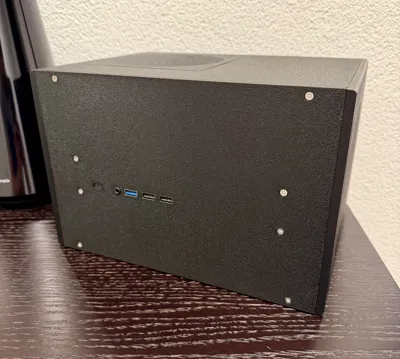

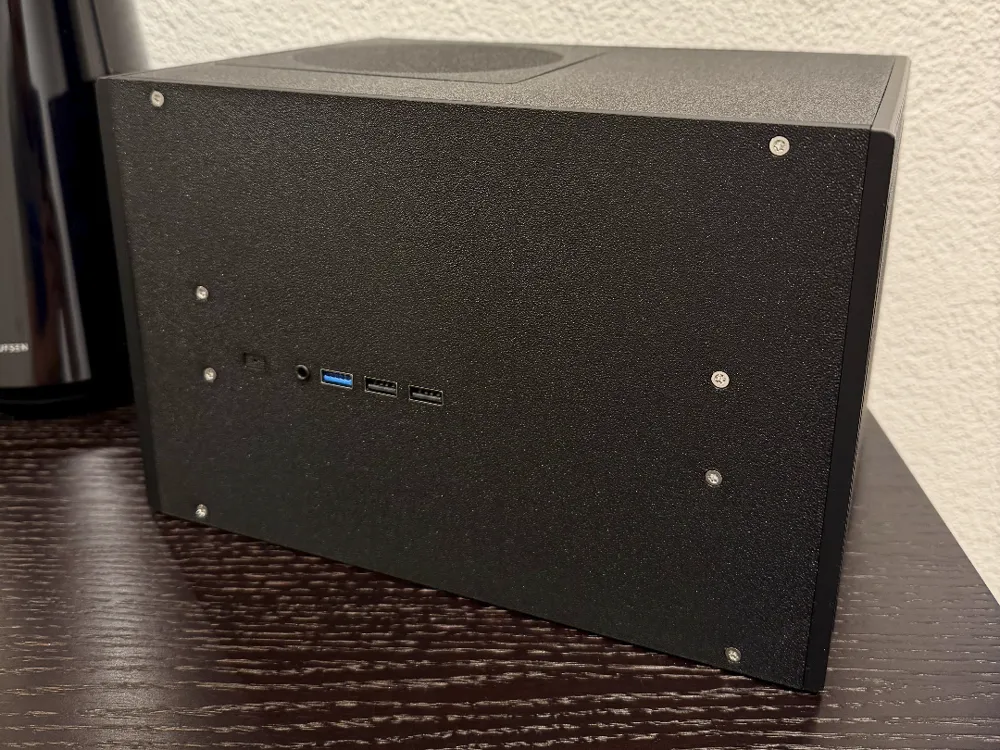

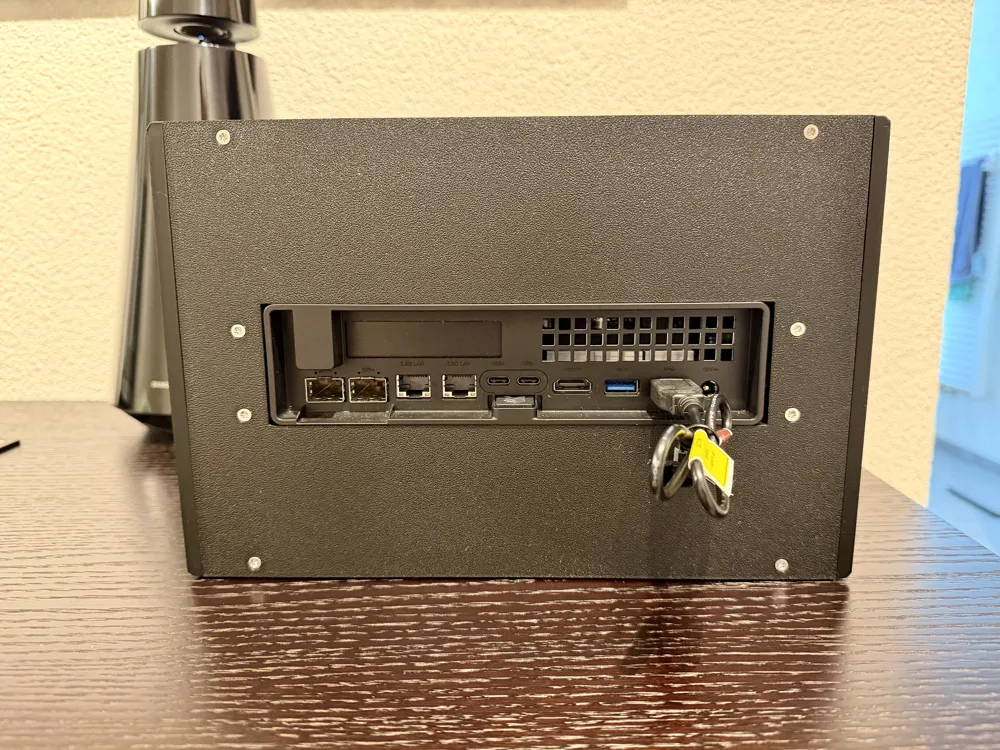

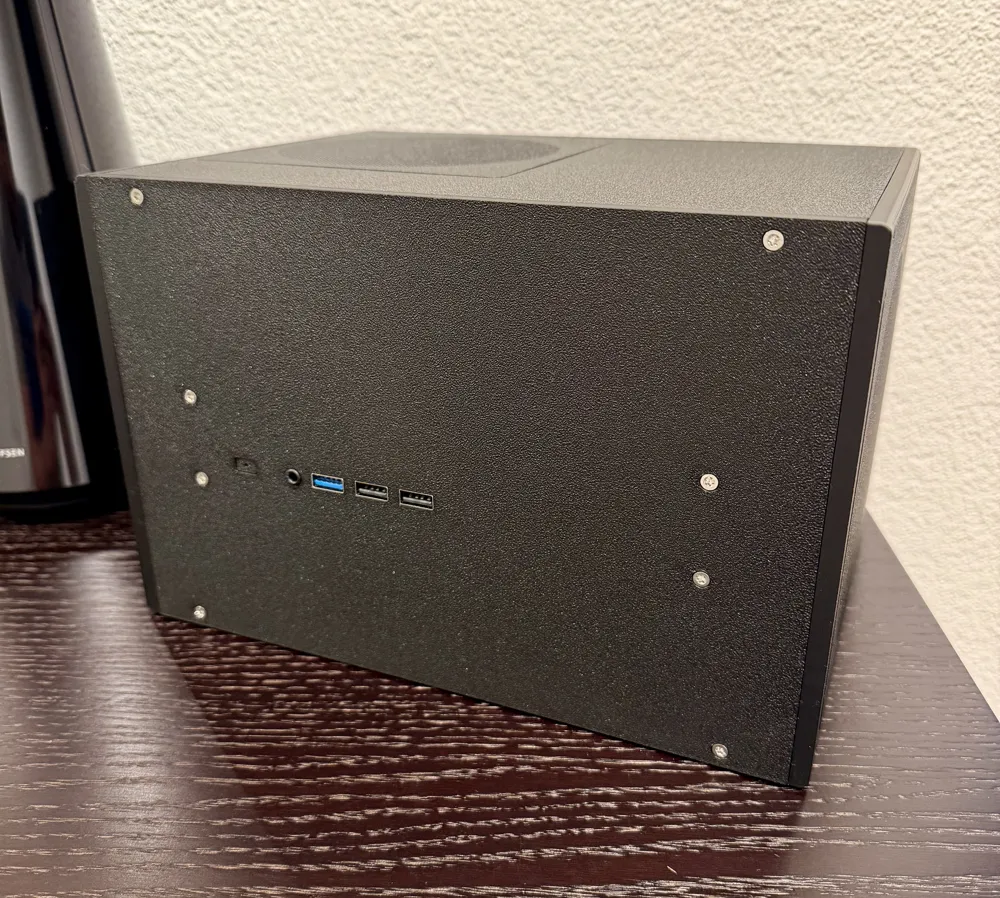

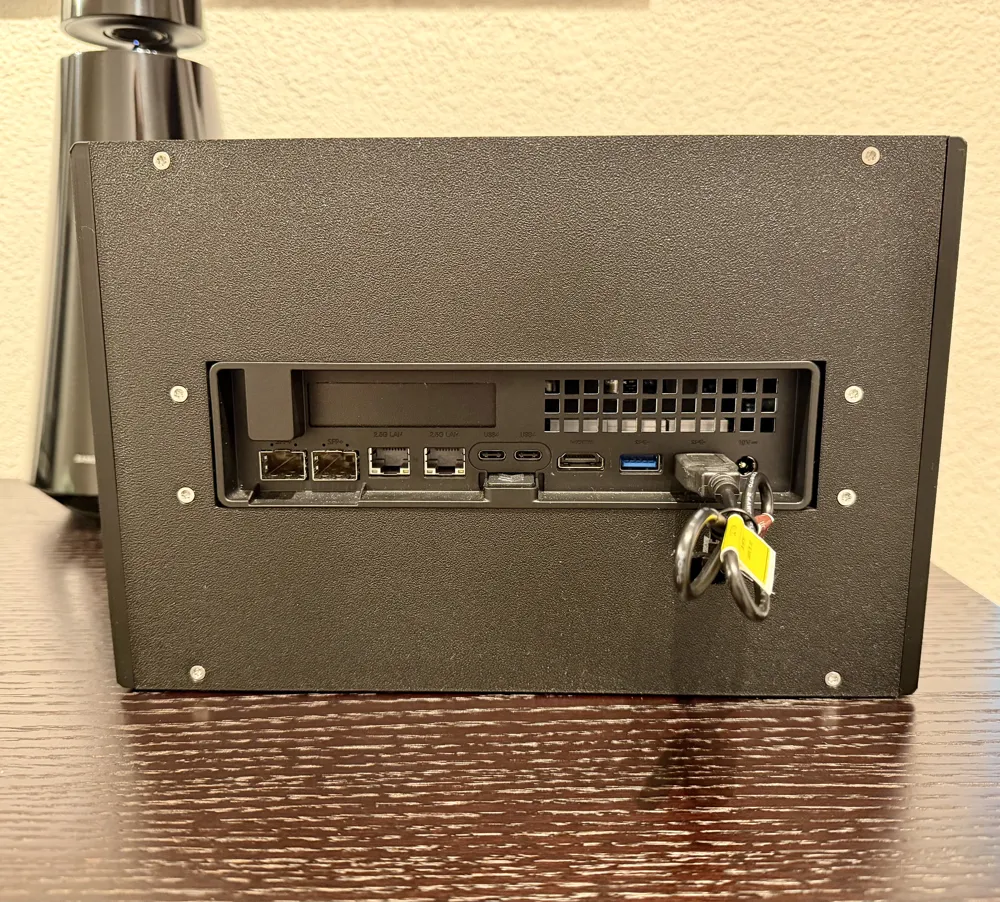

This custom-designed high-airflow PC case enhances cooling and serviceability for the Minisforum MS-01, while maintaining a clean, minimal aesthetic that fits perfectly into workstation, NAS, and home-server environments.

🔧 Enhanced Cooler Support

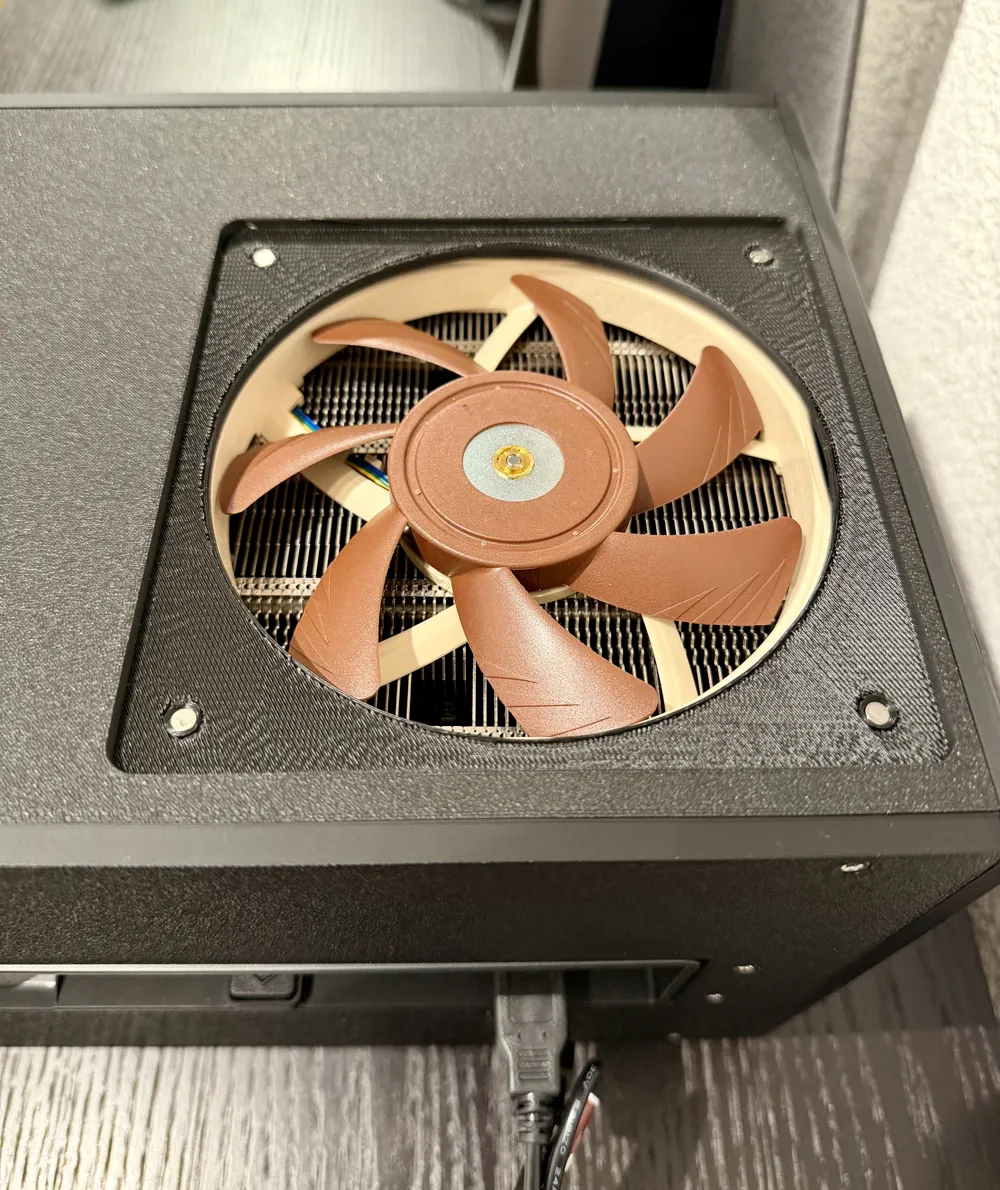

Designed specifically for the Noctua NH-L12S low-profile CPU cooler
Fully compatible even without the cooler installed

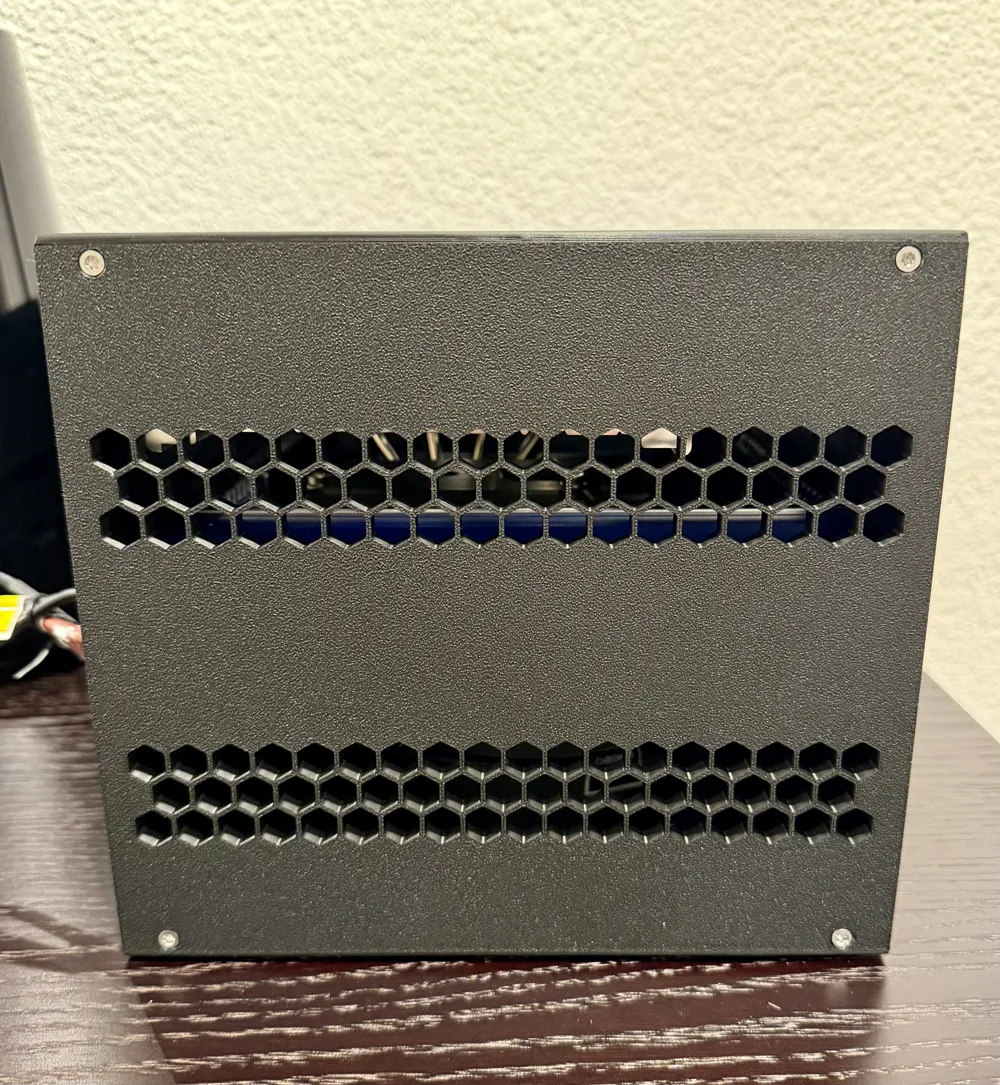

🌀 Optimized Airflow

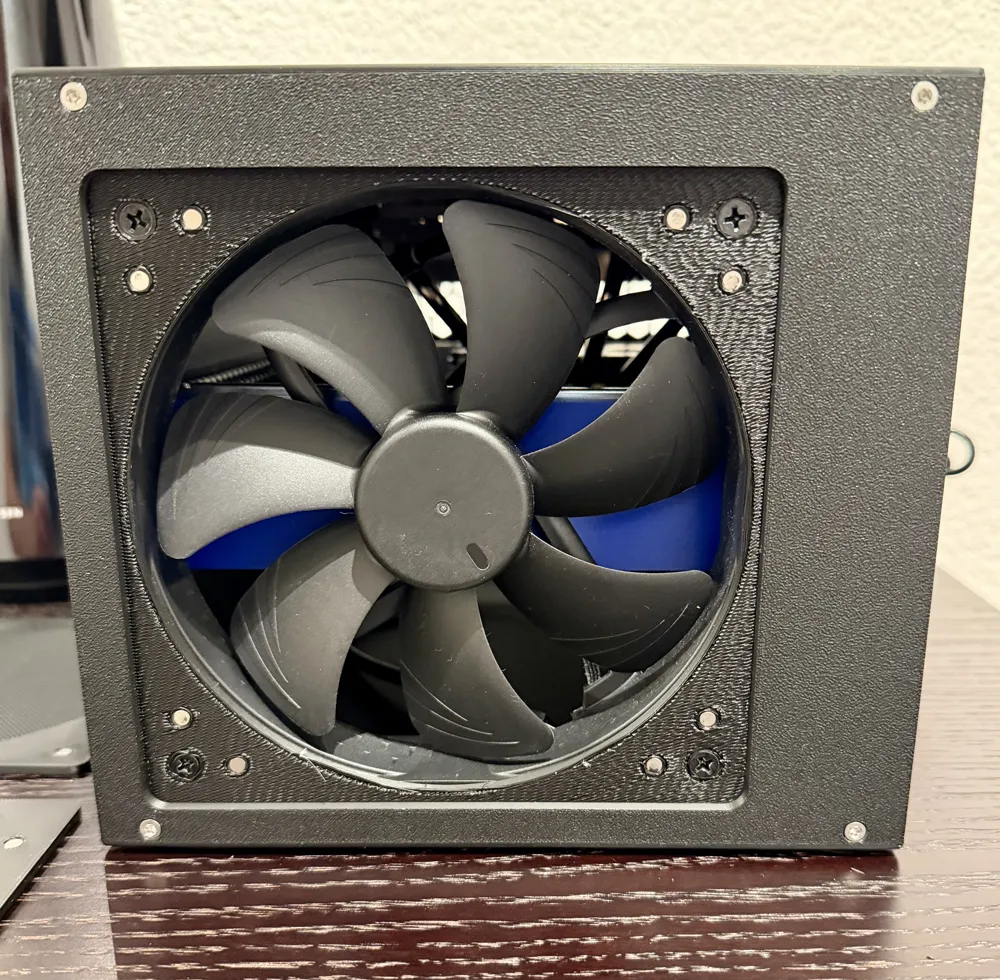

Supports 1× 140 mm × 25 mm intake fan
Direct airflow over CPU and VRM area
Improves cooling performance significantly compared to stock configuration

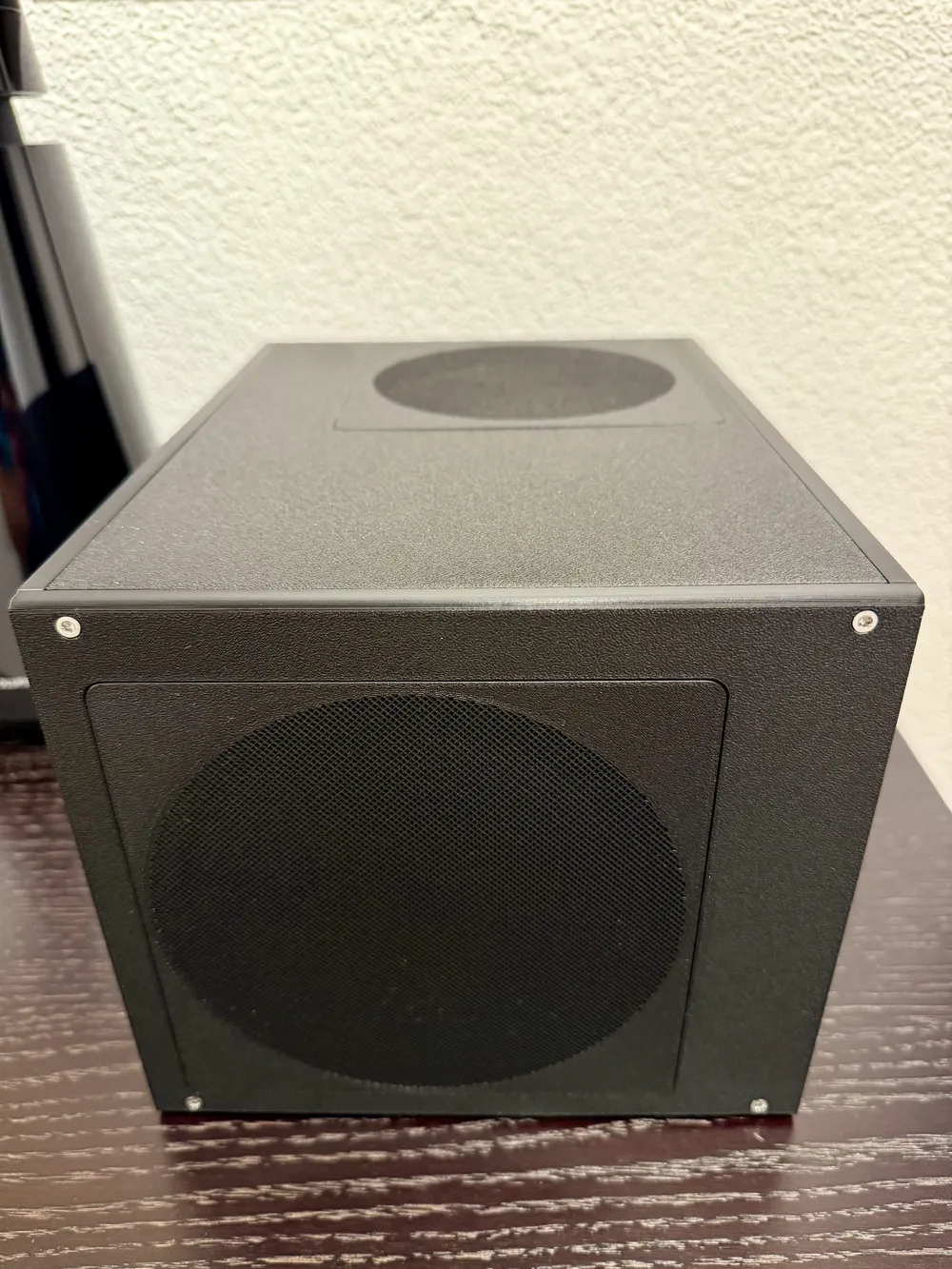

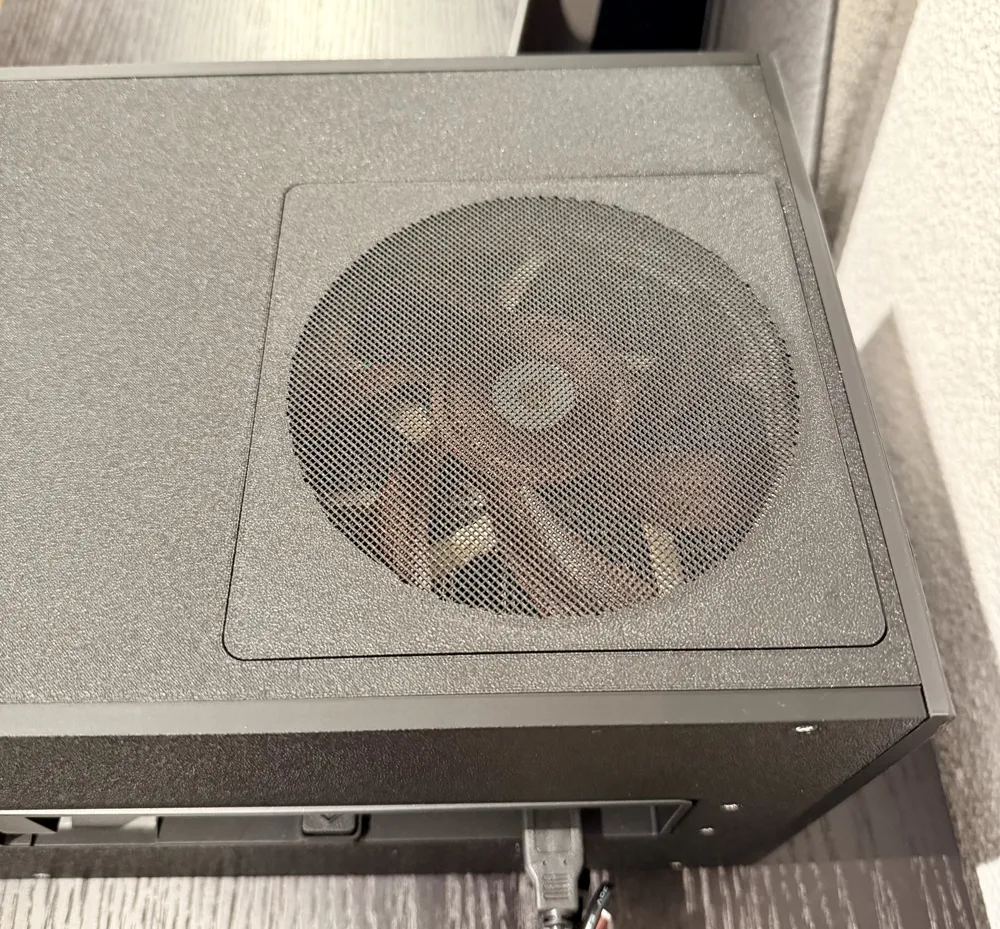

🧲 Magnetic Dust Covers

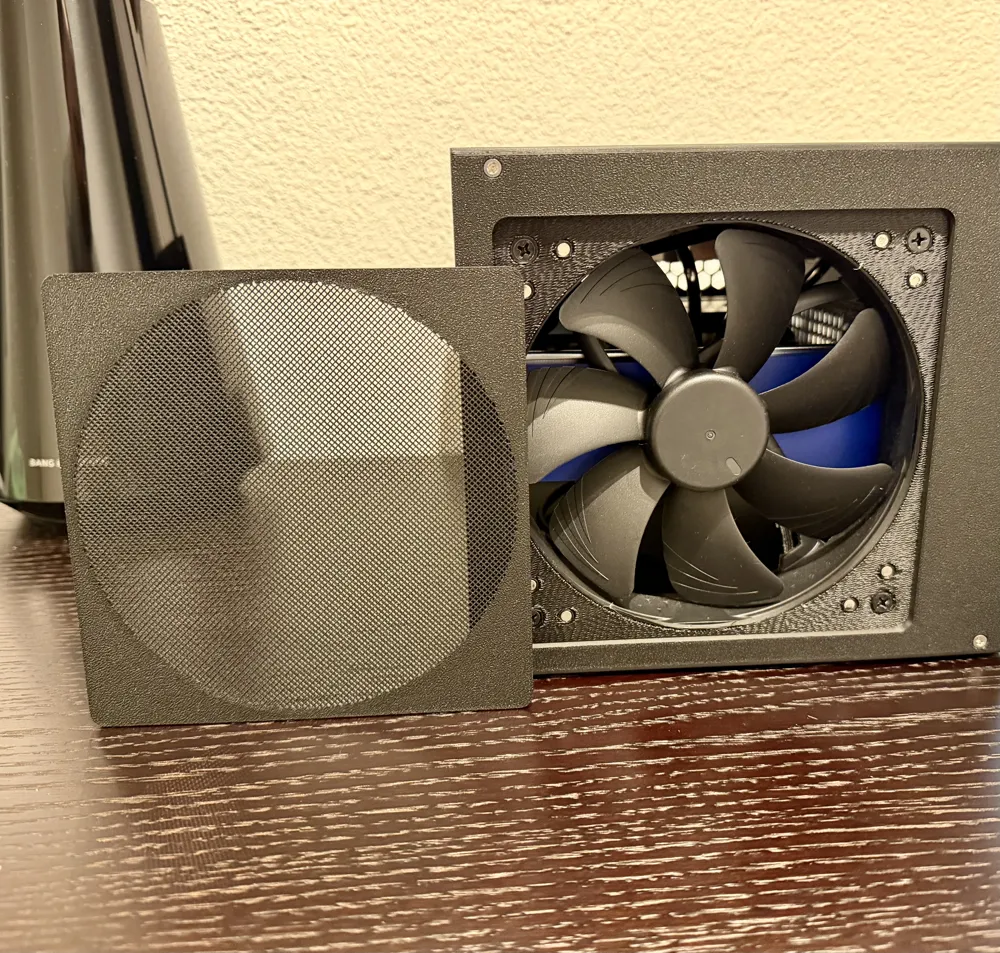

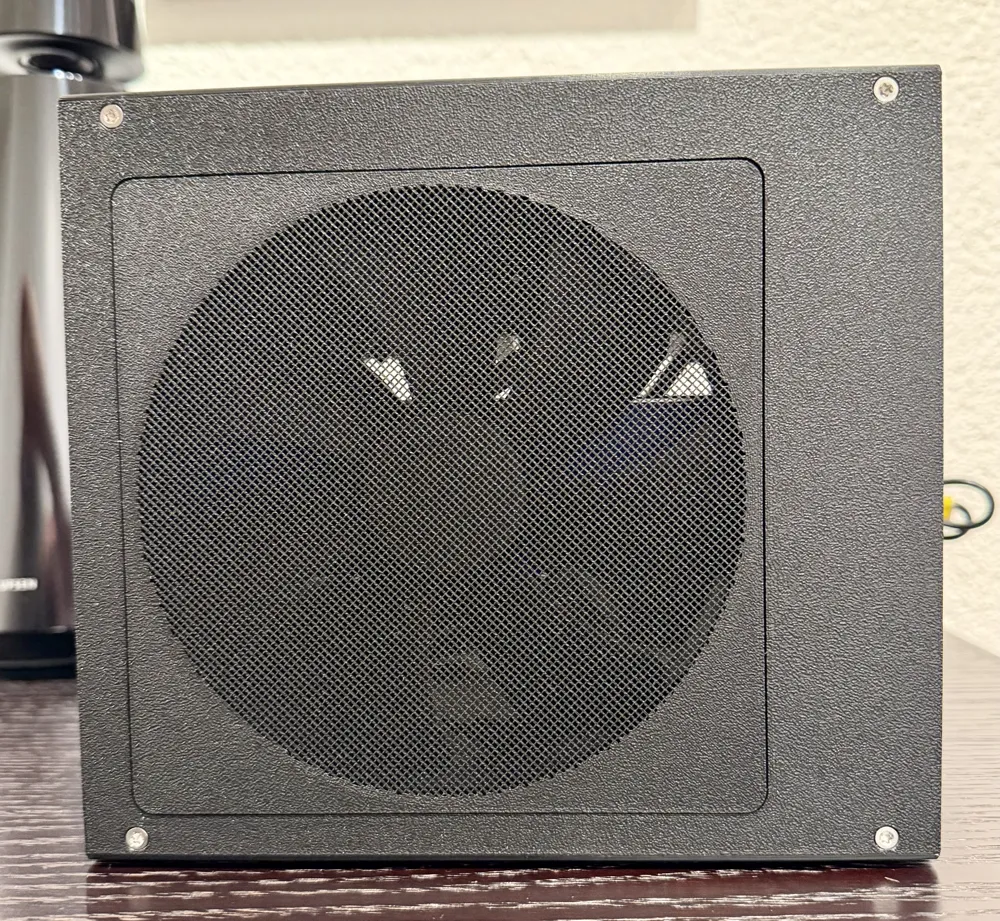

Removable magnetic intake dust filter
Tool-less access → easier cleaning and maintenance
Helps protect system against dust buildup

🧱 Strong & Serviceable Assembly

Uses M3 heat-set inserts + M3 screws
Durable structure designed for repeated assembly
Panels remain easily removable for upgrades or cleaning
Clean and minimal appearance with no external clutter

🖨️ Printing Recommendations

Part Type	Material
Internal Frame	PETG-HF
Exterior Panels	PLA Basic
Dust Covers	PLA or PETG

➡️ For optimal results, use the uploaded print profile included in this MakerWorld project.

🔩 Assembly Hardware

Component	Specification	Quantity
Fan Screws	Standard 140 mm PC fan screws	4
Threaded Inserts	M3 × 5.7 mm heat-set inserts	24
M3 Screws	≤16 mm length	24
Magnets	Ø4 mm × 2 mm	24

📦 Sourcing Links

Magnets (Ø4×2 mm):
https://eu.store.bambulab.com/products/round-magnet?id=47966966579548
M3 Screws (≤16 mm):
https://cnckitchen.store/products/schraube?variant=48118113796431
M3 Heat-Set Inserts (5.7 mm):
https://cnckitchen.store/products/heat-set-insert-m3-x-5-7-100-pieces

✅ Ideal Use Cases

Upgraded thermals for MS-01 workstation builds
NAS / home-server airflow improvements
Quiet, dust-controlled environments
Stylish desktop setups with clean design
