RB5009 10in rack mount bracket (Narrow)
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 15% infill
Designer
2.5 h
1 plate
Open in Bambu Studio
Boost
21
71
10
4
123
76
Released
Description

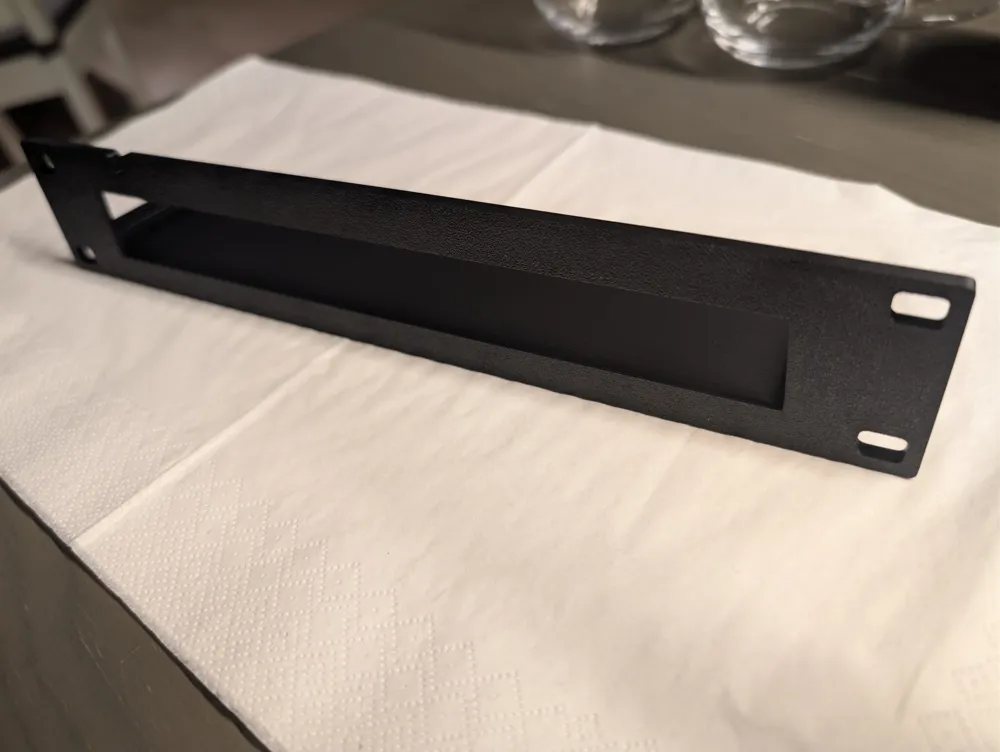

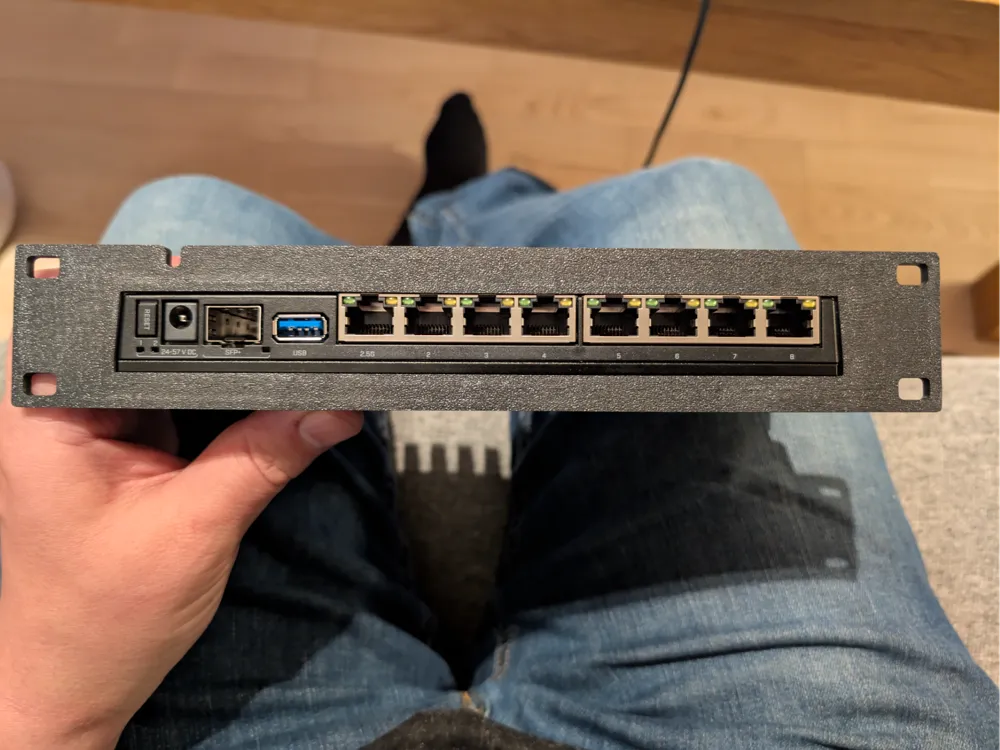

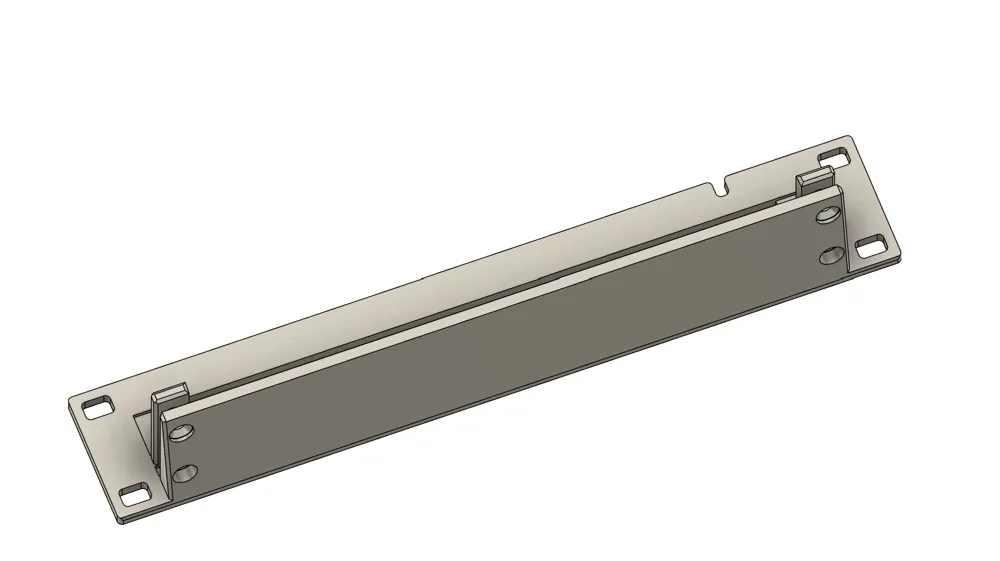

I needed a mount for my RB5009 that fit in a LANBERG 10" rack cabinet. This rack cabinet is a bit narrow, so the stock brackets didn't fit. There's about 1mm of space on each side of the RB5009, which would make any 3D-printed sidewall-bracket too weak. So I designed this solution instead.
This uses 14mm countersunk M4 screws to fasten the bracket. Bracket is solid and router doesn't move.
Also fits a standard 10" rack.
