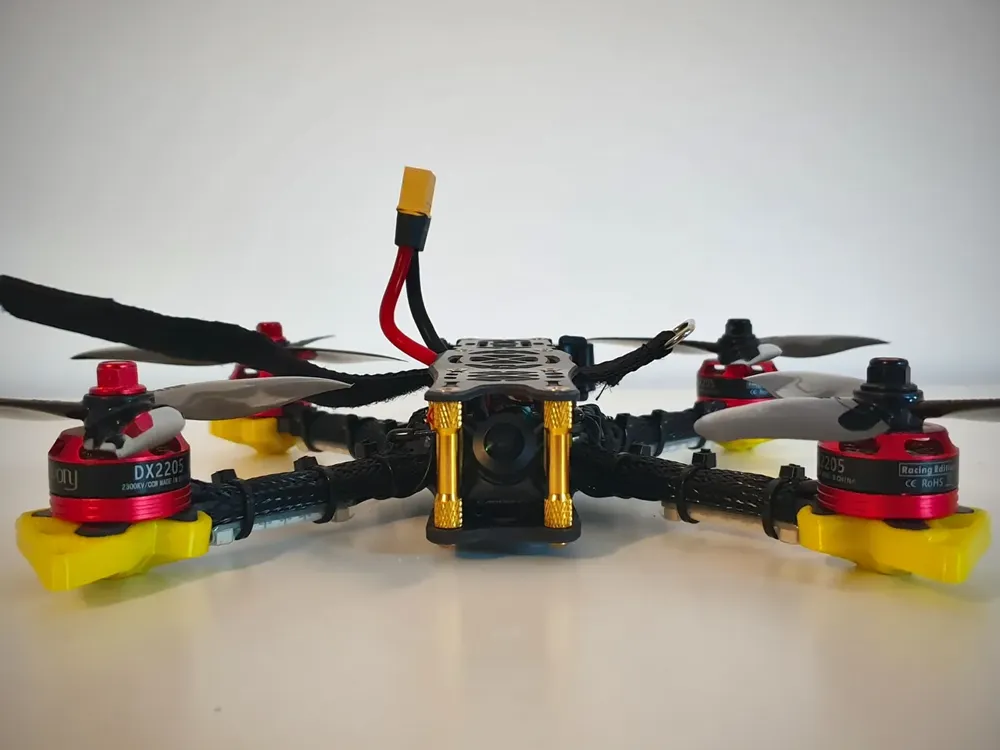

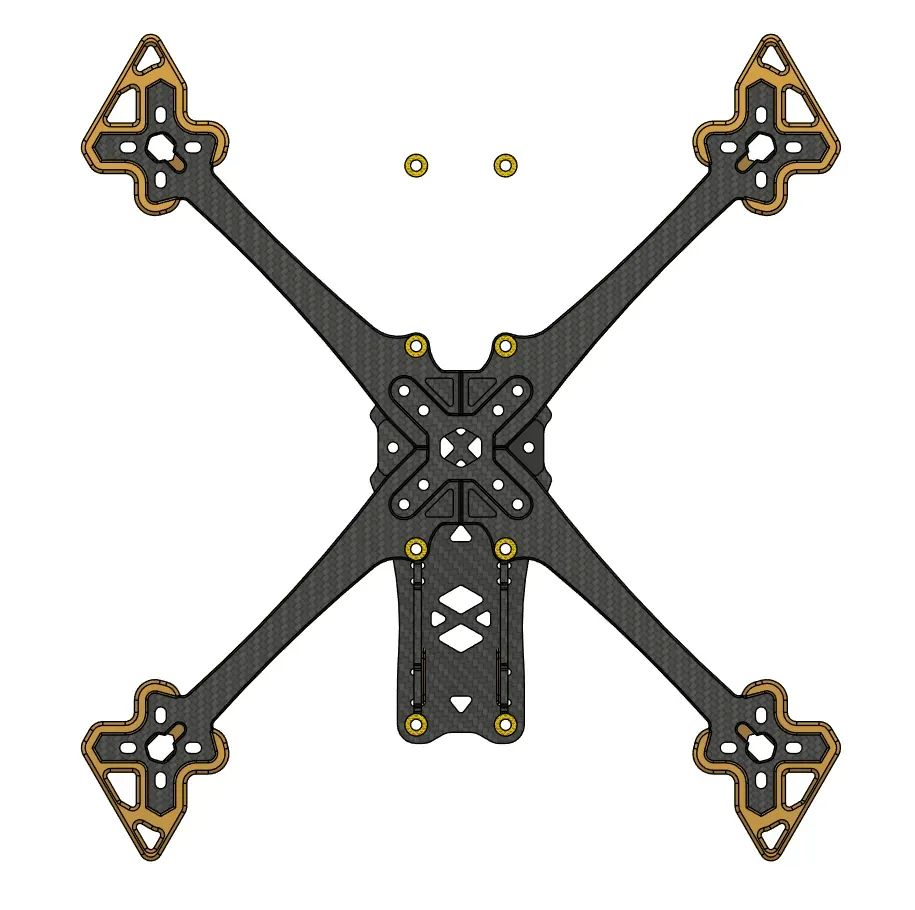

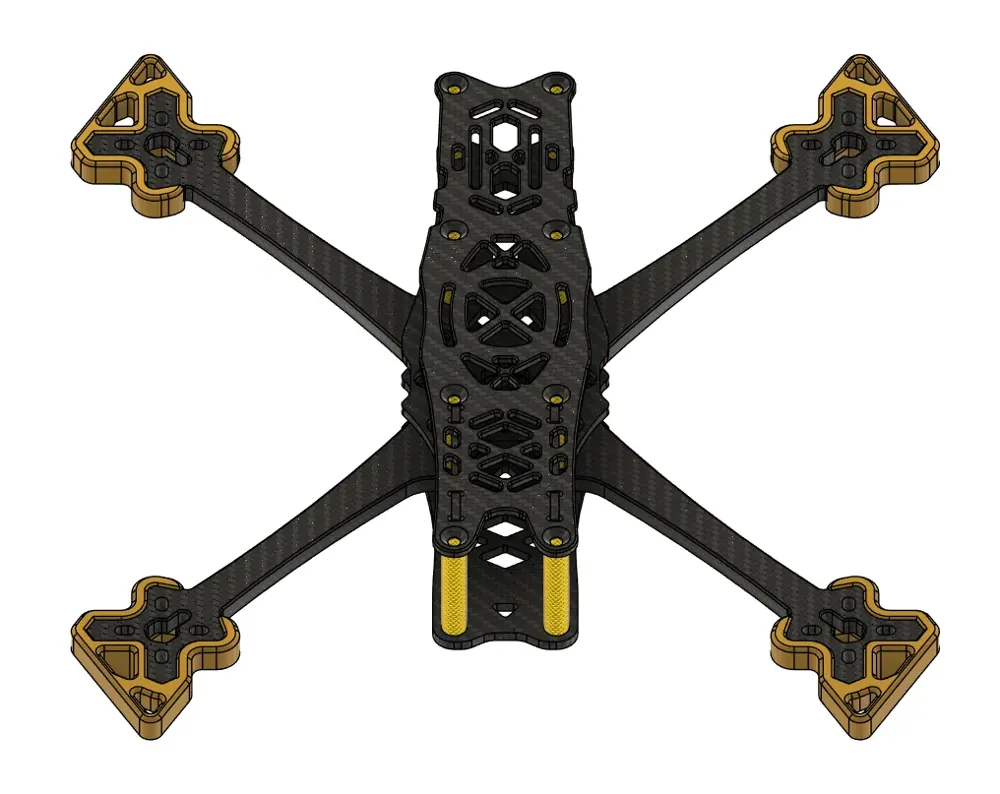

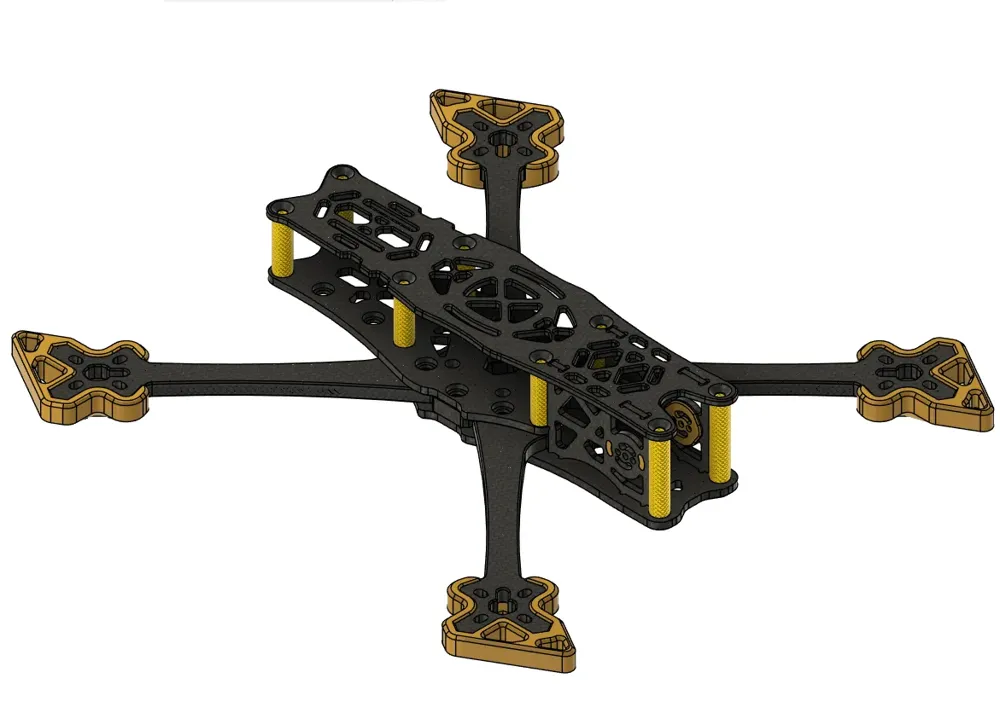

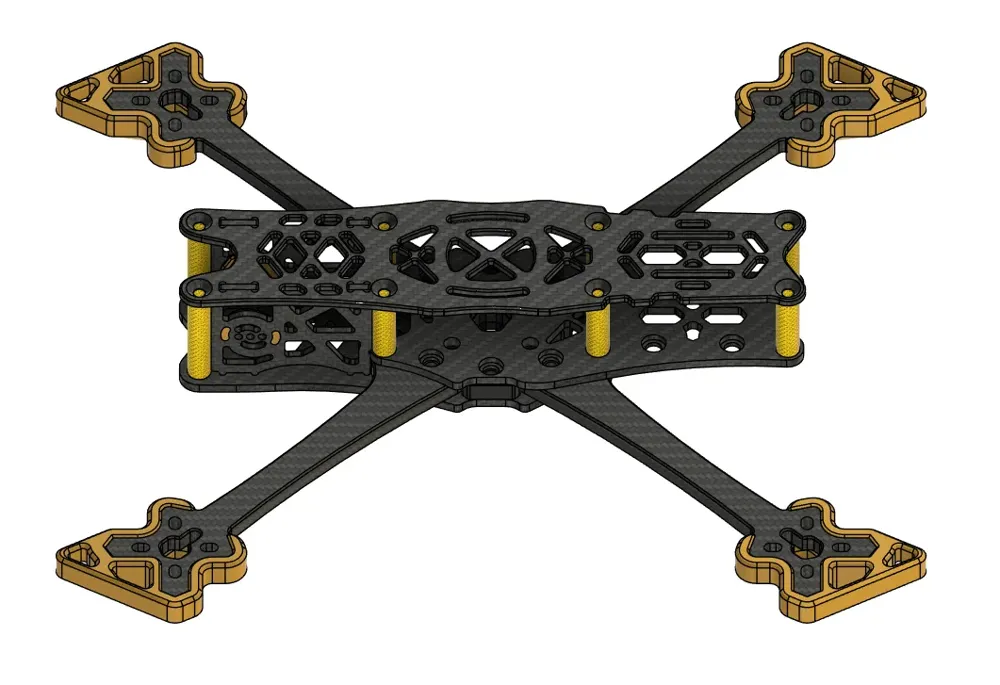

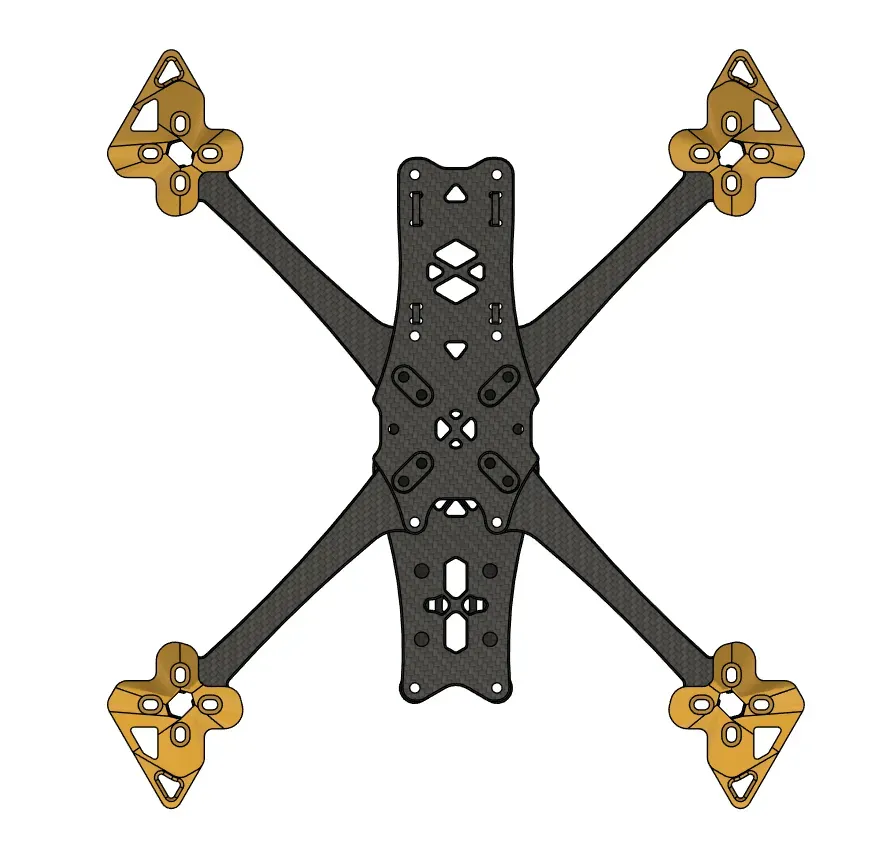

HAPATA 5 FPV Drone Frame
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
5.3 h
3 plates
Open in Bambu Studio
Boost
68
162
8
2
123
47
Released
Bill of Materials
List other parts
- M3x18mm button head screws x 4: Can be 14-20mm length
- M3x15mm button head x 2:
- M3x28mm button head for stack x 4:
- M3x10mm button head x 4:
- M3x8mm countersunk screws x 8:
- M3x20mm standoffs x 6: Max 6mm diameter
- M3x28mm standoffs x 2: Max 6mm diameter
- M3 clinch/press-fit nuts x 6: Minimum of 6, up to 10 optionally
Description
I looked at a lot of frame reviews and tried to incorporate many design features that I liked into one drone frame.

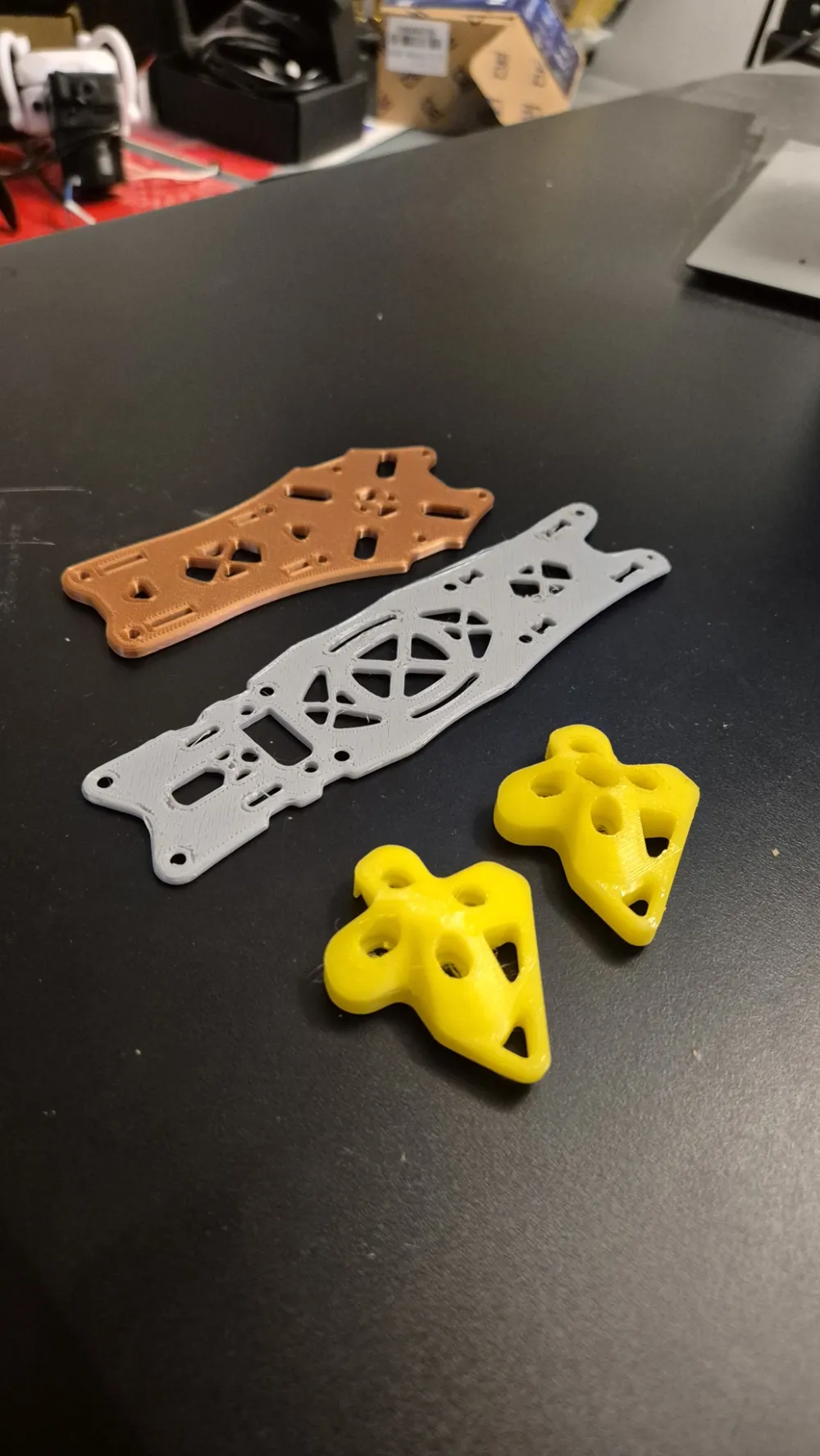

I recommend test printing it to see if your components will fit first as it is a fairly tight build.
If slicing use the split to objects button to separate all the pieces.
If you have any suggestions please let me know and make sure to post your builds here too
Onshape link if you want to make any changes:
If you downloaded from the onshape link, make sure to download on here too :)
License
This user content is licensed under a
Creative Commons Attribution
