FTTH Fiber Management Kit / ONT Mount + Spool

Finally, tidy up your new Fiber Optic (FTTH) installation with this complete management kit! Home installations can leave cables dangling and, even worse, the delicate fiber optic cable at risk of sharp bends, which can damage it or cause signal loss.

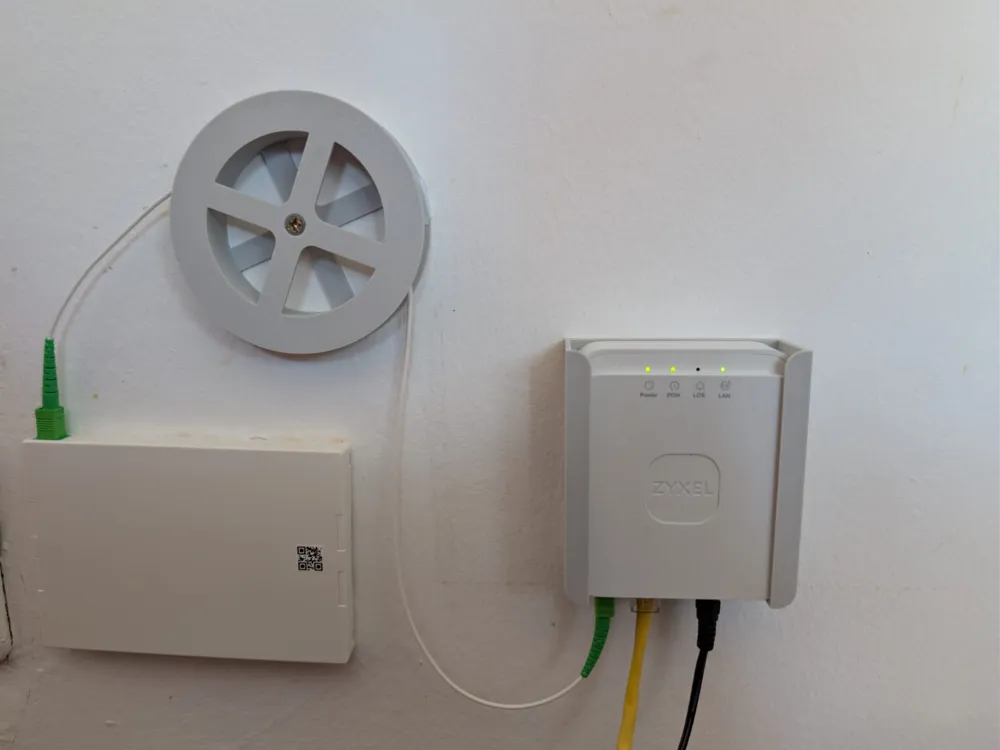

This two-part project solves both problems, creating a clean, professional, and, most importantly, safe setup for your connection.

The kit includes:

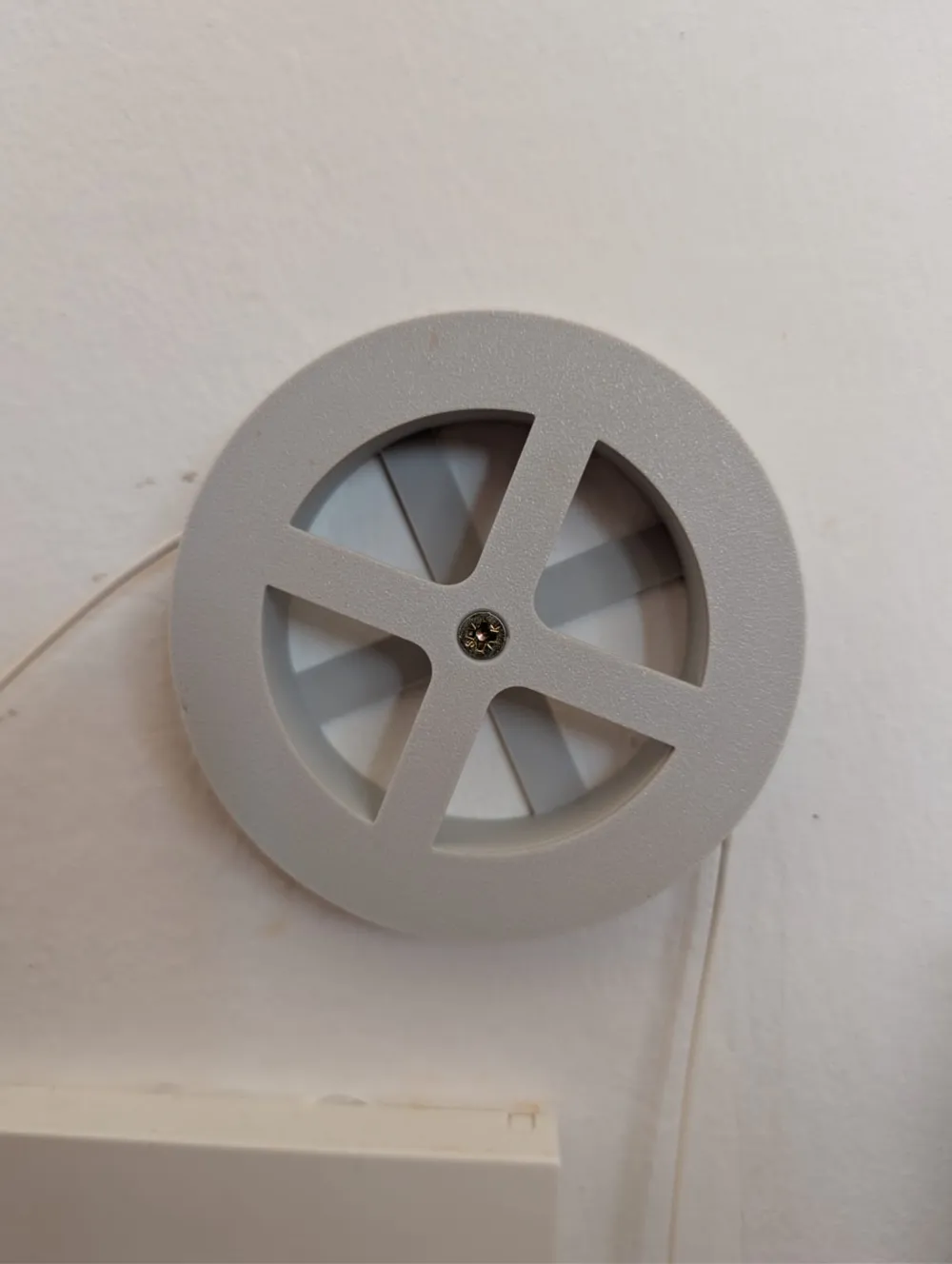

1. Fiber Optic Cable Spool: A wall-mounted spool (fixed with a single central screw) designed to coil excess fiber optic cable. Its round shape ensures a wide, consistent curve, protecting the fiber's core from dangerous kinks.

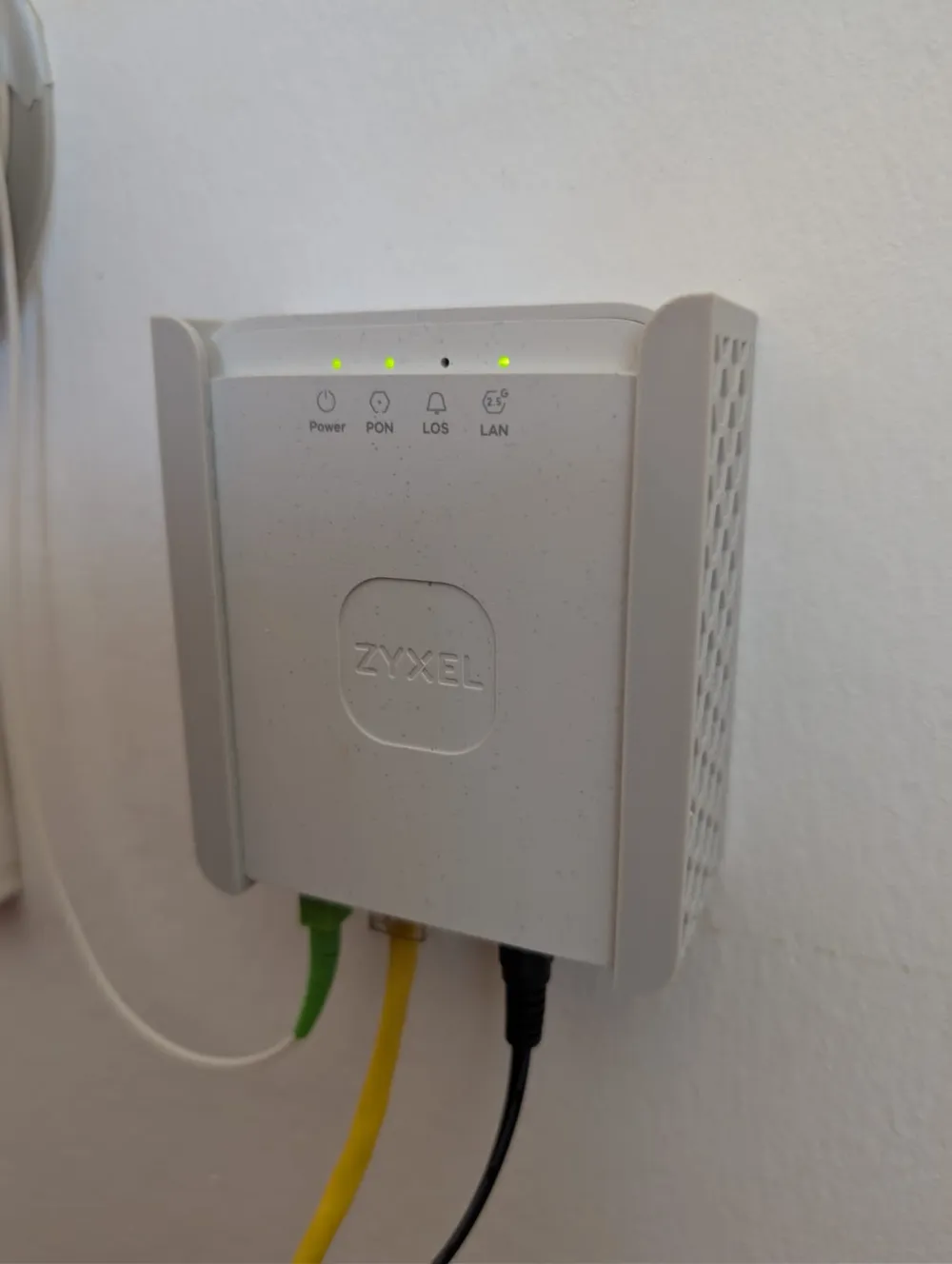

2. Ventilated ZYXEL ONT Mount: A custom-fit wall mount for the ZYXEL ONT (Optical Network Terminal). The bracket holds it securely to the wall, but its design keeps it offset, creating a gap for excellent ventilation and preventing any overheating.

Key Features:

• 2-in-1 Kit: A complete solution for FTTH cable management.
• Fiber Protection: The spool prevents sharp bends and damage to the optical cable.
• Optimal Ventilation: The ZYXEL ONT mount is designed to maximize airflow.
• Clean & Professional Install: Eliminates dangling cables and provides a tidy look.
• Flexible Mounting (ONT Mount): Can be installed with either double-sided tape or screws for maximum stability.

Technical Print Details:

• Recommended Material: PETG (like the Bambu Lab PETG used in the photos) is ideal for its durability.
• Layer Height: 0.20 mm.
• Infill: 15-20% is sufficient for both parts.
• Print Supports:
  • ZYXEL ONT Mount: Yes, supports are required for the side walls.
  • Cable Spool: No, prints without supports.

Installation Tips:

• The ONT mount can be installed with strong double-sided tape.
• For maximum stability, we recommend using screws (3mm diameter) with wall plugs (5mm diameter) in the provided holes.
• The spool is fixed with a single central screw.
