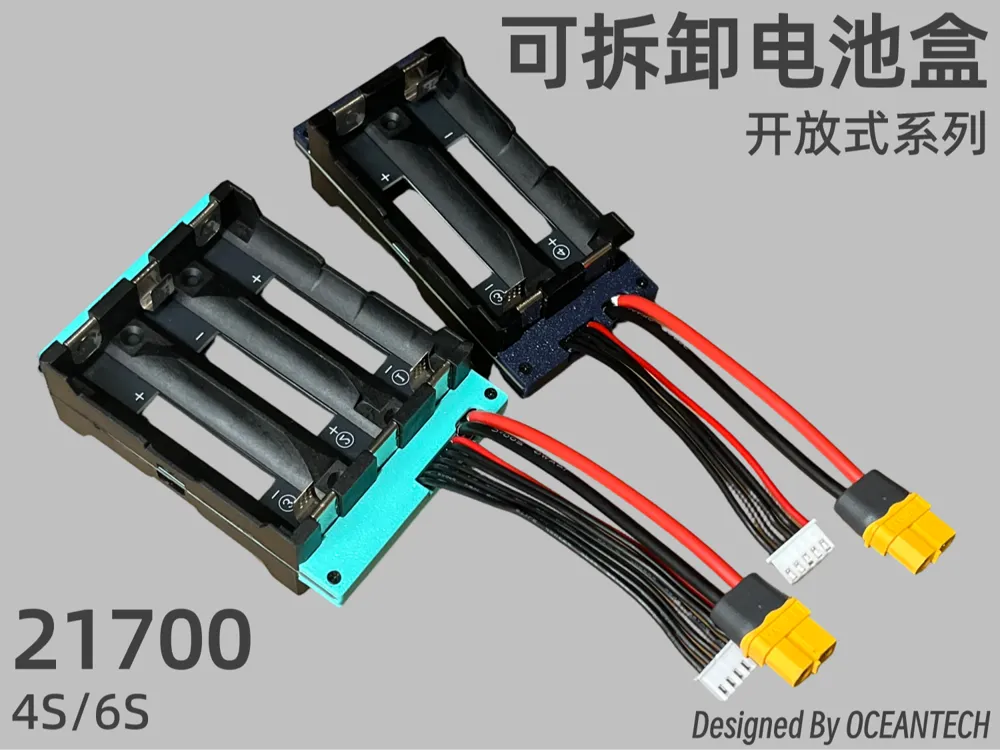

4S 6S-21700 Detachable Battery Box Solderless Power Pack Open Structure
Print Profile(1)
Description
4S 6S 21700 Removable Solder-Free Battery Box XT60 Output with Balance Port | RC Drone Field Power Pack/Outdoor Power Supply/Electronic DIY/Your Great Ideas!
Boost Me (for free)
Your support is my motivation for open-sourcing~
Bilibili Video Link:【Open Source】21700 Removable Battery Box｜Solder-Free Power Pack - With XT60 and Balance Wire_Bilibili_bilibili Thanks for your support~
PCB Open Source Link:21700 Removable Battery Box 2S 3S 4S 6S Power Pack - LCSC Open Source Hardware Platform Thanks for your support~
Any form of commercial use or sale is prohibited, for DIY use by enthusiasts only

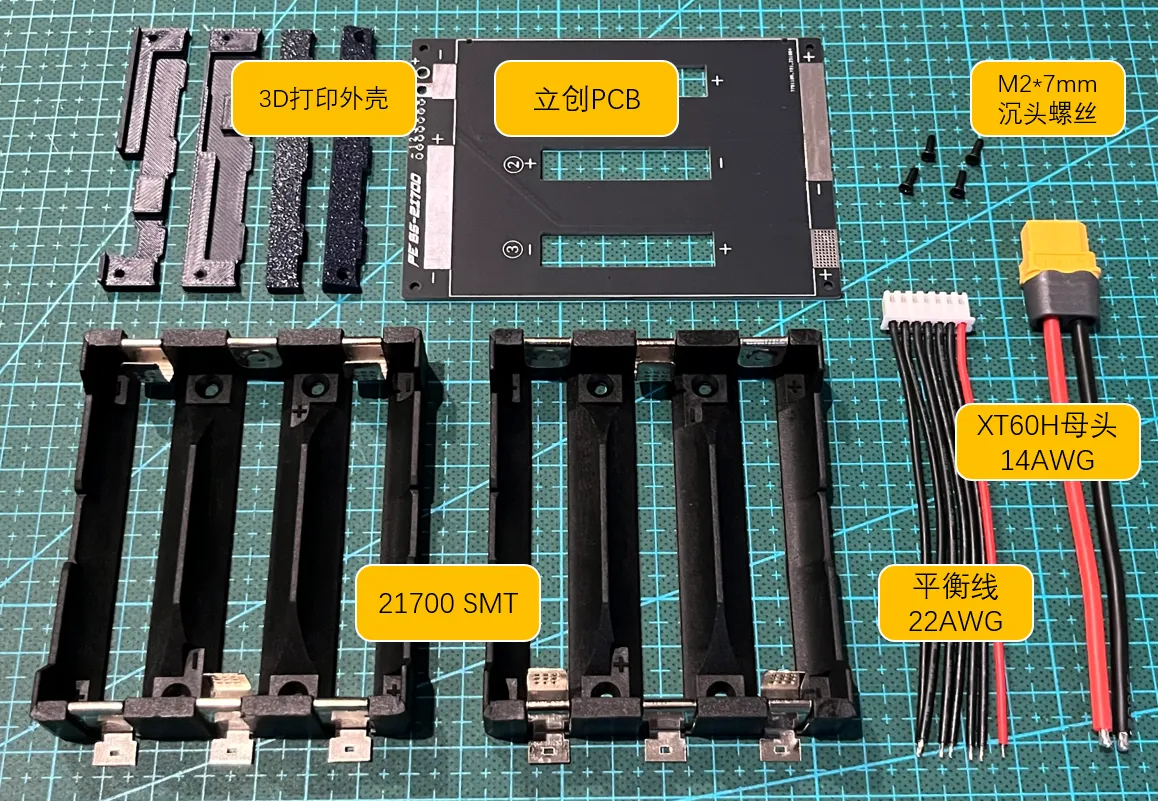

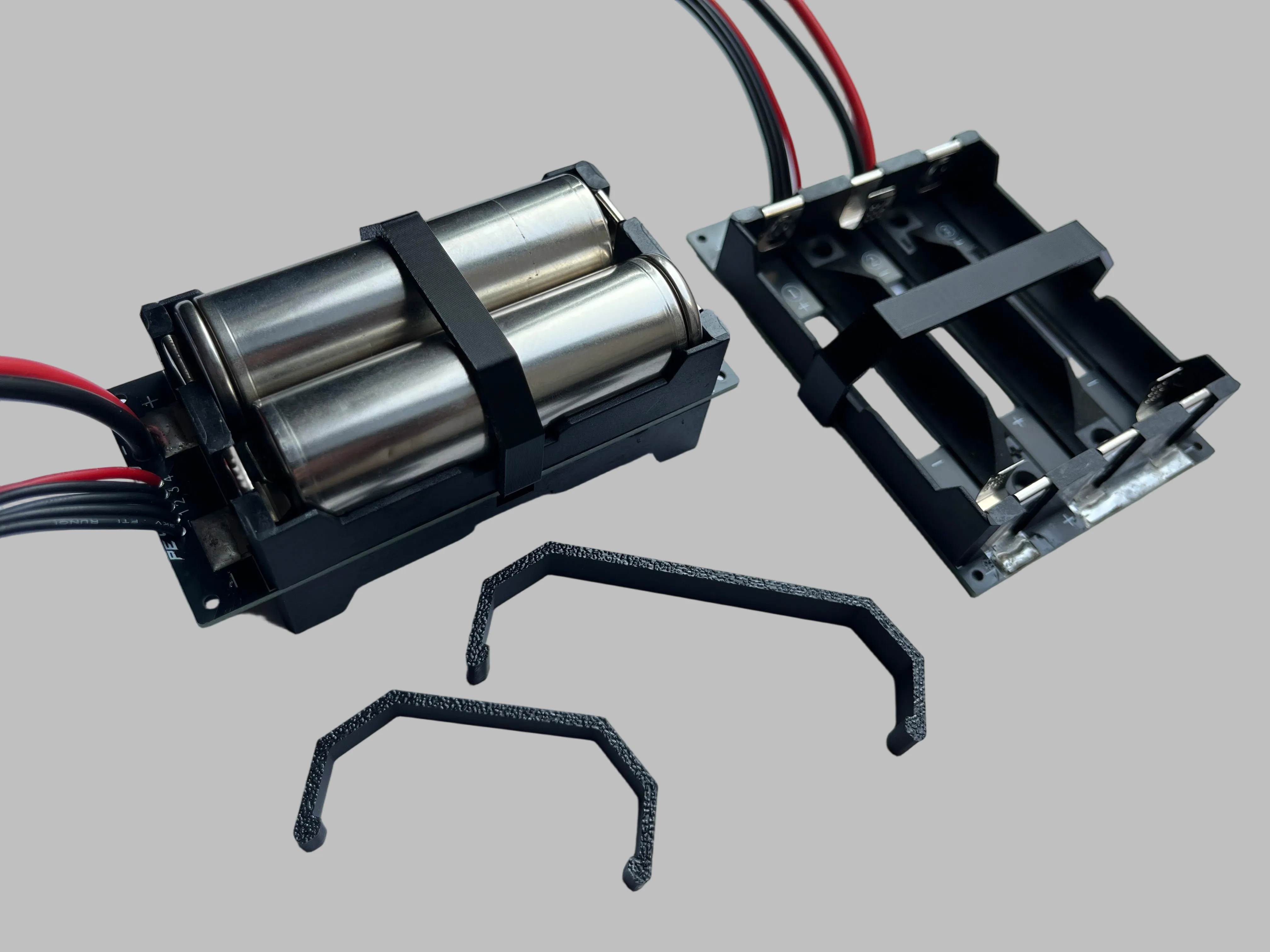

2S 3S versions and battery fixing clips are also available on the homepage~

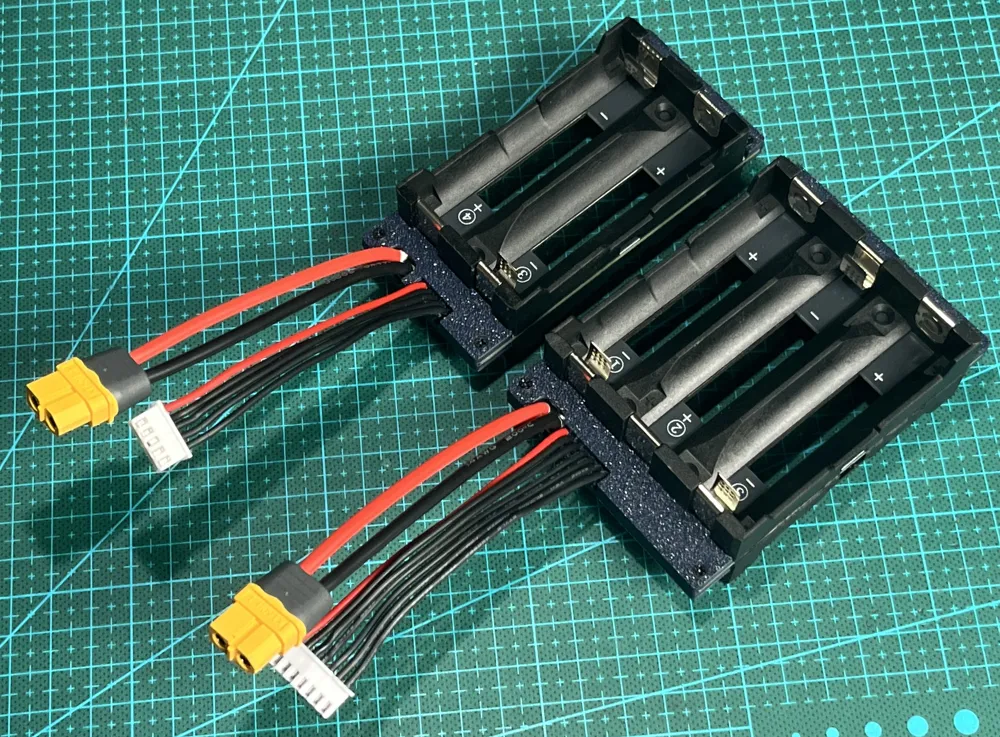

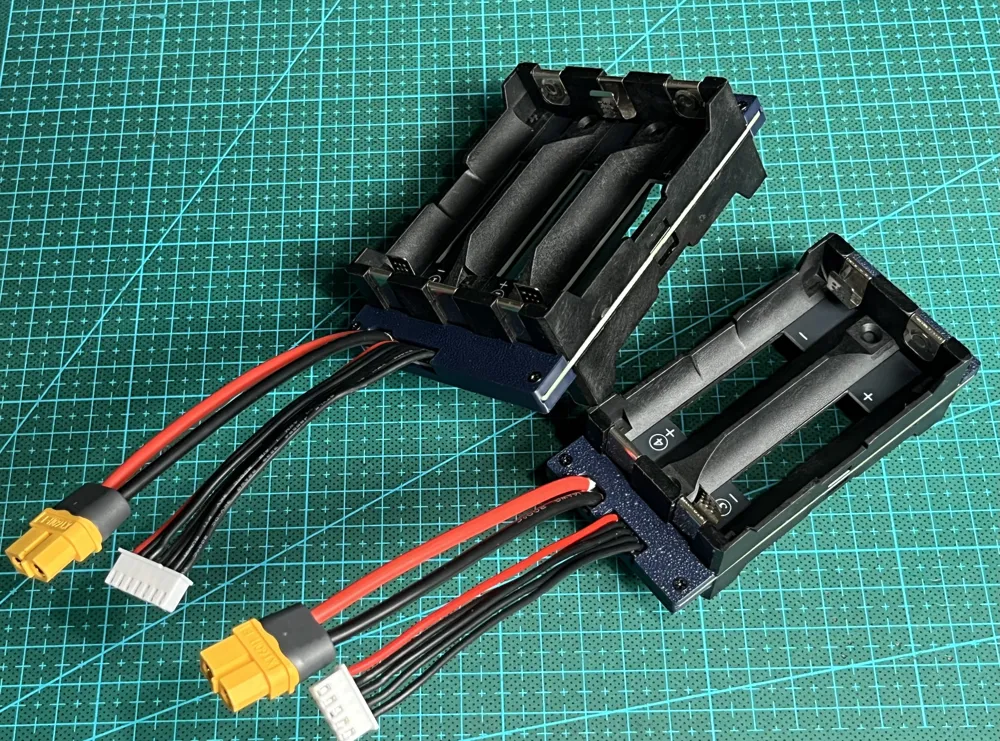

★Open design, lightweight structure, hollowed base plate for easy battery removal and installation, no more soldering hassle!
★PCB tinned window, genuine Amass XT60 gold-plated connector, ultra-thick high-temperature resistant silicone wire!
★With 2.54XH balance head, supports mainstream balance chargers!
◯Battery Configuration: 4S: 4x 21700 cells in series
6S: 6x 21700 cells in series
◯Output Voltage: Full charge 16.8V/25.2V, 4.2V per cell
◯Output Connector: XT60 female
◯Balance Connector: 2.54XH interface
◯Dimensions after battery installation: 10.3*4.8*4.5cm (4S)
10.3*7.1*4.5cm (6S)

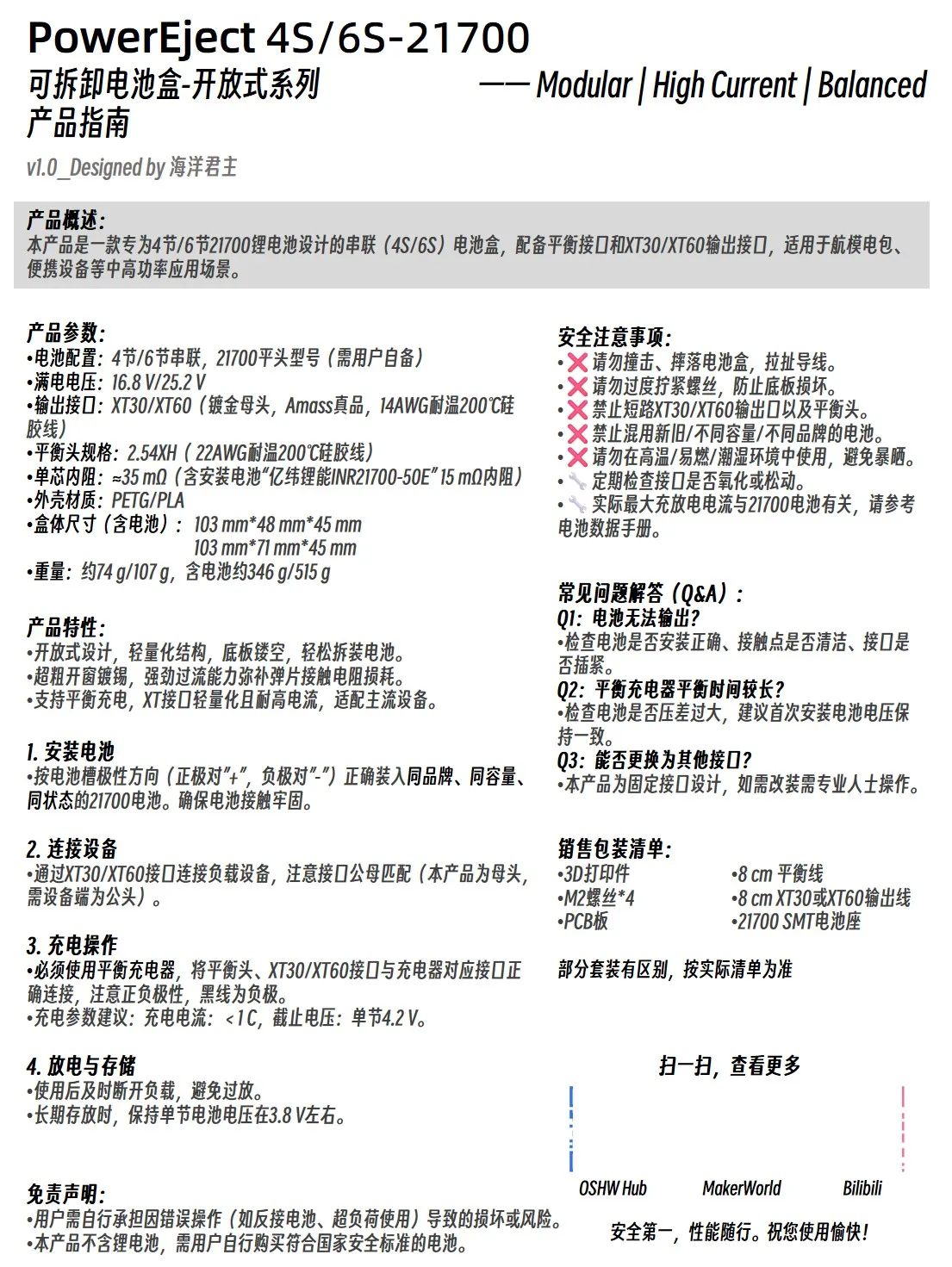

⚠ Flat-top 21700 cells are required, pointed-top cells cannot be used! Please refer to the manual for details
Internal Resistance and Discharge Temperature Rise Test (the pain of not having thermal imaging...)
