Cupra Wheel Hub Cover Two-Piece

Tom
Hobby & DIY>Vehicles
IP Report

Print Profile(2)

All
P1S
X1 Carbon
X1E
H2D Pro
A1
P2S
A1 mini
H2D
H2S
X1
P1P
H2C
X2D
A2L
0.2mm layer, 3 walls, 15% infill
0.2mm layer, 3 walls, 15% infill
Designer
2.2 h
2 plates
4.8(4)
Cupra Born 56 / 51,5mm 0.2mm layer, 3 walls, 15% infill
Cupra Born 56 / 51,5mm 0.2mm layer, 3 walls, 15% infill
Designer
40 min
2 plates
5.0(1)
Open in Bambu Studio
Boost
22
66
14
1
80
39
Released

Description

Content has been automatically translated.
Show original

Boost Me (for free)

Thank you very much for the boost in advance! Your support means a lot to me and helps me to get even better. I really appreciate you giving me the opportunity to expand my skills and to be even more helpful to you. If you have any questions or concerns, I am always available to you!

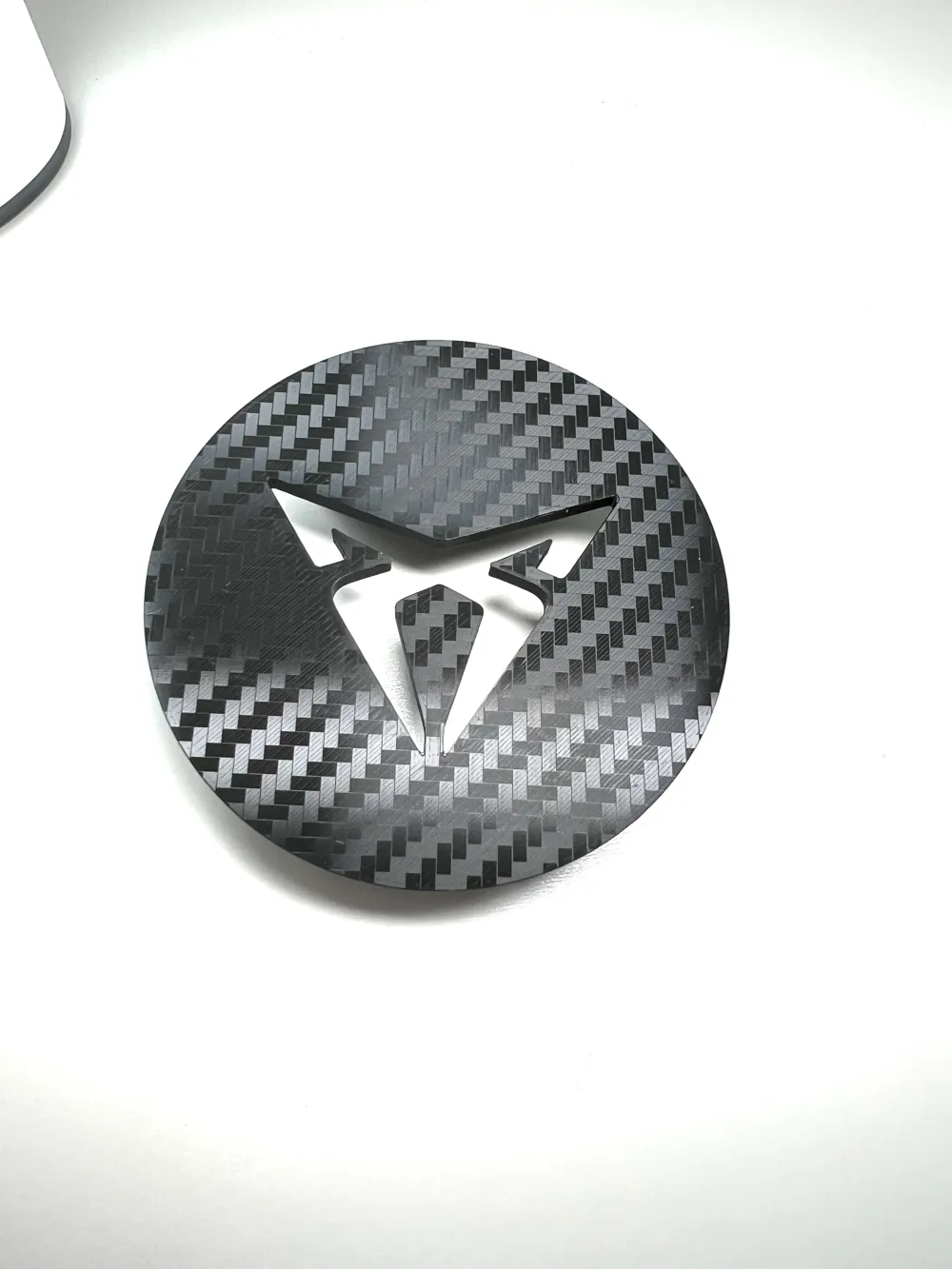

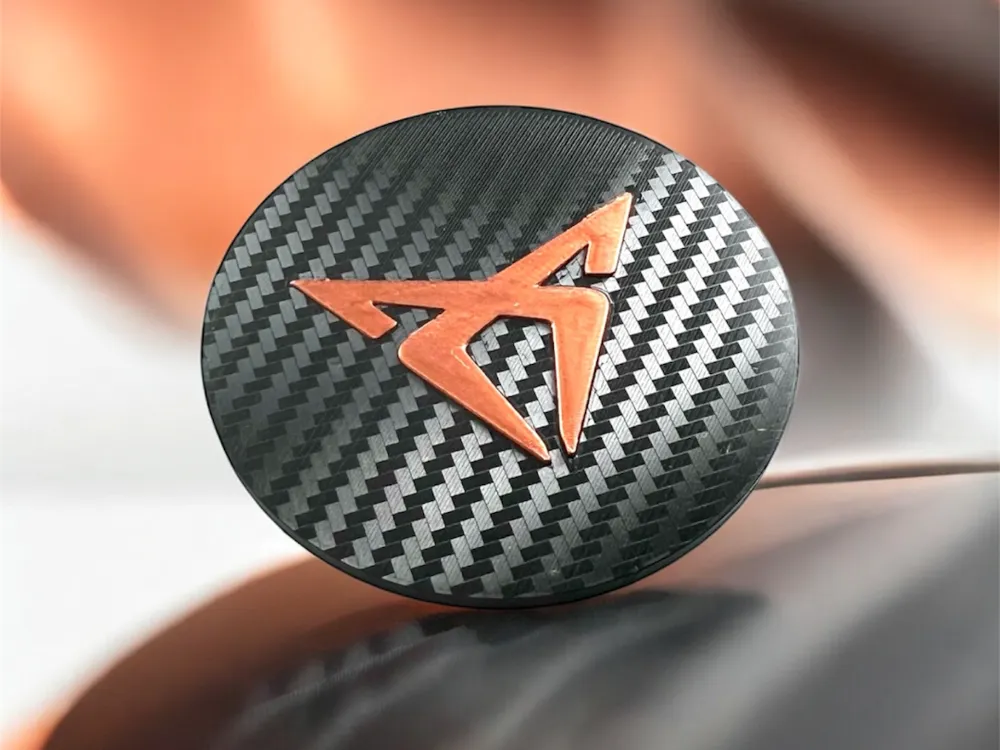

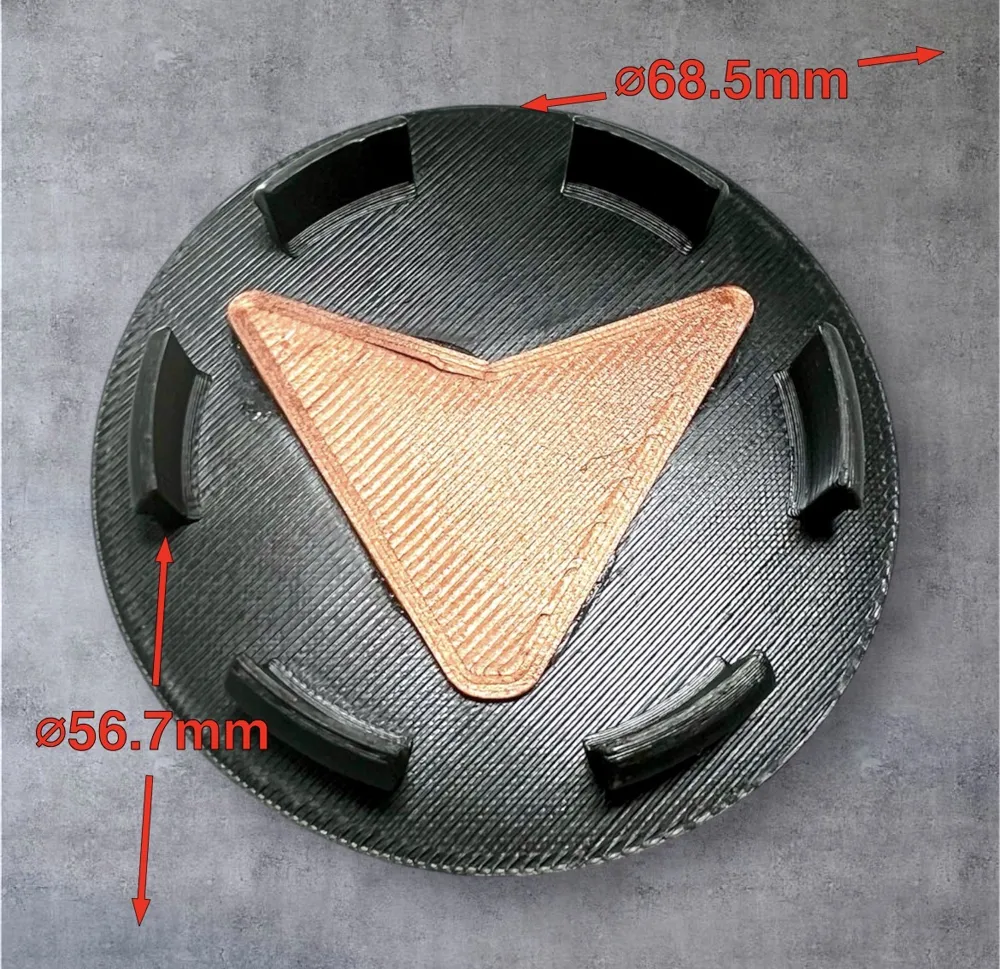

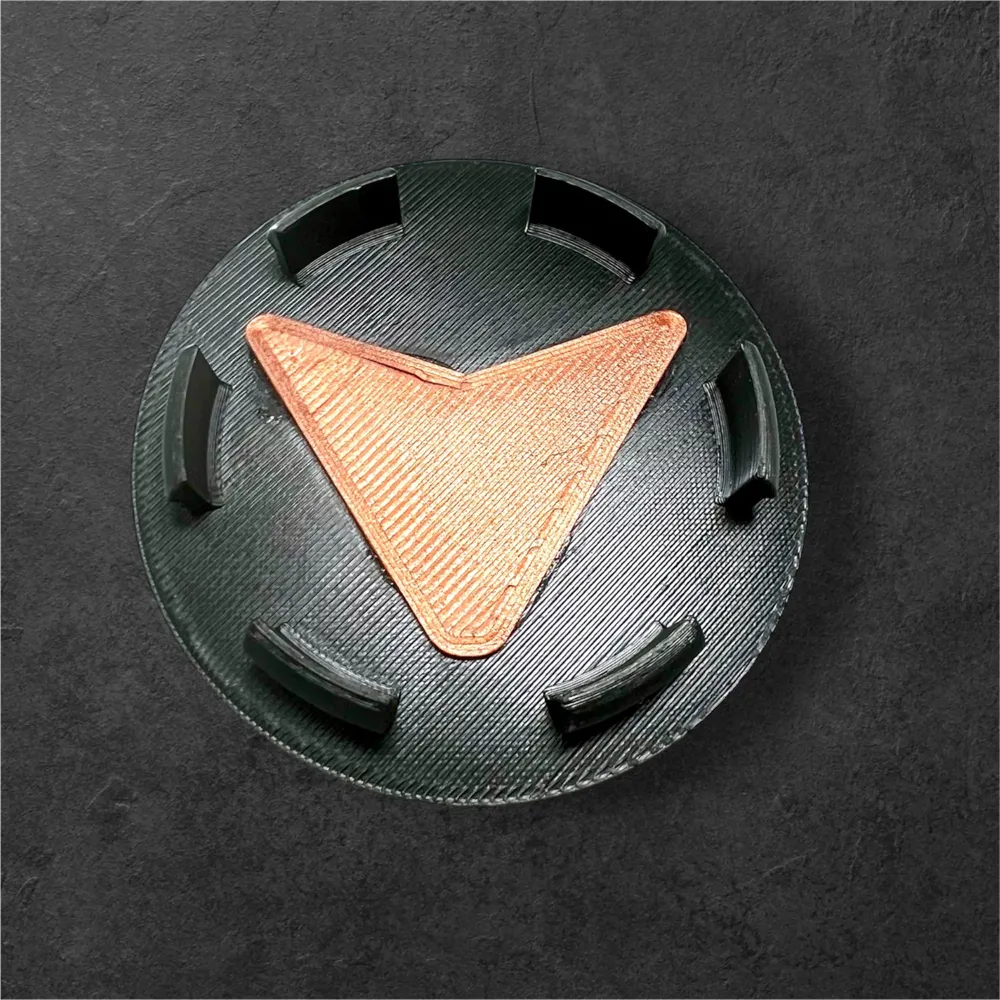

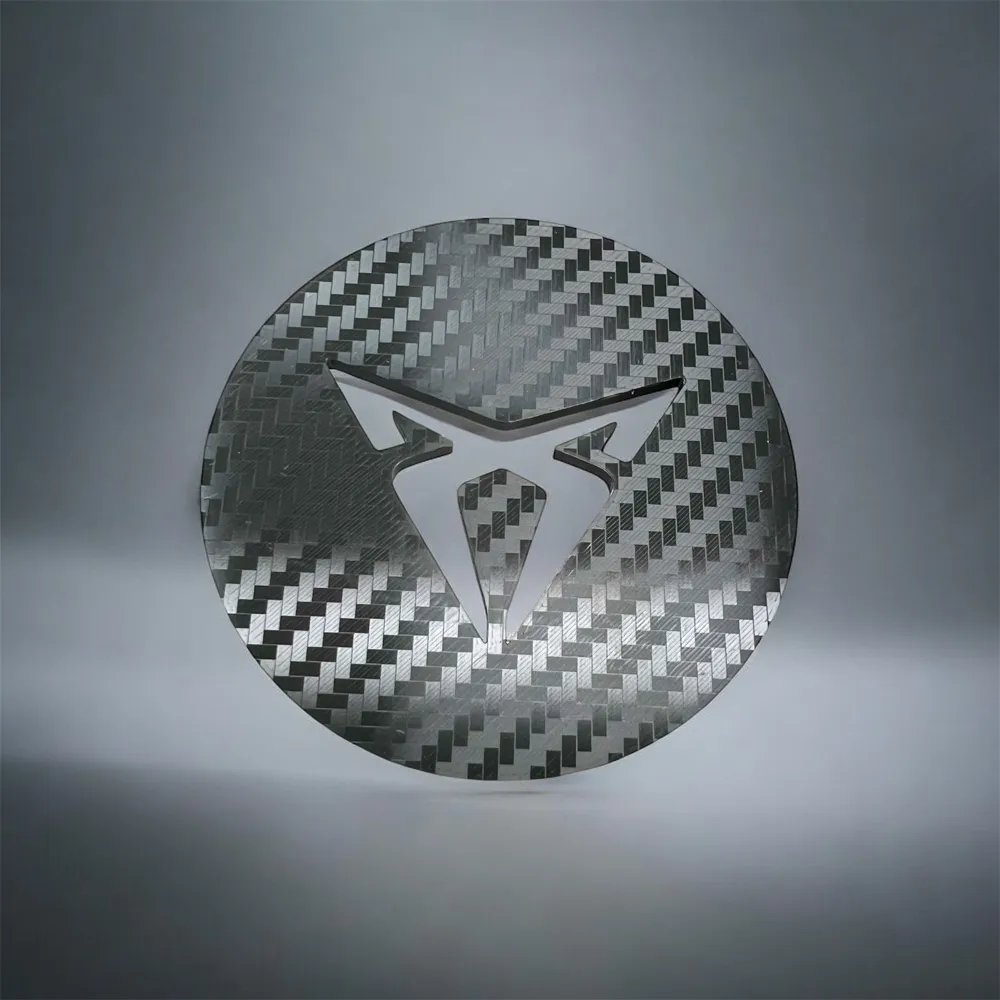

Wheel hub cap with the Cupra symbol, measuring 68.5mm and 56.7mm (see dimension photo). The wheel hub cap consists of two parts, the cap and the insert, making it possible to create the cap from two different materials, e.g., PLA and PETG.

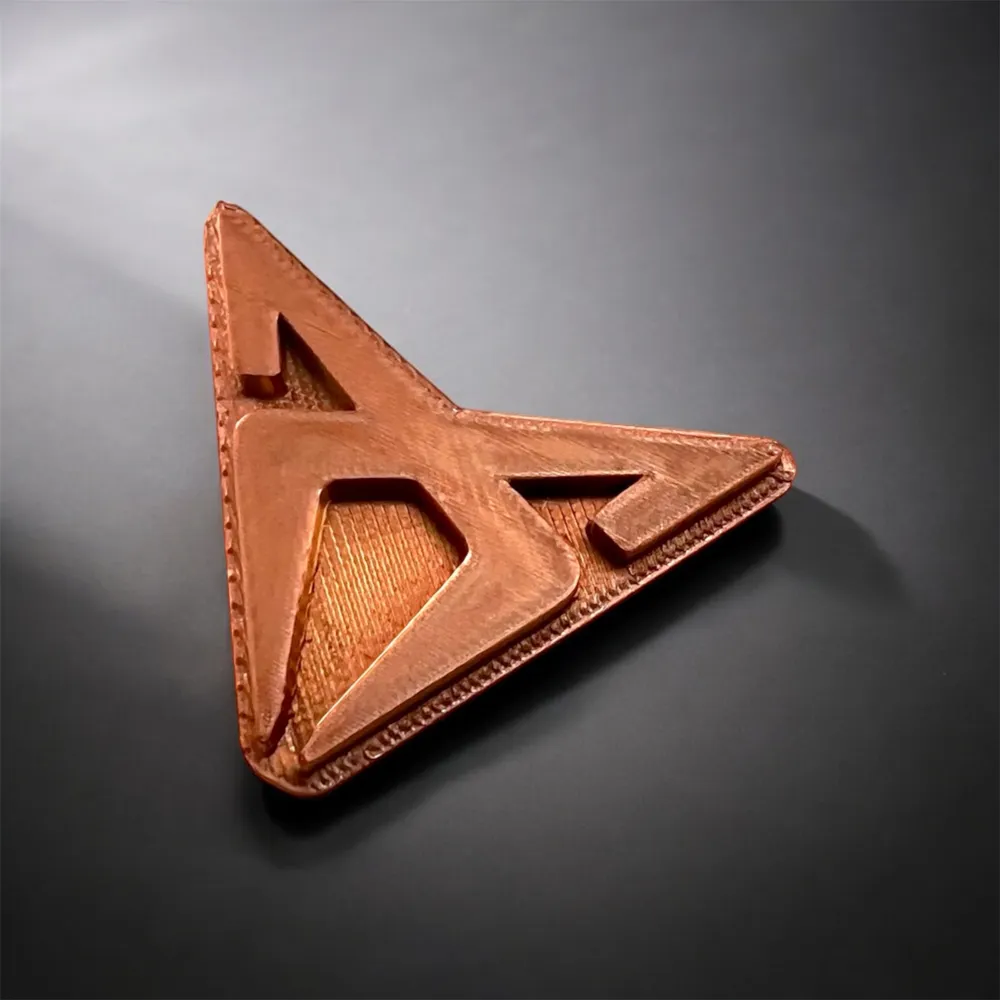

The insert is pushed into the cap from the back and secured with adhesive. If you need other dimensions, please write to me and provide the required measurements.



cupra
wheel cover
radnabenabdeckung
radnabendeckel
radnabenkappe

Comment & Rating (14)

(0/1000)
@dercl0wn
This works 1A! Wonderful! Test on PETG, then post another photo! 🙏
Show original
0
Reply
@user_811044618
Printed super fast Do you also have a template where the mounts are at 67 mm We have Keskin KT17 Hurrican rims where these would fit perfectly The test print was great except for the mounting I find the logo very cleanly made
The designer has replied
Show original
0
Reply
@Tom973
Hello, do you mean 67mm instead of 56.7mm What about the diameter of the cap, does that also need to be increased, and if so, to what dimension Regards Tom
(Edited)
Show original
0
Reply
@user_811044618
Replying to @Tom973 :
The cap is fine at 68.5 mm, just as it is now It fits perfectly Thank you Regards Alexandra
Show original
0
Reply
@Tom973
Then the contact surface is only 0.75mm all around, is that correct
Show original
0
Reply
@dercl0wn
Hello, I have original Cupra Born rims and would like to print and use your design, I scaled it down to an outer diameter of 56mm, then unfortunately the clips don't hold. Would you please adjust it to OD 56.0mm and ID 51.5mm. Melting greetings!
The designer has replied
Show original
1
Reply
@Tom973
Hello, I'll get to that later and write to you then, regards Tom
Show original
0
Reply
@Tom973
Hello, I have created a print profile, please try a cap and let me know, unfortunately I don't have a rim to try it on. Greetings Tom
Show original
0
Reply
@RuizRuiz
Print Profile
Cupra Born 56 / 51,5mm 0.2mm layer, 3 walls, 15% infill
0
Reply
@Deridamos
Print Profile
0.2mm layer, 3 walls, 15% infill
0
Reply
@Darzuale
Print Profile
0.2mm layer, 3 walls, 15% infill
0
Reply
@user_2185411957
Print Profile
0.2mm layer, 3 walls, 15% infill
0
Reply
@Stormbreaker501
Print Profile
0.2mm layer, 3 walls, 15% infill
0
Reply
No more
