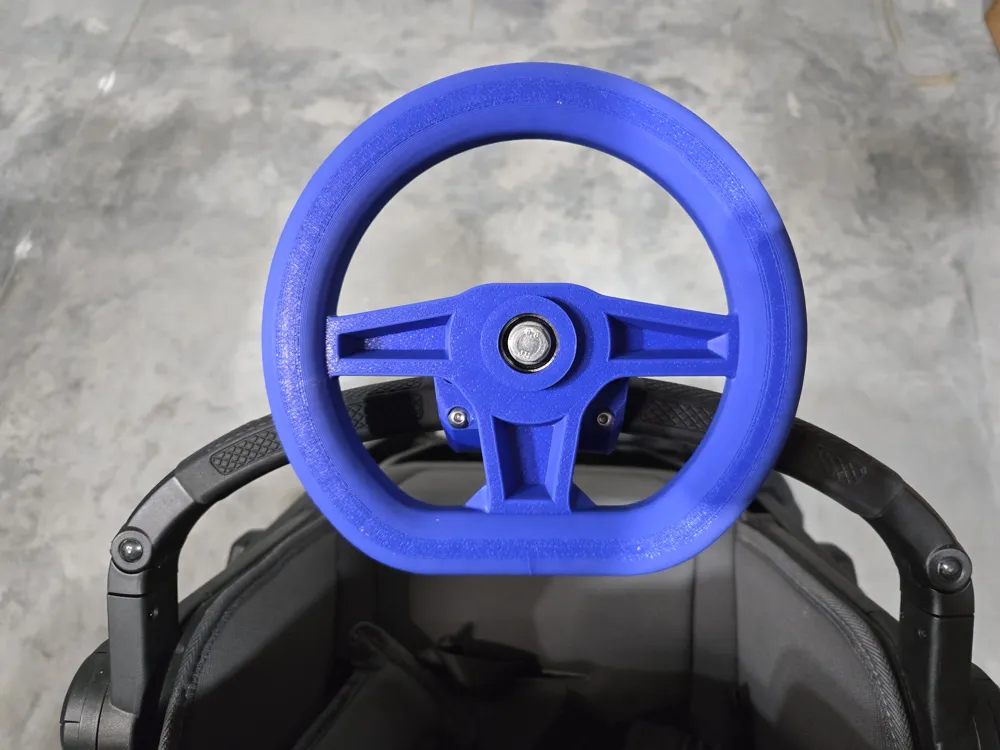

Steering Wheel for VEER Switchback Seat
Print Profile(1)
Bill of Materials
Description
Toddler Won't Sit in Stroller →→→→ Now They Will.

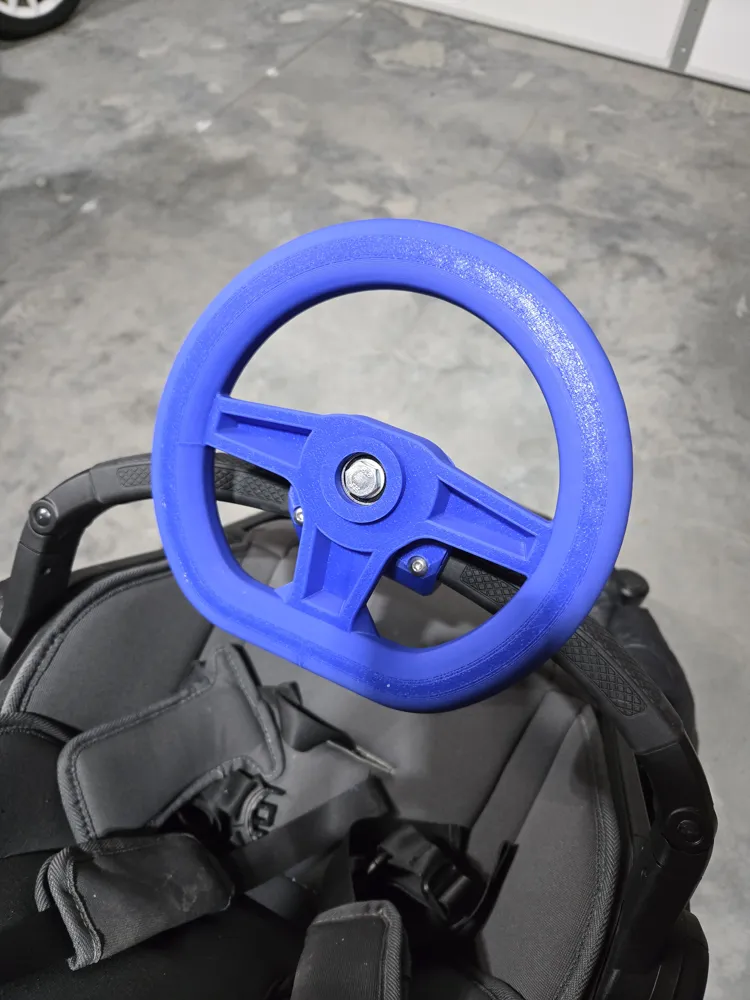

This fits the VEER Switchback Seat which is compatible with the VEER ecosystem.
There are plenty of other models out there that are “fully 3D printed”, this is not one of them. My whole goal was to make this indestructible…
it's been a year of heavy use with zero issues!

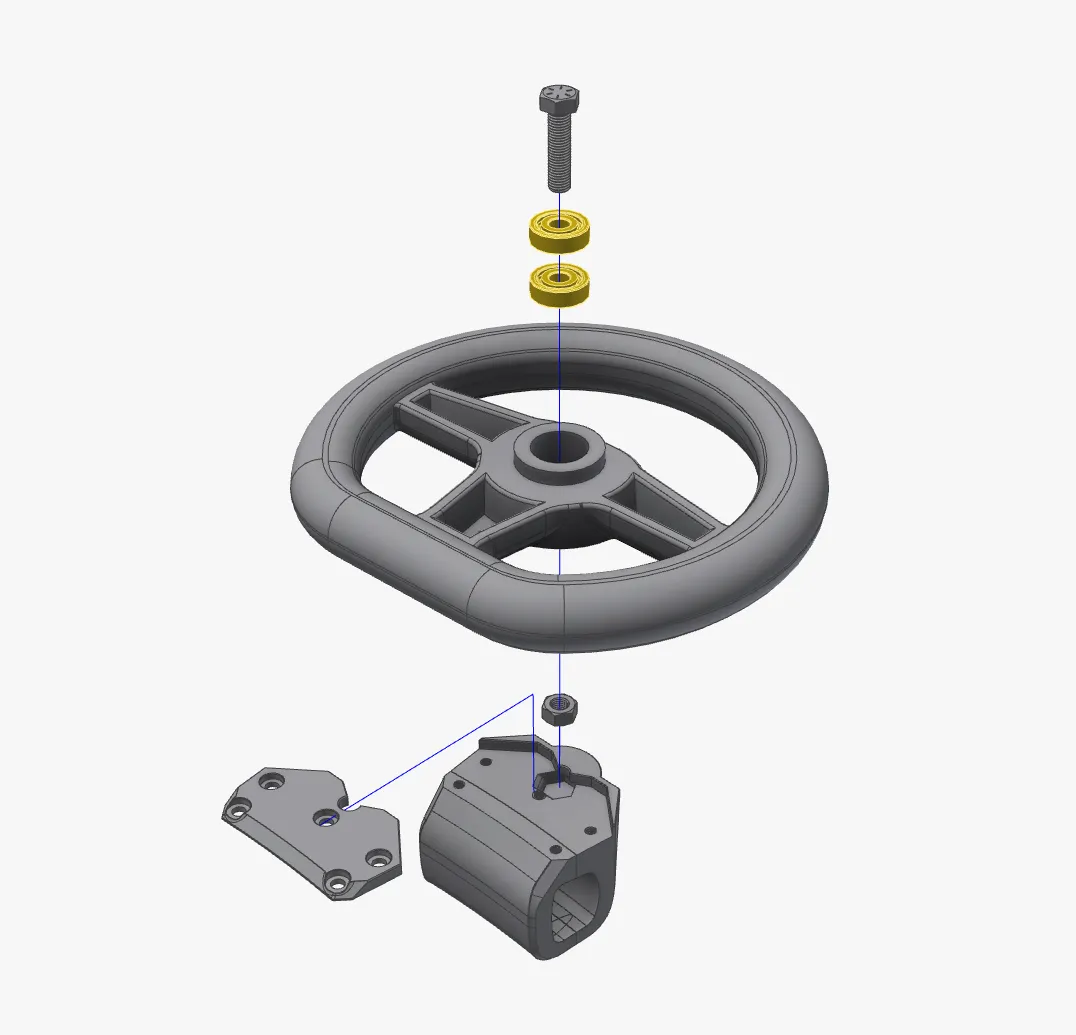

You'll need:
Qty (2) 608 bearings,

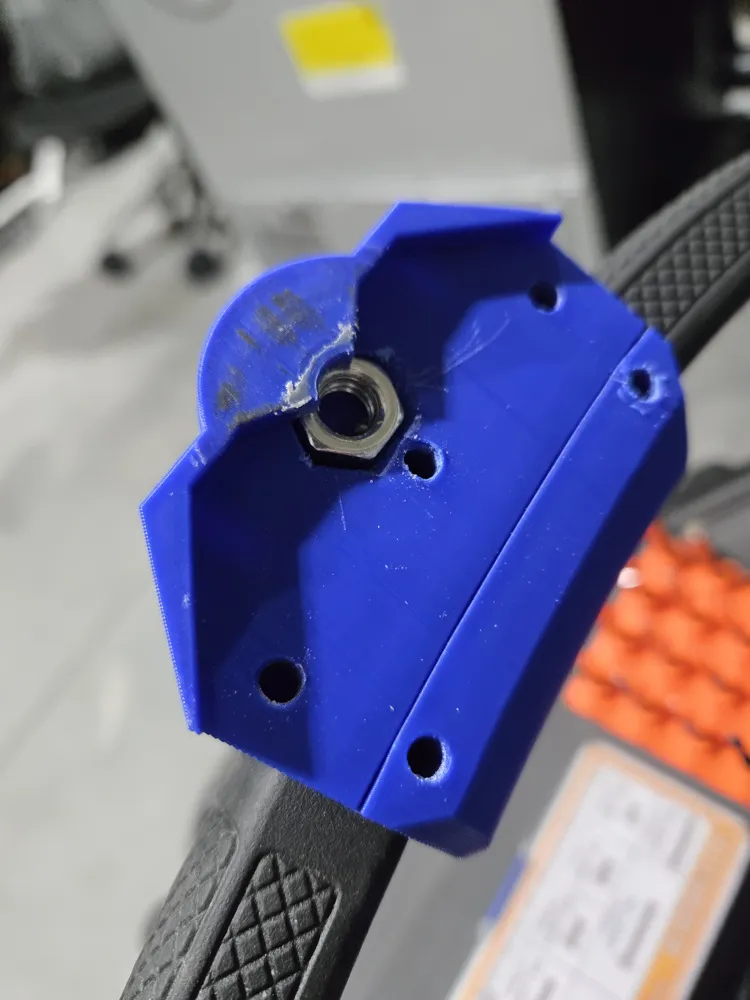

Qty (1) Nut (M8 or 5/16"-24 UNC),
Qty (1) Bolt (M8 or 5/16"-24 UNC) 1-1/4" Long,

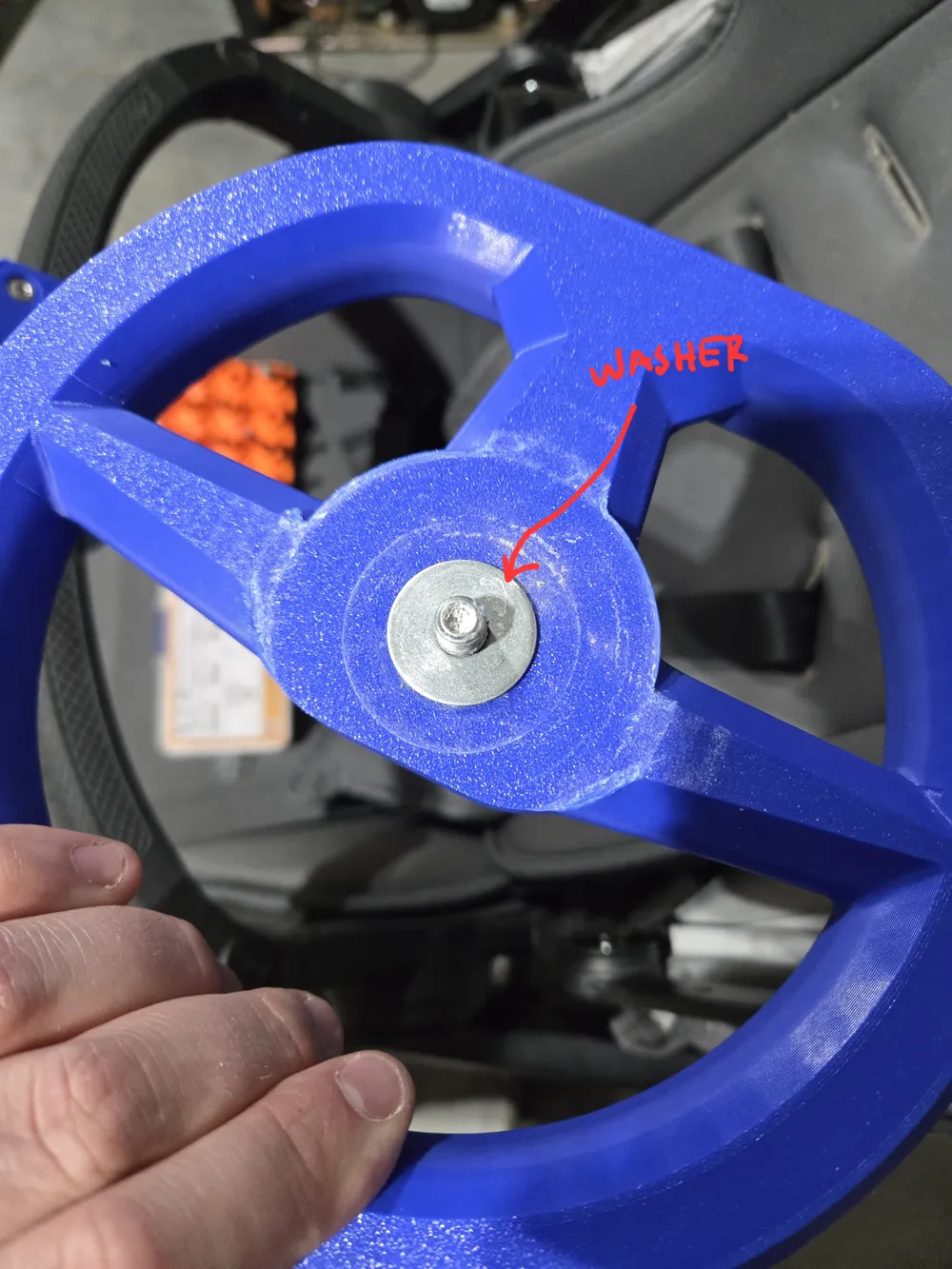

Qty (1) Washer (M8 or 5/16"),

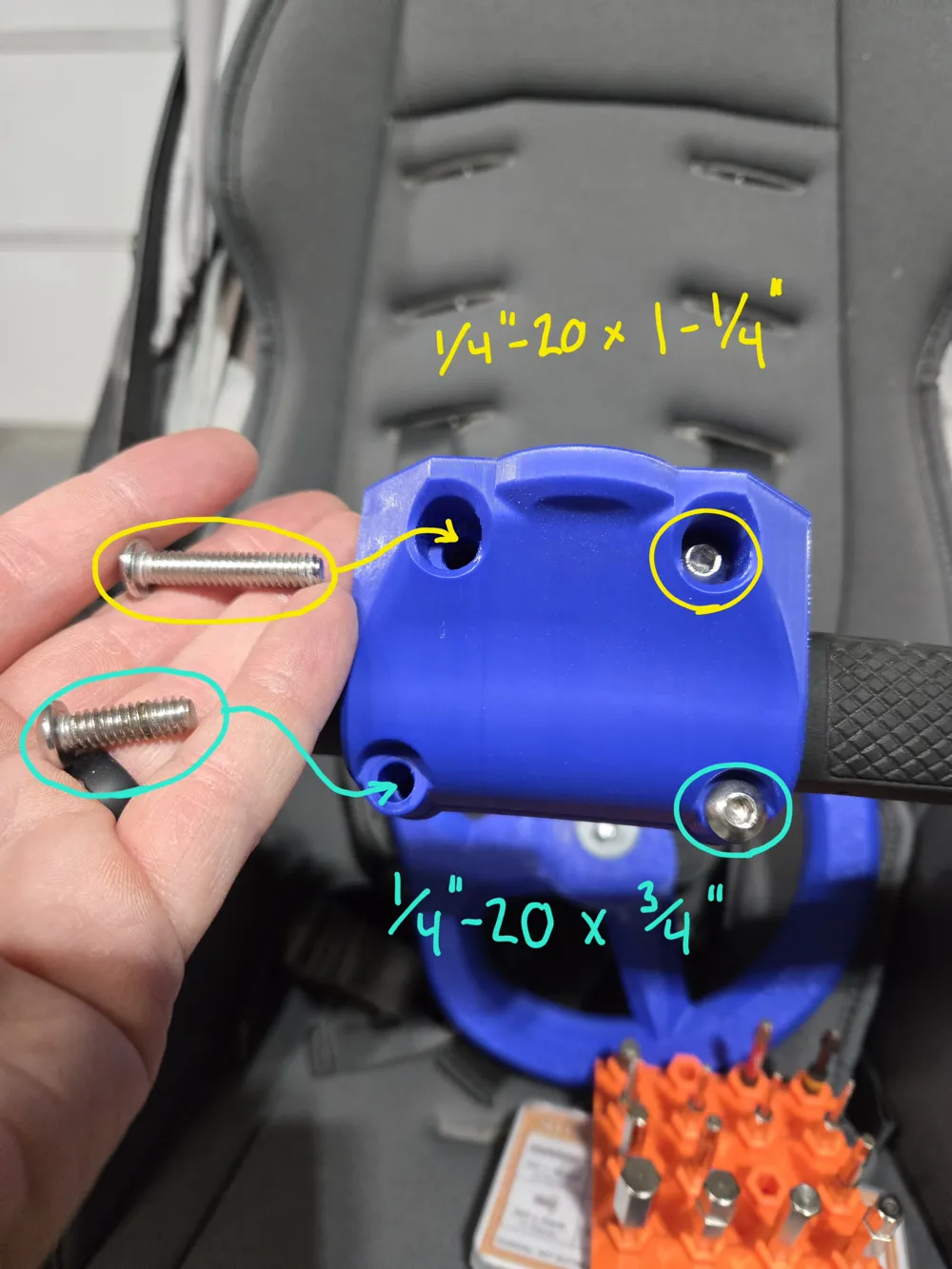

Qty (2) Bolts ¼"-20 x 1-1/4" Long,
Qty (2) Bolts ¼"-20 x 3/4" Long,

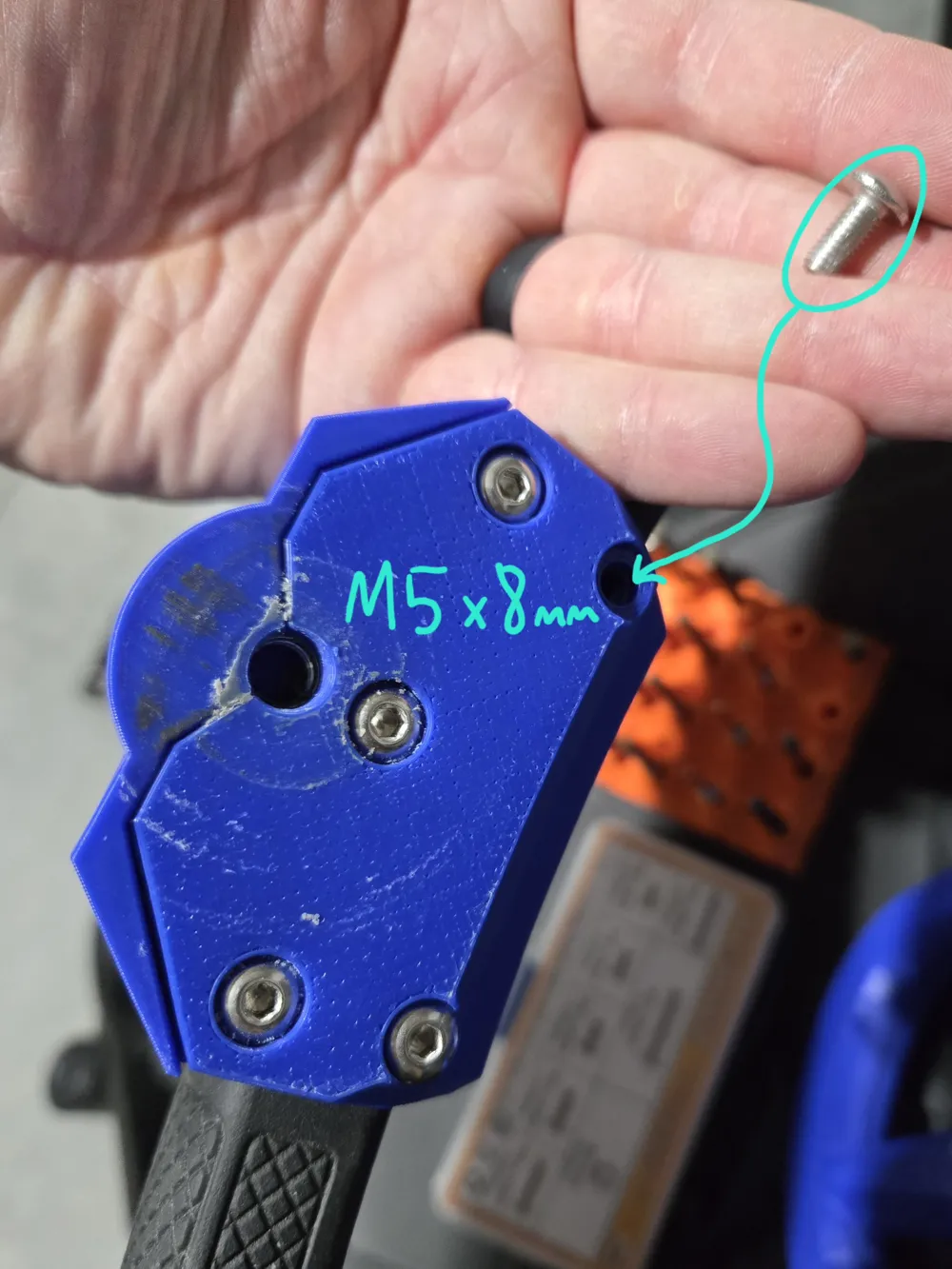

Qty (5) Bolts M5 x 8mm Long,
(Sorry for the cross-contamination between metric and imperial hardware)
Threads are modeled into the parts so the bolts thread right in.
NO SUPPORTS!

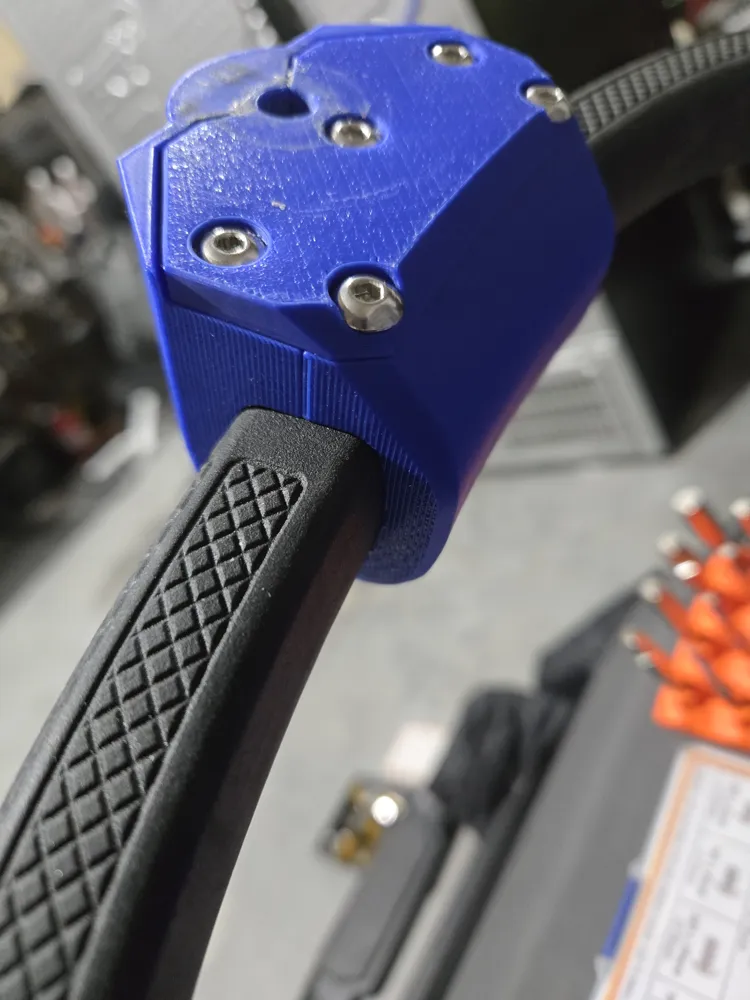

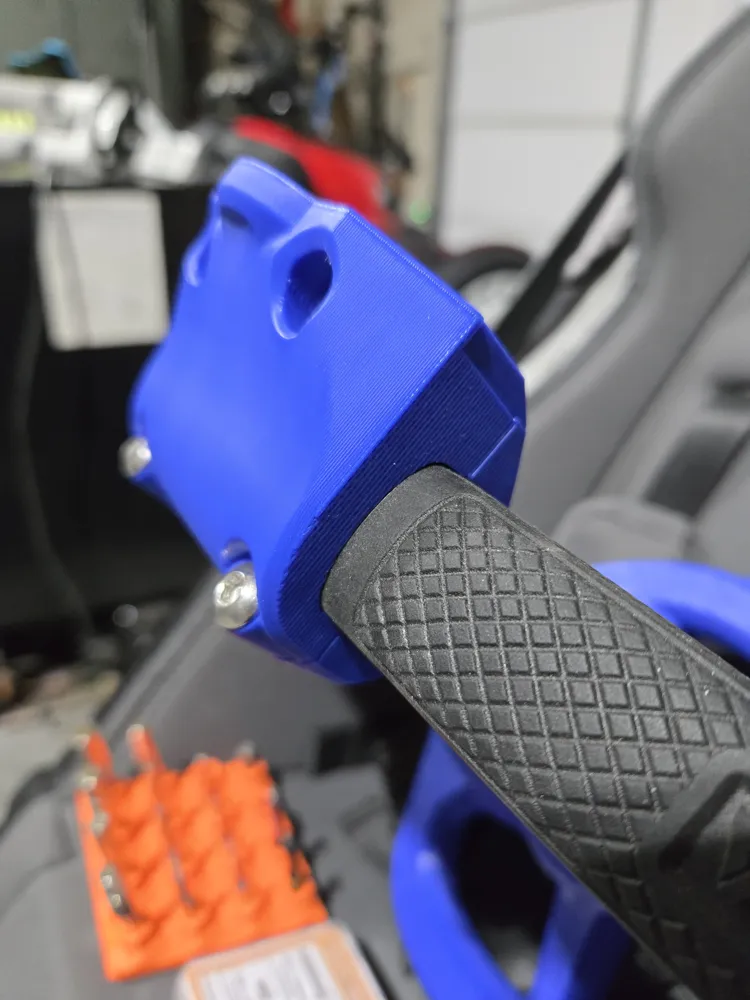

I've provided a STEP file of the part that attaches to the stroller so you can modify it to fit your stroller.
ENJOY!
