Magnetic guide for Japanese saw
Print Profile(1)
Description

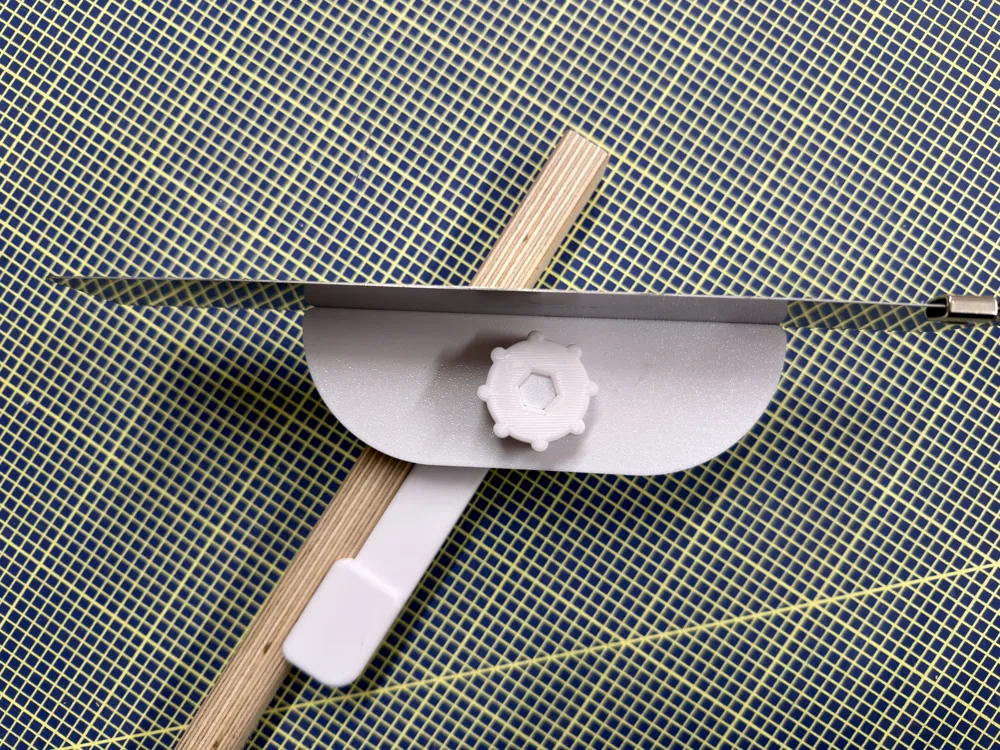

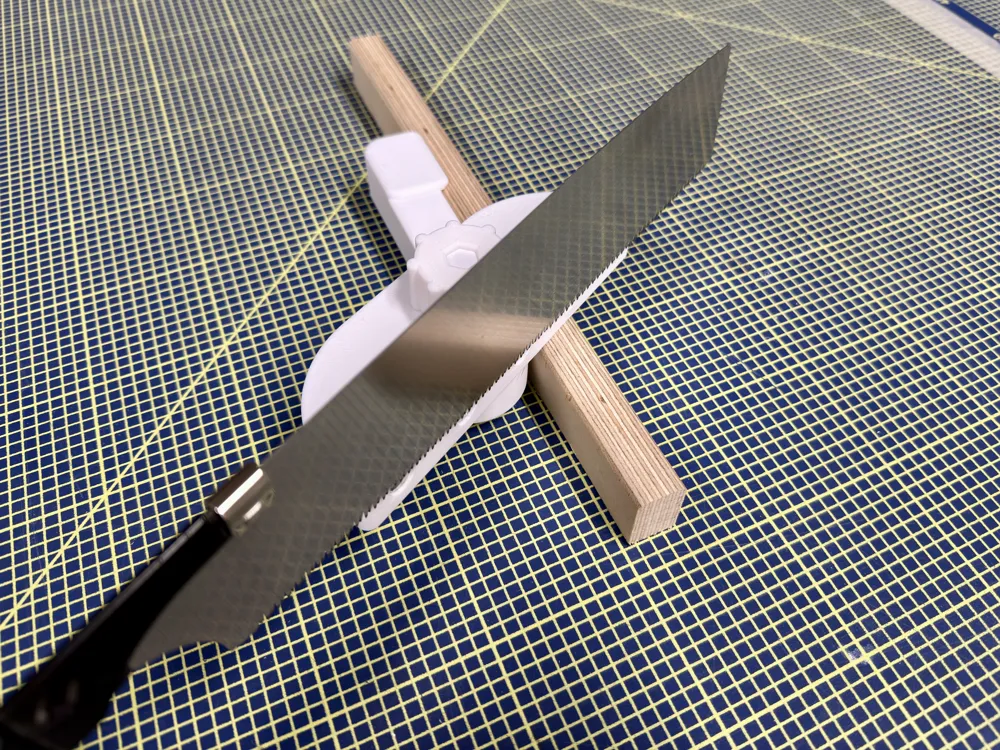

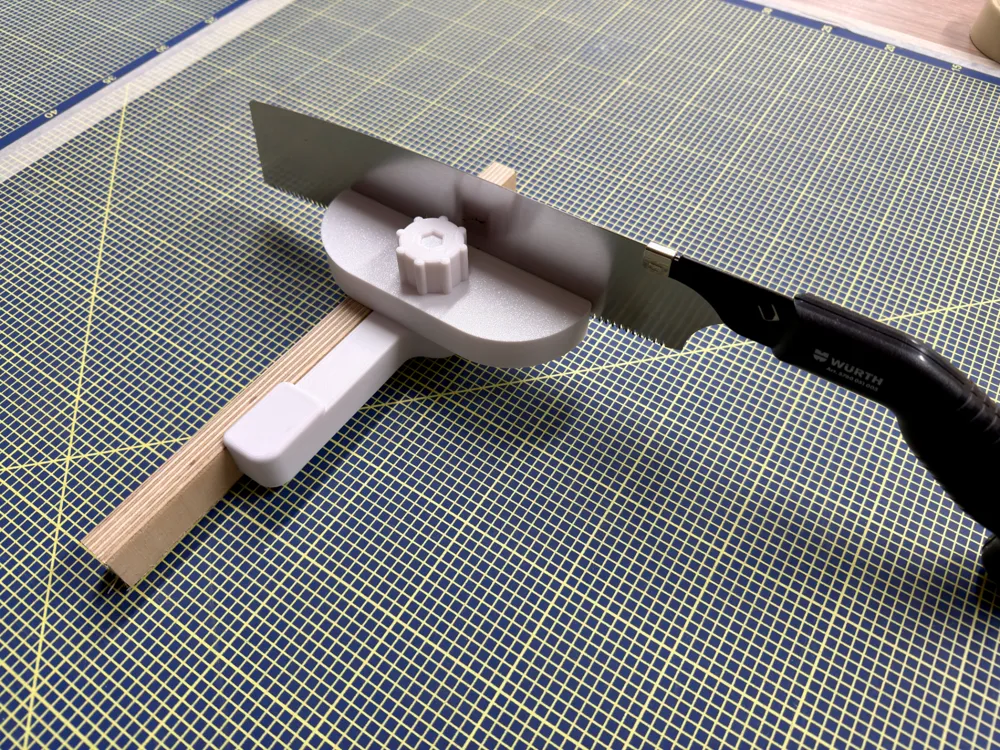

This is a magnetic guide for a Japanese saw.
You need

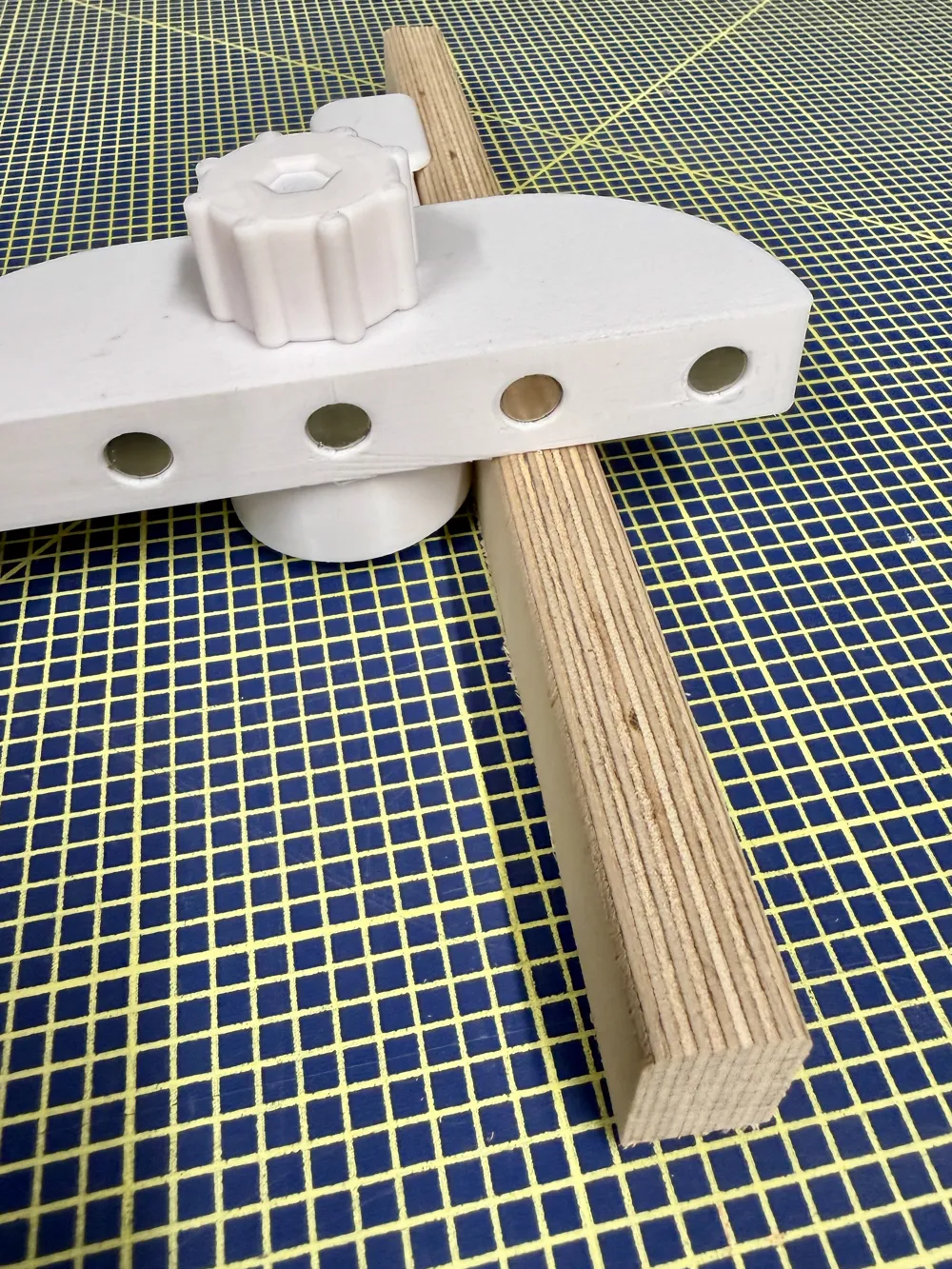

max. 5 magnets 10x3mm that are simply pressed in.
1x M6 x50 mm screw plus nut.

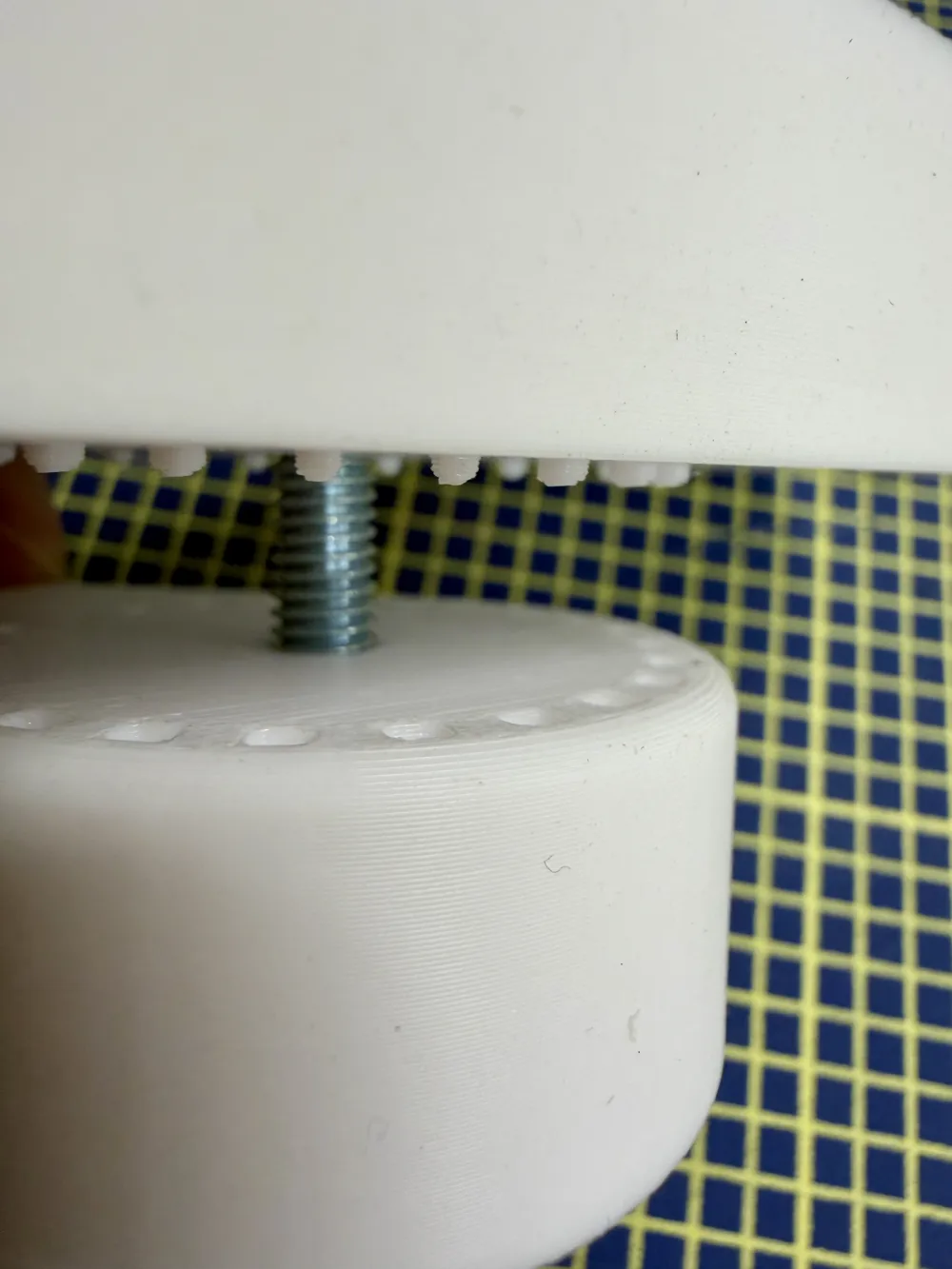

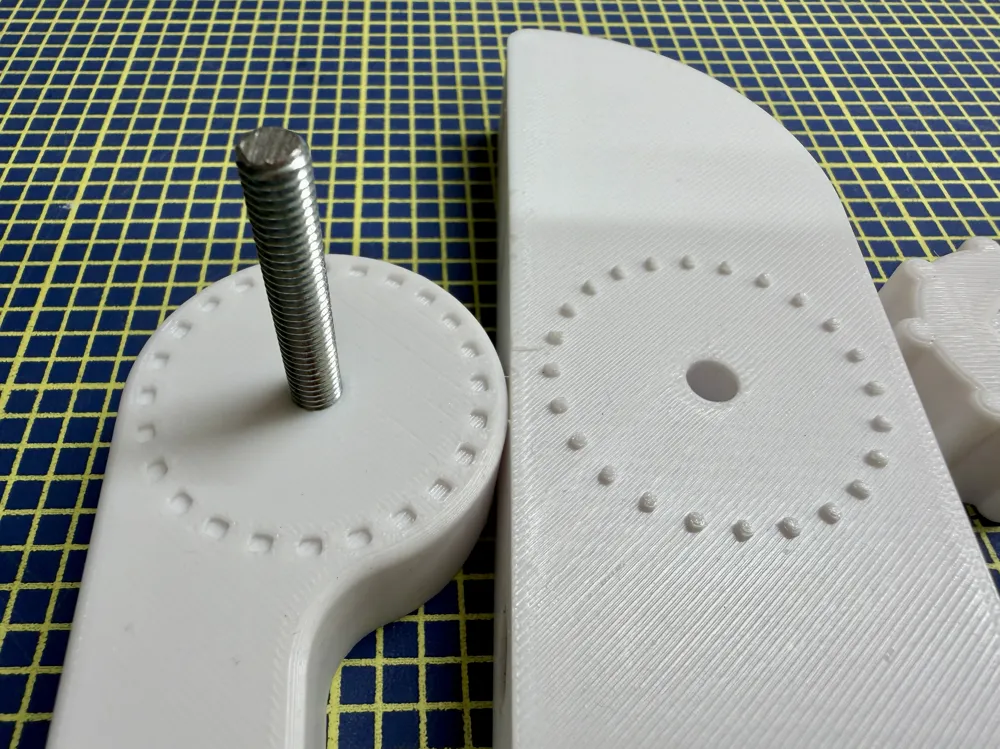

The angle can be fixed via the detent at 90 degrees, 75 degrees, 60 degrees, 45 degrees, 30 degrees, 15 degrees.

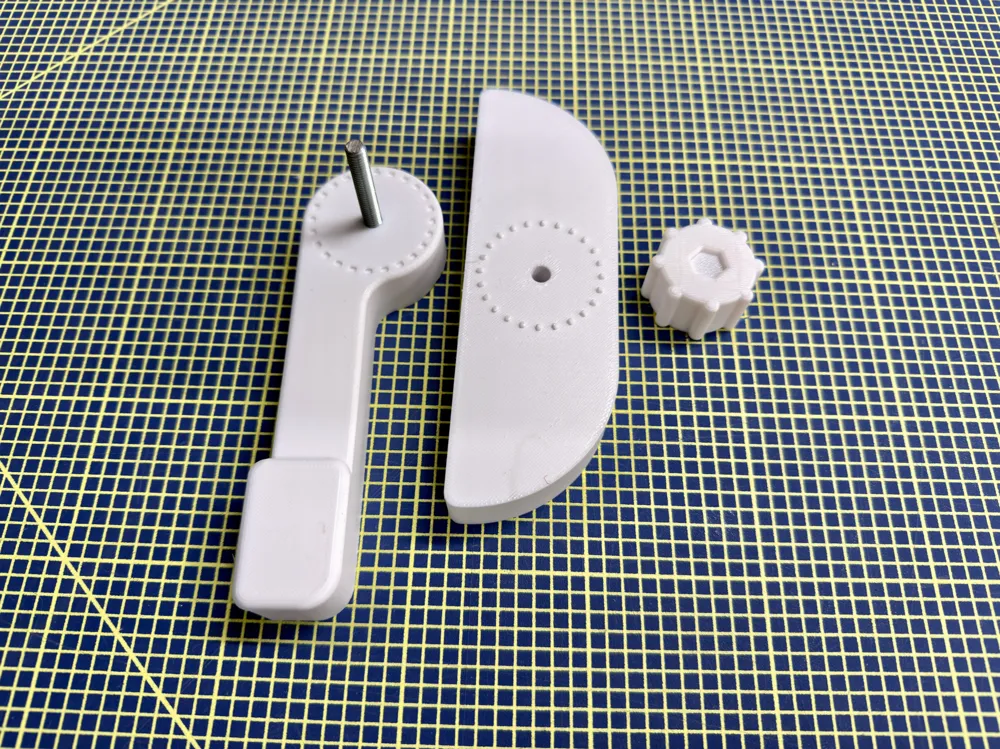

If desired, the parts can also be assembled in reverse so that the detent does not engage.
Then you can set any desired angle.
If someone needs a specific fixed angle, just write to me and I can create it.
Have fun printing.
