ADJUSTABLE CEILING MOUNT FOR PROJECTOR - Free 3D Print Model

Search models, users, collections, and posts

Sebastiano Mariuz

Hobby & DIY>Other Hobby & DIY

IP Report

GIF

Print Profile(2)

All

X1 Carbon

P2S

H2D

P1S

H2S

H2D Pro

A1 mini

P1P

X1E

H2C

X2D

A2L

METRICH VERSION (M6)

Designer

1.1 h

1 plate

INCH VERSION (1/4")

Designer

1.1 h

1 plate

Open in Bambu Studio

Boost

Released

Description

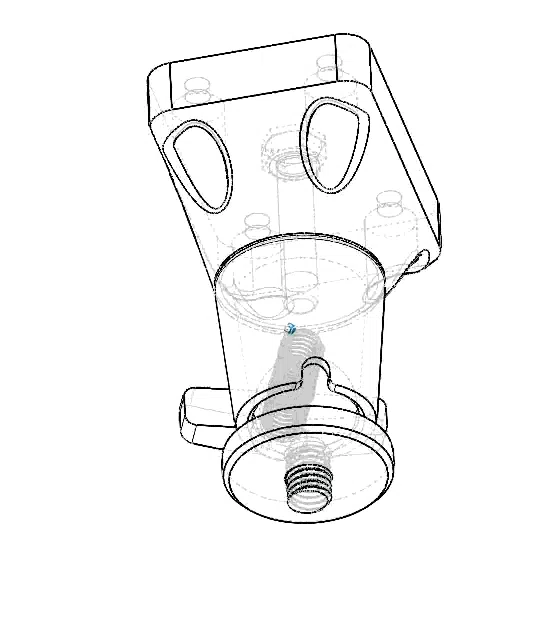

This 3D printed support is designed to be integrated with an additional joint component (link Amazon) using one of two mounting options:

M6 x 30 mm → link Amazon
1/4 inch screw → link Amazon

Once assembled with the joint, the 3D printed base can be secured to the ceiling using four standard self-tapping screws.

After installation, the joint features a 1/4 inch threaded screw, a universal standard for projectors, cameras, and camcorders. This allows you to easily mount and adjust your projector to the desired angle and position.

Perfect for DIY enthusiasts and makers looking for a customizable, lightweight, and professional ceiling mount solution.

ITA

Questo supporto realizzato in stampa 3D è progettato per essere integrato con un componente snodato aggiuntivo (link Amazon), utilizzando una delle due modalità di montaggio:

Bullone M6 x 30 mm → link Amazon
Vite da 1/4 di pollice → link Amazon

Una volta assemblato con lo snodo, il supporto in stampa 3D può essere fissato al soffitto utilizzando quattro comuni viti autofilettanti.

Dopo l’installazione, lo snodo presenta una vite filettata da 1/4 di pollice, uno standard universale per proiettori, videocamere e fotocamere. Questo consente di montare e regolare facilmente il proiettore nella posizione desiderata.

Ideale per appassionati di fai-da-te e maker alla ricerca di una soluzione leggera, personalizzabile e dall’aspetto professionale per il montaggio a soffitto del proprio proiettore.

Comment & Rating (2)

@morrow

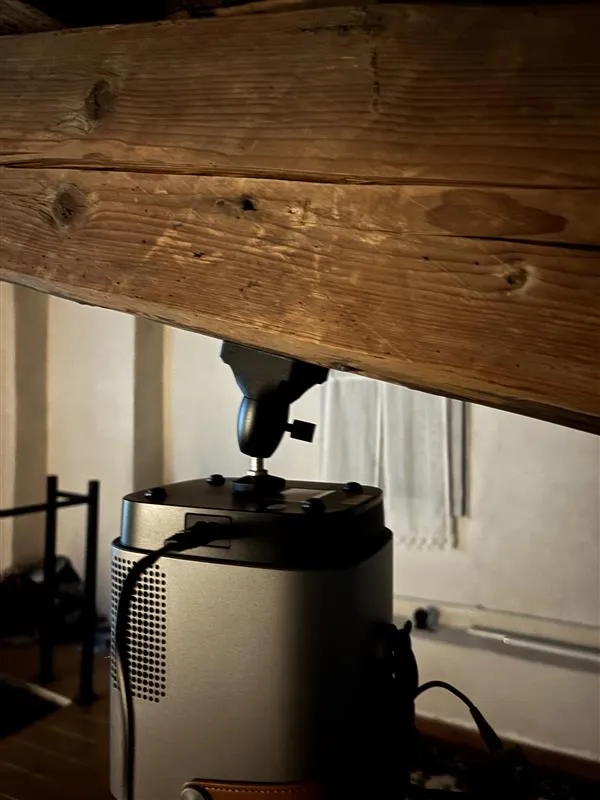

The design is perfect for anyone mounting to something solid, like the wood beam in the picture you have. For anyone mounting to a drywall ceiling they will have to make some adjustments. For a strong hold, I recommend toggle bolts. If your projector isn't that heavy a couple of those nice self-tapping drywall anchors will do the trick.

The designer has replied

@sebastiano.mari

Thank you friend, happy it was useful
