Coral Mounting kit - hexa

Coral Mounting Kit

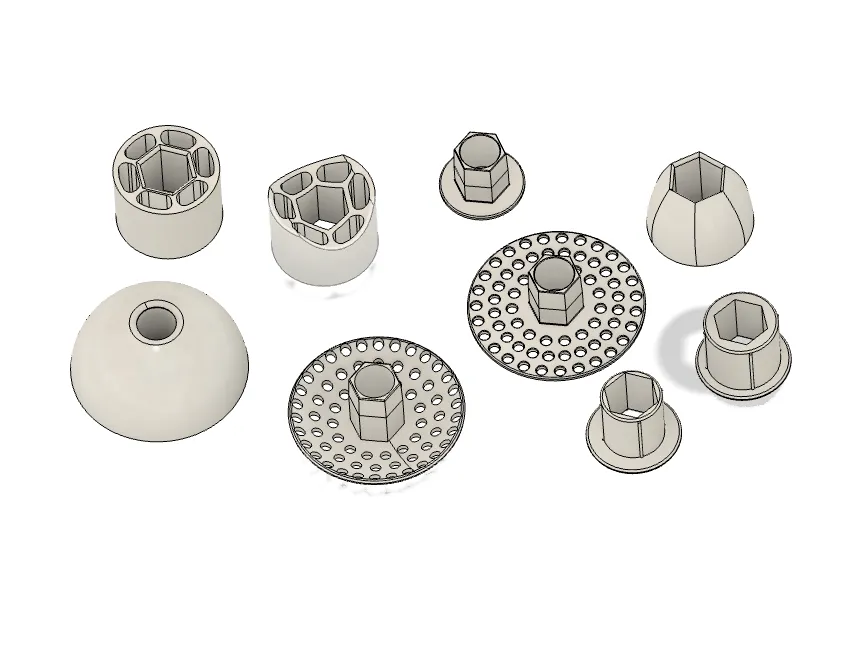

A versatile set of coral mounting plugs designed to make coral frag placement on rocks or PVC structures easier and more secure.

Created for coral farmers and hobbyist, this system simplifies both coral propagation and complex aquascaping. The snap-fit design allows you to easily move and rearrange frags and large corals as needed. The hexagonal plug fits snugly into the included female connectors or directly into egg crates.

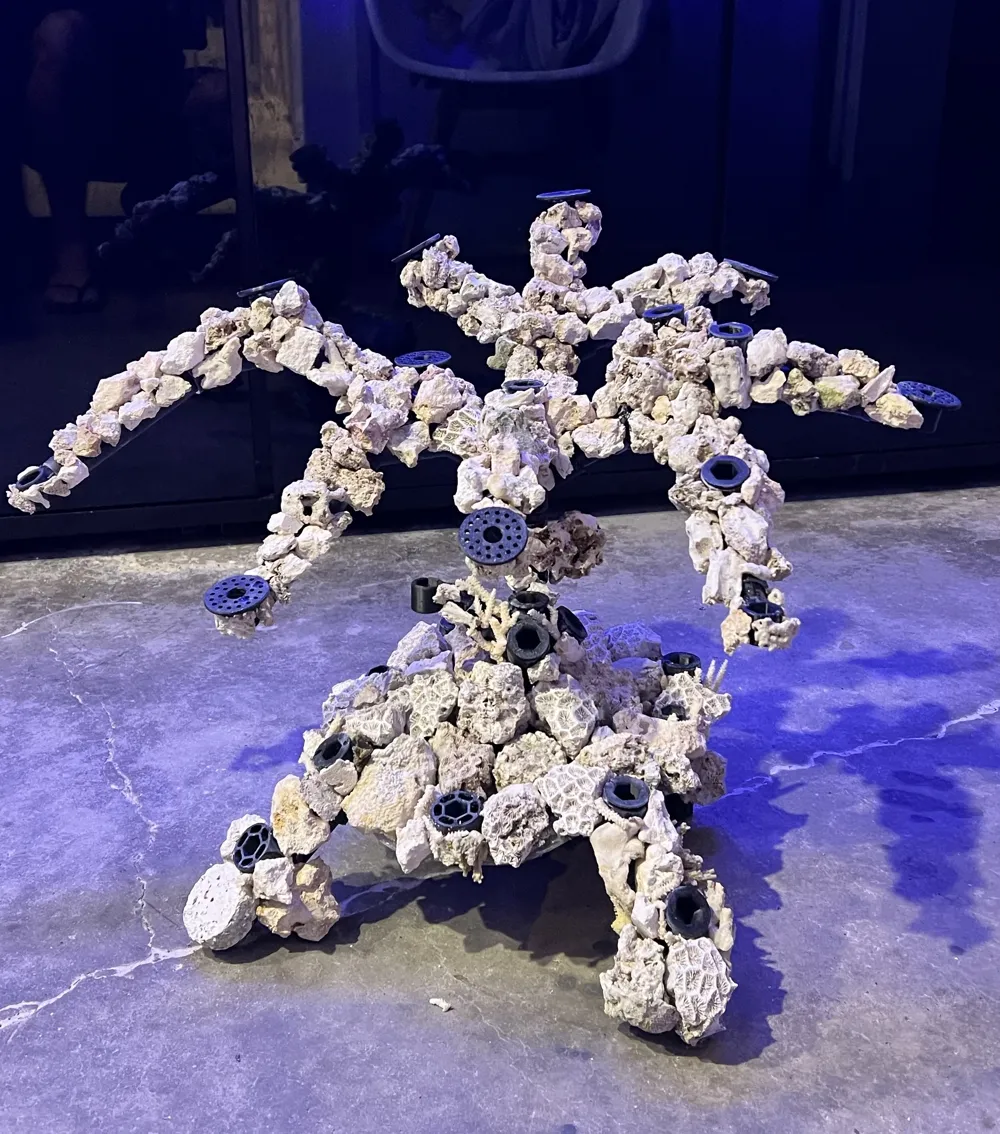

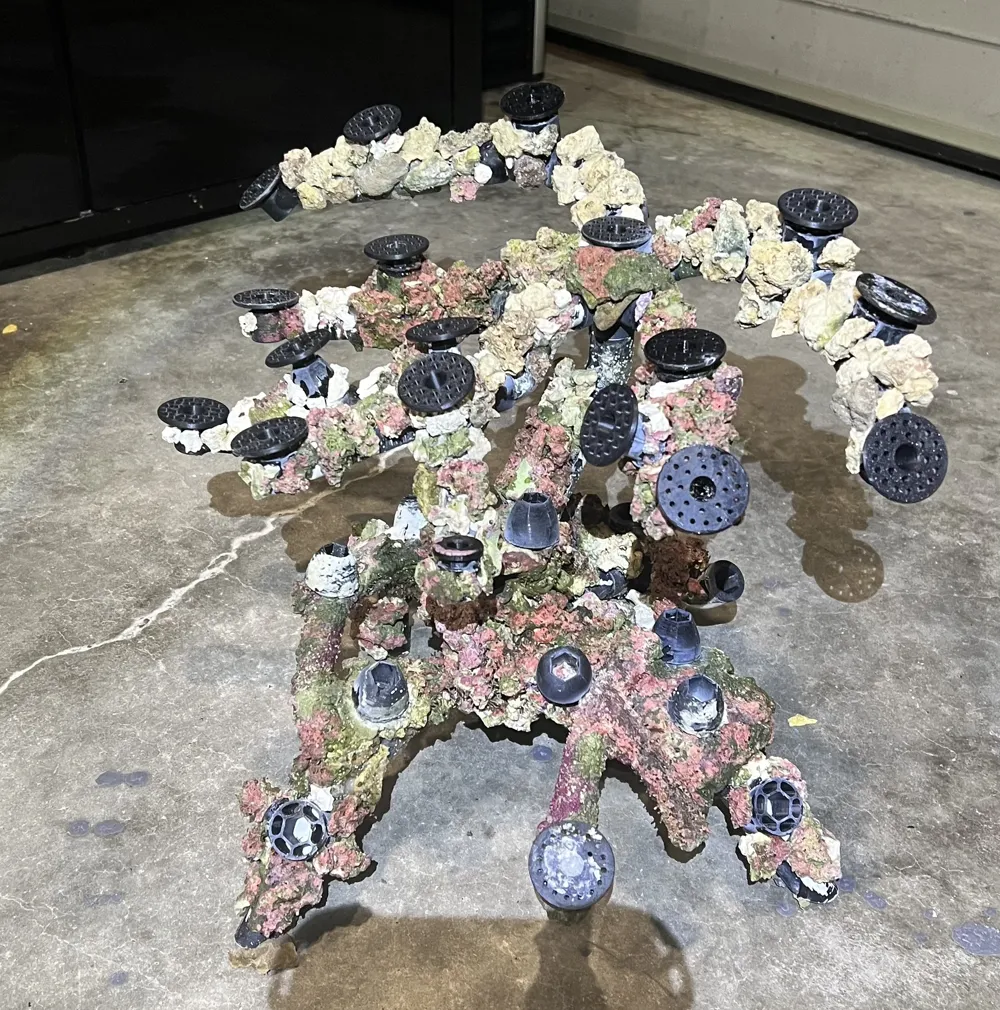

The female connectors can be glued to live rock or PVC structures (as shown in the photo), while the male plugs snap securely into either the female counterparts. The 20 mm height of the male pins ensures that corals stay firmly in place even as they grow larger.

You fit a ceramic frag plug to the center hole or glue the coral directly to the male plug.

Dimensions

• Plug hole inner diameter: 11.2 mm (fits most ceramic frag plugs)
• Hex outer distance: 13.45 mm (snap-fits into standard egg crates)
• Male pin height: 20 mm

Printing Tips

• Recommended: PETG filament with 100% infill
• No supports needed, except for the concave male plug

Notes

Commercial use is allowed and encouraged as long as a link back to this page is available when sharing or selling prints.

Any feedback is welcome. I hope you enjoy using this kit in your reef projects!
