Halloween Graveyard Mini Train

Watch on Instagram

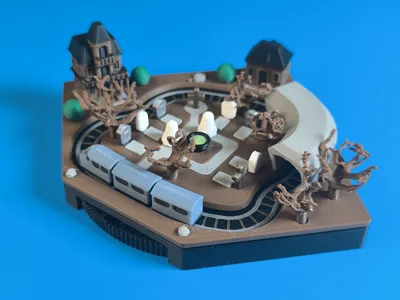

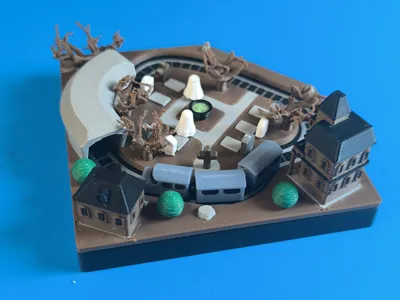

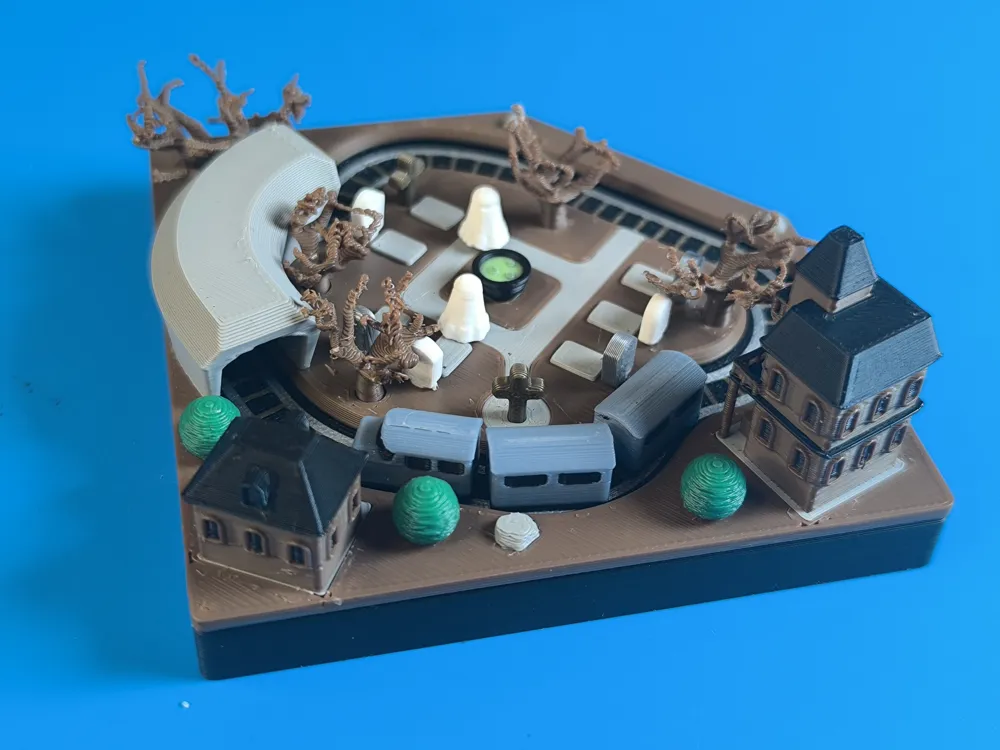

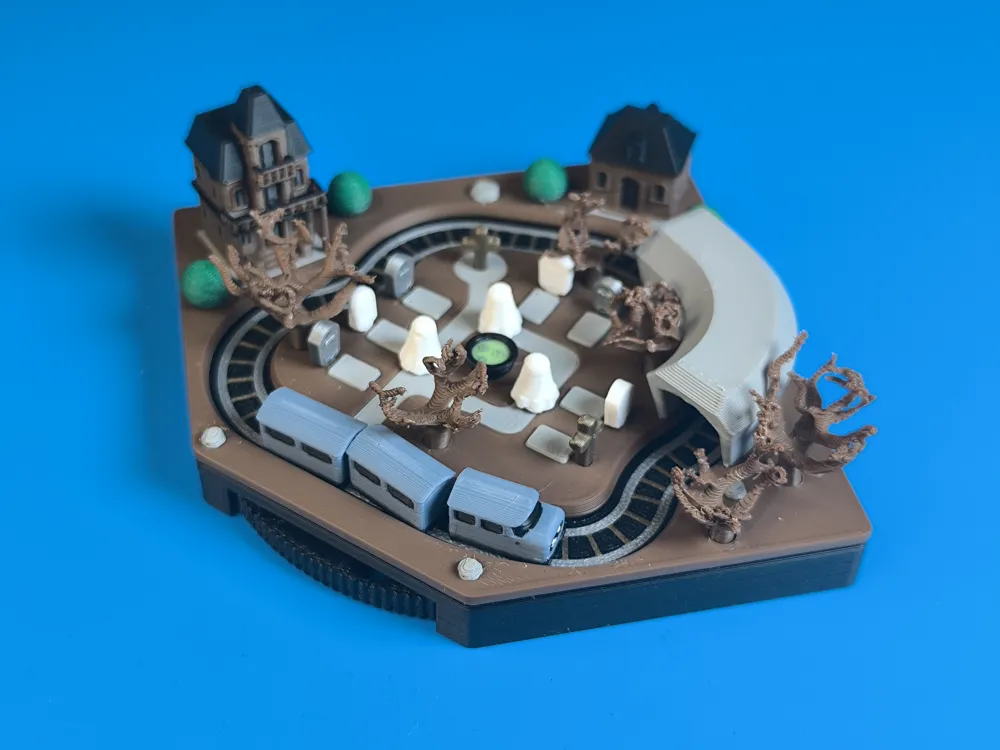

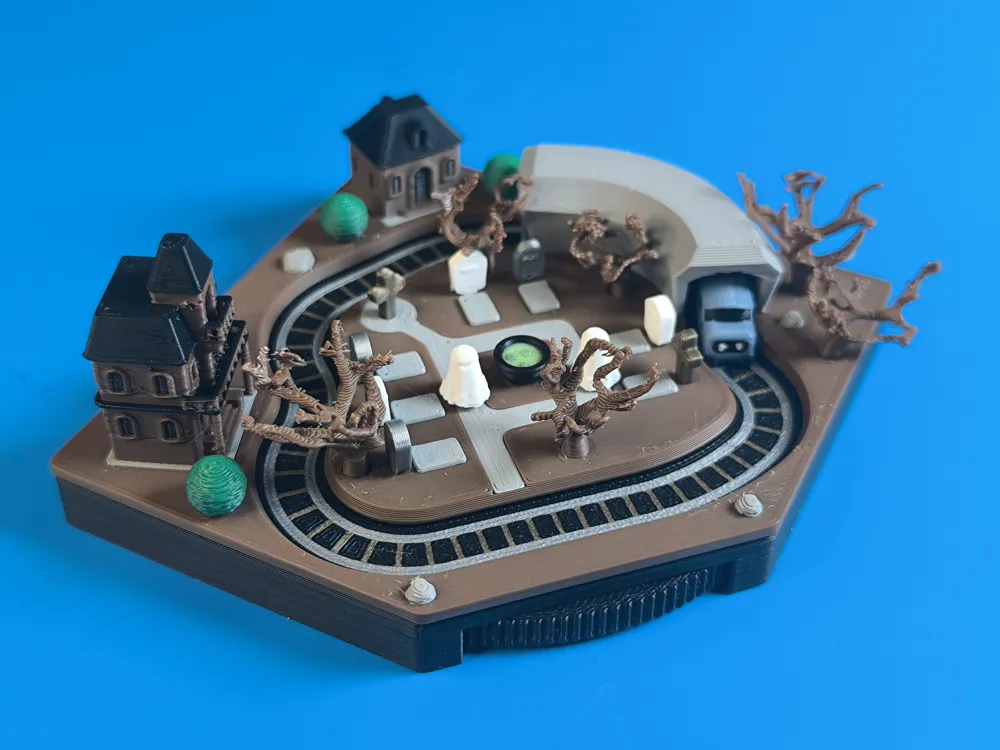

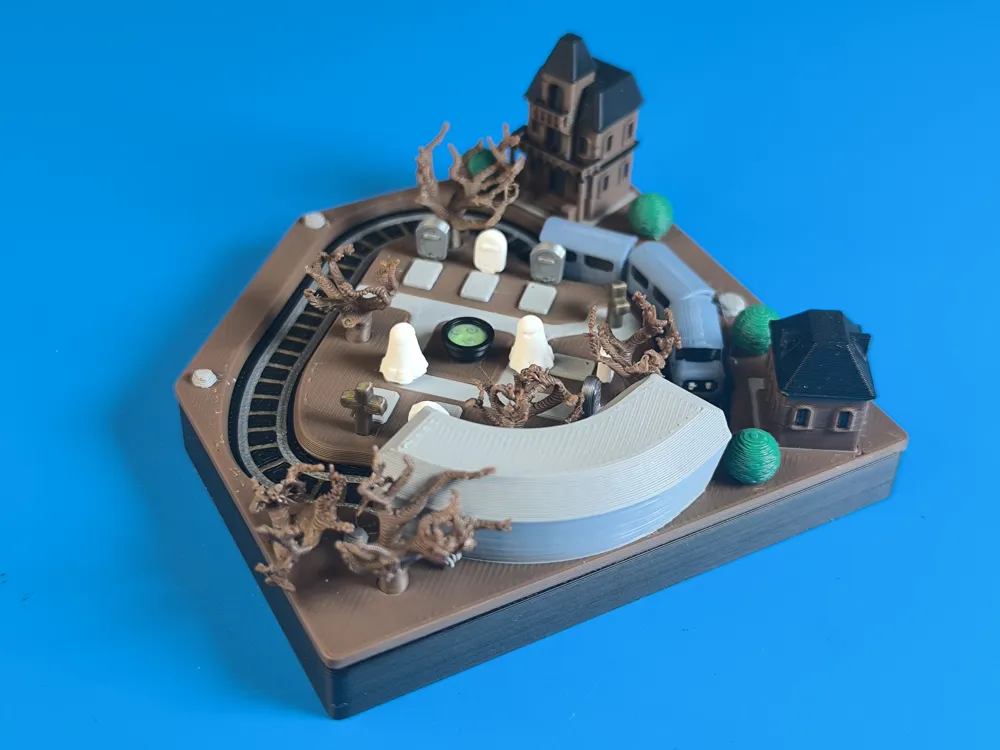

It’s Halloween time! And that means a new Mini Train Diorama is a must! No. 17 takes us with a ghost-train through a barren landscape around the cemetery, past dancing spirits, gravestones, and haunted houses.

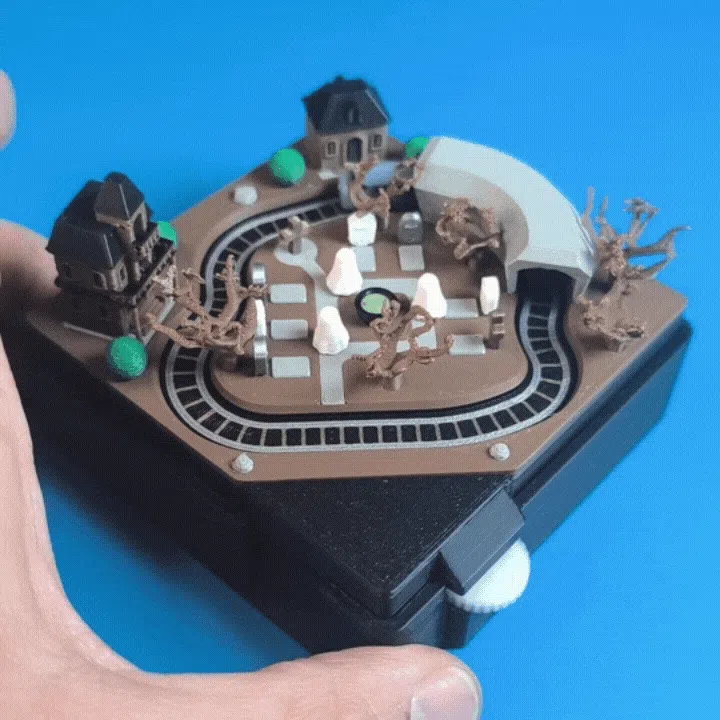

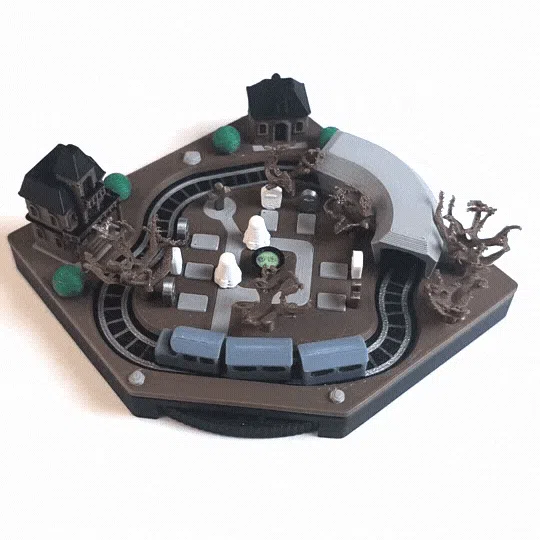

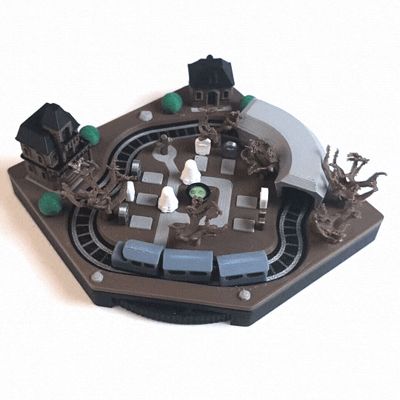

Just like in the previous dioramas, turning the hand wheel on the side sends the little train chugging forward and sets the ghosts dancing around the cauldron.

Of course this diorama is “Beginner Kit Motor Box” and “CyberBrick Motor Box” compatible. And the new locomotive and wagon are compatible to the previous Dioramas and you can put the cute ghosts on the railway and start a hunt!

Boost Me (for free)

More is coming…check the “**Mini Train Collection**” and leave a follow👍

Printing:

Following PLA Basic Filaments are used

Silver/Grey

Cocoa Brown

Black

Mistletoe Green

Bright Green (Cauldron)

Blue Grey (Train)

Other colors are possible of course, look what you have in stock.

I think it could be easy done with single color, if you want to color from hand.

I printed with a 0,4mm nozzle! Iam very pleased with the result, but you can try a 0,2 nozzle as well.

Assembly:

You need 6pcs round 4x2 magnets for the train with the wagons

and 2pcs round 4x2 magnets more for each ghost (up to 3).

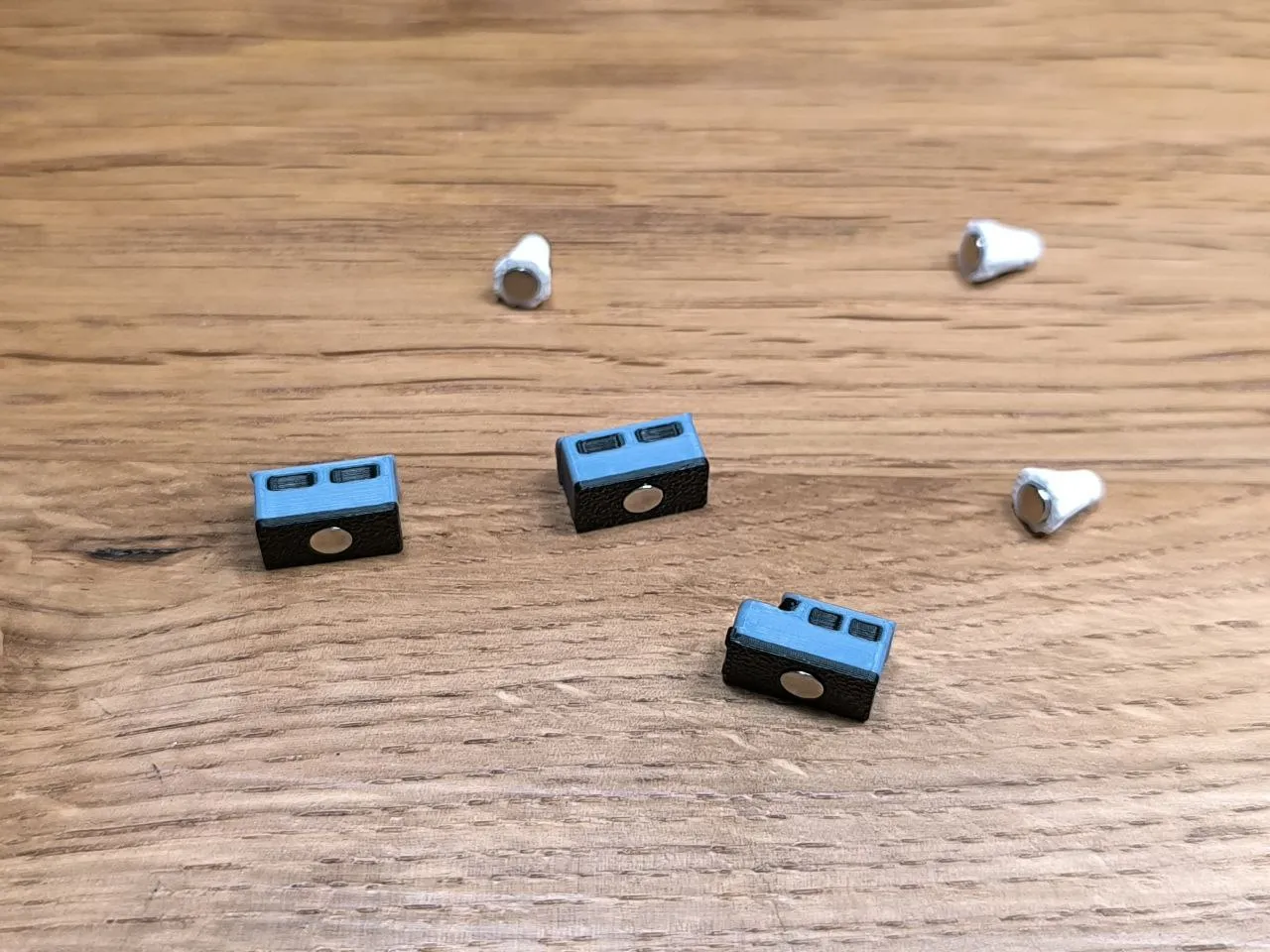

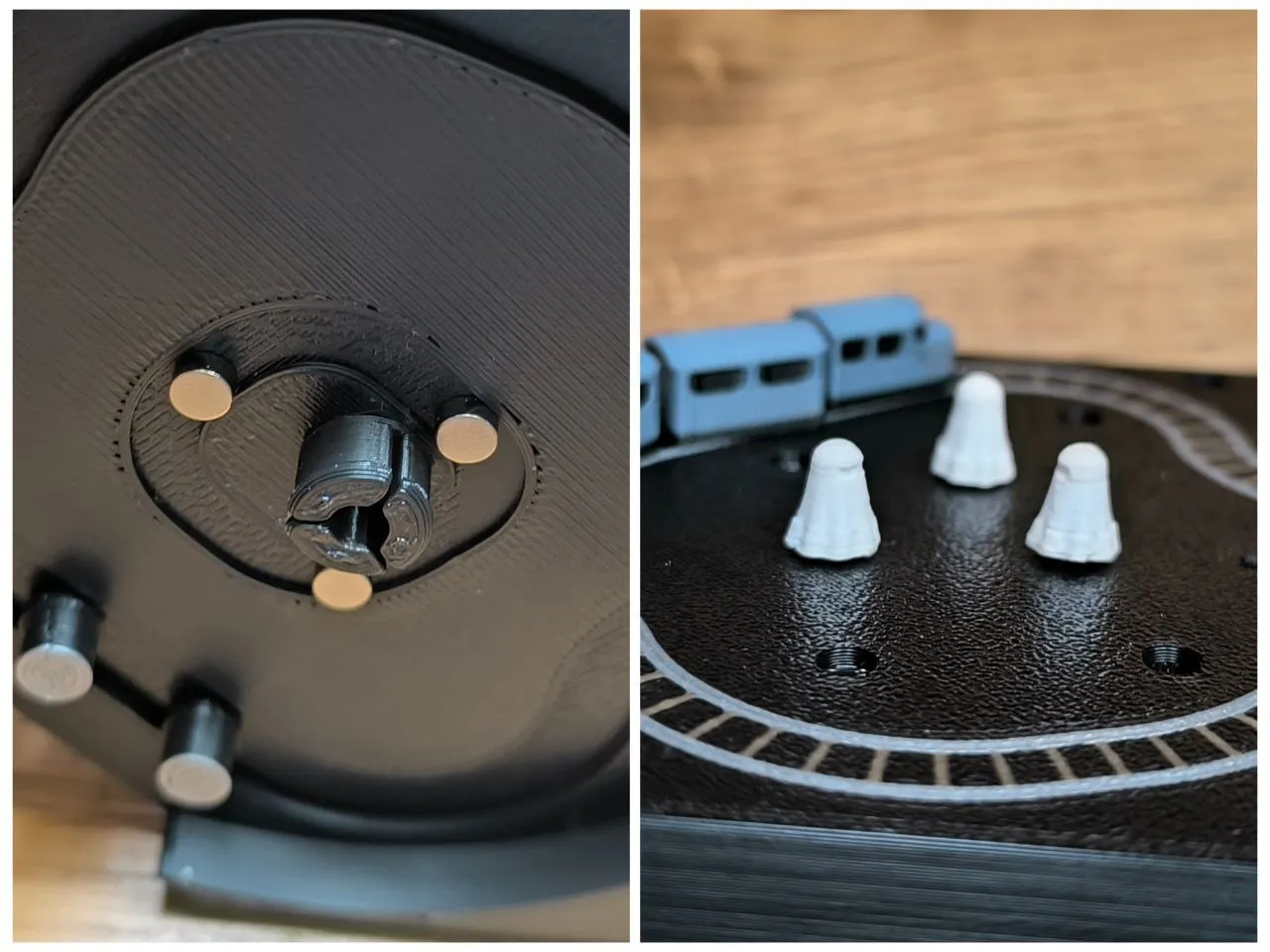

**Insert 3pcs Magnets in the train, wagons and ghosts with same polarity**

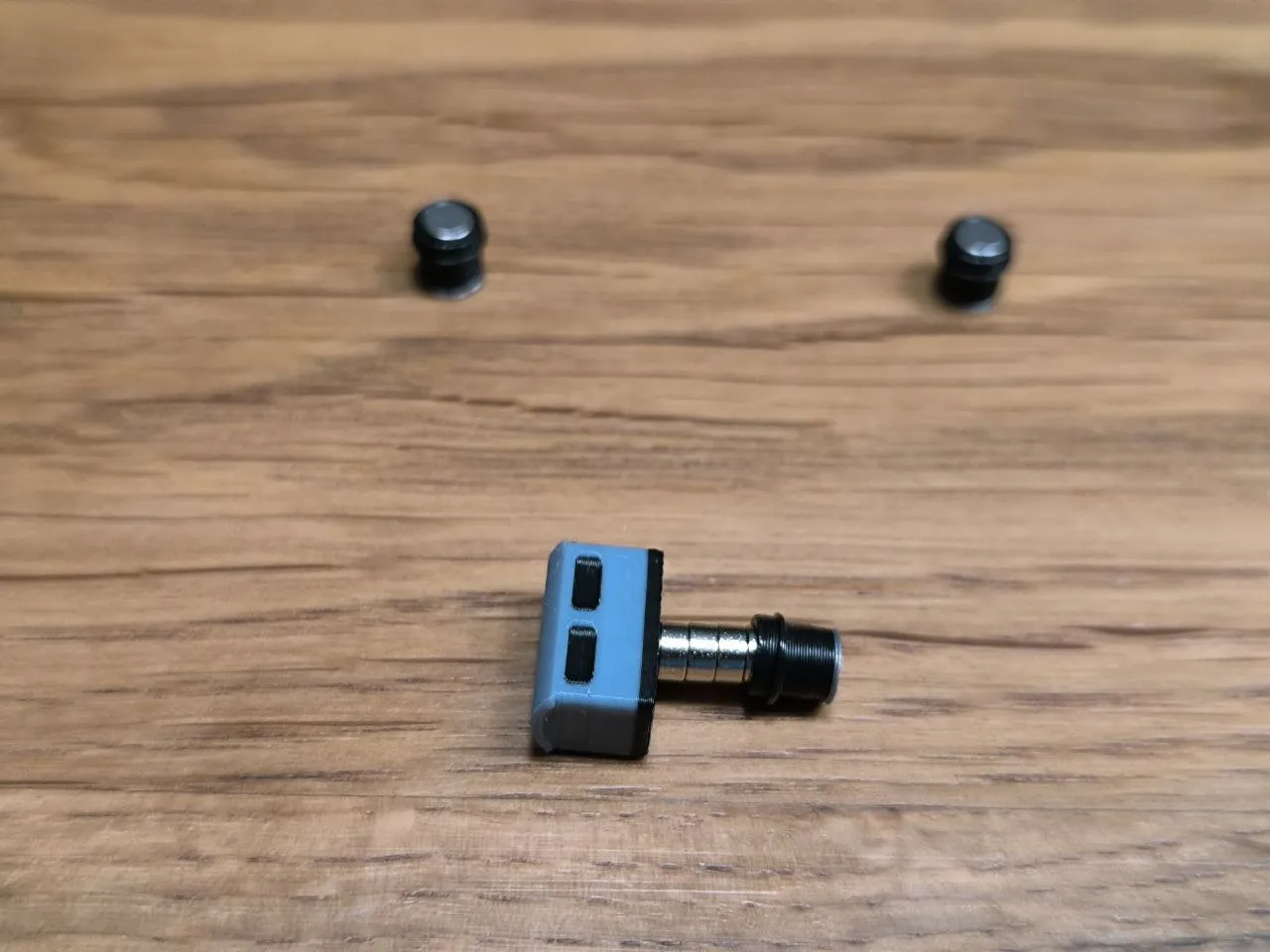

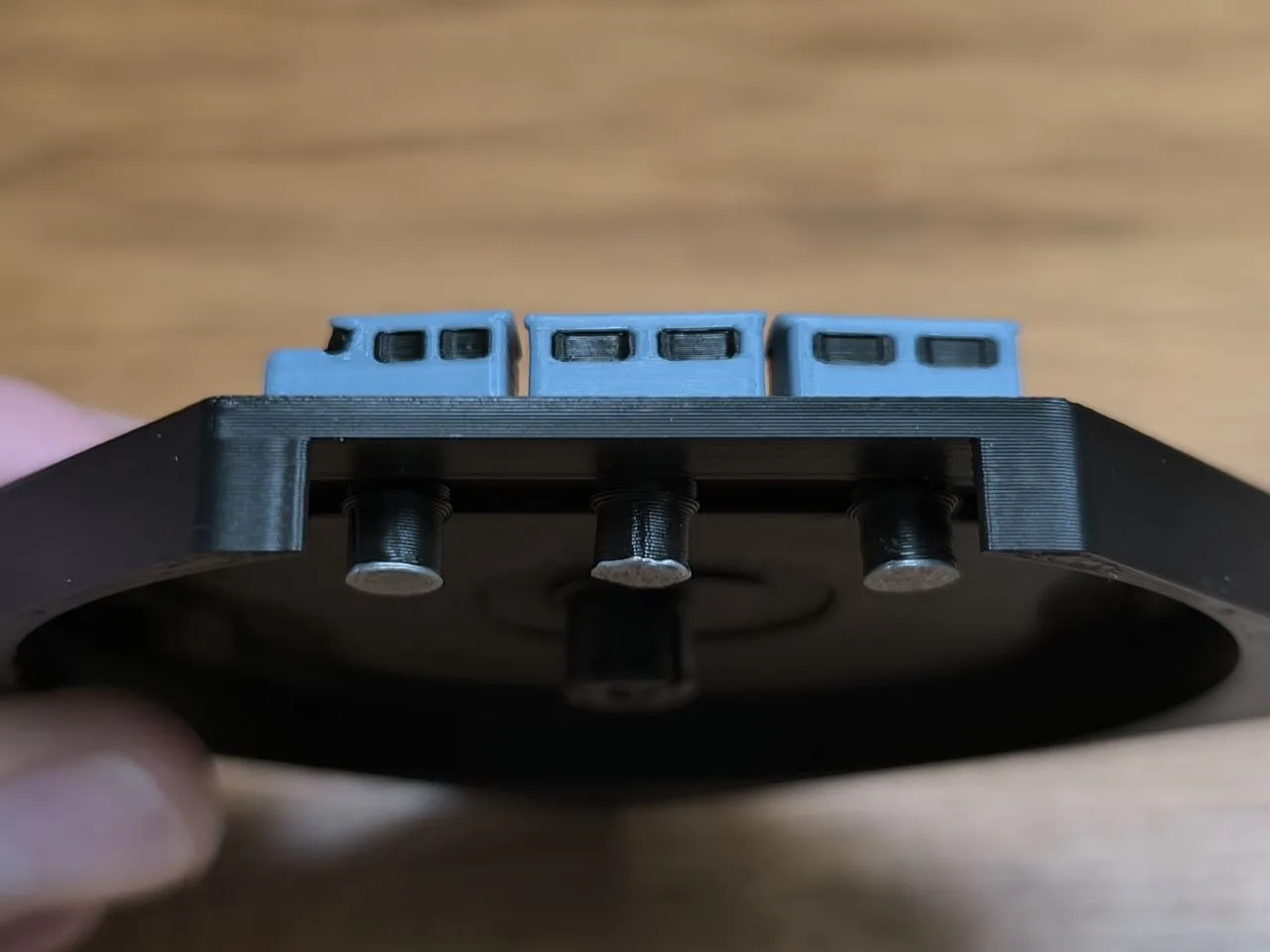

**Insert 3pcs Magnets in the 3 pins all with same polarity but opposite direction than before! The Pins must attract the train!**

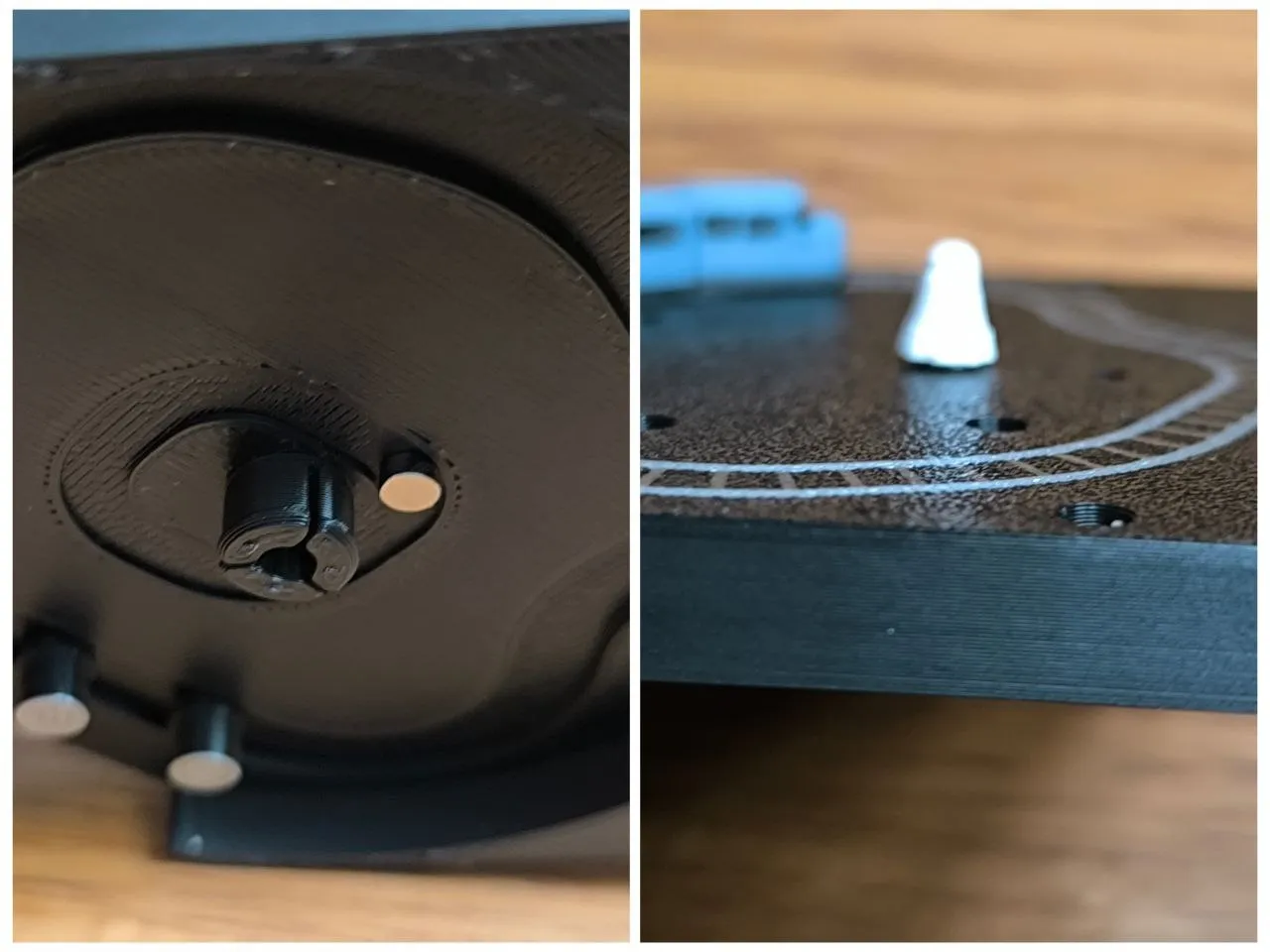

**Insert the 3 pins now and use the train to hold them in place.**

Take another Ø4x2mm magnet and put it into the inner track, use the ghost on the other side to hold it in place.

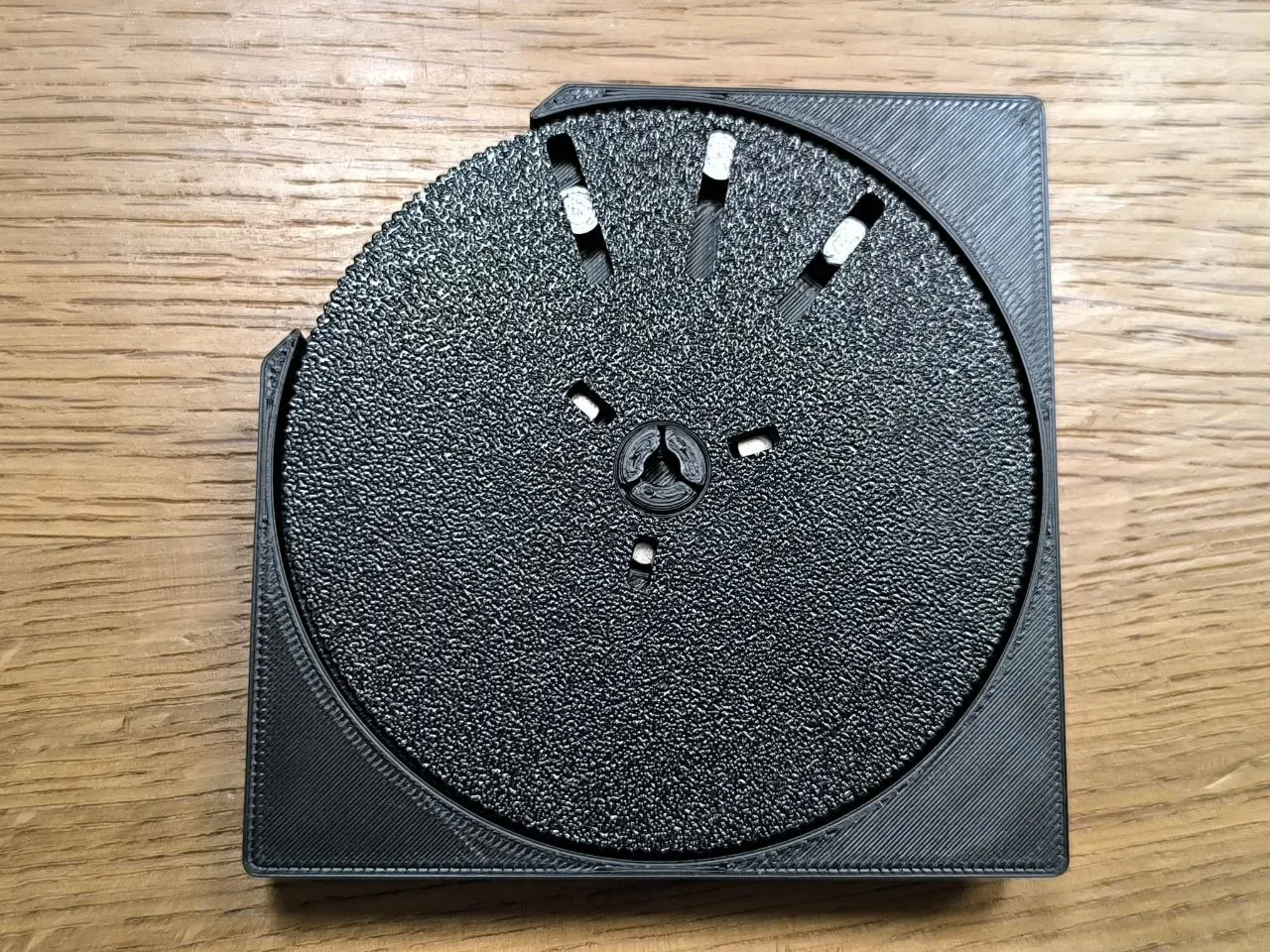

Arrange the pins/magnets and put the disc above. Make sure all magnets/pins are visible through the slots. Press it in place and turn carefully. Proof if all magnets are captured.

Remove the ghosts and train and put the terrain on top. You can apply some glue.

Press the Tombstones and bushes in first
Glue the trees in. Little tip: Use heat to adjust the tree branches. I took a lighter, which worked well. Also it does not really matter if some branches brake.
Glue the two haunted houses to the spots

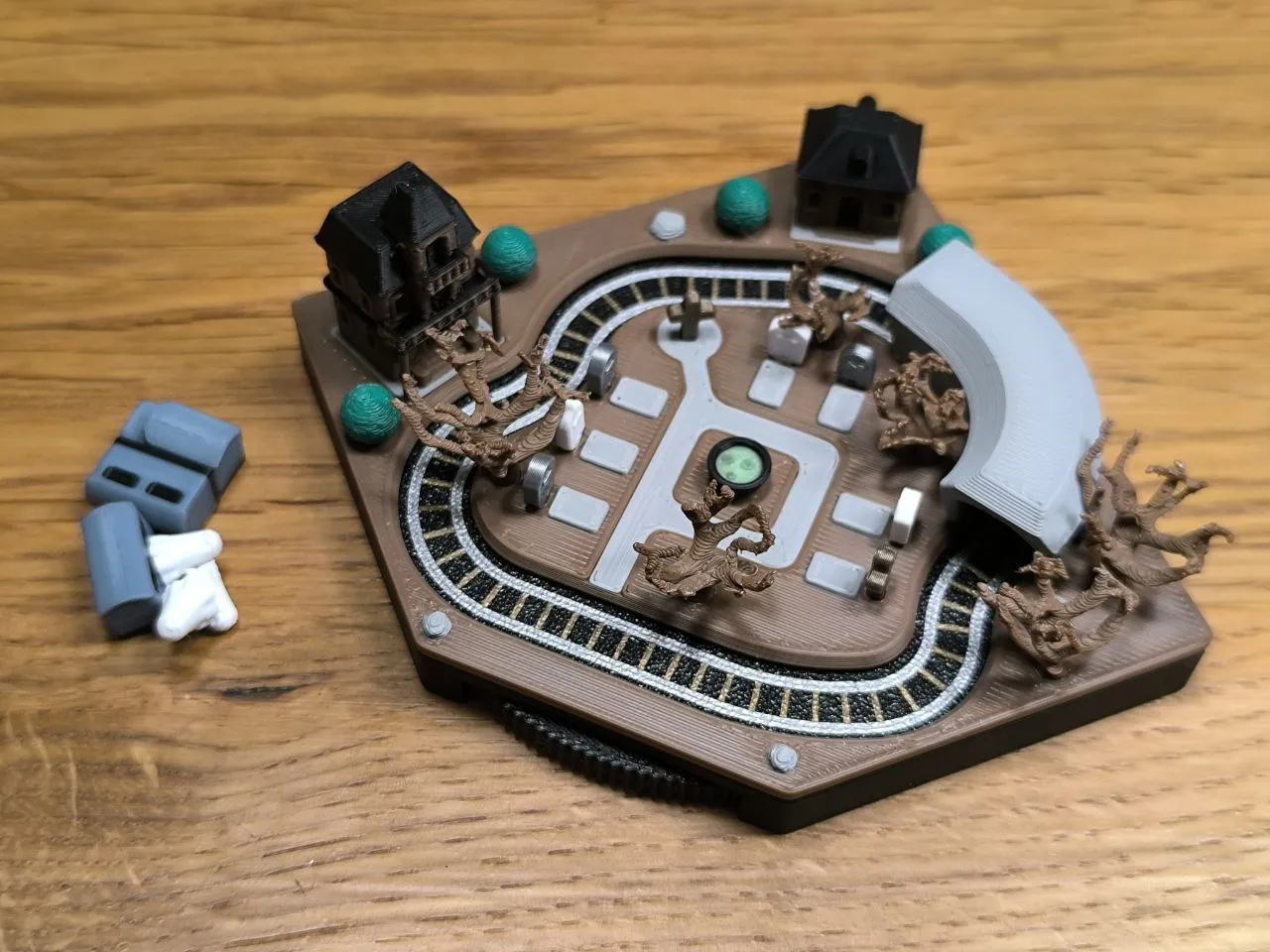

Place the train to the magnetic position and have fun 😀👍

I hope you like this little project.
