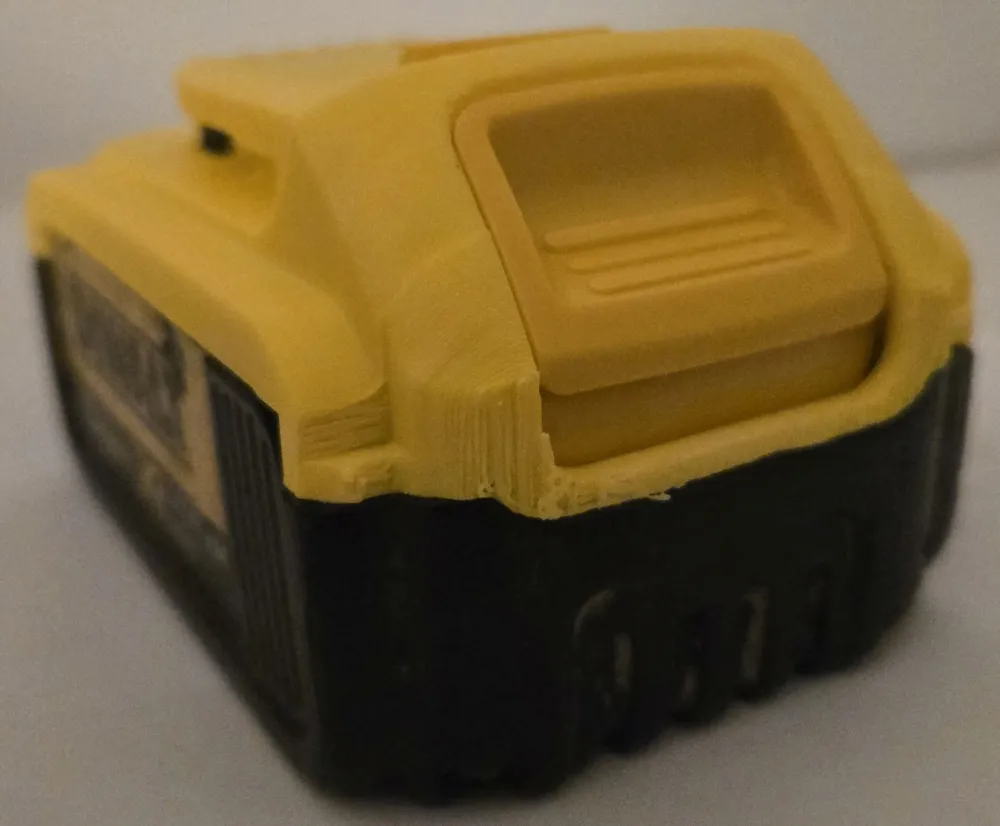

Dewalt DCB204 Battery Case Top
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.9 h
1 plate
Open in Bambu Studio
Boost
104
272
27
9
424
216
Released
Description
The is an adaptation of a similar model (Dewalt DCB207) posted by user eccs19. This model is licensed the same way as the creator designated, and is required here.

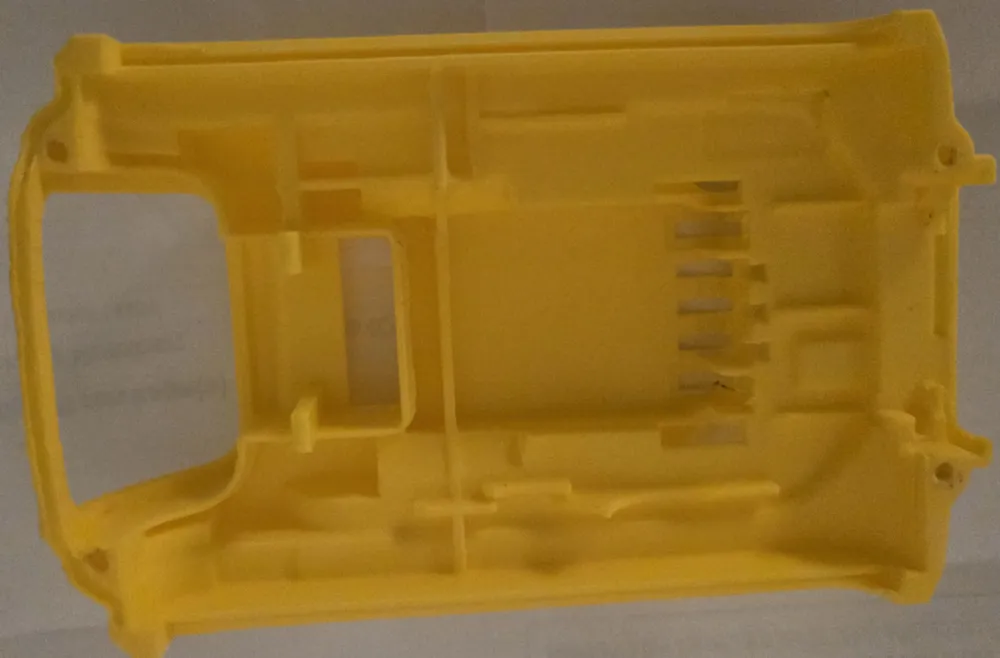

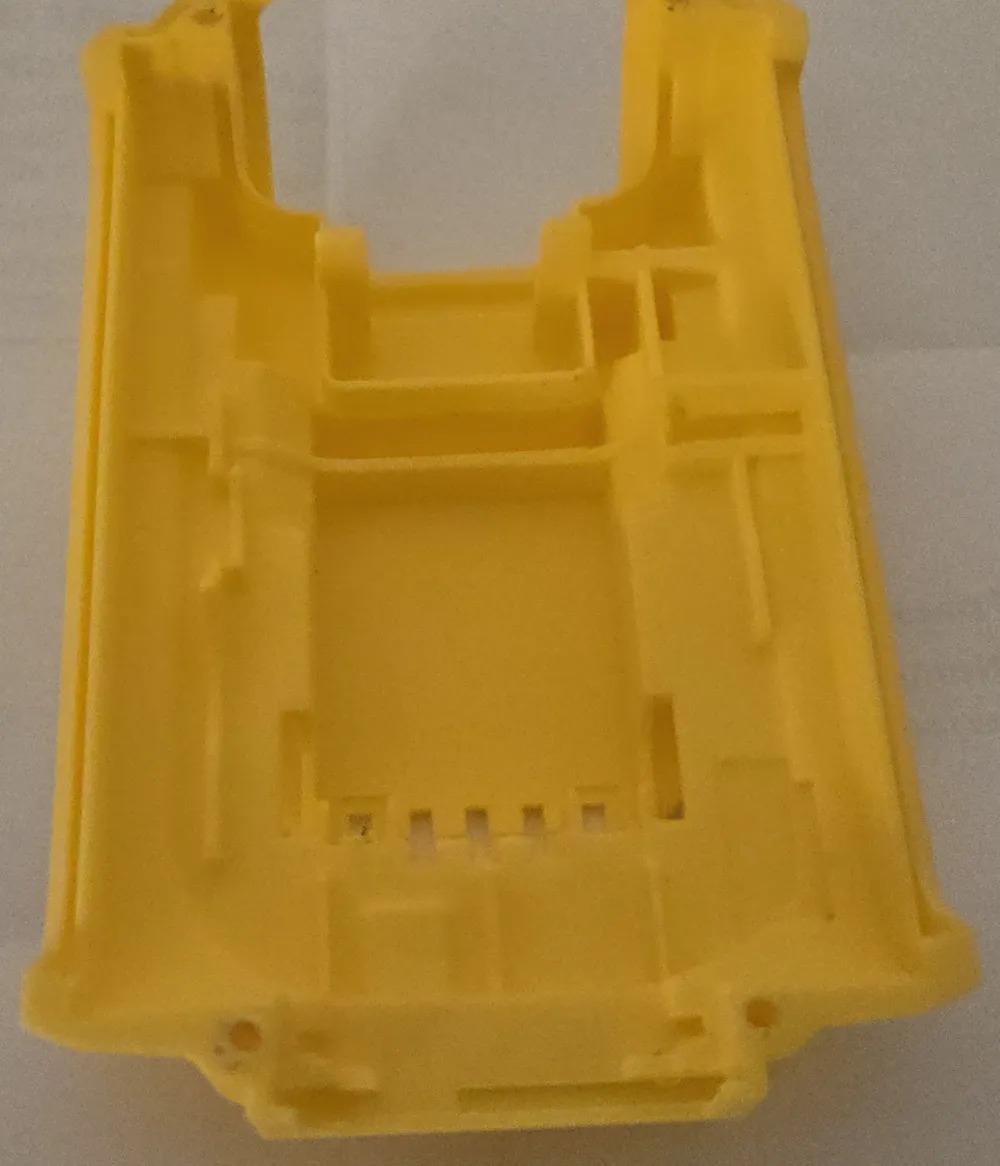

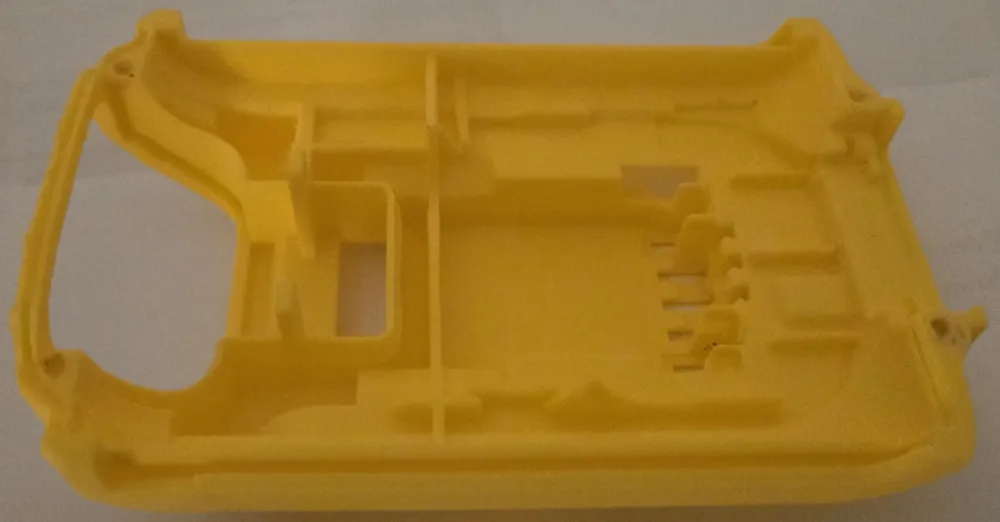

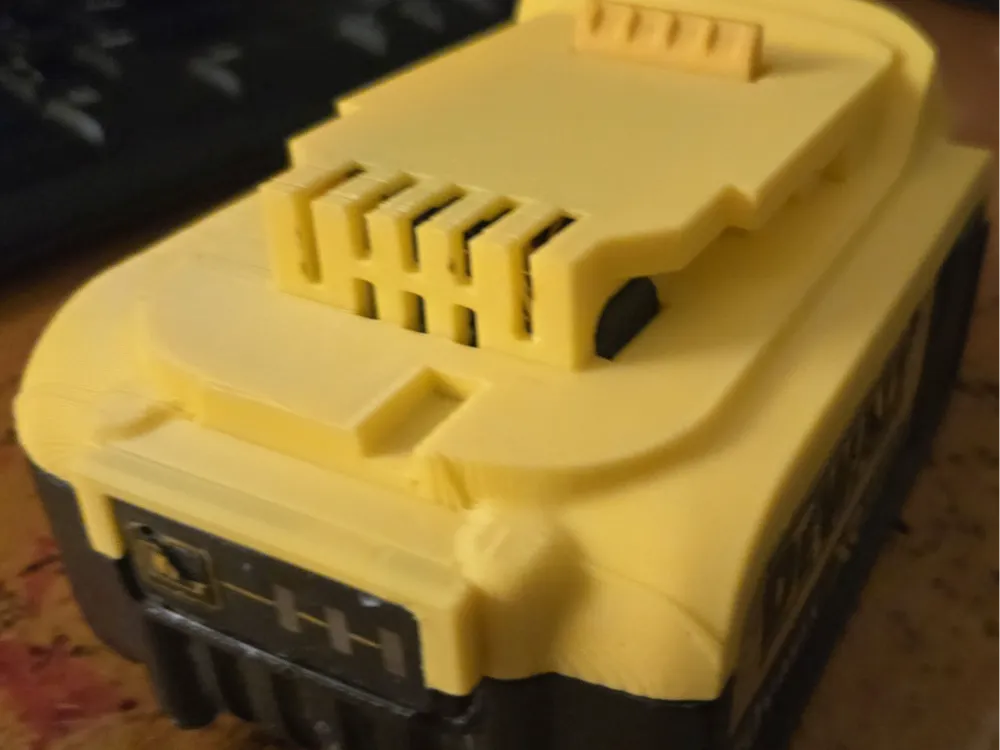

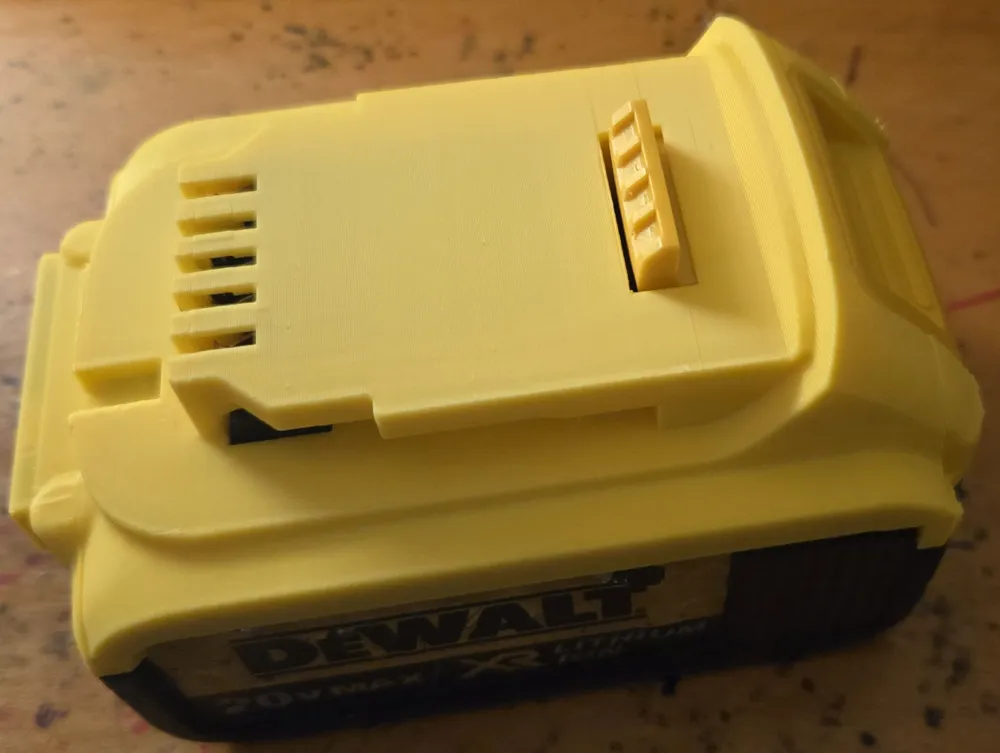

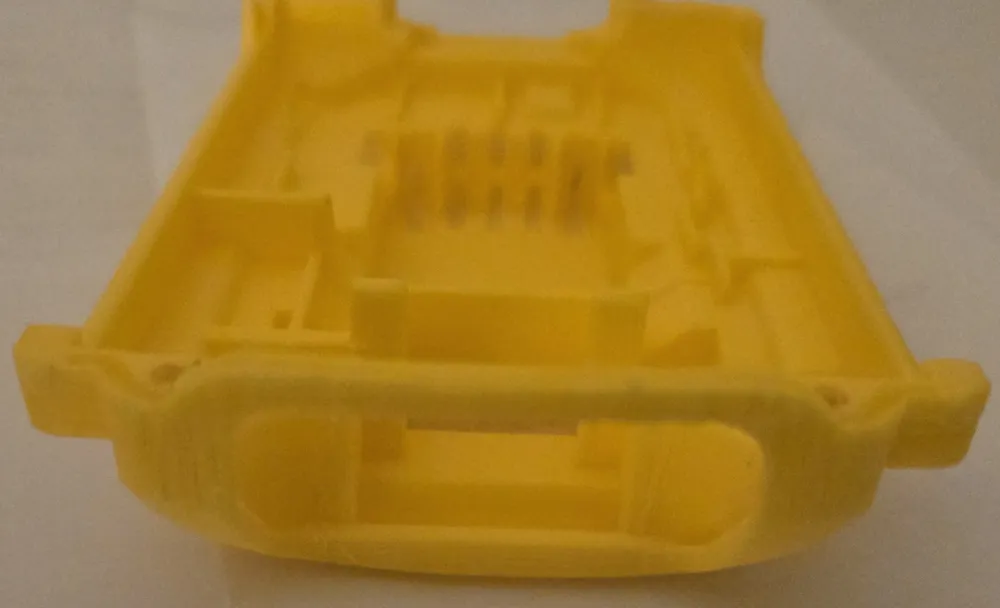

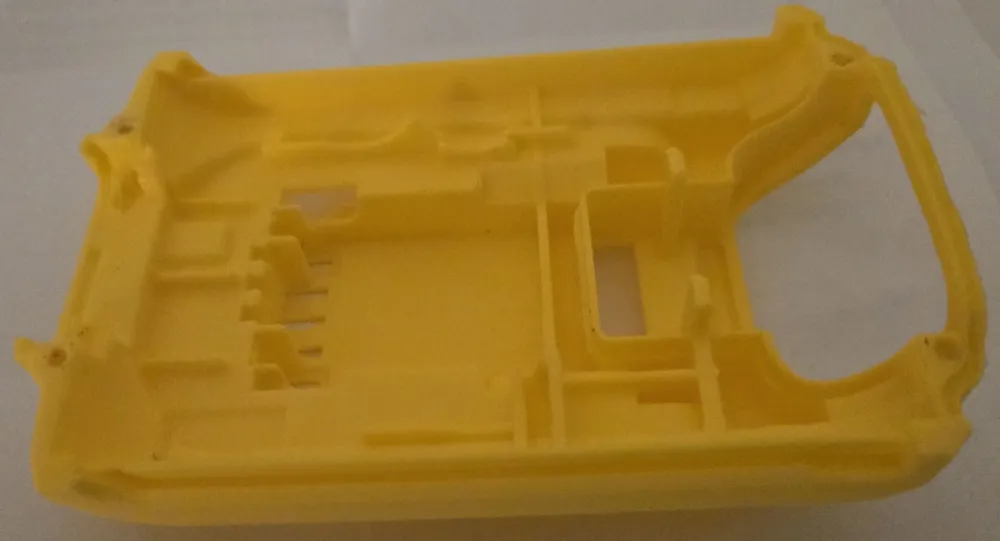

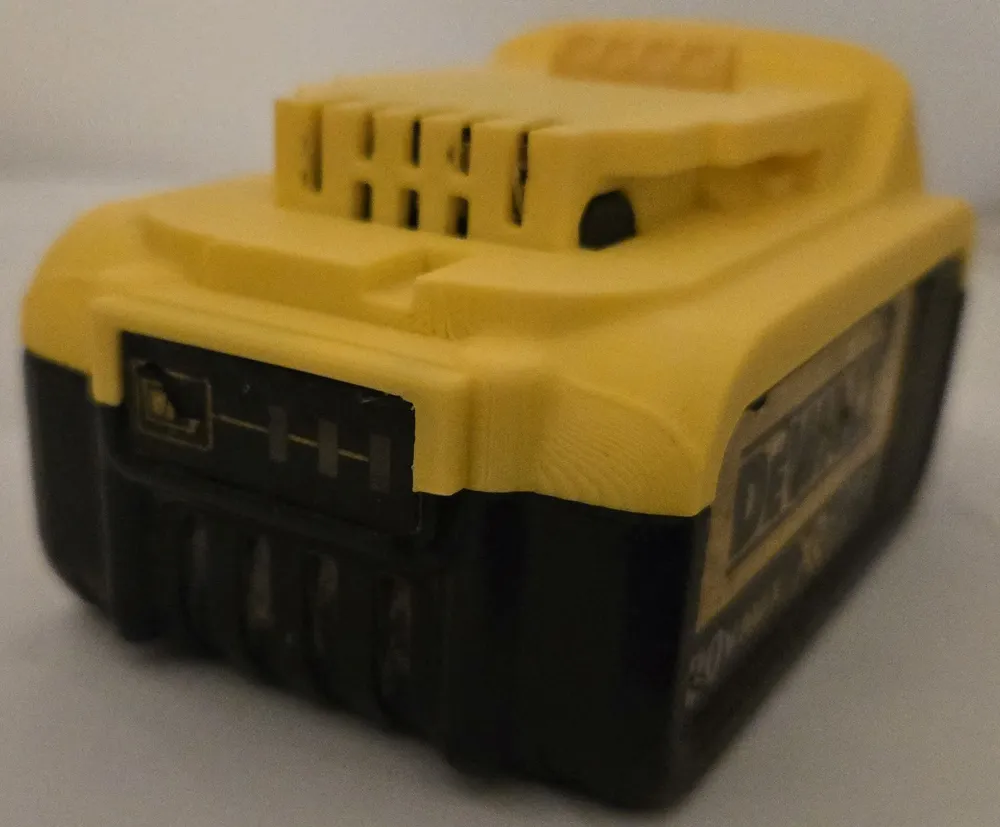

The Dewalt DCB207 Battery case top is very similar to the DCB204 battery case top. The DCB204 uses a front window to hold the battery status panel and circuit board that I designed and mounted in the front of the DCB207. There were also some structural posts on the underneath that needed to be removed or lowered to fit on the DCB204 lower case. Finally the rear portion was replaced since some “ridging” on the DCB204 case had no where to seat into the DCB207 top. Minor amounts of “cosmetic” changes where done to the top to be consistent with the Dewalt appearance.
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
