Extraction Hood for 3D Printer | Window Fan

Description:

Are you also struggling with the fumes and odors when printing filaments like PLA, ABS, ASA, or PETG? This extraction hood is the perfect solution to significantly improve the air quality around your 3D printer!

I specifically designed this hood to replace an existing Aereco ZUROH forced ventilation unit (or similar models), which is often installed in roller shutter boxes or above windows. Instead of drilling a hole in the wall, this adapter allows you to use the existing infrastructure to safely vent the fumes outside.

Key Features:
-Easy Installation: The original Aereco ventilation unit can be easily disassembled and replaced with this precisely fitting extraction hood. To do this, simply unclip the cover cap and loosen the two screws underneath.
-Standard Connection: The hood has a connection for a standard exhaust hose with a 100 mm diameter.
-Effective Extraction: Ideal for direct outdoor air extraction.
-Stable Design: Designed for secure and permanent wall mounting. It uses the two existing screws of the forced ventilation unit.

Printing Recommendations:

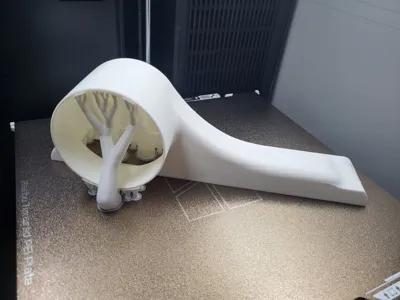

-Support Structure: As seen in the pictures, a support structure (e.g., tree supports) is needed for the round connection to ensure a clean print.
-Infill: A 15% infill is sufficient for adequate stability.
