P2S Rear Cooling Exhaust Integrated Kit

Model Introduction

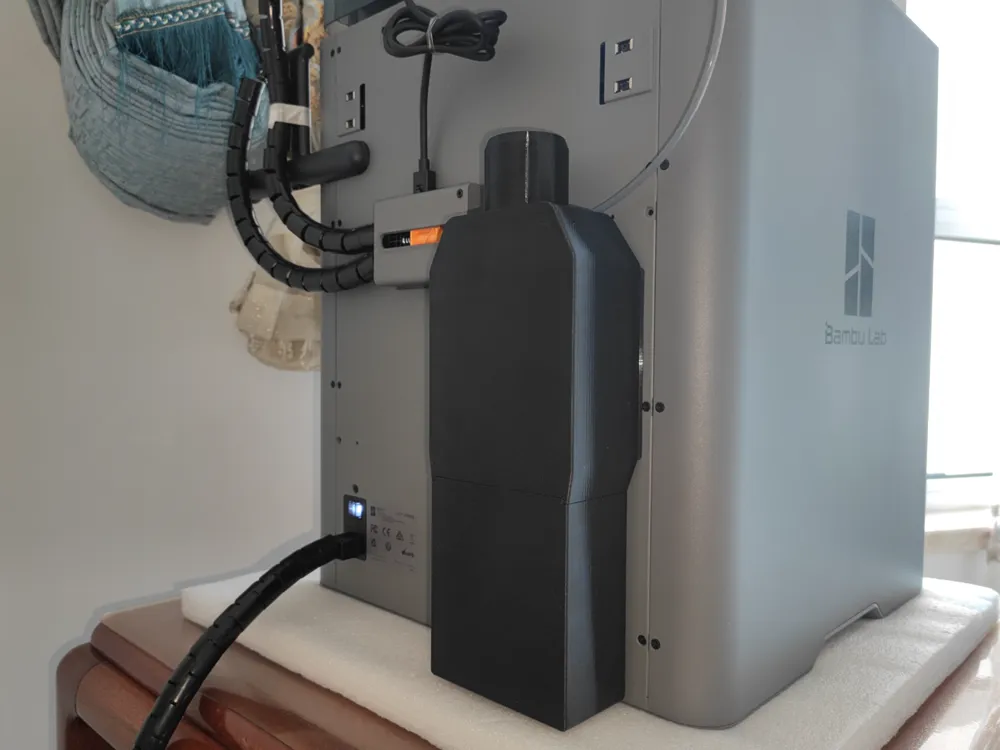

Since the P2S currently does not have a dedicated exhaust port, I designed a modular exhaust adapter solution that uses the waste outlet behind the back panel and the motherboard's heatsink outlet for centralized exhaust. This solution consists of three main components:

1. Air Manifold: Integrates airflow from the waste outlet and the electronics bay heatsink outlet, supports 30/40/50mm duct connection, and offers "top direct exhaust" and "top-side dual exhaust" options to adapt to different ducting needs
2. Universal Connection Adapter: Securely connects to the chassis back panel with M3*10 screws, providing airflow transition and structural support
3. Universal Waste Collector: Used to collect filament waste generated by the machine

All components are connected using a dovetail-like structure with good sealing, making installation easy and the structure stable, while balancing functionality and expandability

Update Log

2025.10.25: Increased waste bin capacity, added filter block pillars to the air manifold outlet, and optimized the overall external structure

2025.11.02: Added 30mm single-head version

2025.11.03: Added 40mm single-head version

2025.11.20: Added 50mm dual-head version

2025.11.24: Added side-opening versions of the air manifold and waste bin for easier alignment and insertion, reducing the space occupied at the rear

Universal Connection Adapter: The universal connection adapter usually has no changes

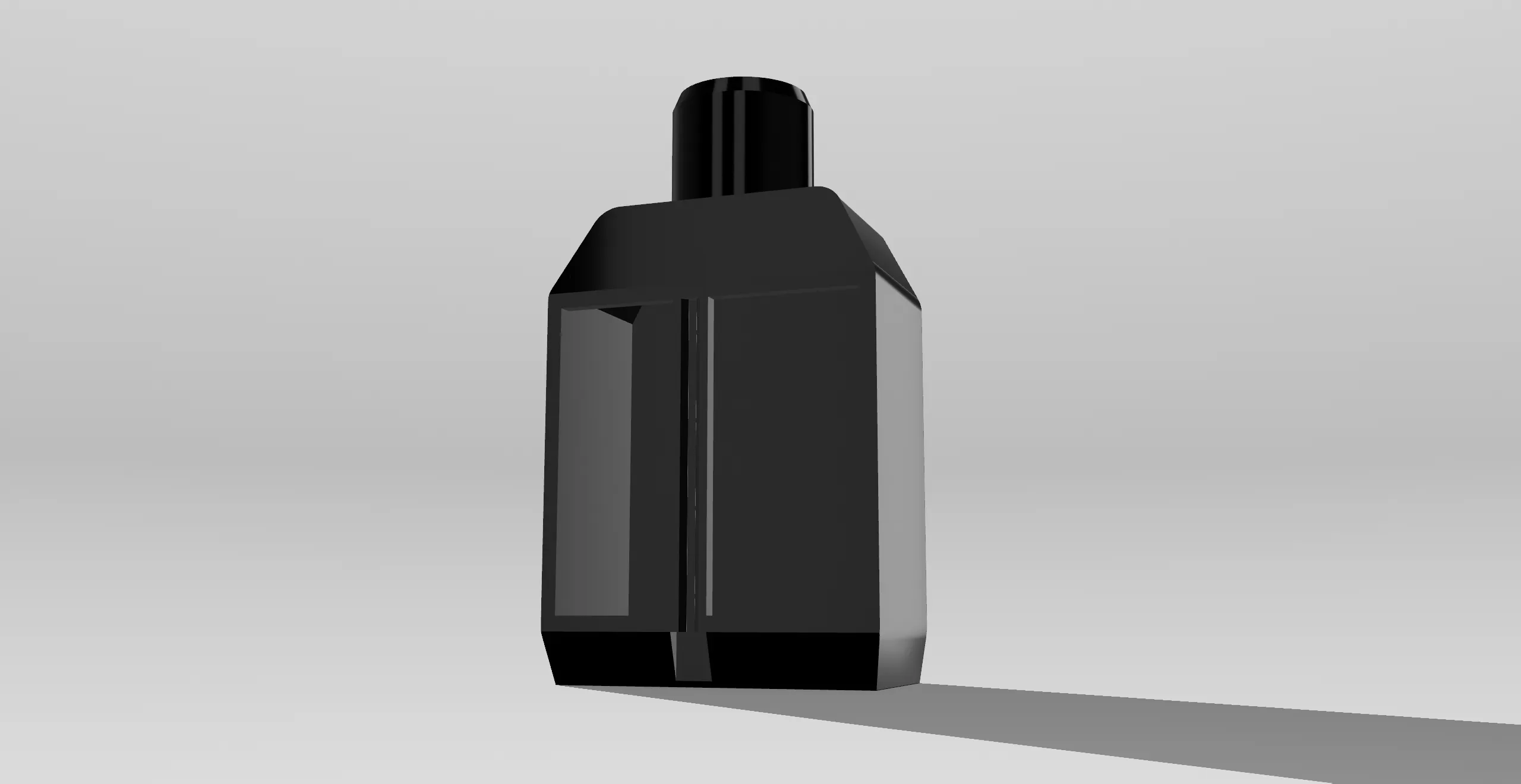

Air Manifold: Standard 50mm single top exhaust version

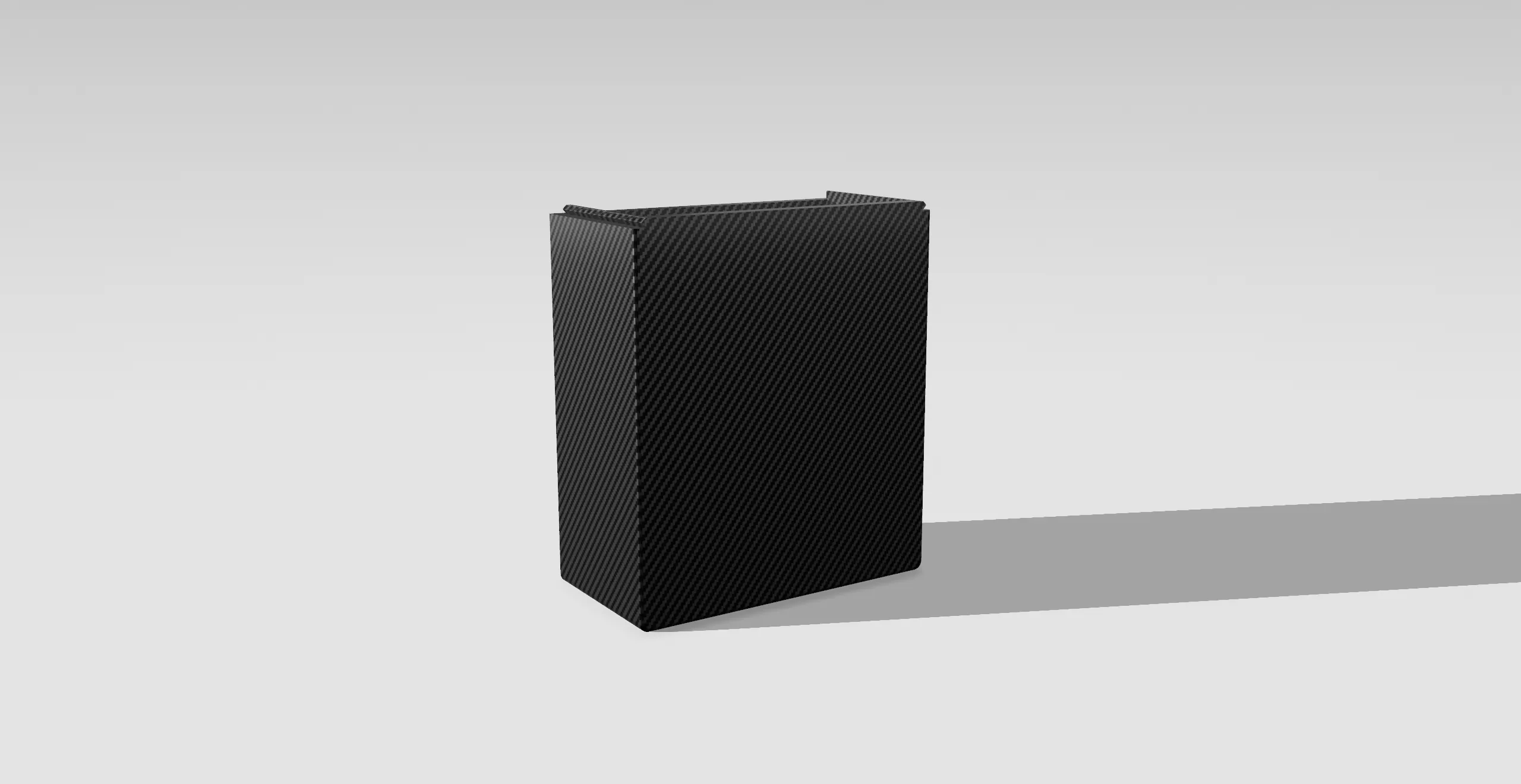

Universal Waste Bin: Large capacity waste bin, can hold more Bambu poop compared to the initial version
