Low Voltage Box / Cabinet Door Cooling Air Guide, 9733 Turbine Fan Version

Description:

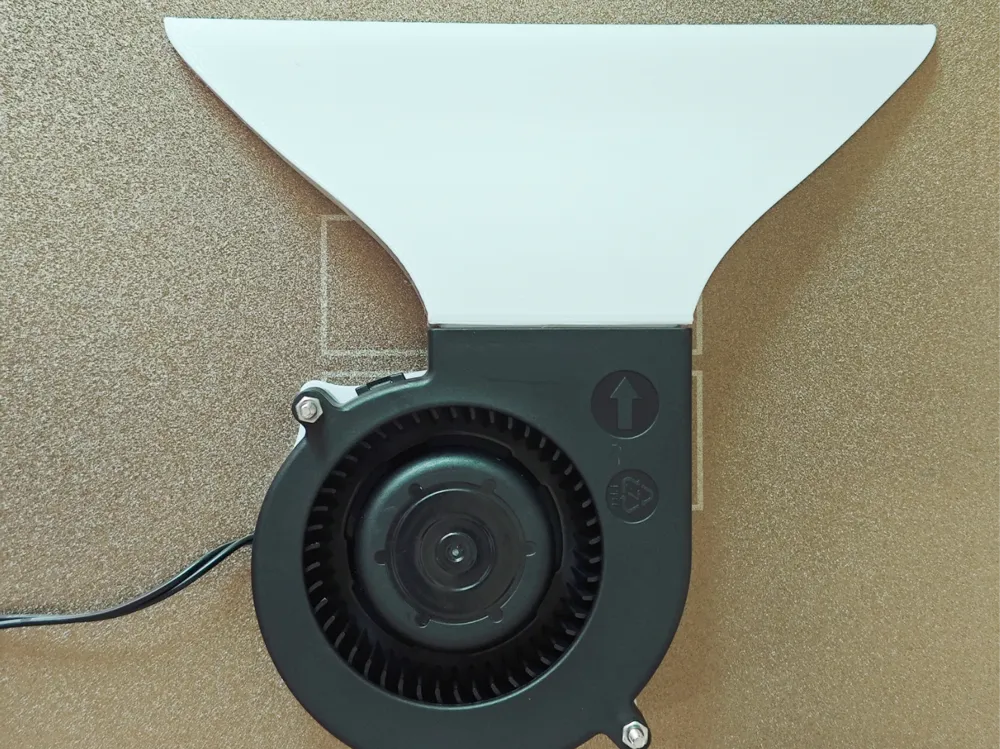

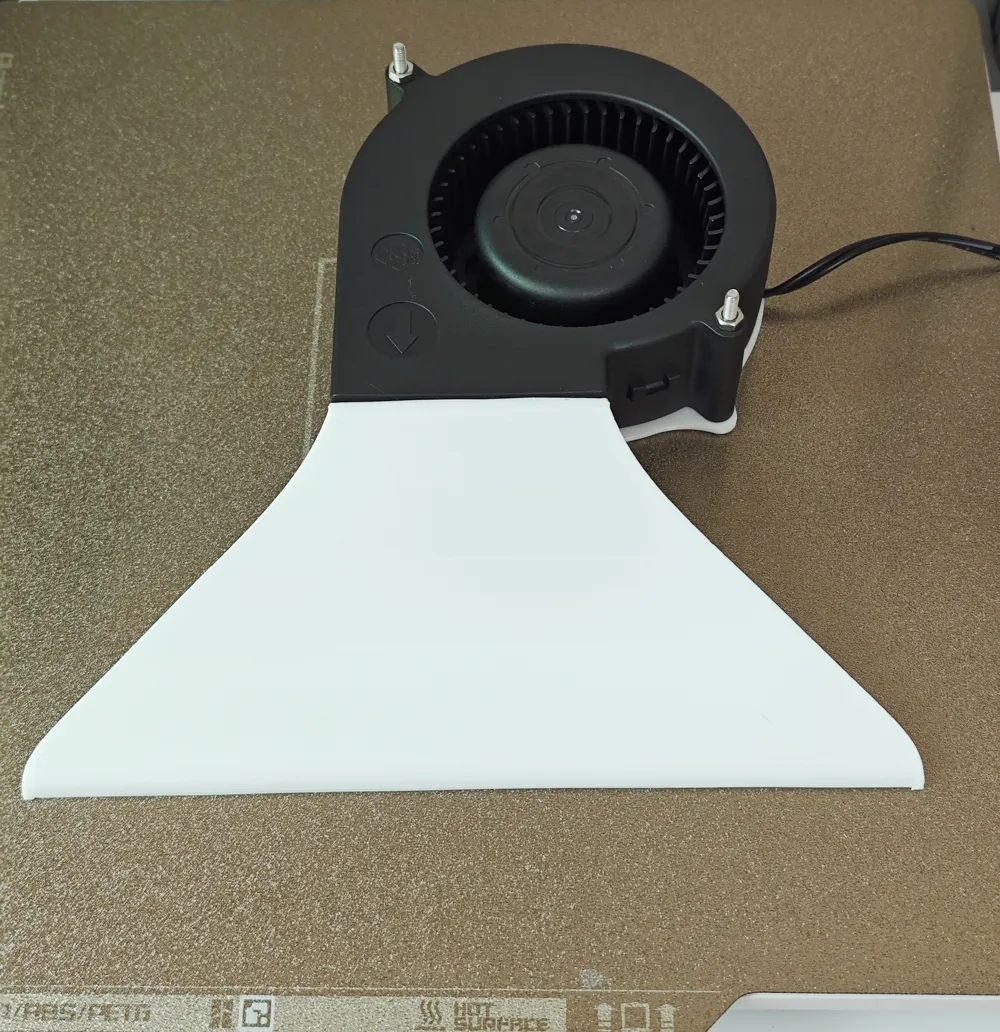

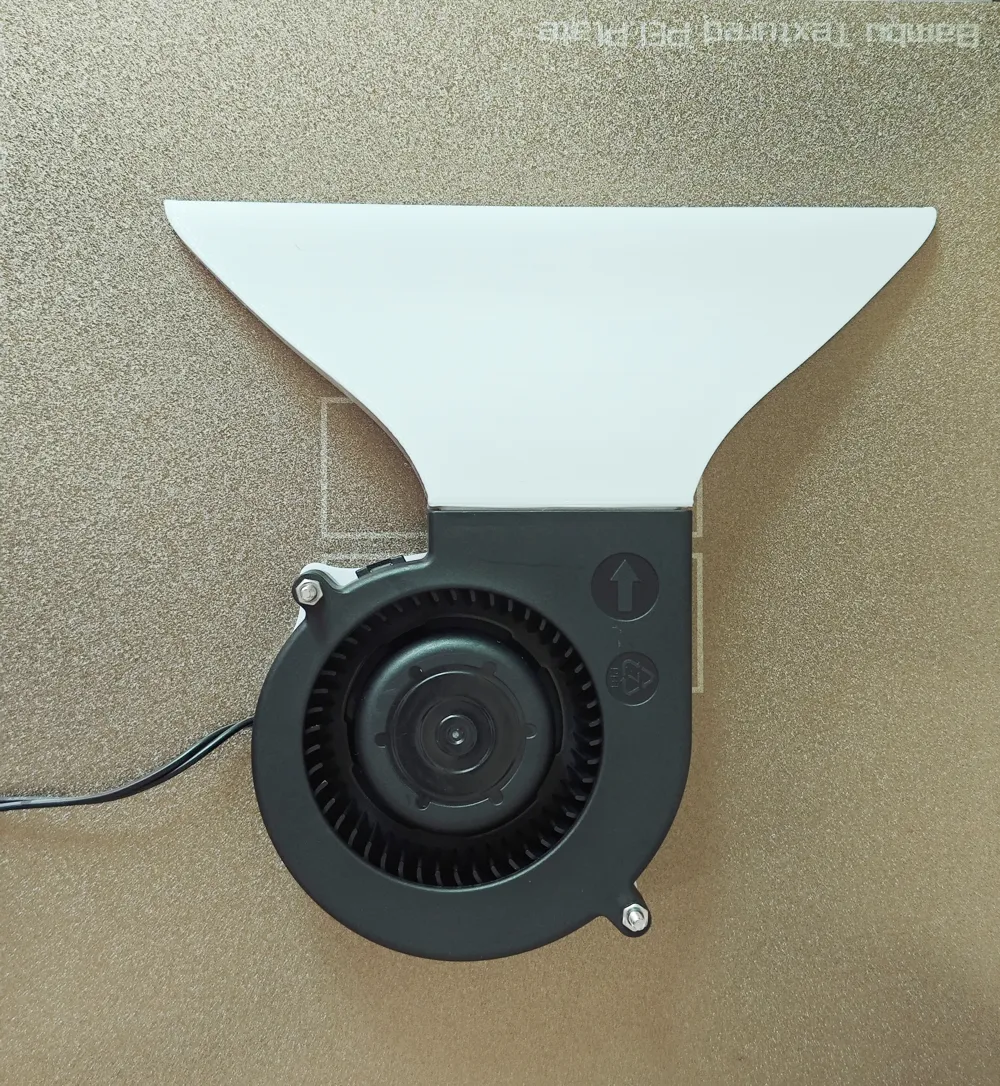

The internal space of low-voltage distribution boxes/cabinets is small, and equipment generates a lot of heat. This air guide, combined with a turbo fan, can exhaust internal heat

Why choose a turbo fan

Chassis cooling fans, such as common 12cm fans, have much lower cooling efficiency than turbo fans due to the direction of airflow

Update Log:

A 12cm turbo fan version is coming soon, you can follow it in advance

2026.5.24 Update: Added a 24CM exhaust width version

2026.1.24 Update: Disk 2 now offers an optional square base plate, with M3 screw mounting holes, allowing it to be fixed to the cabinet door with 3 M3 screws

Notes:

1. Compatible with 9733 turbo fans. The purpose of the base plate is to provide a flat surface for attaching 3M double-sided tape, making it less likely to fall off when fixed to the cabinet door (if the back of your fan is flat, you don't need to print the base plate)
2. Use 2 M3X45 screws + nuts to secure the base plate

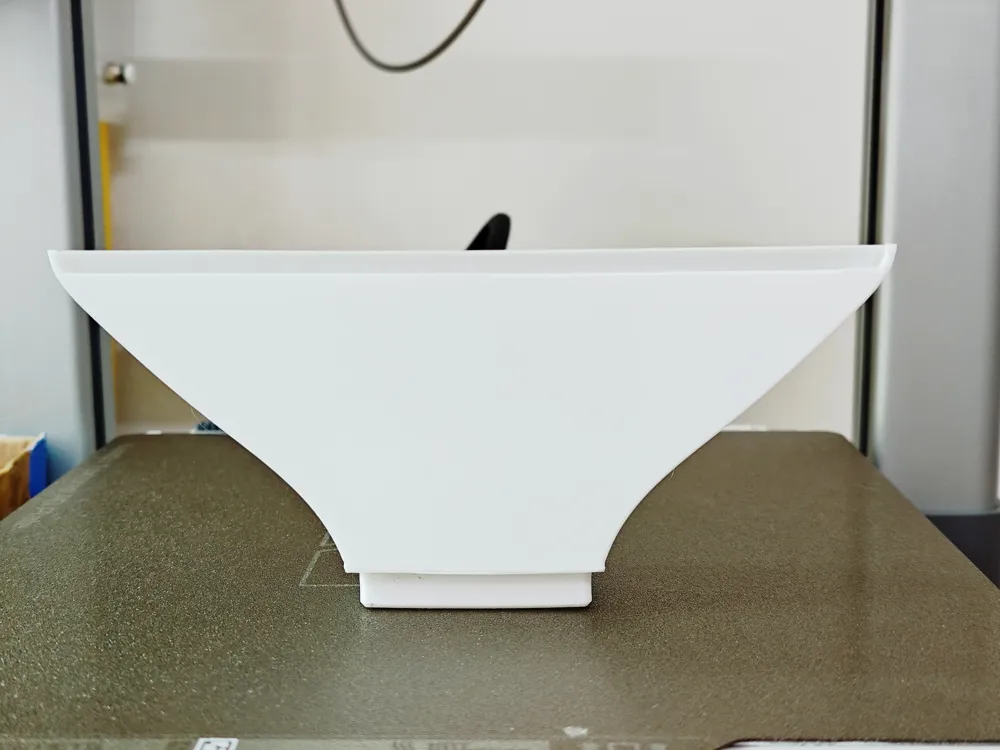

3. The exhaust outlet widths are 18cm and 24cm. If you have other requirements, please leave a comment/private message, and we hope for your continued support

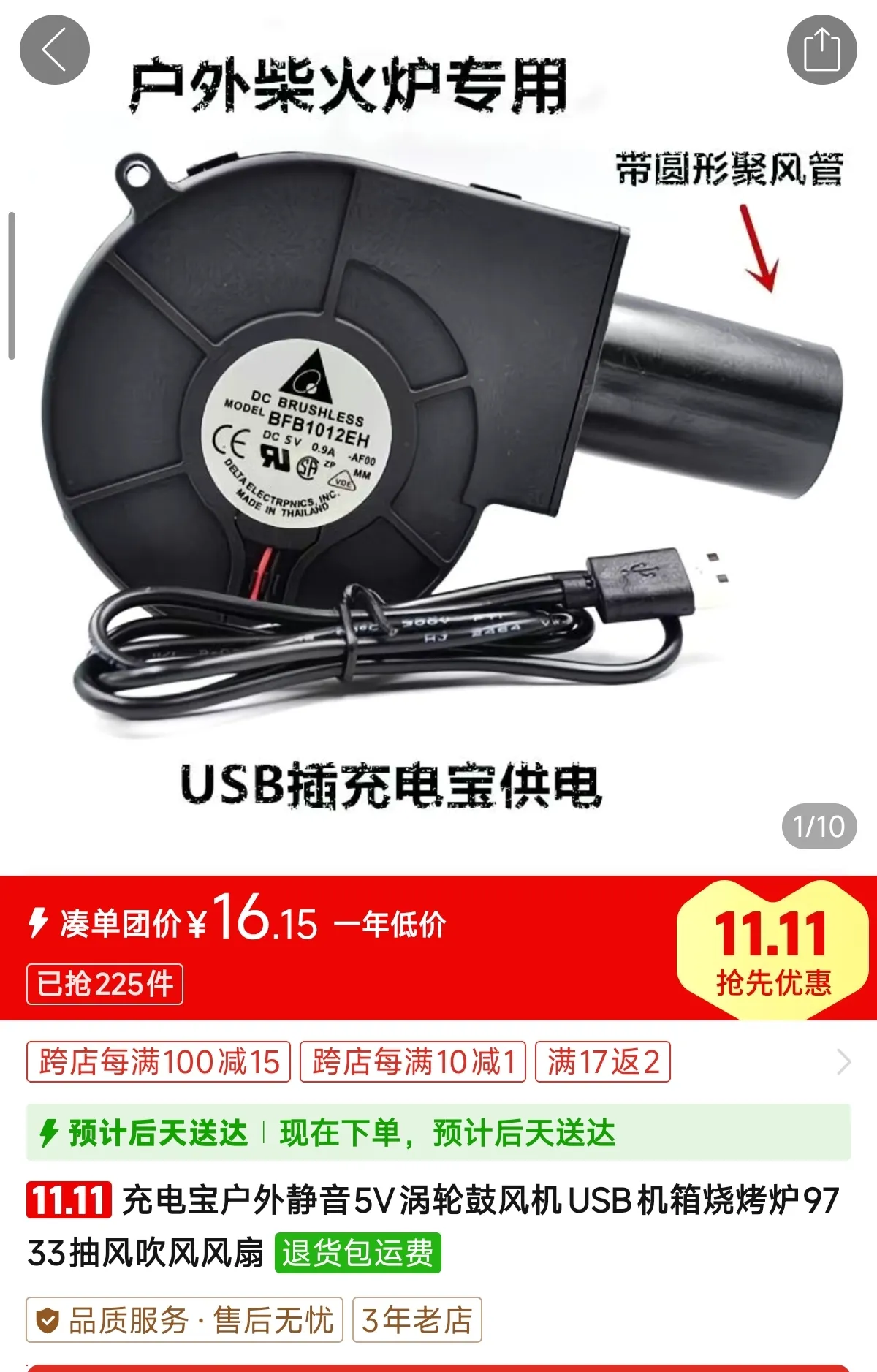

The purchase link for the fan used during modeling is as follows:

https://mobile.yangkeduo.com/goods1.html?ps=fRYbb8yYOz
