Finger Exercise Toy - Catapult - Improved

Produced by Gongyu Mech

Finger Exercise Toy - Catapult - Improved

Gongyu Mech's Works:

Bagua Mechs (Modeled after famous mountains and rivers from various provinces, such as Chaohu Lake, Mount Li, Badaling Great Wall, Namtso Lake, etc.);

Mythical Mechs (Modeled after mythological figures, such as Sun Wukong, Erlang Shen, King Bull Demon, etc.);

Classic of Mountains and Seas Series (Bio-form series, Mechanical-form series, Fighter series, Aircraft series, Warship series, Chariot series, Main Battle Tank series, Multi-functional Engineering Armored Vehicle series, Rotary Engineering Armored Vehicle series, Engineering Armored Truck series, Military Armored Train series, etc.);

Chinese Weaponry Series (Siege weapons, defensive weapons, field weapons);

Mechanical Insect Armor Series (Twin-pronged rhinoceros beetle (unicorn beetle) mechanical form and insect armor form, Hercules beetle mechanical form and insect armor form...);

Mech Classic of Mountains and Seas Series (Xuan Gui Mech...)

Mech Dinosaur Series (Mech Stegosaurus, Mech Triceratops, Mech Spinosaurus, Mech T-Rex, Mech Titanosaurus, Mech Plesiosaur...)

Telescopic Sword Series (Taotie Han Sword, Taotie Short Sword, Huiwen Telescopic Mace, Bagua Telescopic Mace...)

Festival Transforming Robots ("Zongzi" type disguised surveillance transforming robot, "Mooncake" type fire support transforming robot, "Pumpkin" type - heavy-duty guardian transforming robot...)

This model is the fifth item of the Chinese Weaponry Series - Siege Weapons: Siege Ladder.

The first item of the Chinese Weaponry Series - Siege Weapons: Catapult,https://makerworld.com.cn/zh/models/1059822-zhong-guo-bing-qi-xi-lie-gong-cheng-qi-jie-tou-shi#profileId-1098944

The second item of the Chinese Weaponry Series - Siege Weapons: Siege Ram,https://makerworld.com.cn/zh/models/1073495-zhong-guo-bing-qi-xi-lie-gong-cheng-qi-jie-gong-ch#profileId-1115855

The third item of the Chinese Weaponry Series - Siege Weapons: Lu Gong Che,https://makerworld.com.cn/zh/models/1083545-zhi-jin-he-zhong-guo-bing-qi-xi-lie-gong-cheng-qi#profileId-1128615

The fourth item of the Chinese Weaponry Series - Siege Weapons: Mantle Cart,https://makerworld.com.cn/zh/models/1090864-fan-ye-zhuang-zhi-zhong-guo-bing-qi-xi-lie-gong-ch#profileId-1137807

The first item of the Chinese Weaponry Series - Field Weapons: Blade Array Chariot,https://makerworld.com.cn/zh/models/1047439-zhong-guo-bing-qi-xi-lie-ye-zhan-qi-jie-dao-zhen-z#profileId-1082967

The first item of the Chinese Weaponry Series - Defensive Weapons: Gate Blocking Blade Cart,https://makerworld.com.cn/zh/models/1037064-zhong-guo-bing-qi-xi-lie-shou-cheng-qi-jie-sai-men#profileId-1070807

Simple, easy to print, material-saving, exquisite, easy to assemble, resistant to failure and breakage, no supports needed for printing, no glue needed for assembly!

Note: 1. If you can't push it in by hand, you can print the tool hammer from the homepage, align it with the buckle and gently tap it in.

        2. It's best to apply glue or spray to the build plate to prevent printing failures; the main reason for spaghetti is that the build plate is too smooth.

No supports needed for printing (if the base plate is not sticky, you can add a skirt yourself), no glue or hardware required for assembly (if it's too tight, press hard or gently tap with a small hammer), a very convenient Chinese-style assembly model!

Catapult:

A catapult is a large human-powered long-range weapon that uses the lever principle to launch projectiles. Its emergence was both a technological advancement and a military necessity. In Chinese chess, the black side's cannon, written as "砲", refers to a catapult; the character "炮" with the fire radical in ancient texts mostly referred to branding. Catapults began to be used during the Spring and Autumn period and became important siege and defensive weapons after the Sui and Tang dynasties. However, during the Song Dynasty, they developed further than in the Sui and Tang periods, being used not only for siege and defense but also for field battles. "Pao Shi" (抛石) and "Fei Shi" (飞石) in ancient texts refer to catapults. Ancient Western catapults were also one of the main offensive means, extensively used by Persians and Greeks.

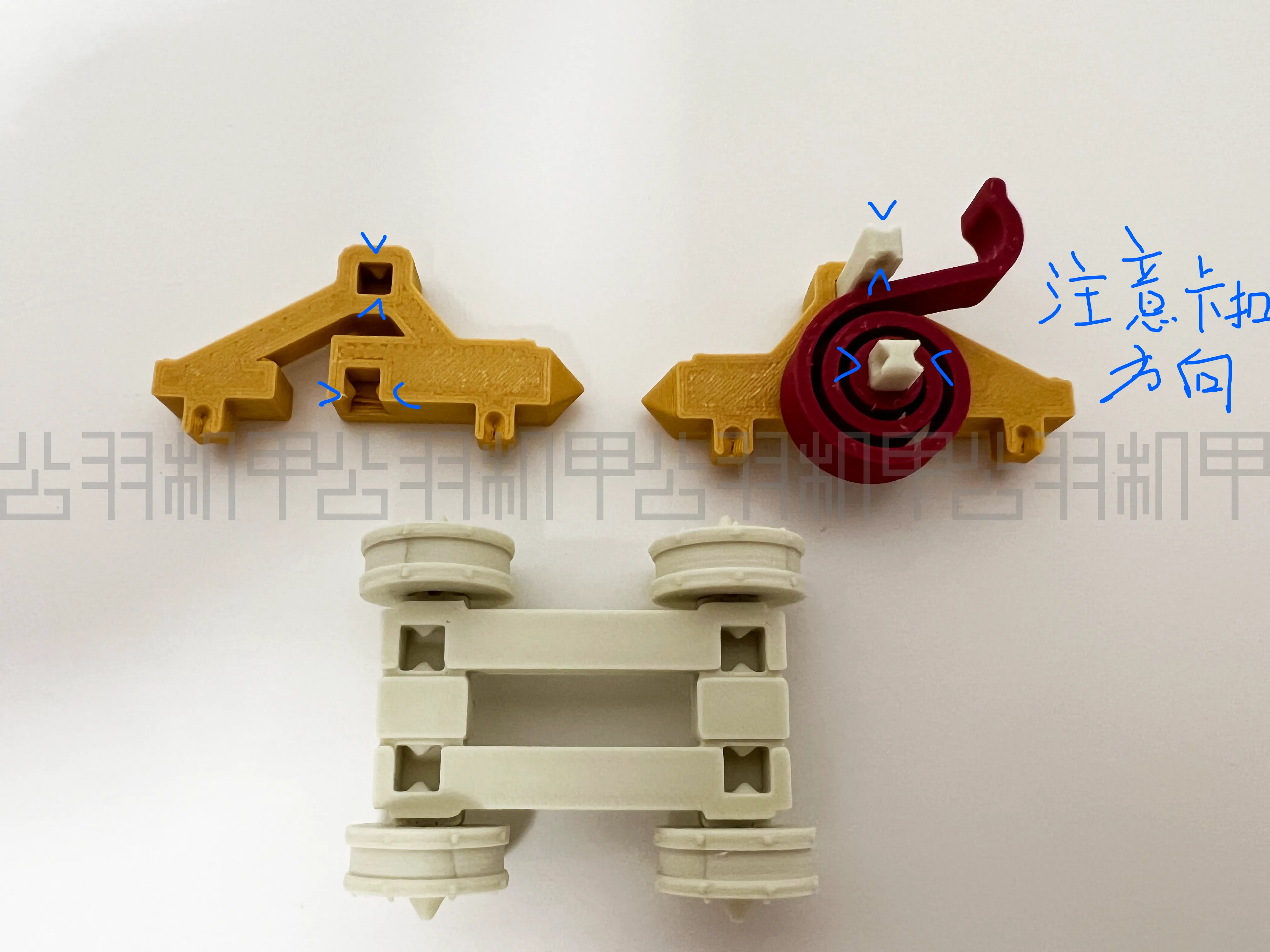

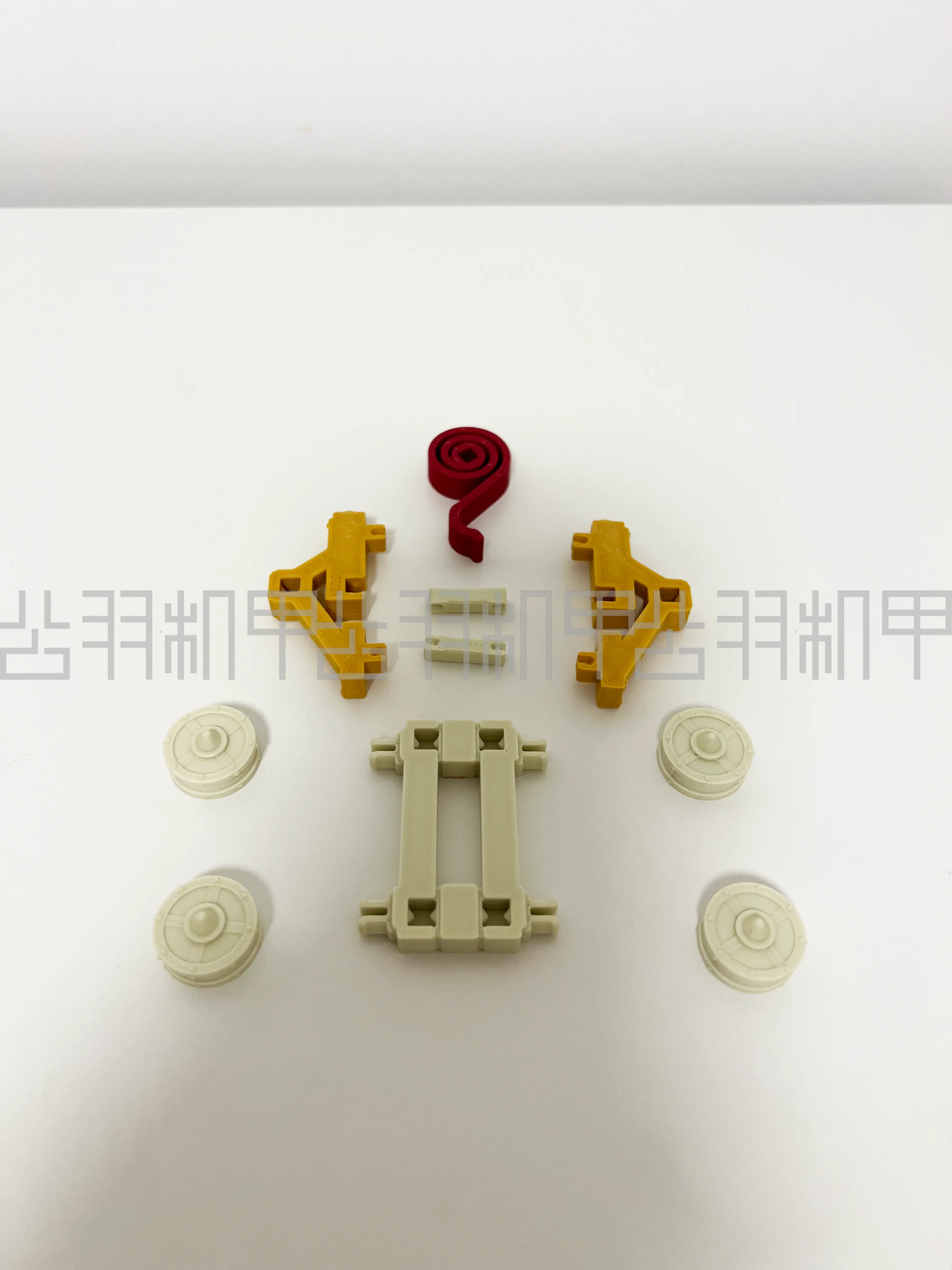

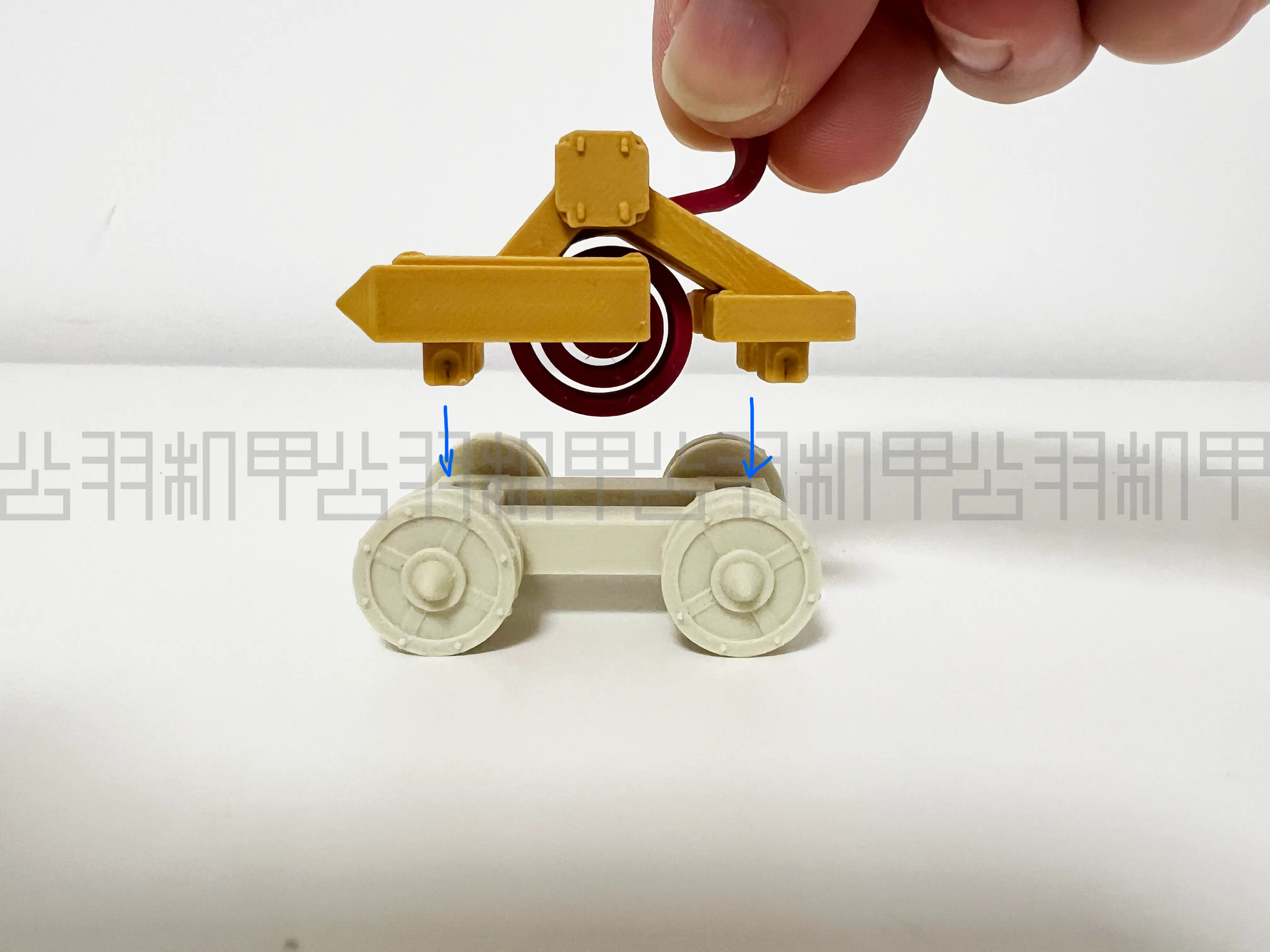

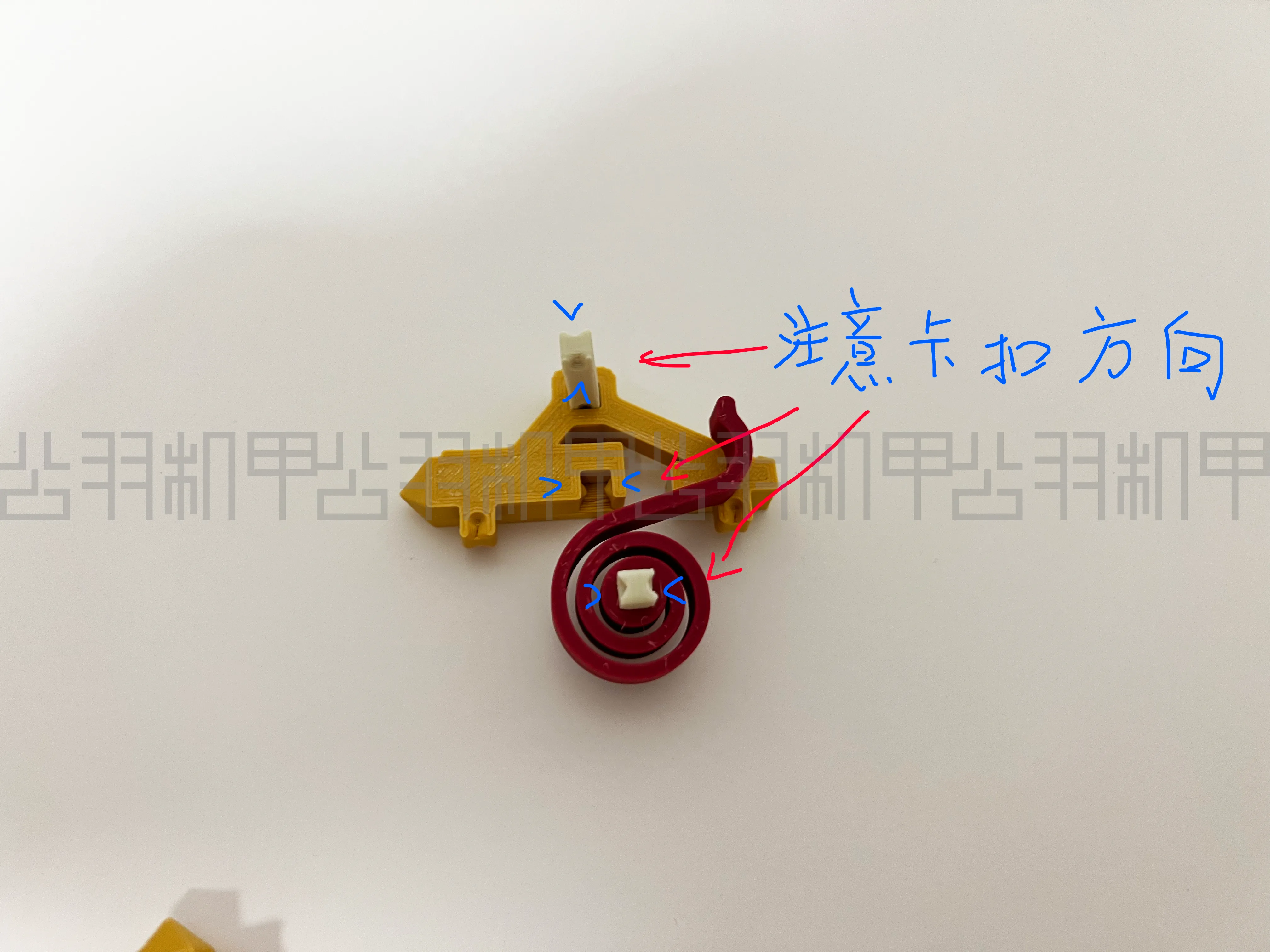

Assembly Diagram:
