IKEA SKADIS Organizer System

------------------------------------------------------------------------------------------------------------------------------------------------

Welcome to the IKEA Skadis Organizer System!

------------------------------------------------------------------------------------------------------------------------------------------------

• Modular & flexible – mix and match different sized holders.
• Perfect for small items – screws, bits, cables, craft supplies… you name it.
• Clean & practical – keeps everything visible and easy to reach.
• Work in progress – I’m constantly adding new pieces and improvements.

------------------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------------------------------

Available and Upcoming Parts:

------------------------------------------------------------------------------------------------------------------------------------------------

✅ Currently Available:

• Customizable Labels
• Trays Regular
• Trays Regular with Label
• Trays Large
• Trays Large with Label
• Shelves
• Shelves Deep
• Ruler Holder
• ZipTie Mounts
• Battery Holder

🔧 Coming Soon:

• Perforated Large Trays
• USB / SD Card holder
• Adhesive tape holders
• Common tool holders
• Bit and drill organizers
• Custom adapters for stuff i have laying around

------------------------------------------------------------------------------------------------------------------------------------------------

Label Customizer:

------------------------------------------------------------------------------------------------------------------------------------------------

Bambulab Printers:

→ Use the Print Profile “Label Customizer”

(everything is set up - only change colors & change text)

Other Printers:

→ Use customizer to create STL or 3MF (3MF supports Multicolor)

(use Arachne wall generator - optional: ironing on top surfaces)

------------------------------------------------------------------------------------------------------------------------------------------------

Changelog:

------------------------------------------------------------------------------------------------------------------------------------------------

• 22.03.2026 - Additional Tweaks for Supports
  • reduced top interface distance from 0.2mm to 0.1mm
  • decreased interface pattern spacing
  • increased top interface layers from 2 to 3

• 08.11.2025 - More reliable Tree Supports for better hook printing
  • increased base diameter - two walls on buildplate instead of one
  • reduced Tree Support angle from 45° to 15° to make them more rigid
  • decreased solid infill speed from 250mm/s to 200mm/s

------------------------------------------------------------------------------------------------------------------------------------------------

!!! Printing in PETG recommended !!!

- Use PLA only for light stuff -

------------------------------------------------------------------------------------------------------------------------------------------------

→ a holder (PETG) with 3 hooks can hold a minimum of 1KG

(tested with my full Isopropanol bottle for some weeks)

→ extended weight / force test will be done when i got my hands on a scale

Tensile Strength (Perpendicular to Layer Lines)

PLA (≈25–40 MPa): Noticeably weaker across layers

→ brittle fractures along layer boundaries.

PETG (≈30–45 MPa): Better layer adhesion than PLA

→ more ductile and less prone to sudden breakage.

ABS (≈25–35 MPa): Moderate interlayer strength

→ tougher and more resistant to cracking under stress and heat.

→ It is recommended to use at least PETG since its the strongest of the

three most common filaments when it comes to Tensile Strenght

→ use PLA only if you put light stuff into the trays

------------------------------------------------------------------------------------------------------------------------------------------------

→ Clean your Buildplate with soap and warm water before printing!

→ Alternatively clean with Isopropyl Alcohol!

→ Dry your FIlament if possible for optimal print quality!

→ Ensure your Buildplate is seated correctly!

→ Don’t print PETG on the same surface after PLA without cleaning the build plate!

→ Increase Buildplate temperatur by 5-10 degrees if you have problems with adhesion / warping

------------------------------------------------------------------------------------------------------------------------------------------------

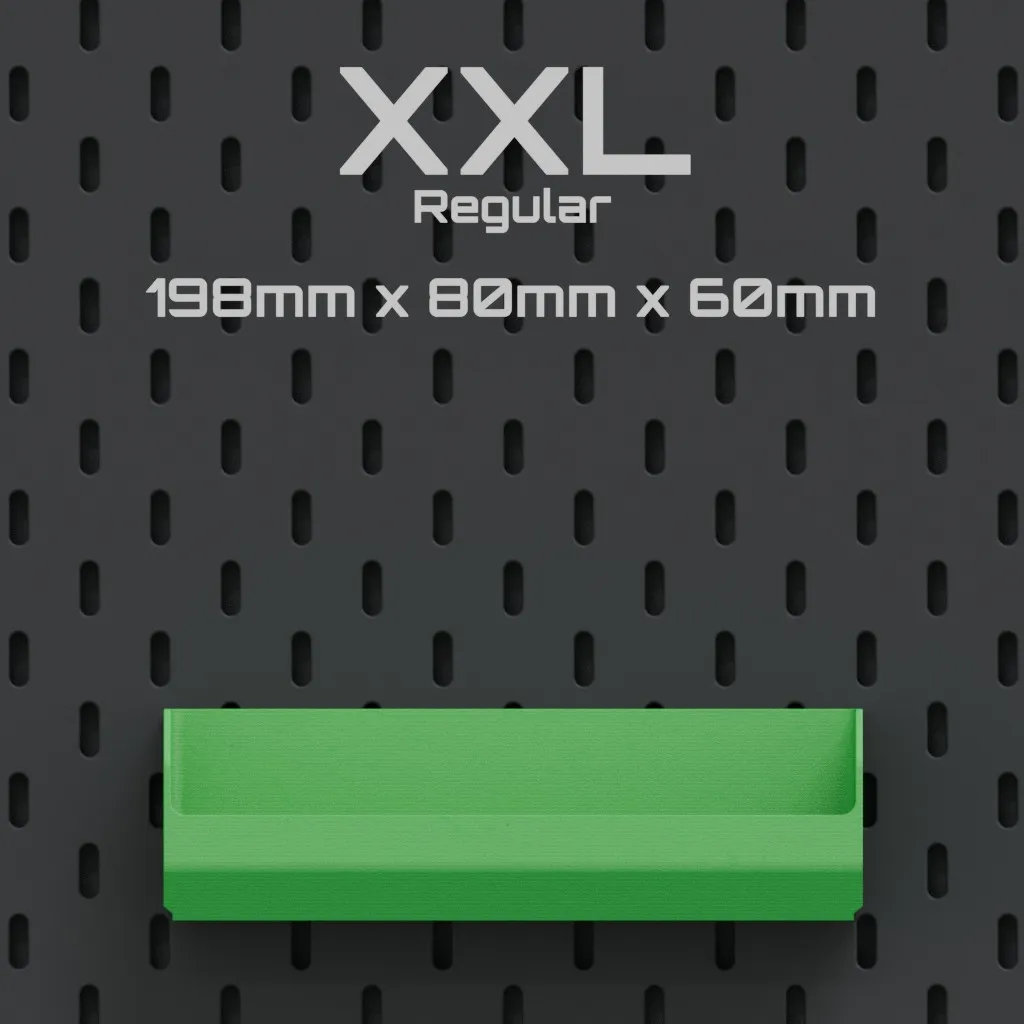

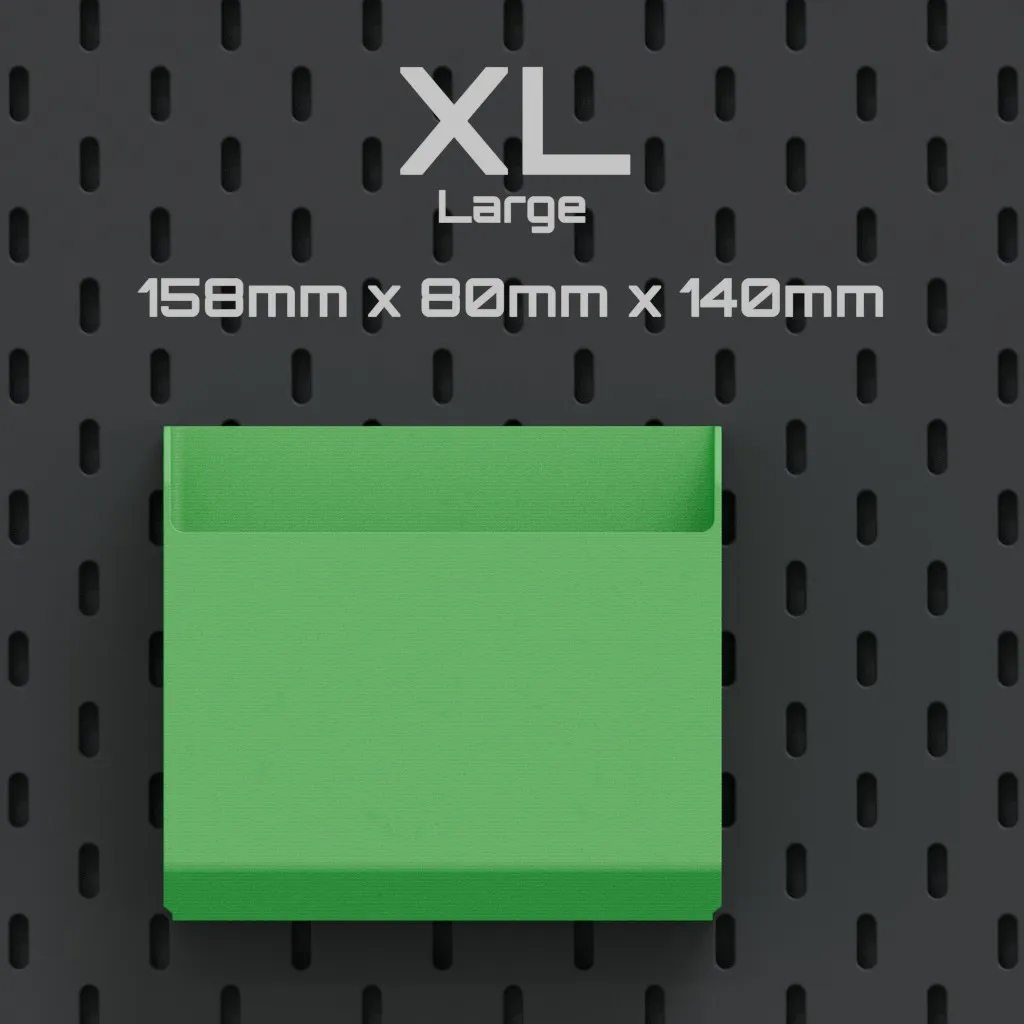

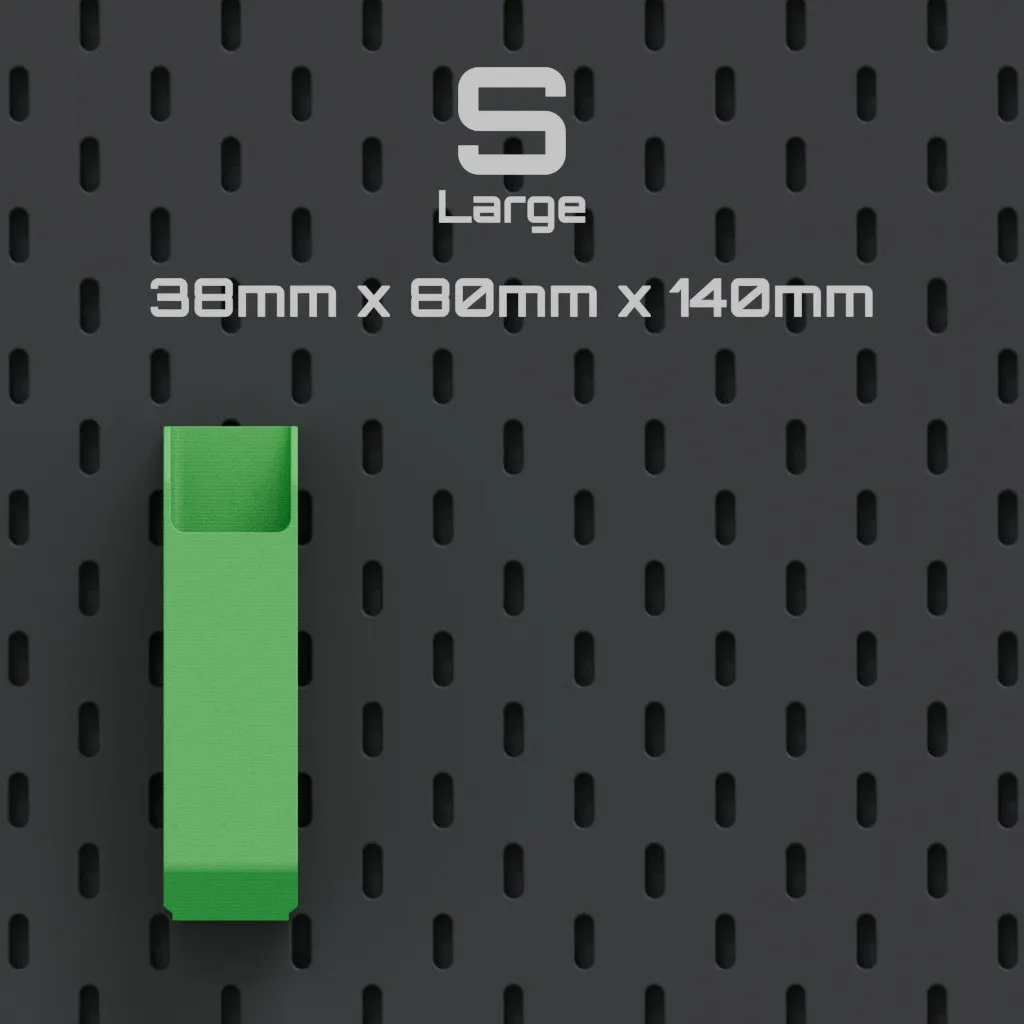

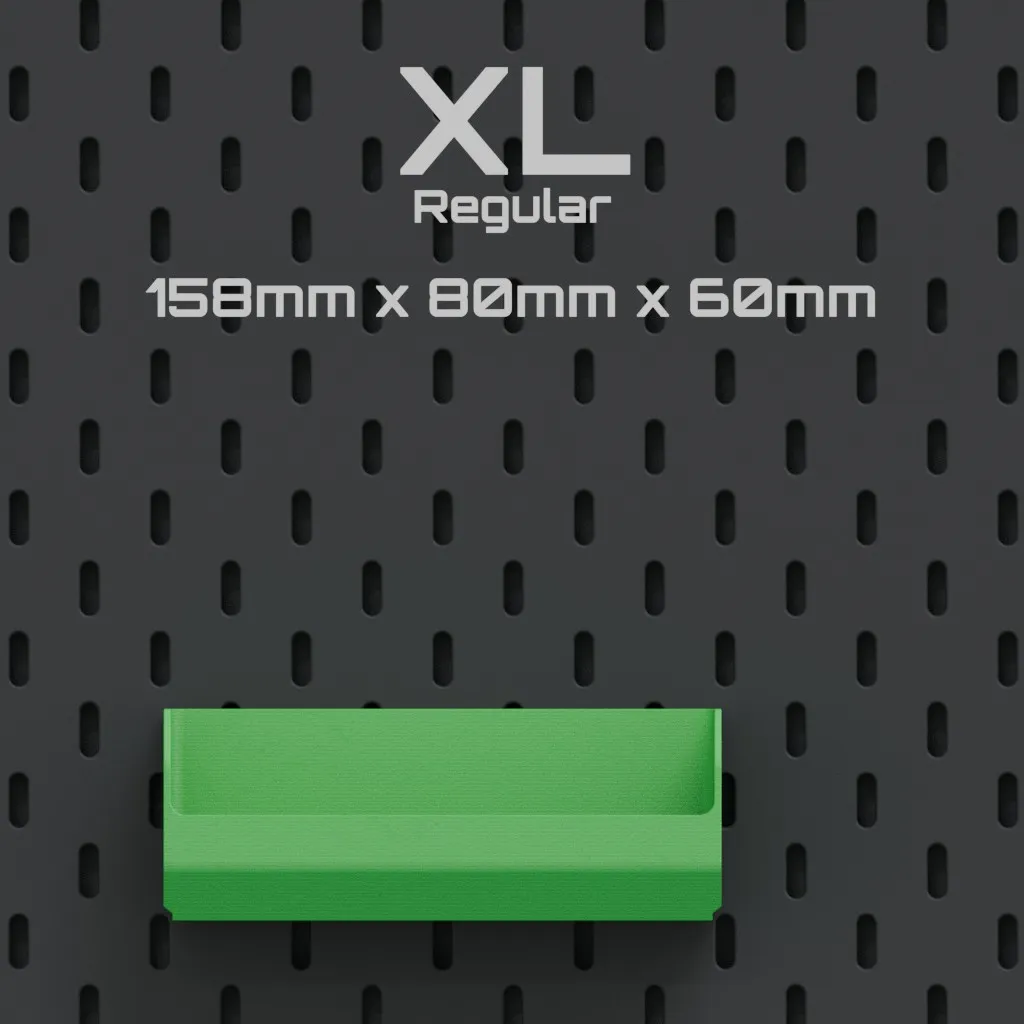

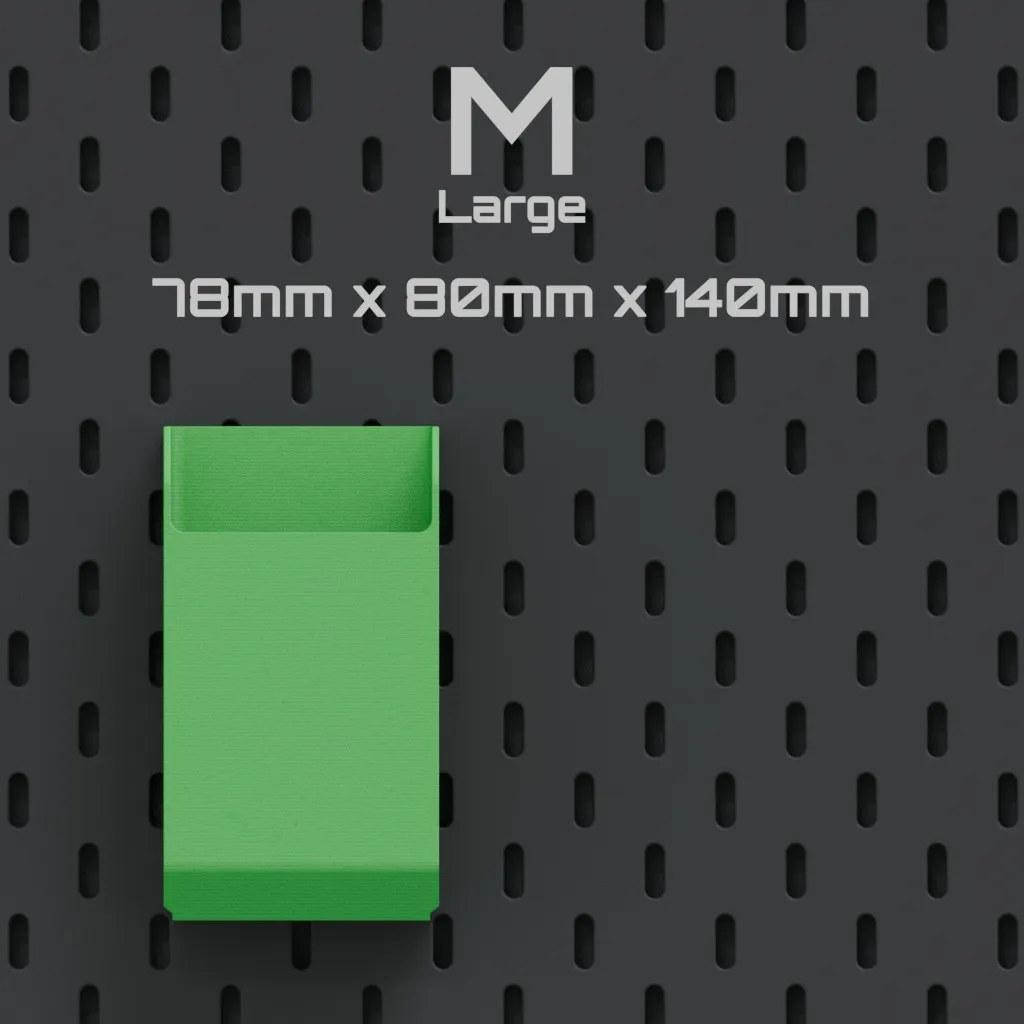

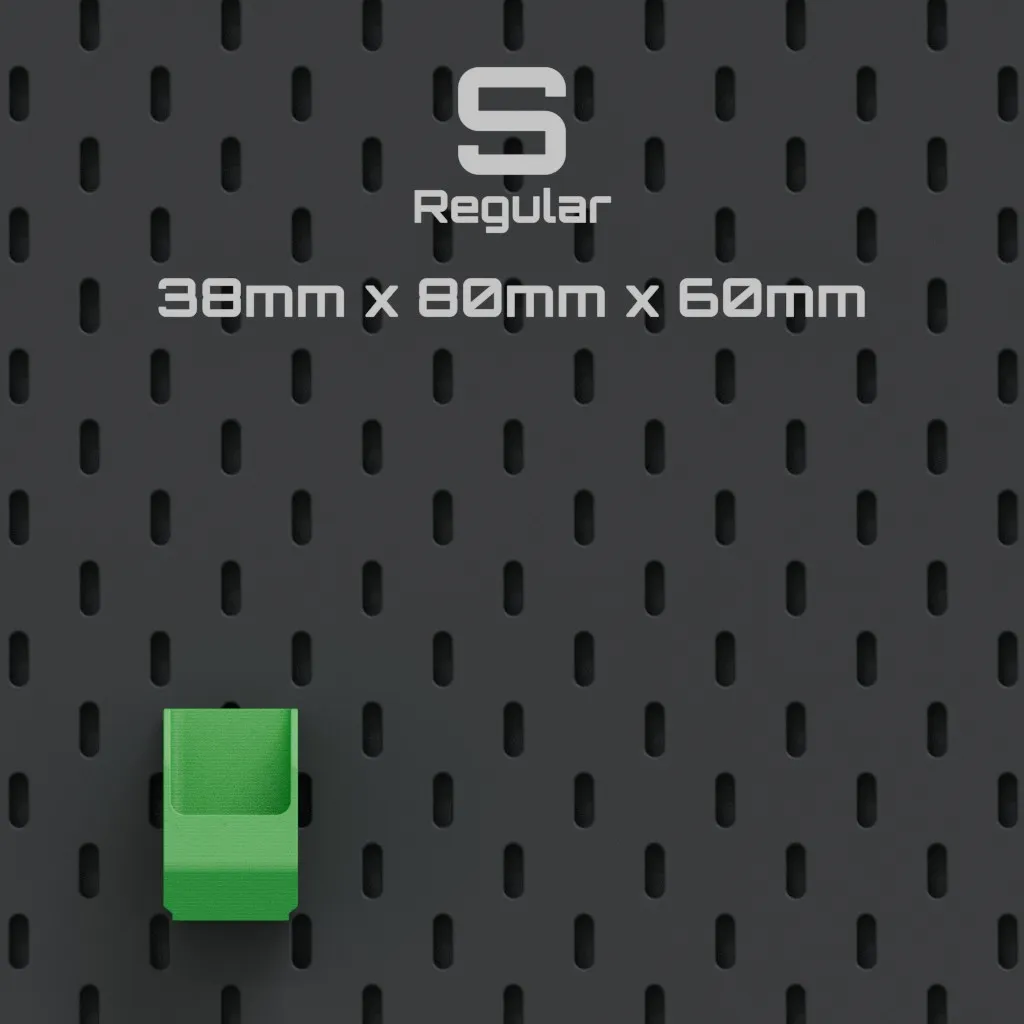

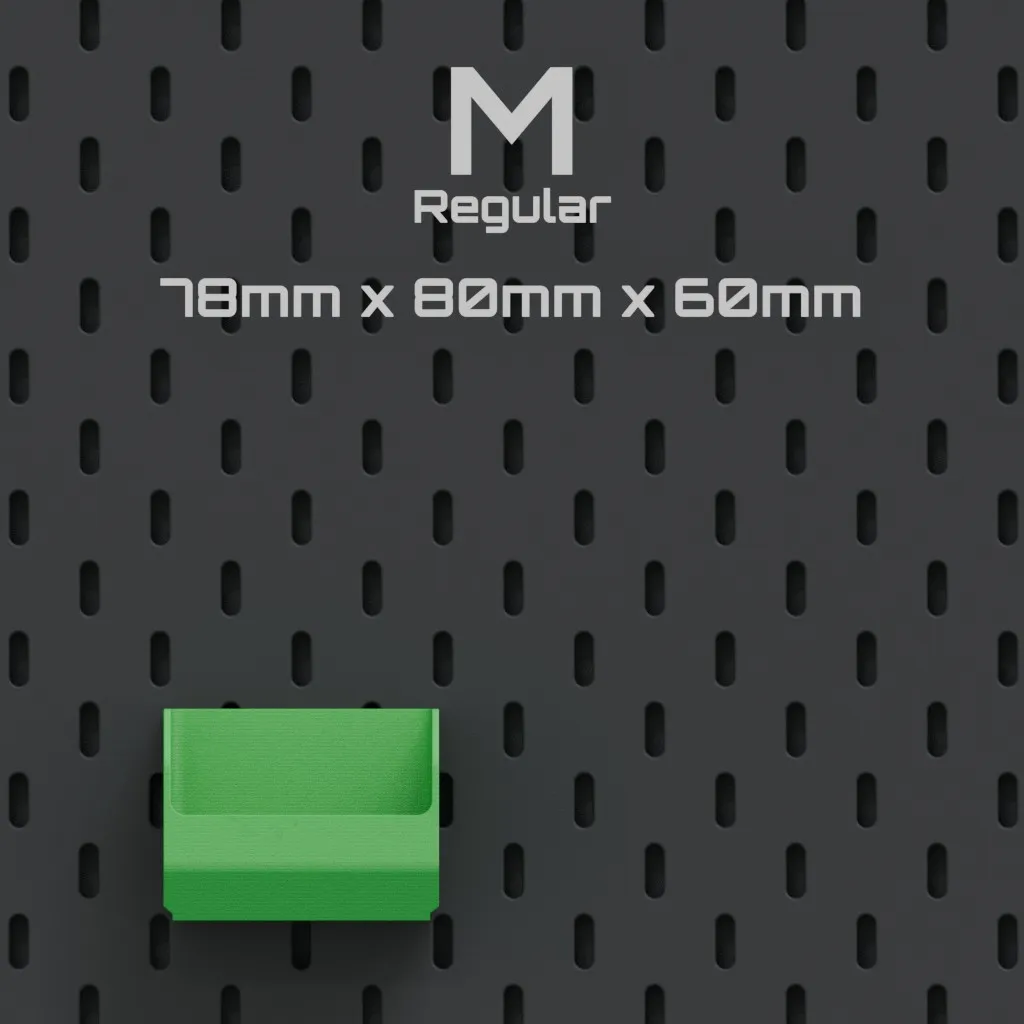

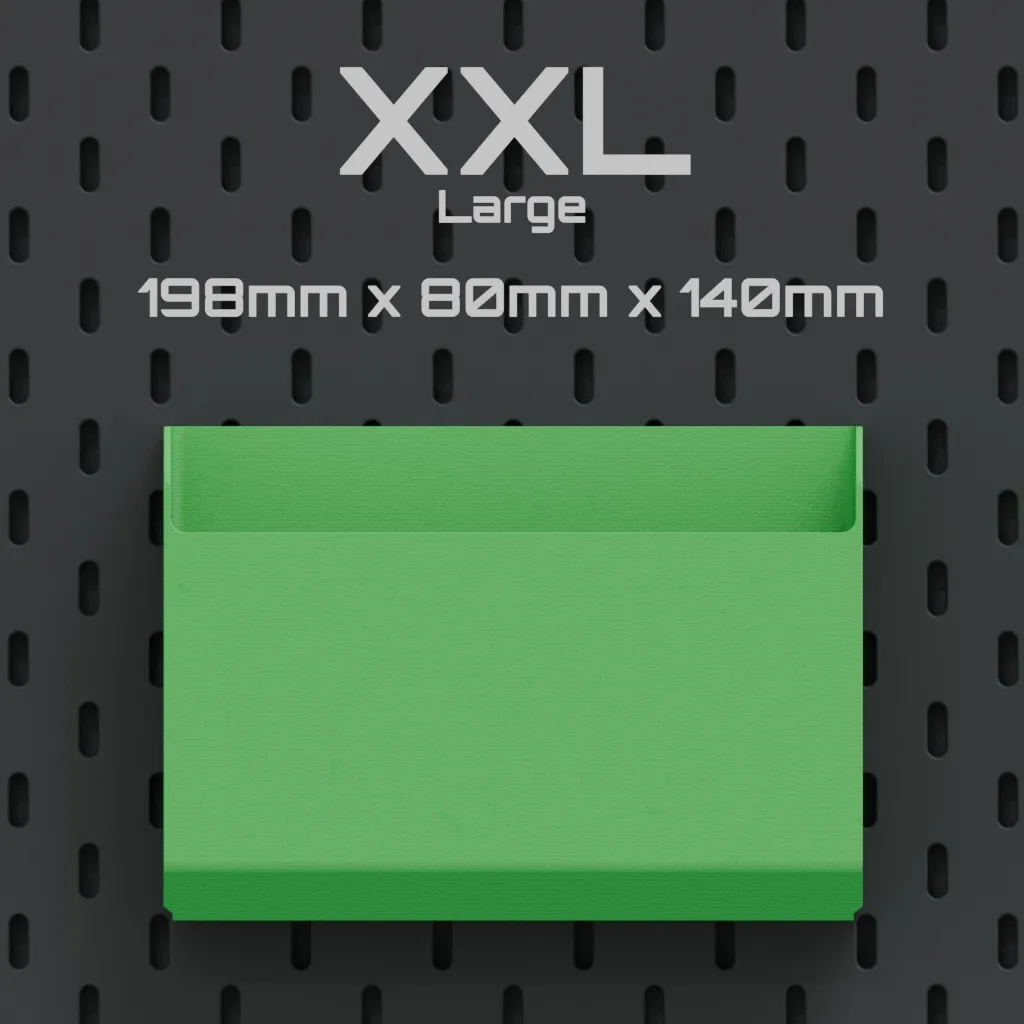

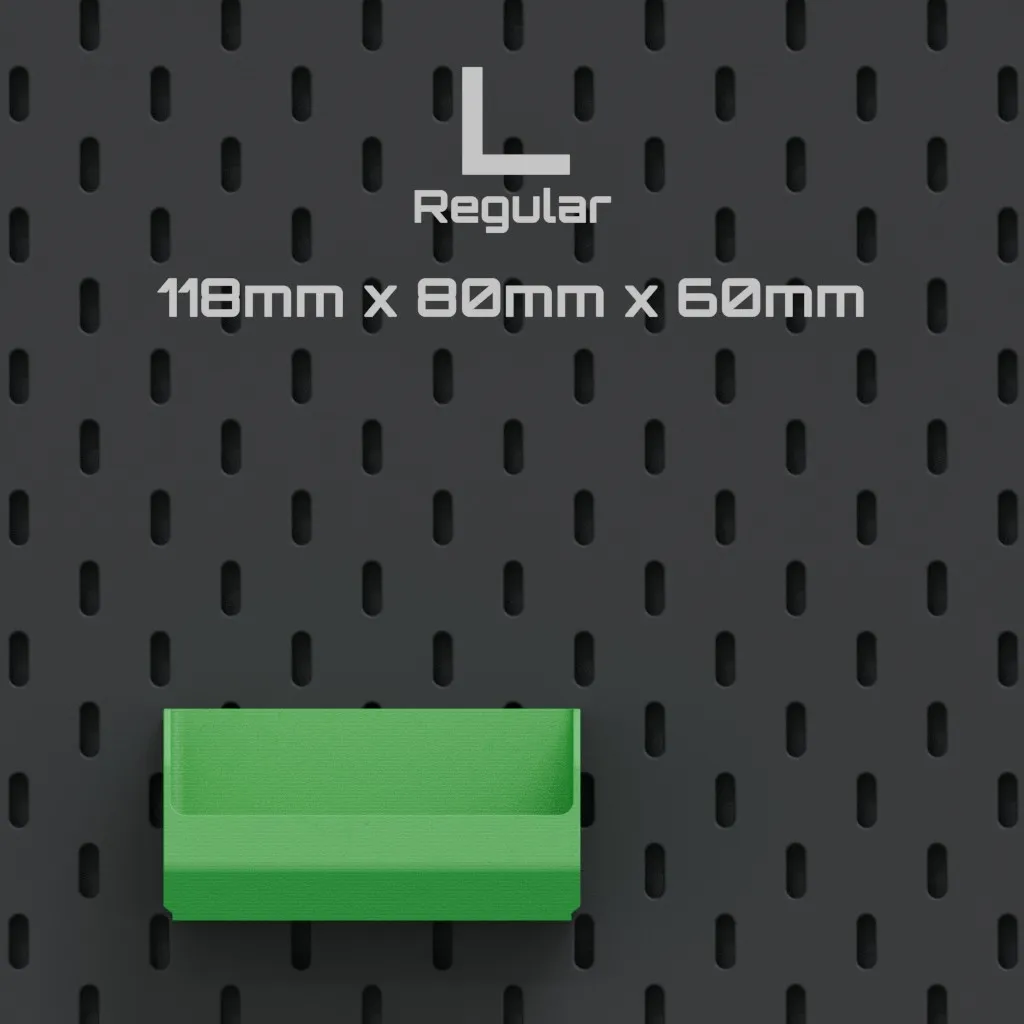

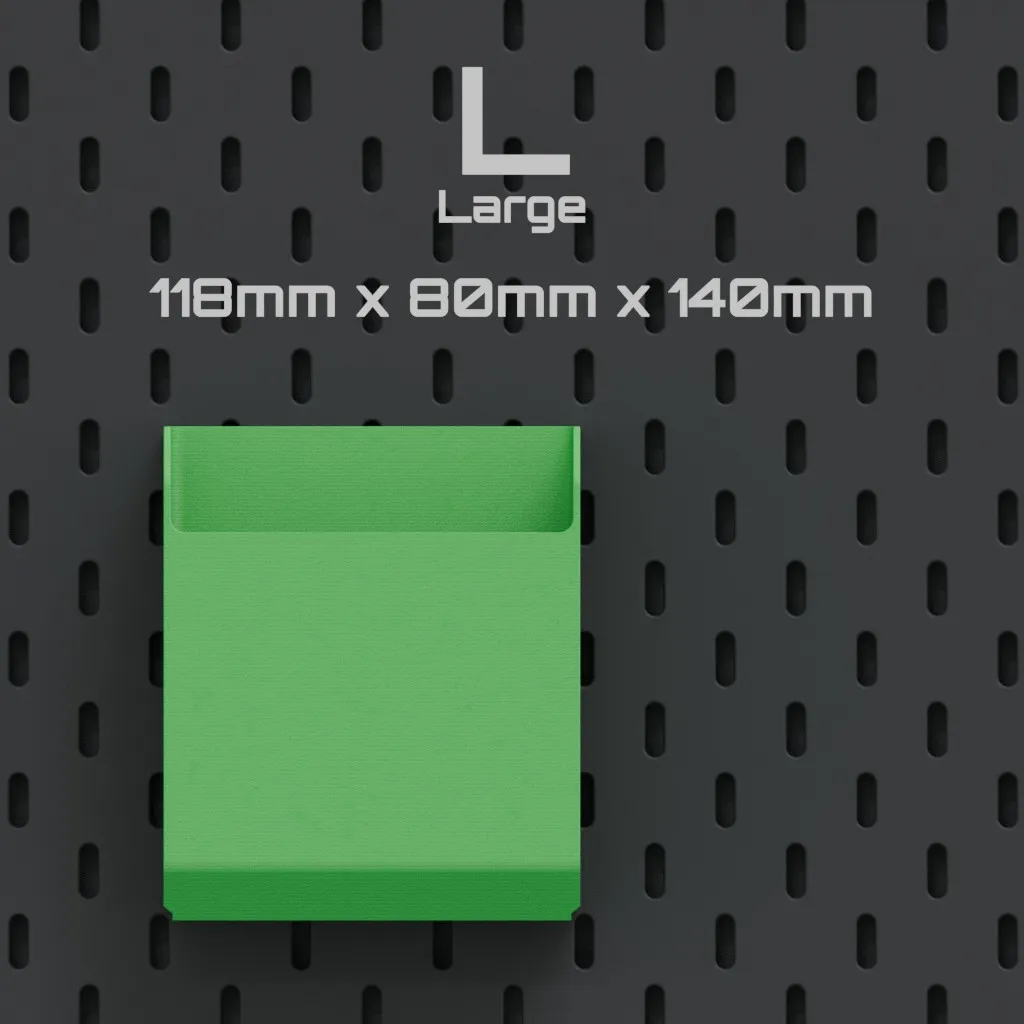

Sizes:

------------------------------------------------------------------------------------------------------------------------------------------------

Width x Lenght x Height - All sizes in Millimeter

All Files got a Prefix (S, M, L, XL, XXL) to describe the length
Differences in height are described by “Regular / Large” in the Name

(Open image in new tab to view in fullscreen)

------------------------------------------------------------------------------------------------------------------------------------------------

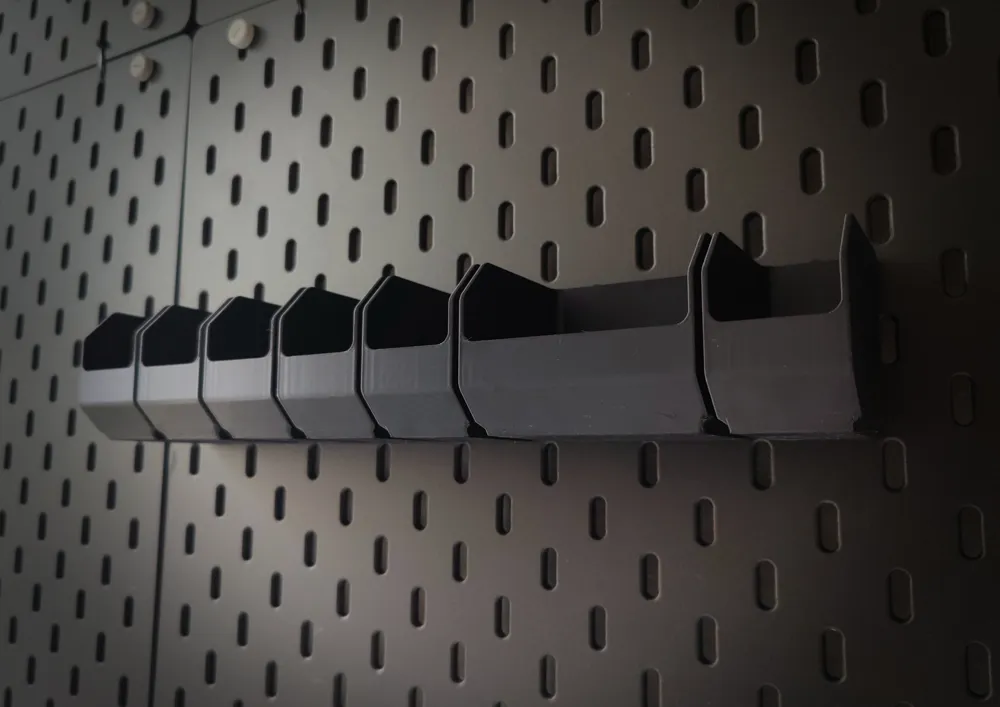

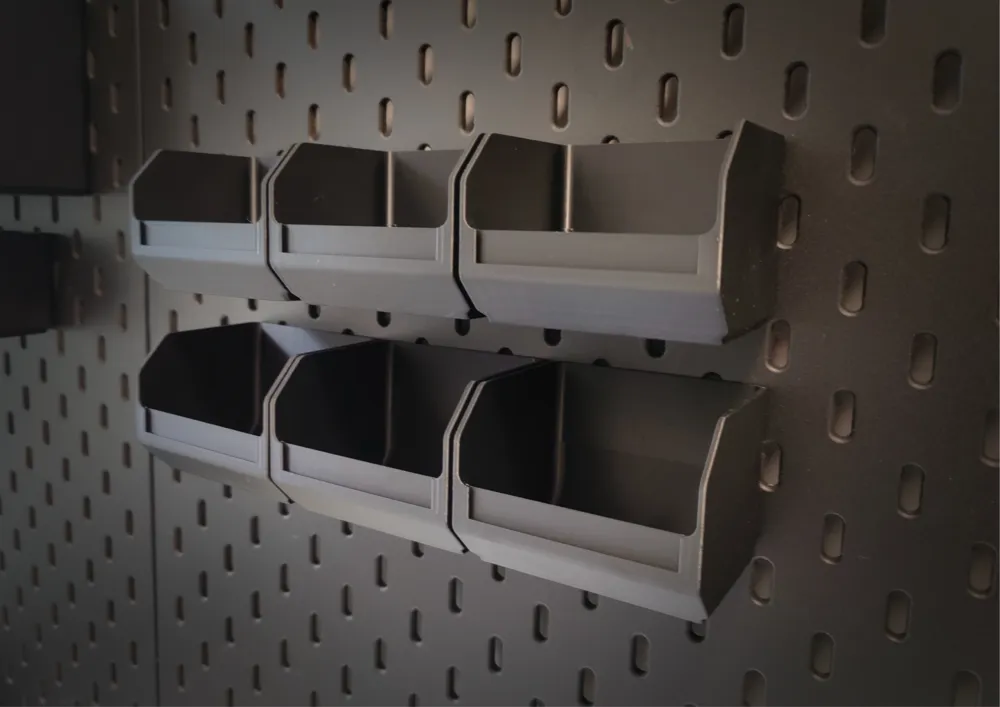

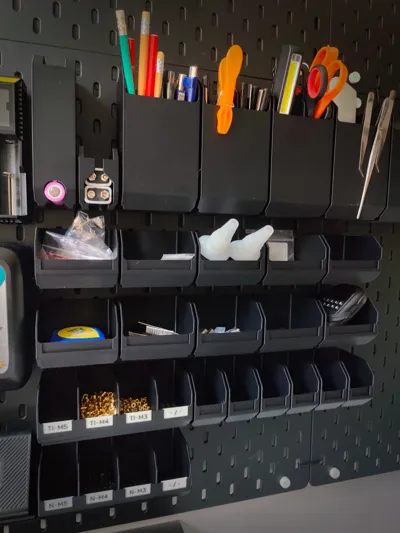

Example pictures

------------------------------------------------------------------------------------------------------------------------------------------------

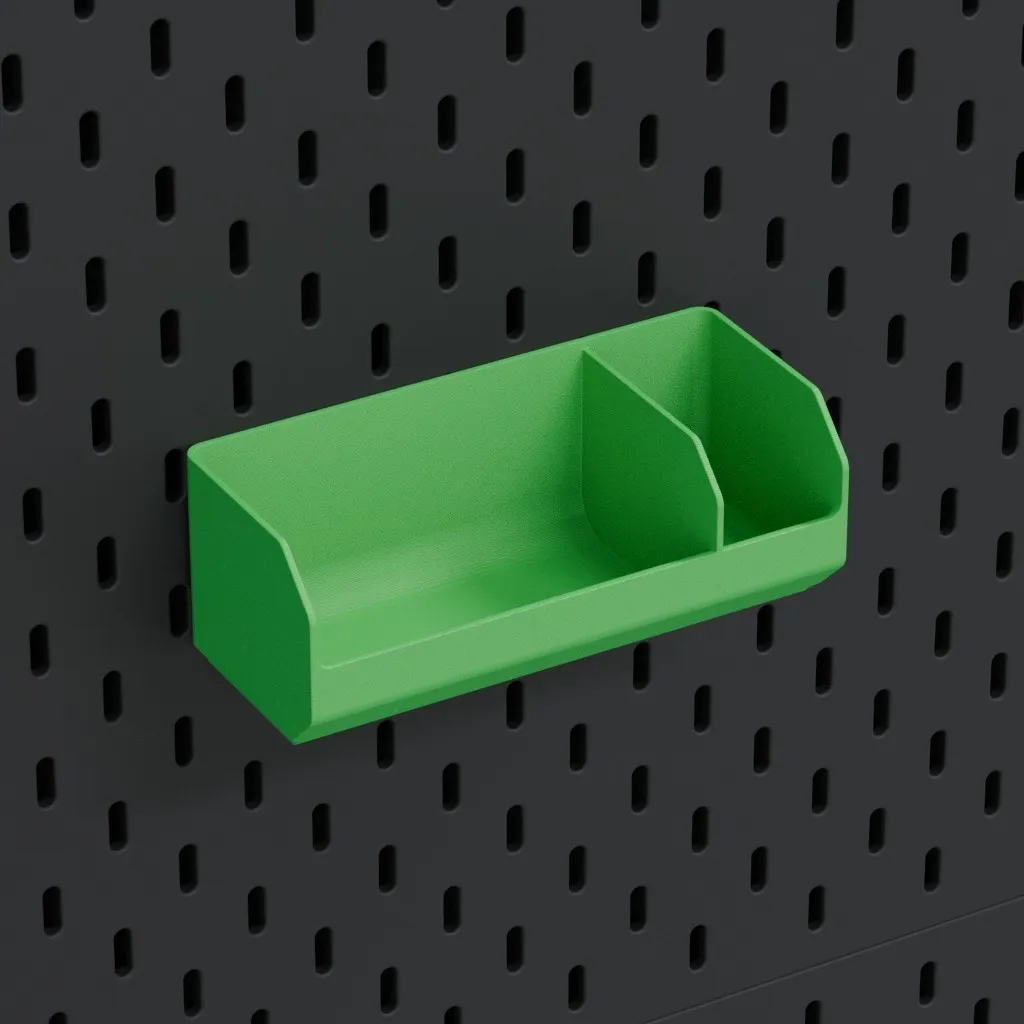

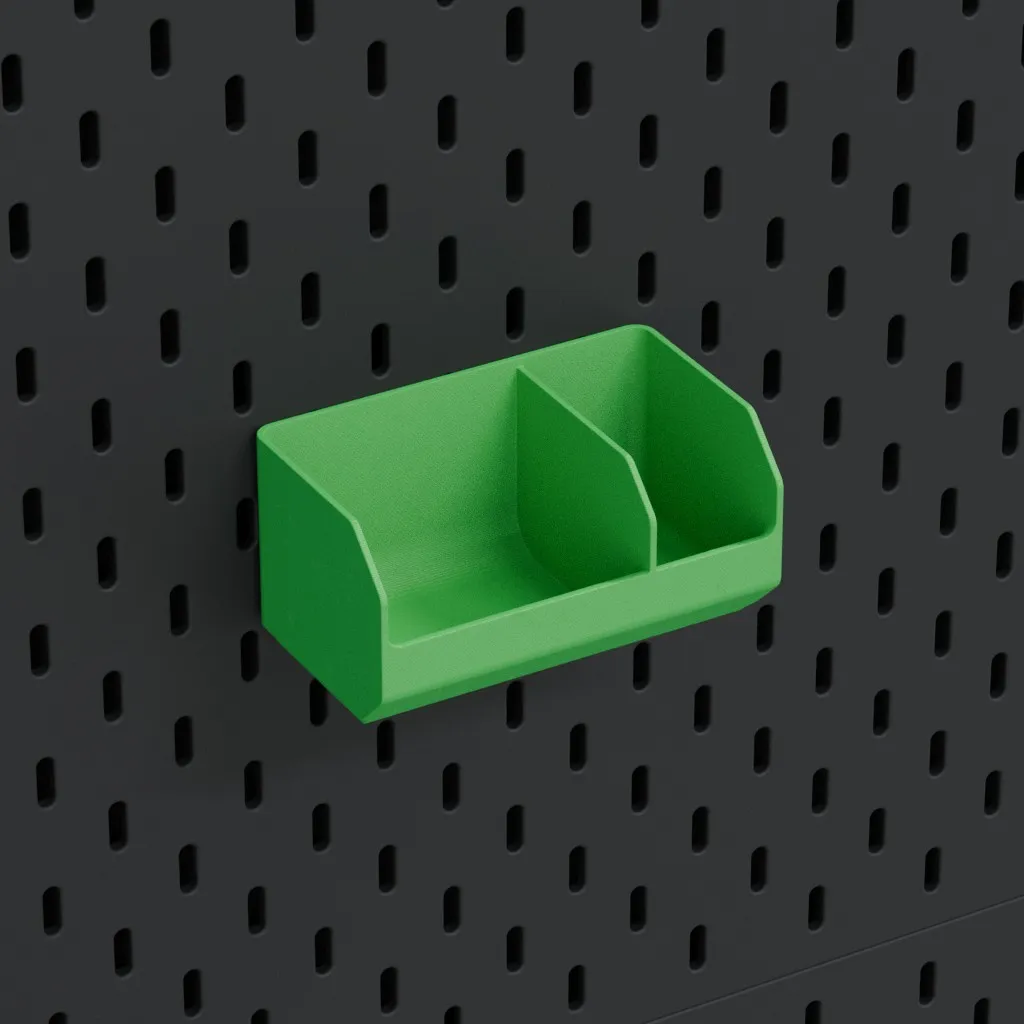

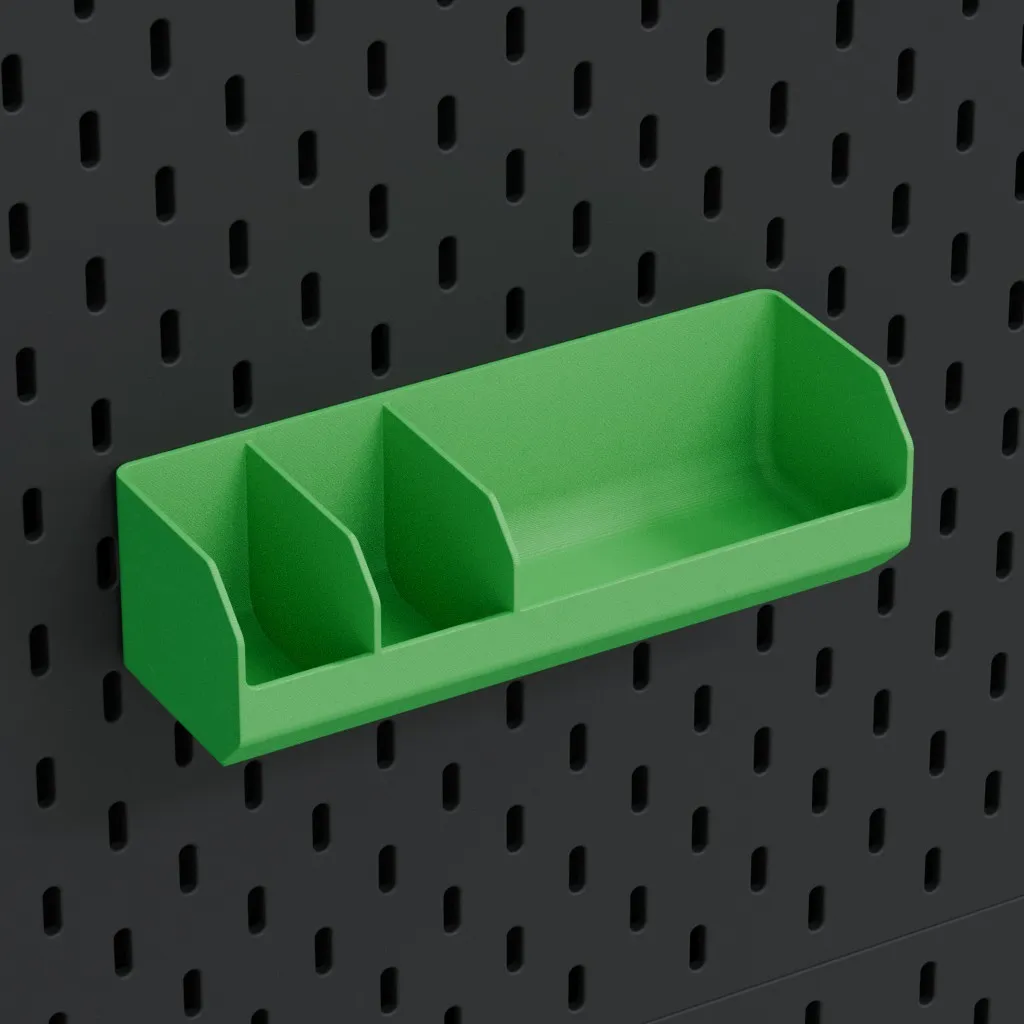

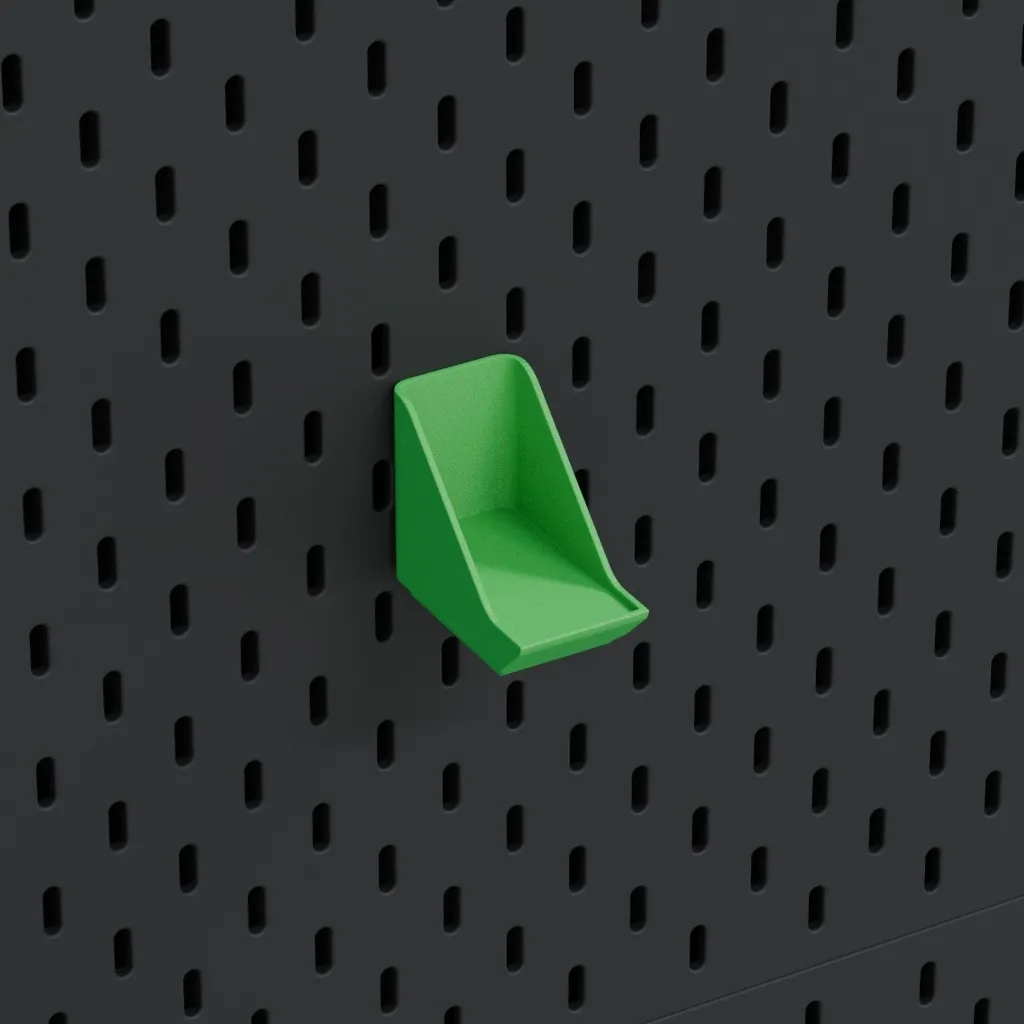

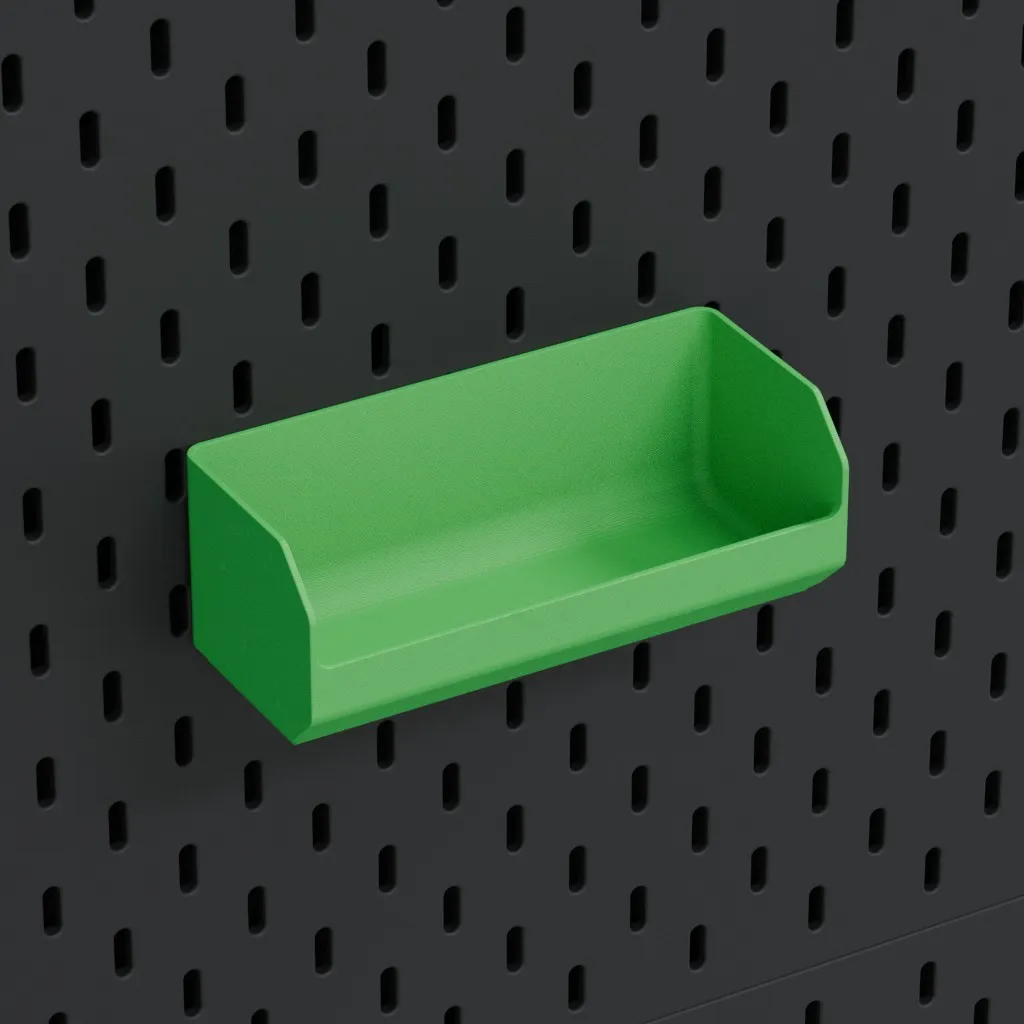

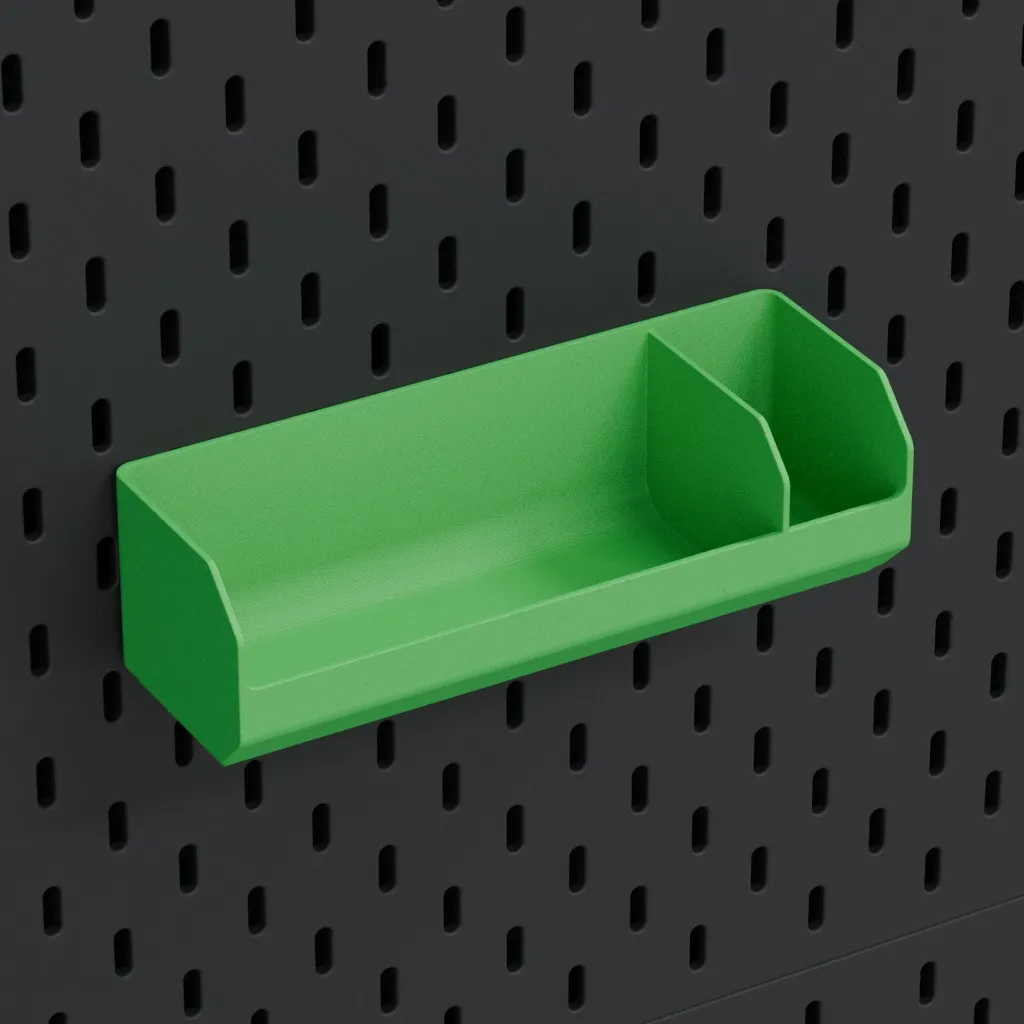

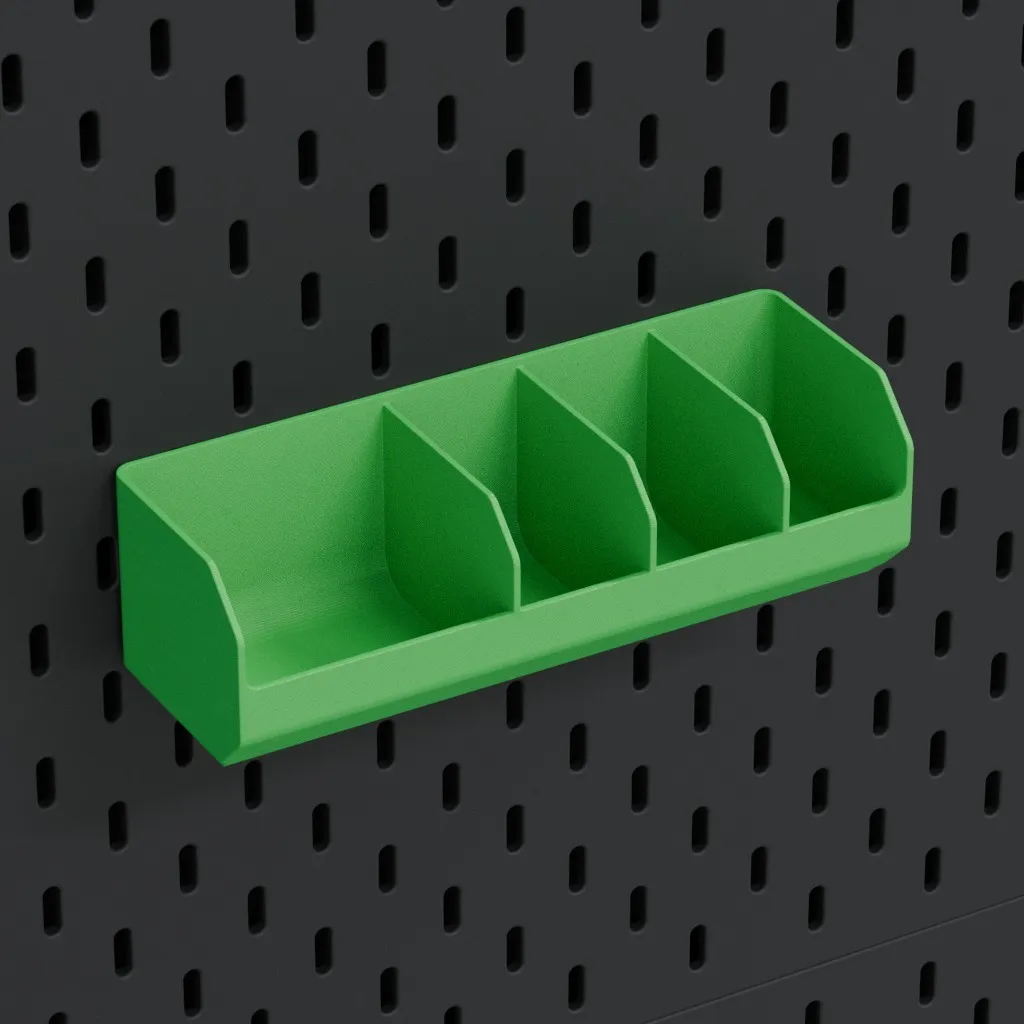

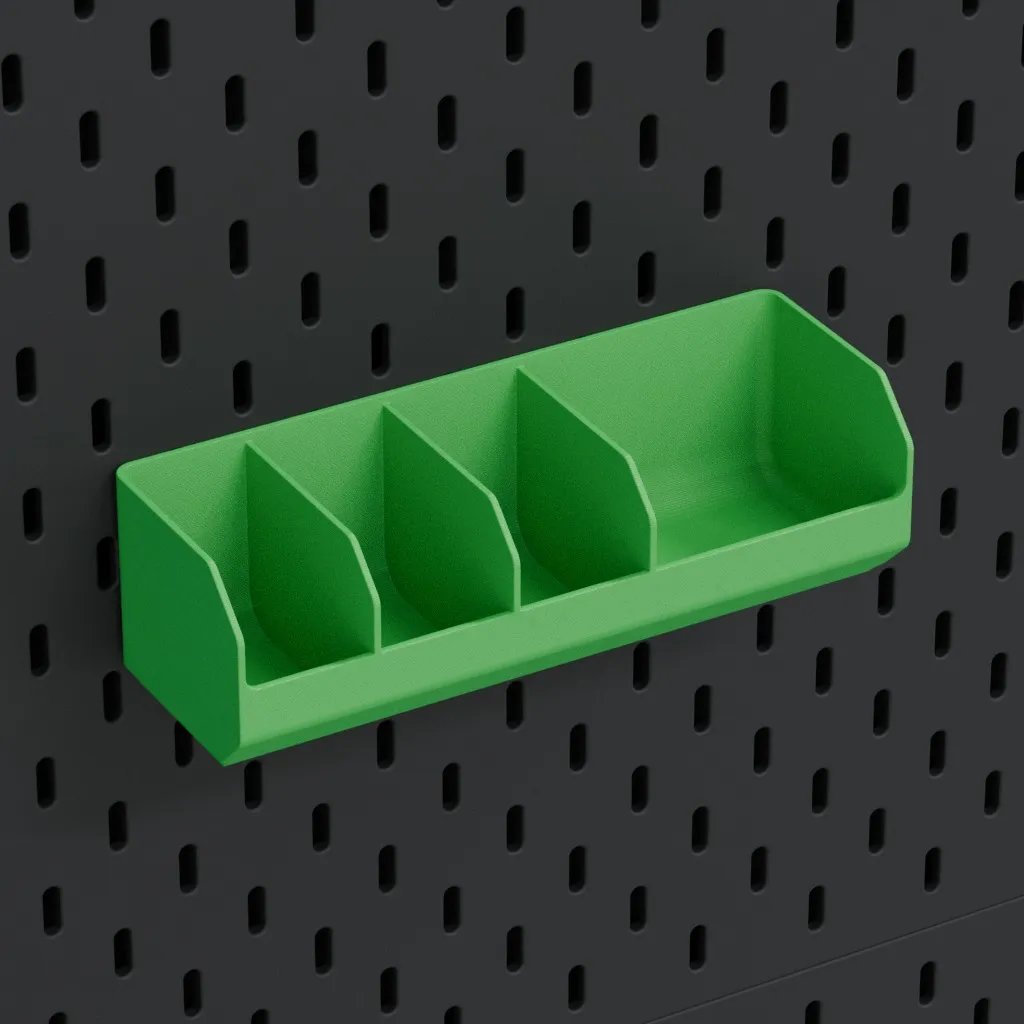

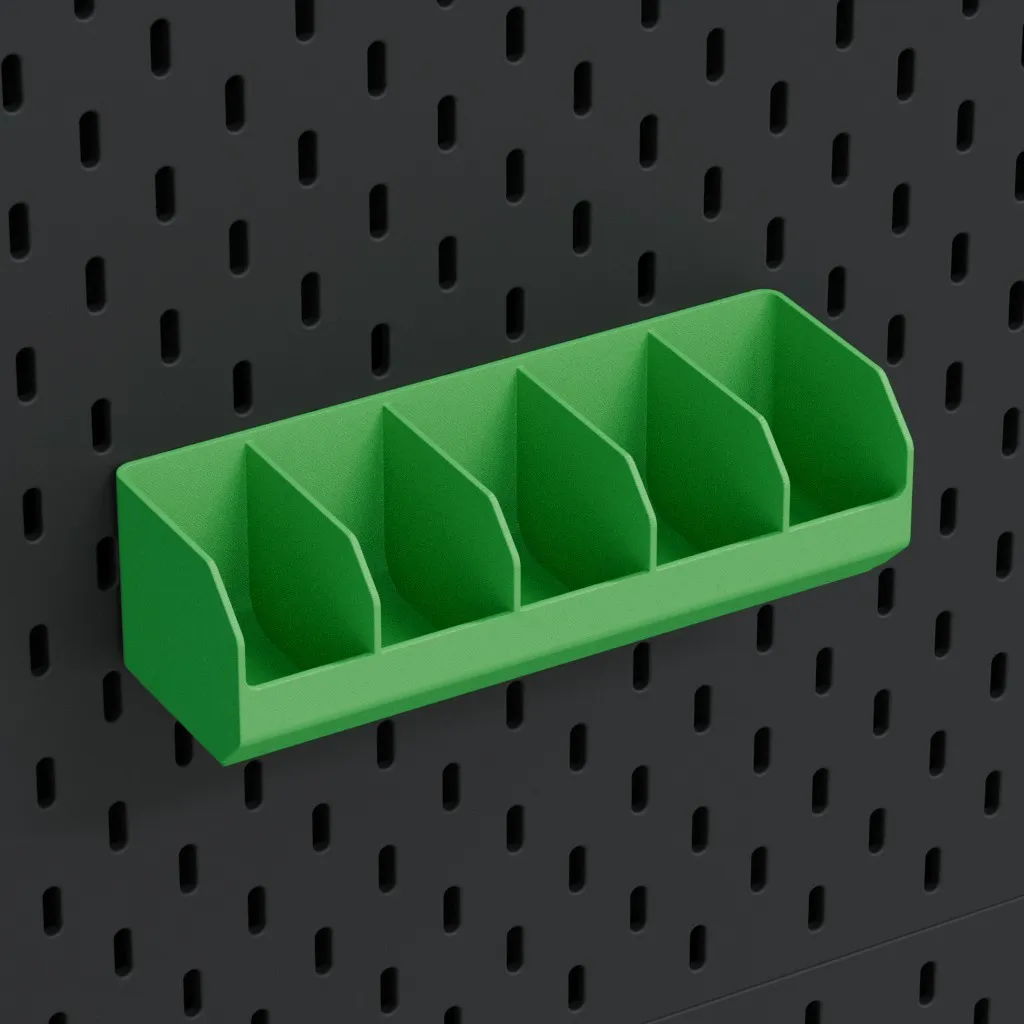

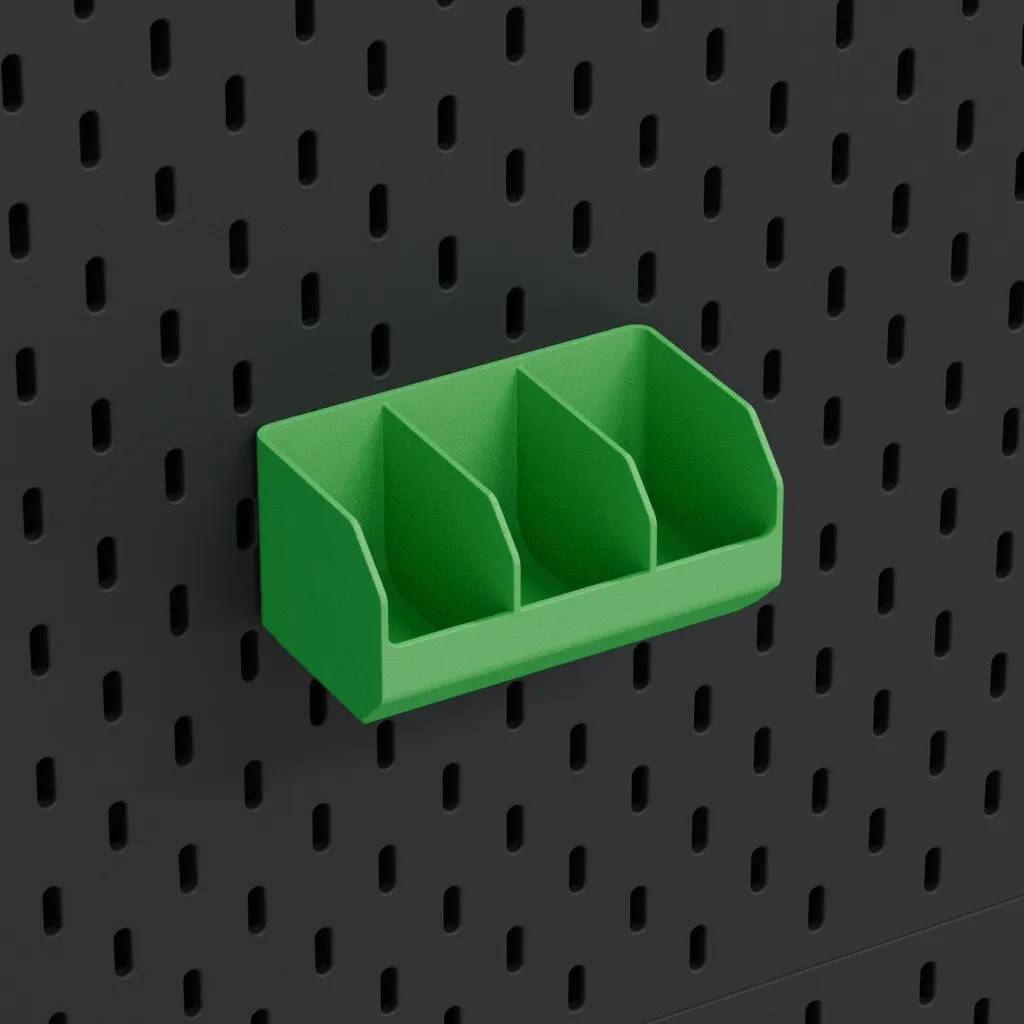

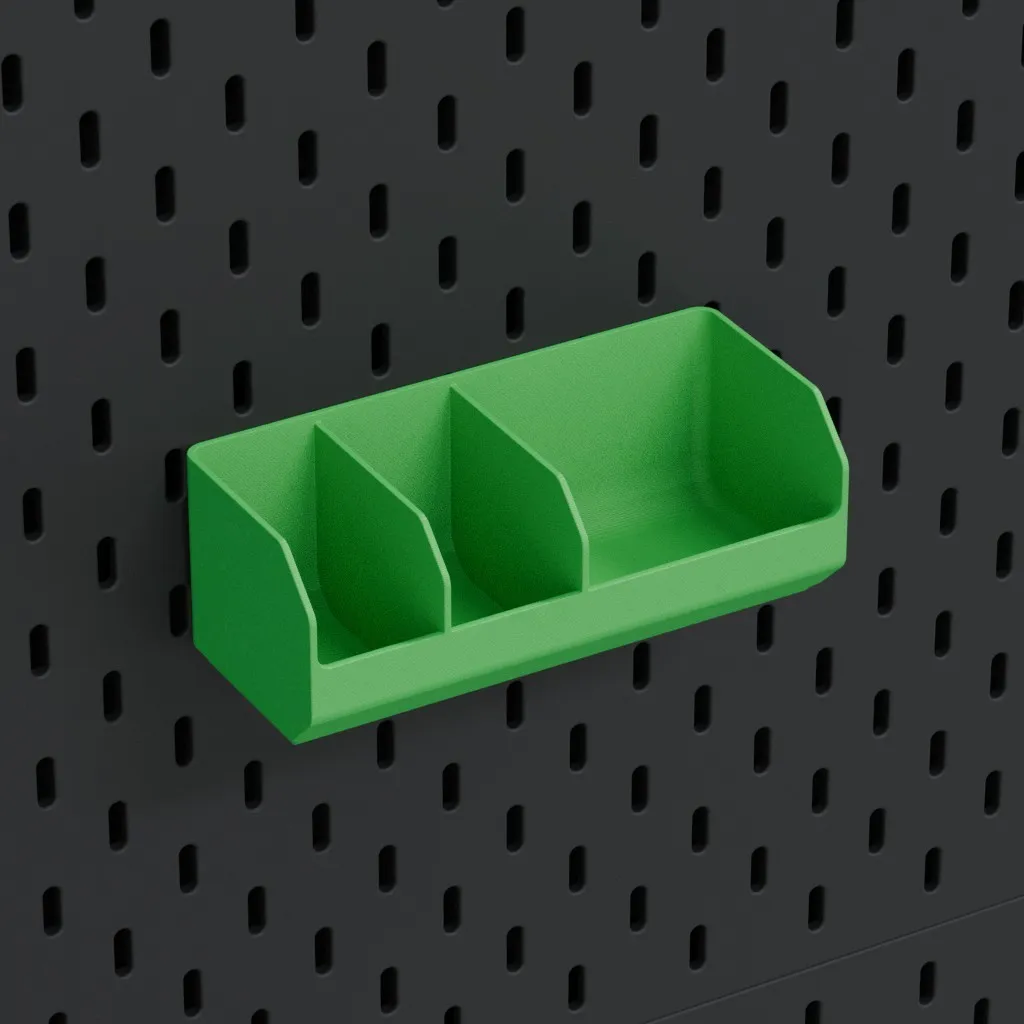

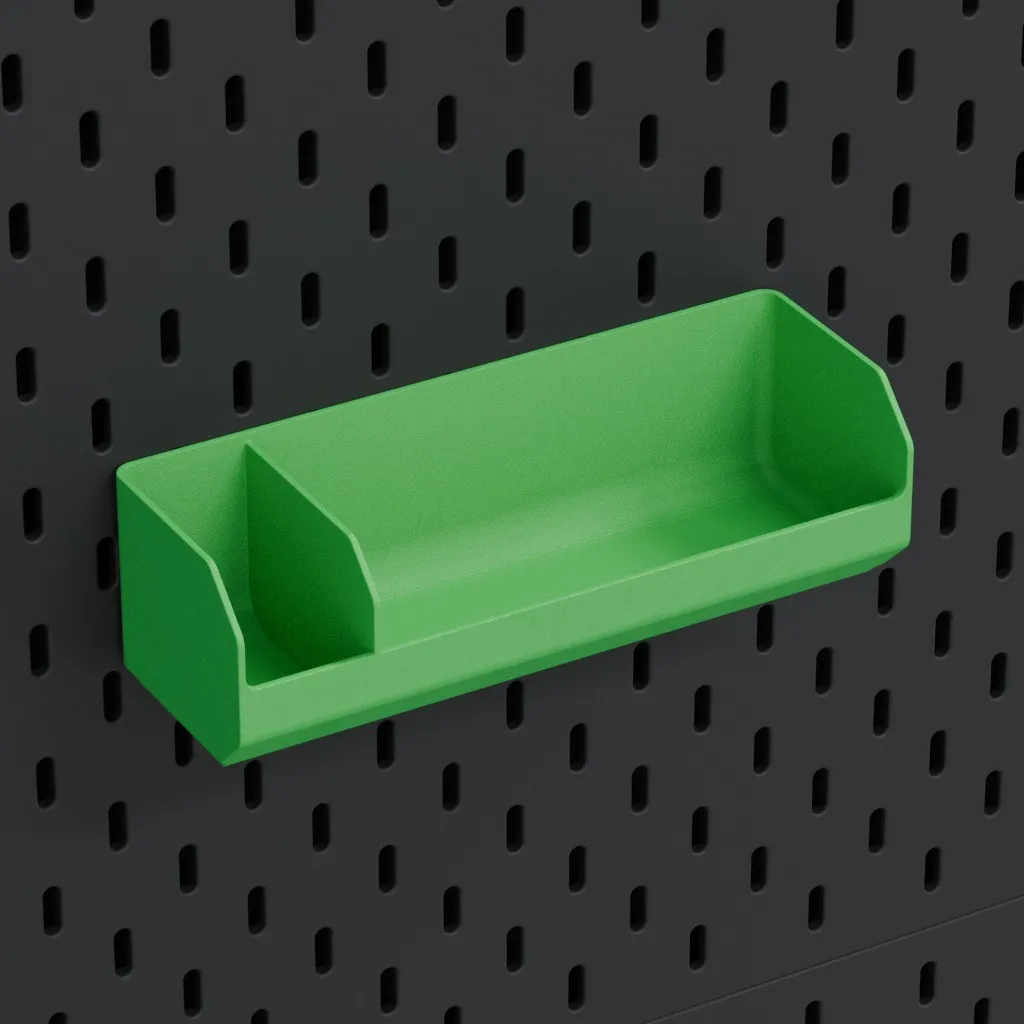

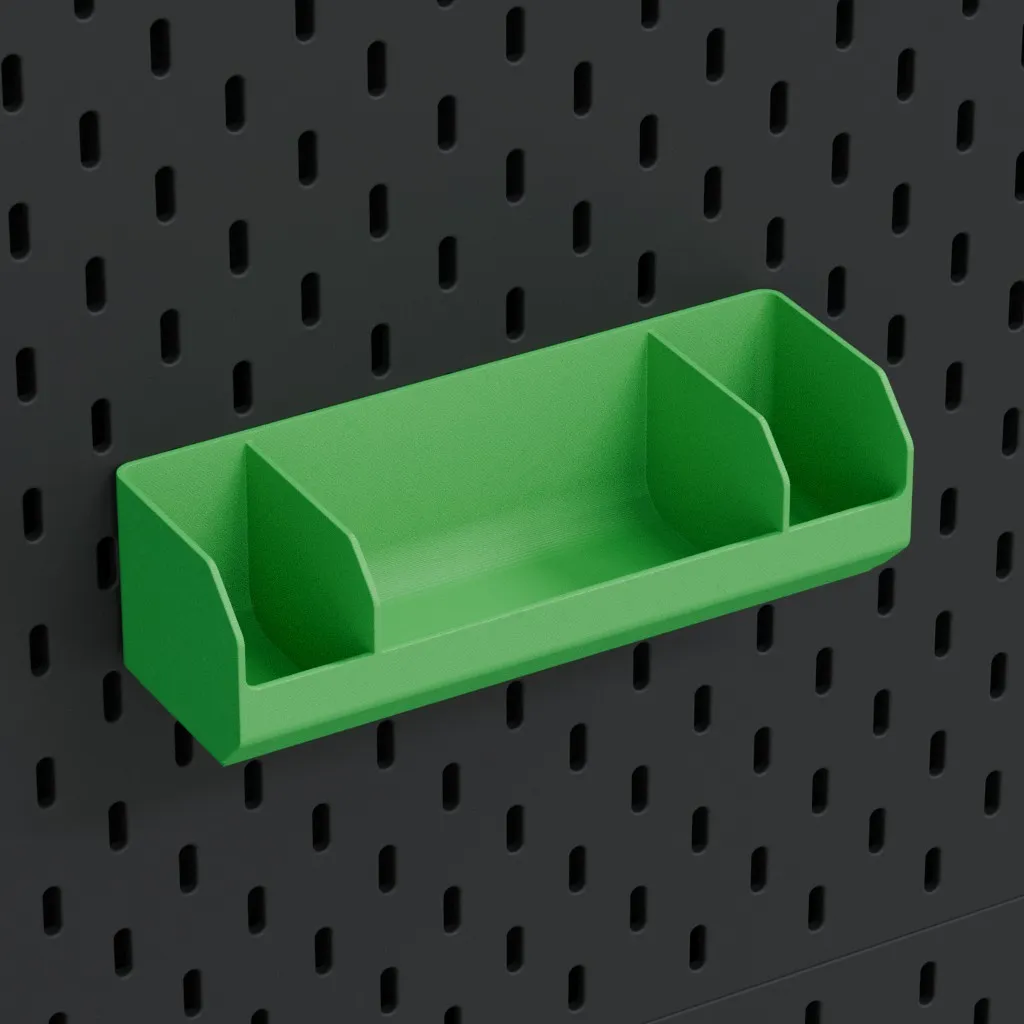

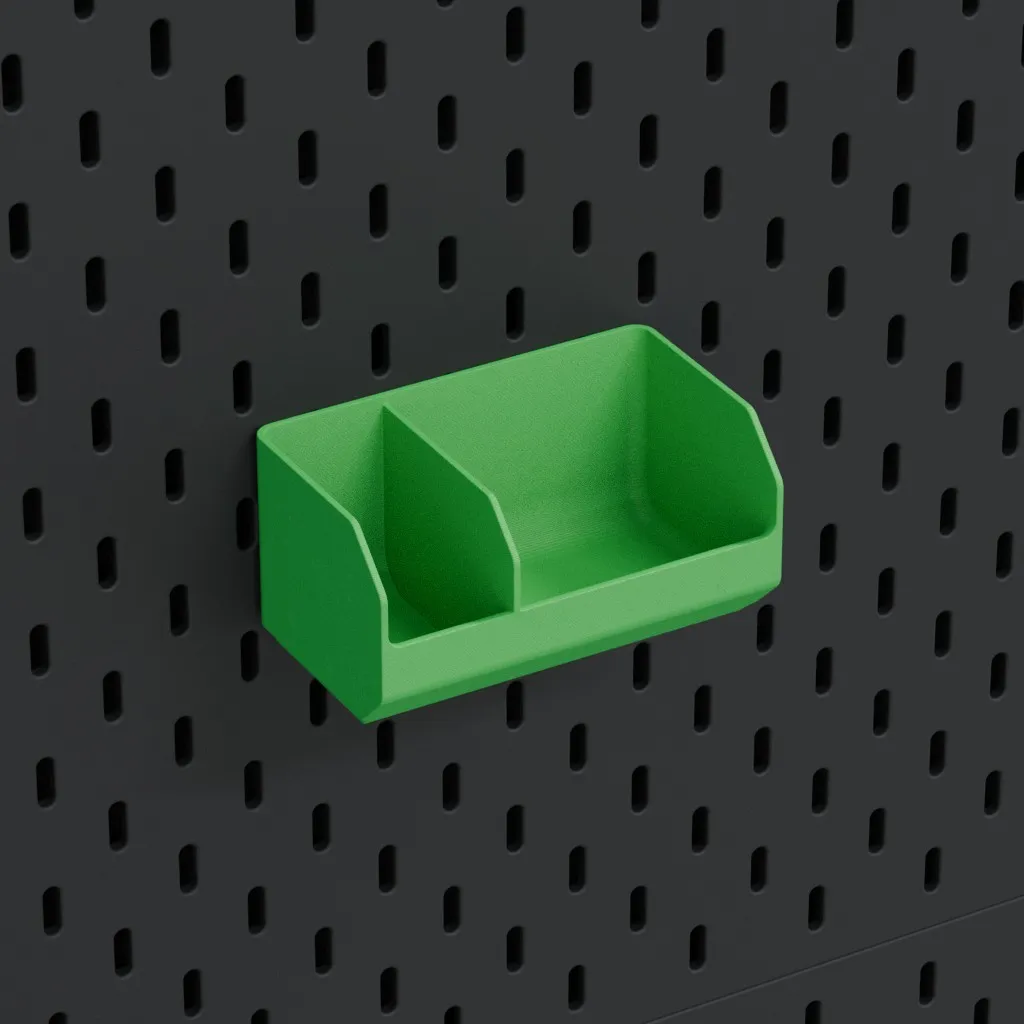

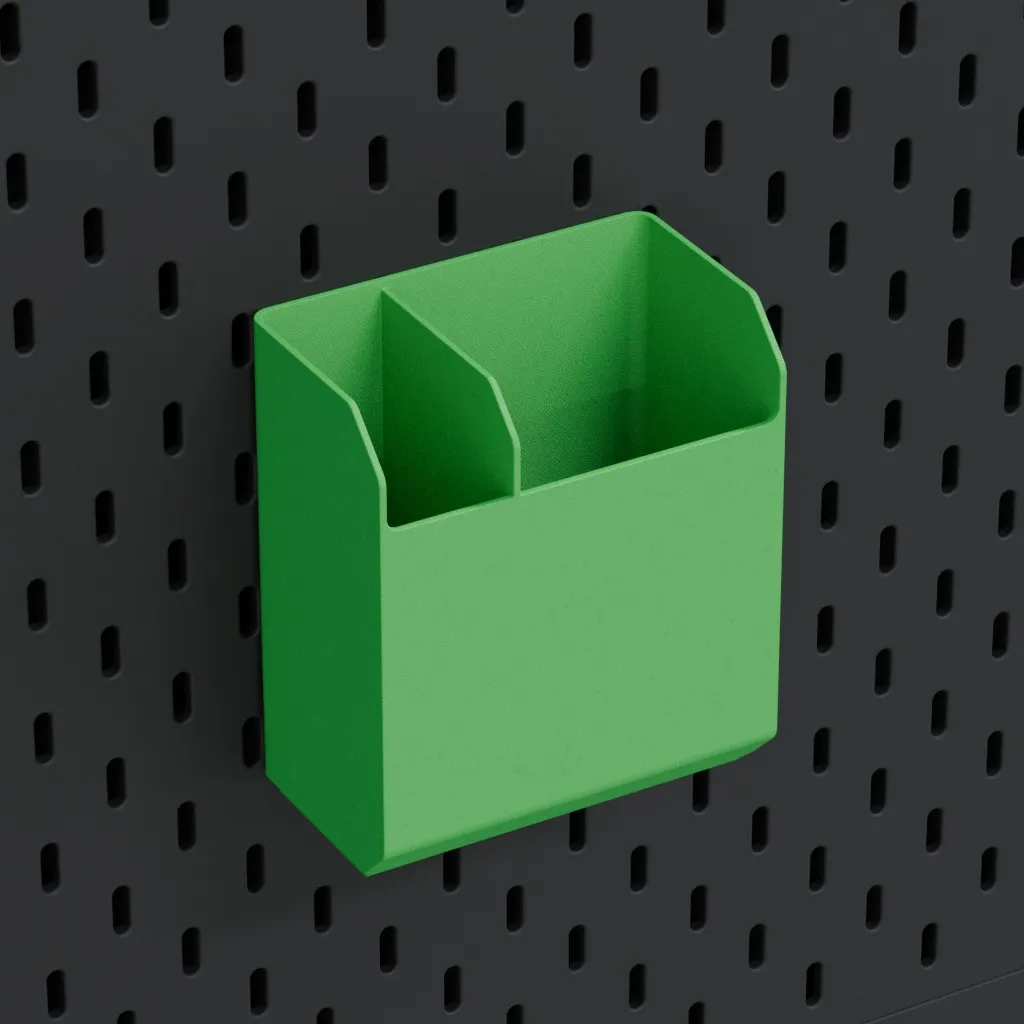

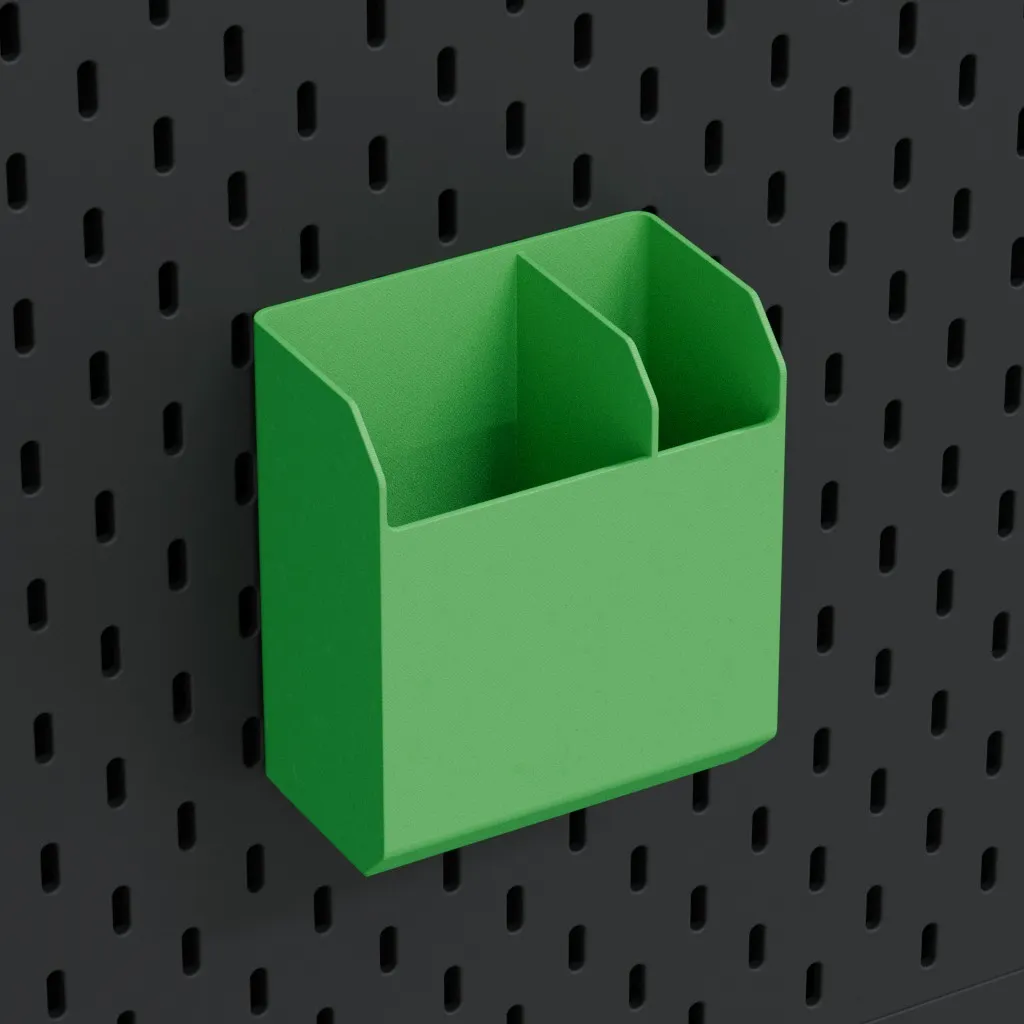

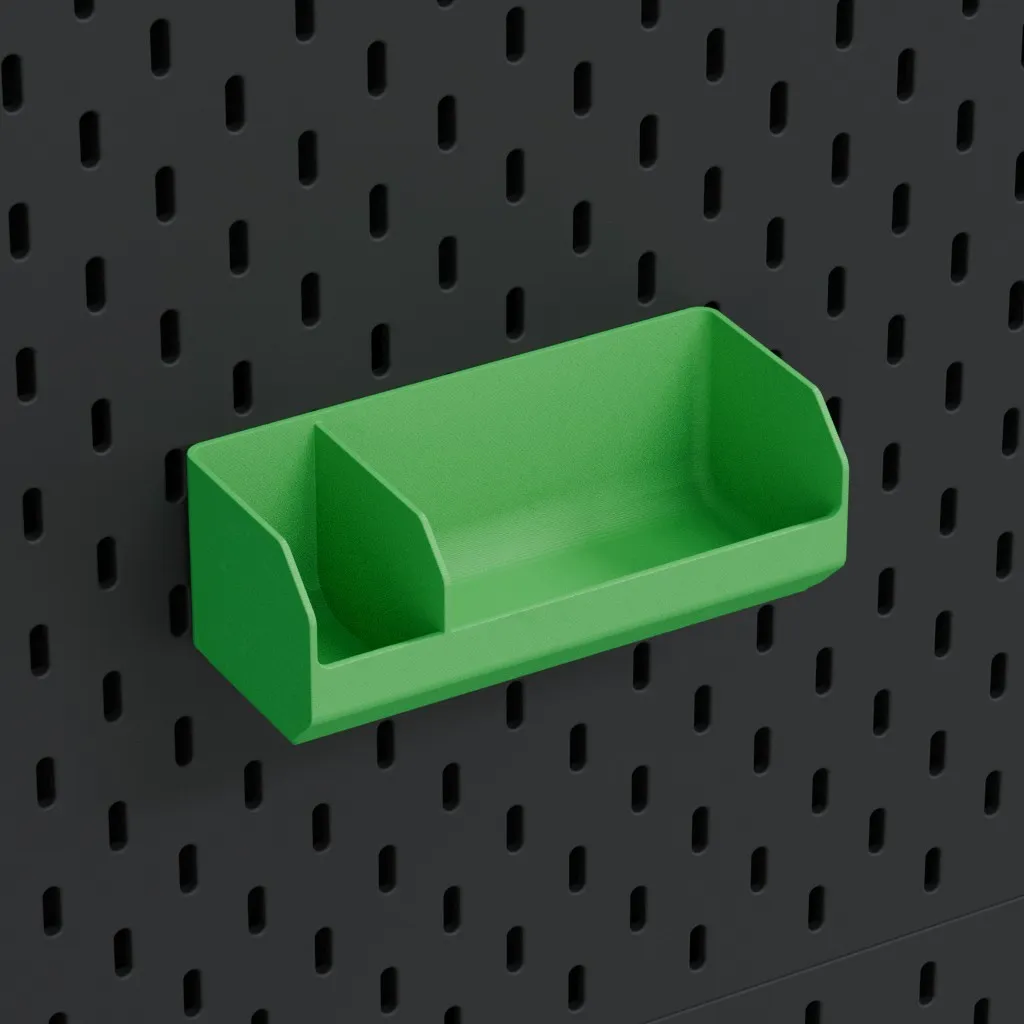

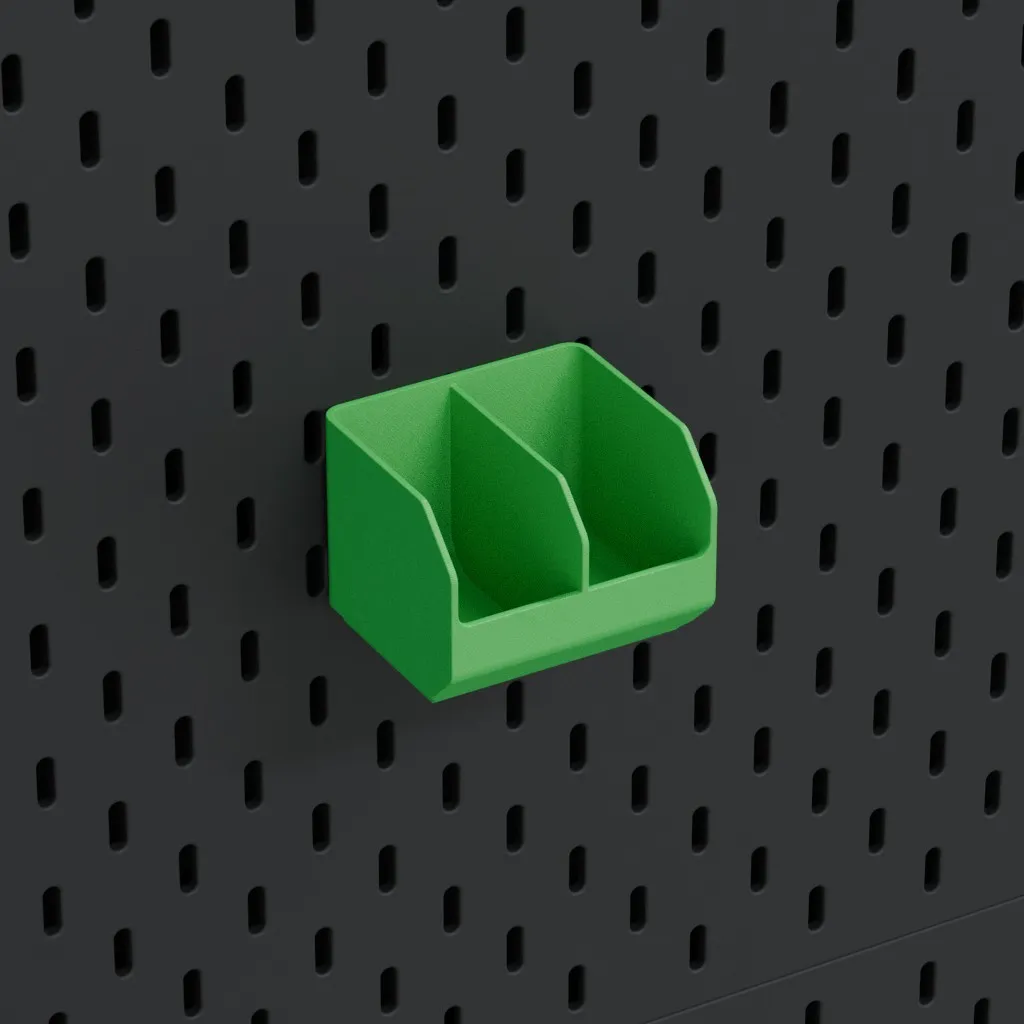

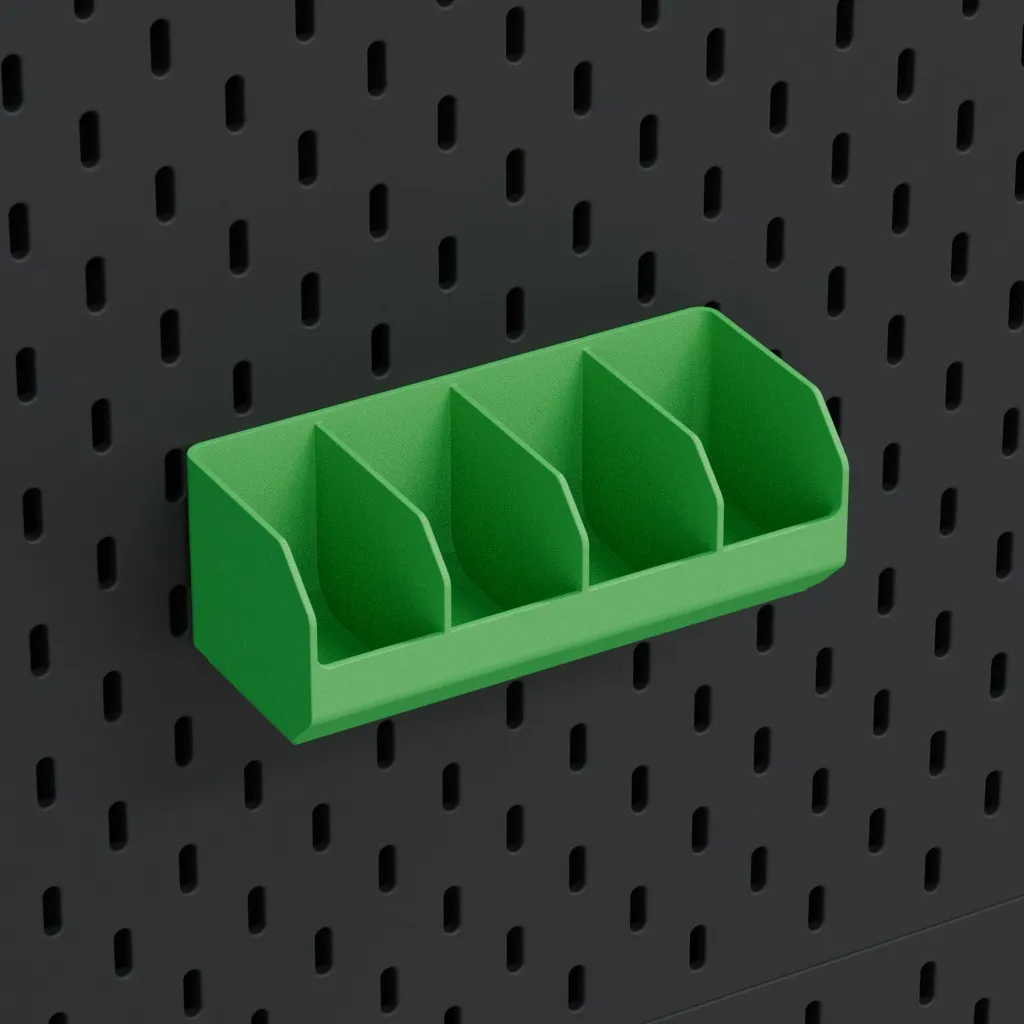

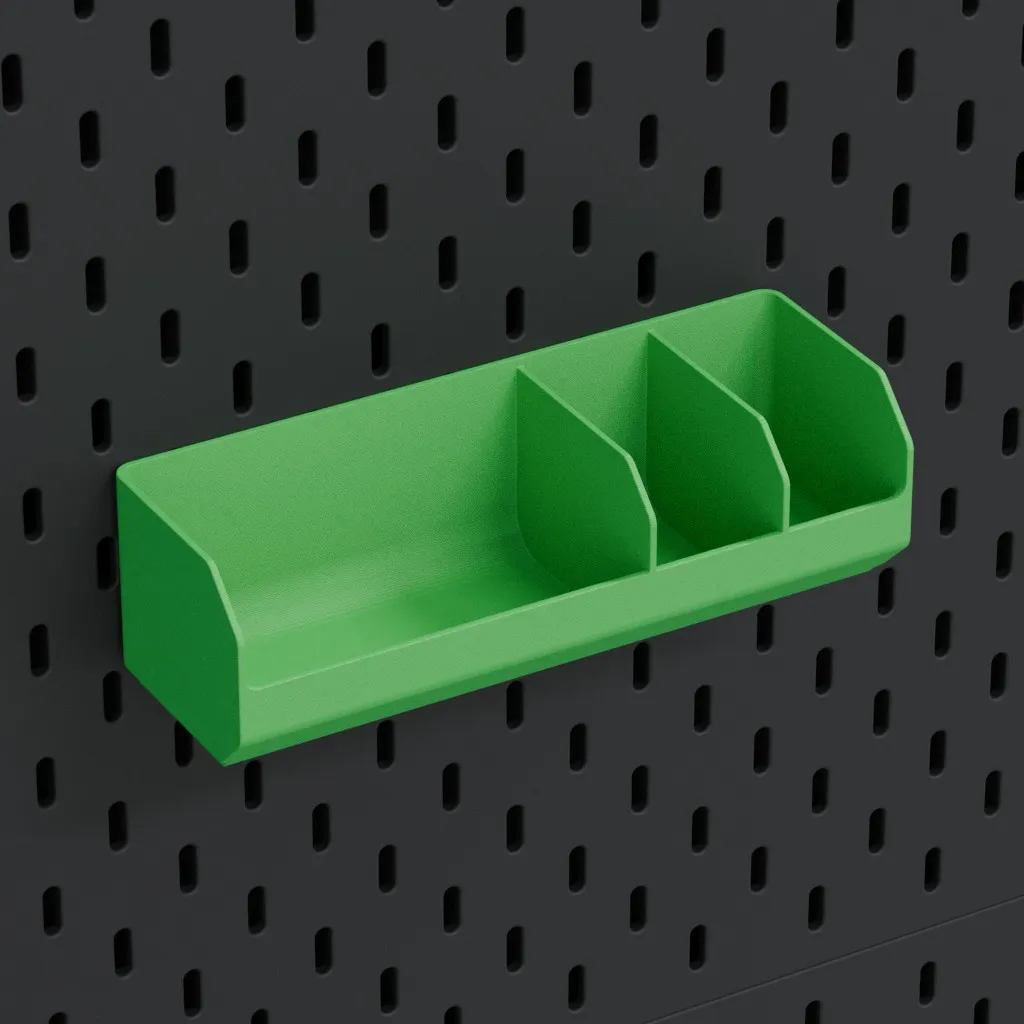

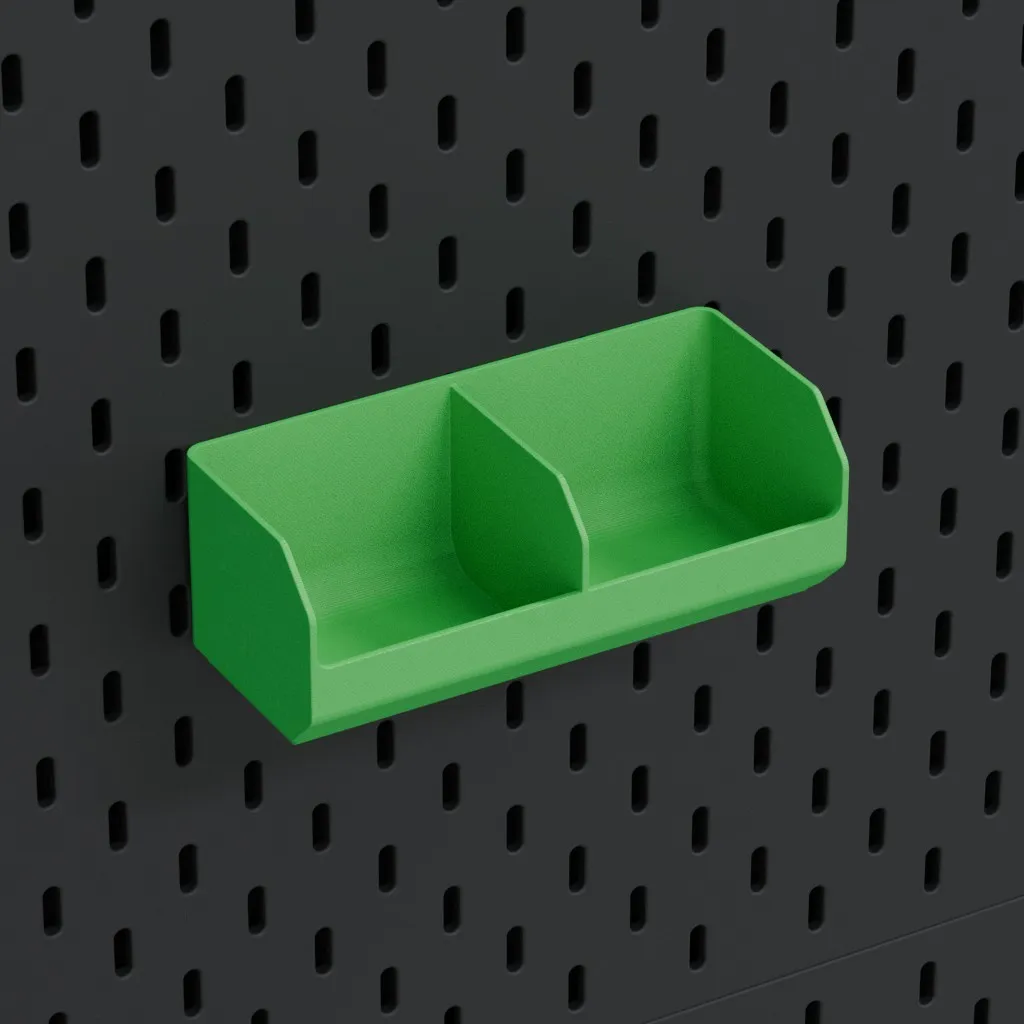

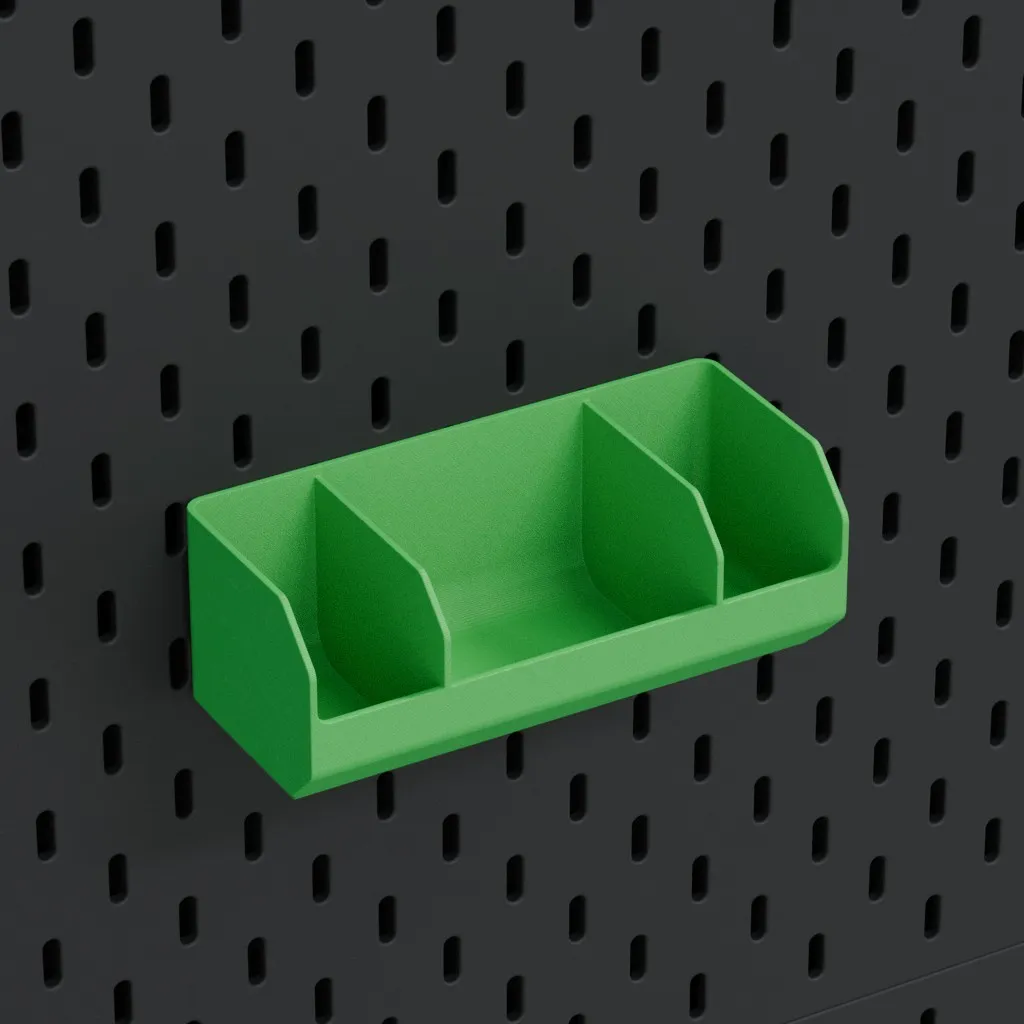

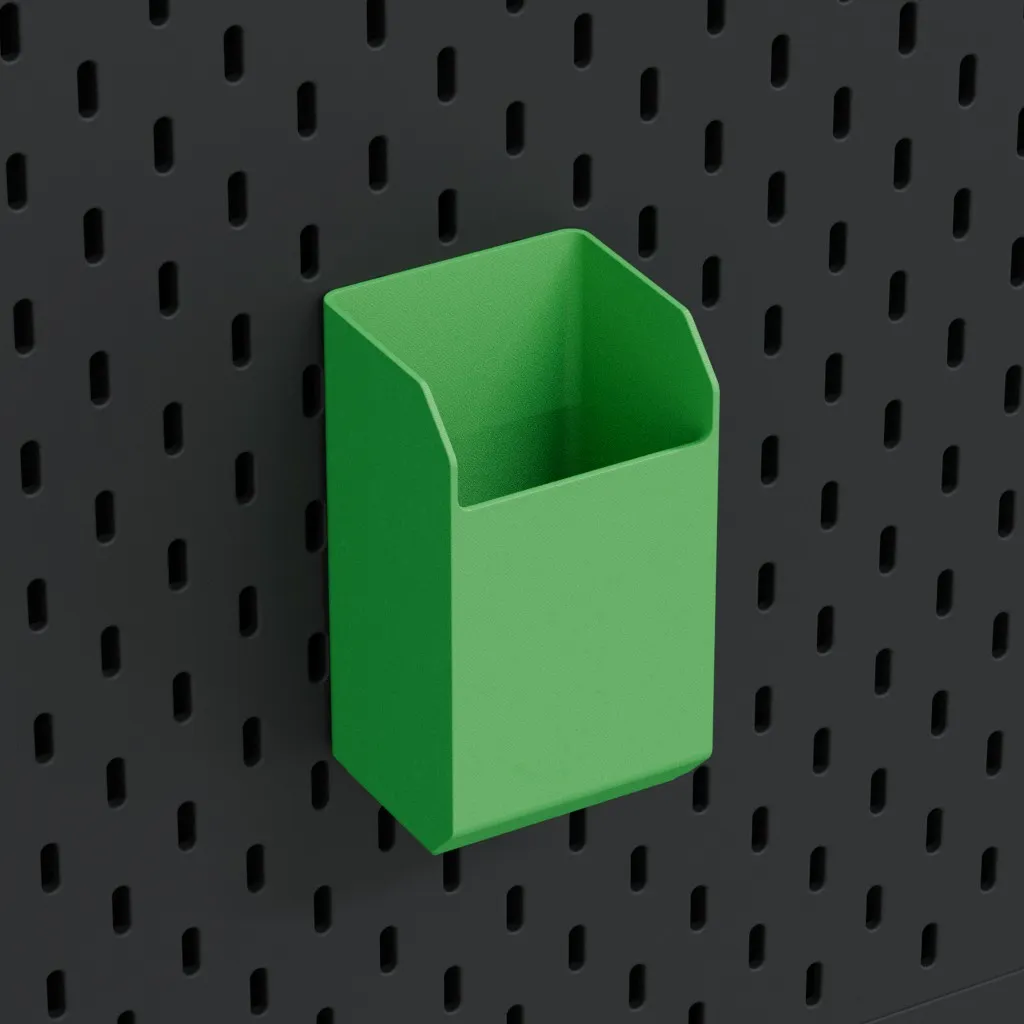

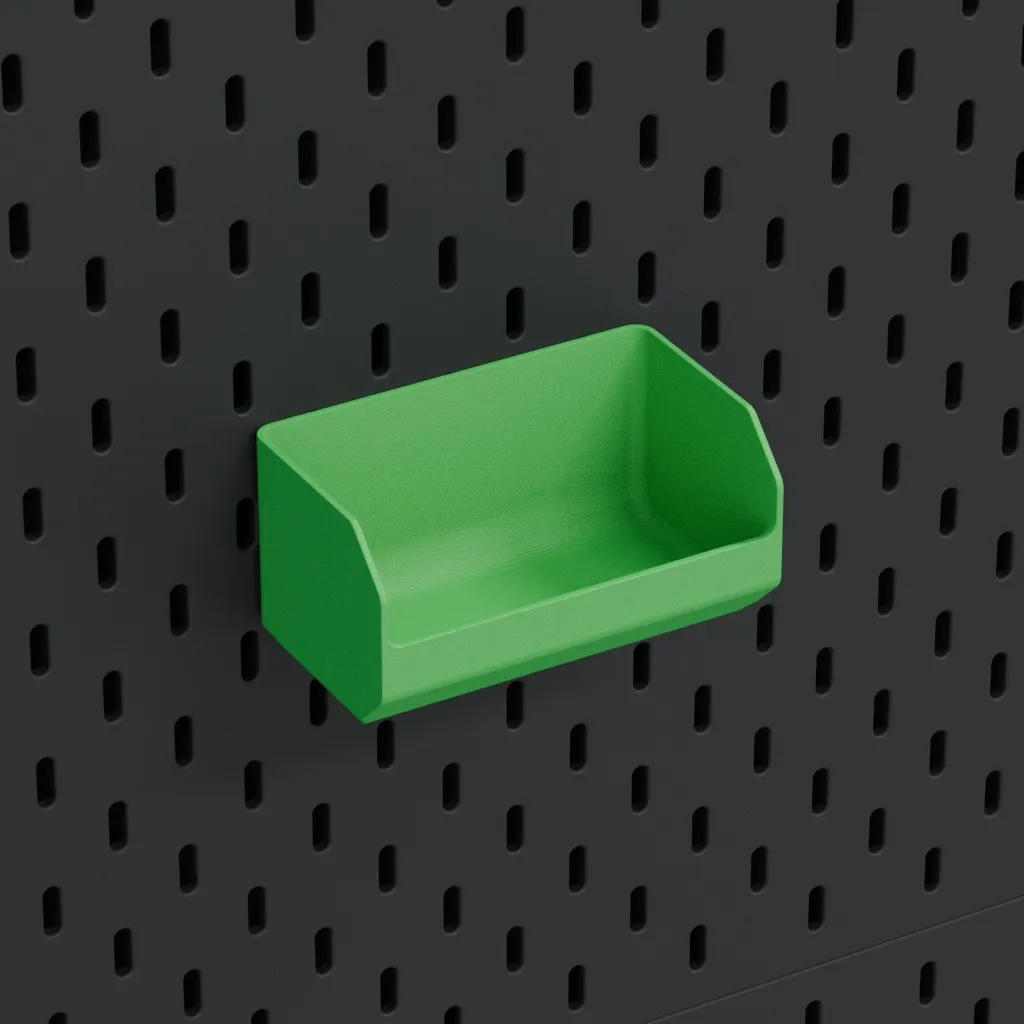

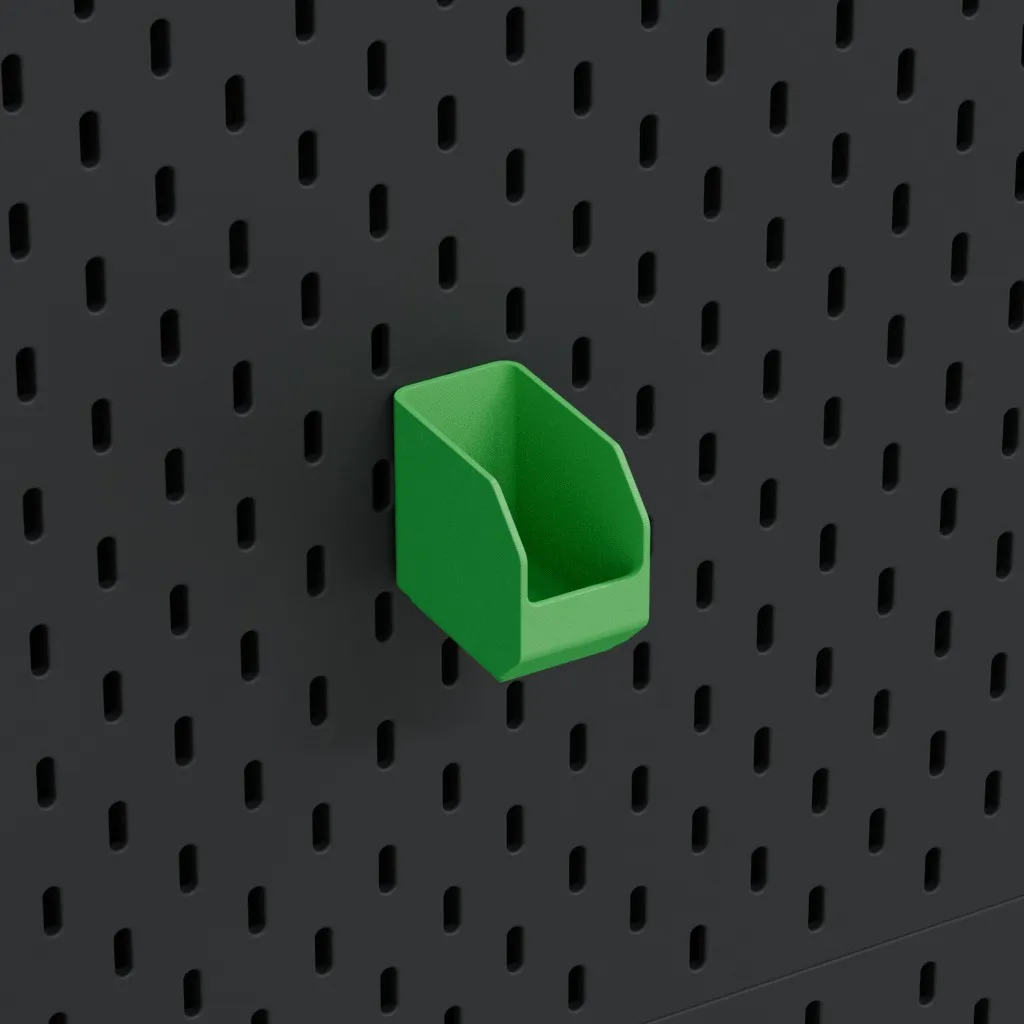

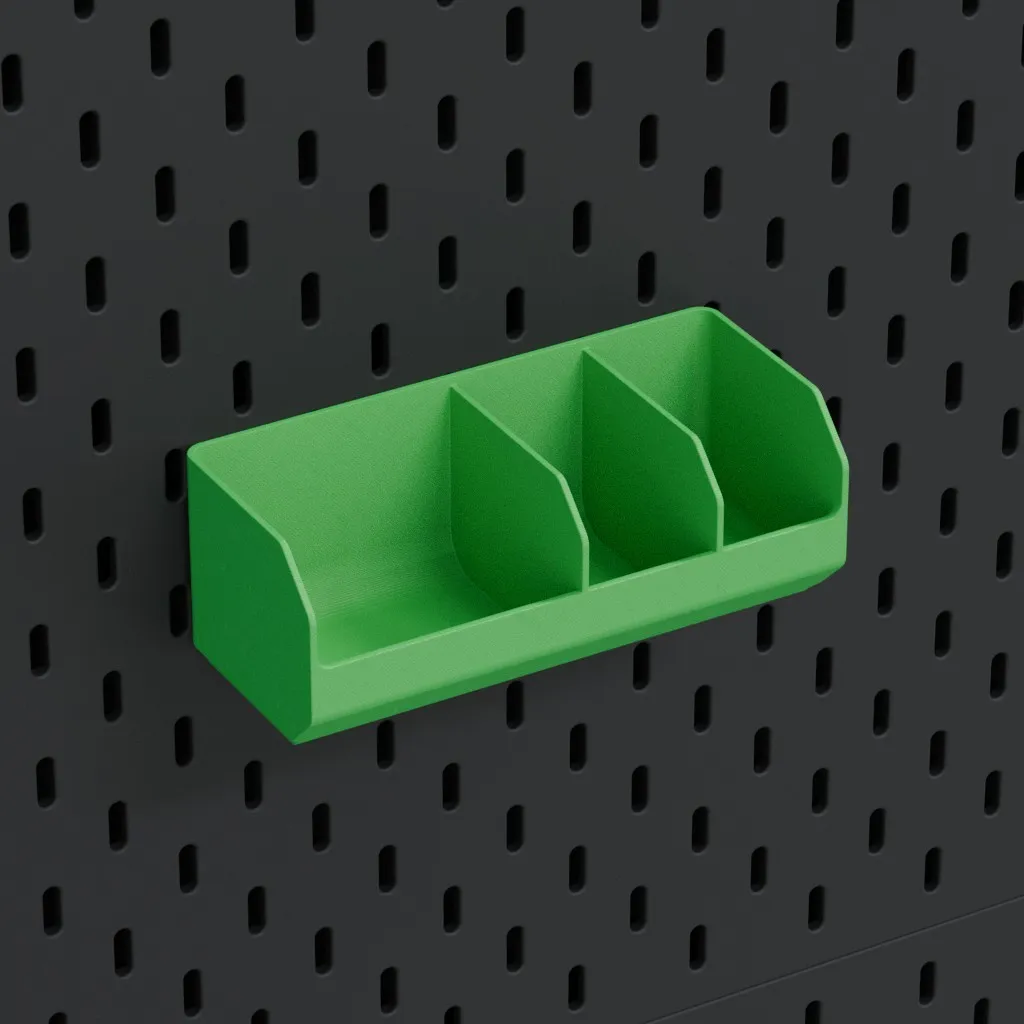

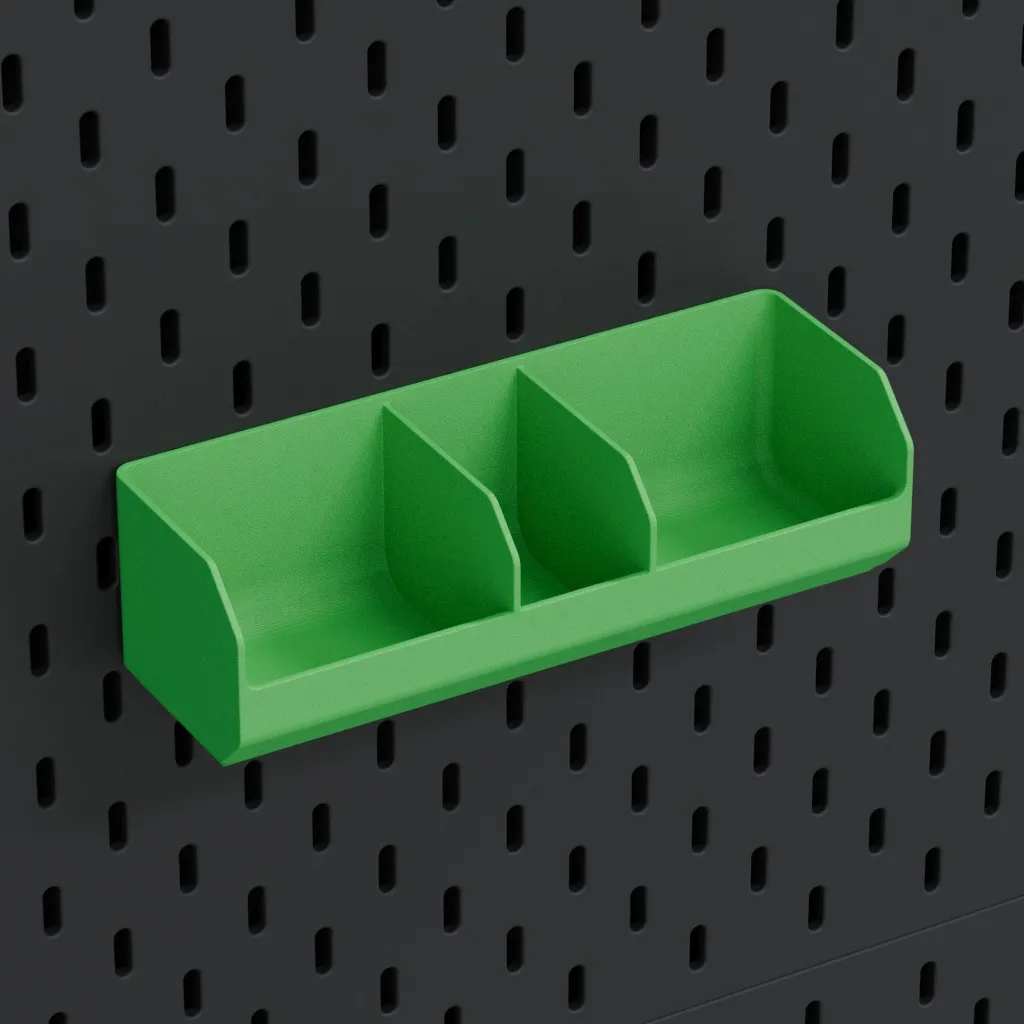

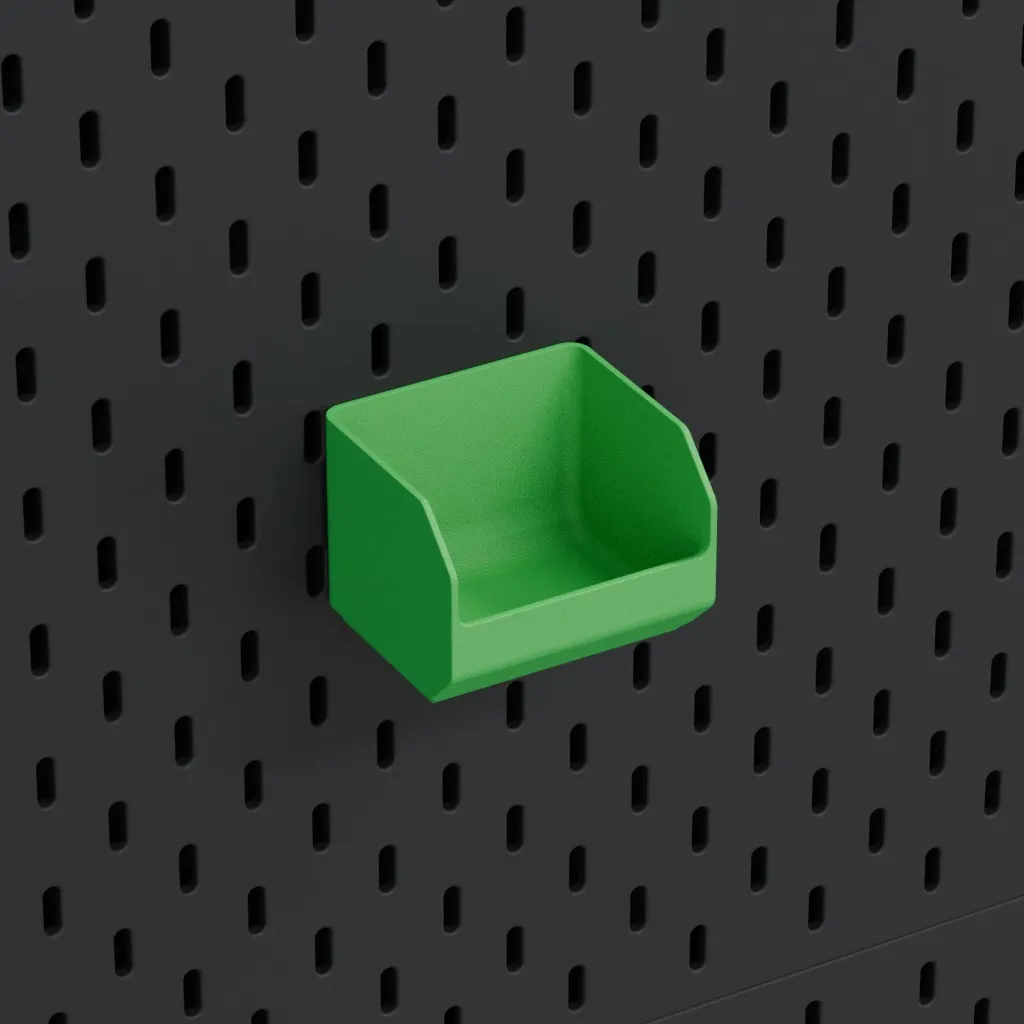

Trays Regular

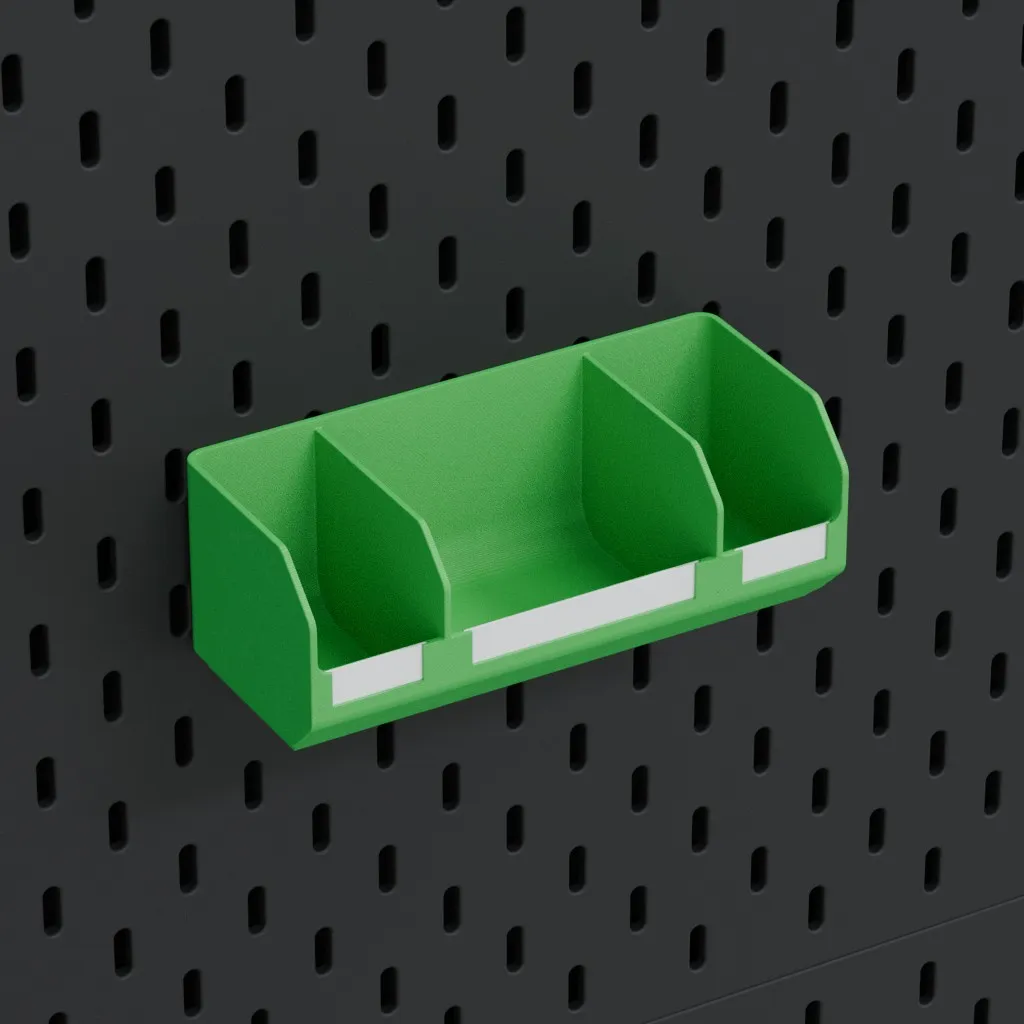

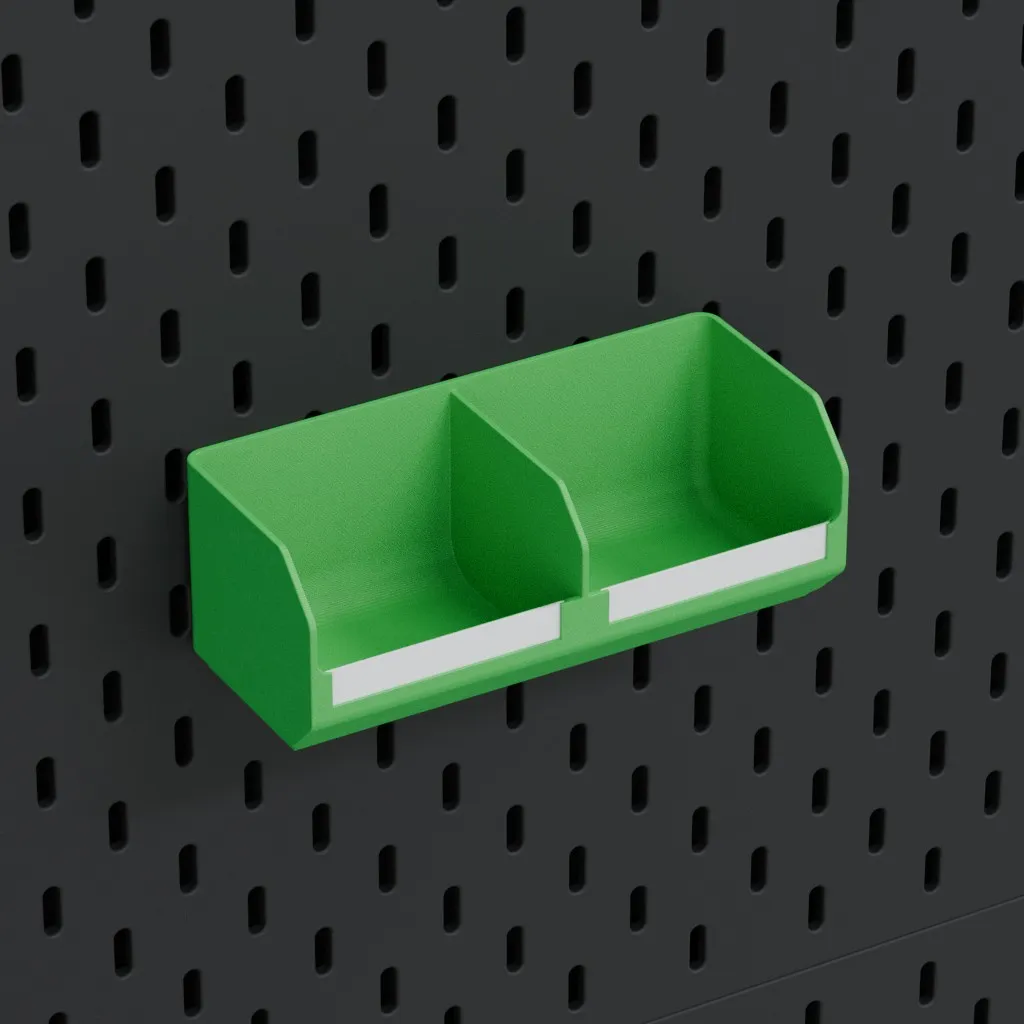

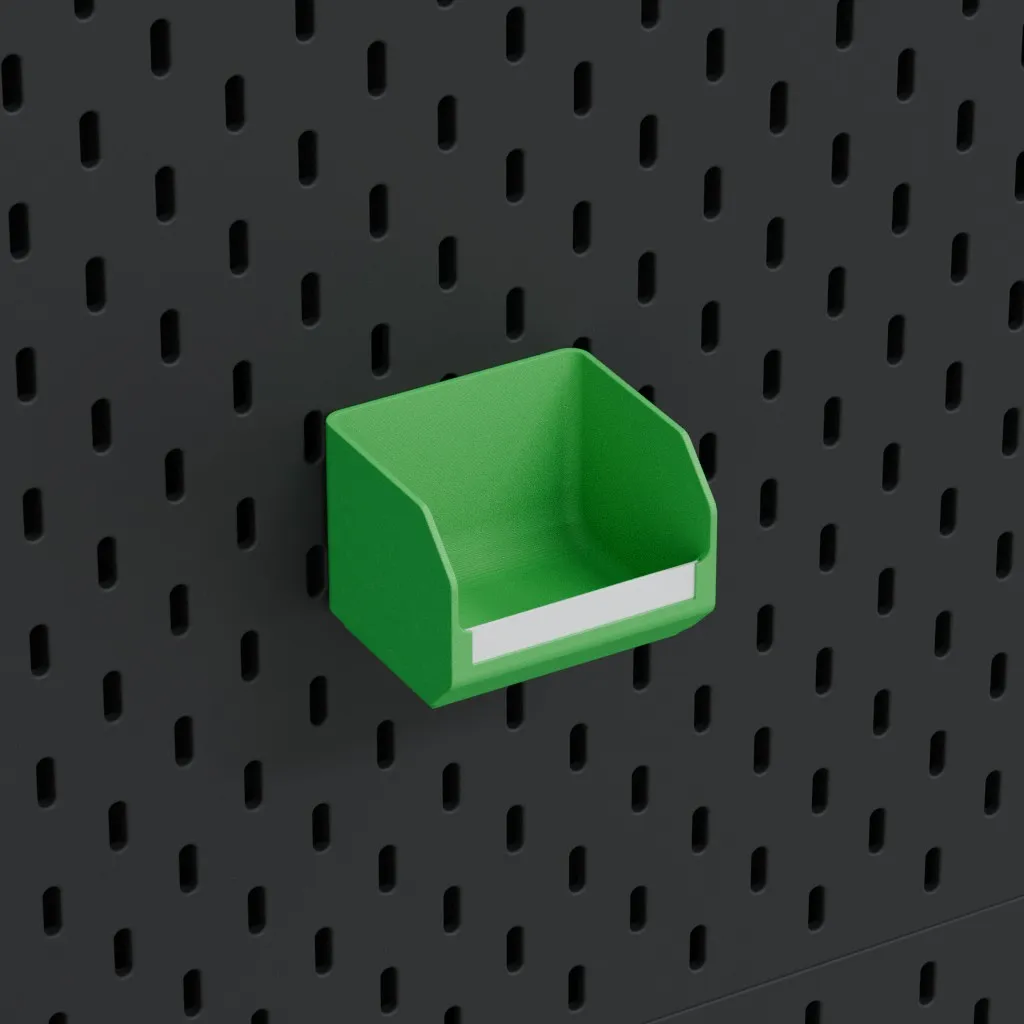

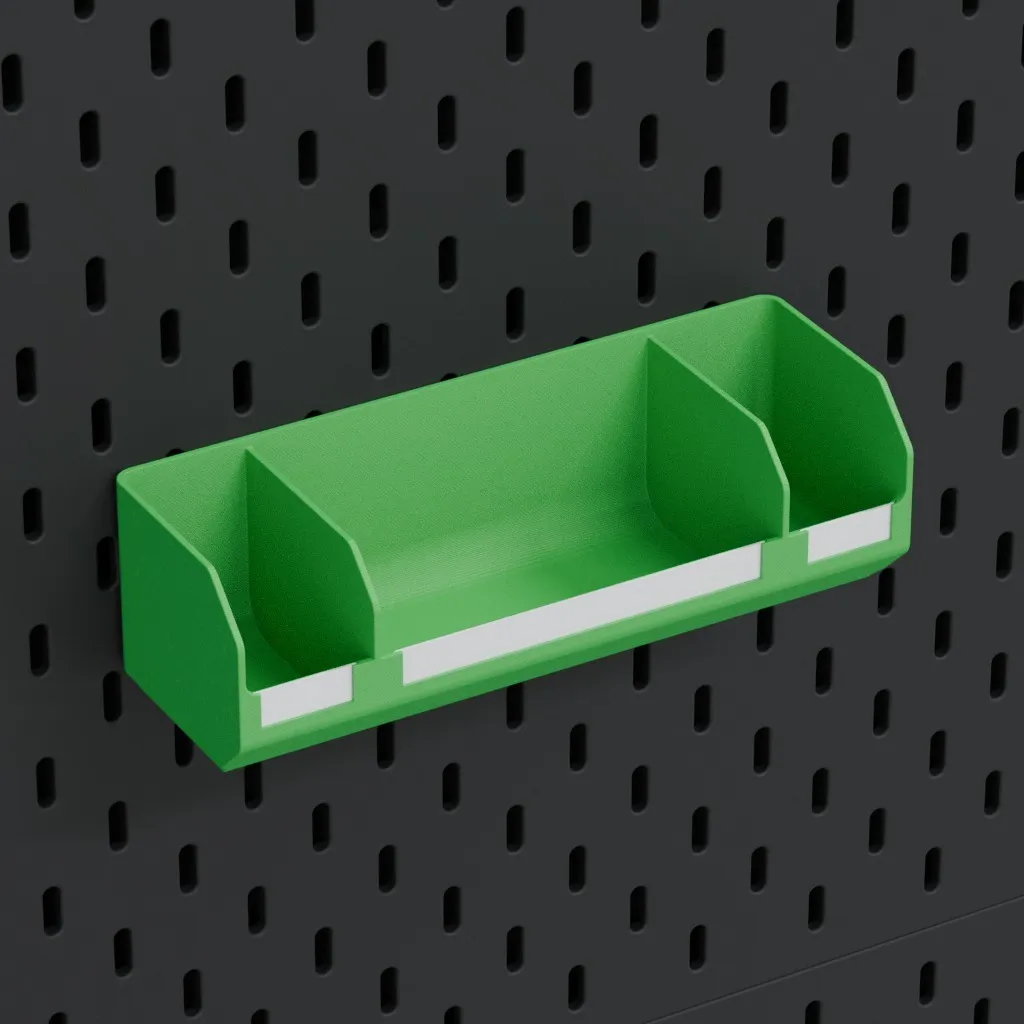

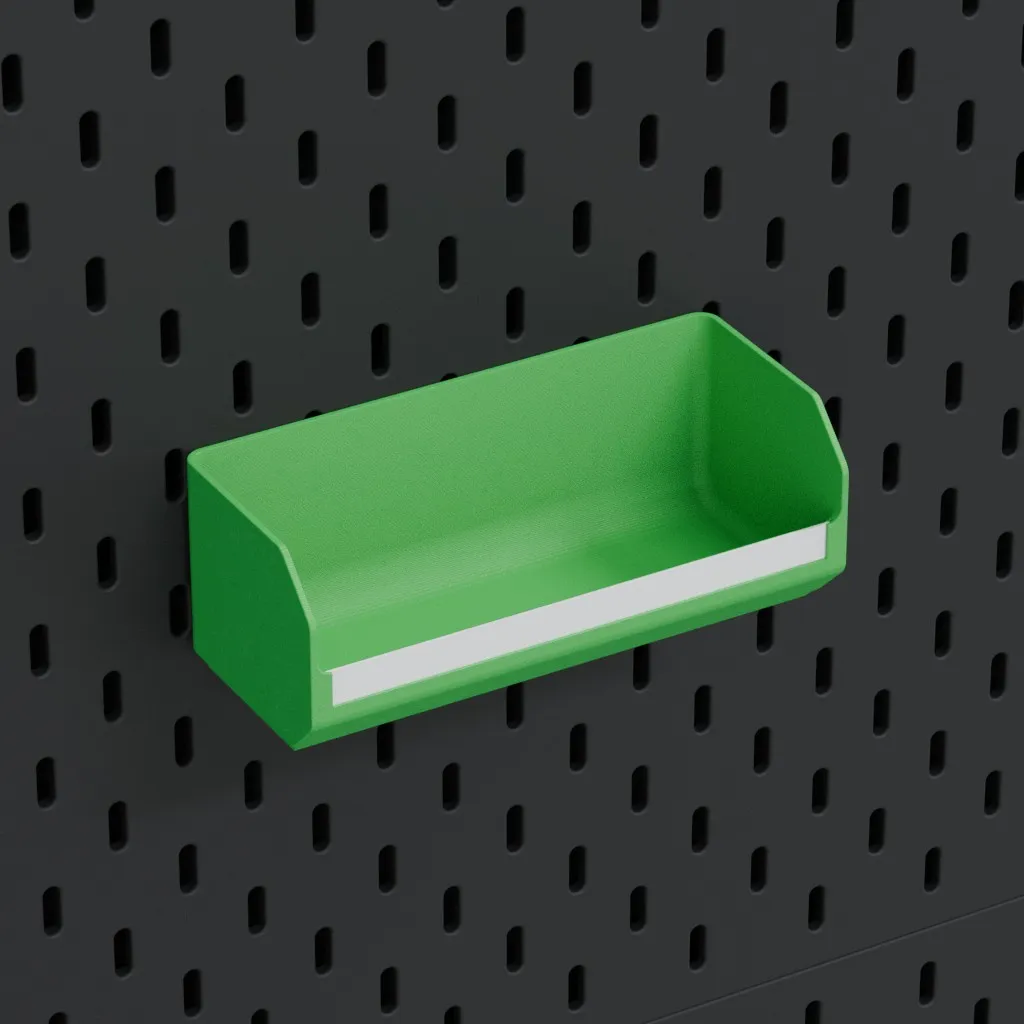

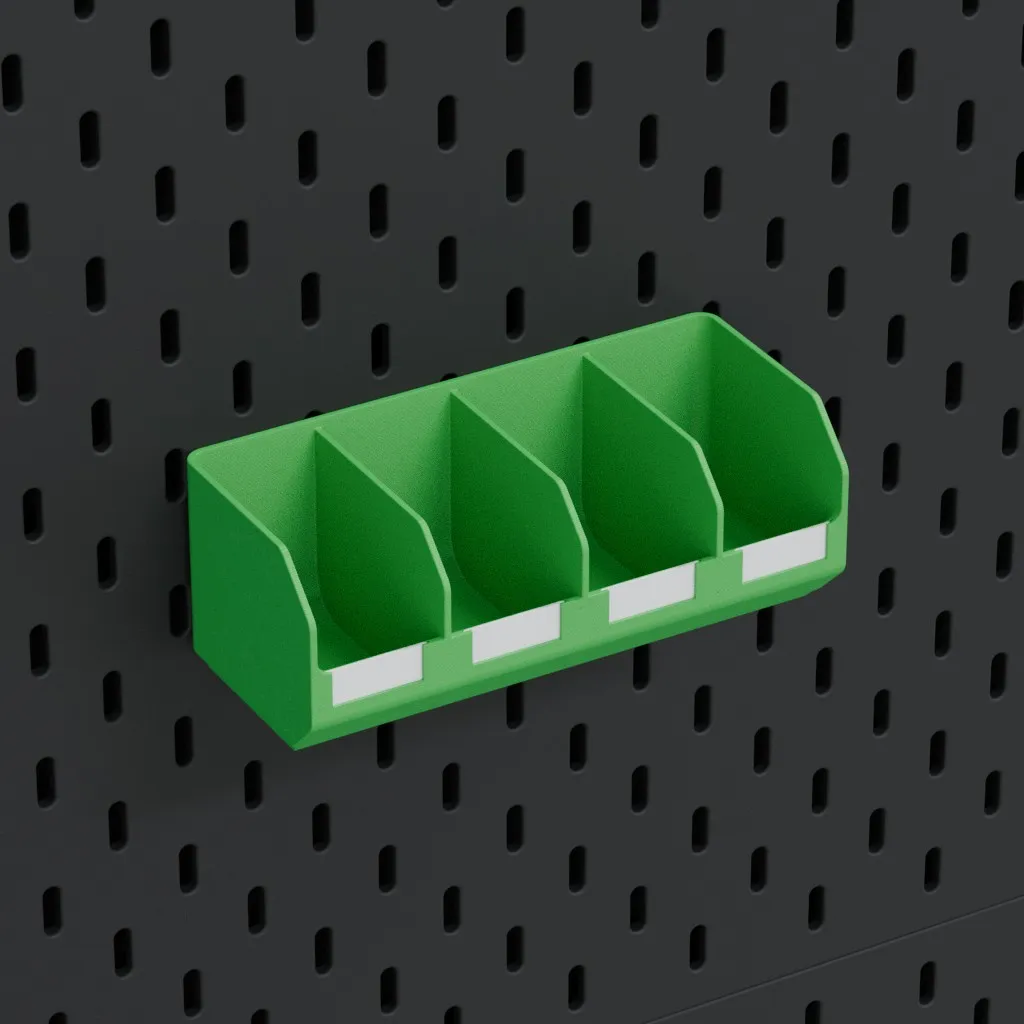

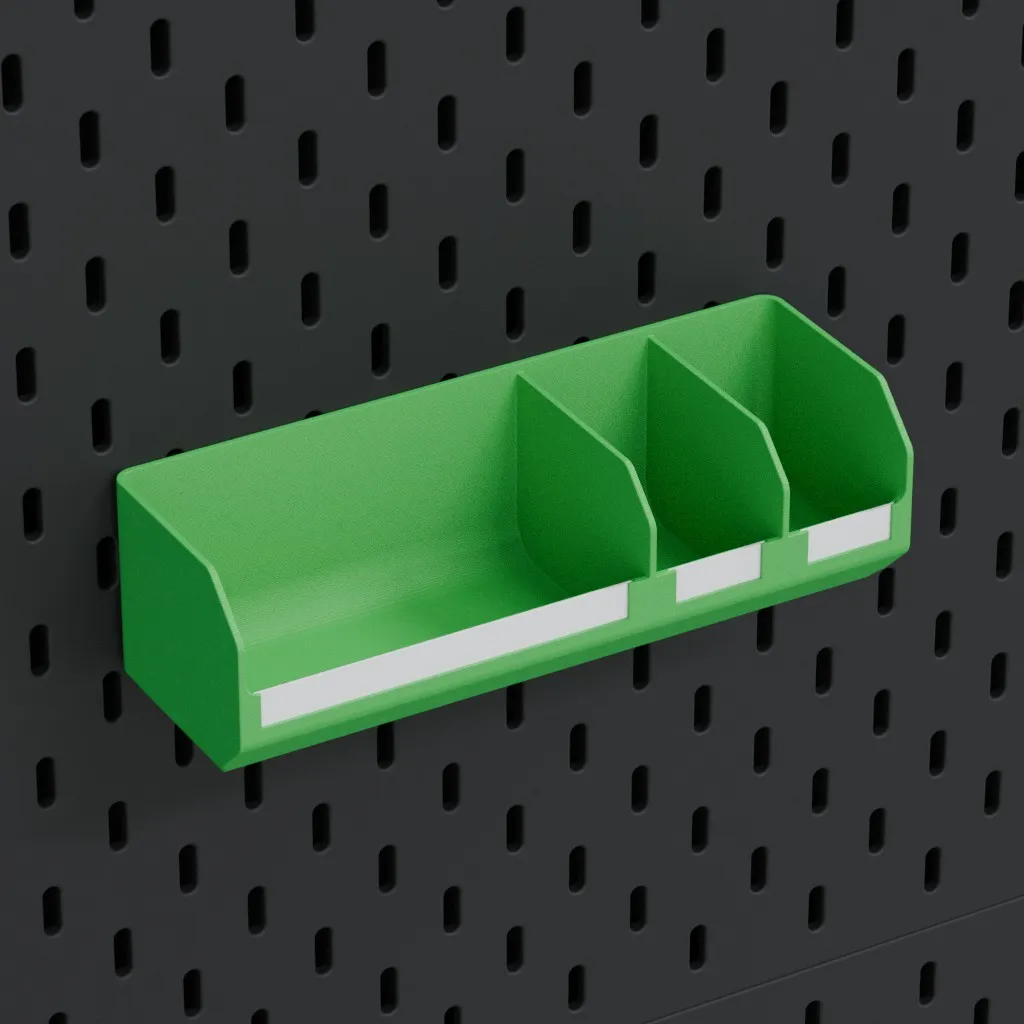

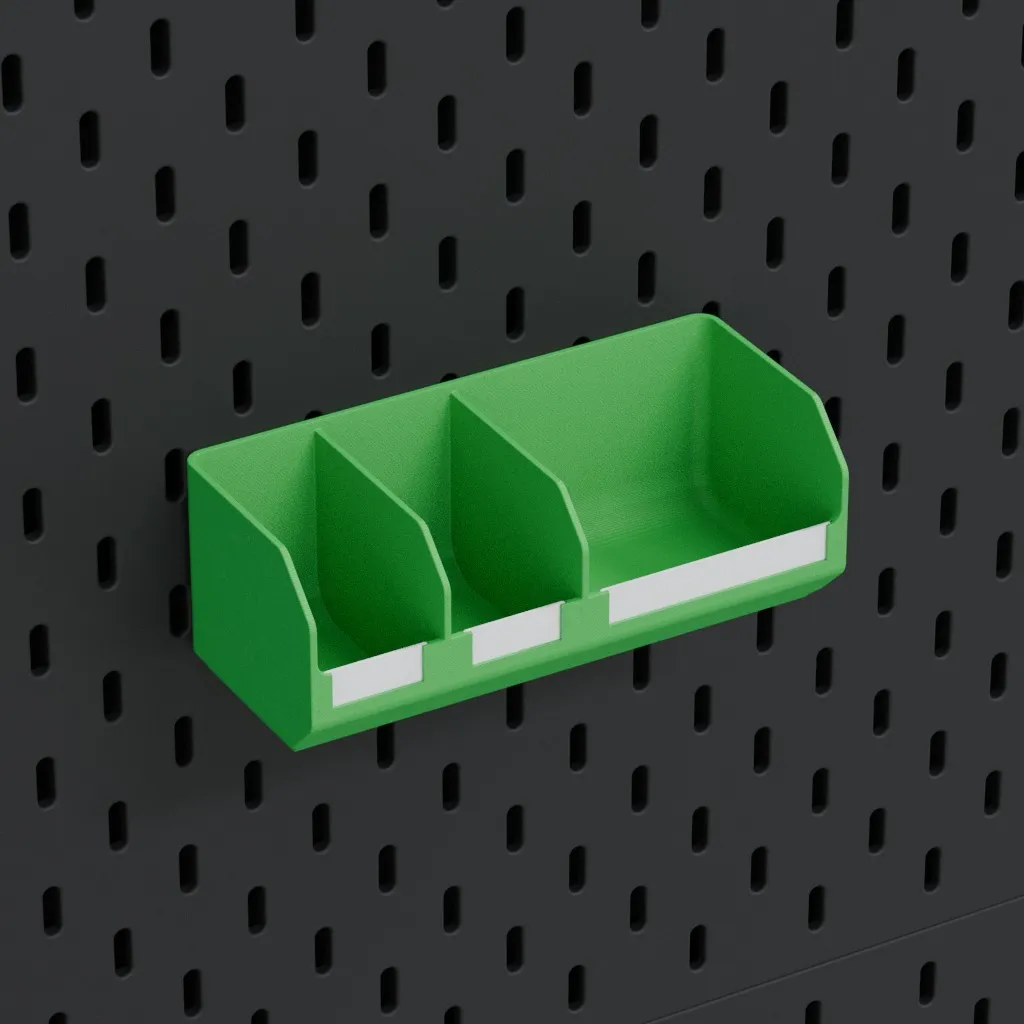

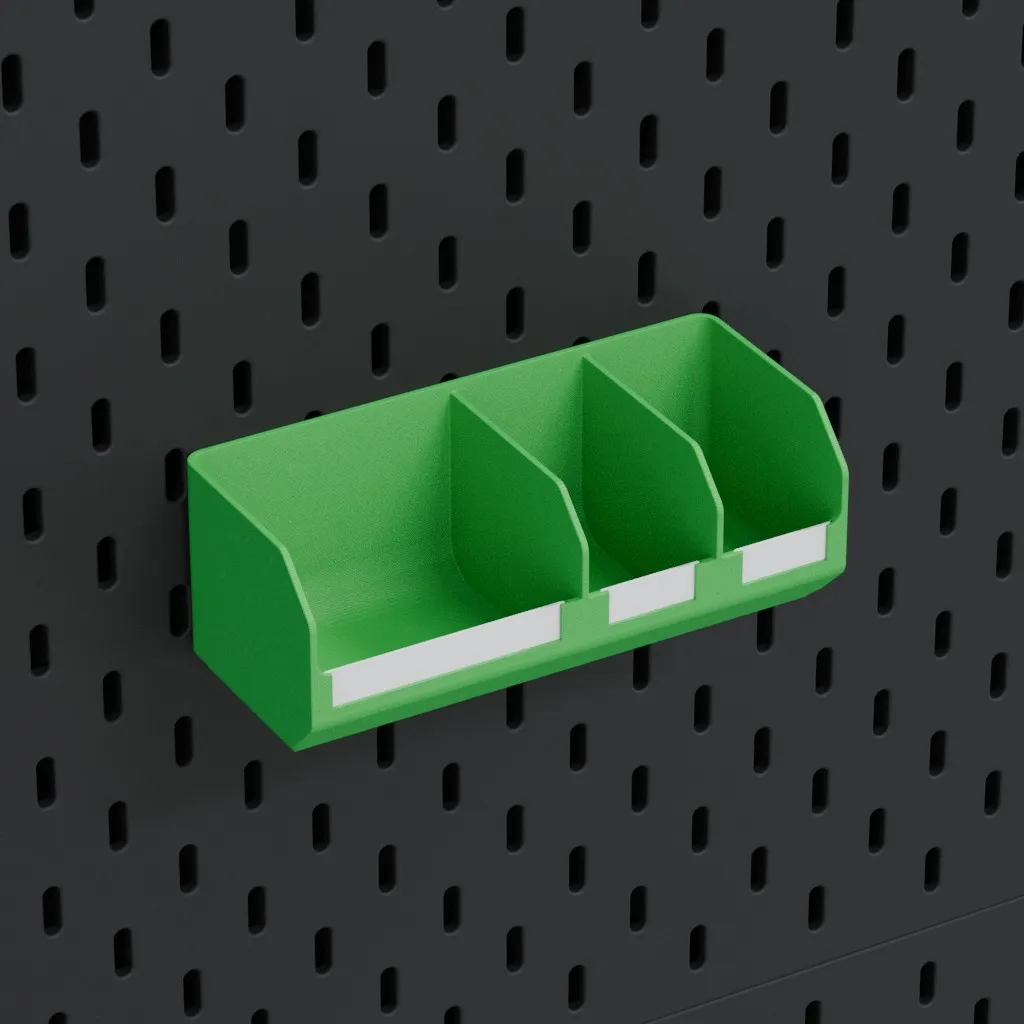

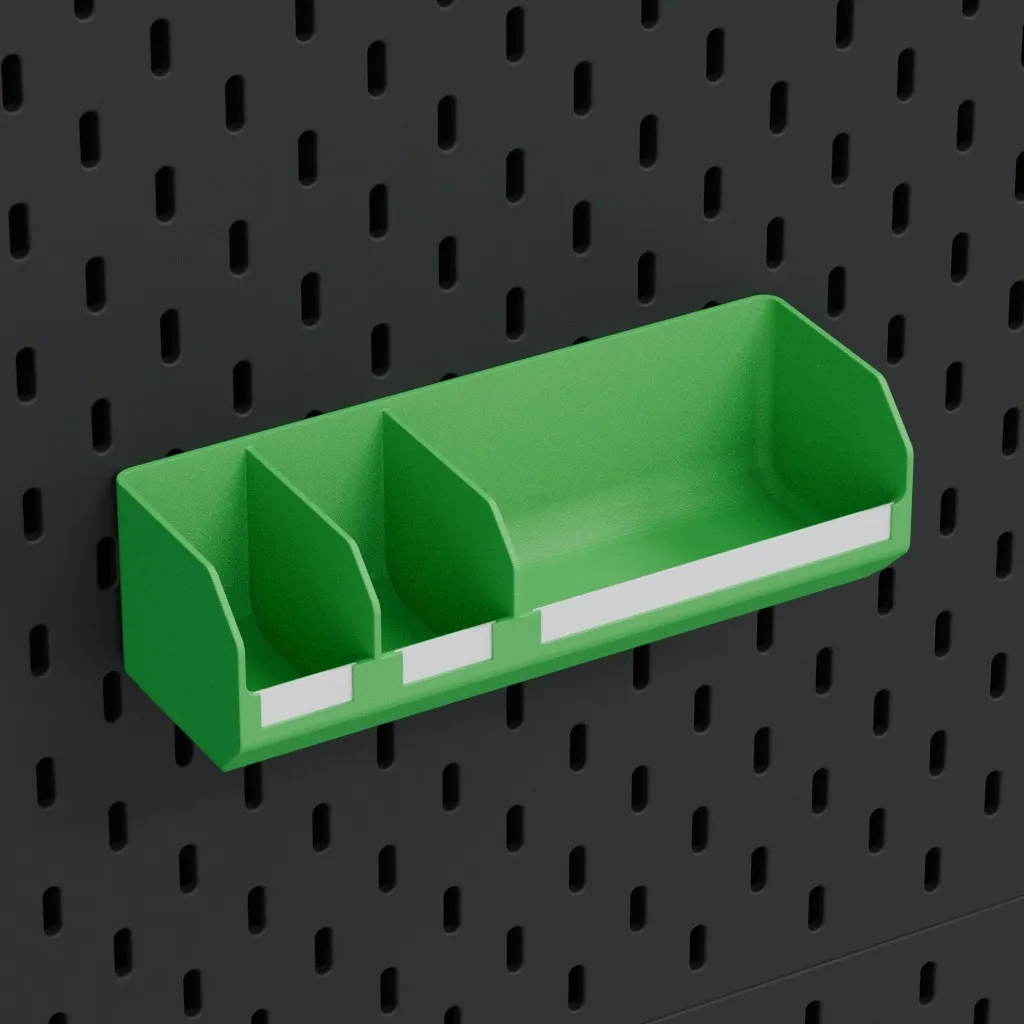

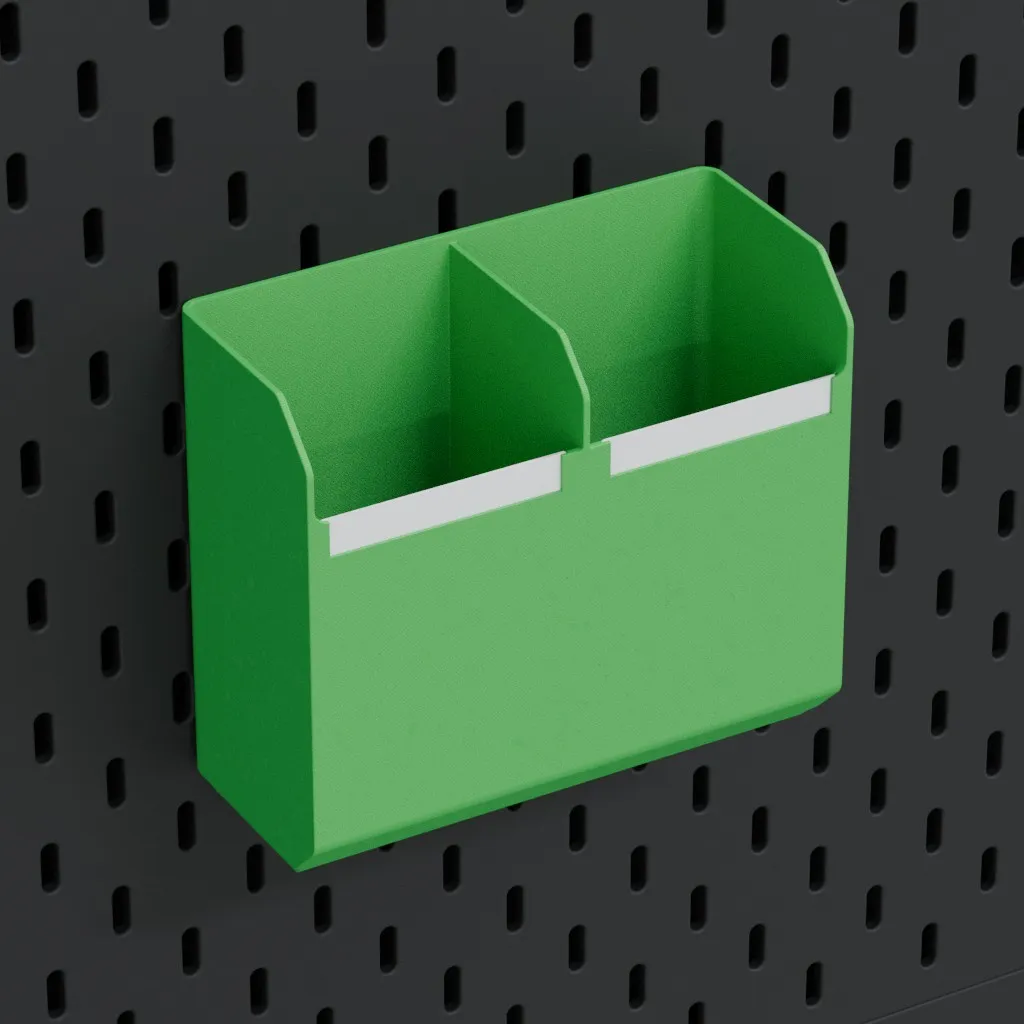

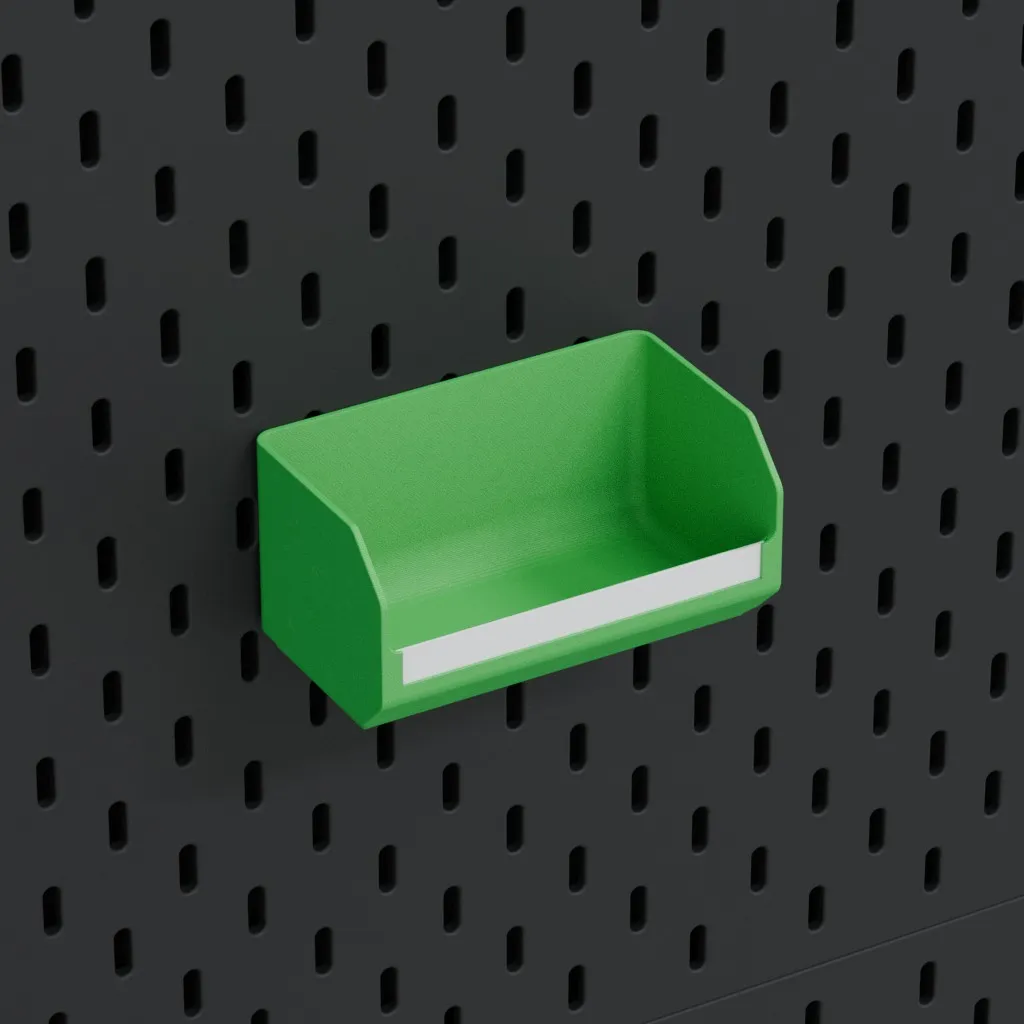

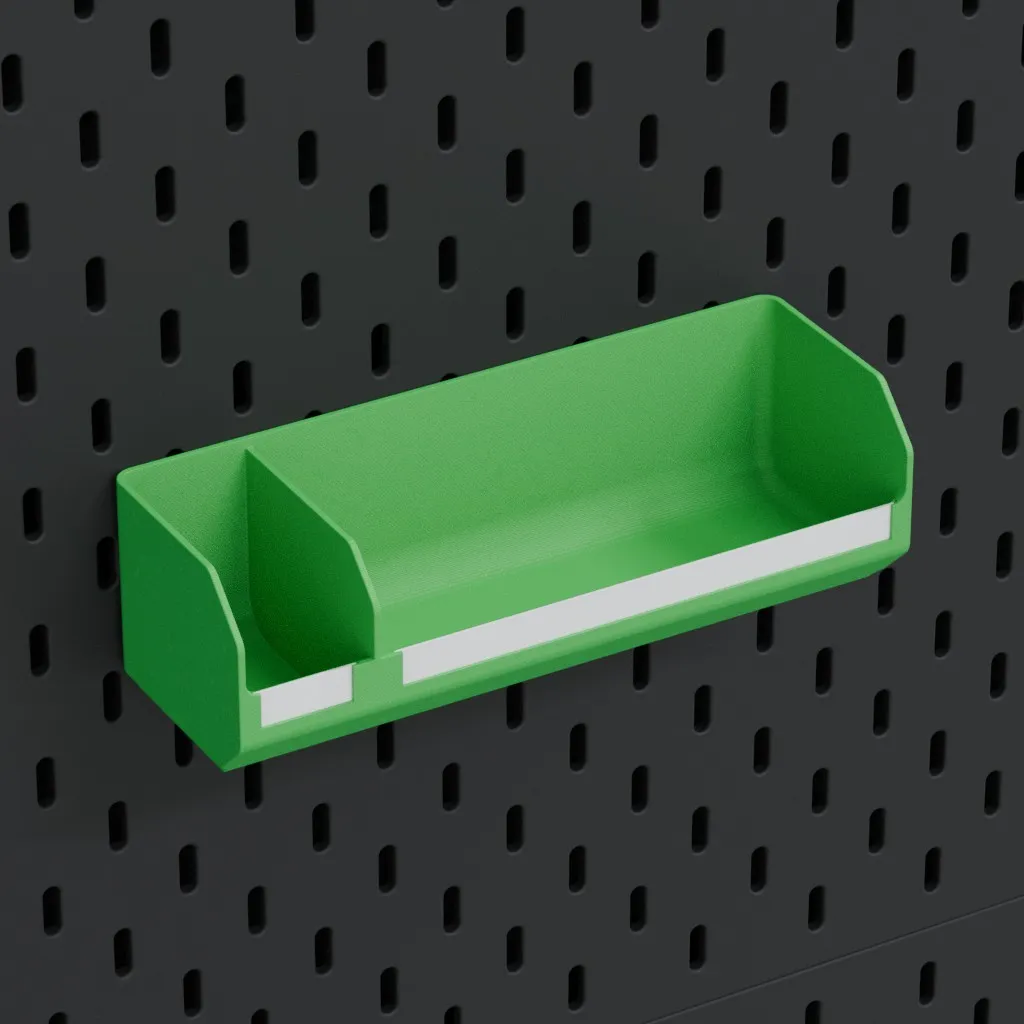

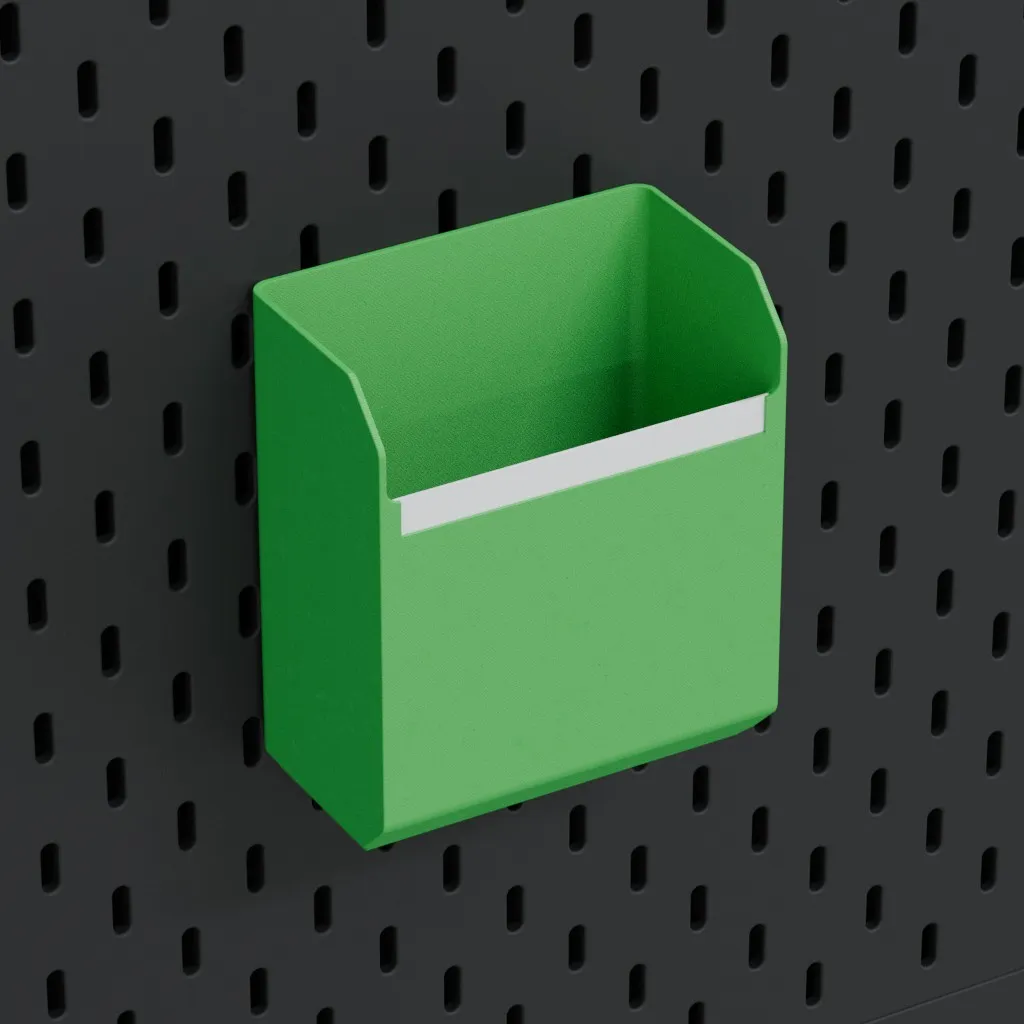

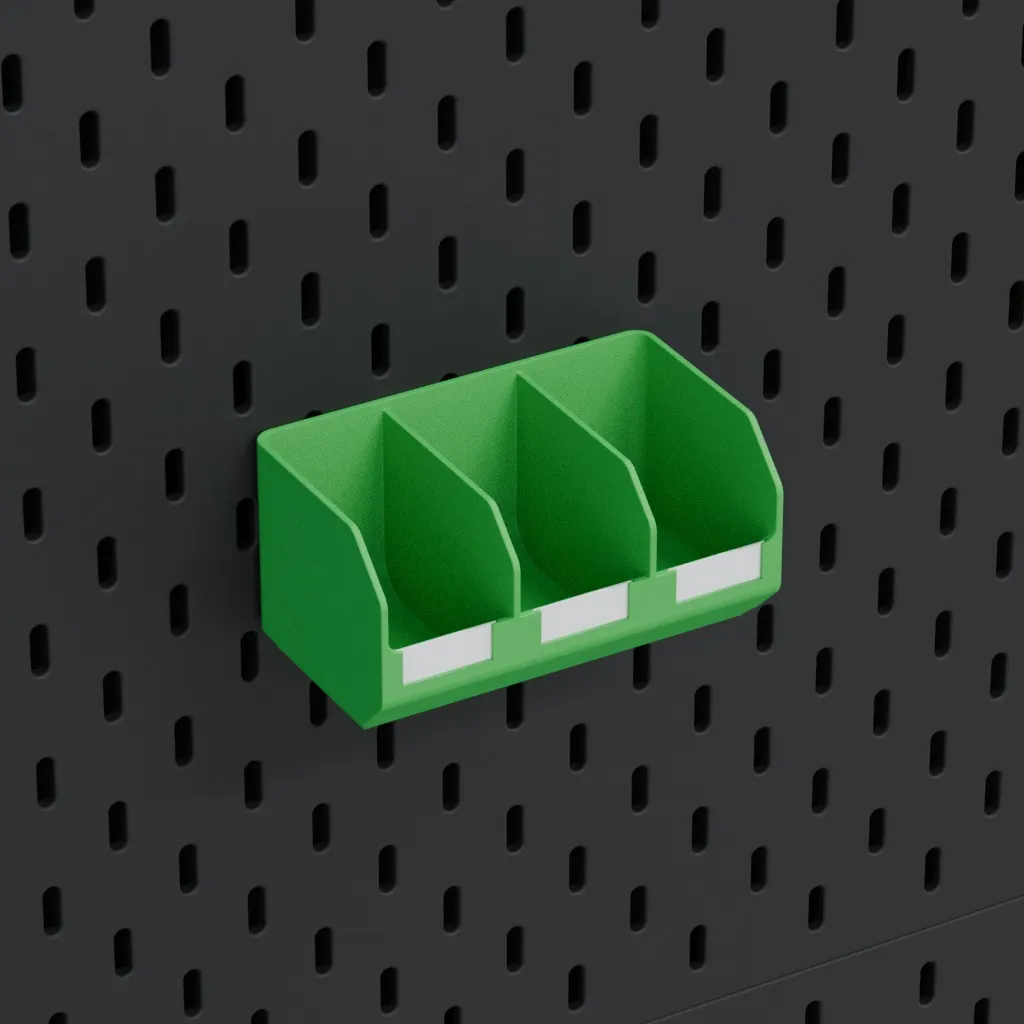

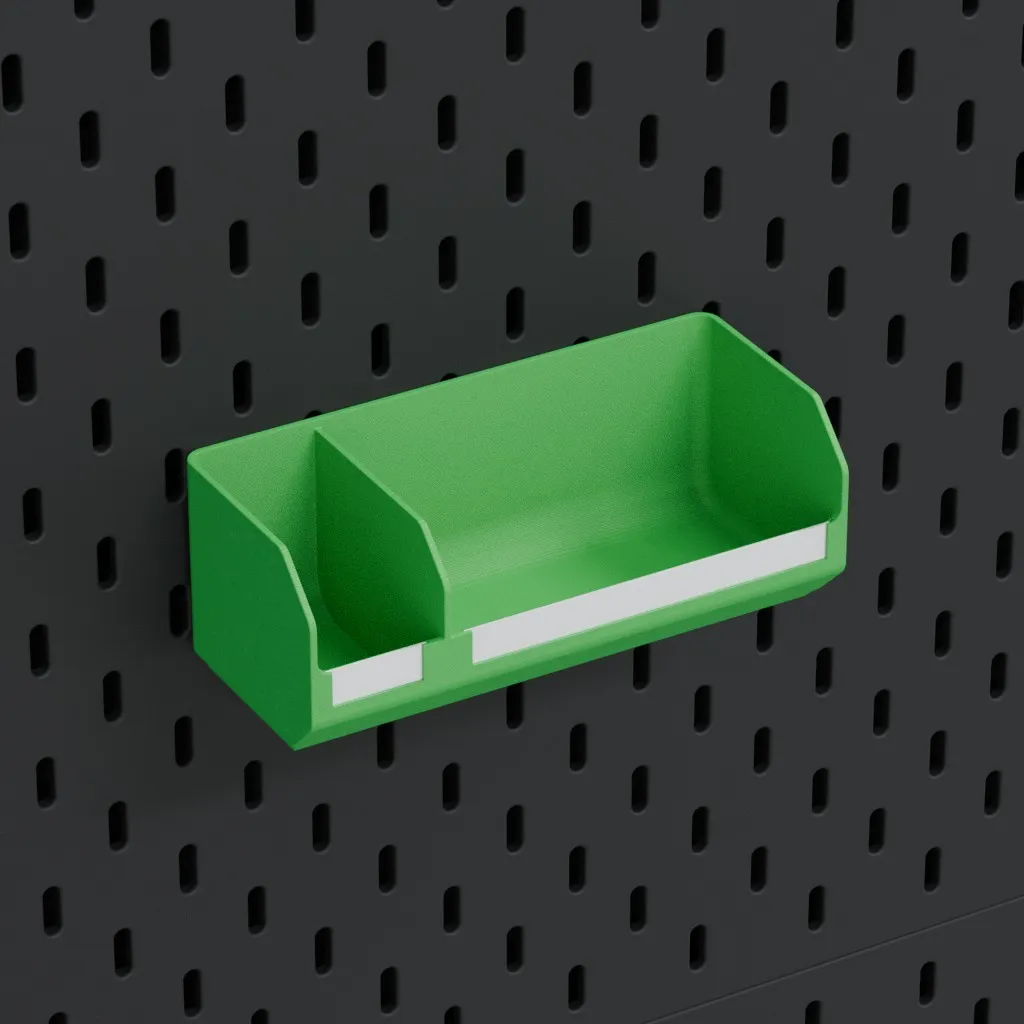

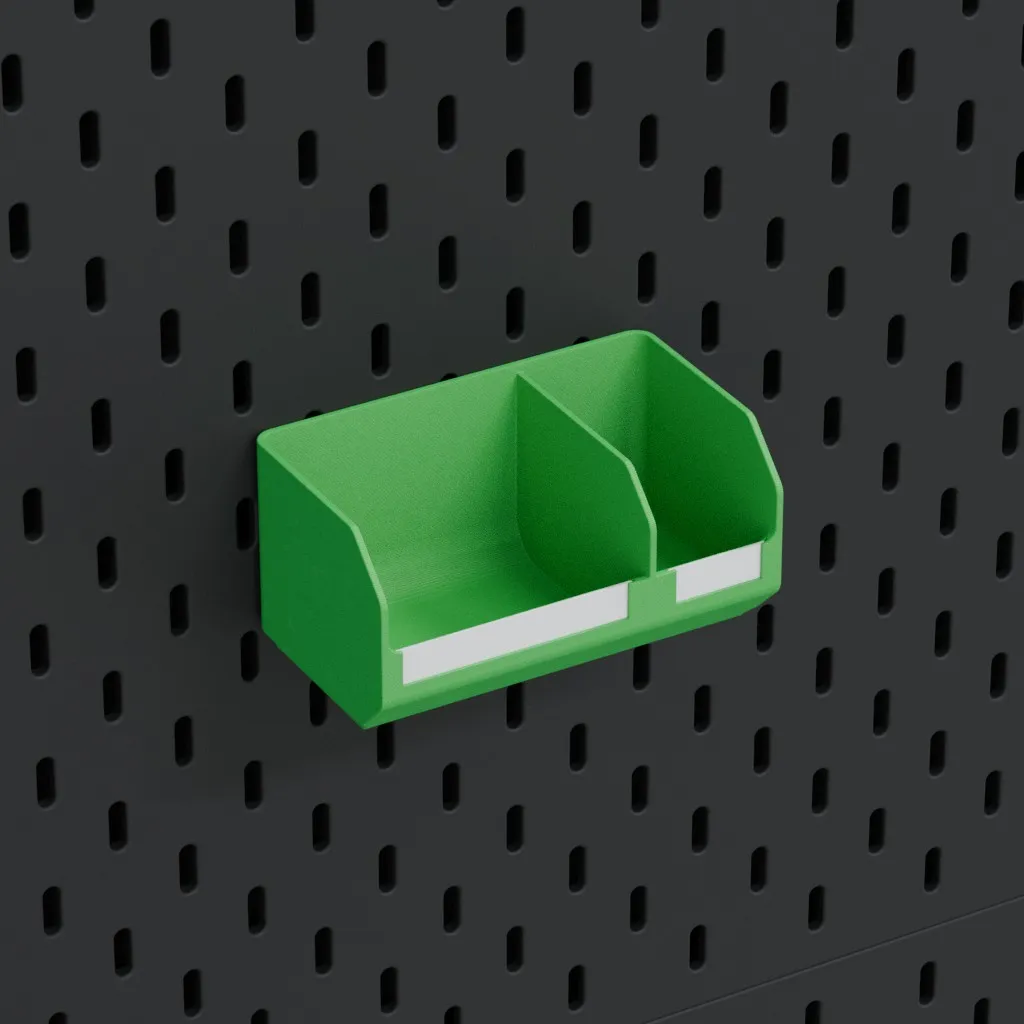

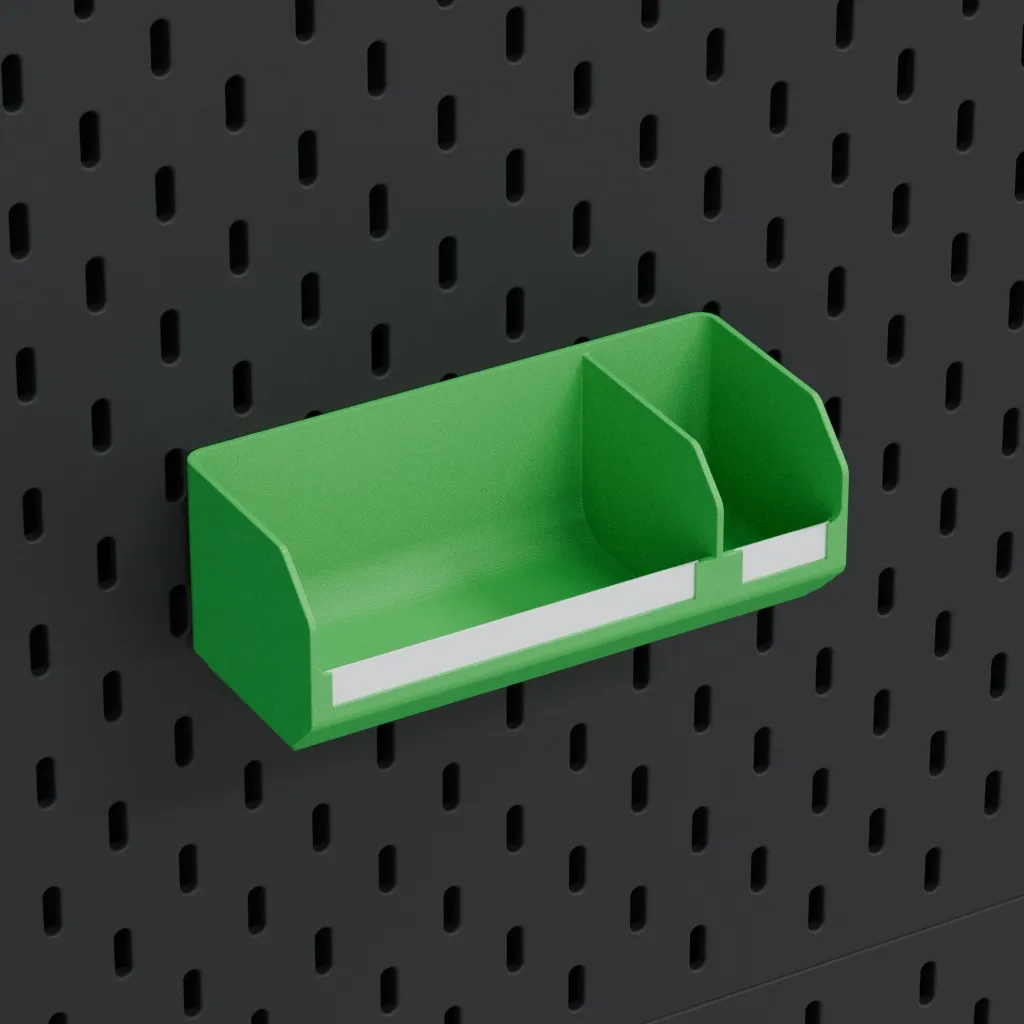

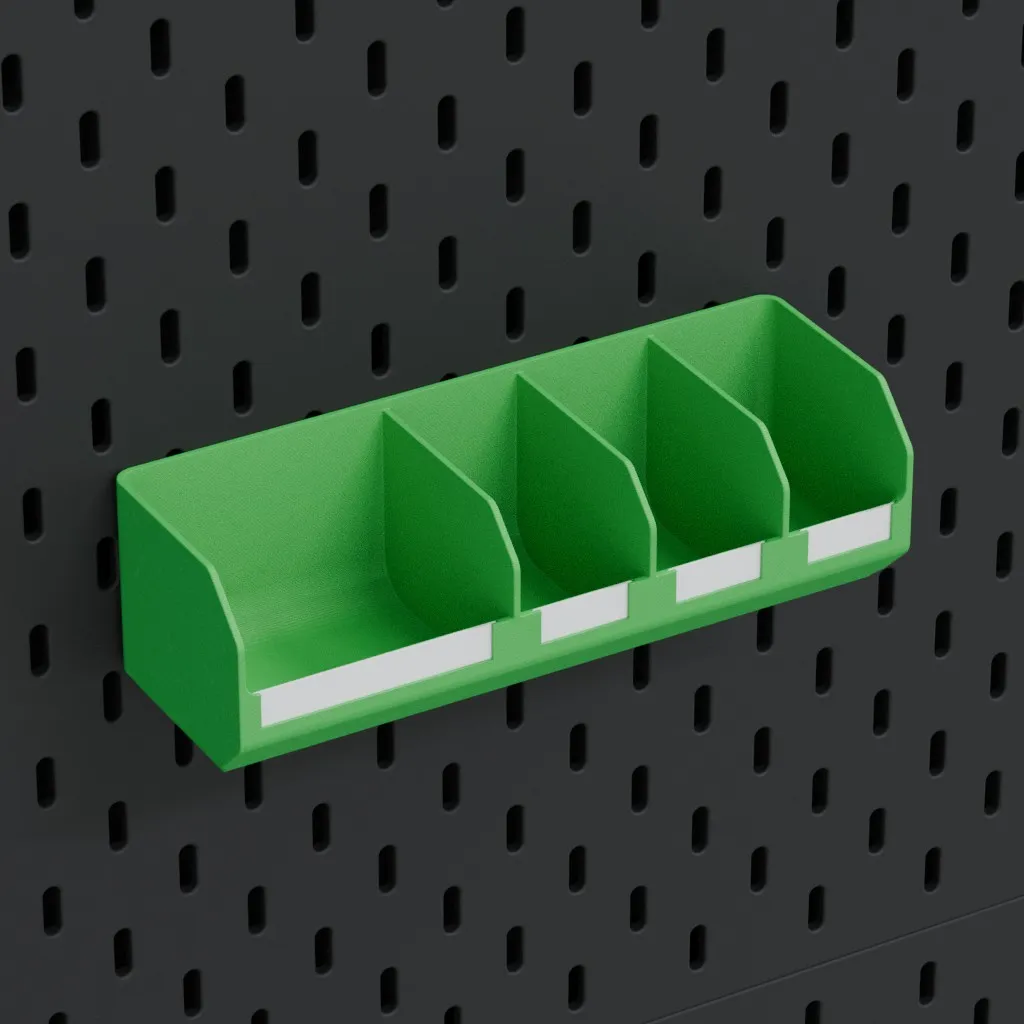

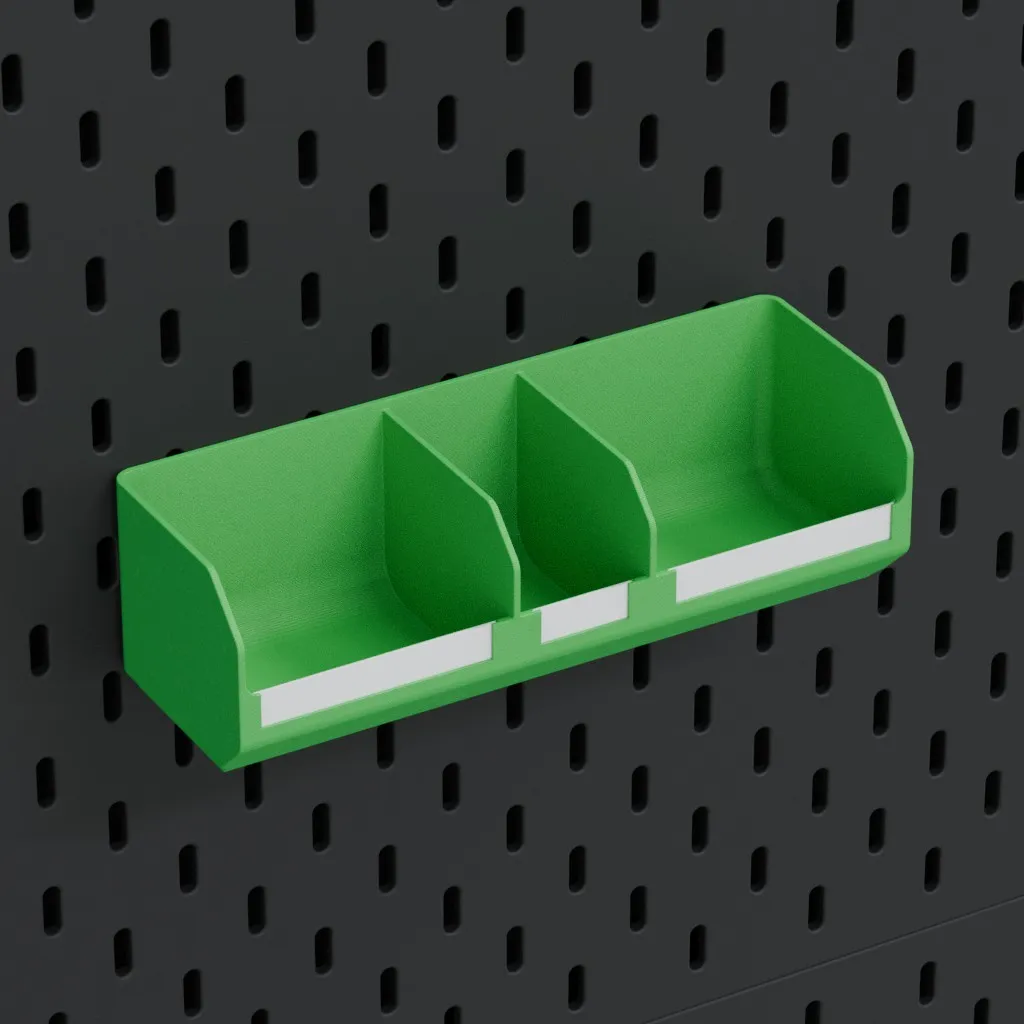

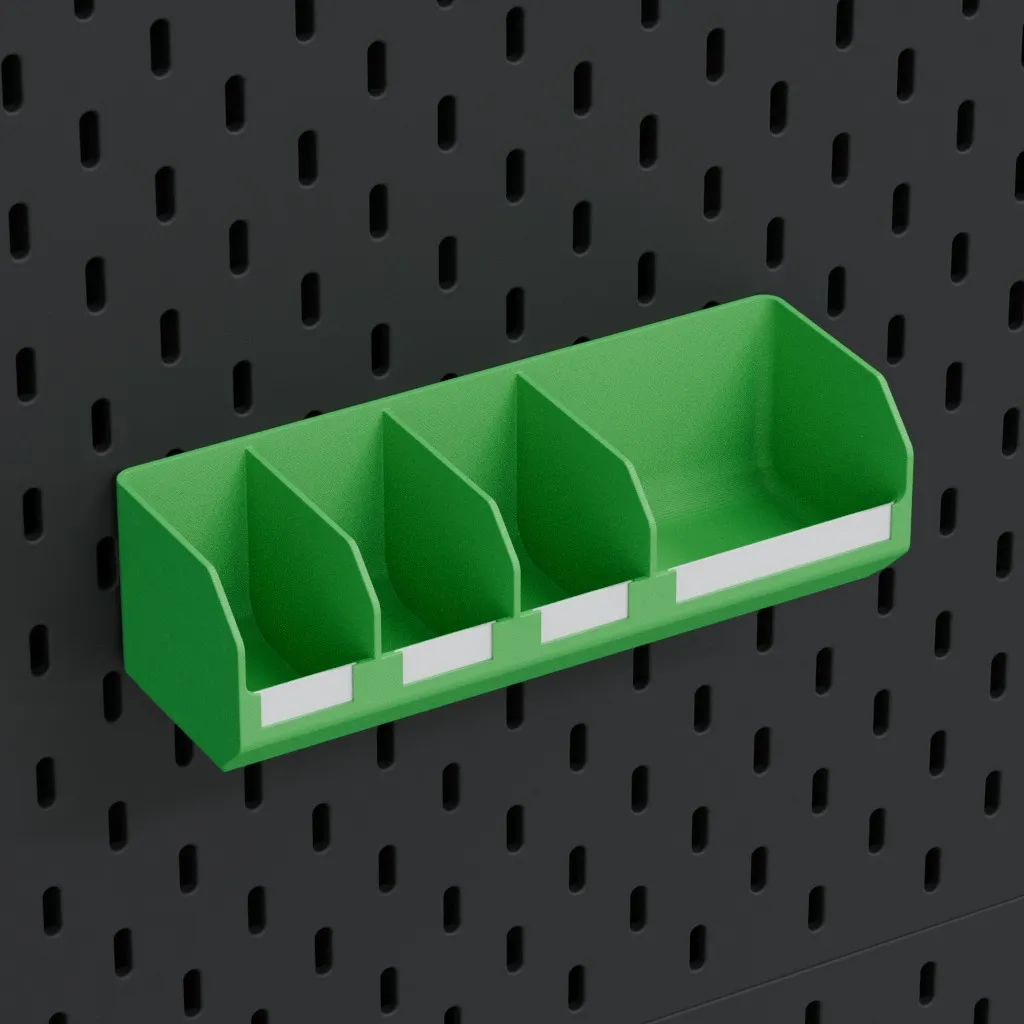

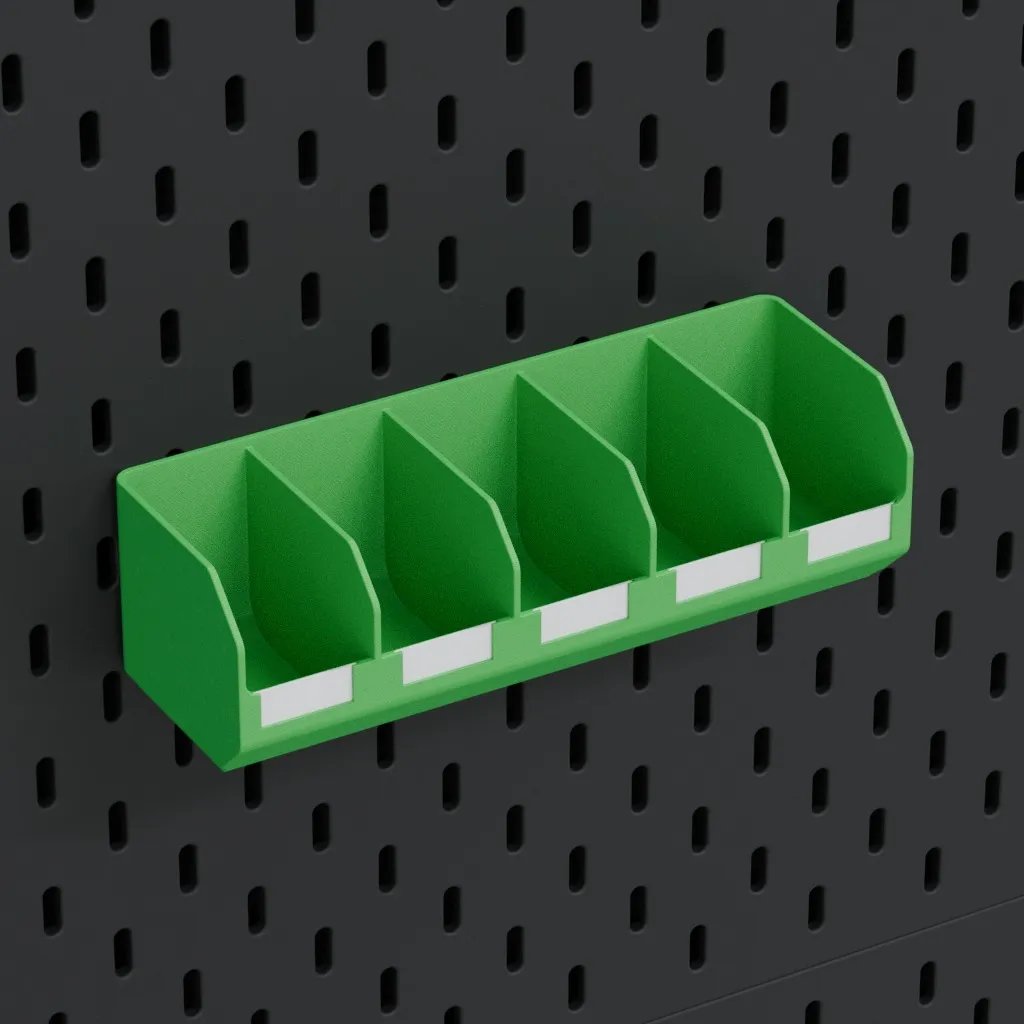

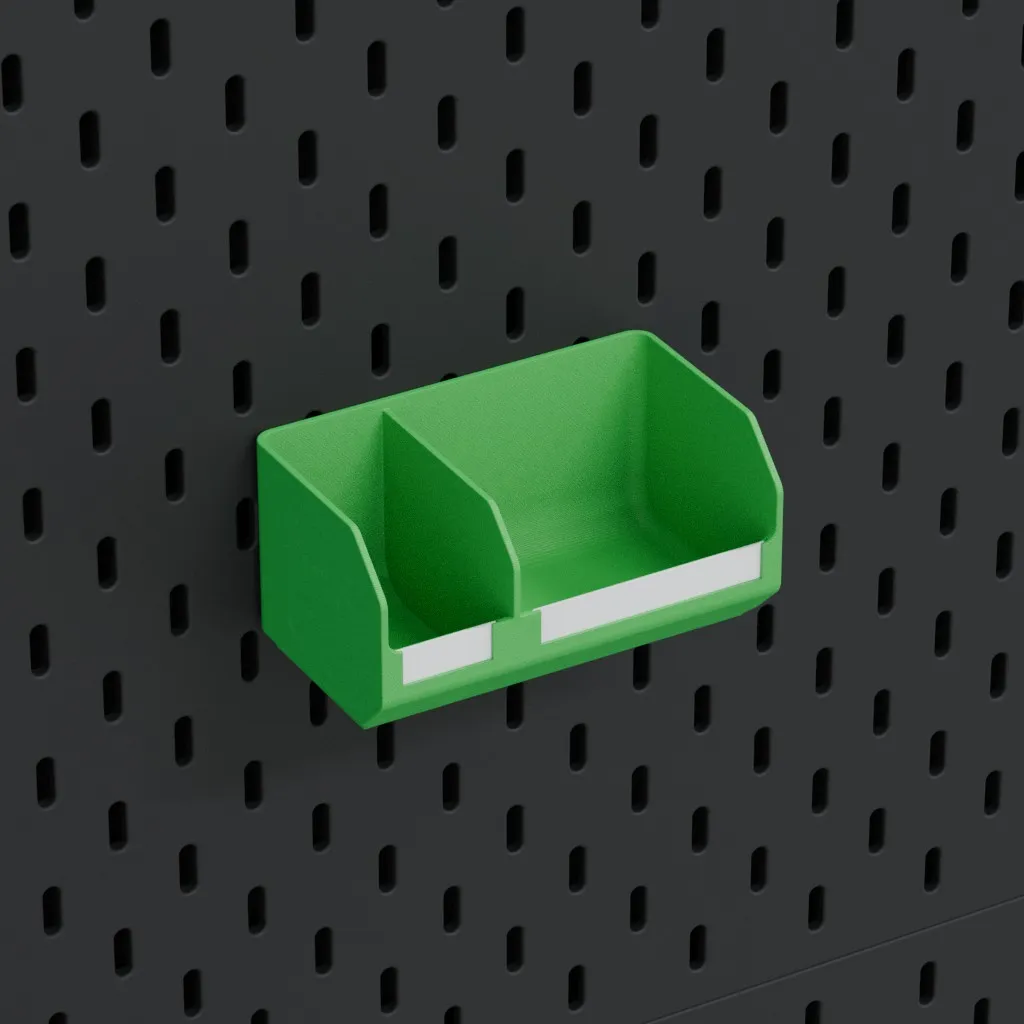

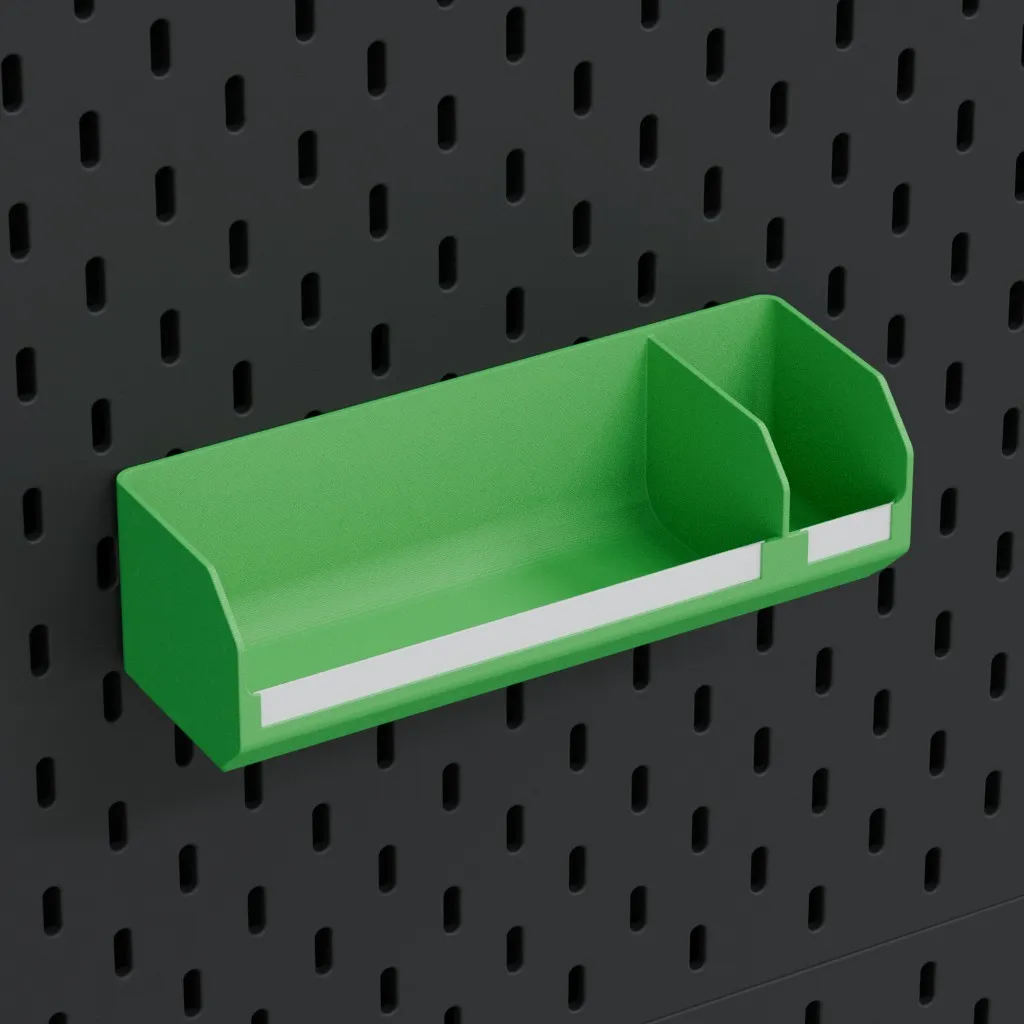

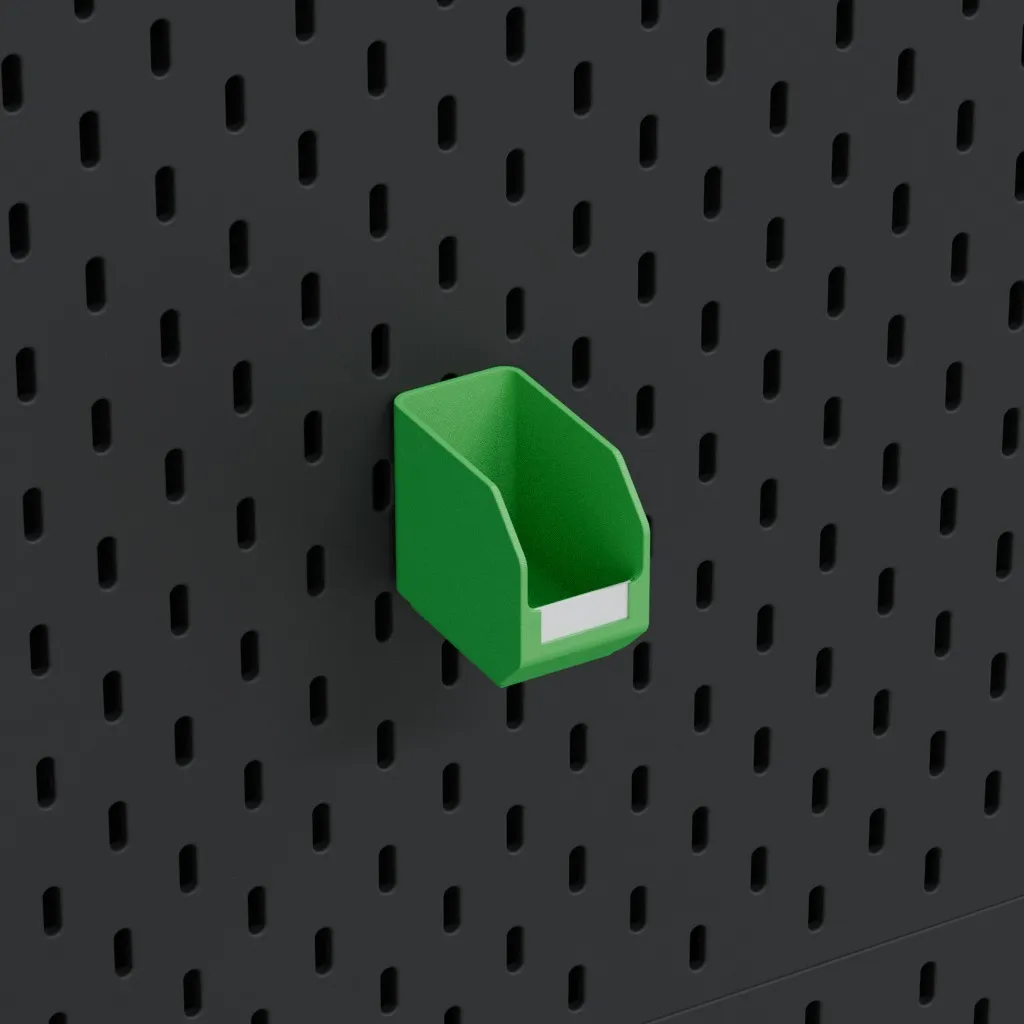

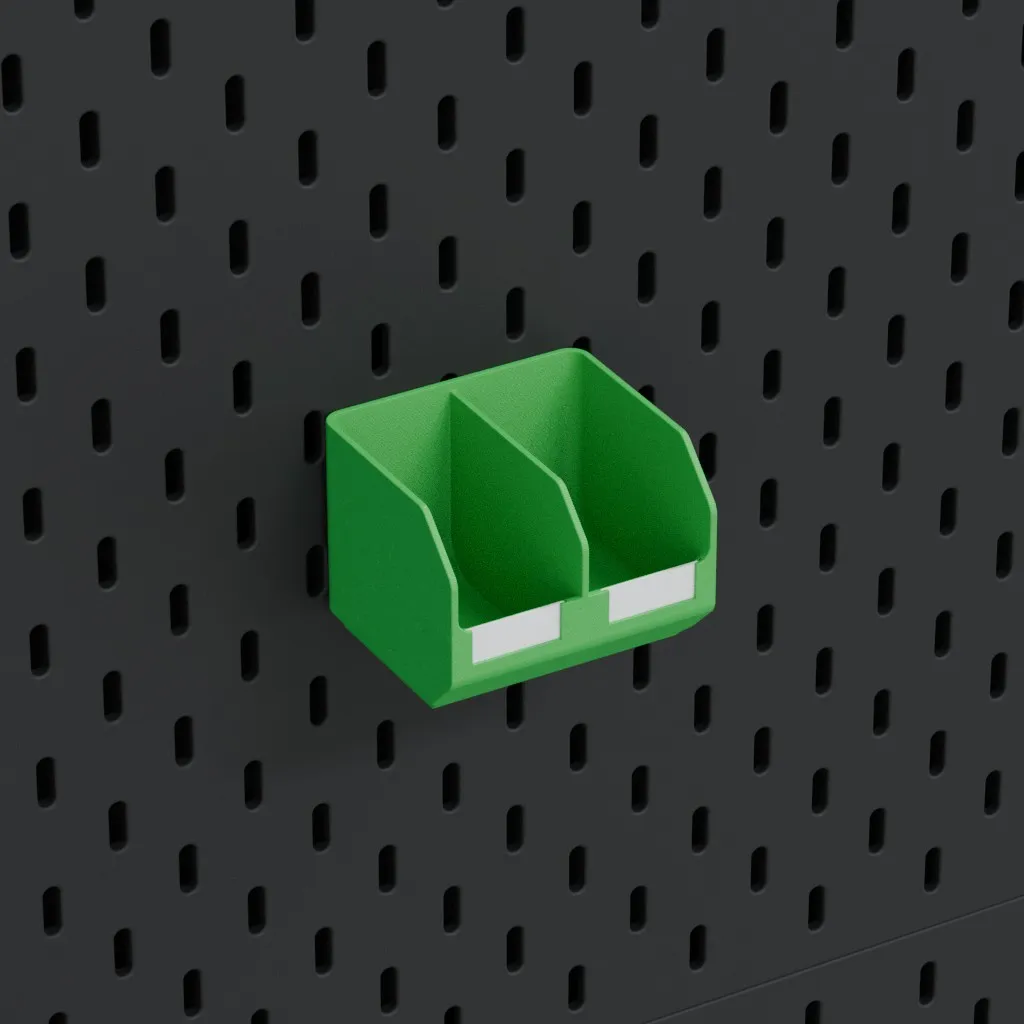

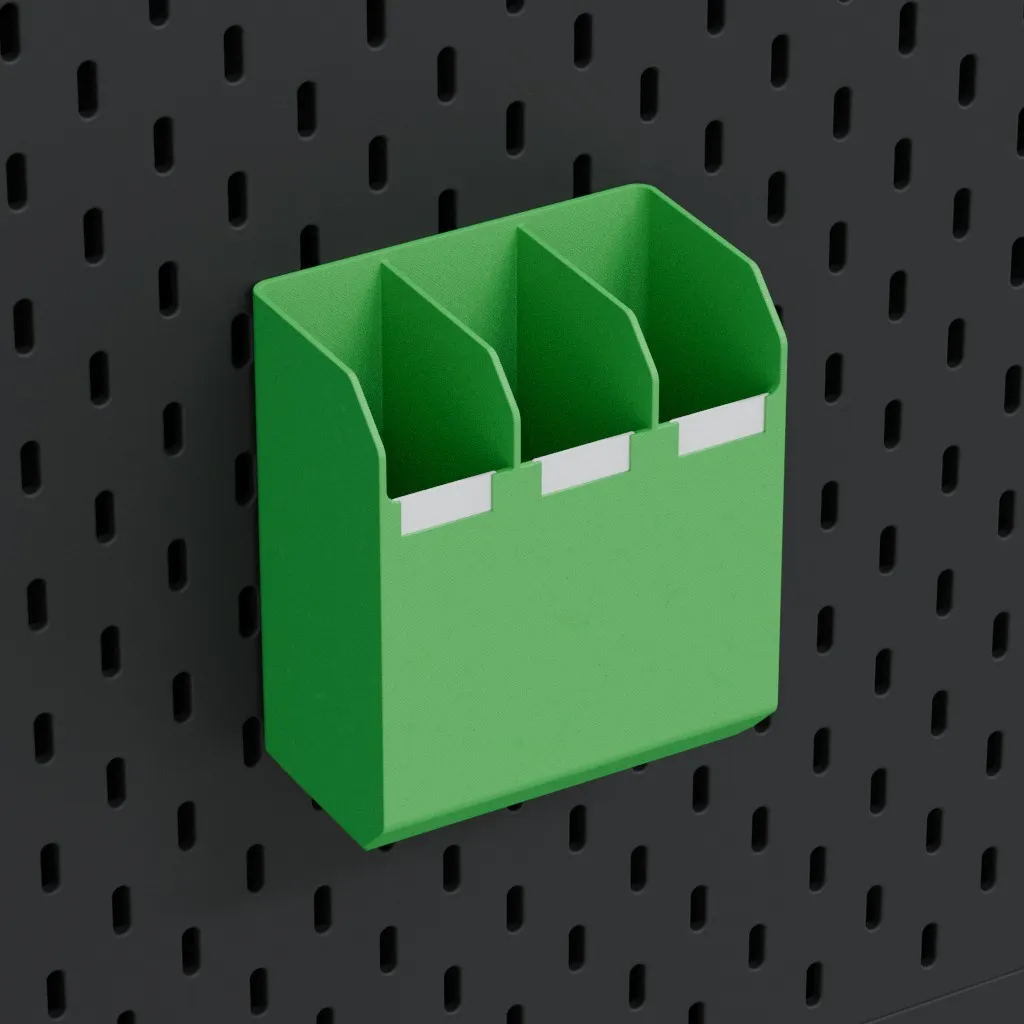

Trays Regular With Label

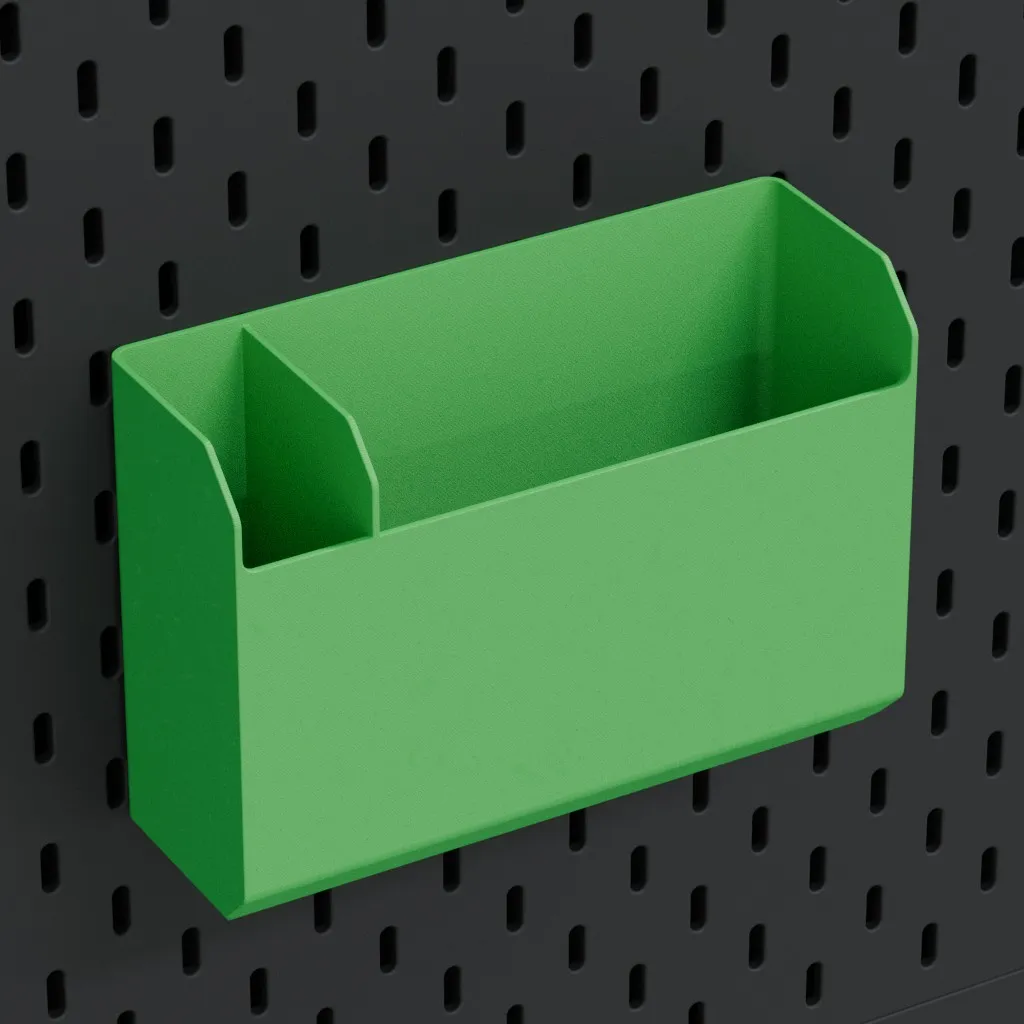

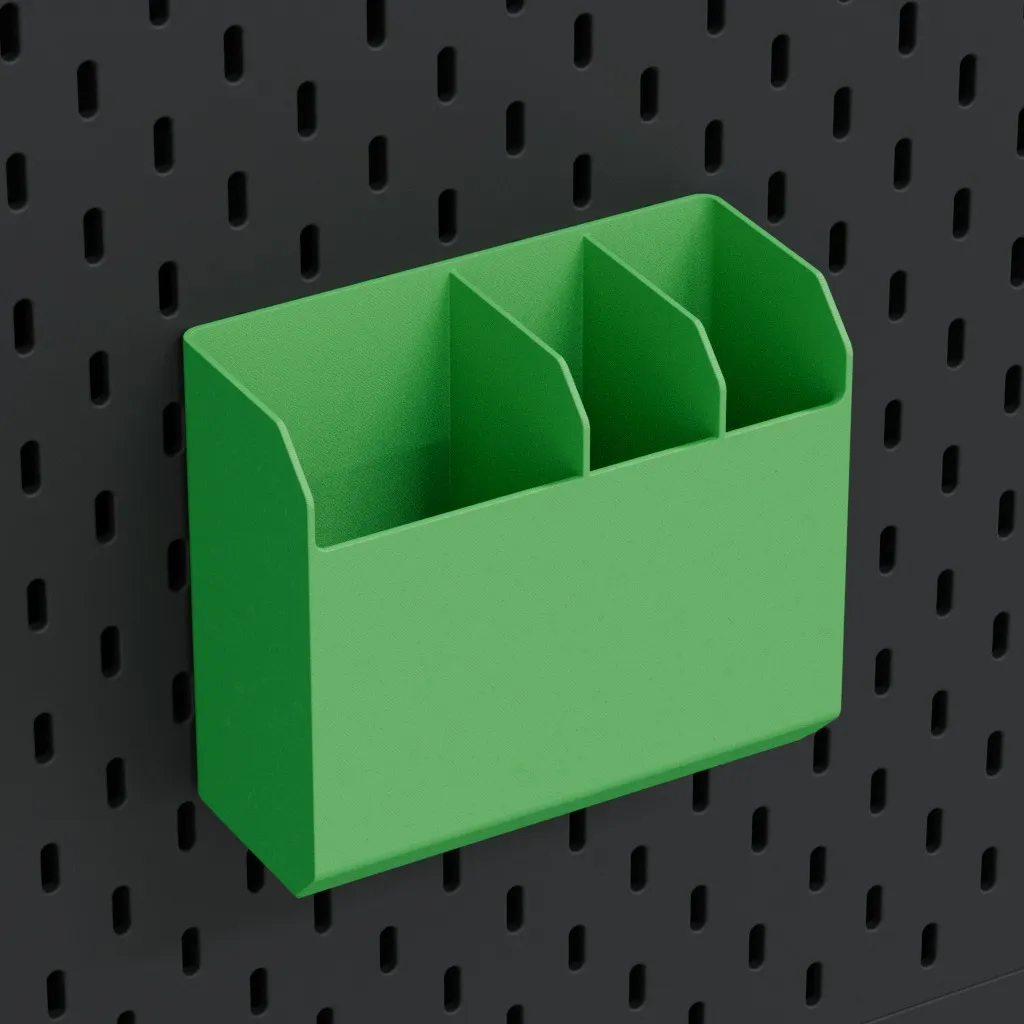

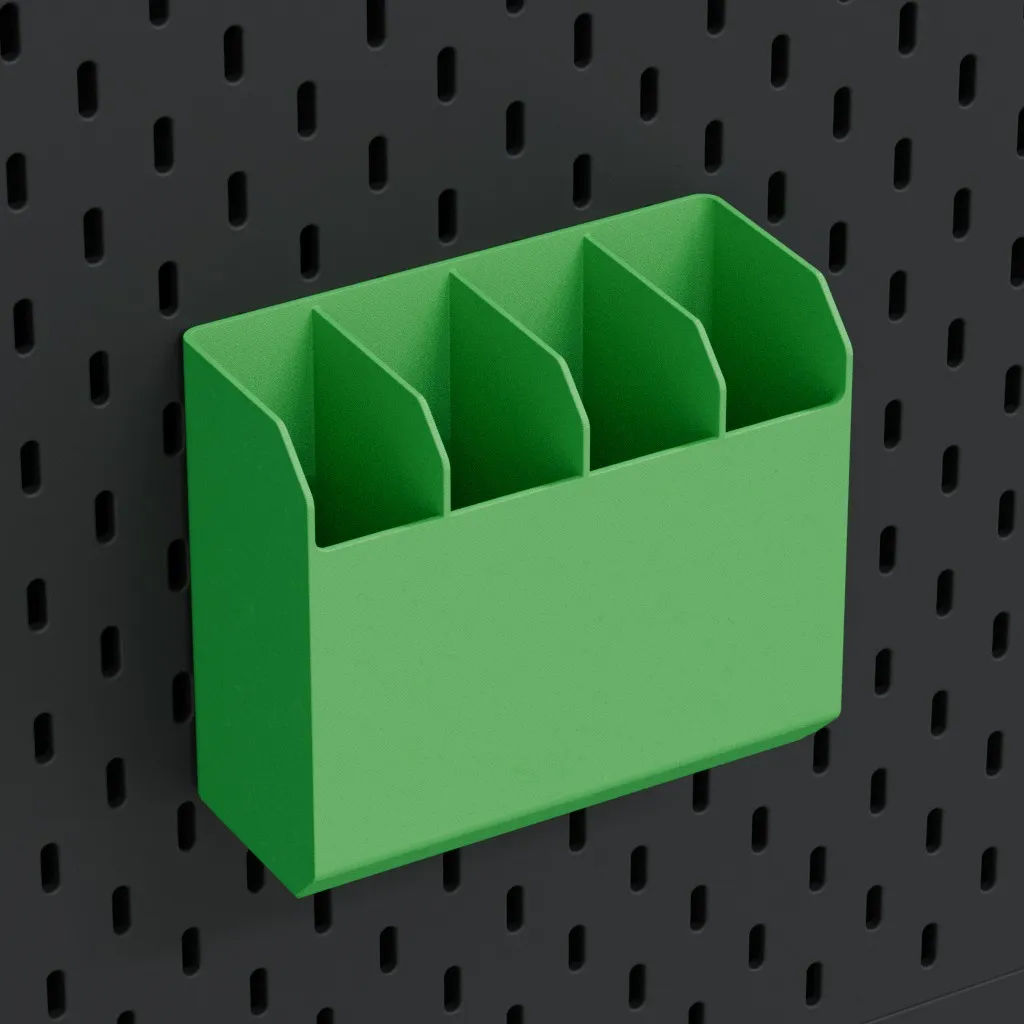

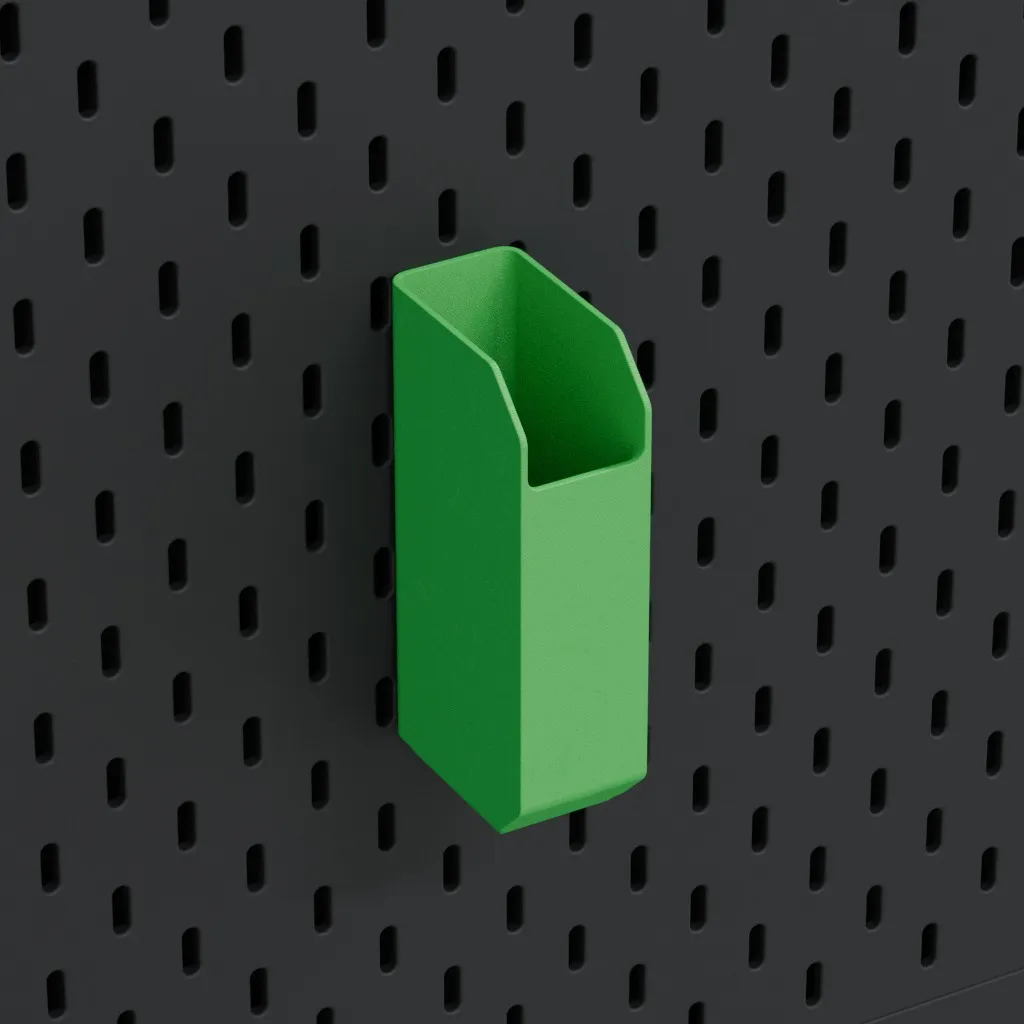

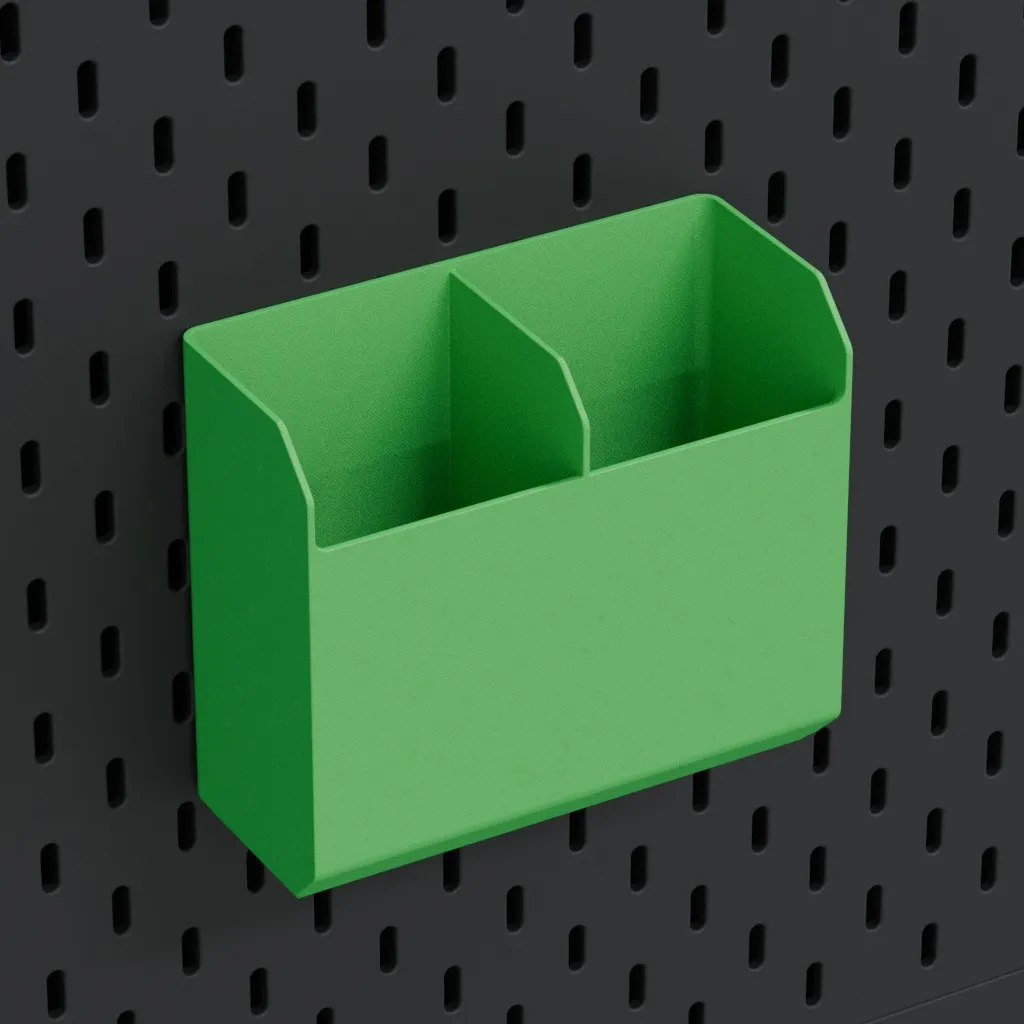

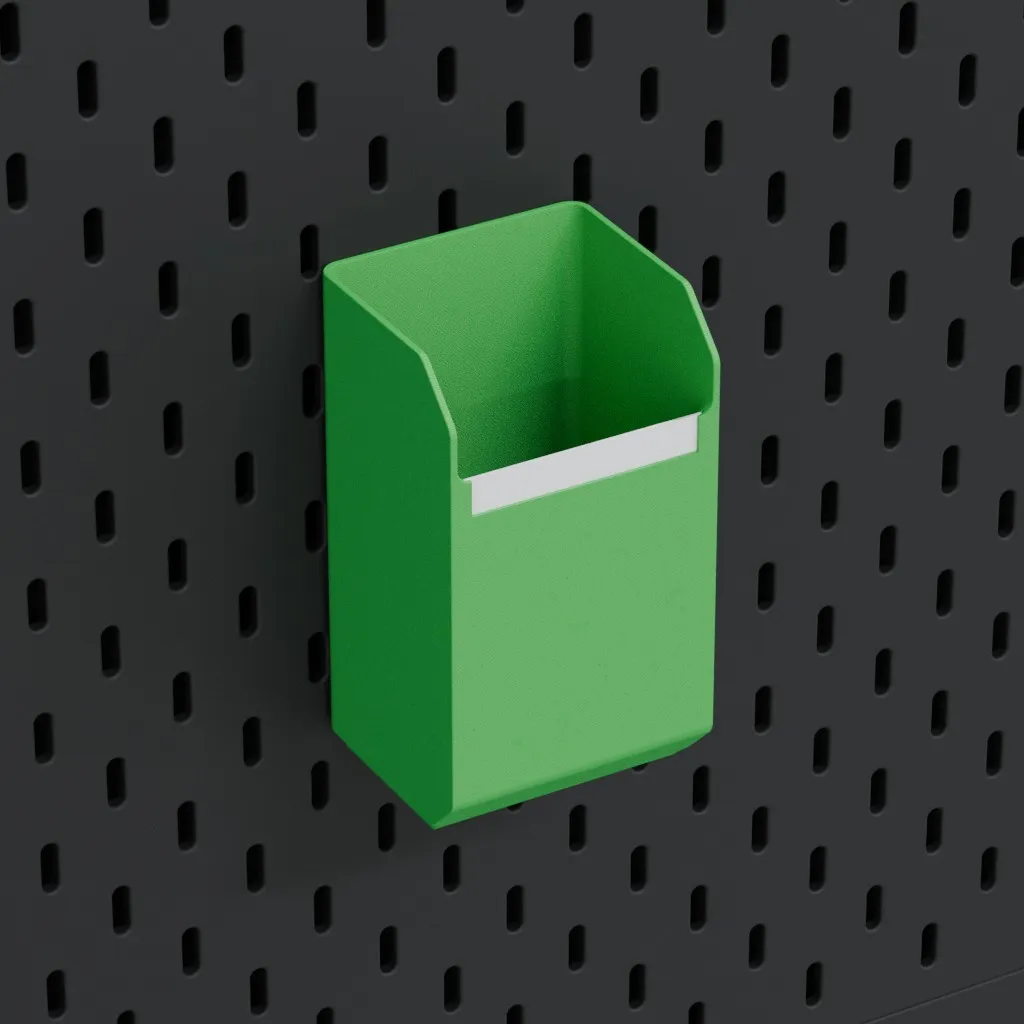

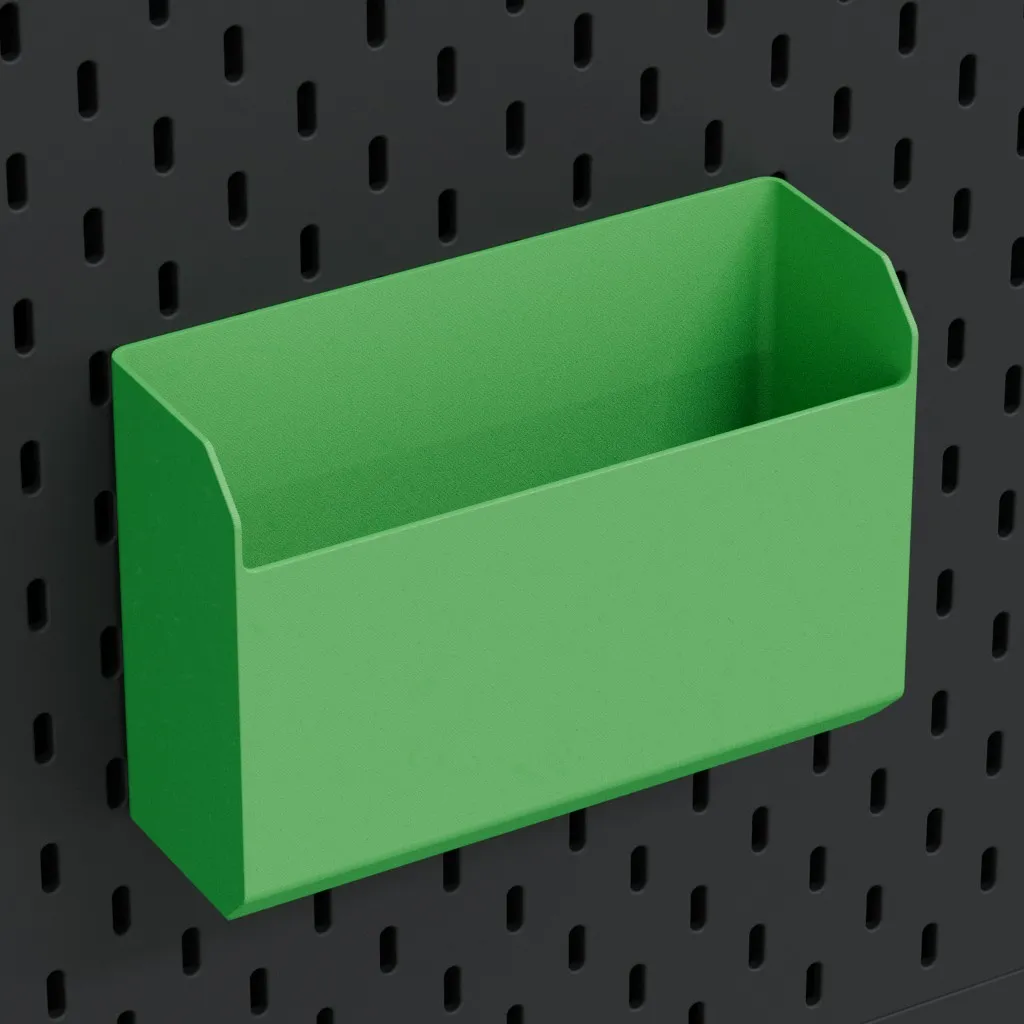

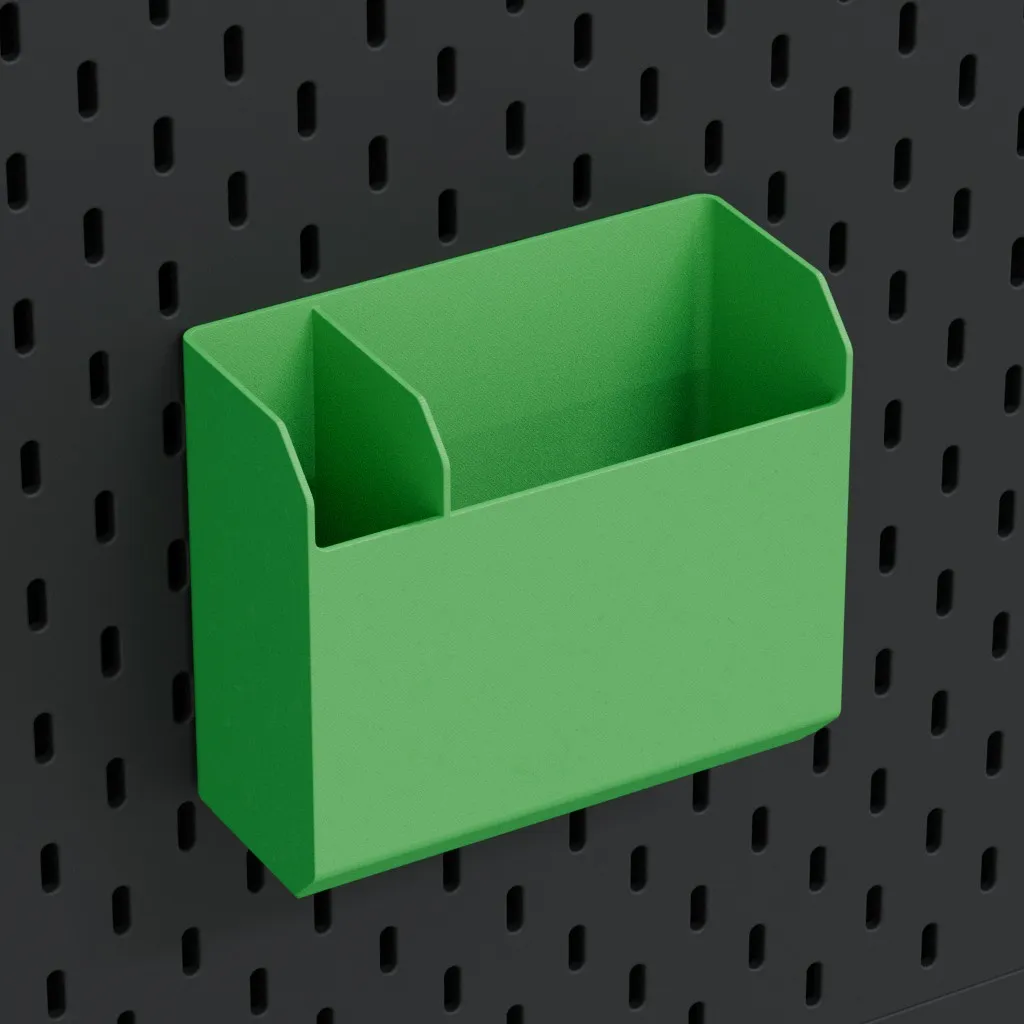

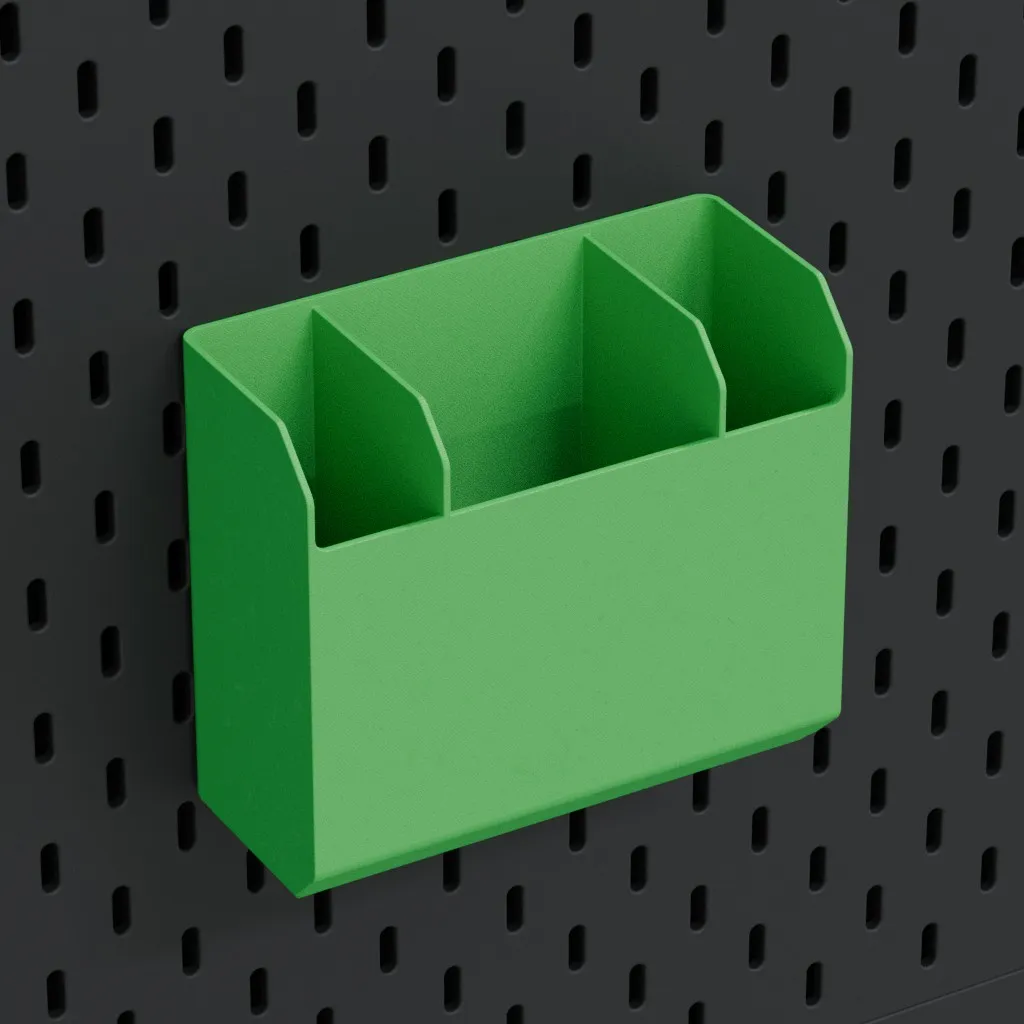

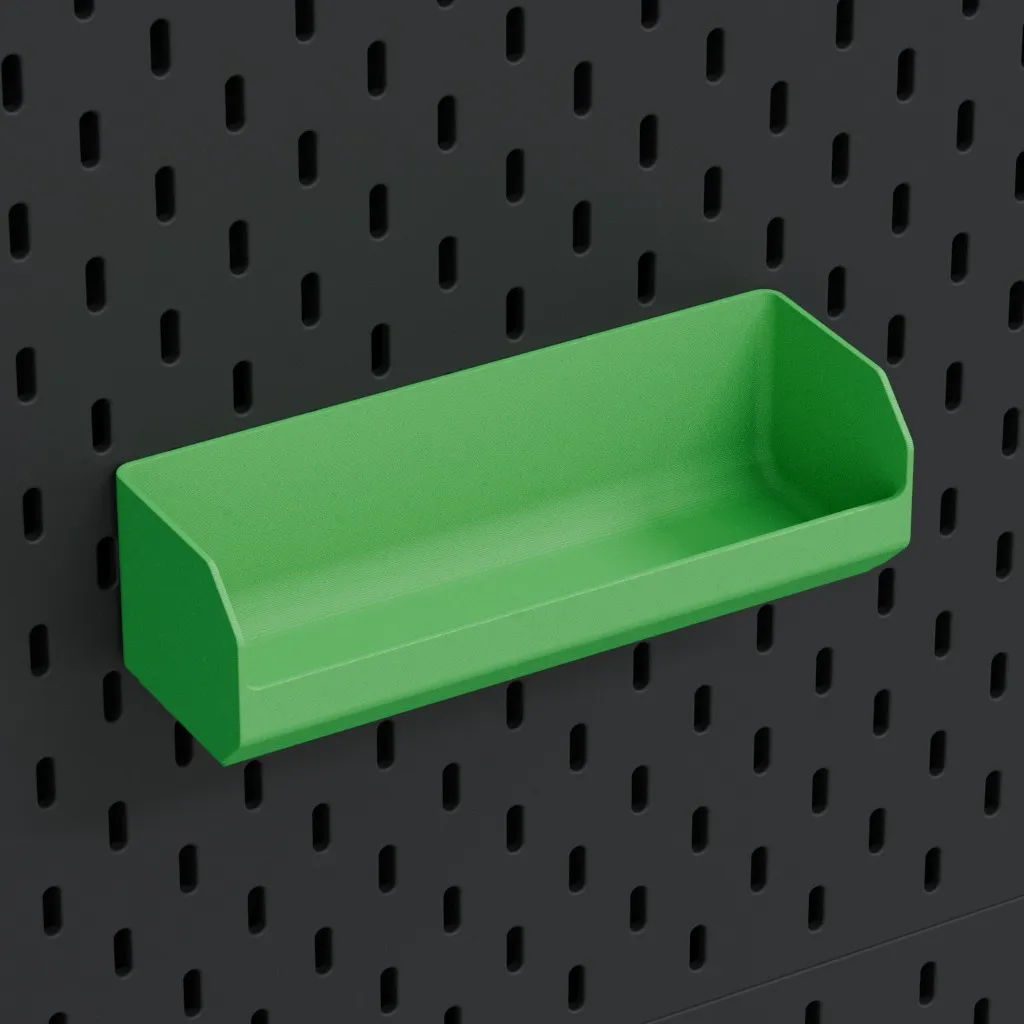

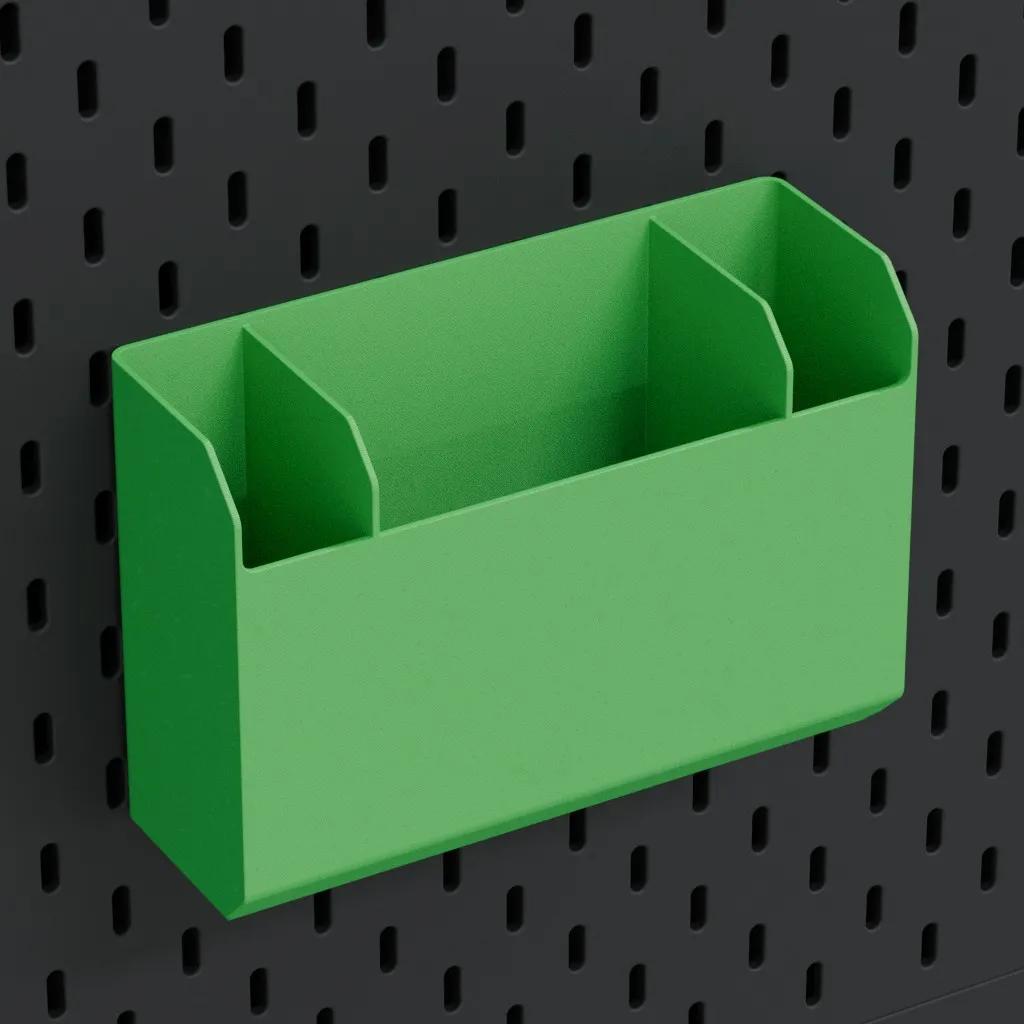

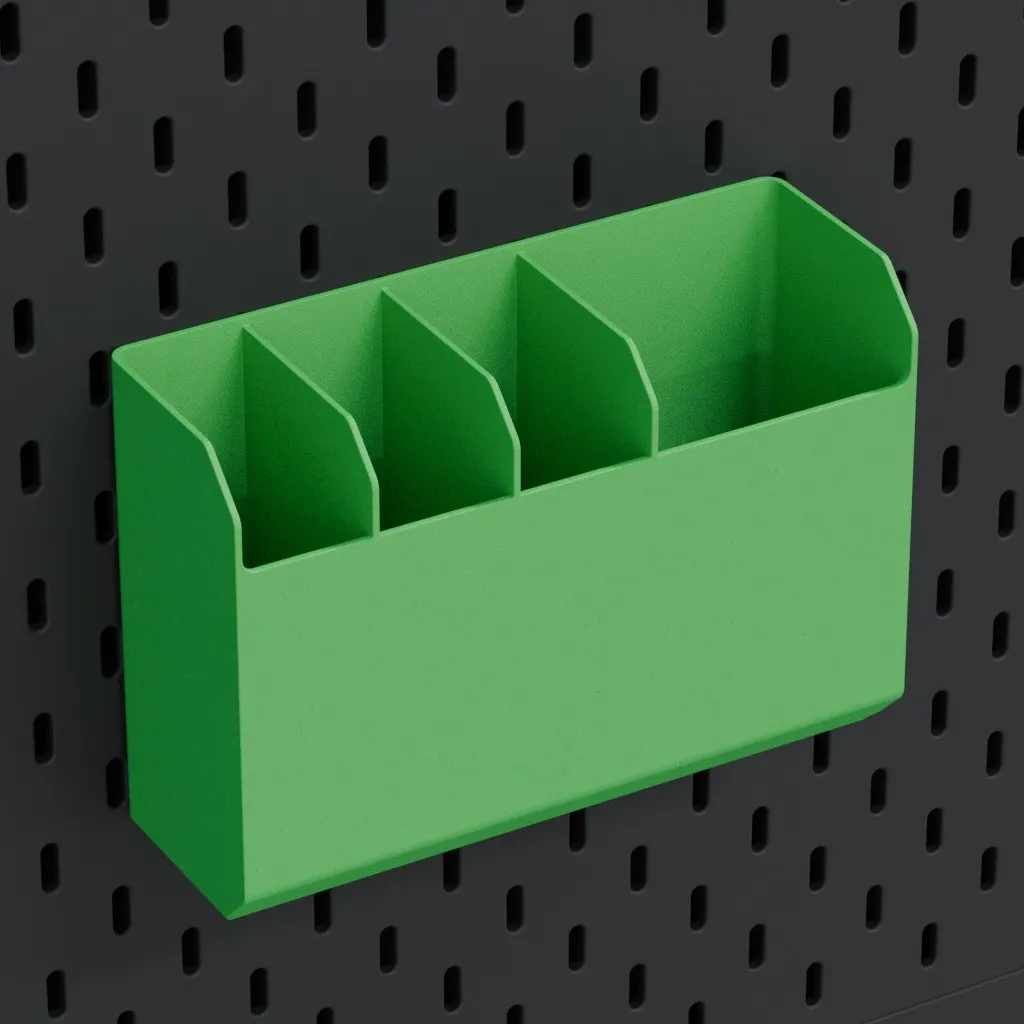

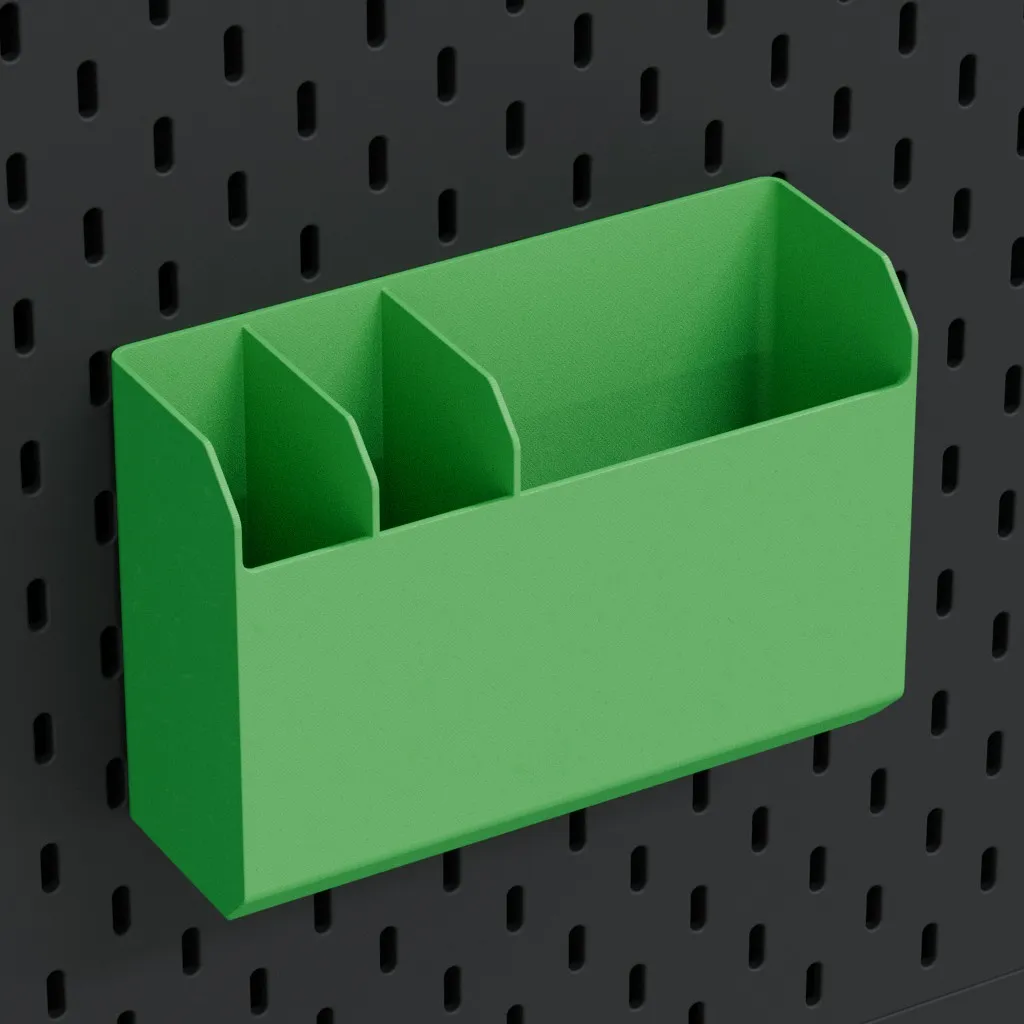

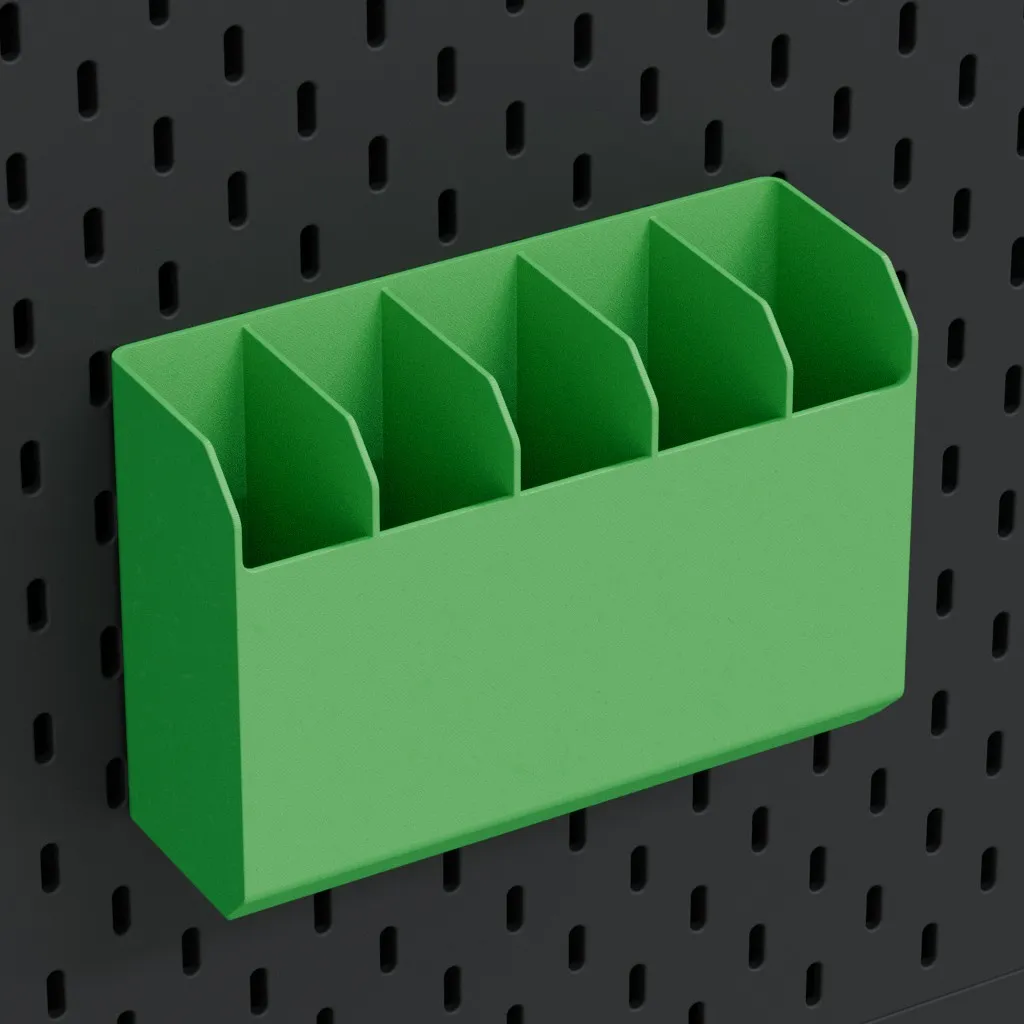

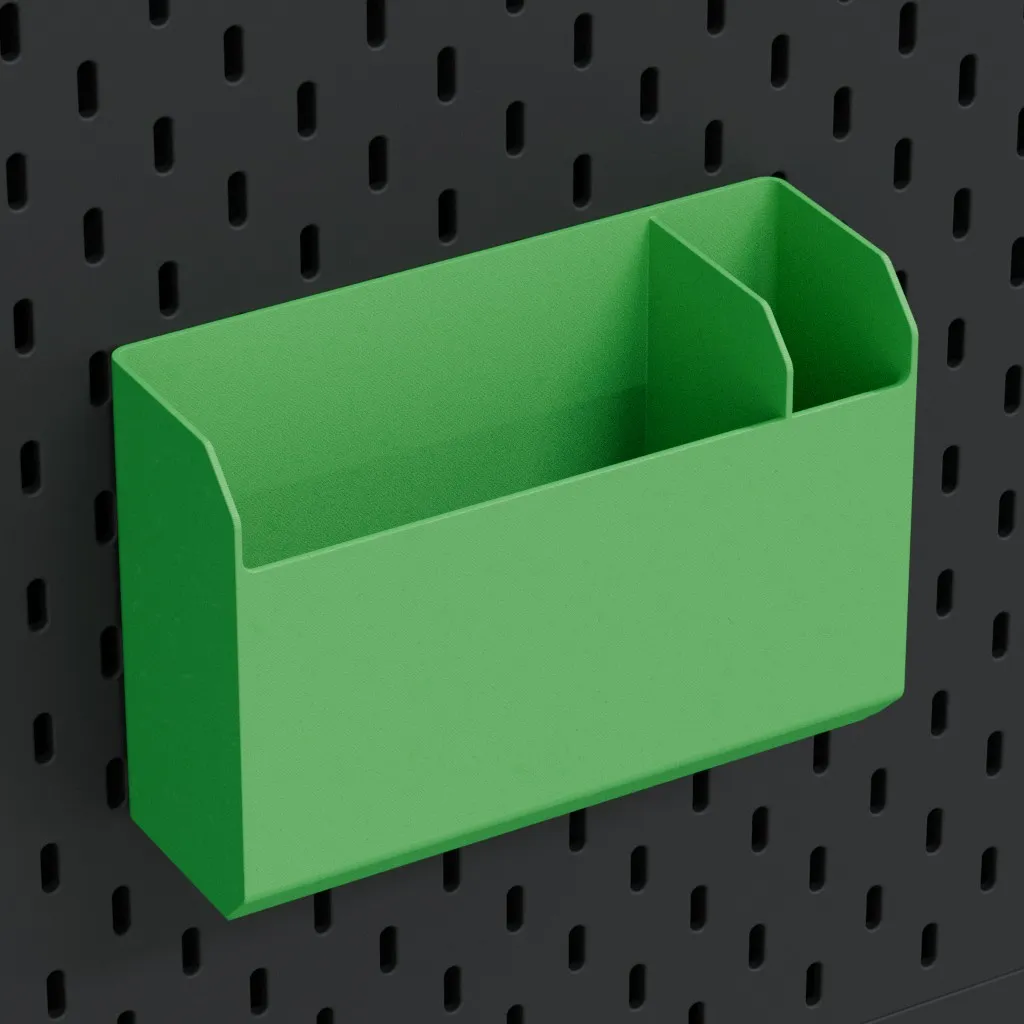

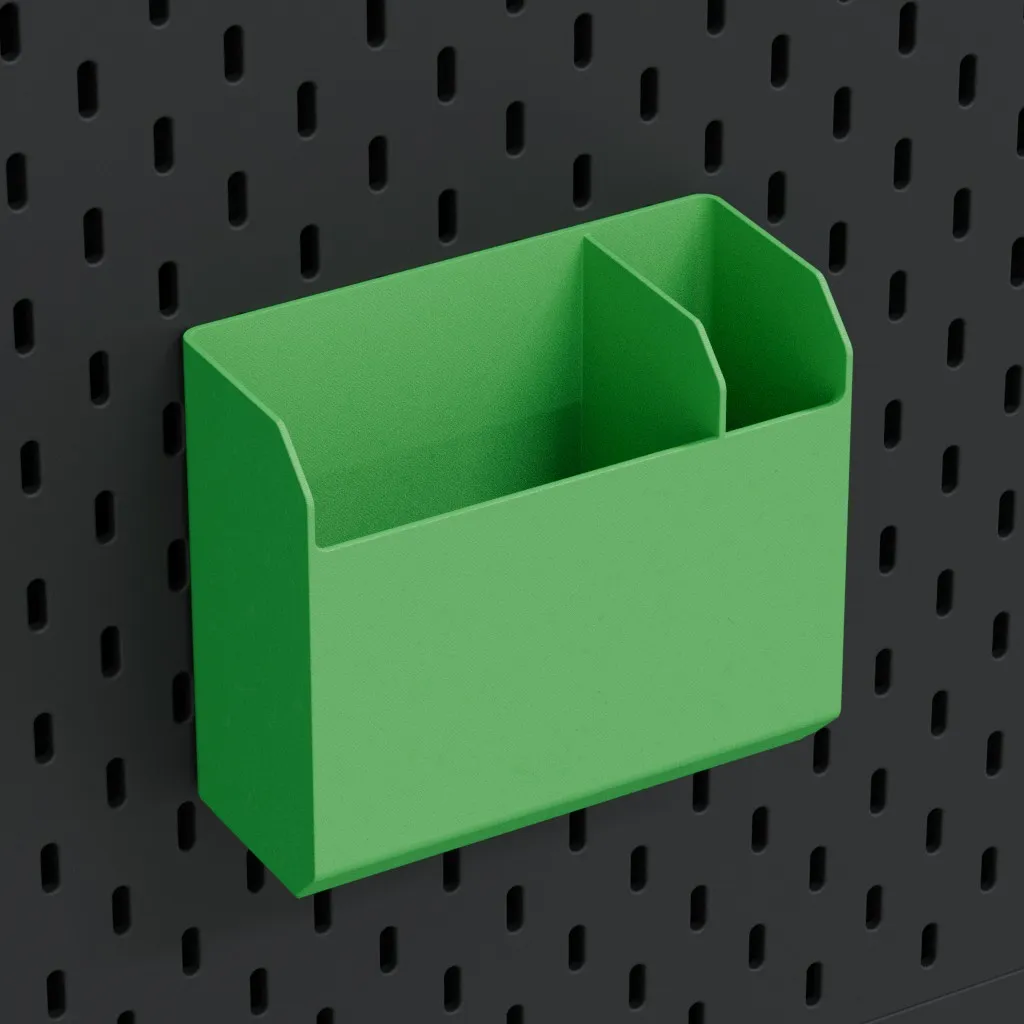

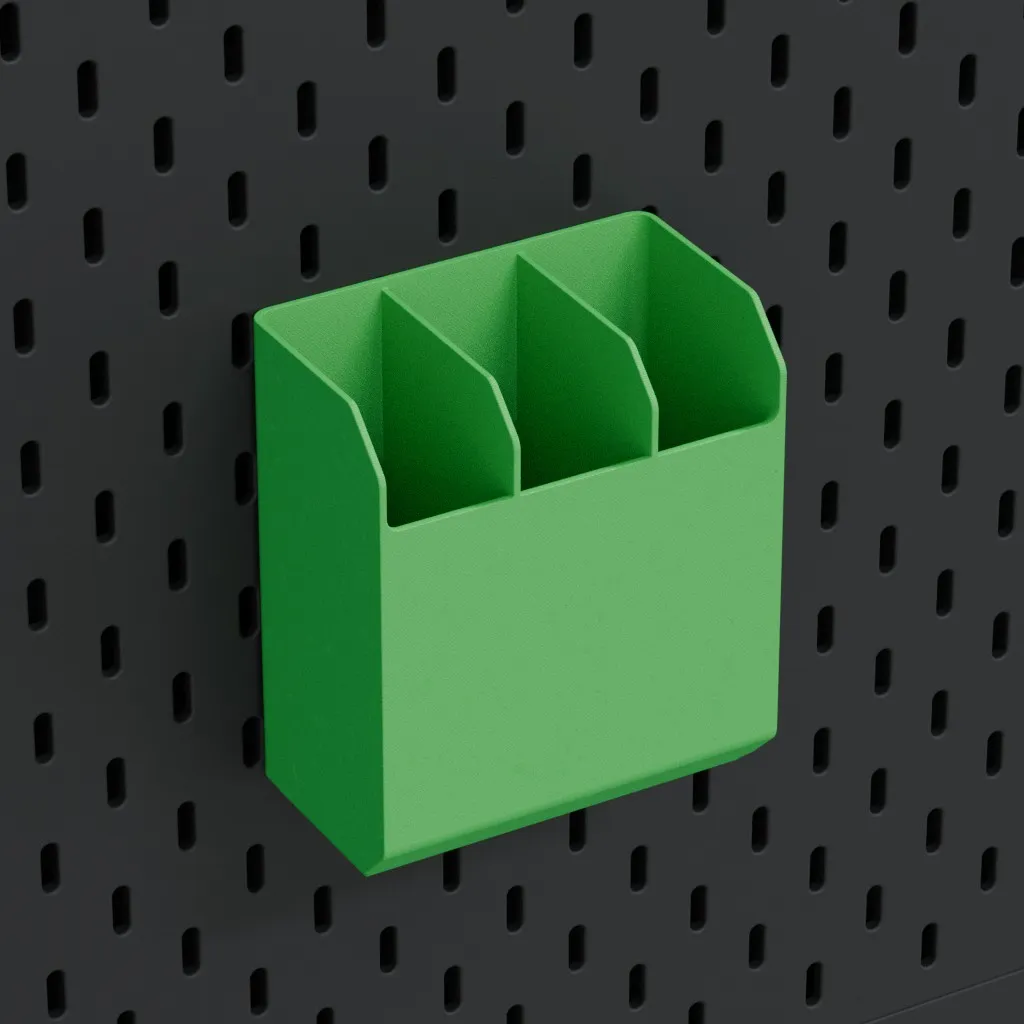

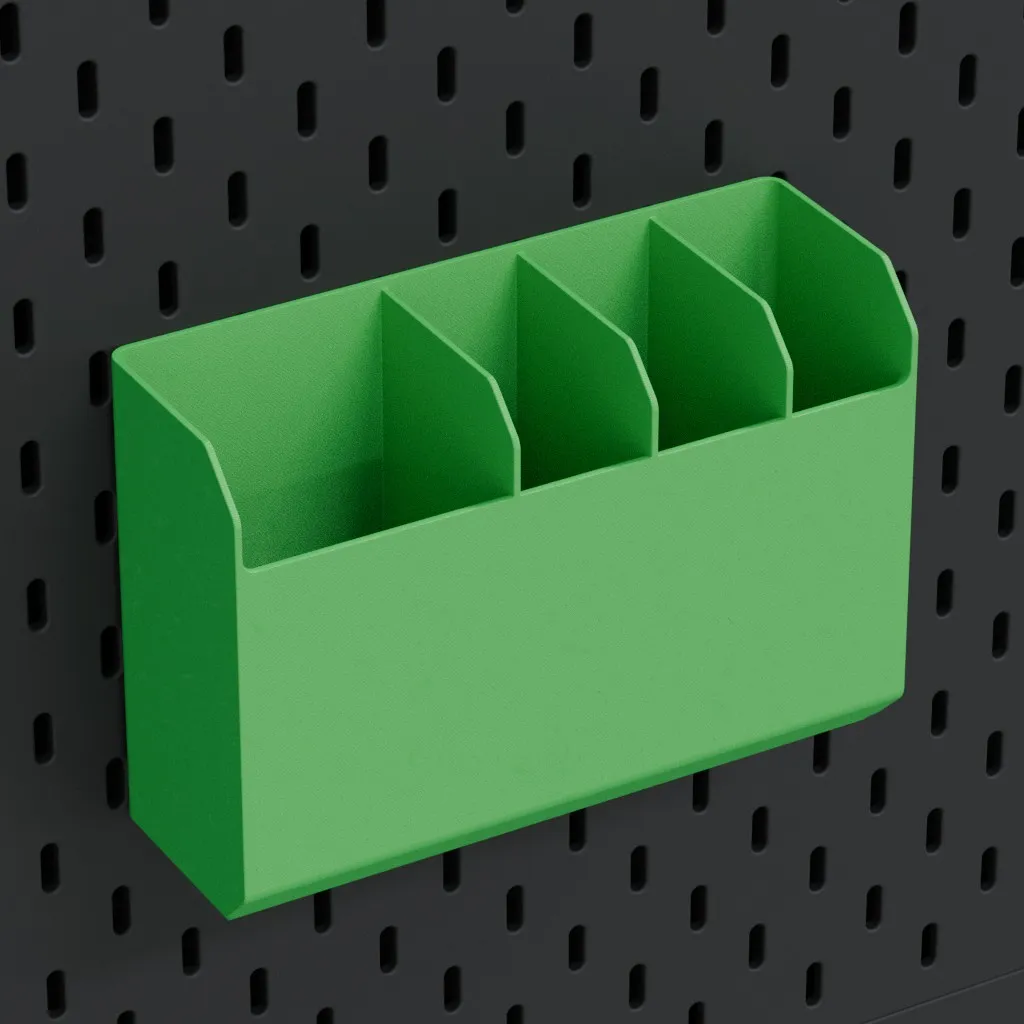

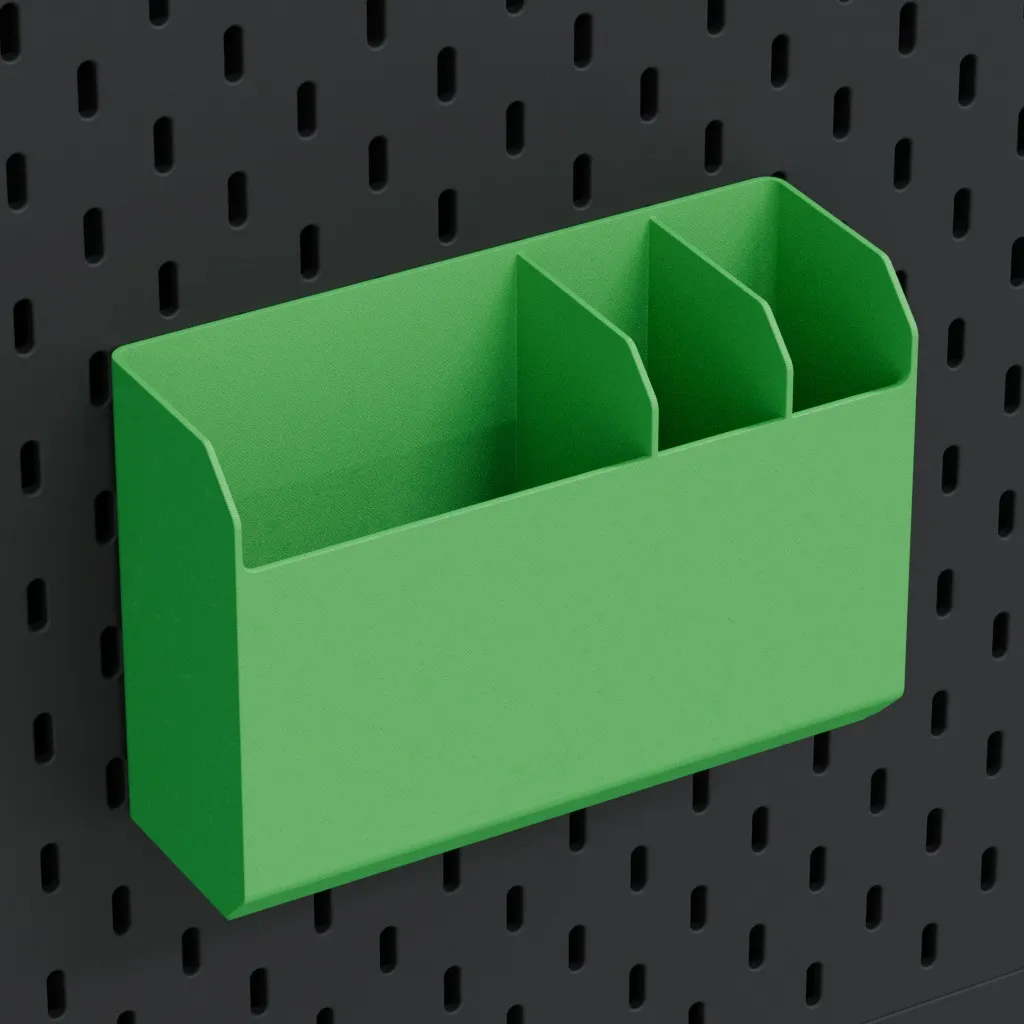

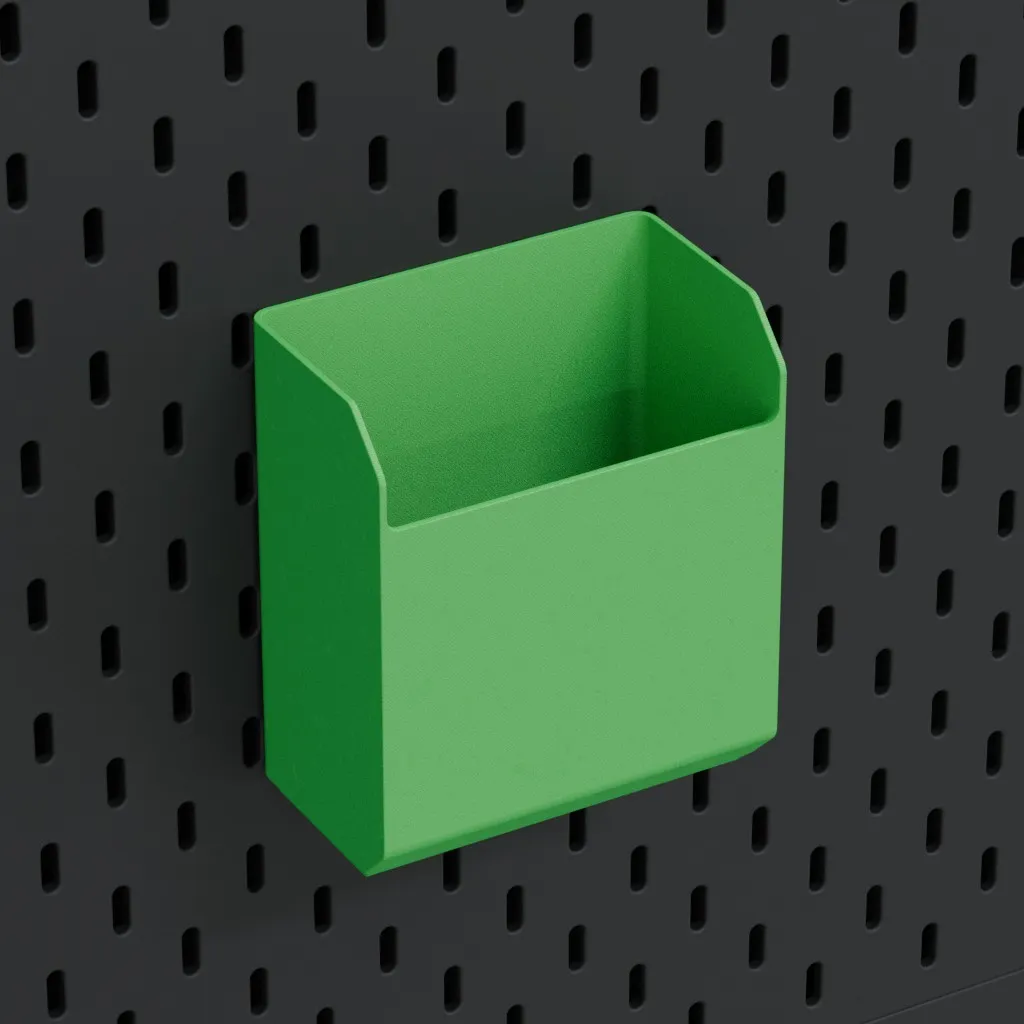

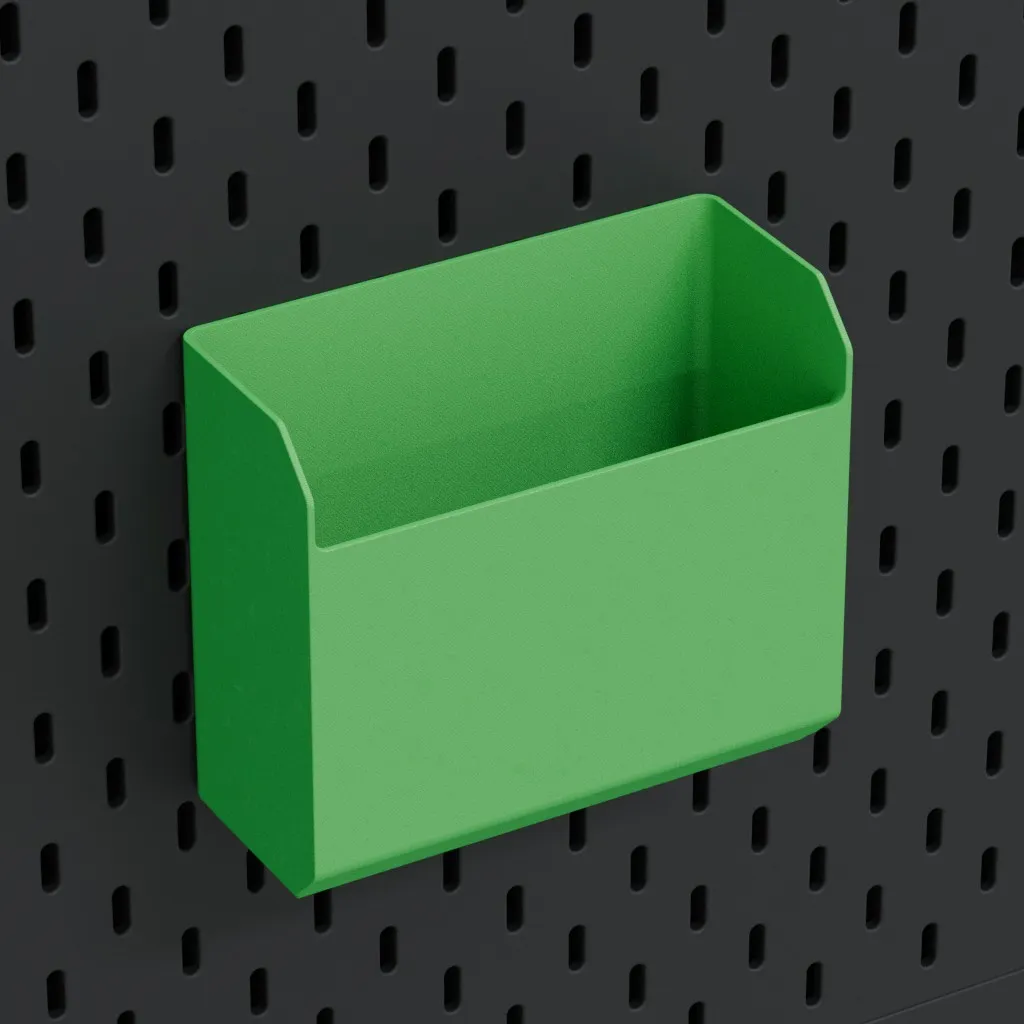

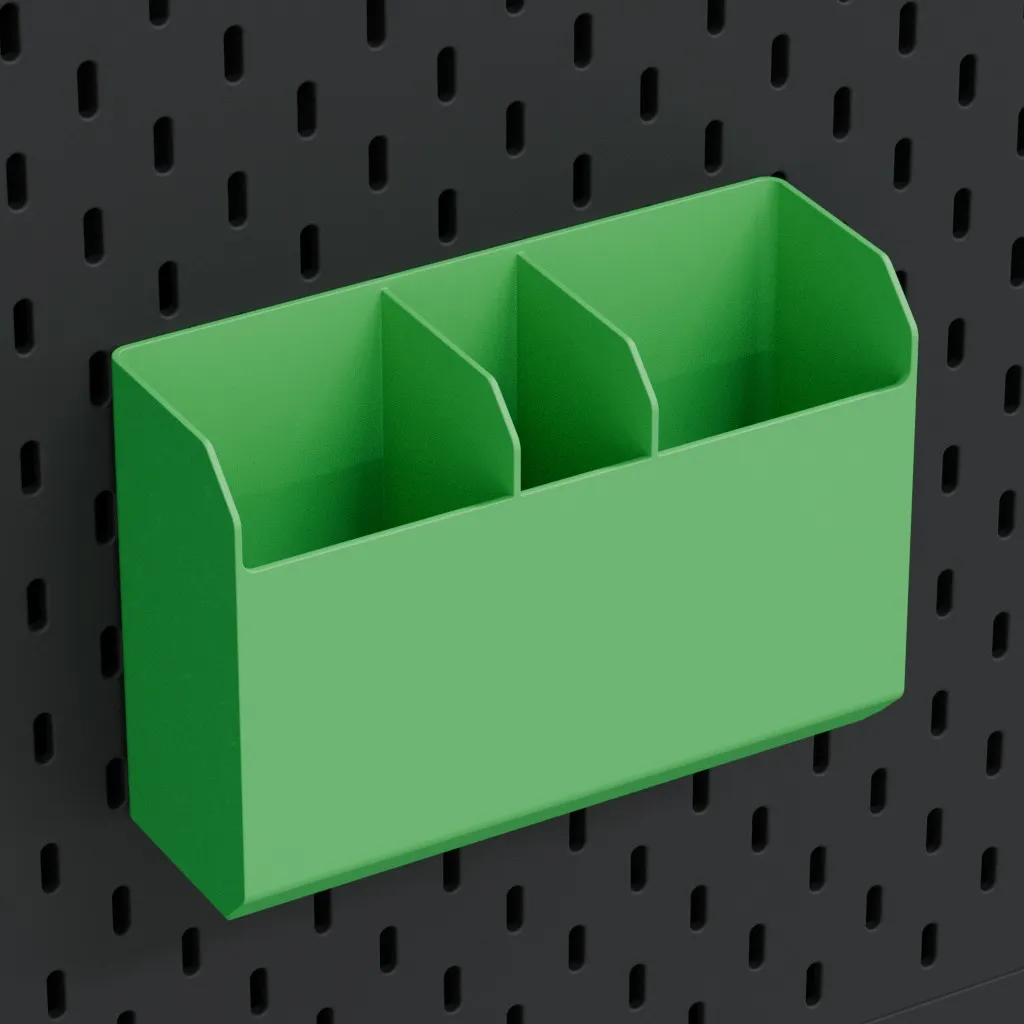

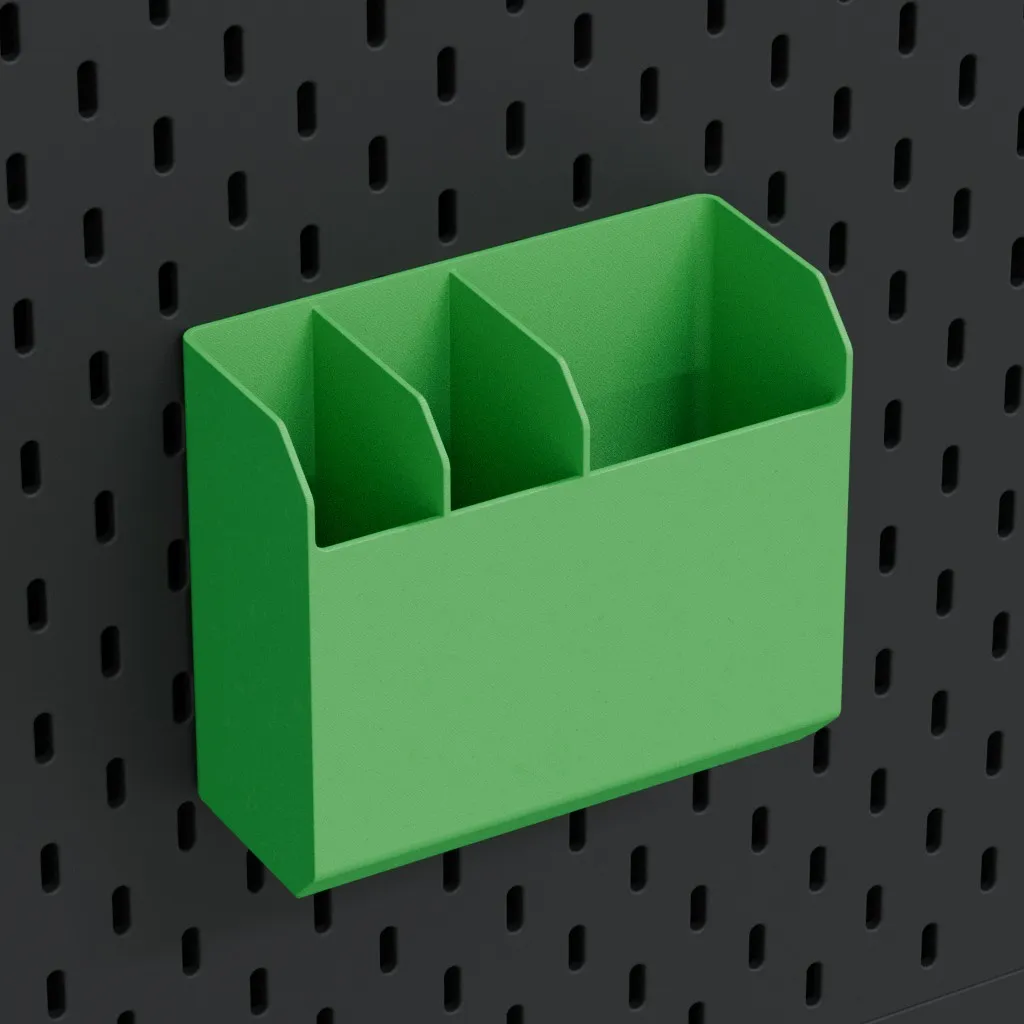

Trays Large

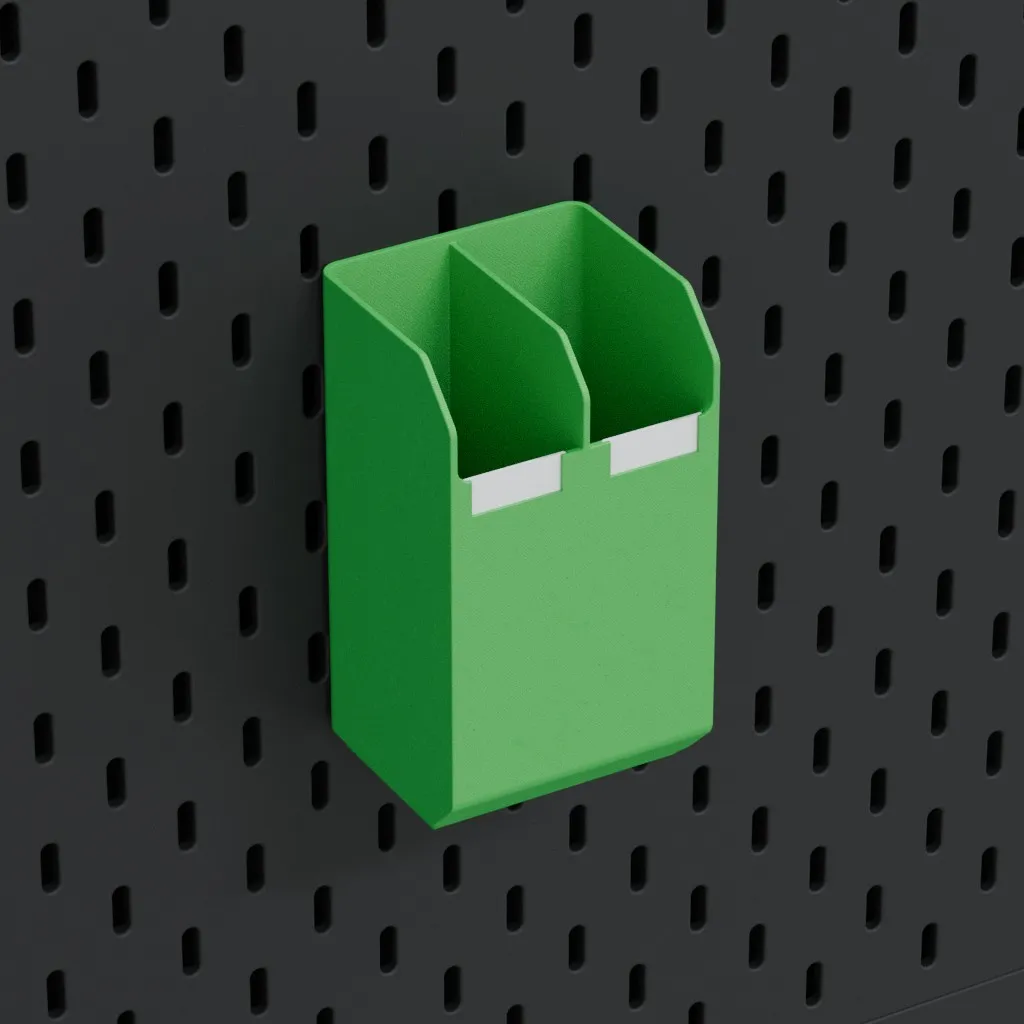

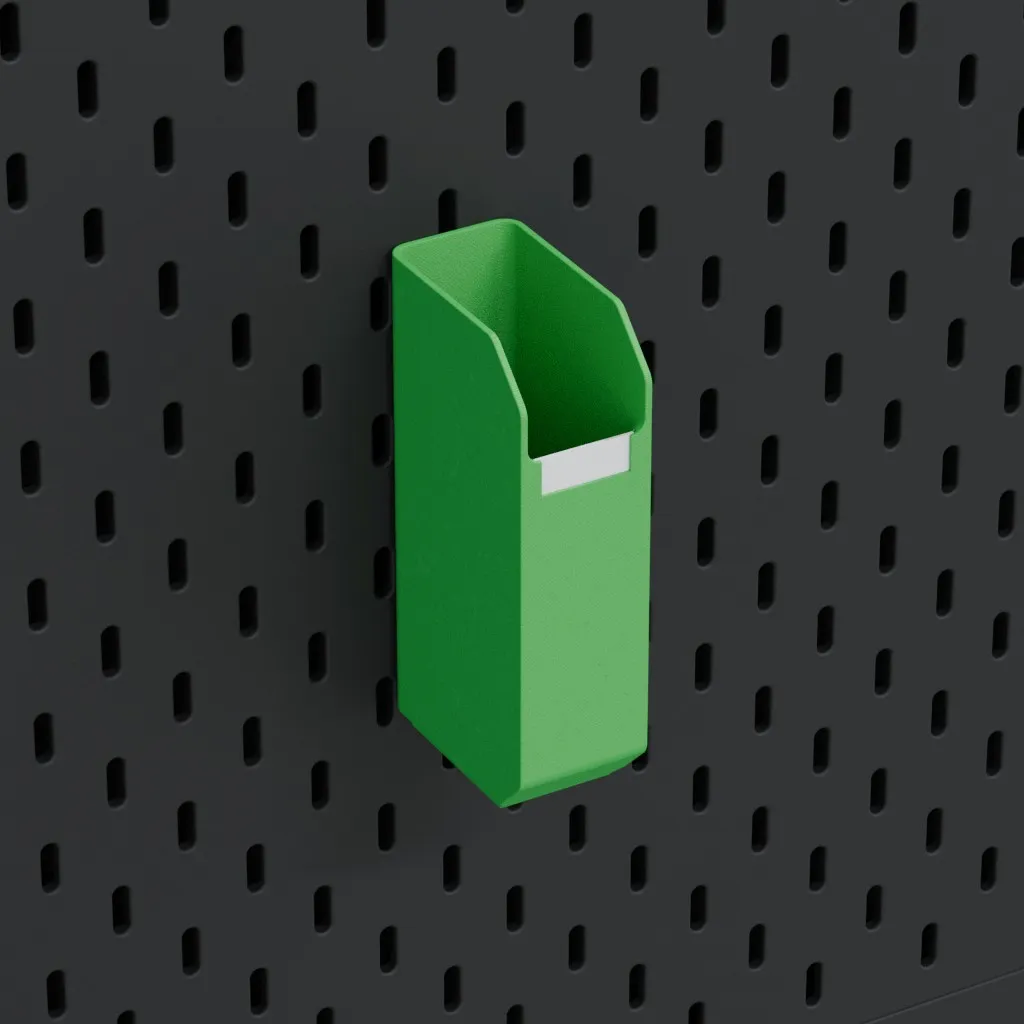

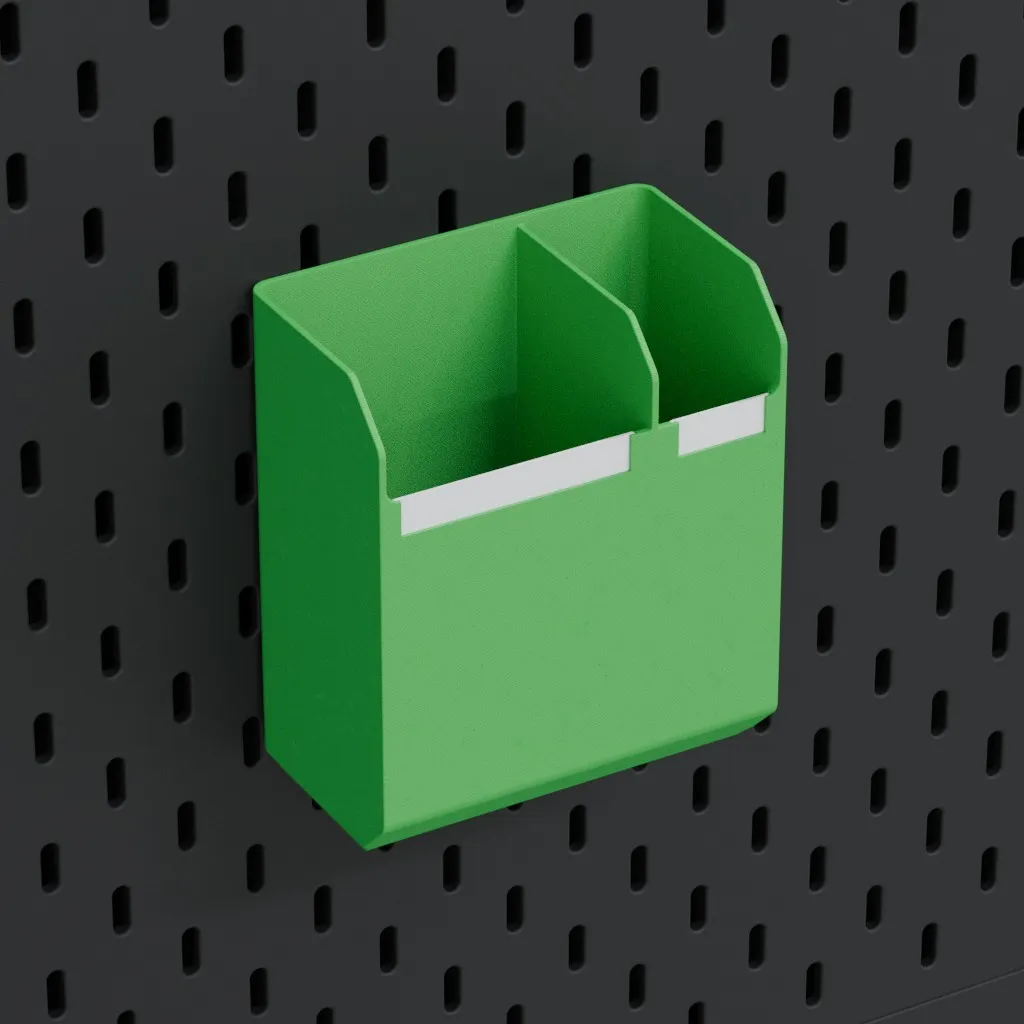

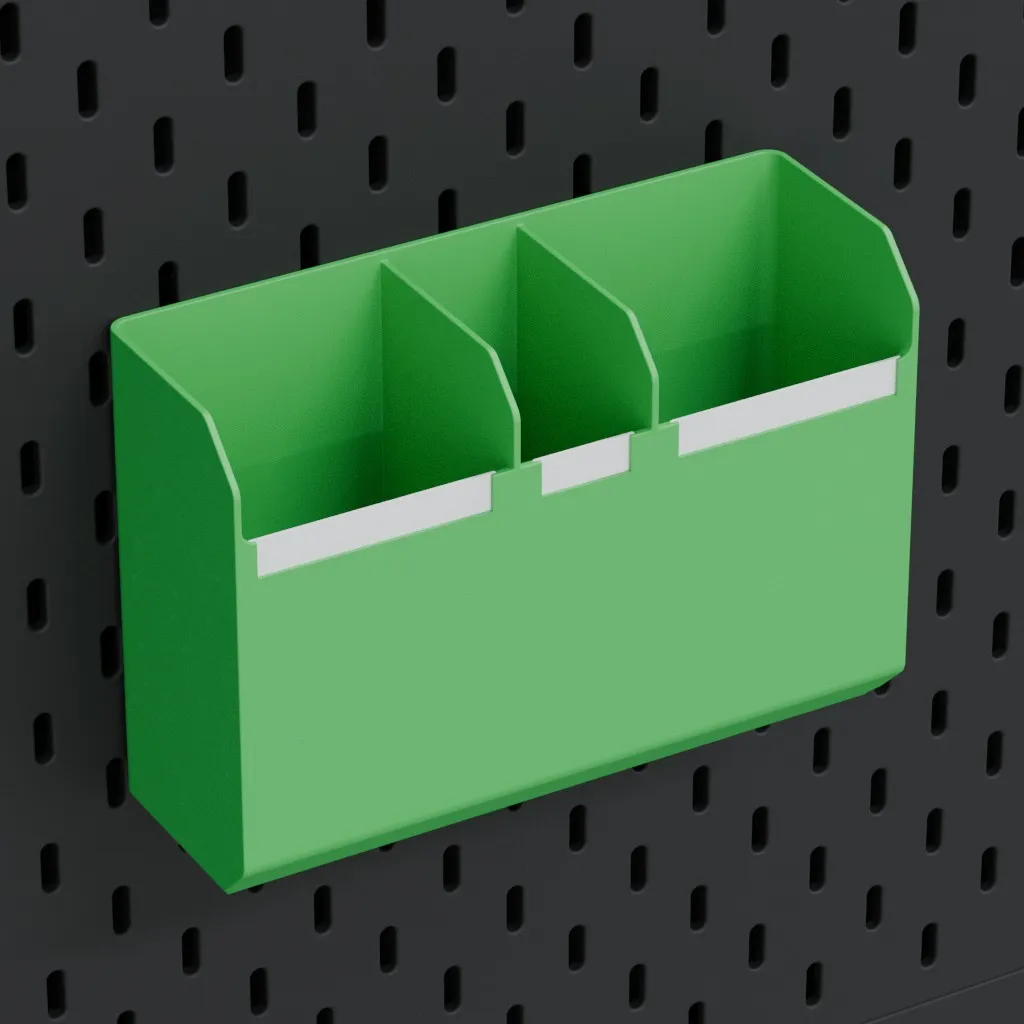

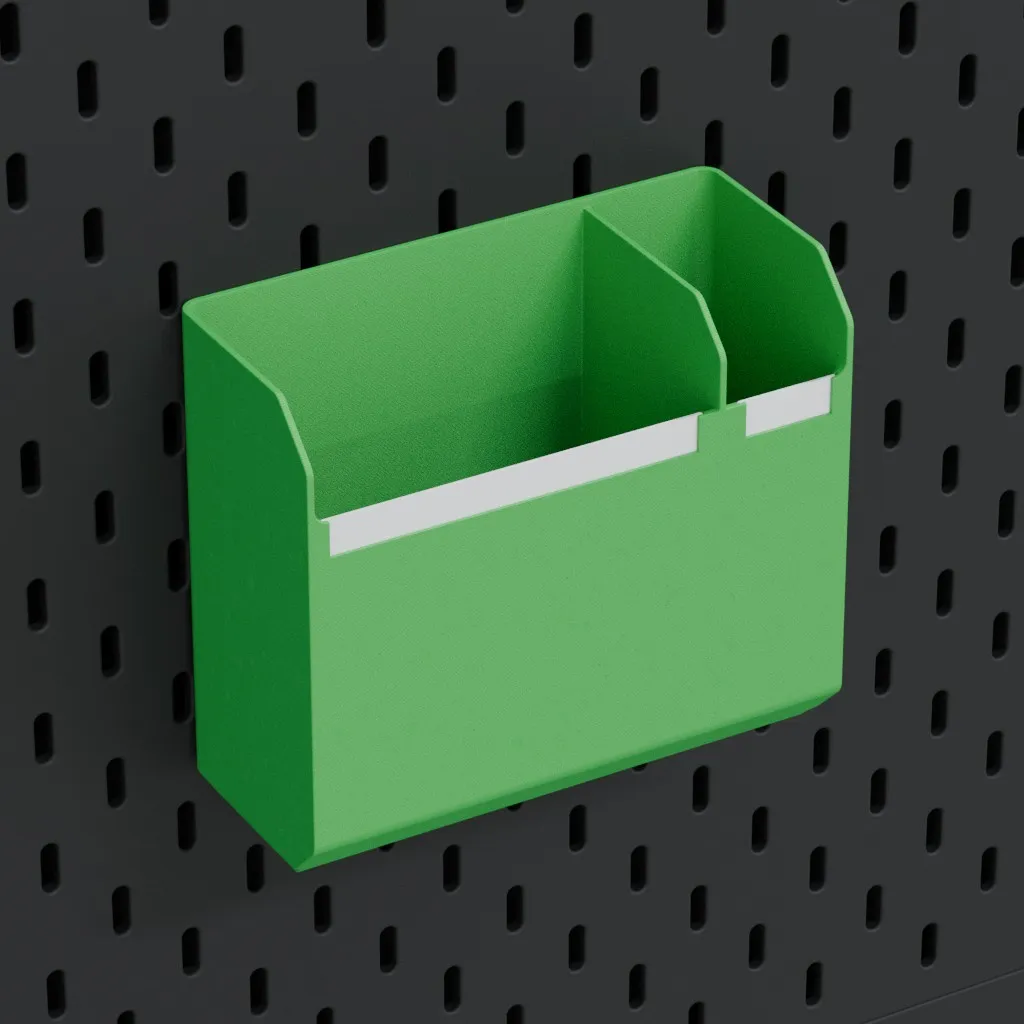

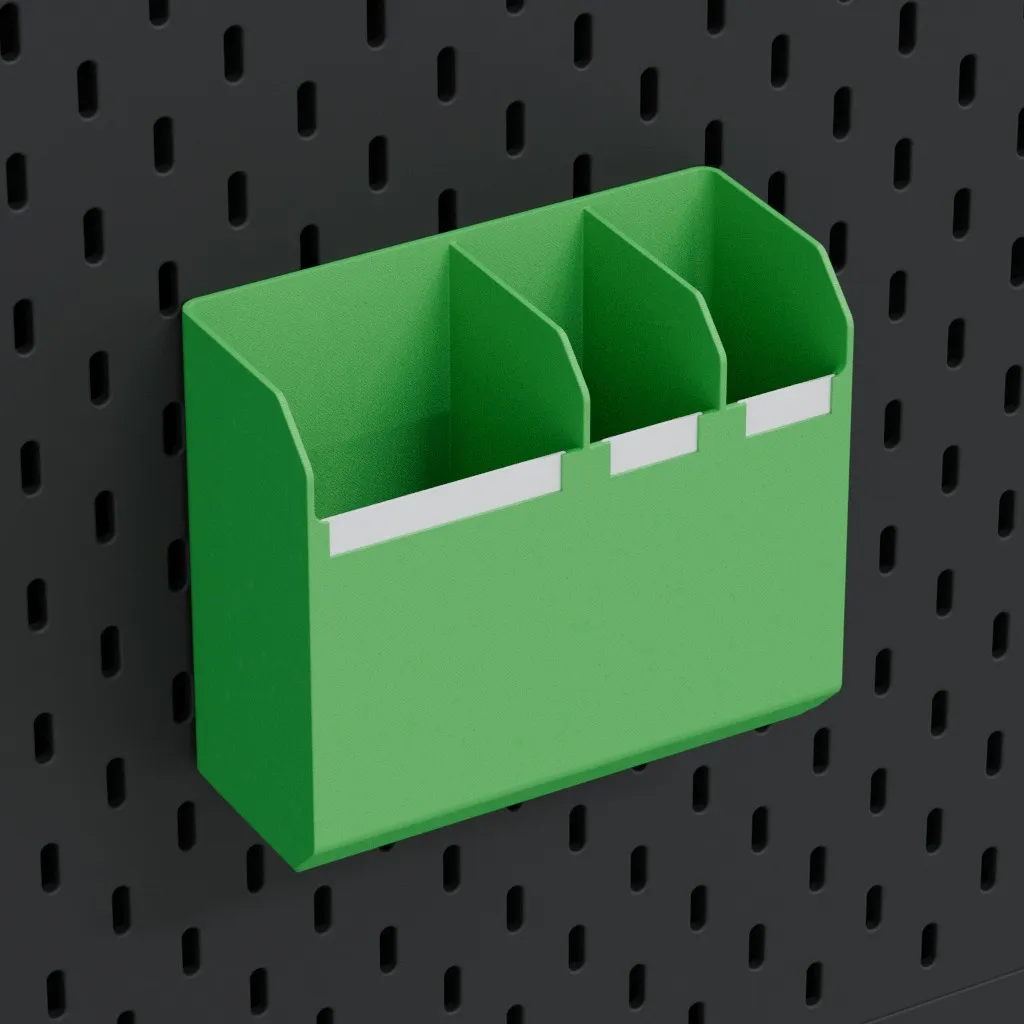

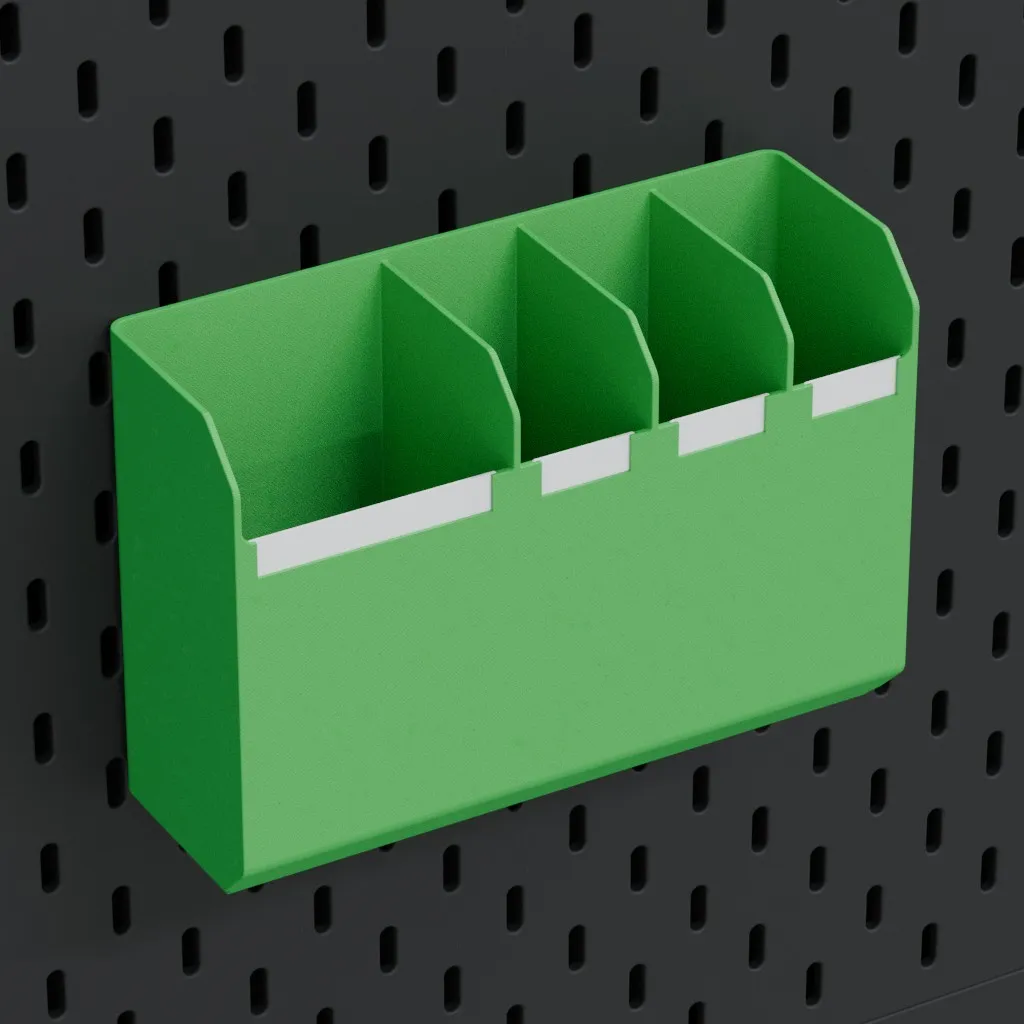

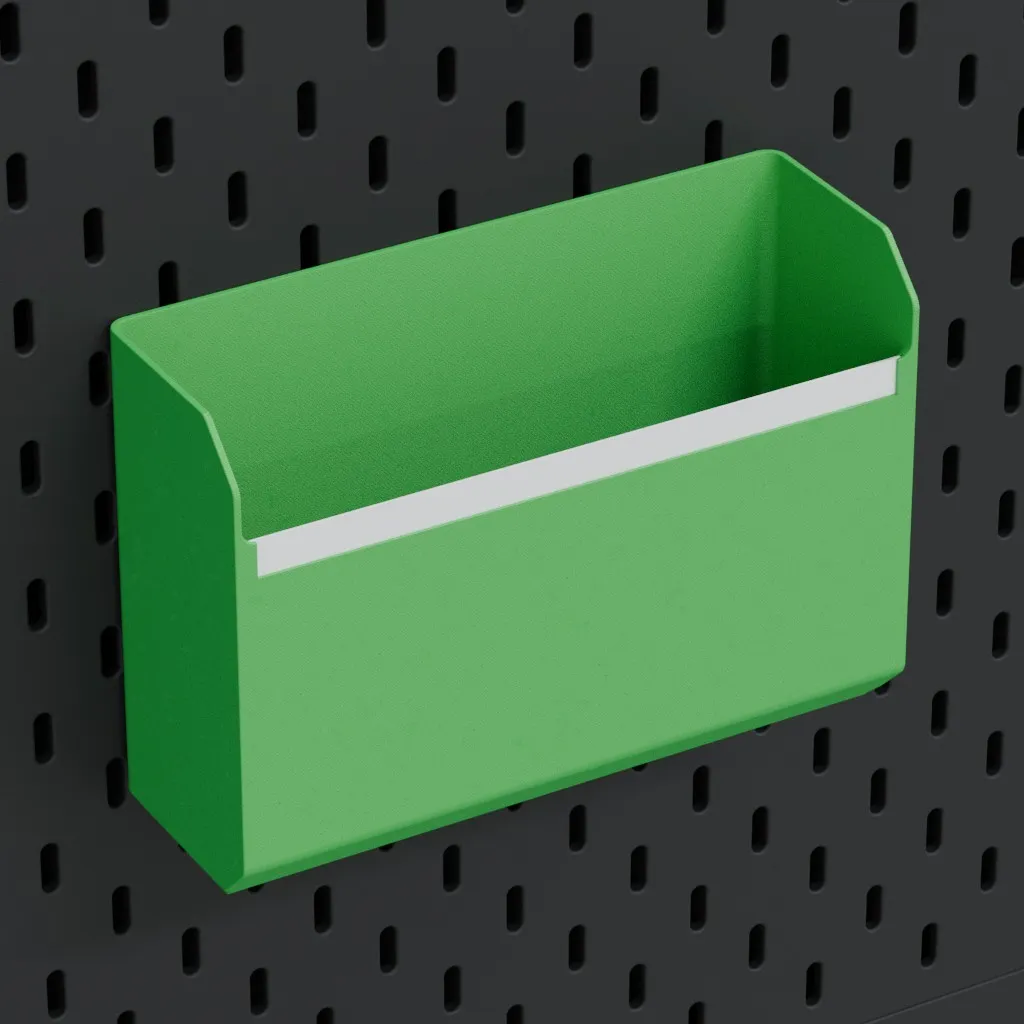

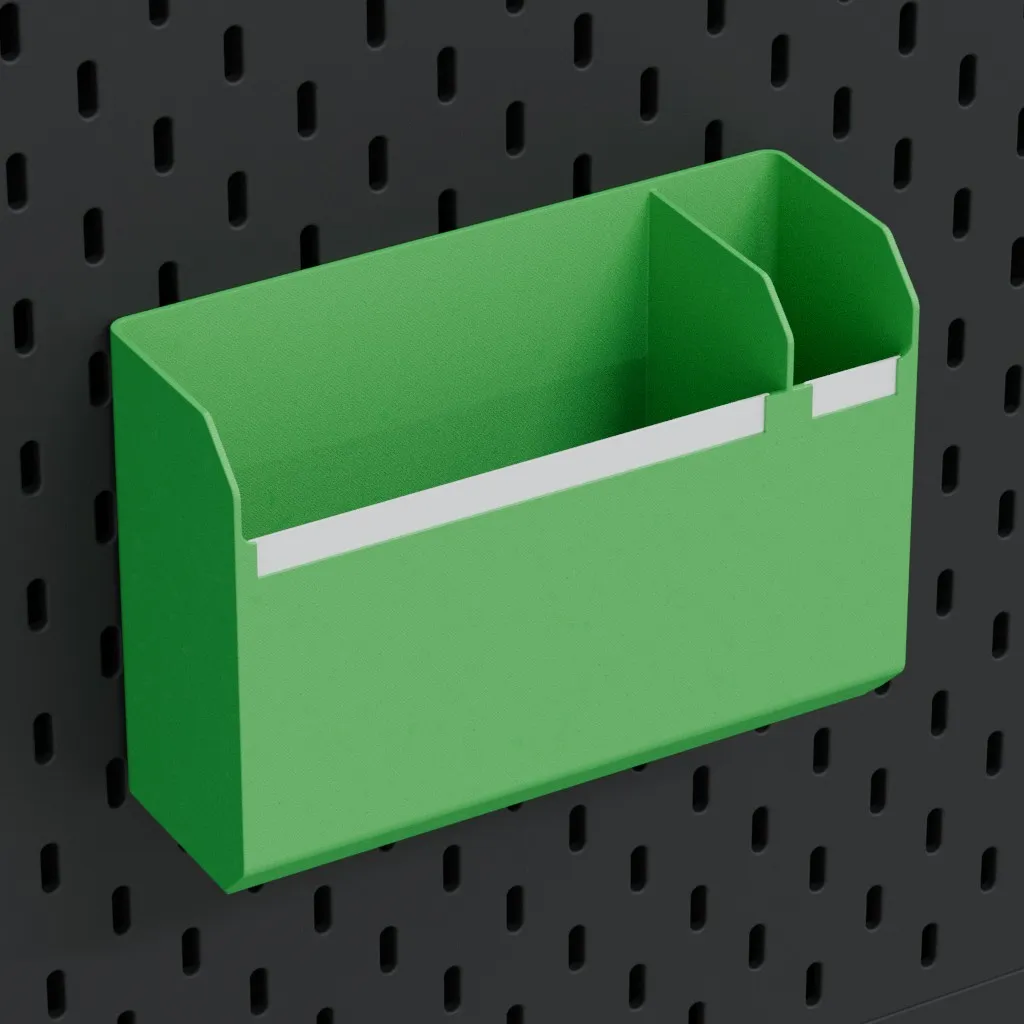

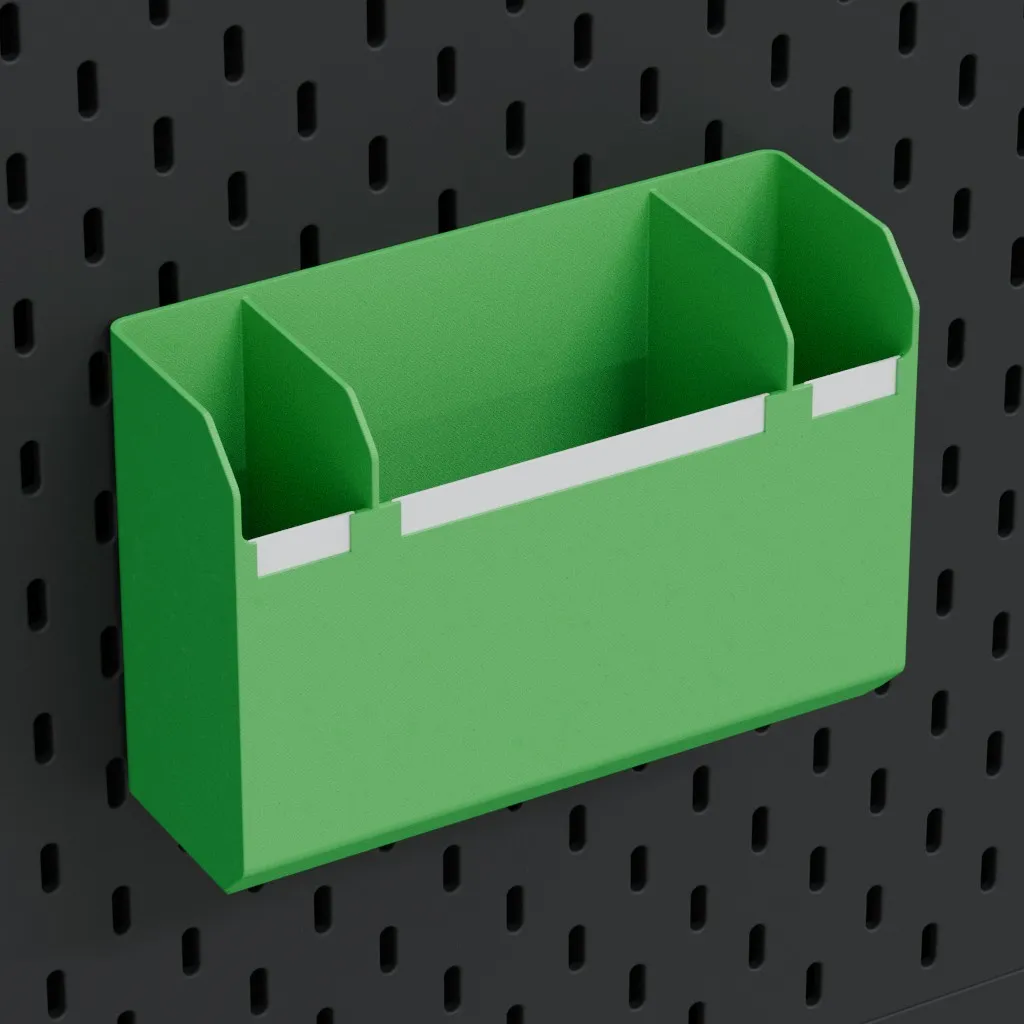

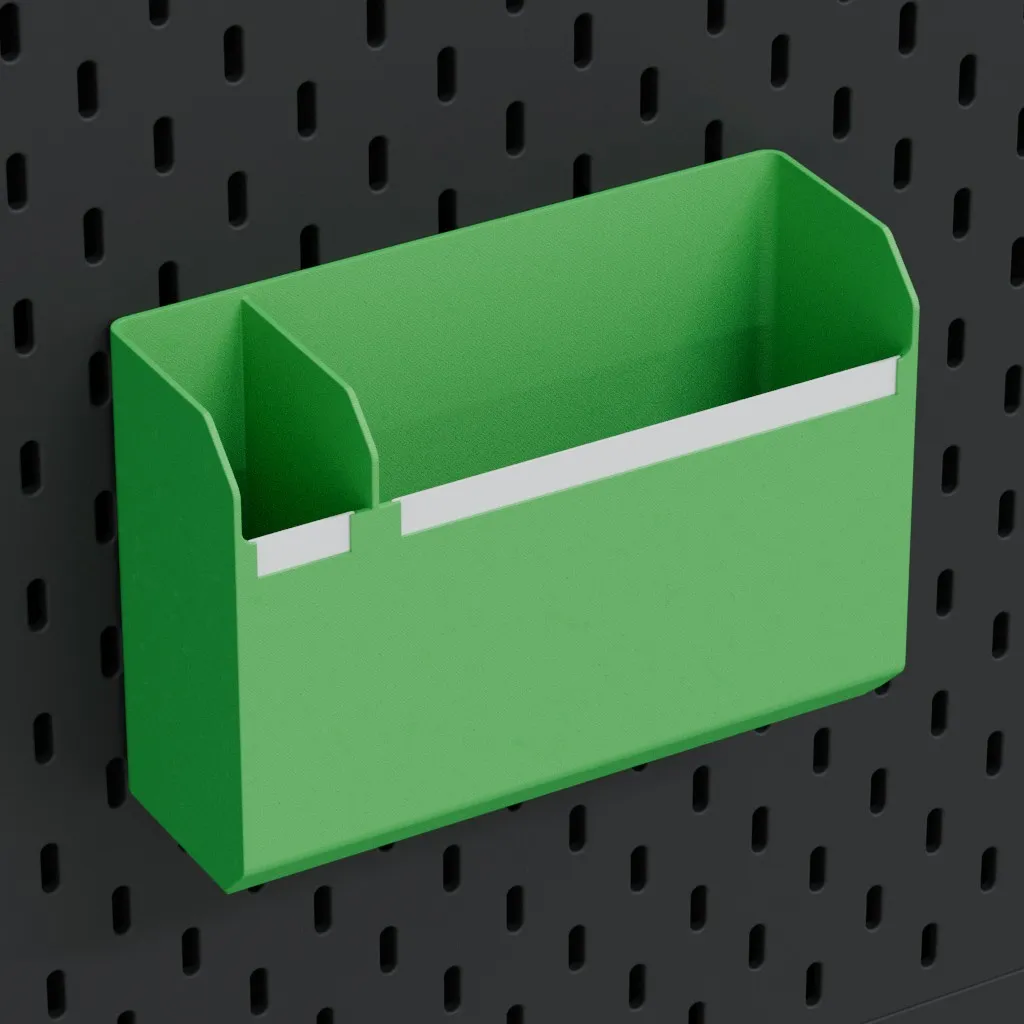

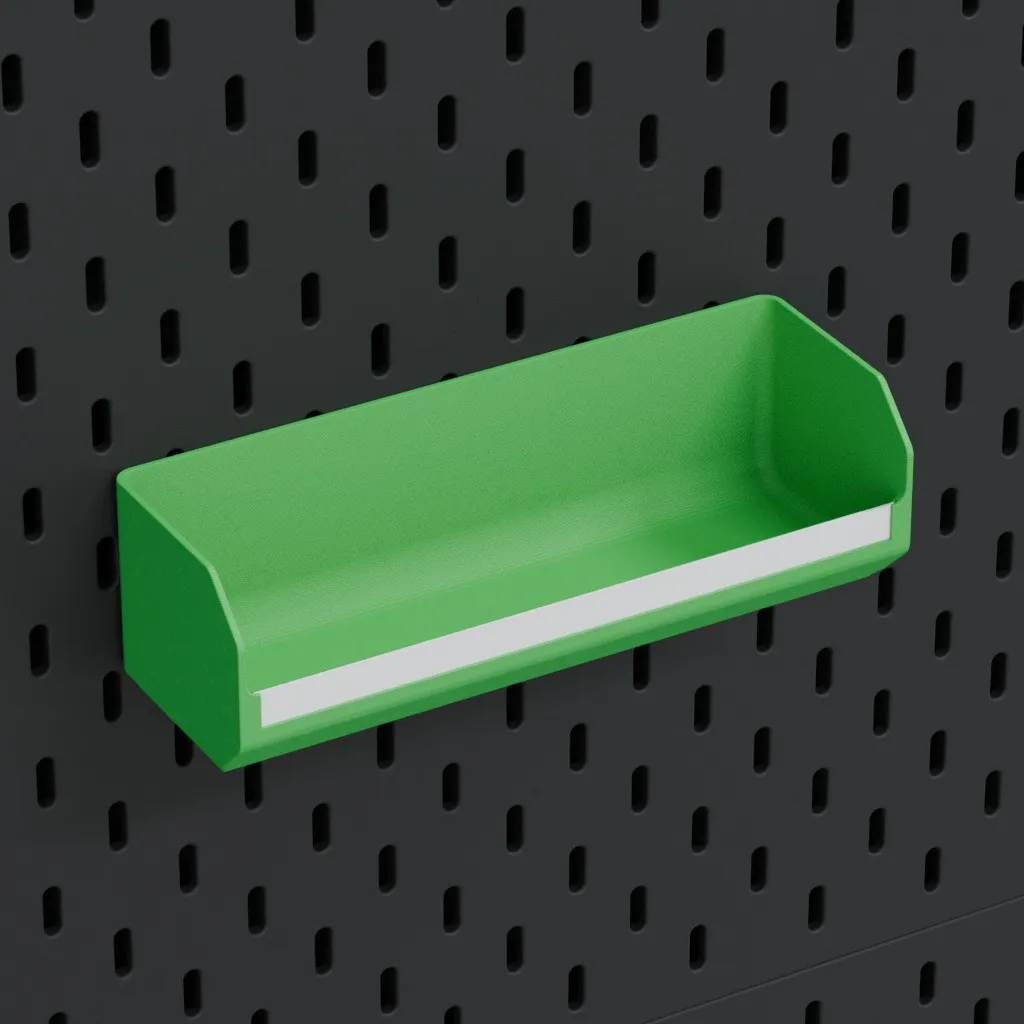

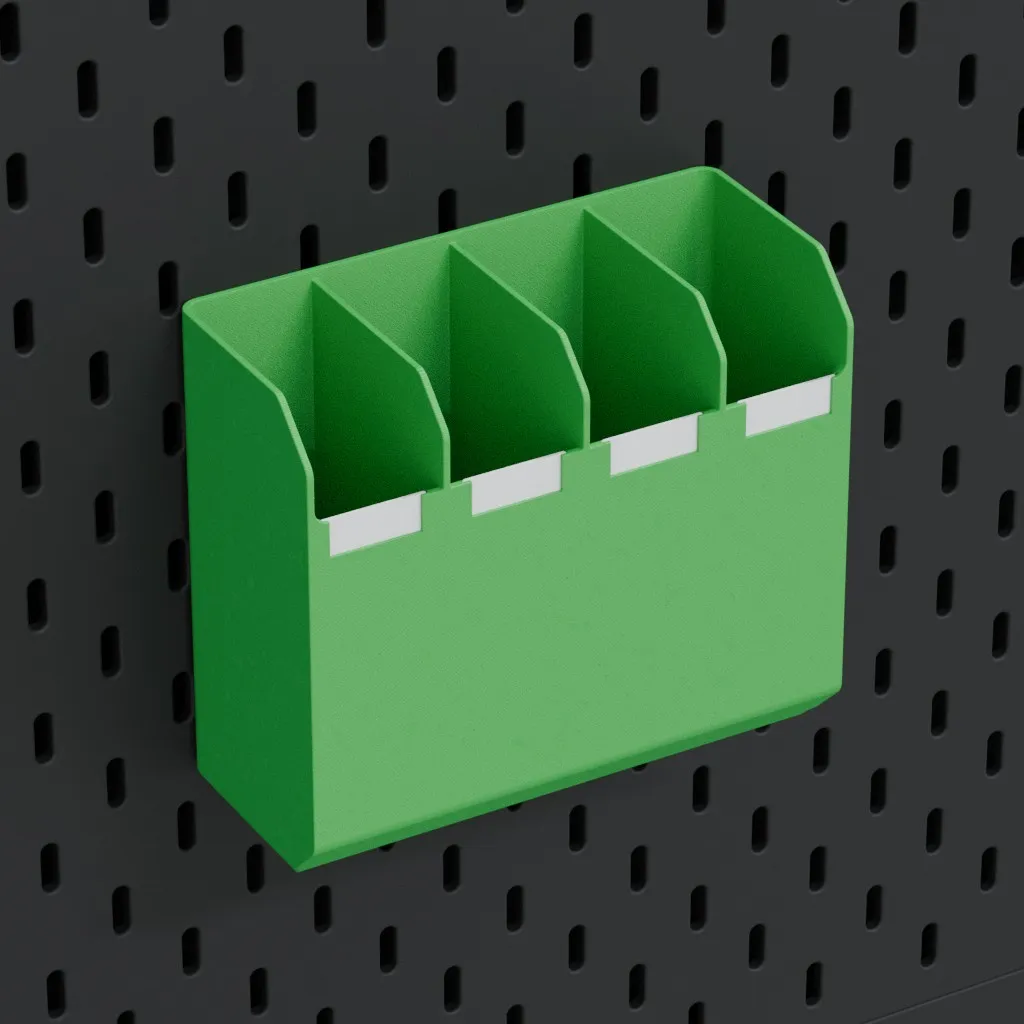

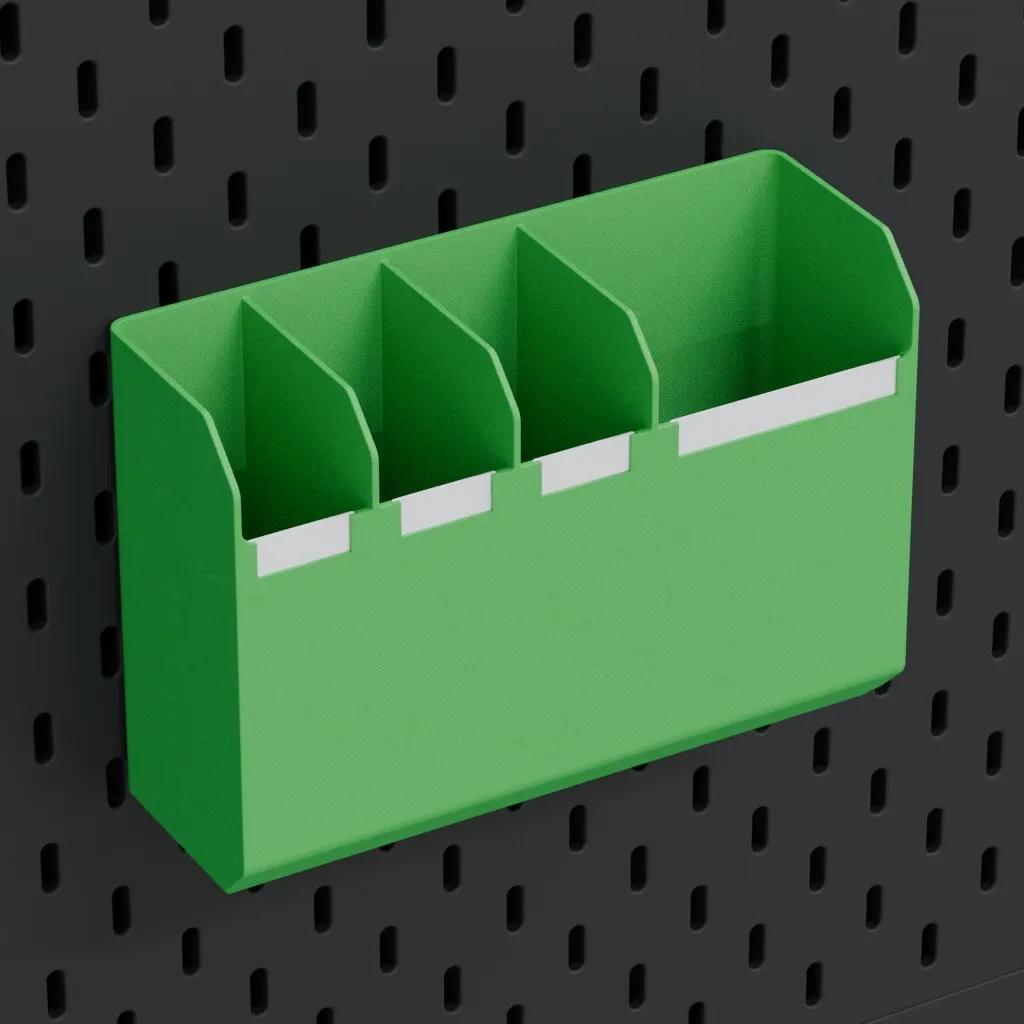

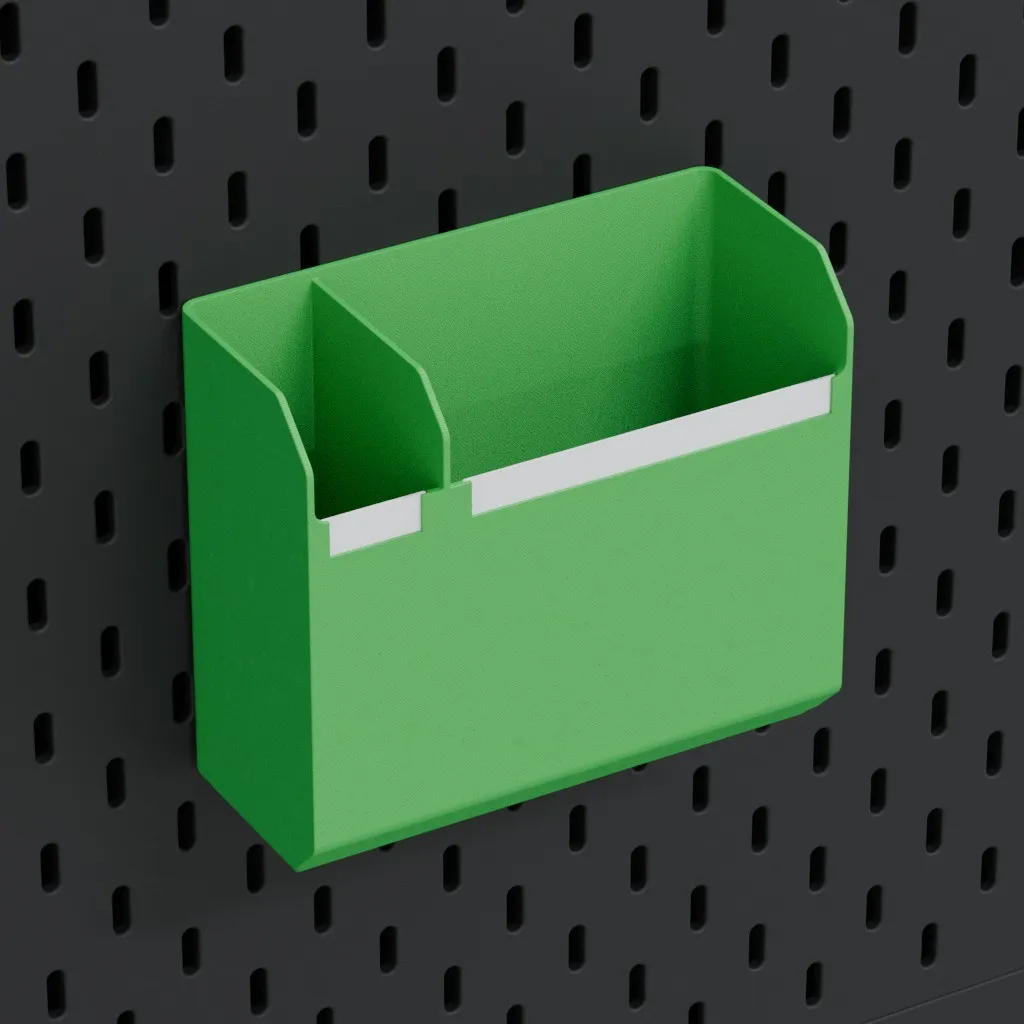

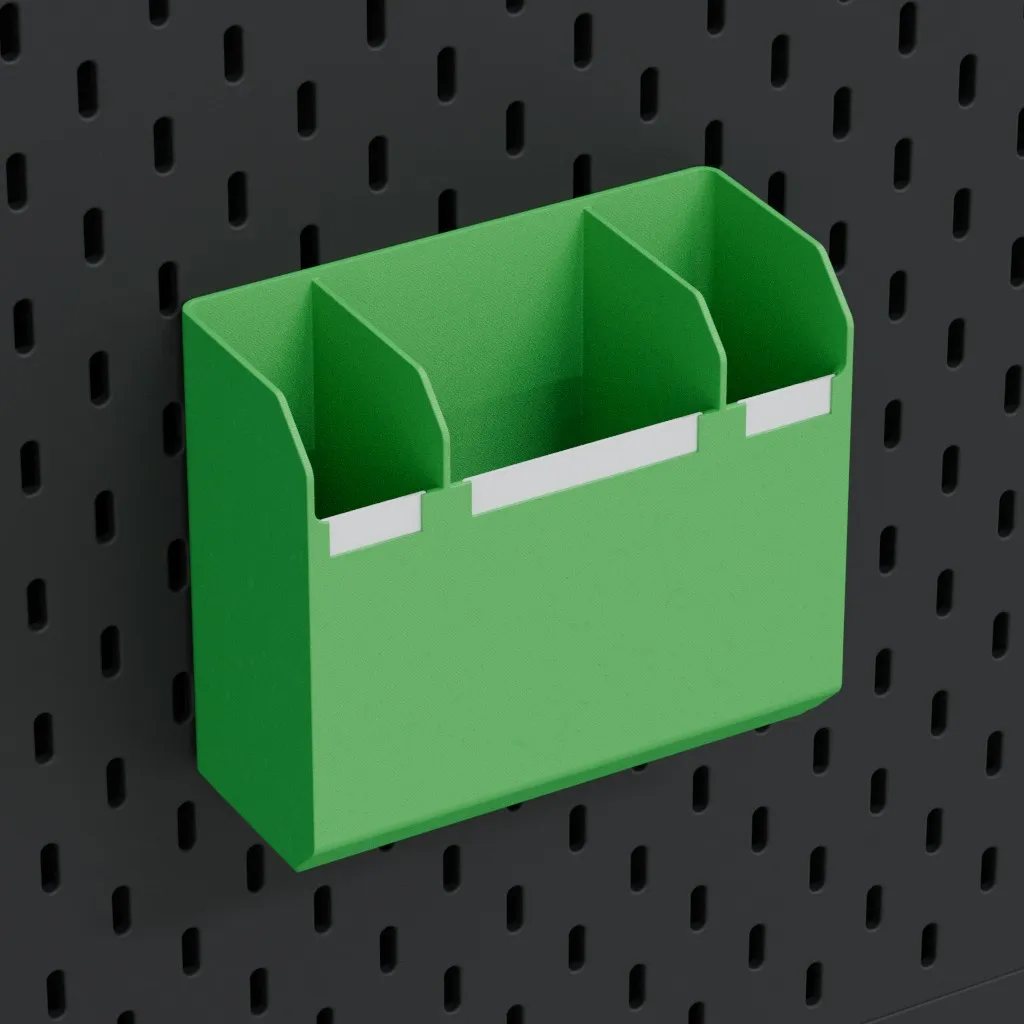

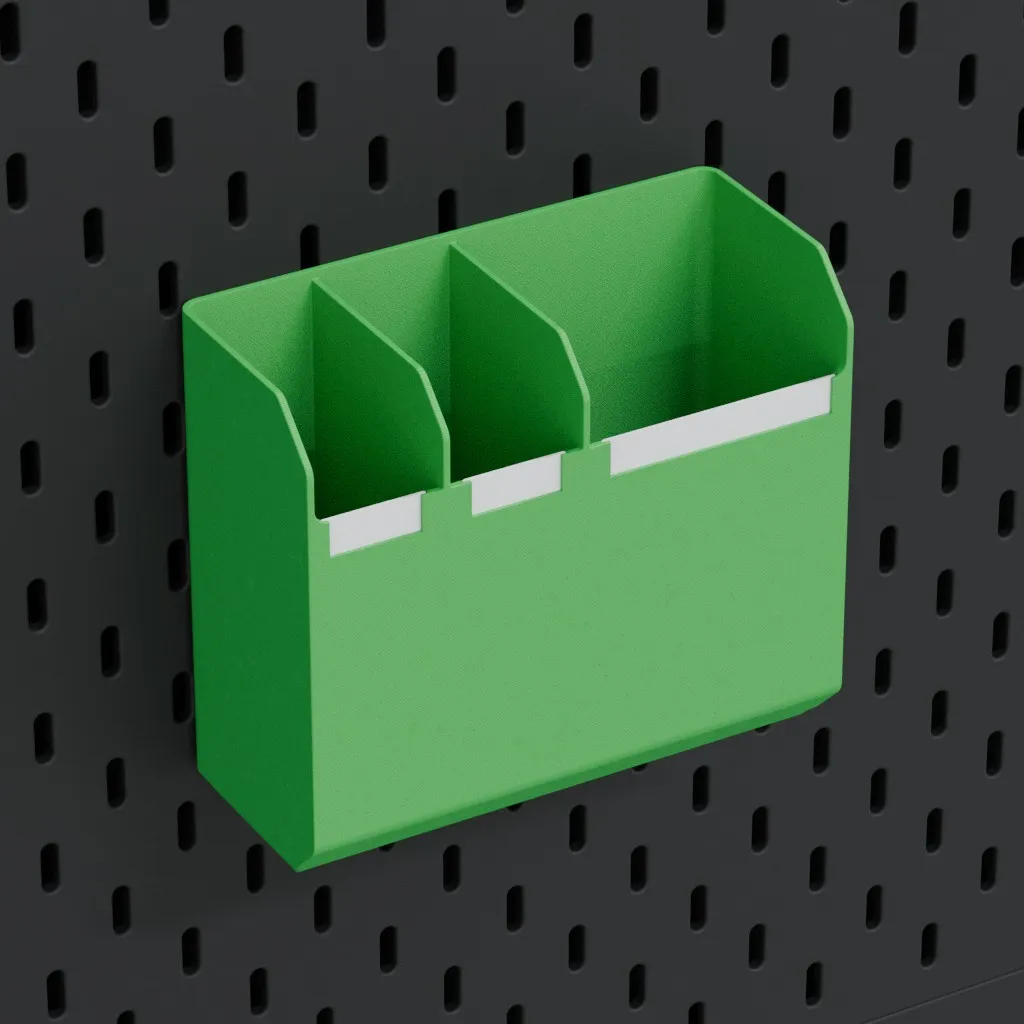

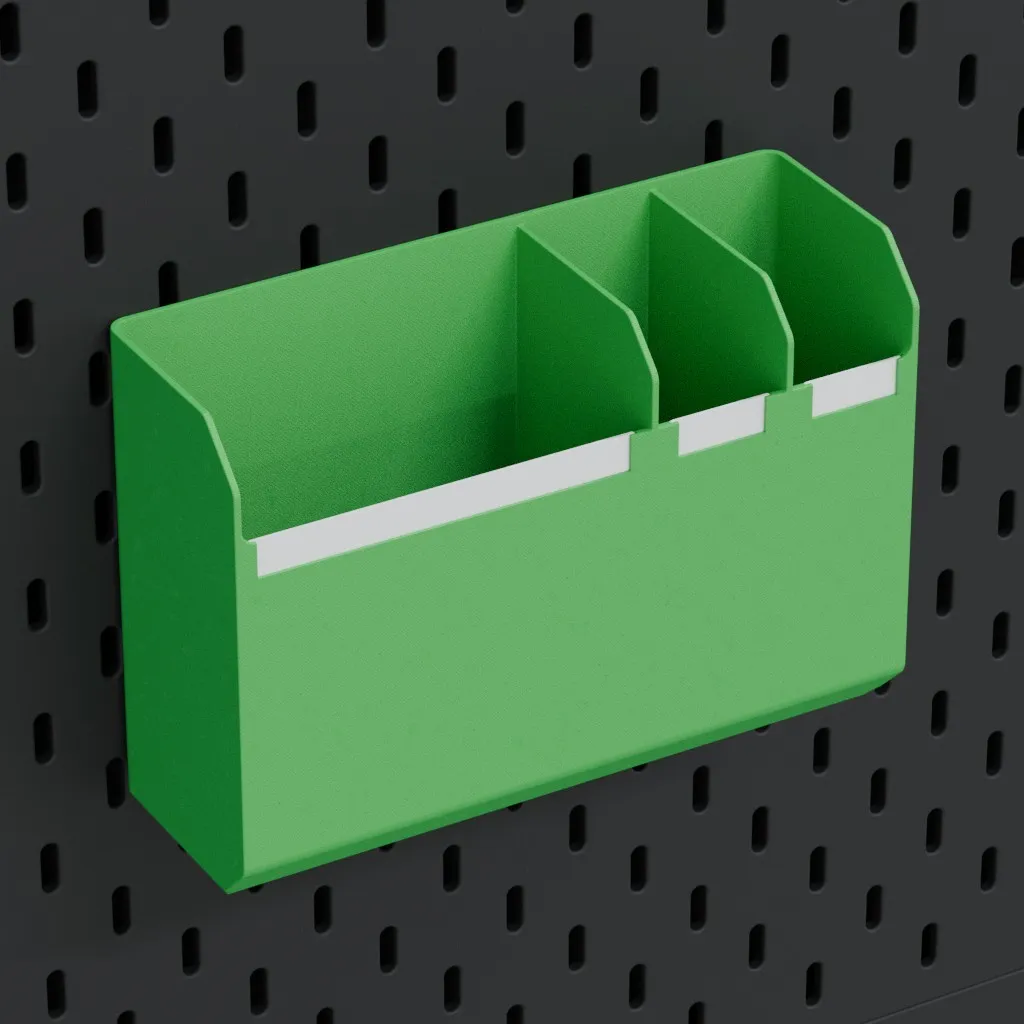

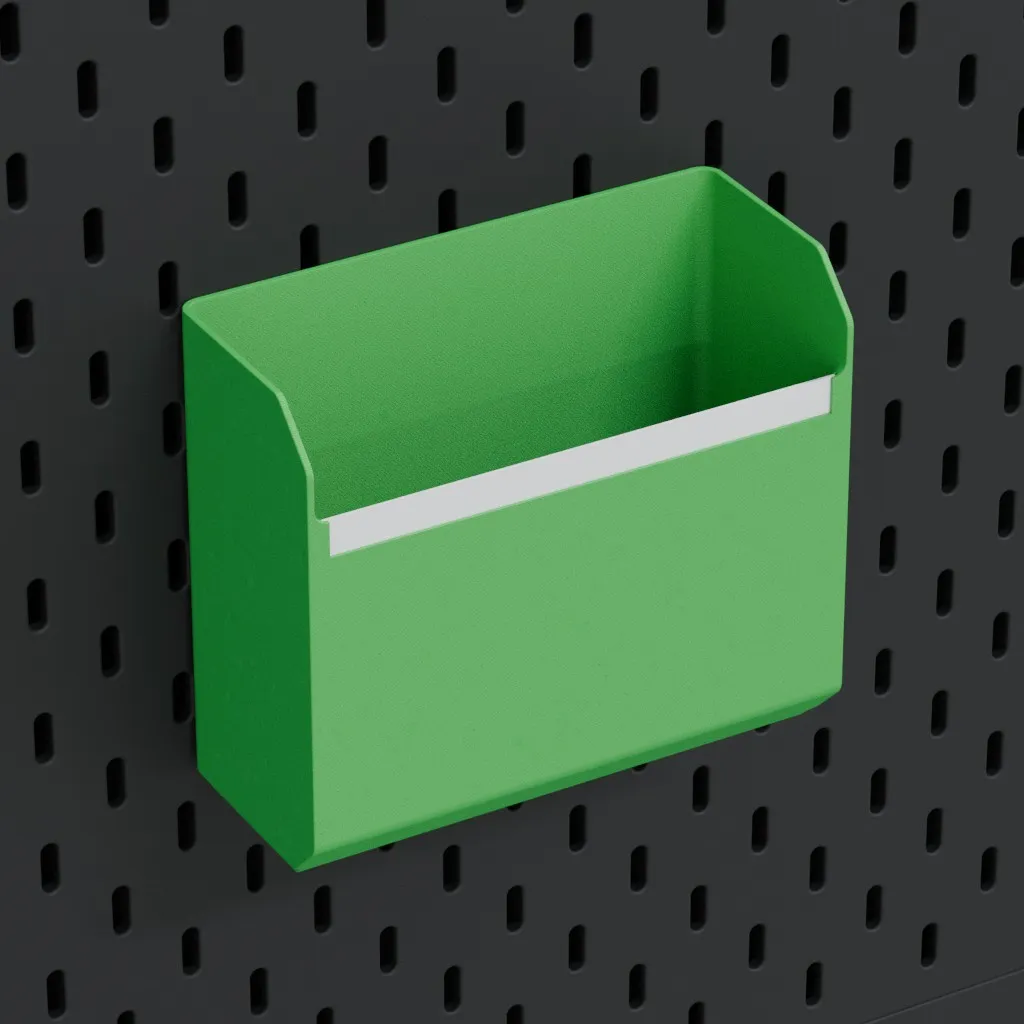

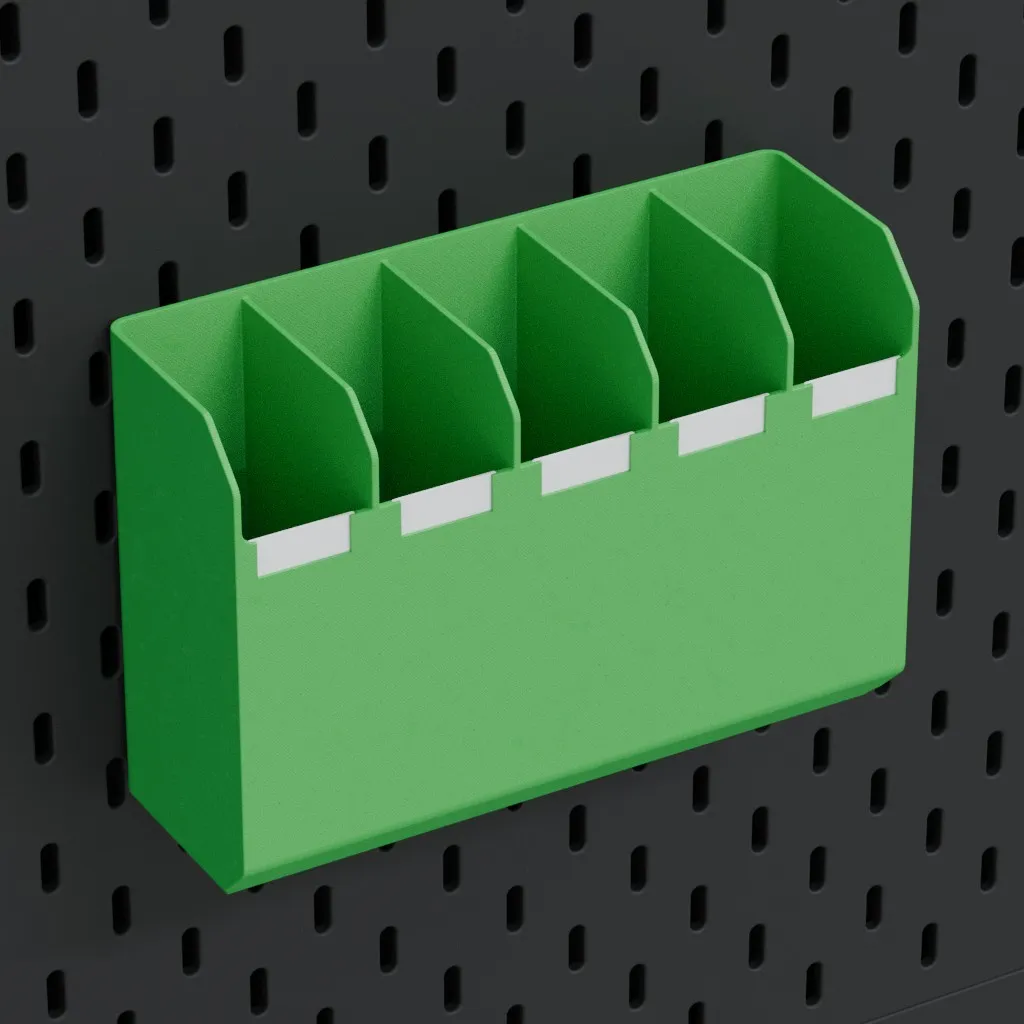

Trays Large With Label

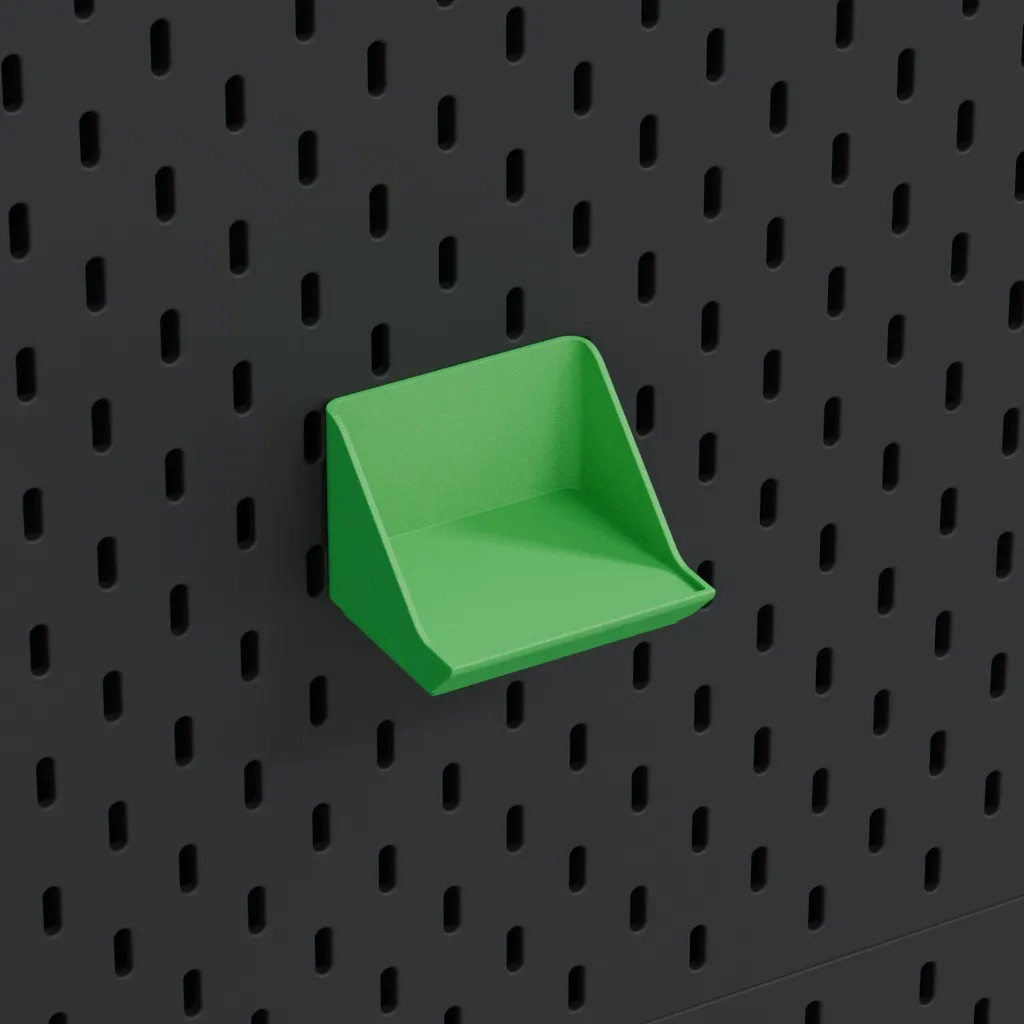

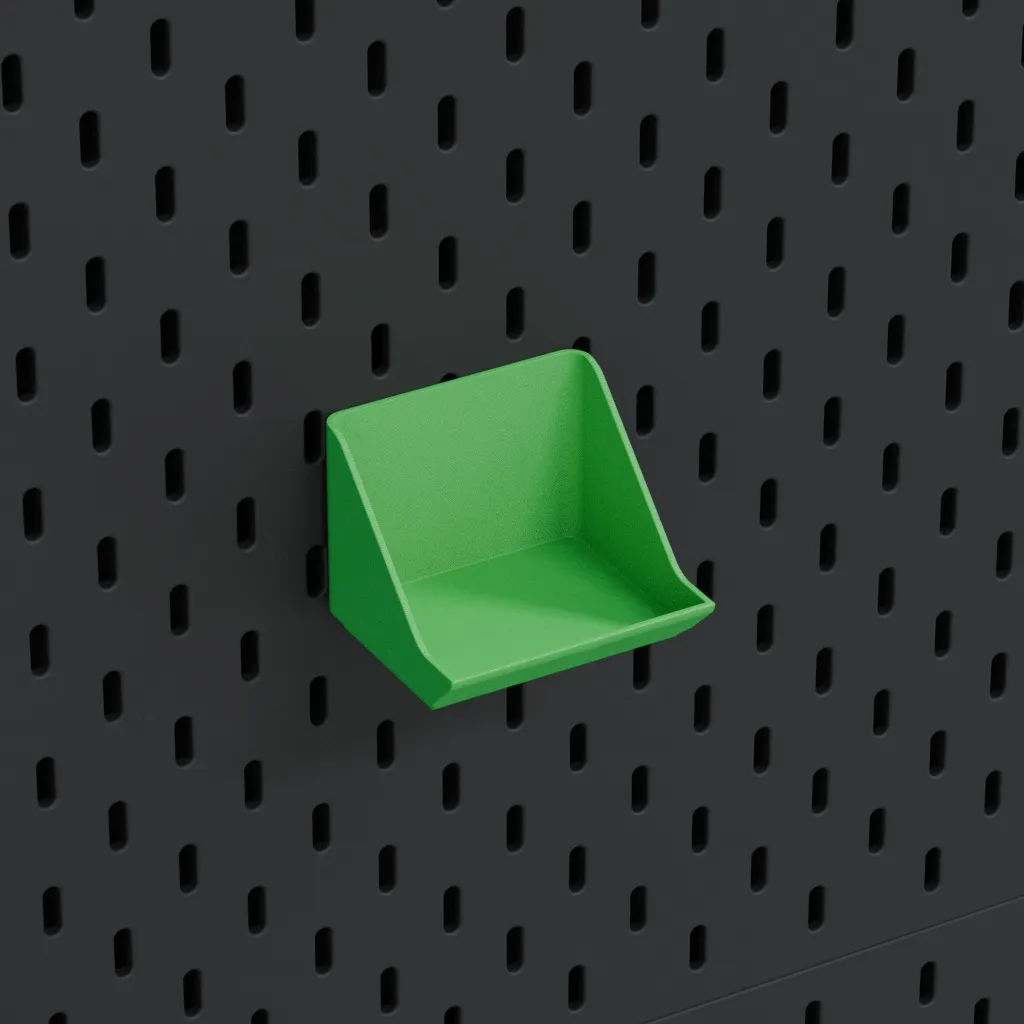

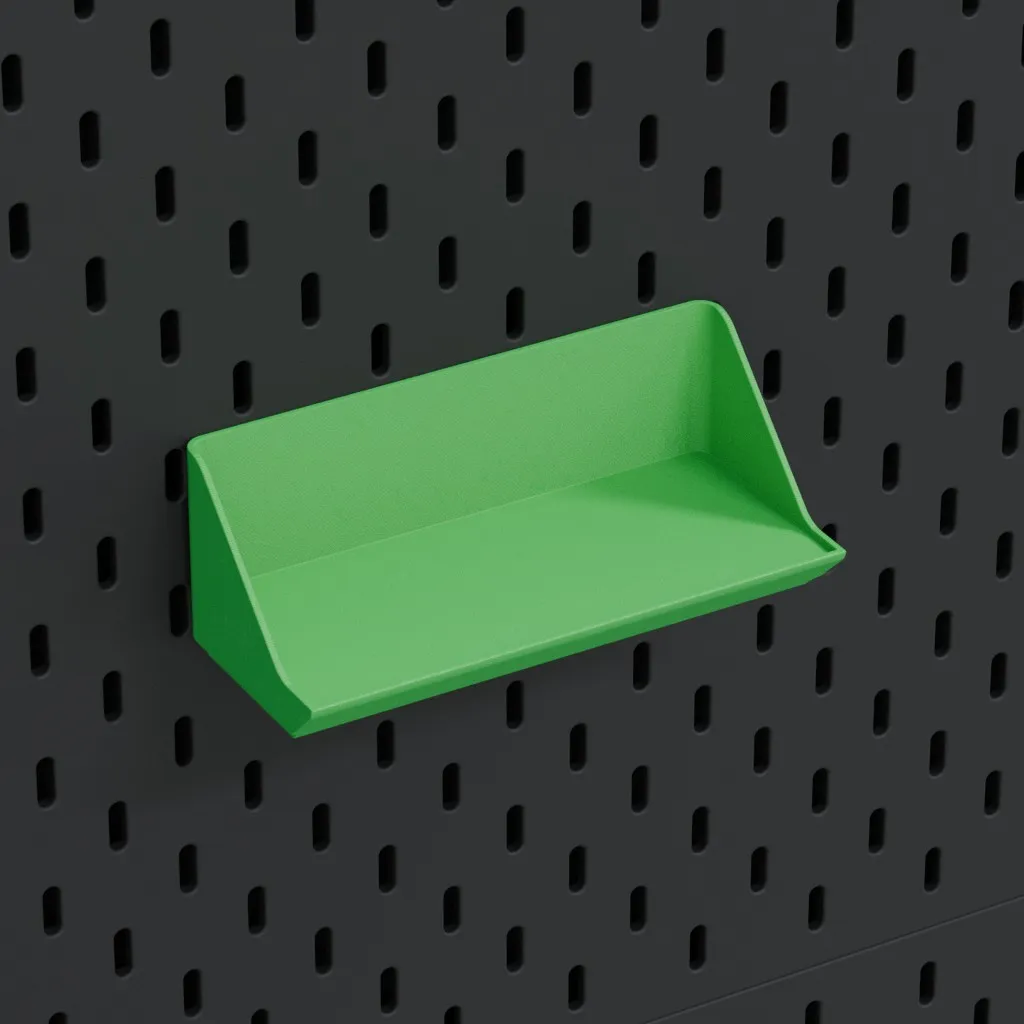

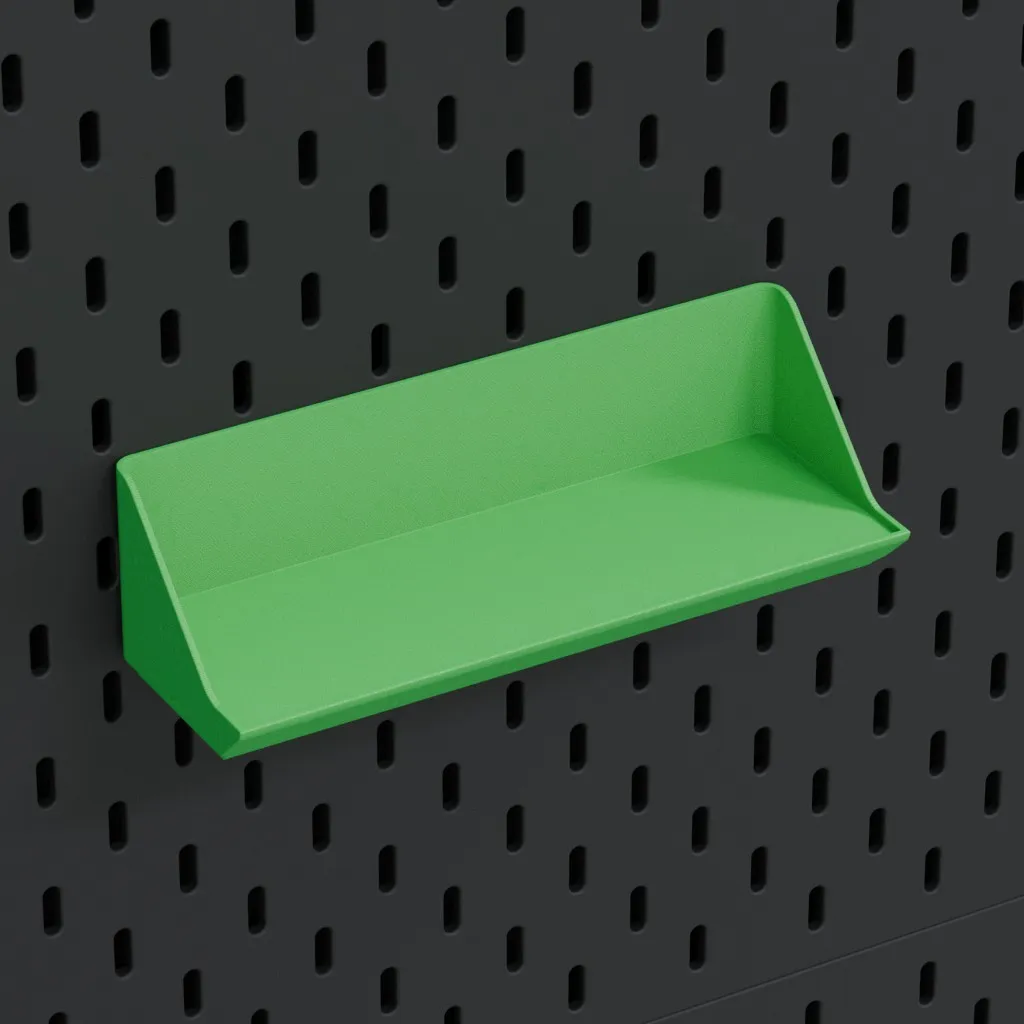

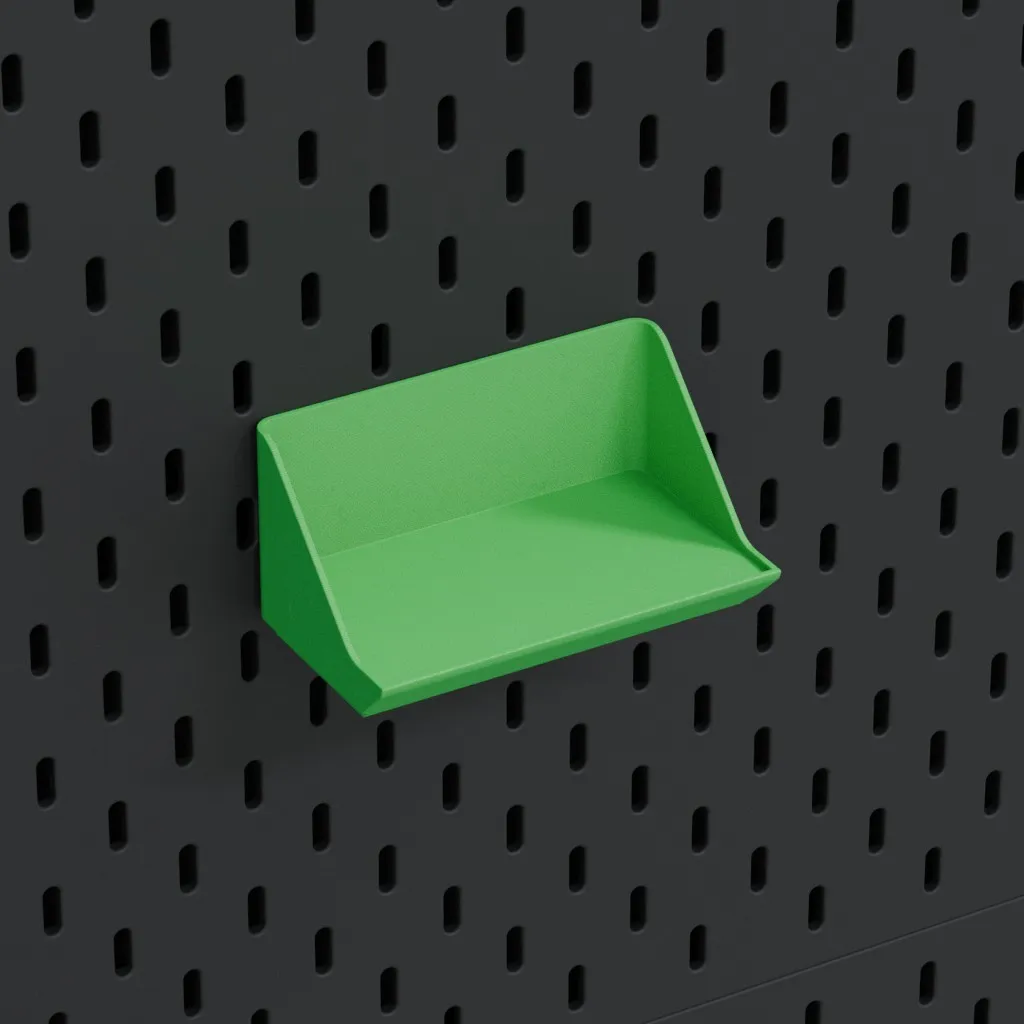

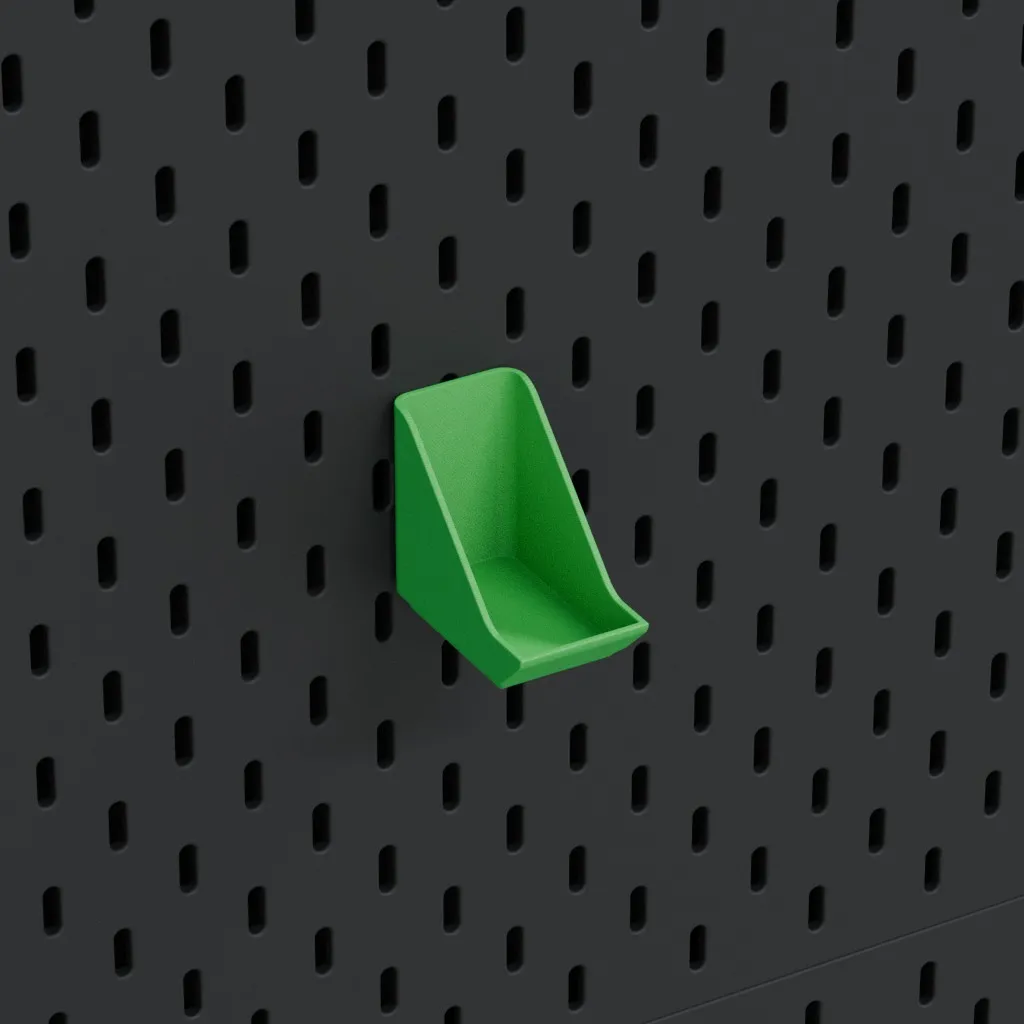

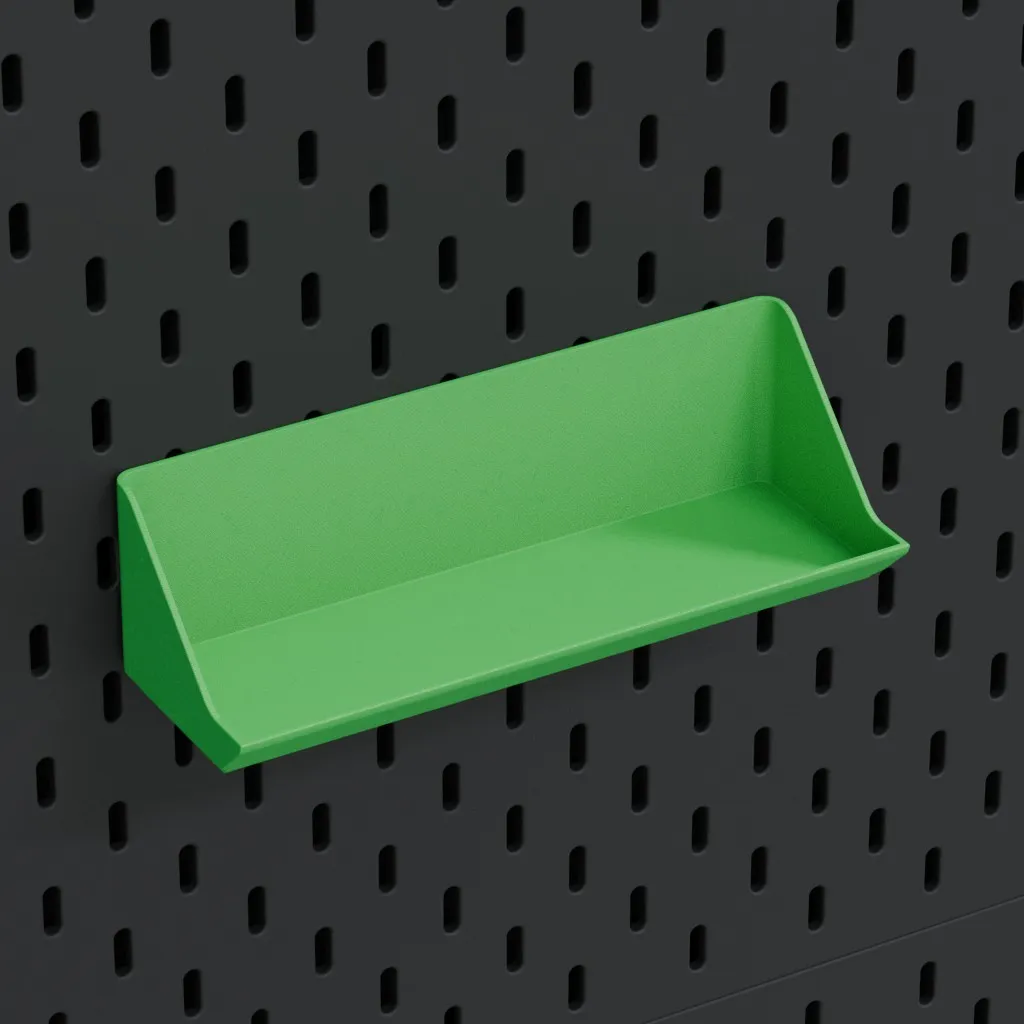

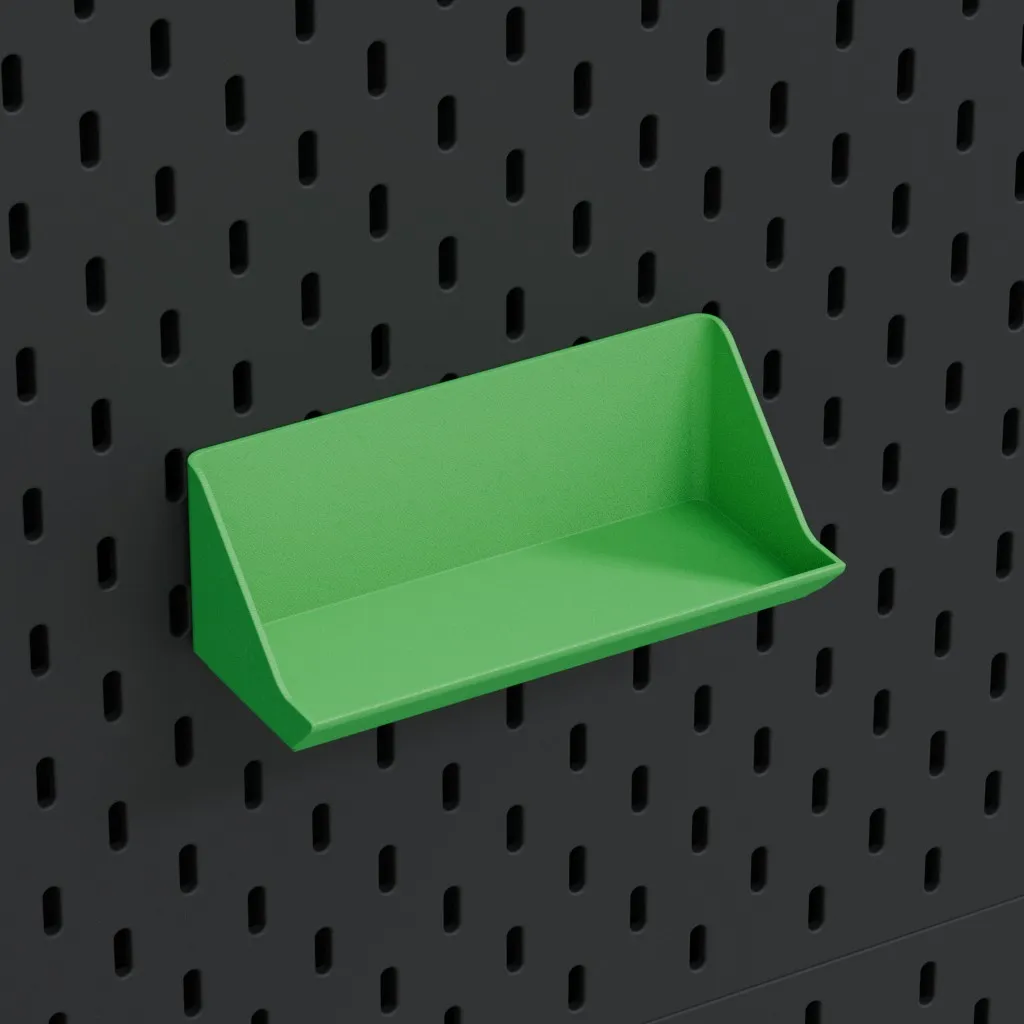

Shelves

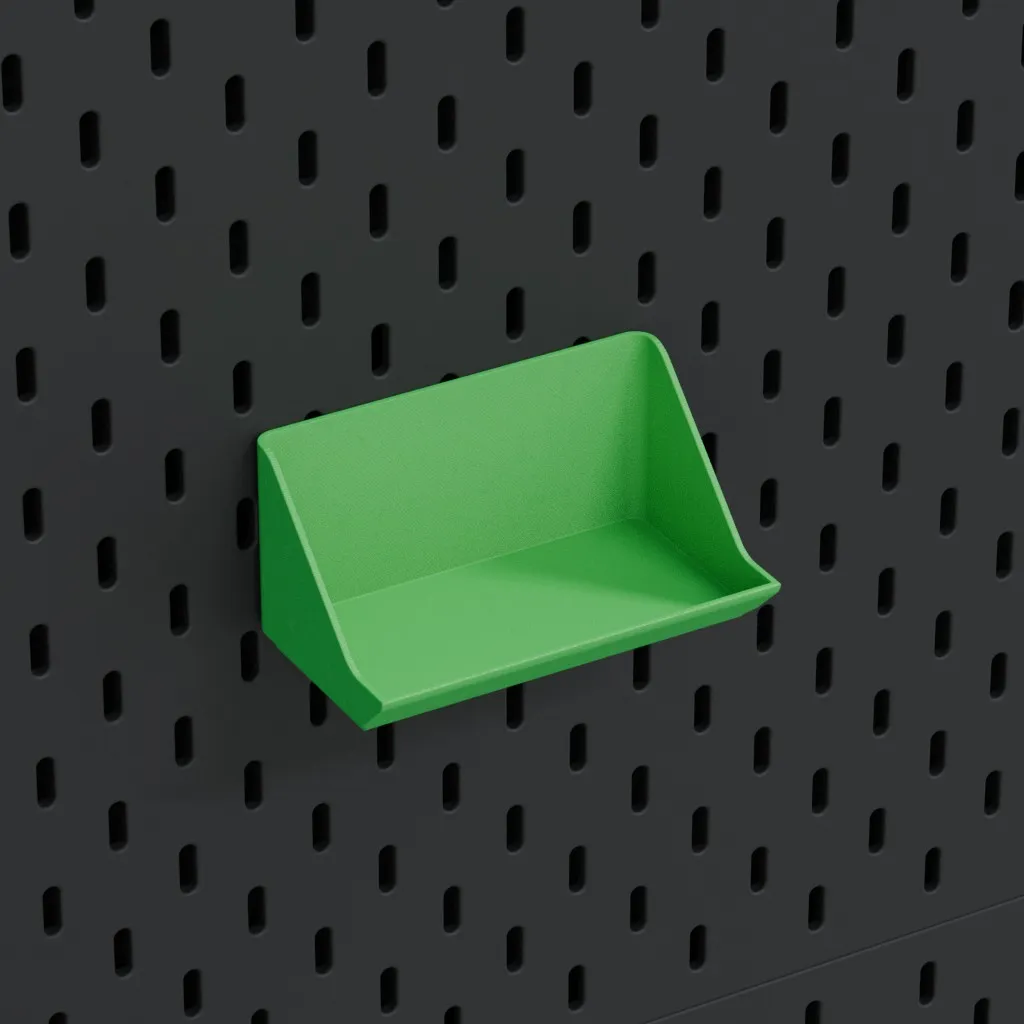

Shelves Deep

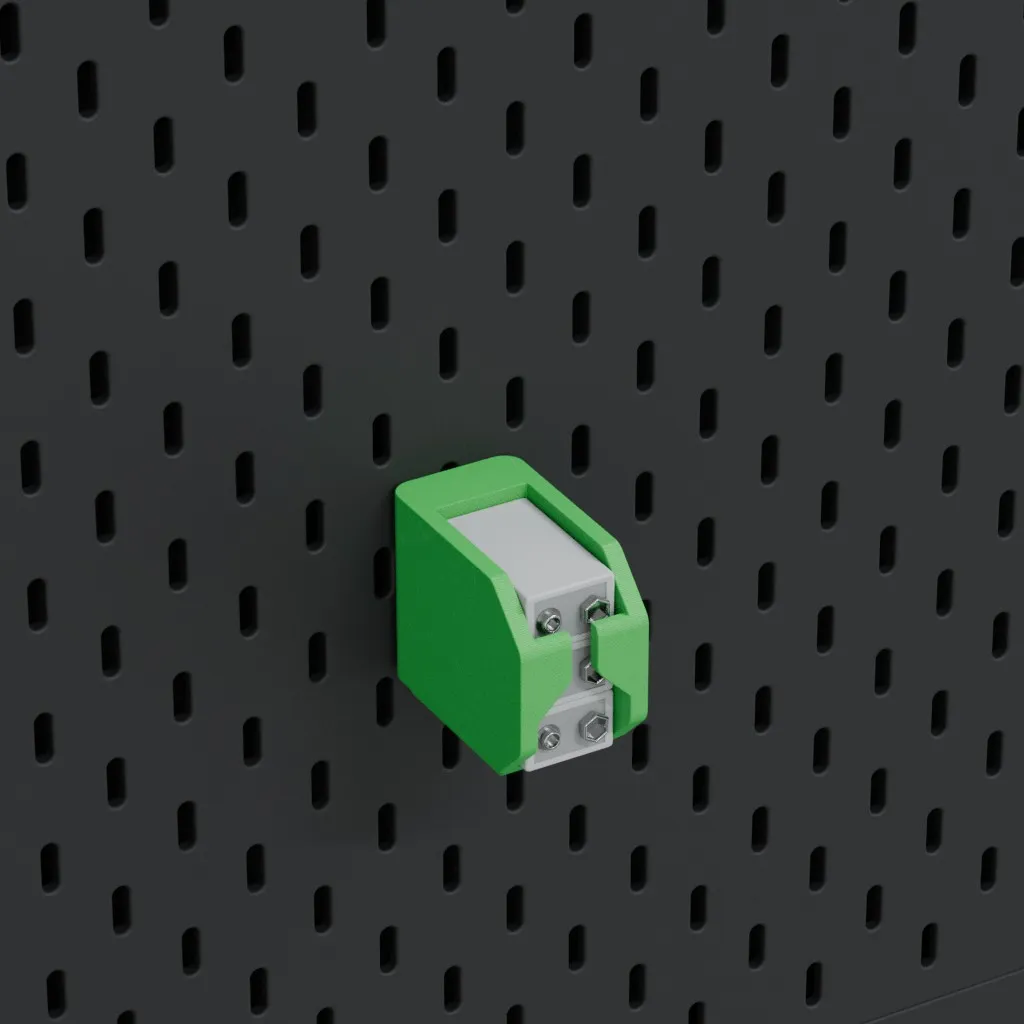

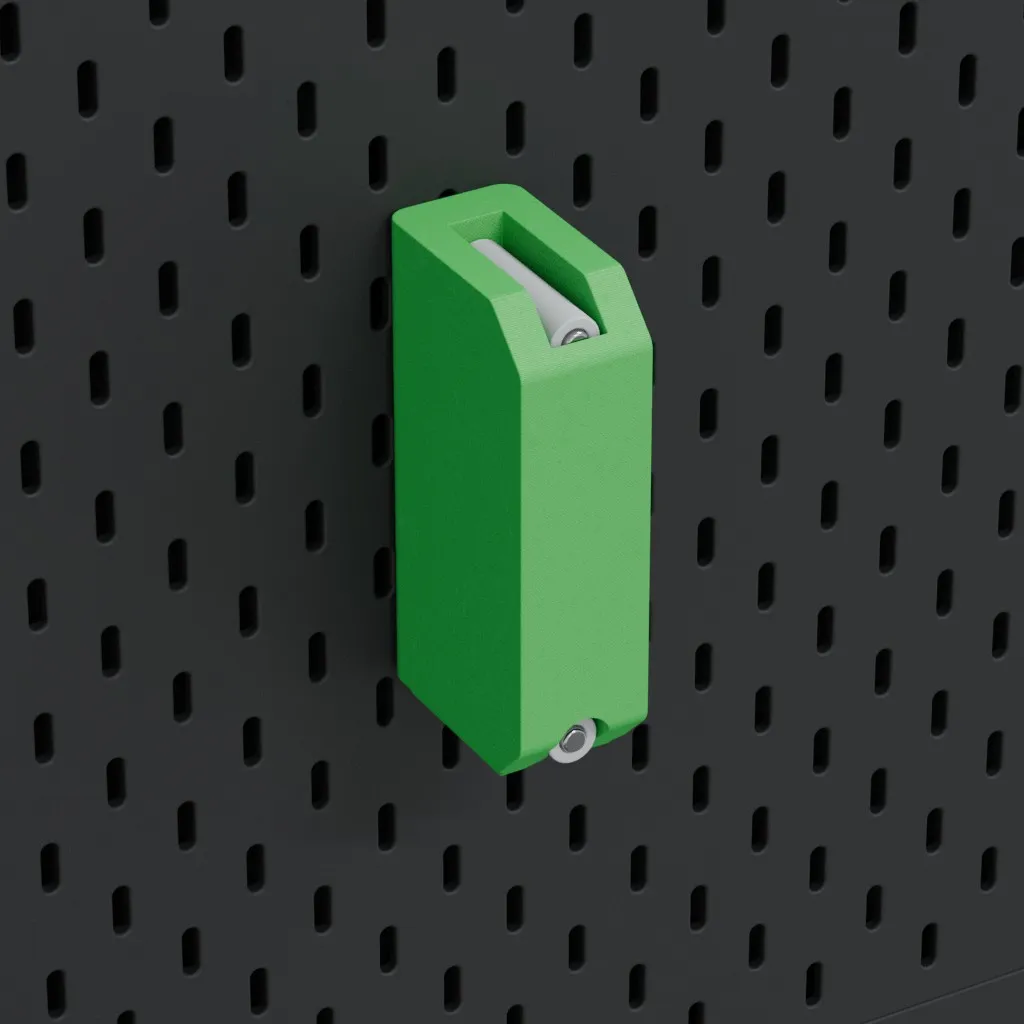

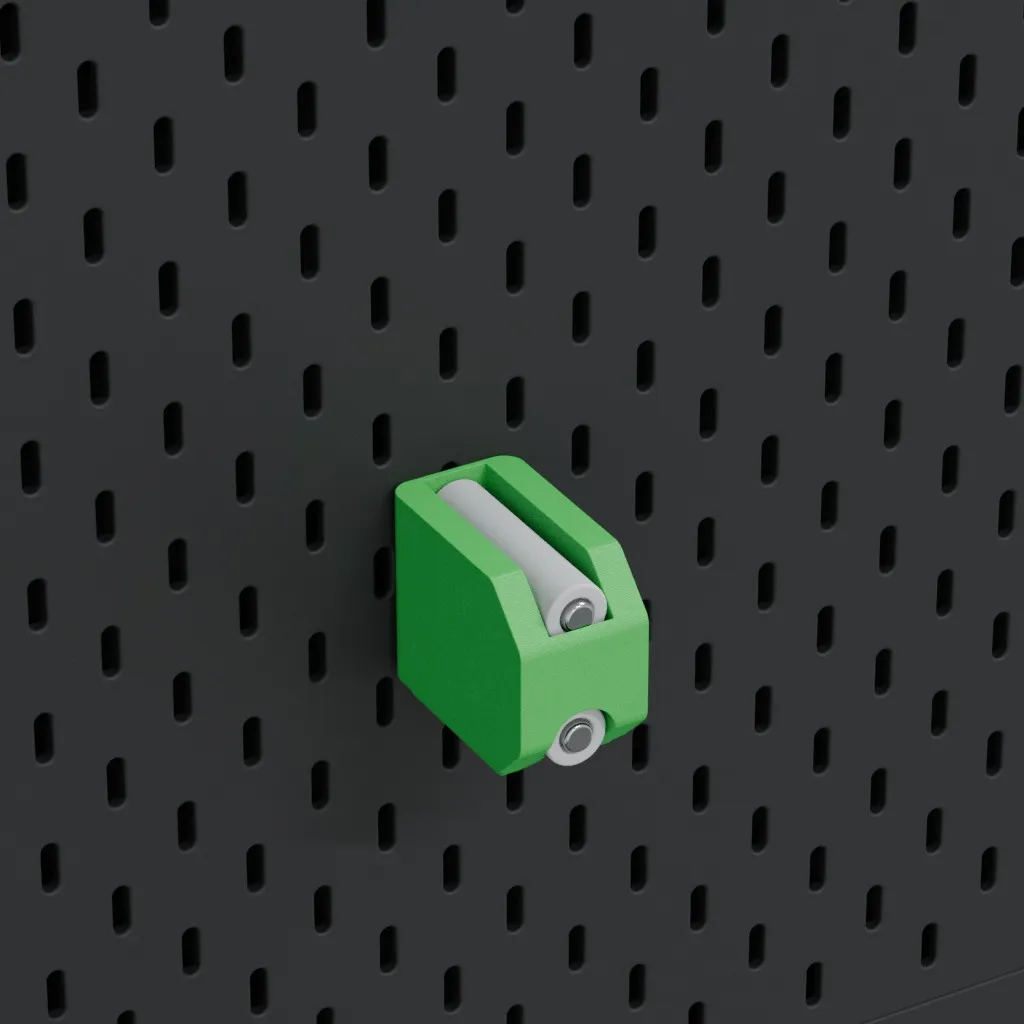

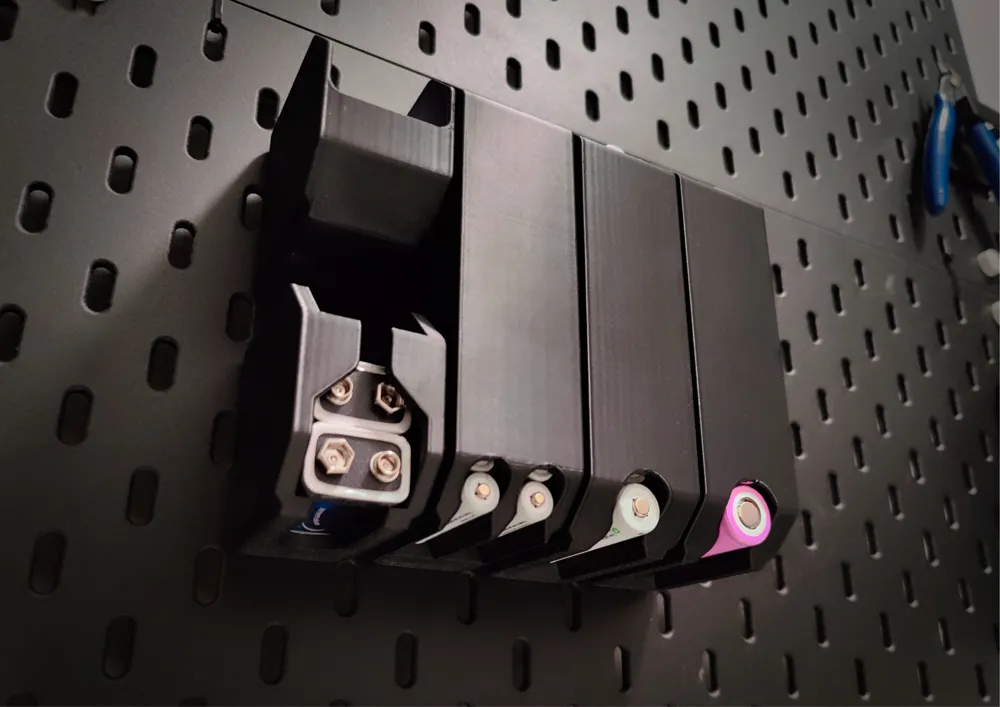

Battery Holder

(AA, AAA, 9v, 18650)

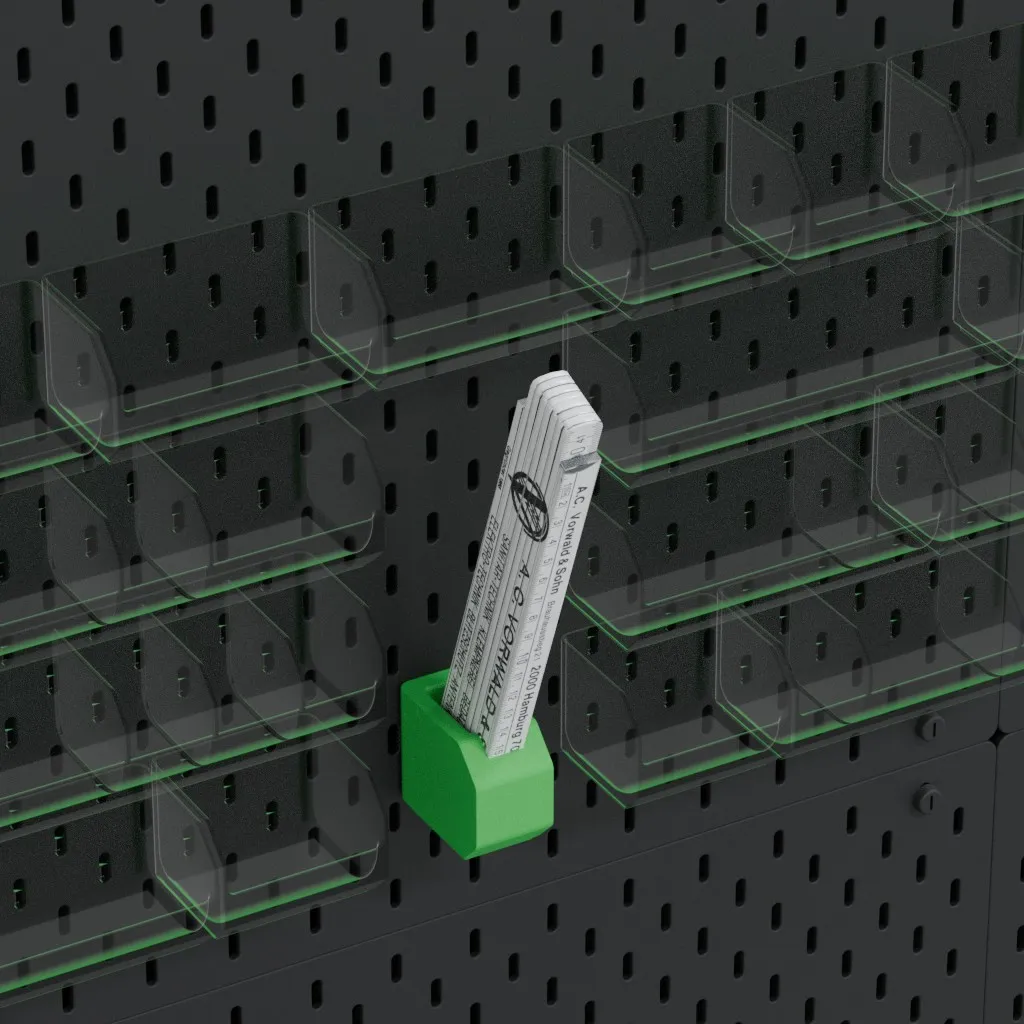

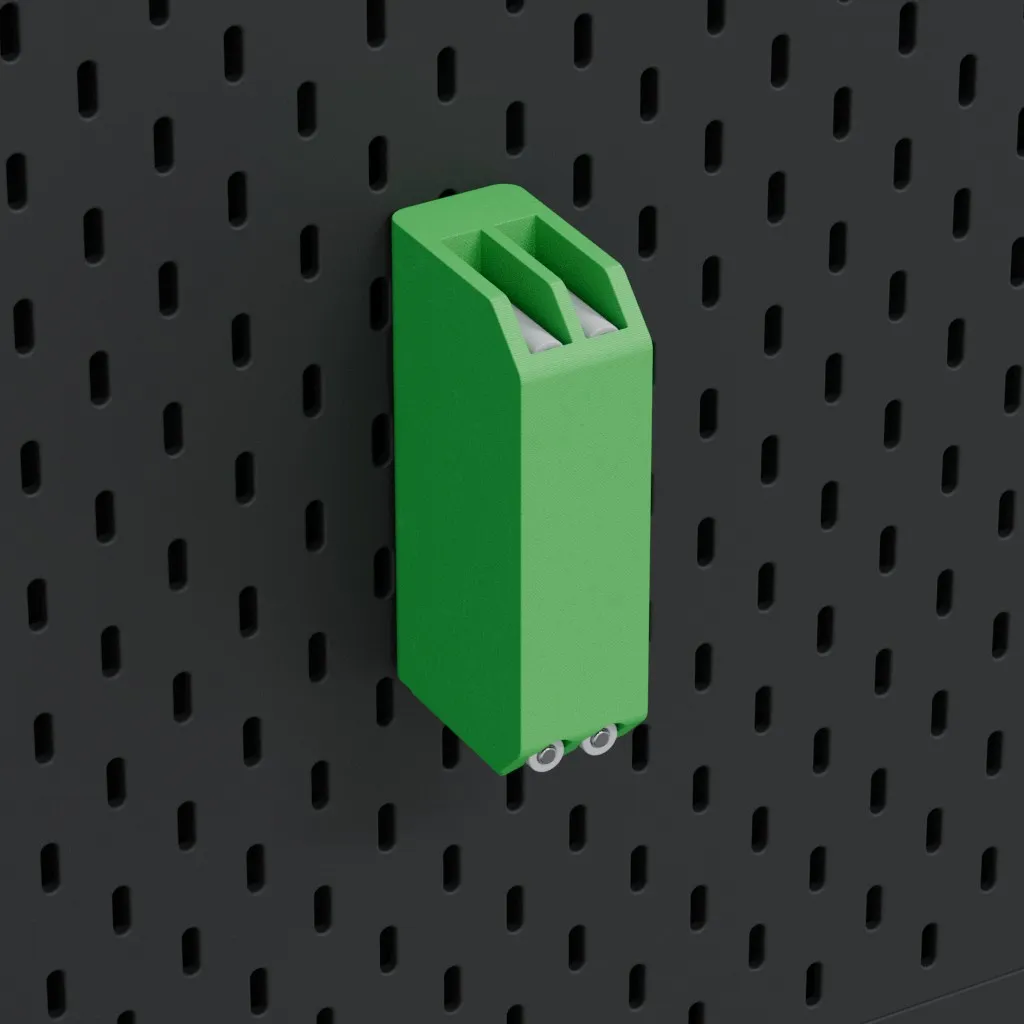

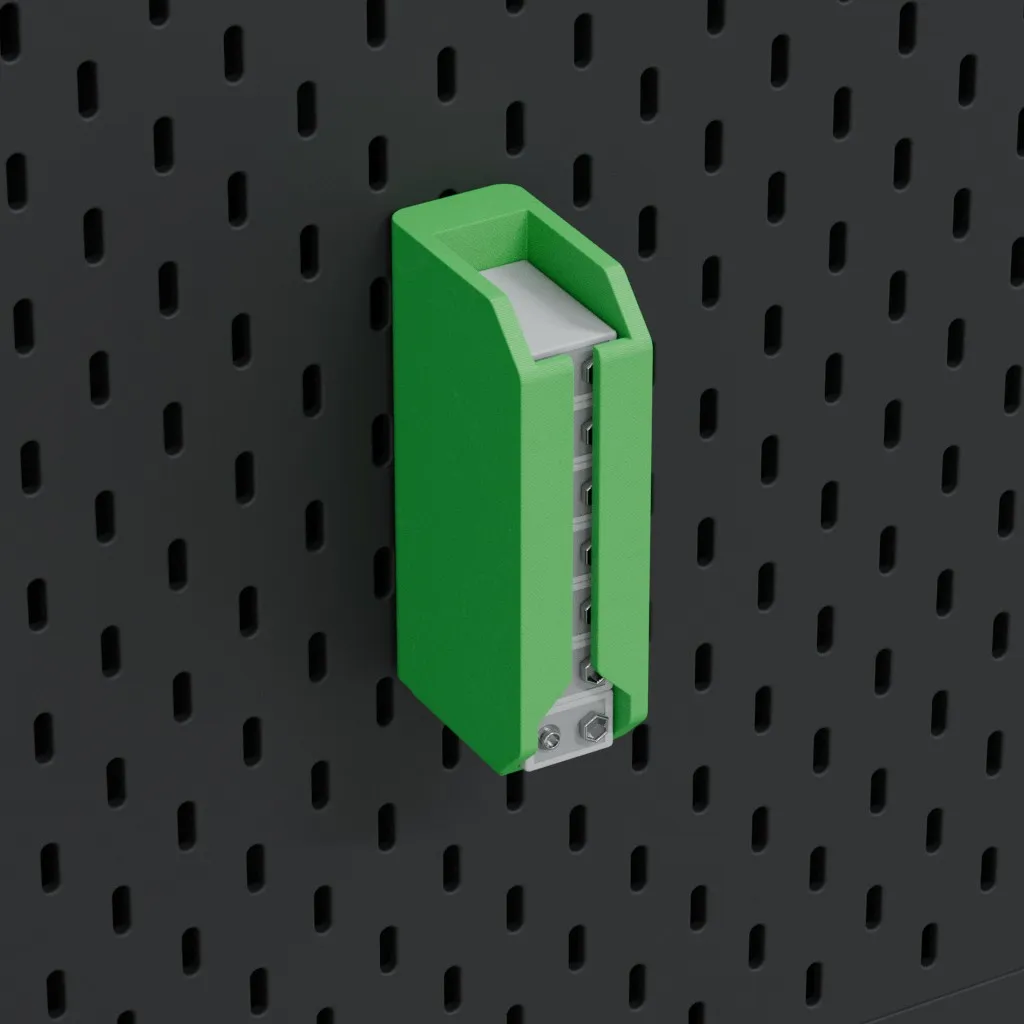

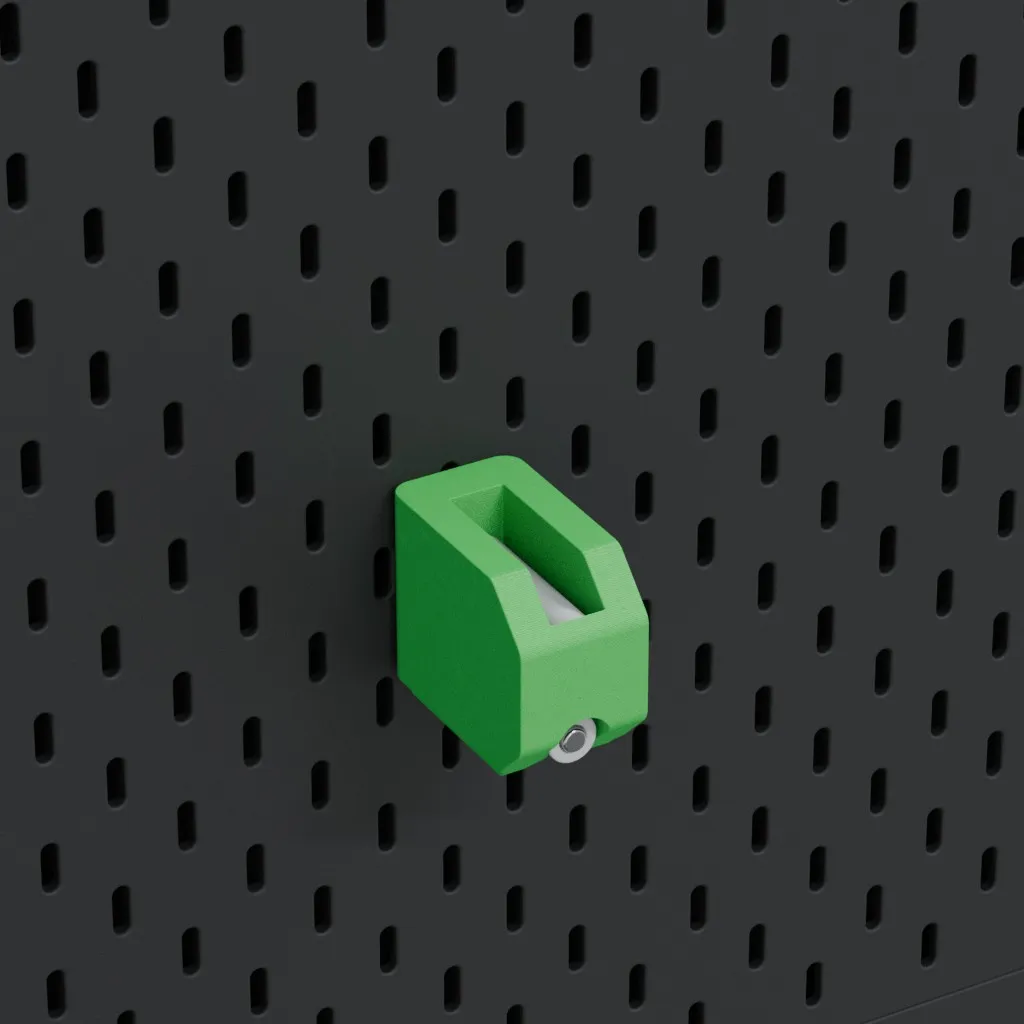

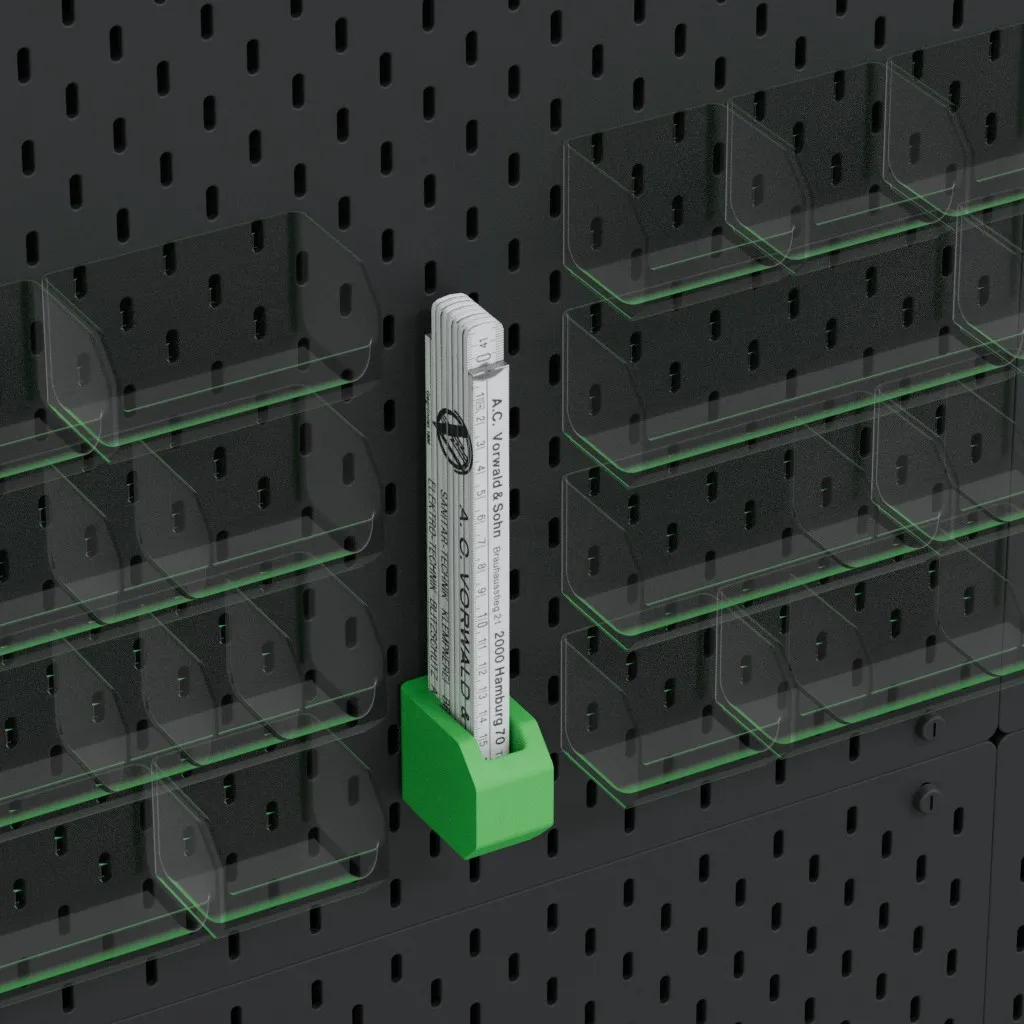

Ruler Holder

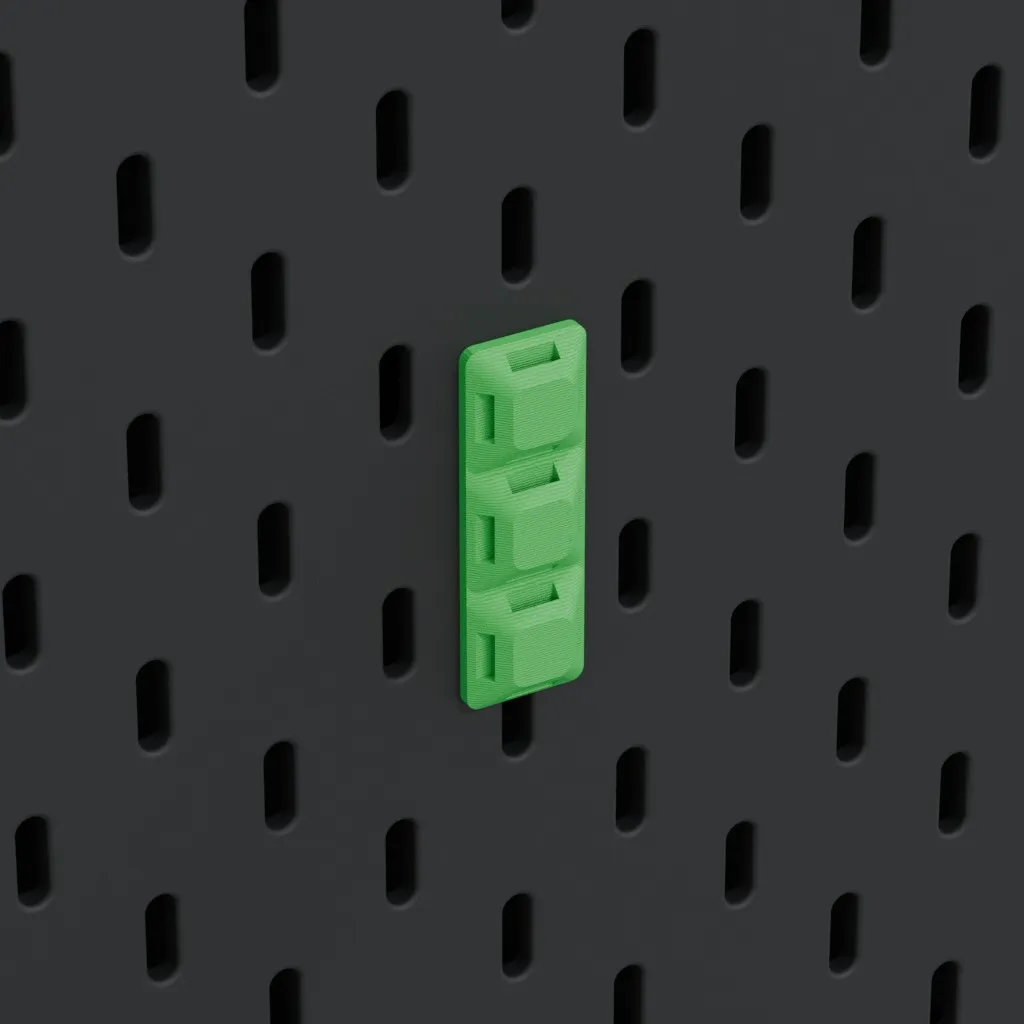

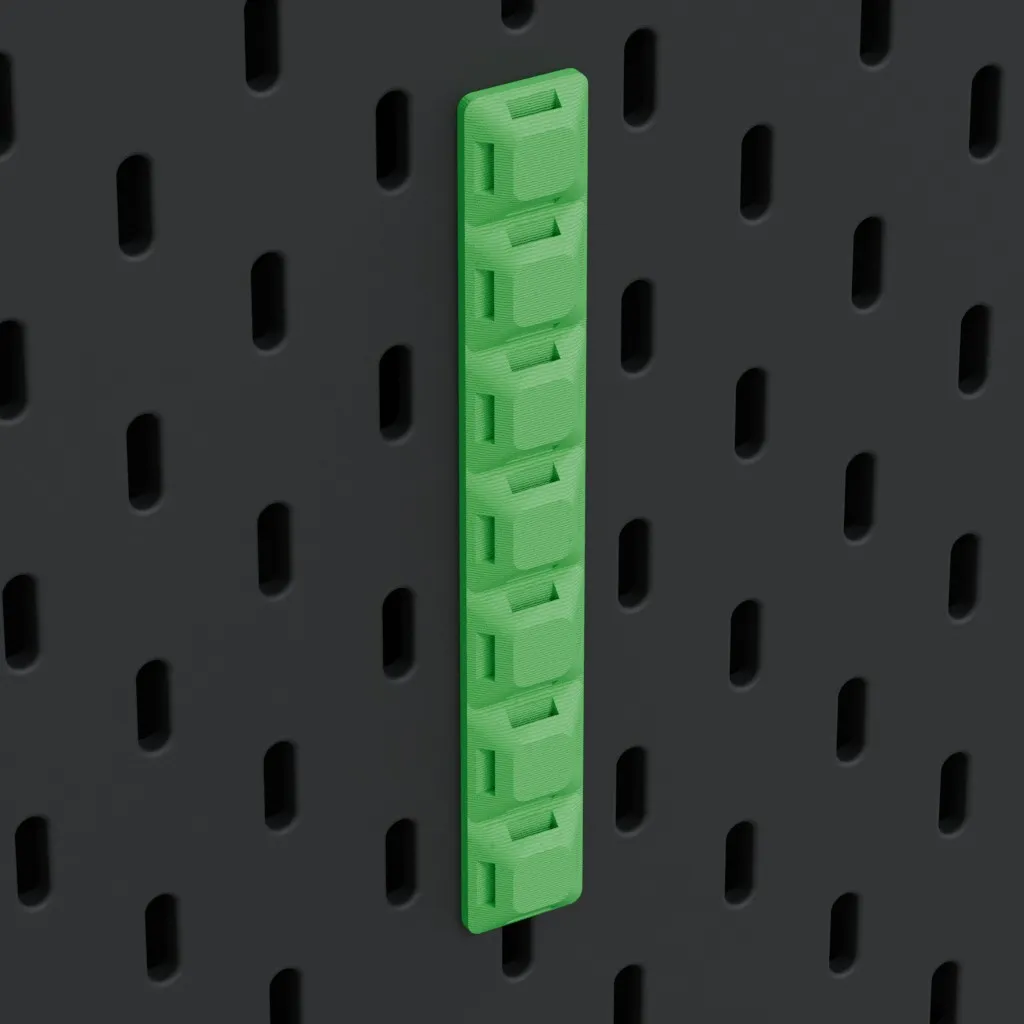

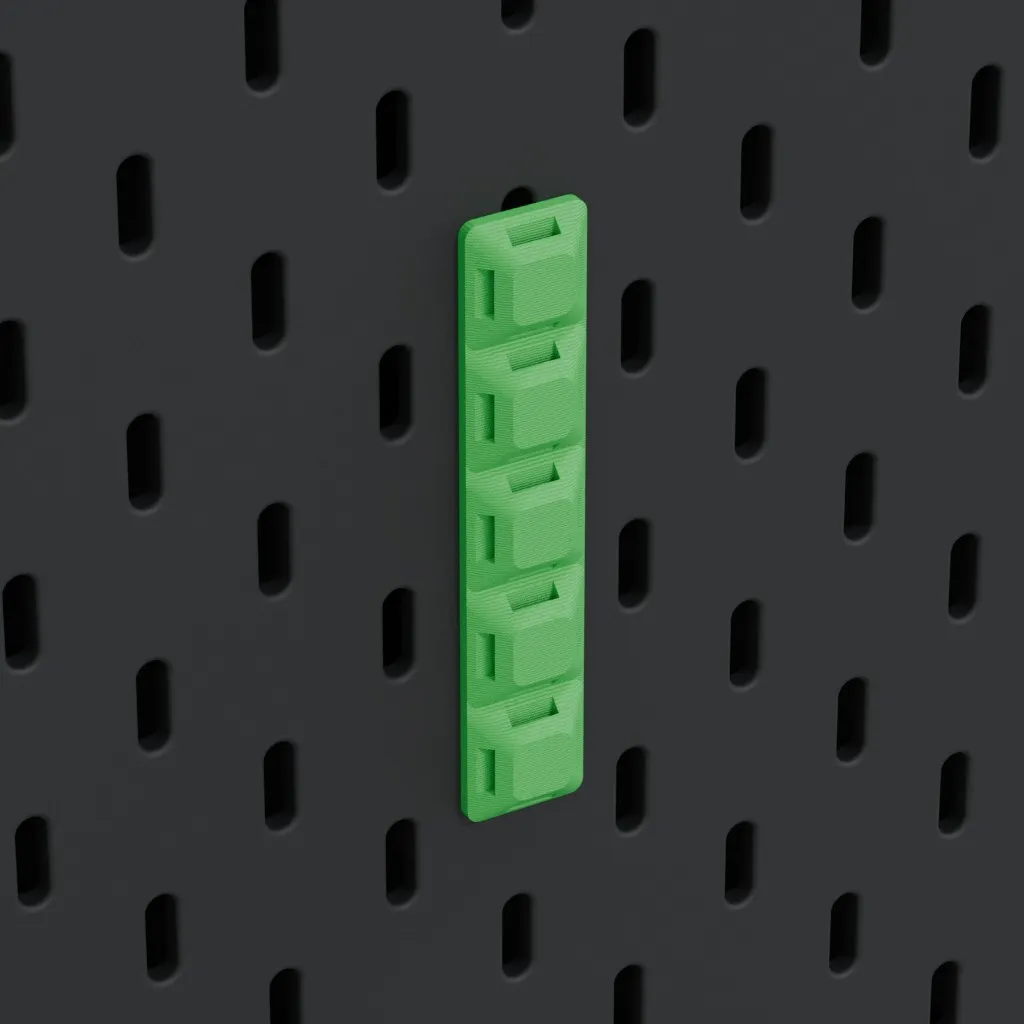

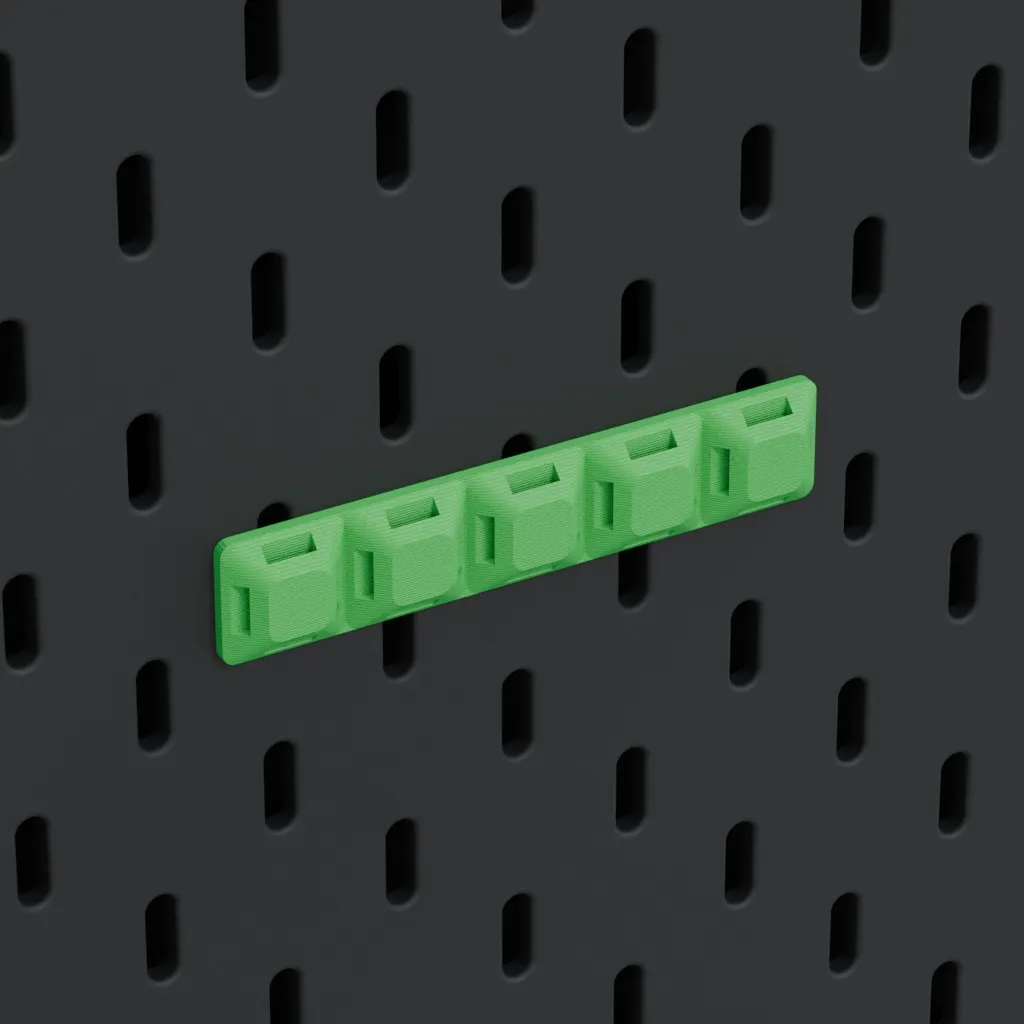

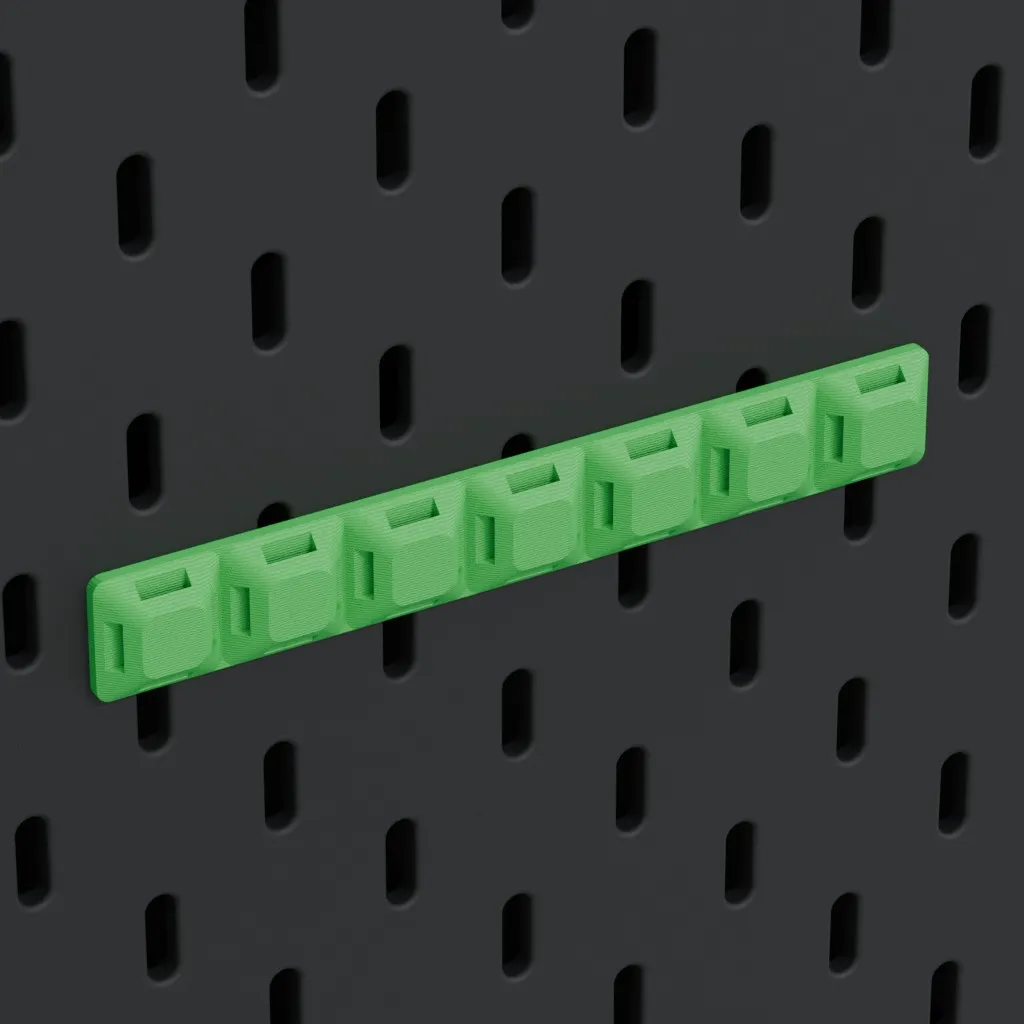

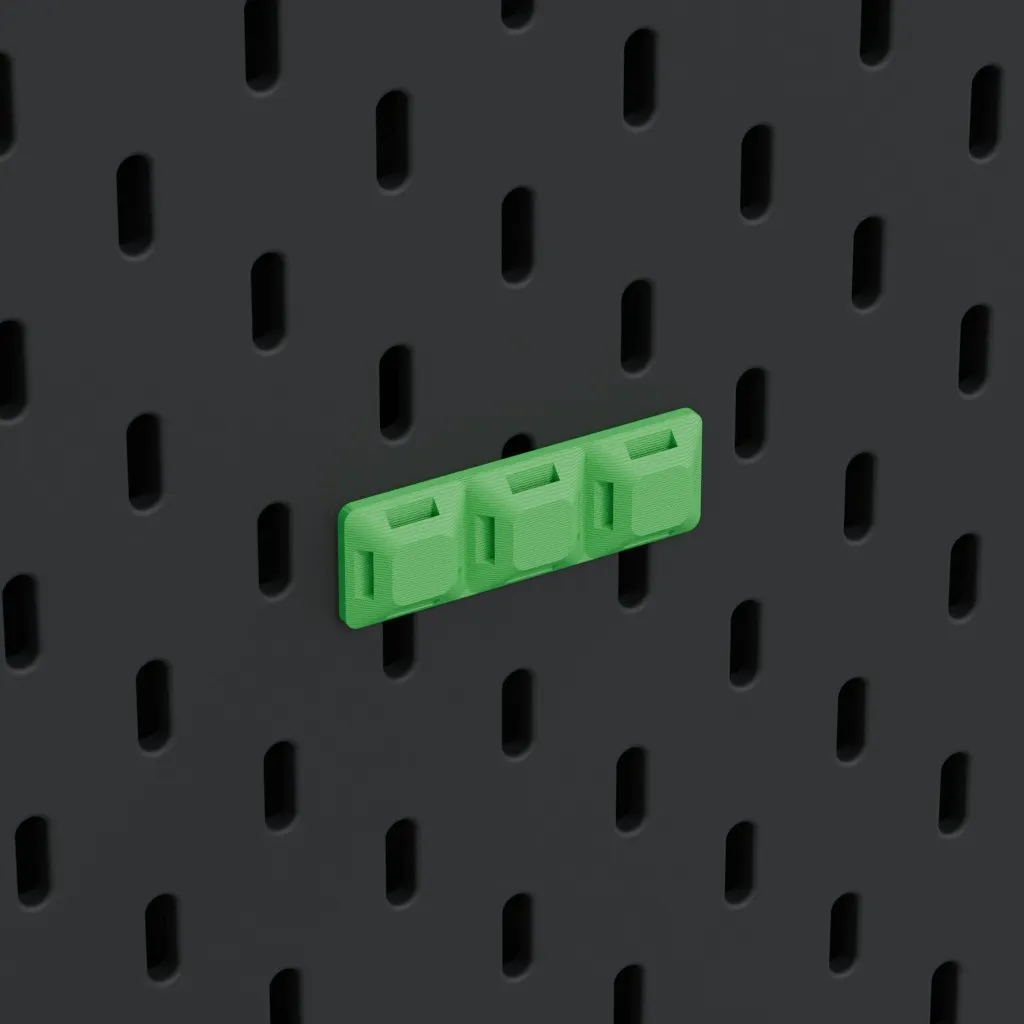

ZipTie Mounts

Viel Spaß beim Drucken :)
