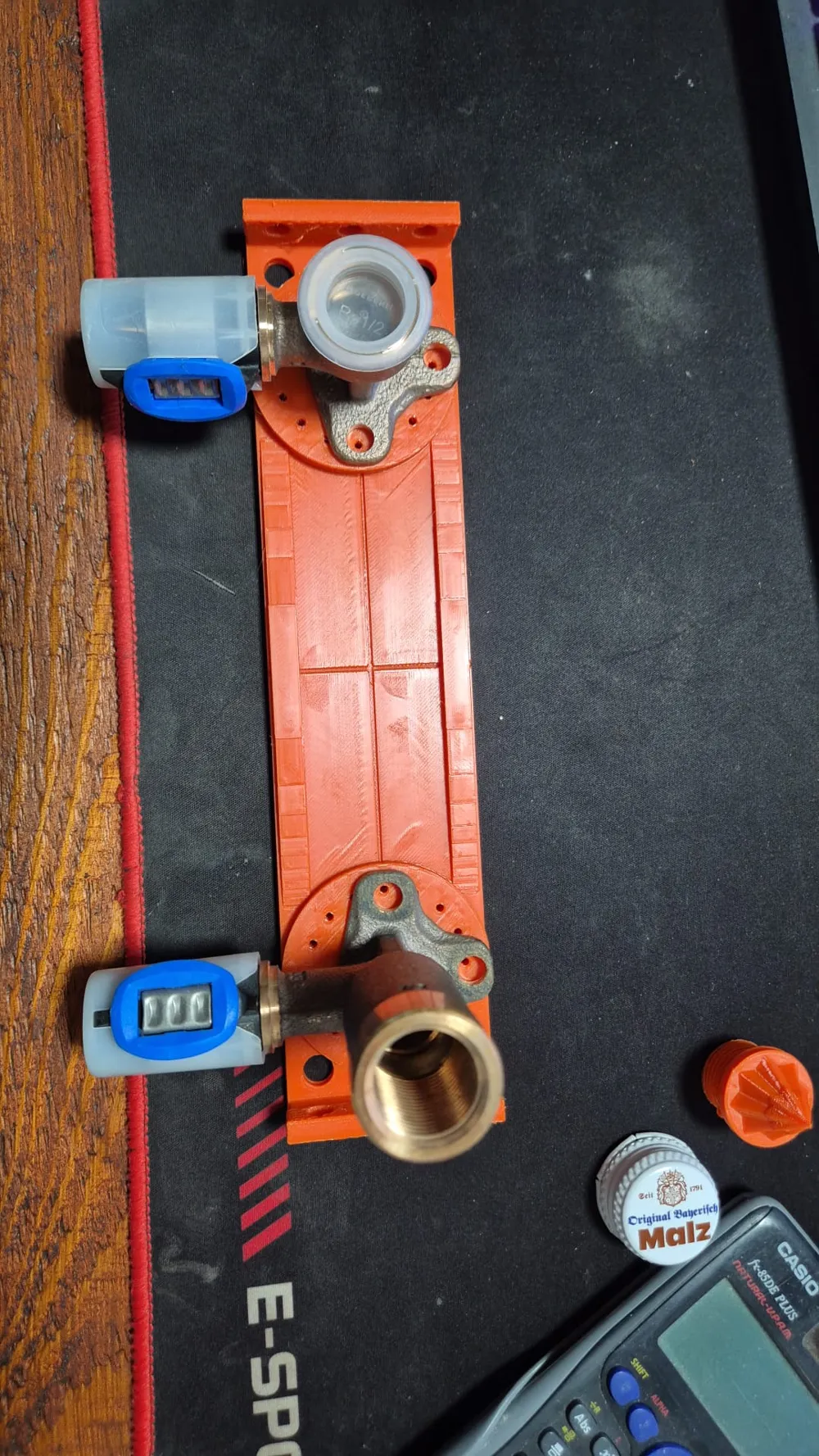

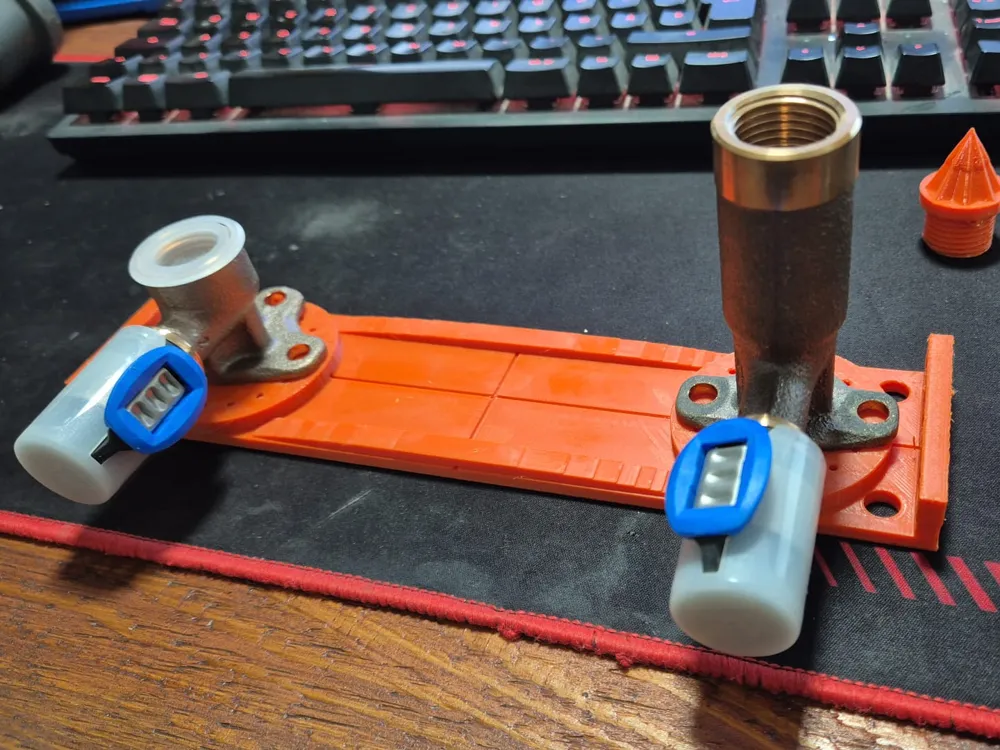

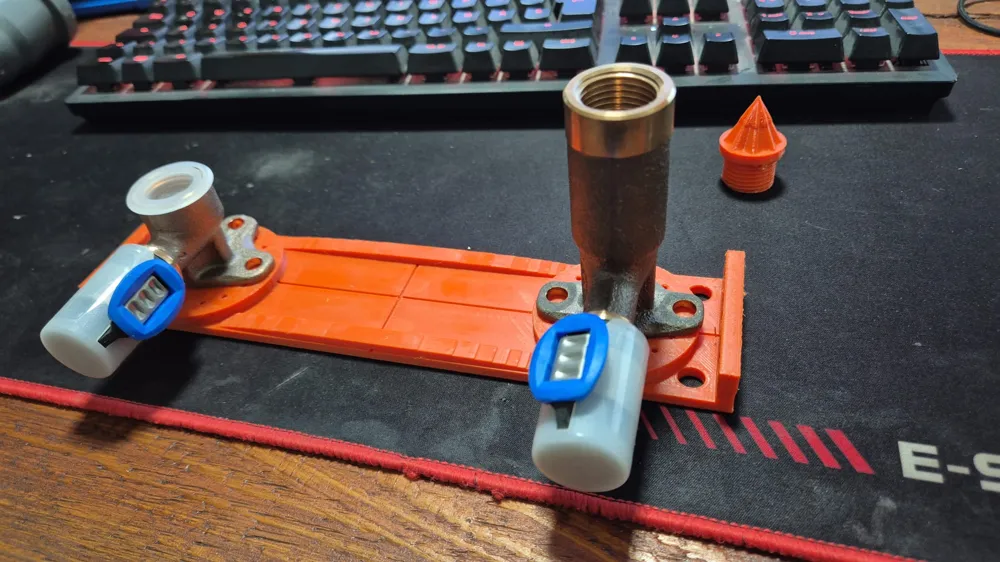

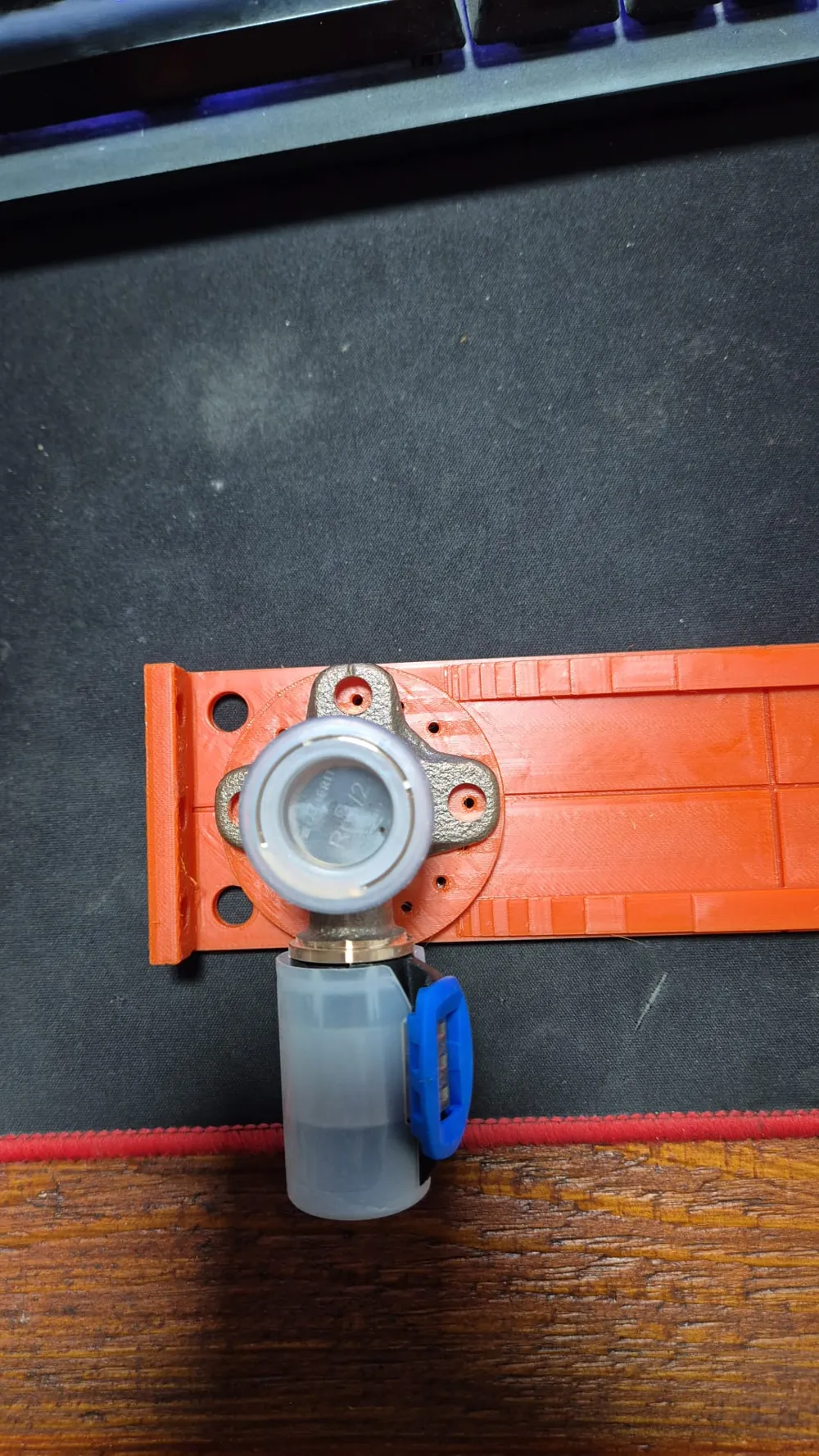

🛠️ Mounting Rail 153 mm for Wall Plates – Plumbing Aid for Precise Faucet Connections
This functional mounting rail was specifically developed for plumbing applications to precisely position wall plates for water connections. With a fixed center-to-center distance of 153 mm, it enables standard-compliant installation for bathtub and shower faucets.
🔧 Features & Benefits:
- Fixed drill holes for easy screwing of the wall plates
- Standard dimension 153 mm center-to-center for faucet connections
- Flexible pipe routing: from above, below, or from the side
- Integrated alignment notches for precise installation
- Mounting possible with screws, construction foam, or concrete embedding
- Printable with PETG or other temperature-resistant materials (for hot water up to 60 °C)
- Important: The rail must be horizontally aligned to ensure the correct mounting height of the faucets
💡 Note: This rail serves exclusively as a mounting aid – it does not replace any sealing or load-bearing structure.
