Turnout Lantern Märklin C-Track with LED Lighting

This turnout lantern was specially designed for Märklin C-Track and adds a realistic detail to your model railway layout. The design allows the lantern to be illuminated from below with a SMD LED 1206 – perfect for authentic light signals.

Recommended Print Settings:

• Nozzle: 0.2 mm for fine details
• Layer height: 0.08–0.12 mm

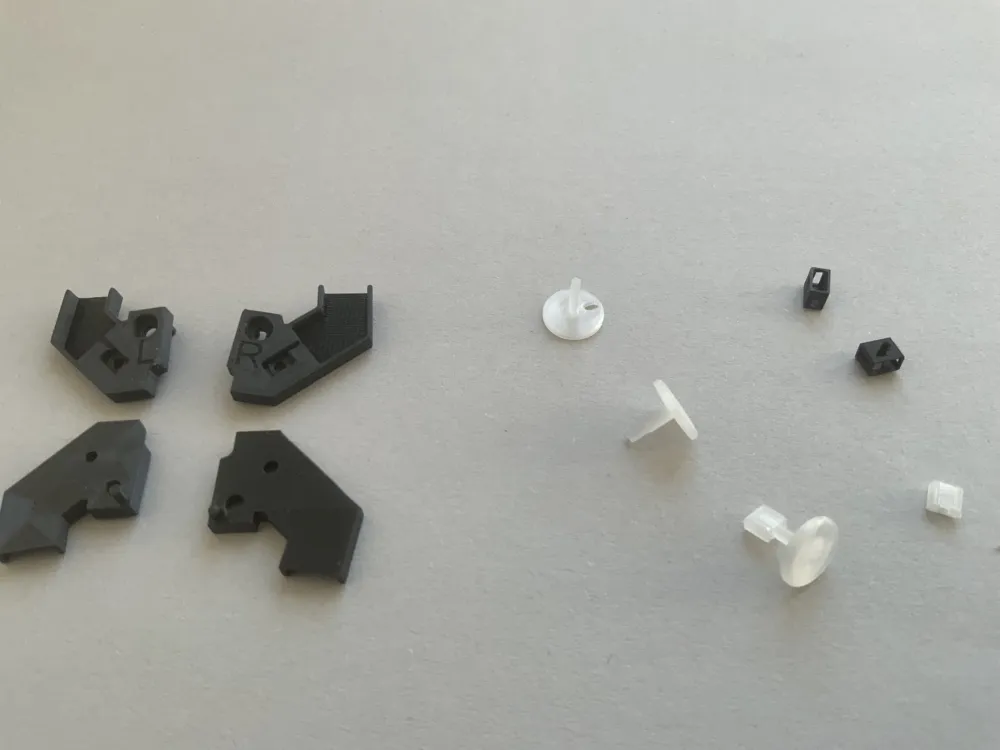

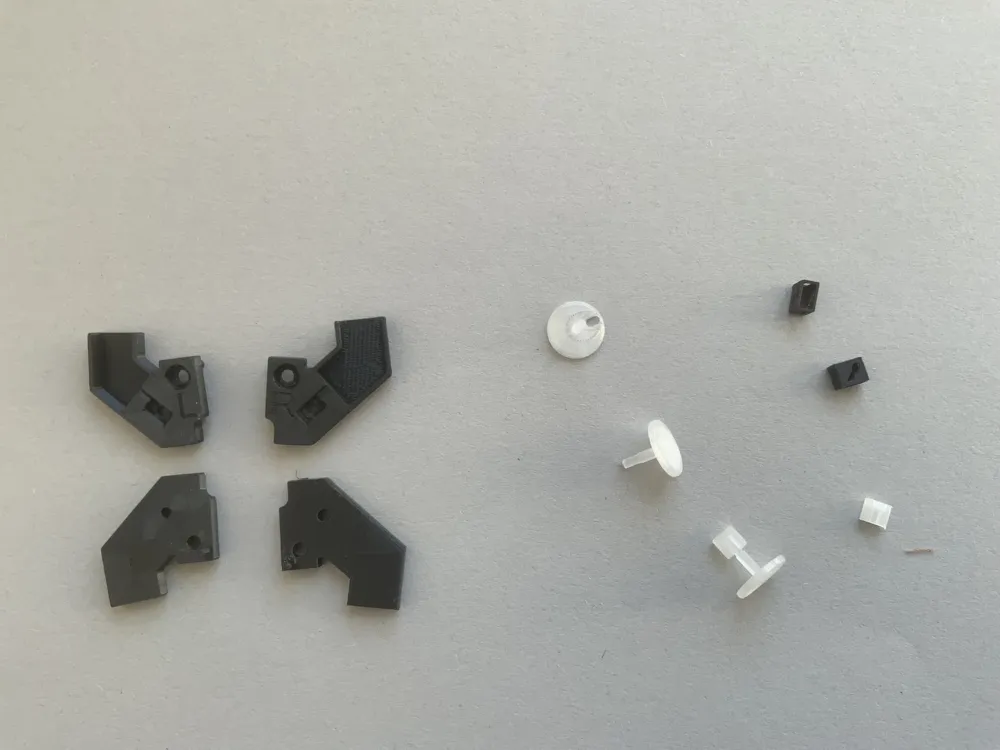

• Material:
  • Lantern housing: PLA or black ABS for an authentic look
  • Infill and Drive Shaft: translucent filament (PLA recommended) for optimal light effect
• Support: Only if necessary, depending on orientation

Special Features:

• Compact design suitable for Märklin C-Track
• Opening for LED integrated from below
• Translucent parts for realistic lighting

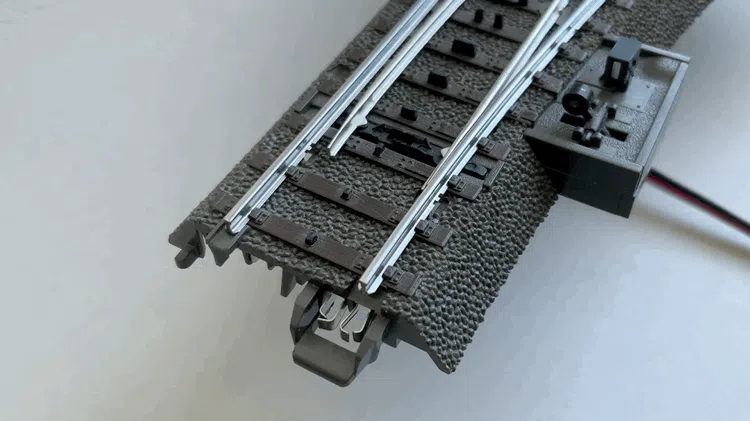

Assembly Tip:
The lantern can be mounted directly onto the turnout. For illumination, an SMD LED (e.g., 1206) is recommended
