Organizer Nokia Fiber Box + Telenor Icotera i4882
Print Profile(6)
Bill of Materials
Description

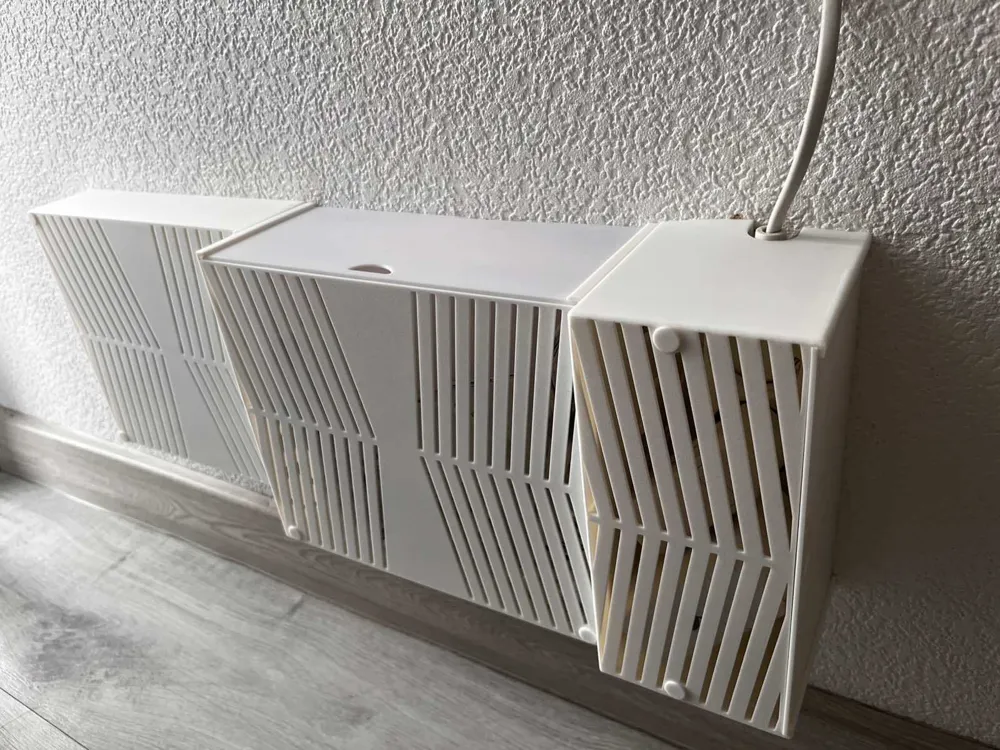

A smart and practical 3-in-1 wall-mounted organizer system for your internet setup.
Designed for Nokia fiber box, Telenor Icotera i4882 WiFi 6 Router, and 45° angled power strips, but can also fit other devices of similar size. Please check the inner dimensions above before printing.
Inner dimensions:
Fiber box: 185 mm (H) × 211 mm (L) × 49 mm (D)
Wi-Fi router box: 185 mm (H) × 221 mm (L) × 89 mm (D)
Power strip box: 188 mm (H) × 83 mm (L) × 98 mm (D)
System design:
Boxes connect to each other with built-in hooks.

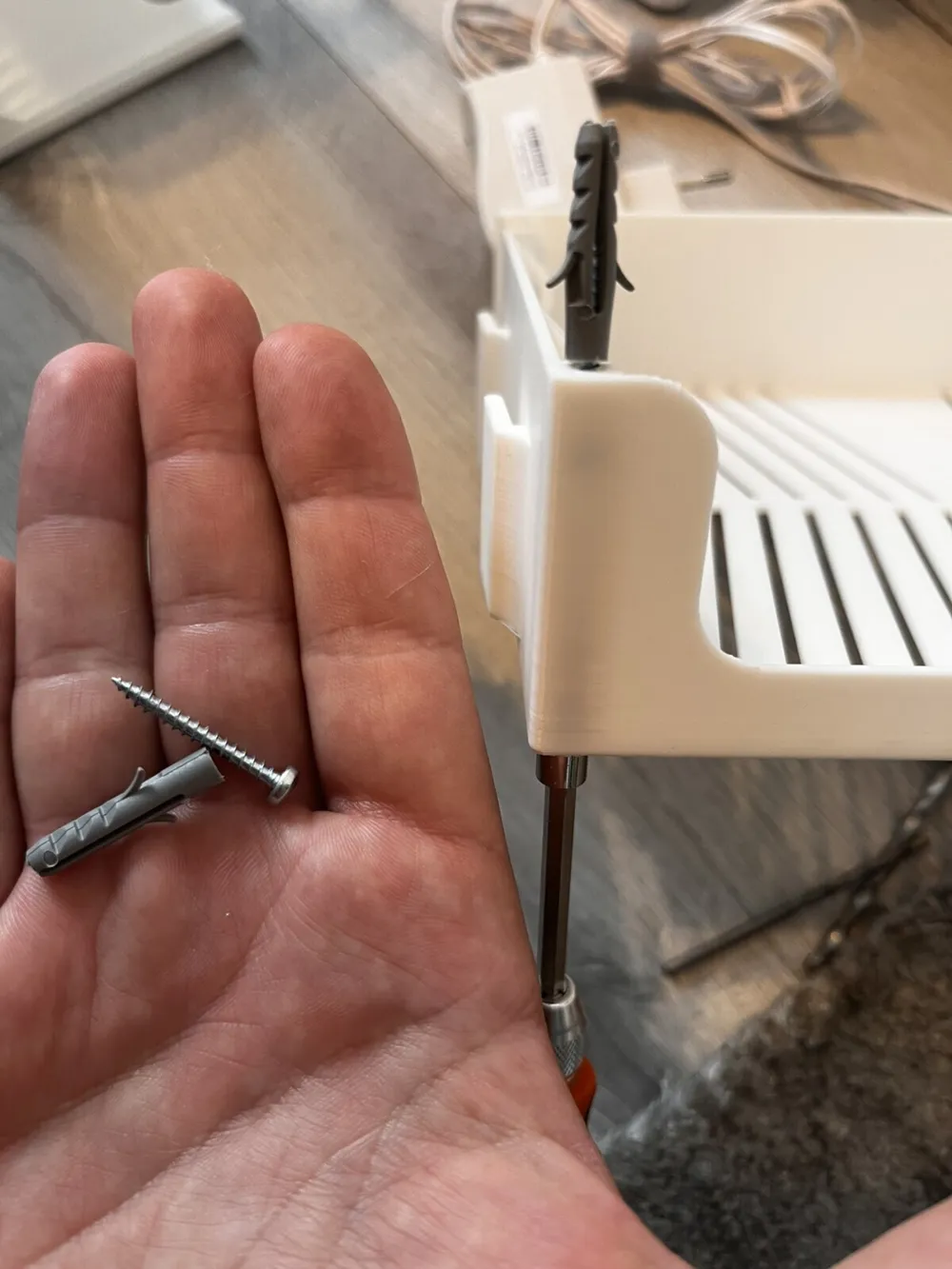

The fiber box must be mounted with 4 screws for secure stability.
The power strip box must be mounted with 2 screws. This design is compatible only with power strips that have 45° angled sockets — standard straight sockets will not fit due to space limitations.
The Wi-Fi router box is supported by the two neighboring boxes, with optional 4 screw holes if you prefer extra stability.
Features:
Sliding top lid on the Wi-Fi router box → easy to insert/remove the router
Sliding side lid on the power strip box → simple access to plugs
Cable management system keeps wires hidden, leaving just one visible cable
Slim walls (2–3 mm): lightweight but strong when mounted
The fiber box and Wi-Fi box include elongated ventilation slots to ensure proper airflow and prevent overheating. The power strip box is closed for safety.
Full access to buttons and ports: you can restart the fiber box or Wi-Fi router without removing the boxes. Extra space is provided for connecting additional cables.
Included:
Box for Nokia fiber box
Box forTelenor Icotera i4882 WiFi 6 Router
Box for power strip
Perfect for anyone who wants a minimalist, tidy, and modern internet corner without visible cable mess.
Files: STL for all 3 boxes, 2 sliding lids and plugs.
Print-ready, optimized for FDM printers
