120 & 140mm Fan Duct to 100, 125 & 150mm pipe/hose
Print Profile(4)
Description

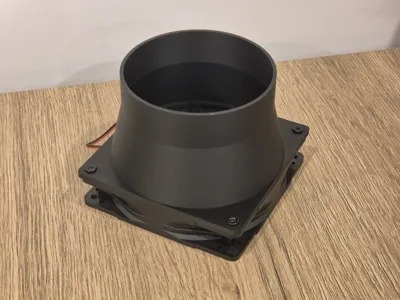

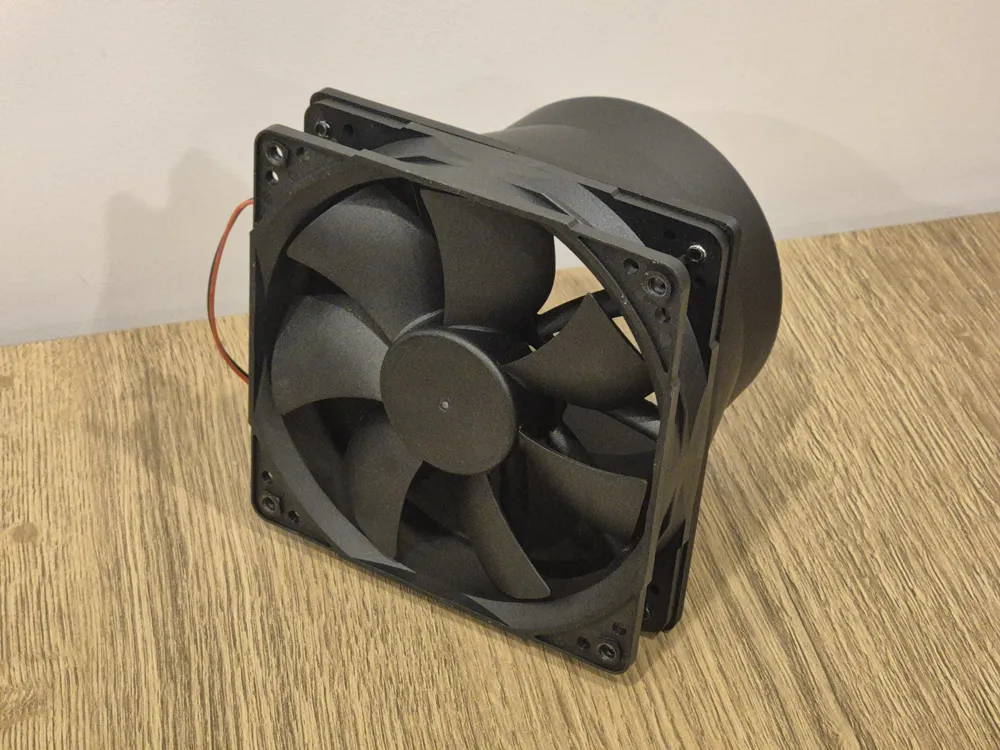

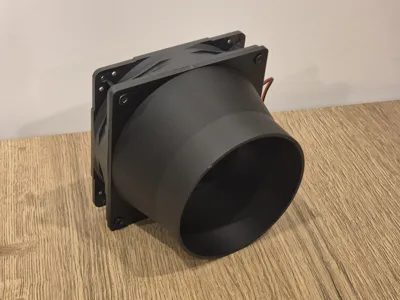

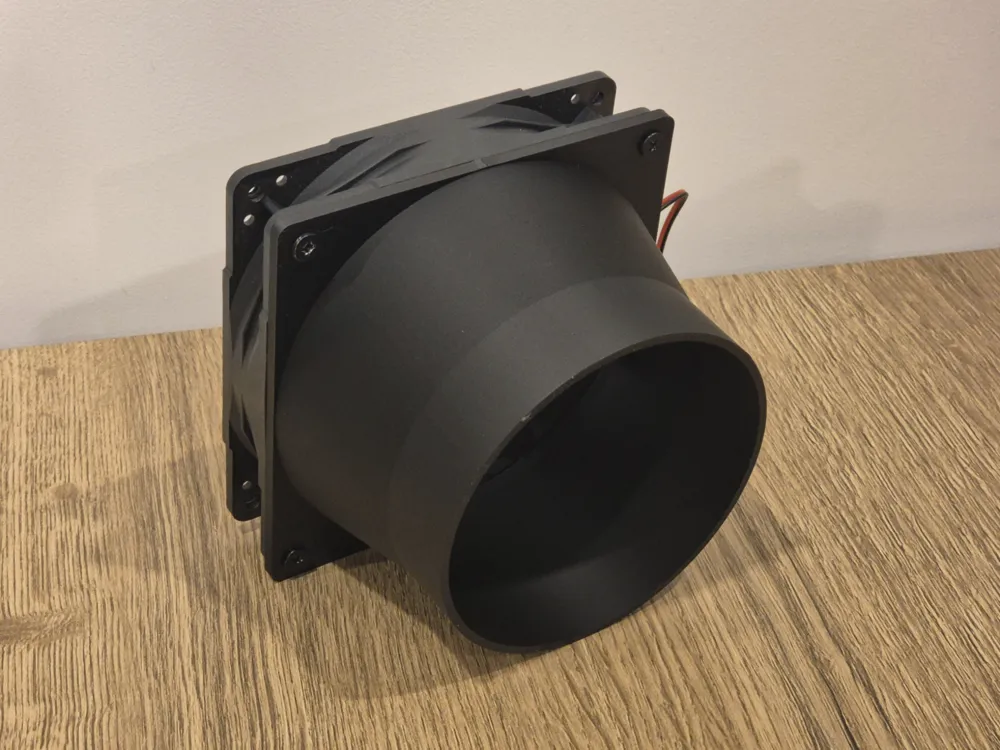

Various fan ducts for 120mm and 140mm fans:
- 120mm fan to 100mm duct
- 140mm fan to 100mm duct
- 140mm fan to 125mm duct
- 140mm fan to 150mm duct
Duct size is OUTER Diameter (except for the 150mm version, this one has 150mm inner diameter for aluminium pipe with rubber seal to fit!)

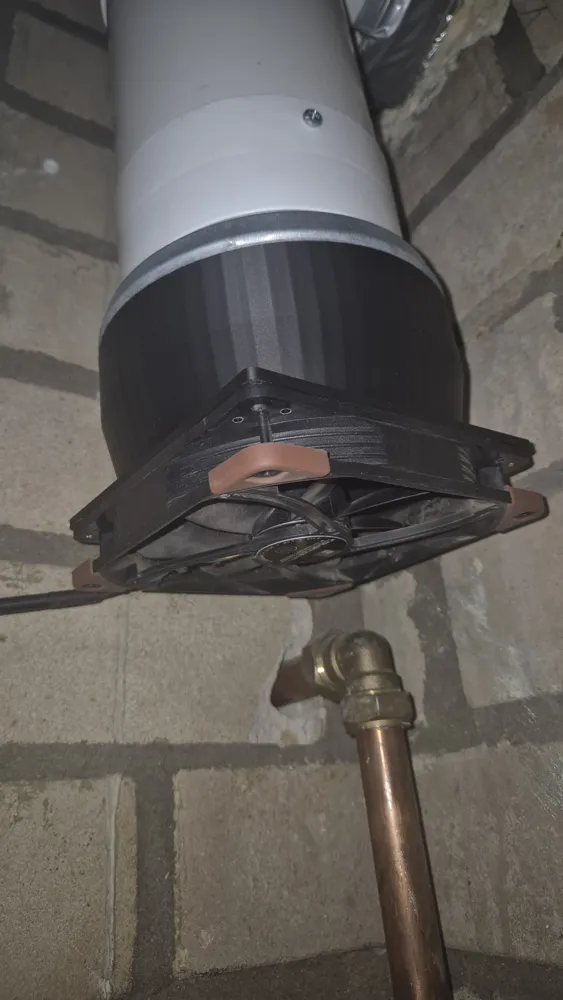

If you want to use a fan between two hoses, just print this adapter twice and use it on both sides of the fan!
Fan Dimension used from Noctua fans.
Mounting holes might need to be drilled out a little bit further.

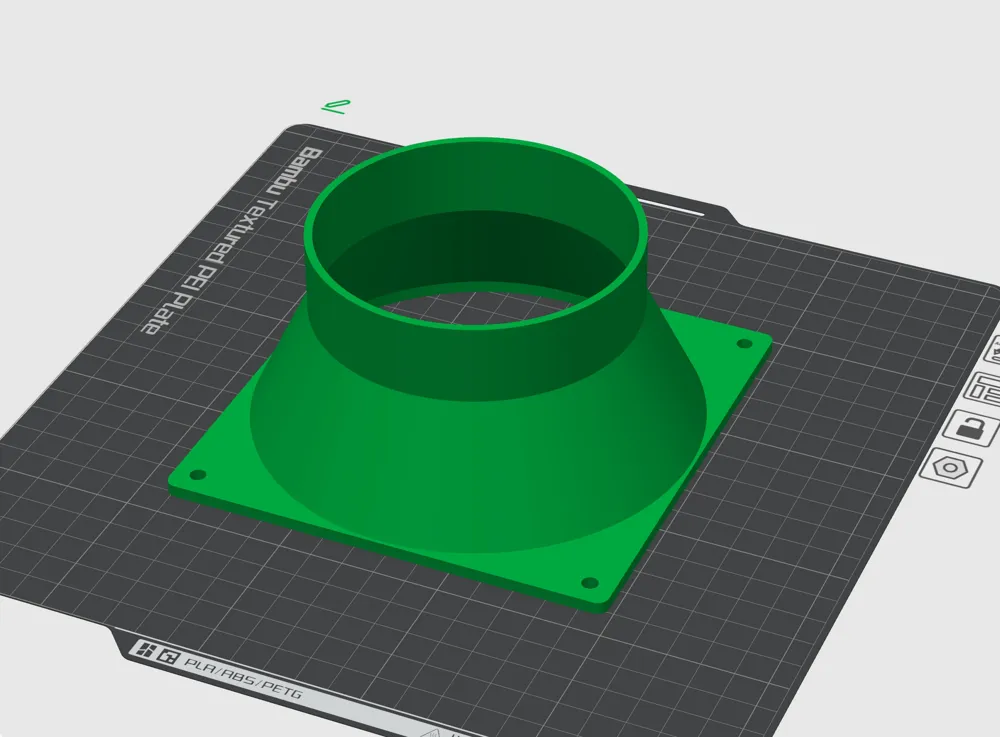

No supports needed!
See my other models for different size fan adapters.
Boost Me (for free)
If you like my design, I would very much appreciate your support by giving a boost! Thanks!
(each Boost is worth a few grams of new filament)
