vireo • pill cases

vireo • pill cases

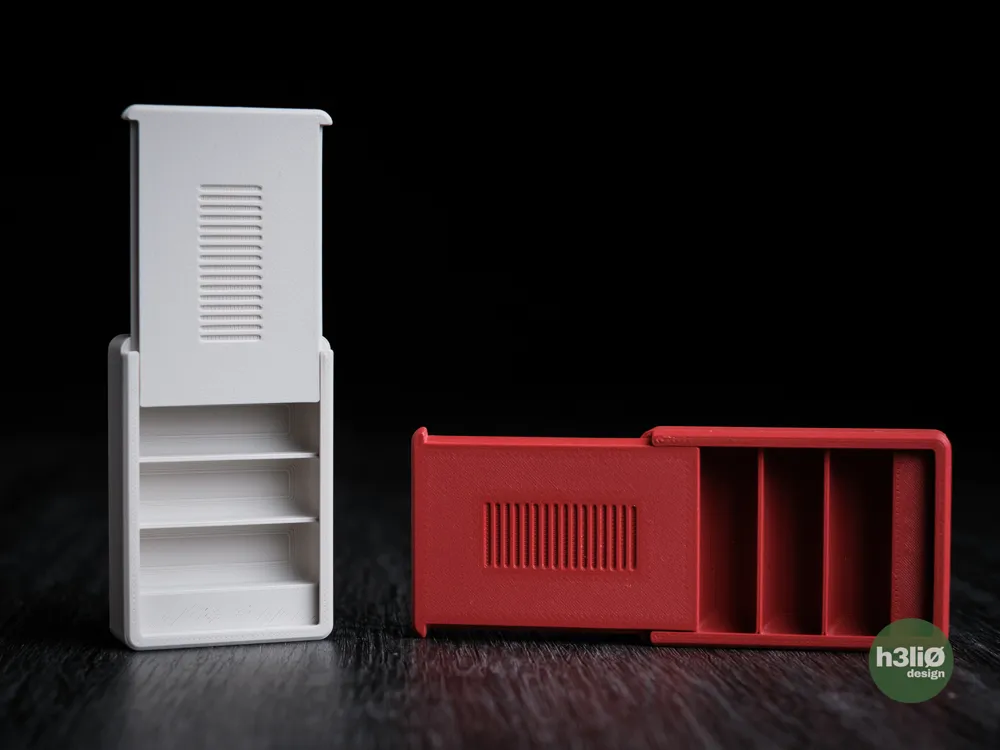

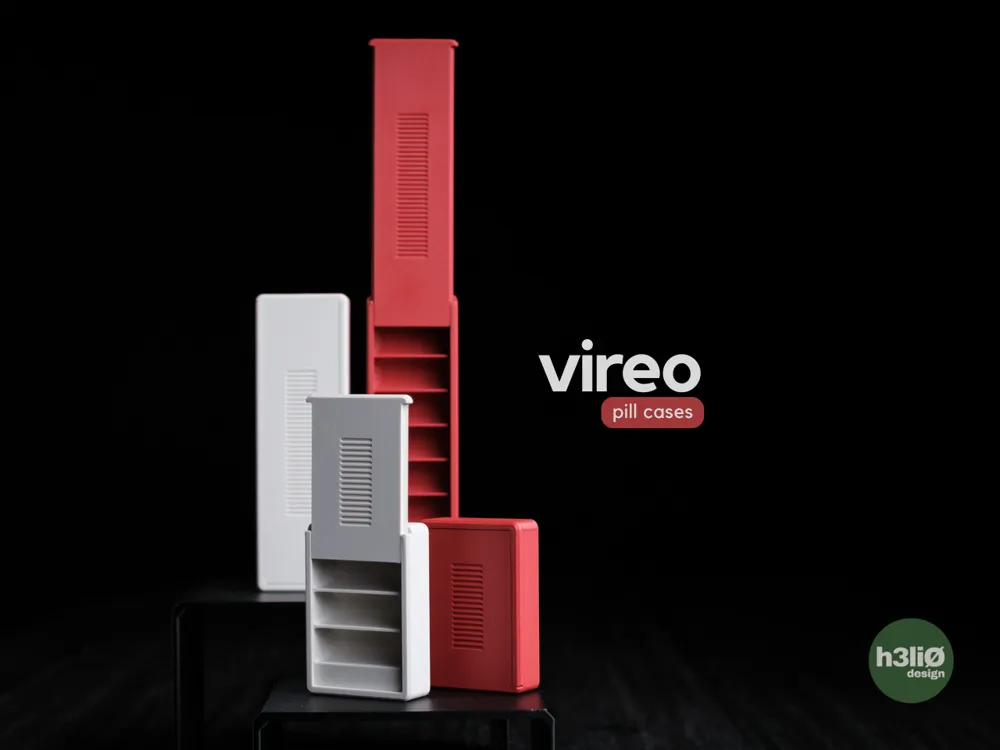

modern minimalist pill cases featuring inlaid magnets for a clean, secure lid closure. Available in two sizes • with 3 or 7 compartments. the magnetic lid offers a smooth, satisfying opening and closing experience.

dimensions in mm:

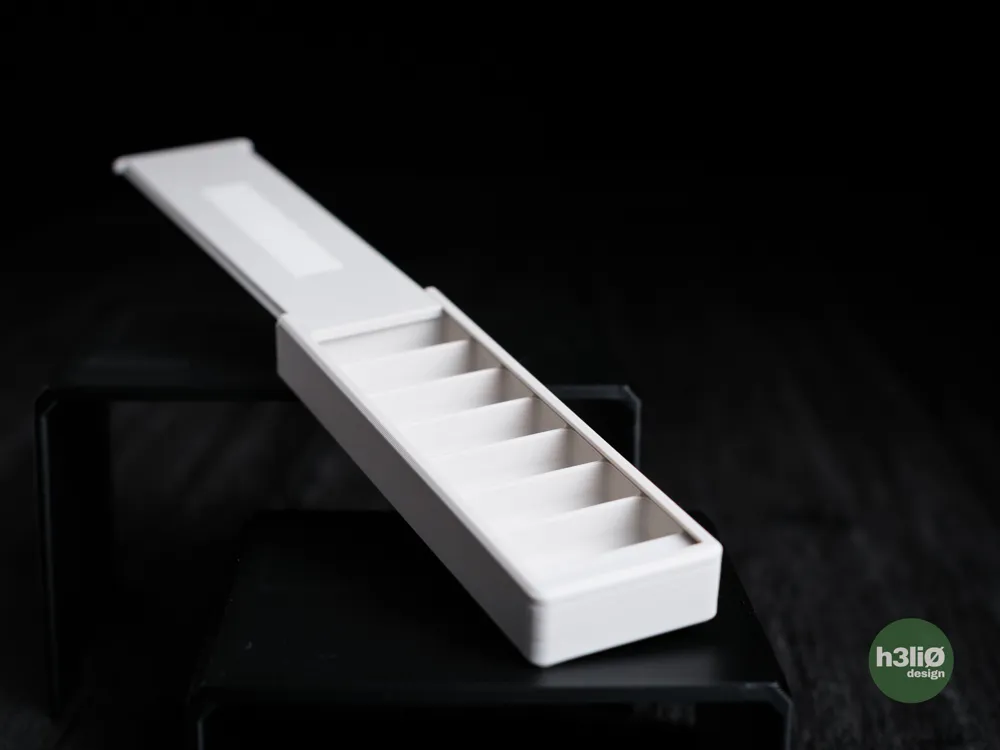

• 7 compartments ~ x:120 · y:37 · z:15
• 3 compartments ~ x:60 · y:42 · z:15

each of the pill cases requires 2x 6x3mm magnets for the case and 2x 8x1mm magnet for the lid. the print profiles include the pause on which you add the magnets in. the tolerances are tight, especially for the 6x3 magnet pocket, to ensure it locks into position and doesn't get pulled away by the nozzle, so make sure you align and then push firmly into the pocket

important · make sure that:

• your filament is dry and calibrated so that it deals appropriately with the tolerances
• your build plate is properly clean so that there aren't adhesions issues and lifts during the print
• please make sure that you are very mindful of the polarities of the magnets when assembling in their spots as you want to make sure that each section attracts and not repels the one that will sit above/below

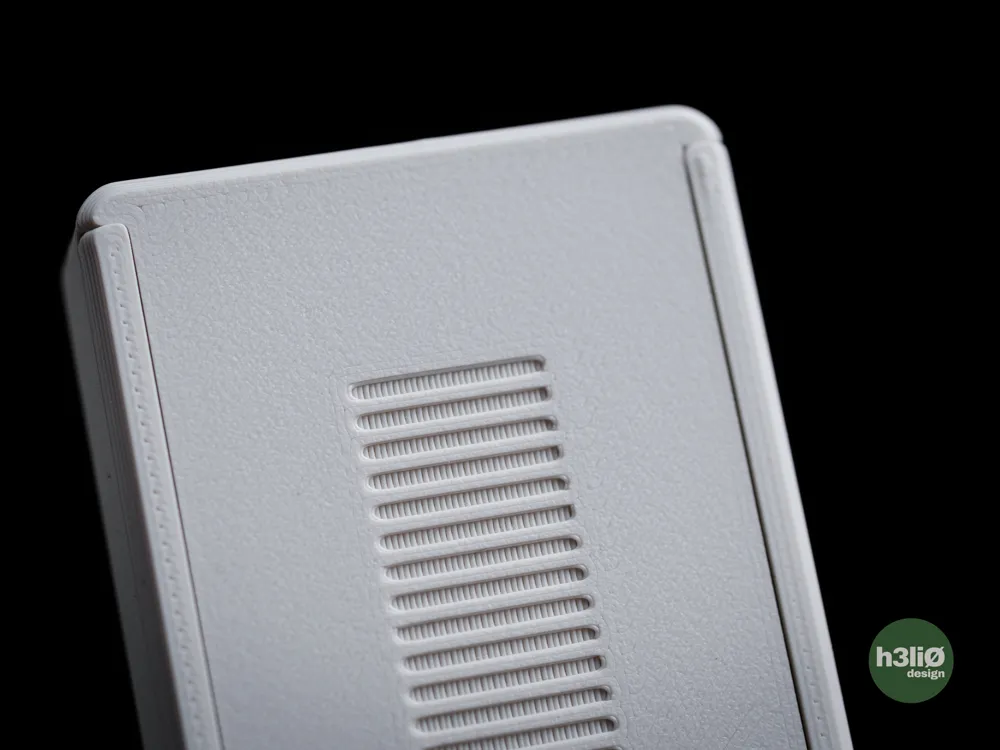

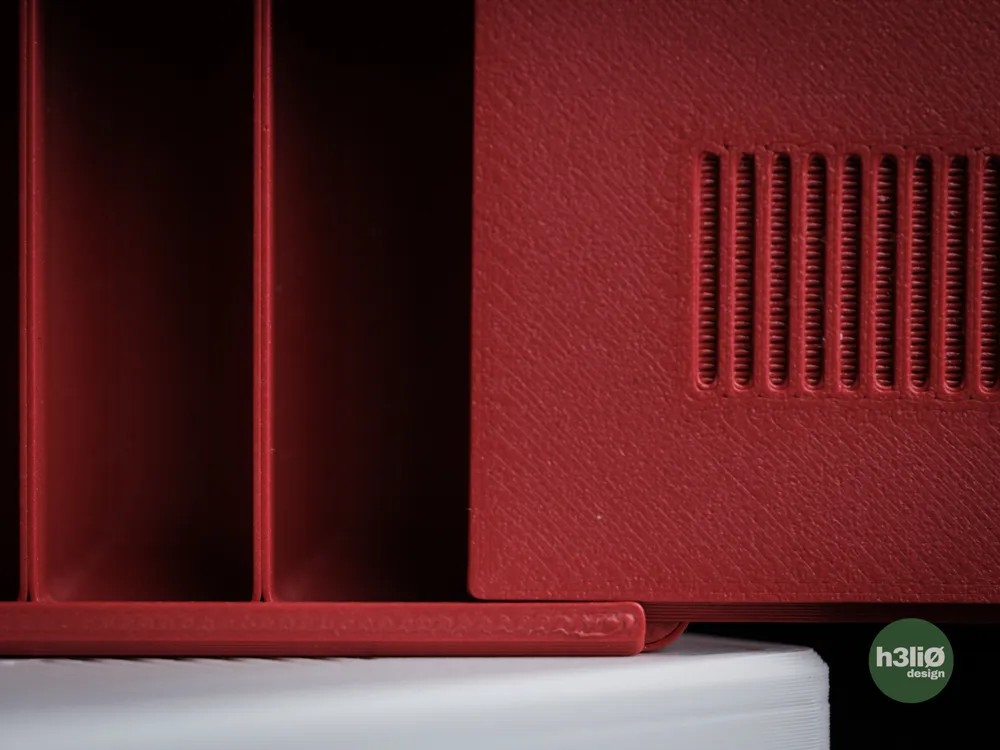

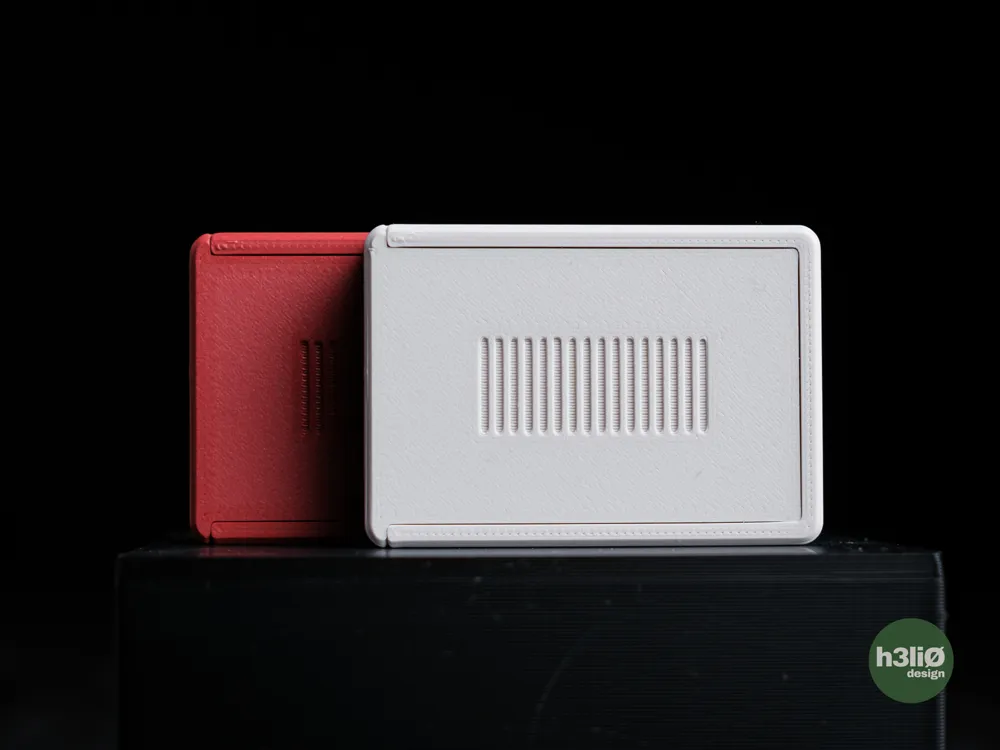

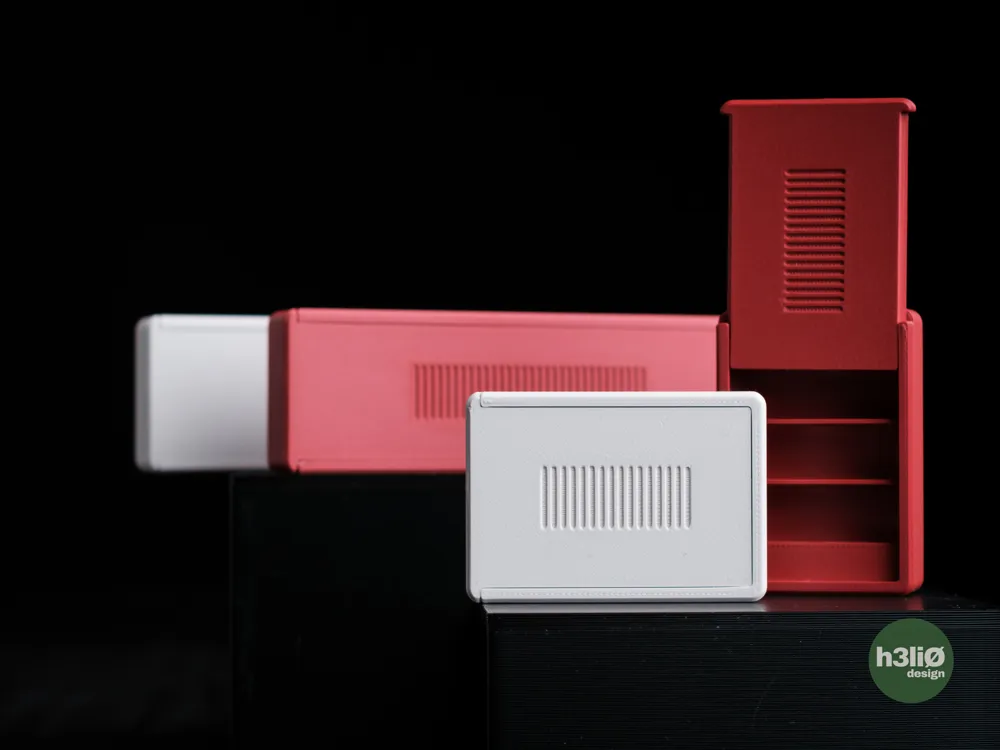

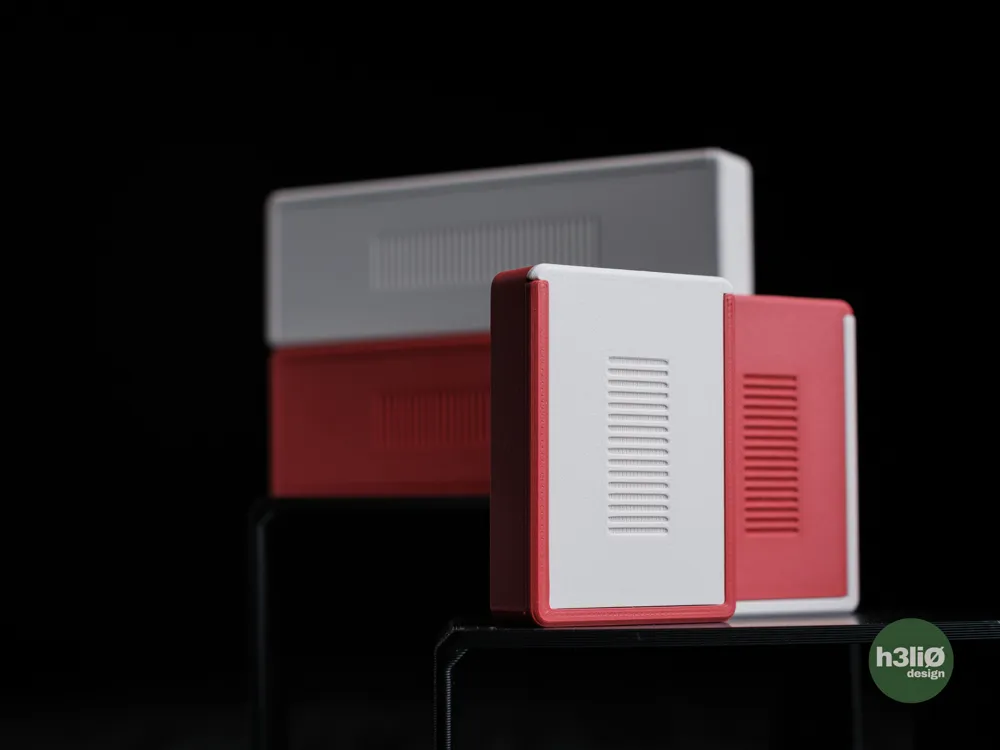

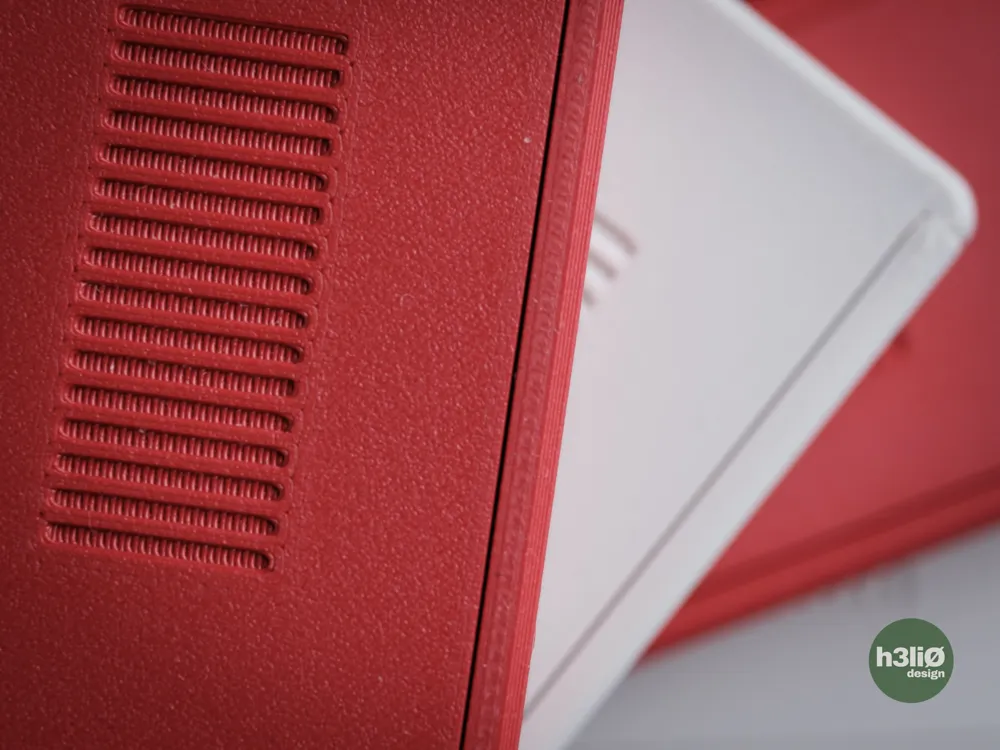

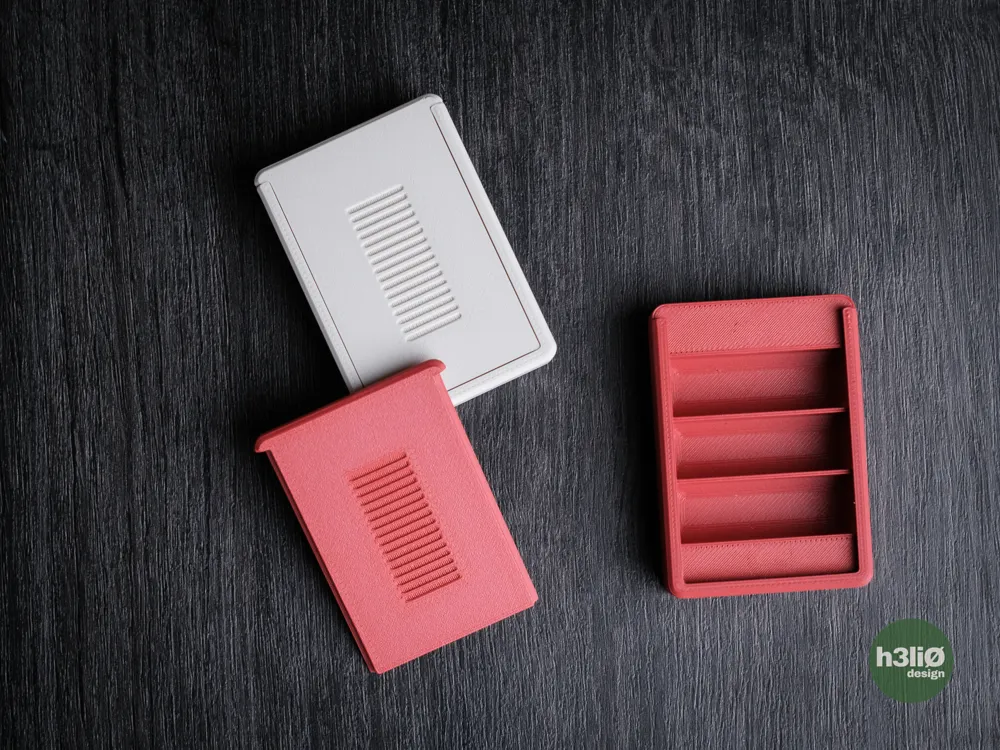

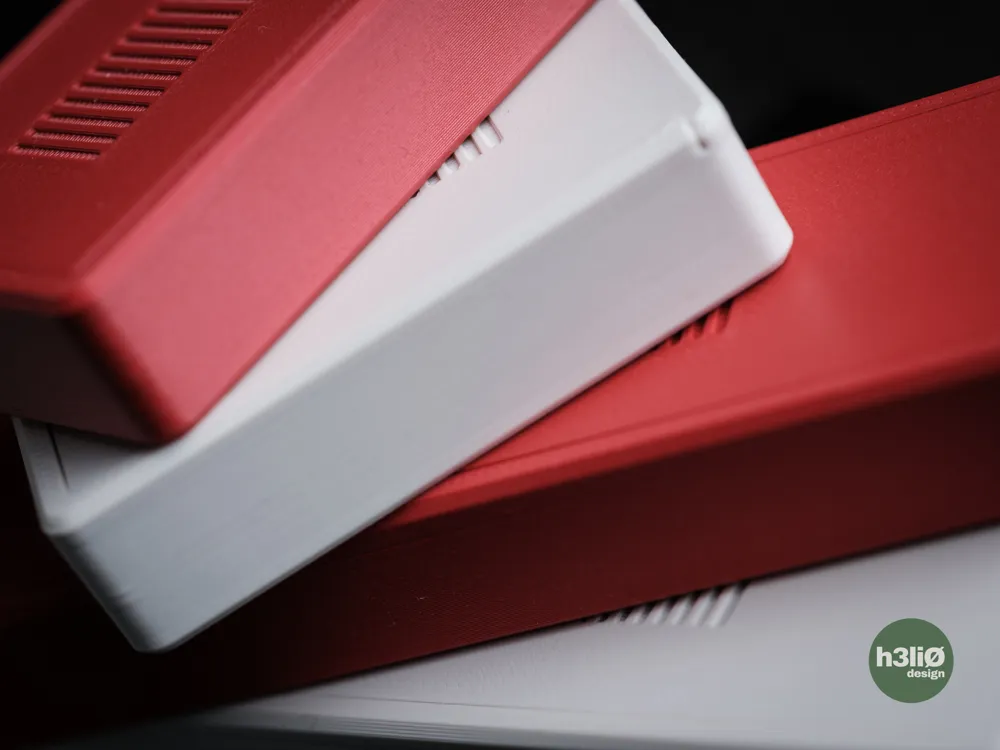

photos show printed in matte PLA

• .40mm nozzle
• .20 layer height
• 15% cubic infill
• pauses added for magnet insertions on the lid and on the case

notes

• includes bambu studio 3mf files and STLs
• all photos uploaded are of the actual printed model, and are copyright protected
• if you enjoy this model please consider to buy me a coffee
• commercial licence membership available through the link below or on my patreon
