Hex Connect Galaxy A16 Ultralight Case

This is a Galaxy A16 case made to work with Hex Connect mounts.

Made to be printed in rigid plastics, PLA, ABS, PETG, and ASA should all work fine.

Let me know what Hex Connect mount (tripod? car mount? etc.) you'd like to see next!

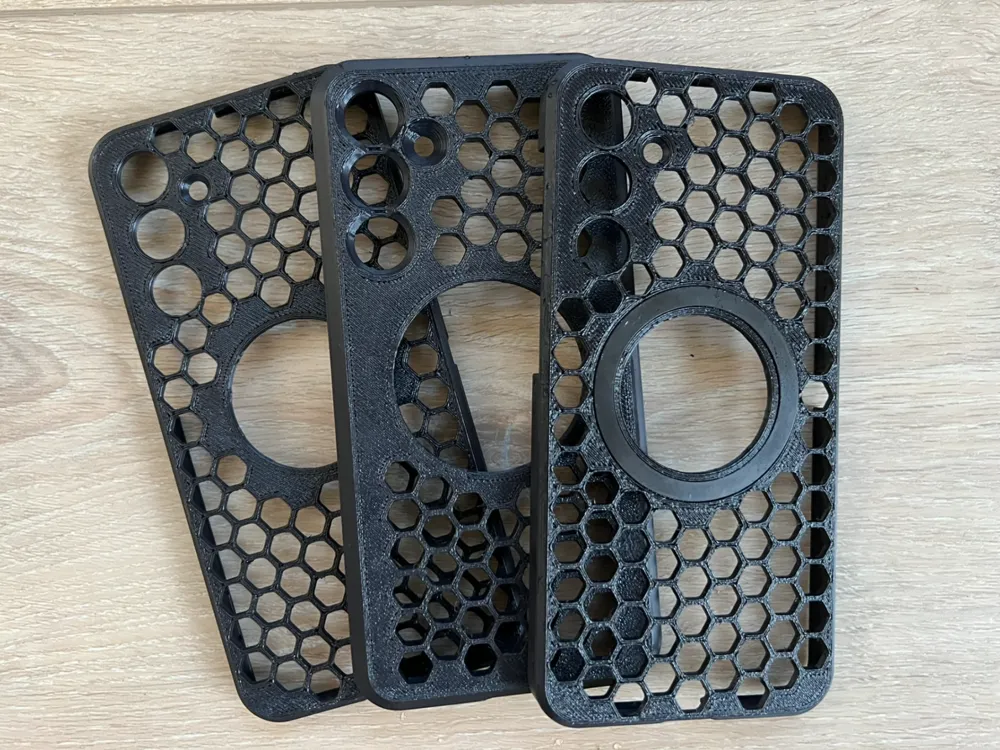

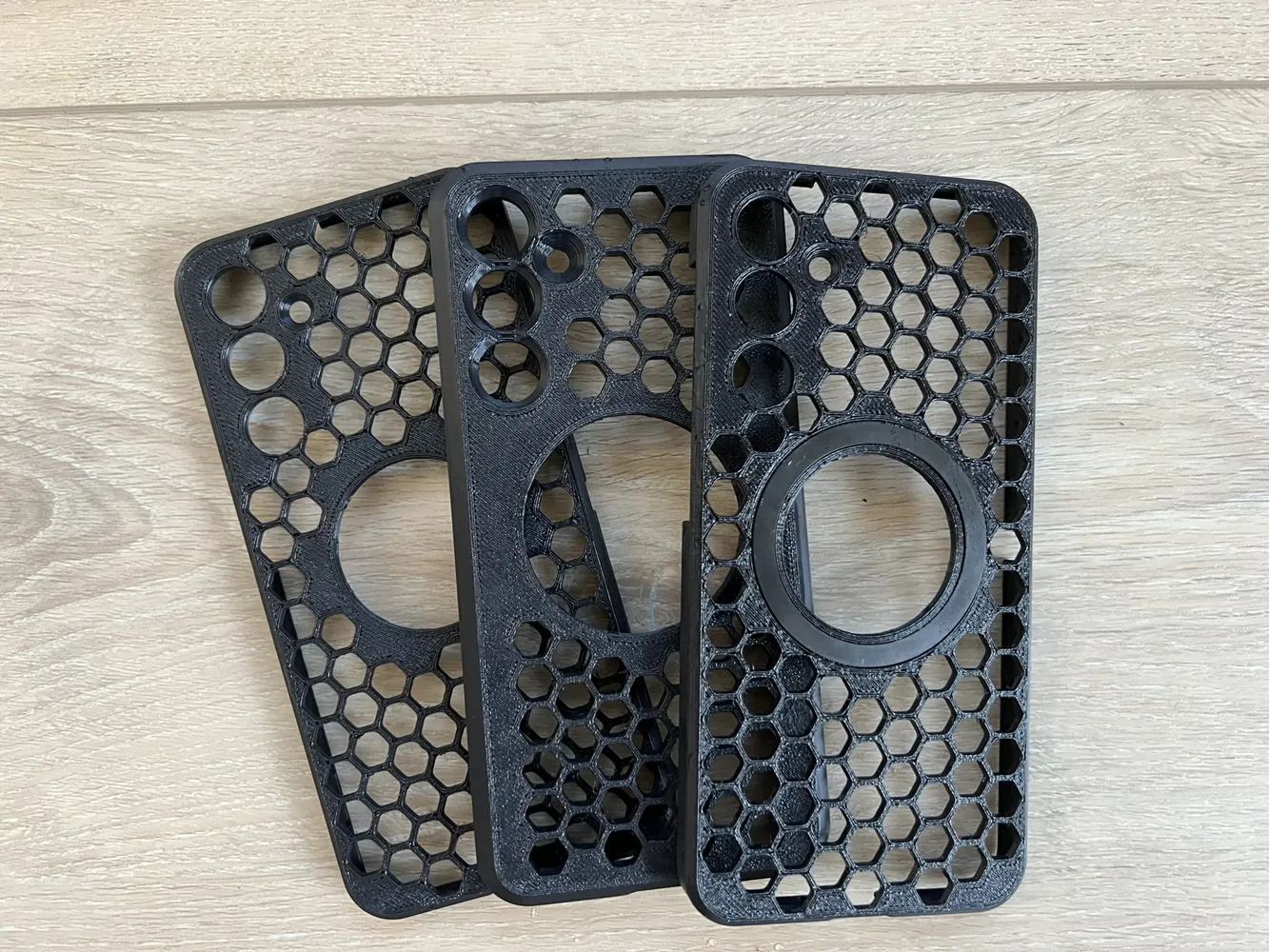

The three provided variants are:

1. Standard with Magsafe - Connects to the standard Hex Connect connector. Has a recess for mounting a thin Magsafe metal sticker with ID of 45mm and OD of 55mm.
2. Standard without Magsafe - Connects to the standard Hex Connect connector without the Magsafe recess.
3. XL - Connects to the XL Hex Connect connector. It's too thick for proper Magsafe functionality so no magsafe recess included.

Standard vs XL pros and cons:

Standard:

• Pros
  • Thin enough for proper Magsafe support (2 mm)
  • Slimmer case is more convenient for everyday use
  • Allows use with Magsafe mounts using a case-mounted metal ring
  • Probably stronger than you would expect :)
• Cons
  • Not as strong as XL

XL:

• Pros
  • Strongest connection for high-intensity activities
• Cons
  • Thicker case is less convenient for everyday use
  • Not Magsafe compatible

Visit this link for the Hex Connect base design files and for a list of all compatible Hex Connect accessories and cases: https://makerworld.com/en/models/1834578-hex-connect-base-design-files#profileId-1959313
