DeepCool CH270 Riser Bottom Stand Improves Airflow, High Aesthetic Appeal, Includes DC Logo, Vertical Airflow

With this riser stand, upgrade your CH270's vertical airflow. Not only will cooling be "calmer," but your desktop's aesthetic appeal will also improve. Happy Printing & Stay Cool!

A complete introduction to the 3D printable "riser / bottom stand" model for the DeepCool CH270 chassis, ready for direct printing. Modification and commercial re-modification are prohibited without permission. The model has been tested in multiple vertical airflow configurations and significantly improves bottom intake efficiency. It also features a DC (DeepCool) logo decorative surface, balancing performance and aesthetics.

I. Design Highlights

1. Custom-made for CH270
   • The model dimensions in the 3mf file match the CH270 bottom dimensions, requiring no additional modifications.

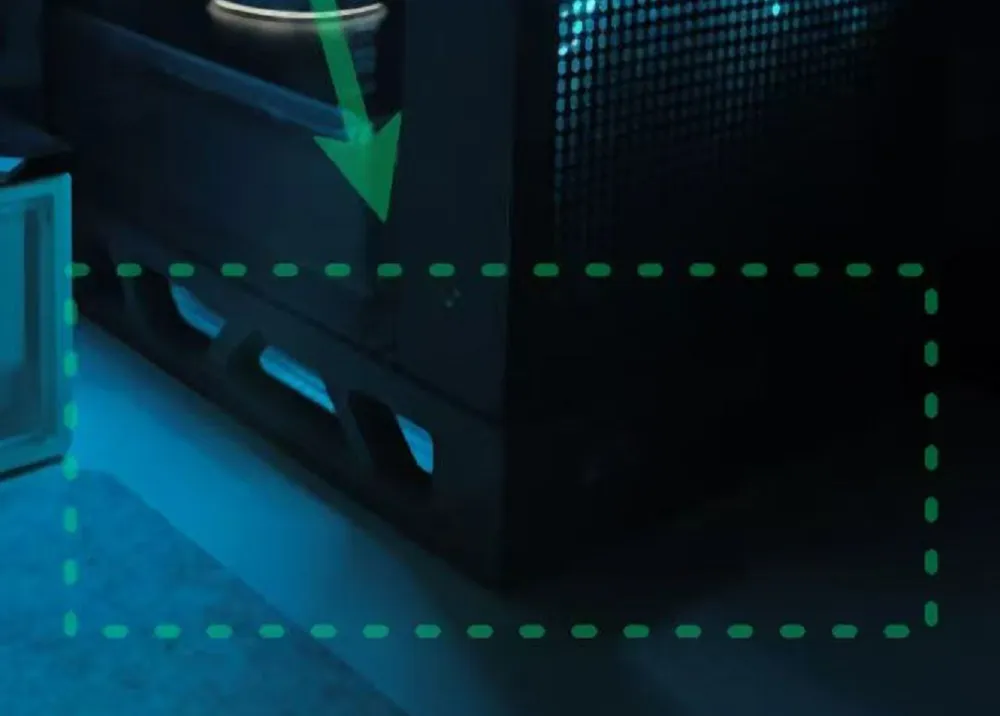

   • Raises by 50 mm, providing space for power cables, USB-C cables, etc., to pass through, preventing excessive bending that could lead to poor contact.
2. Airflow Optimization
   • Four-sided through grille + 45° diversion bevel, increasing intake area by ≈38%, creating a more stable positive pressure vertical airflow.
   • The bottom space can accommodate 2×120 mm reverse-blade fans, or it can be used directly as a passive riser.
3. High Aesthetic Appeal
   • Integrated recessed DC (DeepCool) logo engraving on the front, which presents a metallic texture when printed with PLA Silk.
4. Easy-to-Print Structure
   • Enable automatic tree supports, and it can be formed in one go with 0.2 mm layer height / 0.4 mm nozzle.
   • Split printing option: can be disassembled into 4 parts to reduce warping and is compatible with 256*256 mm small-sized printers.

II. File List (STL Package)

1. deepcool-ch270 bottommount.stl (Print in Place, recommended for platforms 250 mm or larger) Note: This is the version without reserved assembly tolerance
2. deepcool-ch270 bottommount.step (Print in Place, recommended for platforms 250 mm or larger) Note: This is the version without reserved assembly tolerance
3. deepcool-ch270 bottommount.3mf (Contains split part printing parameters, PETG printing recommended, front panel requires dual-color printing support, split into 4 parts for printing)

III. Recommended Print Parameters

• Material: PETG (balanced strength/temperature resistance) or PLA-CF (high rigidity, matte surface)
• Layer Height: 0.2 mm
• Wall Thickness/Top/Bottom Layers: ≥1.2 mm (3 perimeters)
• Infill: 25% grid (or 3D honeycomb), balancing strength and lightweight
• Nozzle Temperature: PETG 230–240 ℃; PLA-CF 210–220 ℃
• Bed: 80 ℃ (PETG) or 60 ℃ (PLA-CF)
• Support: Tree automatic

IV. Assembly and Installation

1. After printing, slide the entire stand into the bottom of the CH270, align with the 120 mm fan holes, and secure with the long screws provided with the original machine.
2. If using the split version, assemble the parts first, and use super glue to secure the separated parts.
