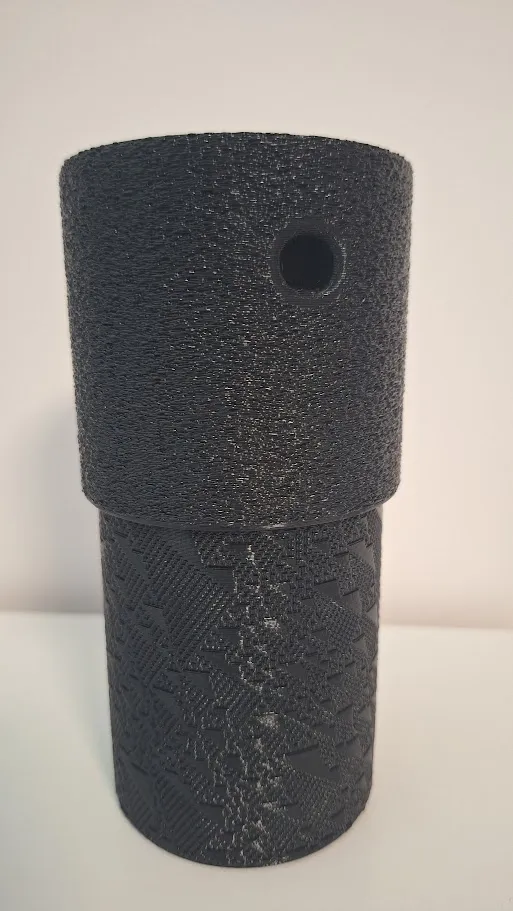

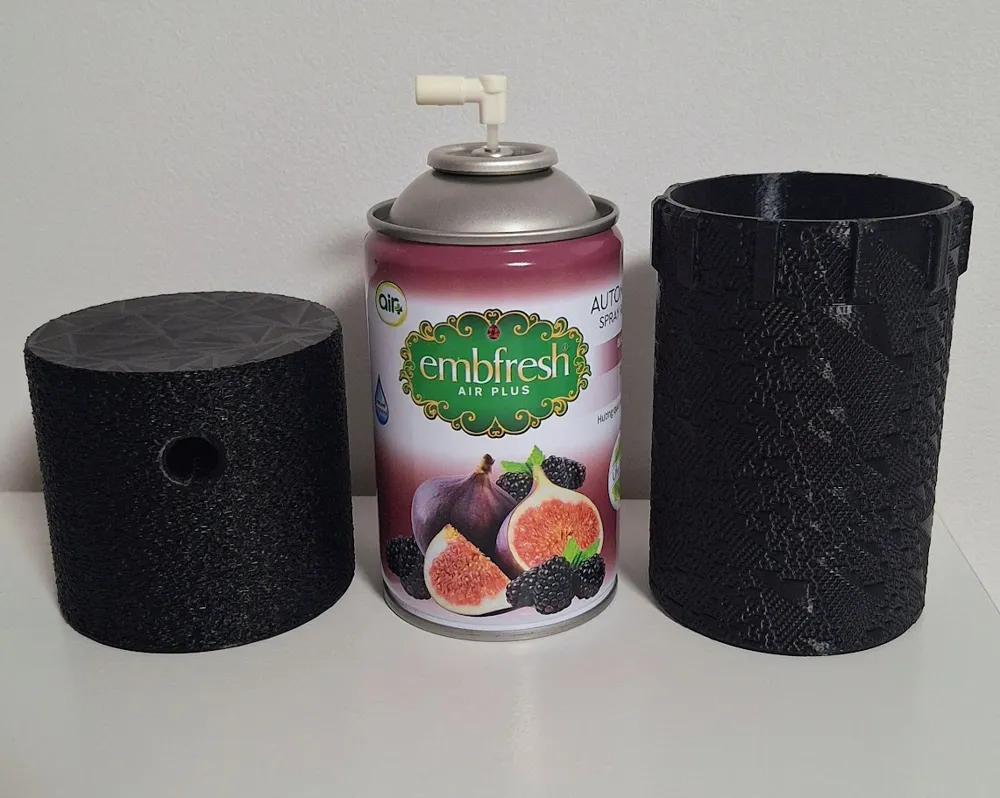

Manual Air Freshener Controller type AIR WICK.
The cylinder model models-cylinder5.stl from Wolfram's CA Cylinders Collection was used as the basis for the can cover.
Printing instructions:
PETG material
0.4 mm nozzle
0.24 mm layer height
2 perimeters
Gyroid 5% infill
top layer 5
bottom layer 4
set seam to Nearest
set Arachne
For the can cover, set the inner brim, it will be easier to remove.
A fuzzy skin is applied to the lid.
After printing, you can leave the lower supports in the print and remove only the ones inside the nozzle hole.
Finally, after printing, I recommend lightly lubricating the protrusions on the can cover with some lubricant to make the lid slide better.
Video:
If you like the model, I would be happy to see samples of your prints.
