Twist & Lock Drop-in T-nut M6 (Slot 8)

### 💡 The Problem: The frame is finished, but the T-nut is missing

Anyone working with aluminum profiles knows this moment of dread: The construction is almost finished, and you realize you forgot to insert a T-nut. Or the profile ends are already installed and no longer accessible. Normally, this means disassembling everything again

That's over now

---

### The Solution: The "Twist & Lock" Drop-in T-nut

This T-nut was developed precisely out of this necessity. It can be inserted into the groove from above at any time and at any point

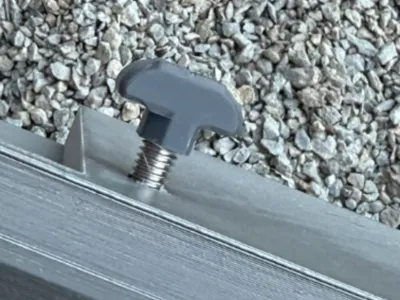

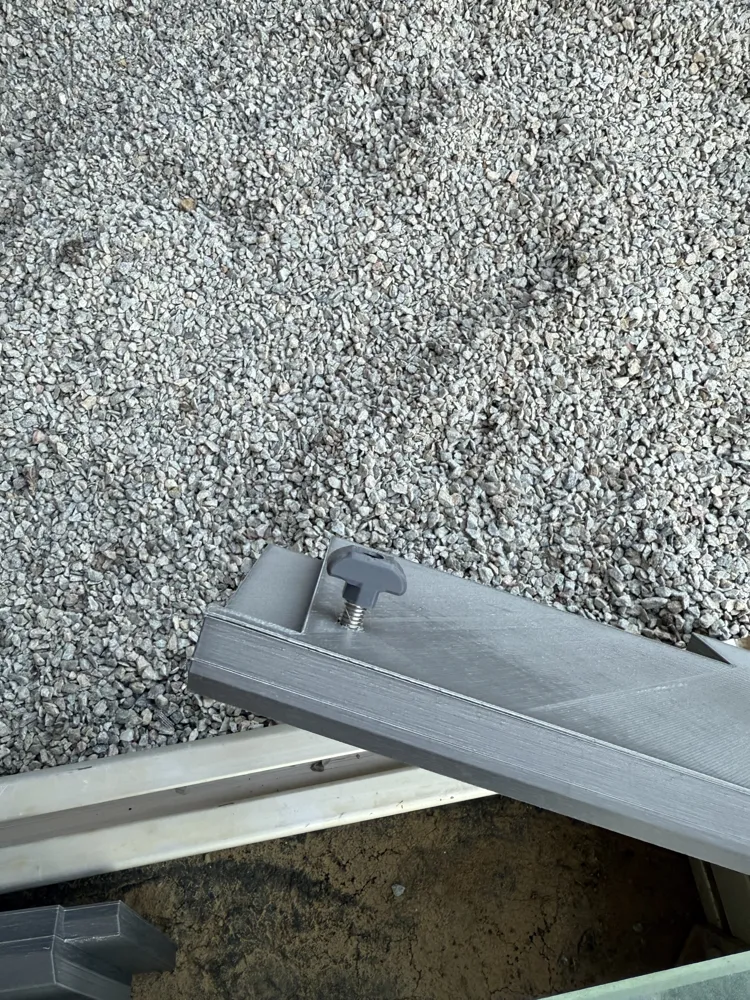

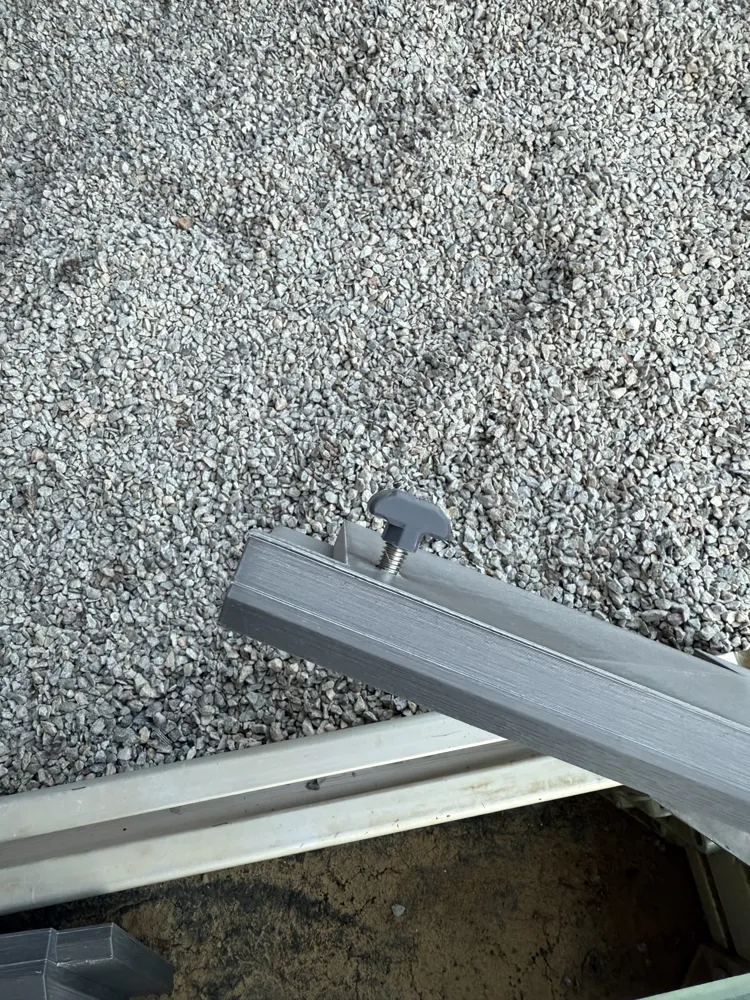

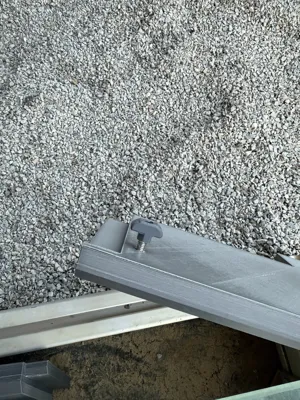

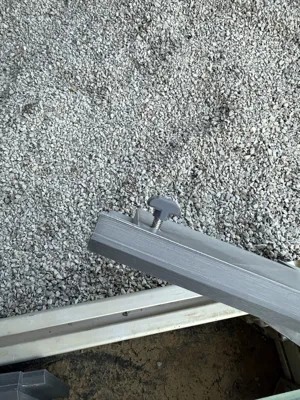

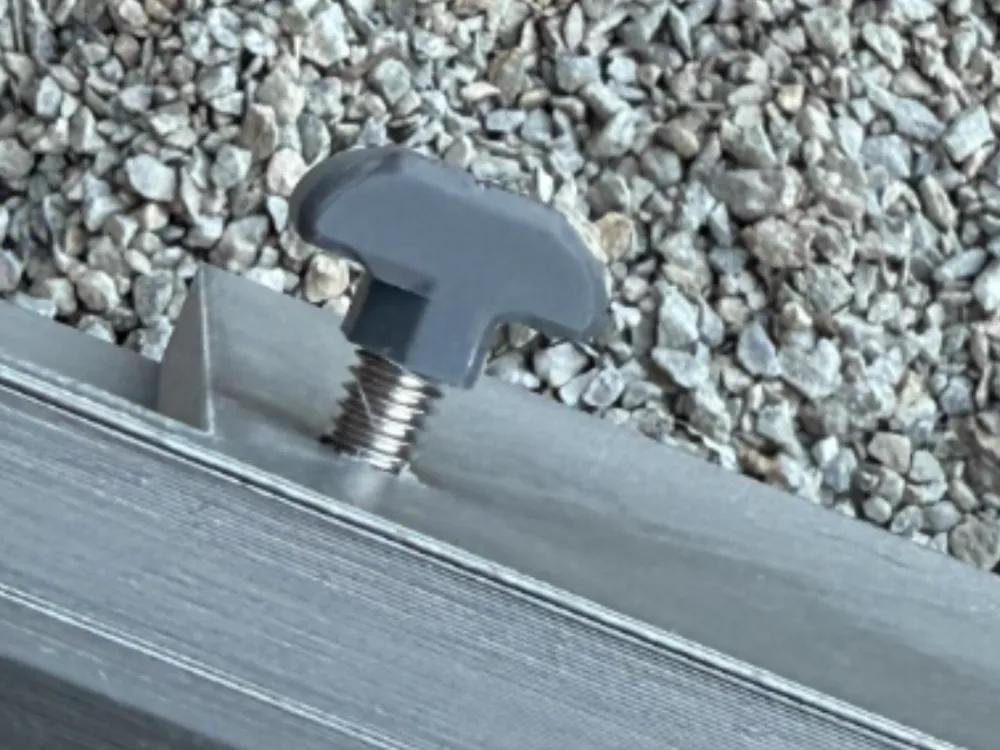

* **The magic happens when tightening:** Insert the T-nut into the groove and screw in an M6 screw. The T-nut automatically rotates 90 degrees into the correct position due to the pressure of the screw and securely locks itself in the profile

---
### Field-tested and stable:

* ✅ **Retrofittable at any time:** Add mounting points without having to disassemble your existing construction
* ✅ **Clever "Twist & Lock" mechanism:** No fumbling, no slipping. The nut aligns itself perfectly

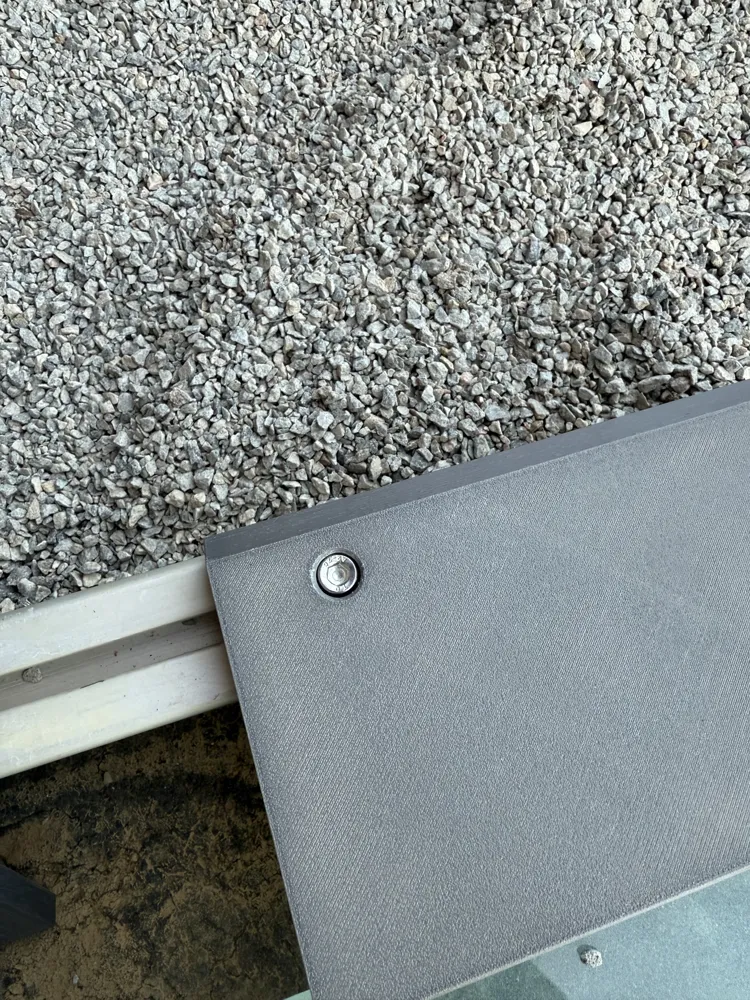

* ✅ **Robust and reliable:** This design is not just a gimmick. I personally printed about 50 pieces from PETG to secure a manhole cover outdoors where the profile ends were not accessible. The strength is absolutely sufficient for countless applications
* ✅ **Standard M6 thread:** Compatible with all common M6 screws

---

### ⭐ Optimized 3MF Project File

You will receive a .3mf project file that can be loaded directly into Bambu Studio (and other compatible slicers). The model is already optimally aligned on the print plate

---

### 🔧 Recommended Print Settings

* **Material:** **PETG** or stronger materials (ASA, PETG-CF) are strongly recommended for high stability
* **Walls:** 5
* **Infill:** 30% or more, depending on the application
* **Infill Pattern:** Gyroid
* **Supports:** Not needed
