Top mount storage rack with airflow guide for Jonsbo D41 case

Top Mount Storage Rack for Jonsbo D41 Case

A1 single plate print

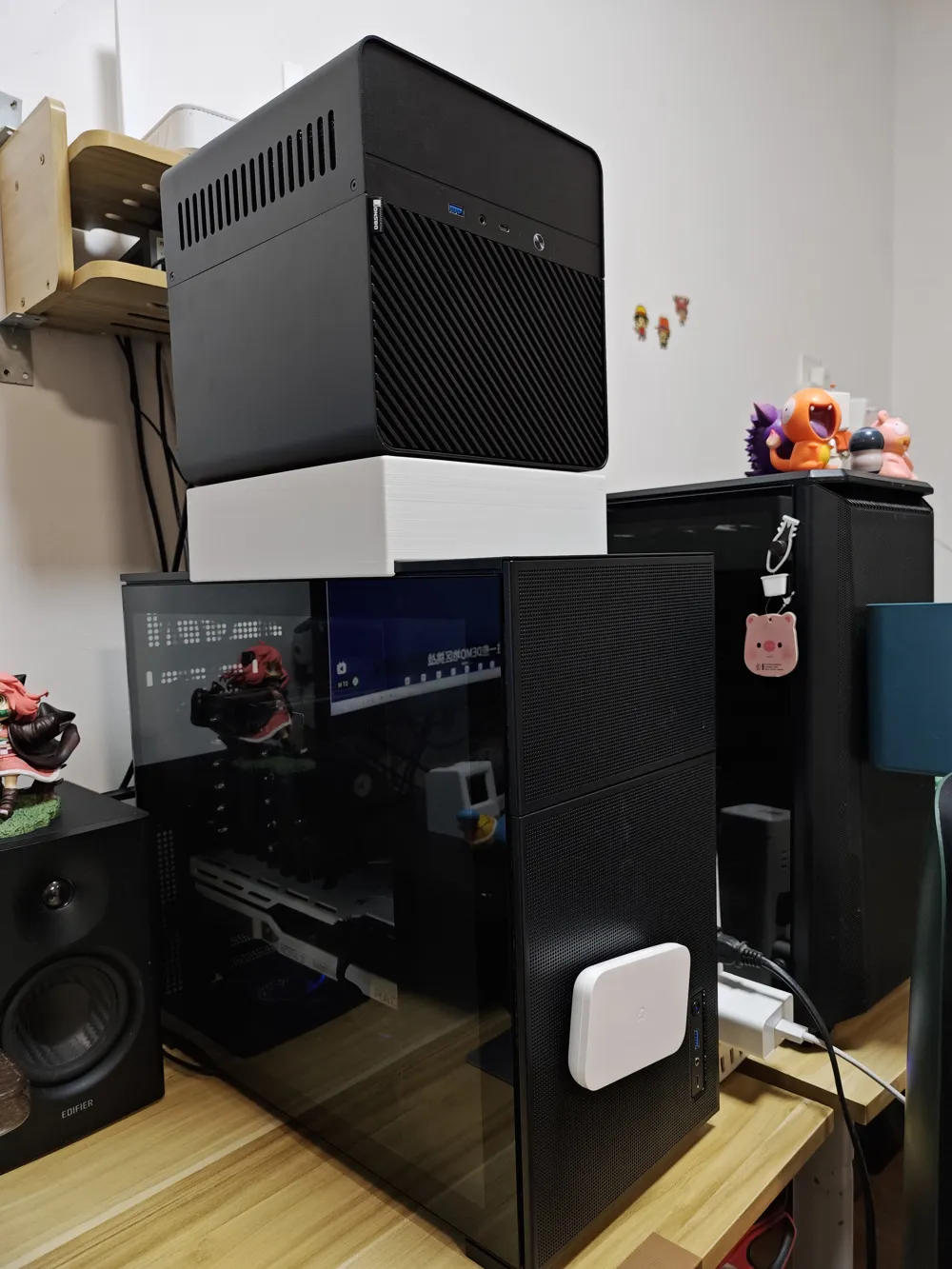

It can be placed on top of the case. Although it's a snap-on structure, the snaps are very stiff due to strength requirements. When installing, please remove the top panel of the case, slide it into the model's slot, then reattach the top panel. The supports on the bottom surface can be optionally removed; they are for stress release (I feel they are still useful), but even if not removed, they can perfectly level the surface.

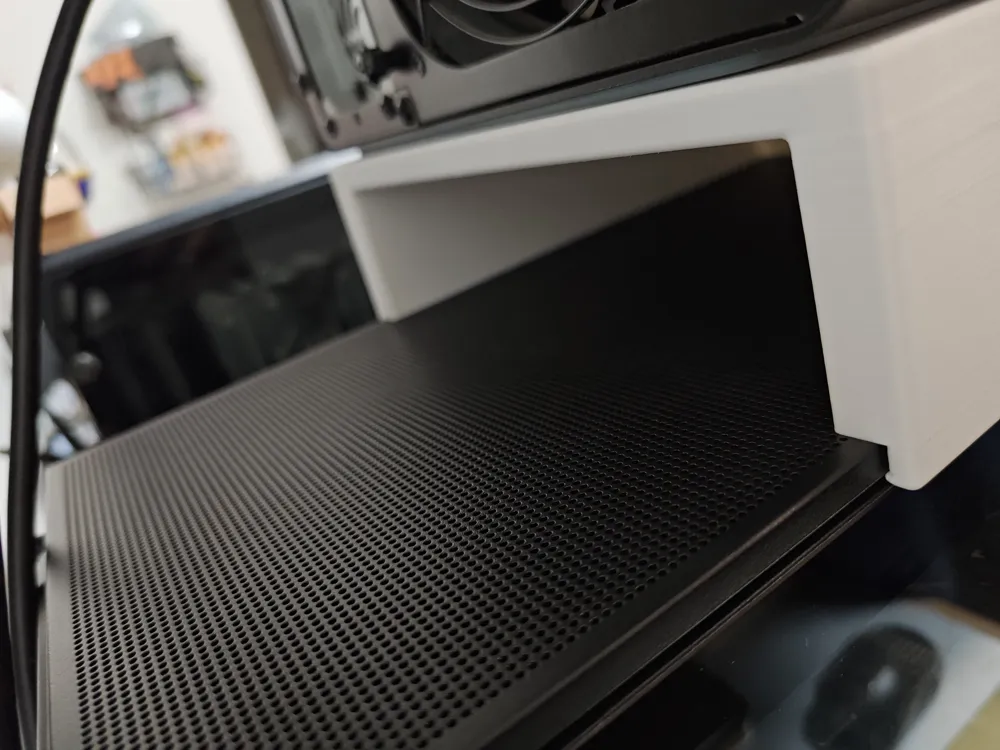

To prevent the NAS on top from ingesting exhaust air from the case, the structure is hollow and guides air to blow backward. If needed, it can also be installed in reverse to blow air forward.

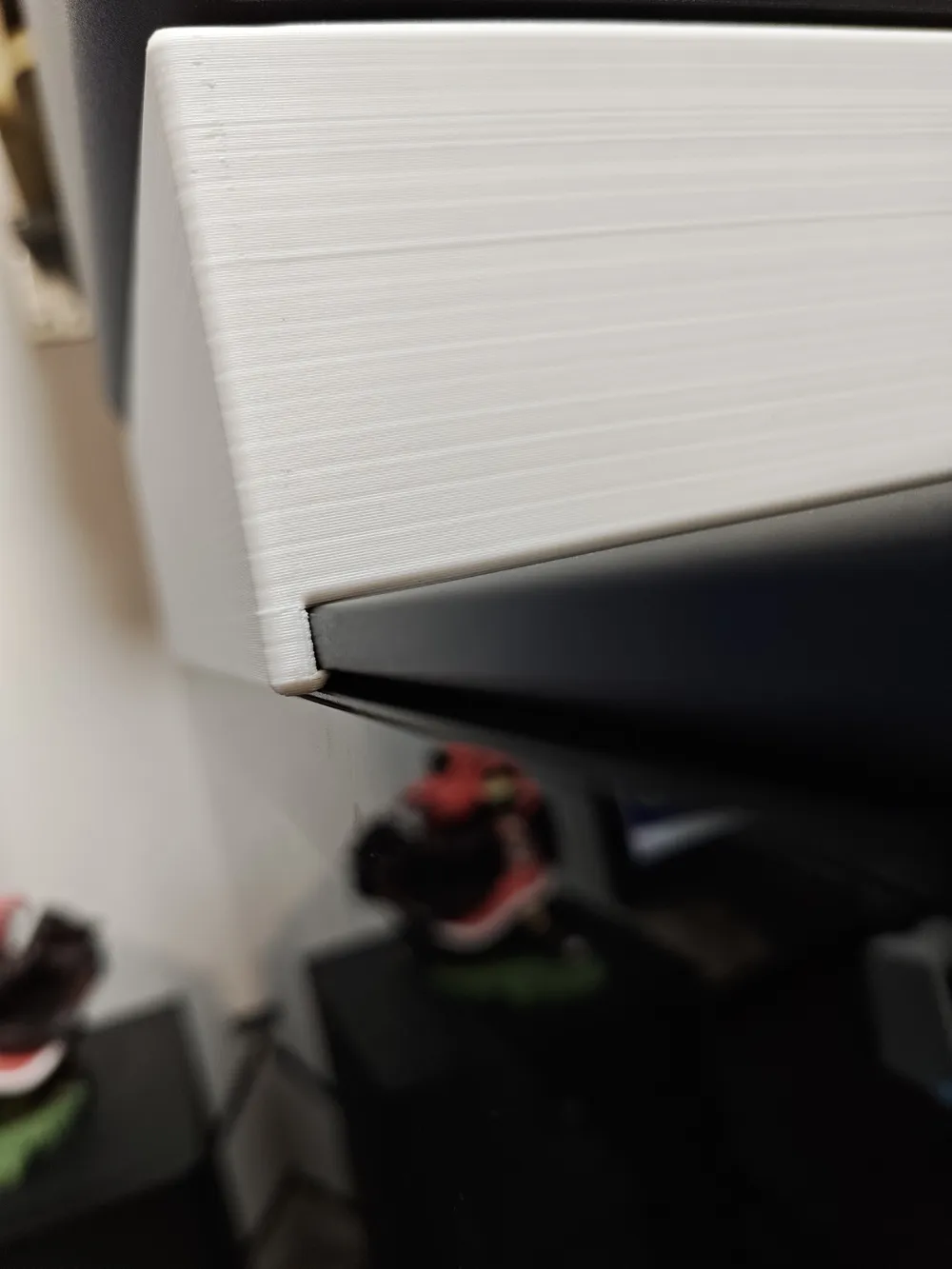

I ran out of black filament, so I'll try white first. Black matte filament would probably match a black case better. The structure is very sturdy (which led to an eight-hour print and over 300 grams of filament, my heart aches).

My abilities are limited, but I have uploaded the Shaper3D source file. Those with specific needs can modify it themselves.

It's great to have solved another problem with 3D printing, hehehe
