Giant Universal Rear Rack Taillight Adapter for Antusi Q3/Rockbros Q3
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 30% infill
Designer
1 h
1 plate
Open in Bambu Studio
Boost
3
5
0
0
9
0
Released
Description
Content has been automatically translated.

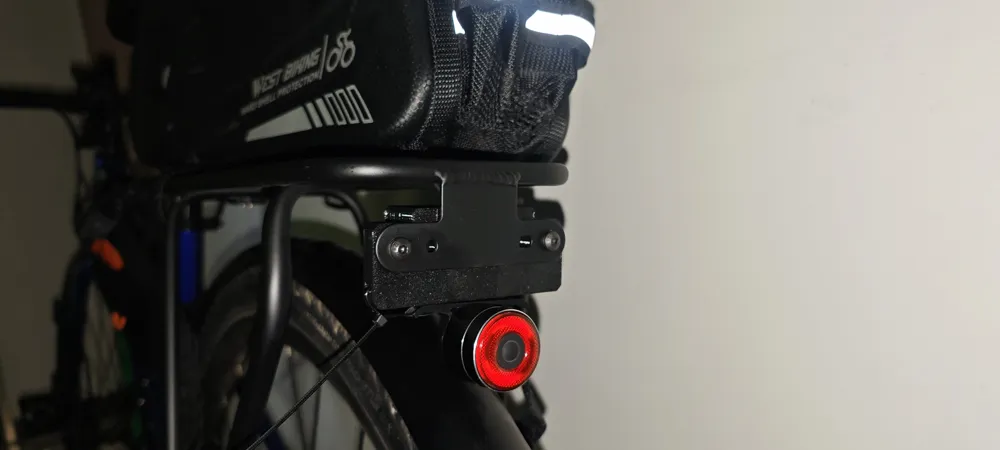

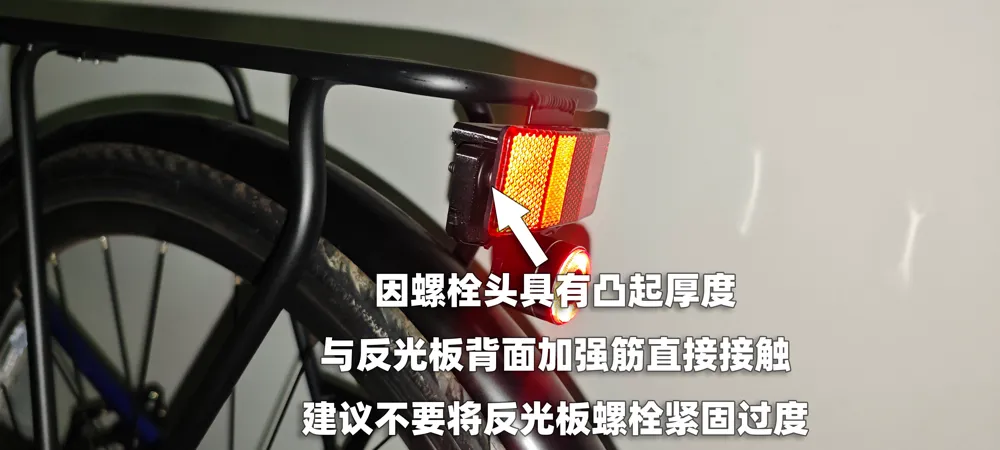

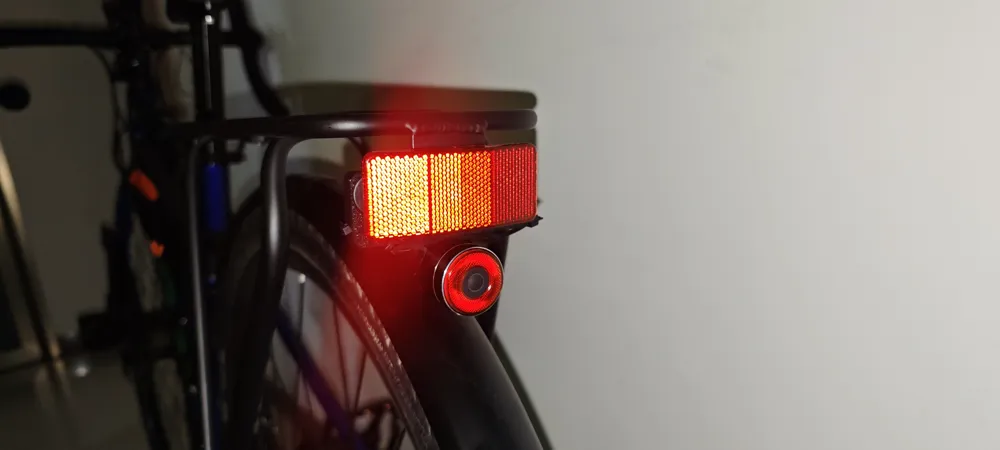

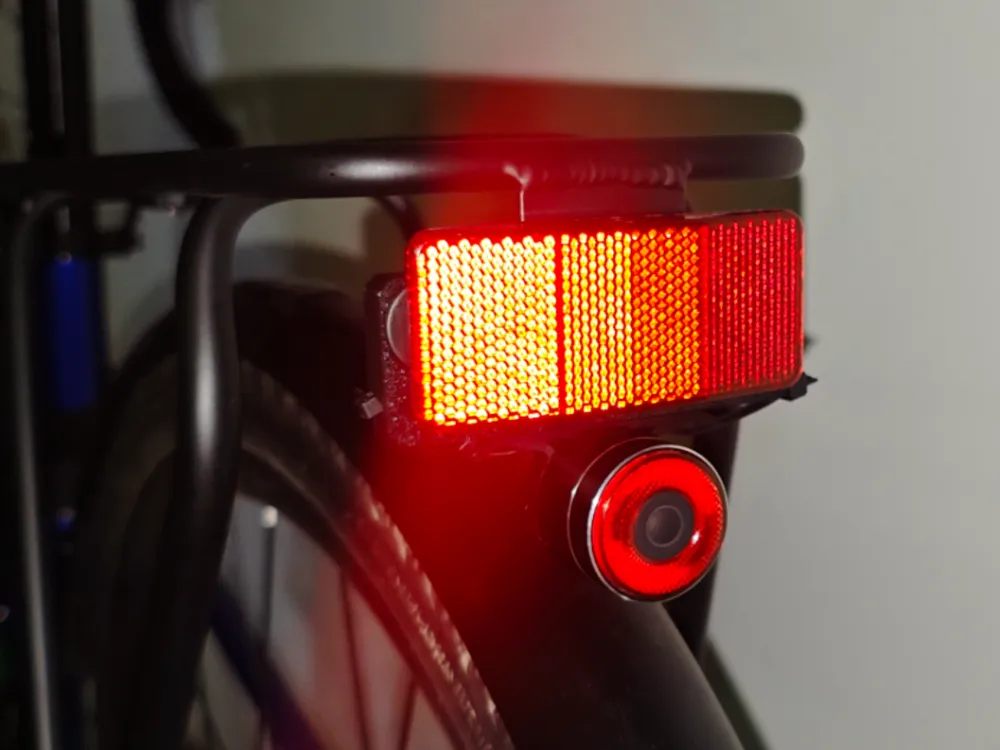

The bracket can be secured on both sides using the original taillight zip ties Two M5x20mm bolts and two M5 self-locking nuts are required to secure this 3D printed adapter To secure the reflector please use an M5 sleeve on the back 12mm holes have been reserved to provide enough space for the sleeve The original nuts can be used It is recommended to apply a small amount of light or medium-strength threadlocker Do not overtighten
