P2, P1 and X1 Series Poop Bin (2 Sizes)

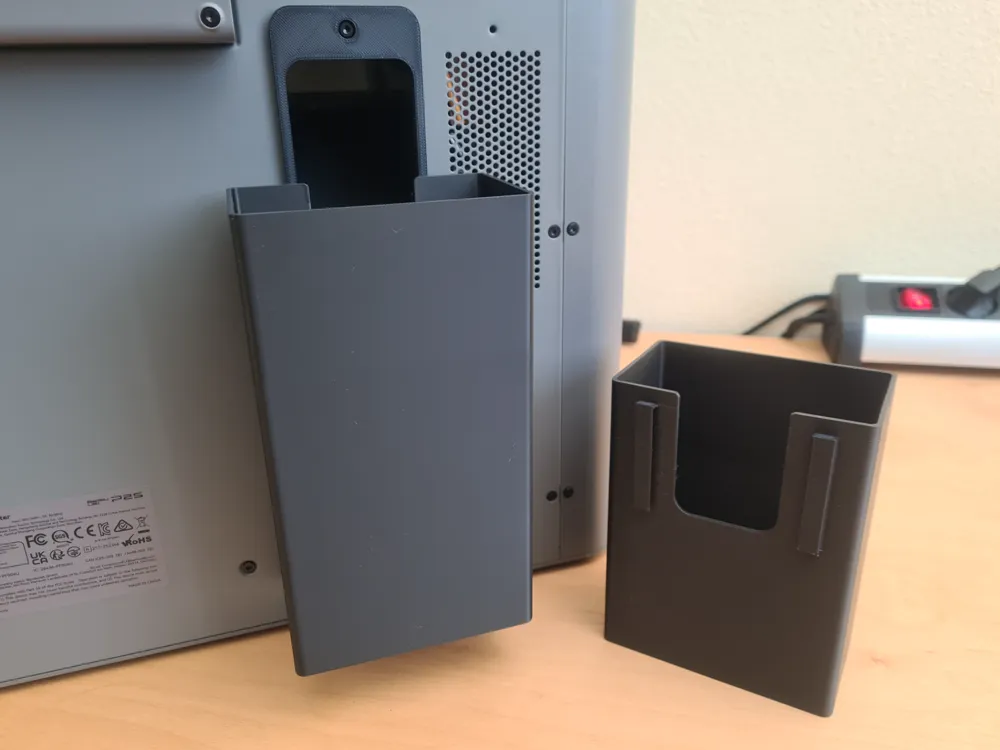

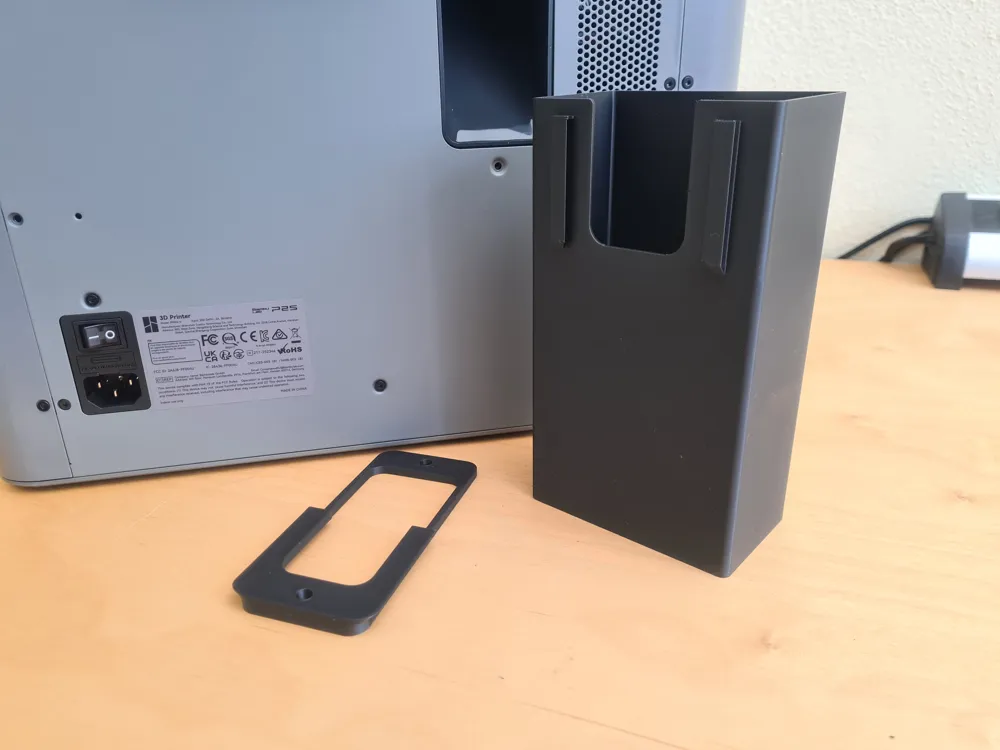

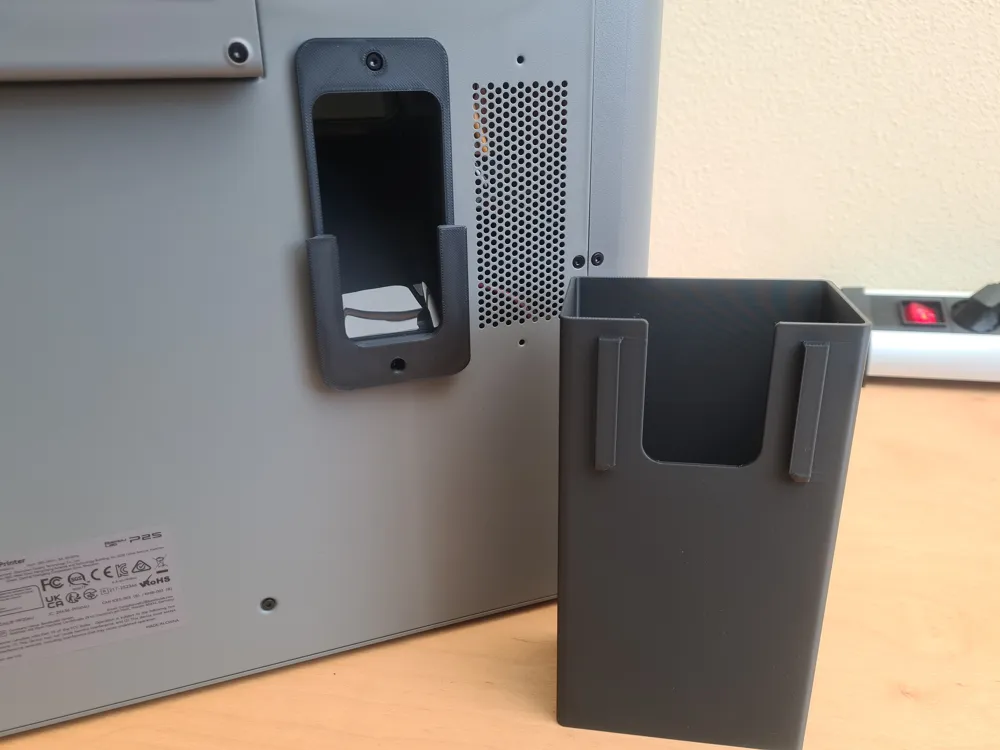

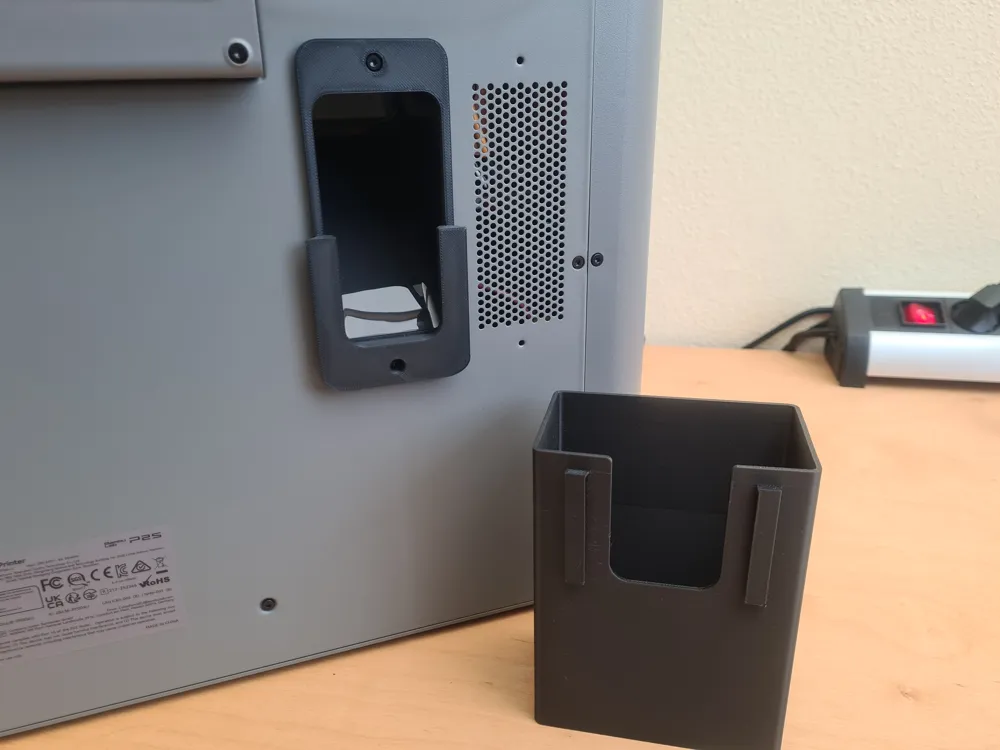

A simple poop bin compatible with all default size Bambu Lab CoreXY printers (P2, P1 and X1 series). The holder is screwed to the back (with the existing screws) for poop bins to easily slid in and out.

Note: When using the external spool holder on your printer, make sure that it does not interfere with the bin location before printing. E.g. for the P1S, this could be the case.

Features

• Compatible printers: P2P, P1P, P1S, X1C
• Easy to attach the holder
• Different bin sizes available (width x depth x height):
  • Regular (outer dimensions when on printer): 100 x 67.5 x 130mm
  • Medium (outer dimensions when on printer): 100 x 67.5 x 180mm
• Prints without supports
• Bins are fully compatible with the original model

Recommended print settings (or use the provided profiles)

• Layer Height: 0.2mm
• No supports needed

Changes to the original model

• Re-designed the bin holder to be compatible with Bambu Lab CoreXY printers
• Fixed the mesh of the bin
• Updated the bin connector to print in place without supports
• Made the bin opening larger
• Added an additional larger bin size
