BT-1 PSU



0.2mm layer, 4 walls, 20% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<h2>📌 Description</h2><p>Support d’alimentation pour tensionneur de harnais <strong>BT-1 (Qubic System)</strong>.<br>Il est conçu pour être monté sur un châssis en profilé aluminium.</p><h2>🔩 Fixations</h2><ul><li><strong>Entraxe vertical</strong> : 120 mm (alignement des trous pour fixation sur rail).</li><li><strong>Entraxe horizontal</strong> : adaptable (puisque la pièce est composée de <strong>2 parties imprimables séparées</strong>).</li><li><strong>Visserie prévue</strong> : 4x M6 (recommandées pour assurer la rigidité).</li></ul><h2>🛠️ Particularités</h2><ul><li>Compatible avec des <strong>rails aluminium standards en 160</strong></li><li>Design modulaire (2 parties distinctes → permet un ajustement flexible).</li><li>Optimisé pour une impression 3D robuste (PETG recommandé)<br> </li></ul>

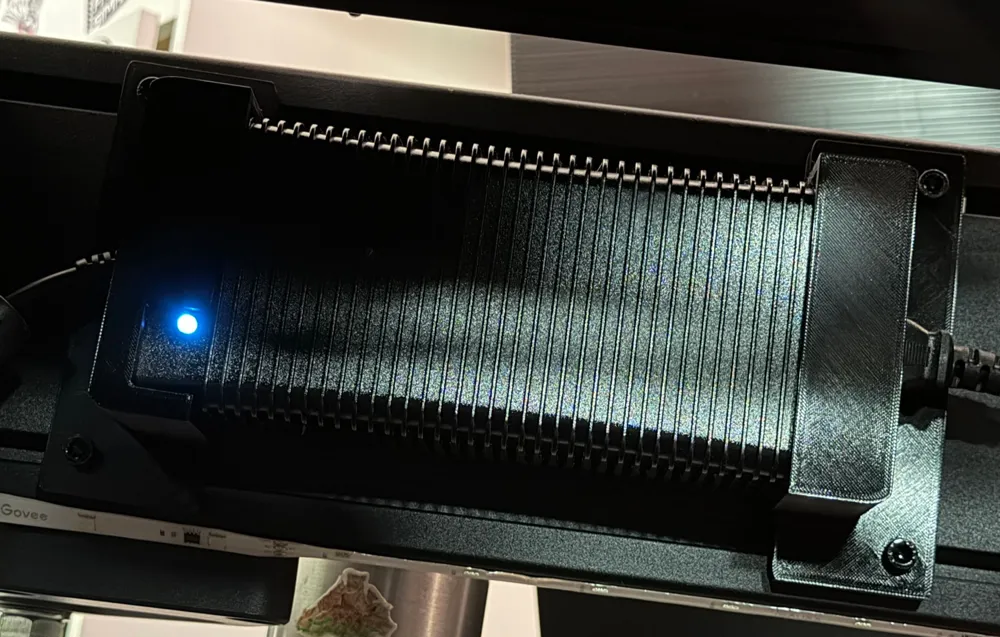

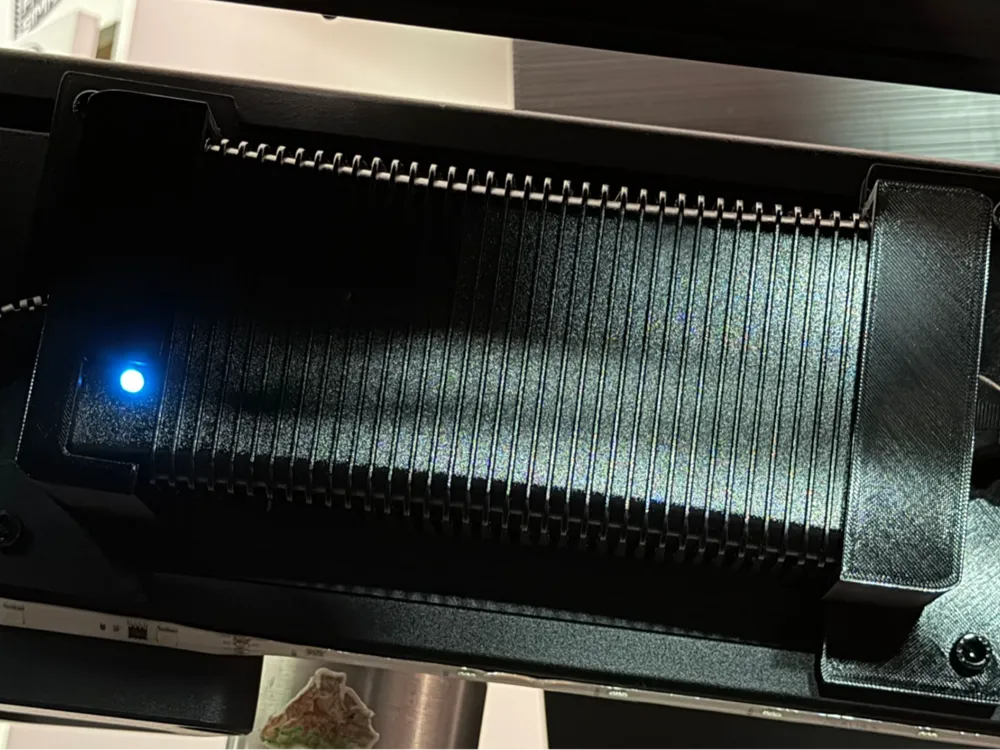

<h2>📌 Description</h2><p>Power supply support for harness tensioner <strong>BT-1 (Qubic System)</strong>.<br>It is designed to be mounted on an aluminum profile chassis.</p><h2>🔩 Fastenings</h2><ul><li><strong>Vertical spacing</strong> : 120 mm (hole alignment for rail mounting).</li><li><strong>Horizontal spacing</strong> : adaptable (as the part consists of <strong>2 separate printable parts</strong>).</li><li><strong>Screws provided</strong> : 4x M6 (recommended to ensure rigidity).</li></ul><h2>🛠️ Features</h2><ul><li>Compatible with <strong>standard 160 aluminum rails</strong></li><li>Modular design (2 distinct parts → allows flexible adjustment).</li><li>Optimized for robust 3D printing (PETG recommended)<br> </li></ul>
