Any chance you can share the STL or 3MF of this?

NecronomiTron

在樓主基礎上增加了敗家之眼和LED燈

Added the ROG Eye and LED lights to the original model

unknownUesr

OmarSalaz

0.2mm layer, 2 walls, 15% infill

Could you please provide the brand or model of the hub?



user_515063876

Coloca el logo de ROG al frente, se veria mejor. Gran aporte

Put the ROG logo on the front, it would look better Great contribution

skalibur_360

Kcantu3692

Nice work this works amazing and holds my Rog Ally X !!!!

Print N Play

VanillaDirt

Un modelo muy interesante y que me gustaria&nbsp;imprimirlo, el unico problema es que mi HUB es un poco más grande porque tiene 3 usb en vez de 2, lo compré en Aliexpress y hace 135x28x10mm (pero mejor 11mm) "https://es.aliexpress.com/item/1005007244139650.html?pdp_npi=4%40dis%21EUR%21%E2%82%AC%2013%2C57%21%E2%82%AC%204%2C99%21%21%21108.21%2139.81%21%400b5e1bf617678273663302491d9ebf%2112000040070698764%21sh%21ES%21714834724%21X&amp;spm=a2g0o.store_pc_home.allitems_choice_2005663569279.1005007244139650&amp;gatewayAdapt=glo2esp",  seria posible que adaptaras&nbsp;tu modelo a este que yo tengo, o si&nbsp; no, podrias&nbsp;pasar tu modelo para poderlo modificar. Gracias

A very interesting model that I would like to print, the only problem is that my HUB is a bit larger because it has 3 USBs instead of 2, I bought it on Aliexpress and it is 135x28x10mm (but better 11mm) "https://es.aliexpress.com/item/1005007244139650.html?pdp_npi=4%40dis%21EUR%21%E2%82%AC%2013%2C57%21%E2%82%AC%204%2C99%21%21%21108.21%2139.81%21%400b5e1bf617678273663302491d9ebf%2112000040070698764%21sh%21ES%21714834724%21X&amp;spm=a2g0o.store_pc_home.allitems_choice_2005663569279.1005007244139650&amp;gatewayAdapt=glo2esp", would it be possible for you to adapt your model to this one that I have, or if not, could you provide your model so I can modify it Thanks

user_3483193717

TheTene

Manimbro

Expector Gaming

cover








Es impresion se puede hacer sin soportes pero yo recomiendo poner poner un soporte de arbo para mas calidad en el voladizo.&nbsp;altura de capa 0.20mm&nbsp;se recomienda imprimir en petg, pero yo lo he impresion en PLA ya que por esa salida de aire no sale tan caliente.pienso que no debe haber problema si es con PLA pero si no te sientes seguro usa petG.&nbsp;&nbsp;

This print can be done without supports, but I recommend using a tree support for better quality on the overhang.&nbsp;layer height 0.20mm&nbsp;It is recommended to print in PETG, but I have printed it in PLA since the air outlet does not get that hot.I think there should be no problem if it's with PLA, but if you don't feel confident, use PETG.&nbsp;&nbsp;




增加了敗家之眼 及 ROG LED

Este es un modelo es Soporte/Dock que sirve tanto para sujetar nuestra Rog xbox ally y tener un buen angulo de vision, asi como para añadir un hub de puertos entrada tipo c y añadir mas entradas a nuestra consola mientras trabajamos.&nbsp;Este modelo no solo sirve para la Rog xbox ally x, si no tambien para todos los modelos de ROG ALLY, asi como para la steam deck y consolas parecidas.&nbsp;El Hub que utilice lo compré en una tienda de conveniencia, pero en distintas paginas encontré hubs parecidos, estos serán compatibles siempre y cuando tengan estas medidas: 114mm x 28mm tiene una tolerancia de un milimetro para que entren otros modelos, sin embargo se recomienda usar de estas medidas, de igual manera no es tan dificil encontrar de esas medidas, en mi caso tenia 3 distintos hubs comprados en distintos tiempos y marcas y todos entraron correctamente.&nbsp;&nbsp;La pieza llamada “sujetador cable” la hice para darle estabilidad a todo el hub, sin esa pieza el tock se puede usar perfectamente, sin embargo cada que lo conectemos se levantara un poco y se vera raro, esta pieza se pone donde entra el cable para hacer presion.&nbsp;La pieza llamada “Soporte” la hice para que el hub haga presion hacia arriba y no pierda estabilidad, se siente muy firme con esta pieza.&nbsp;&nbsp;&nbsp;

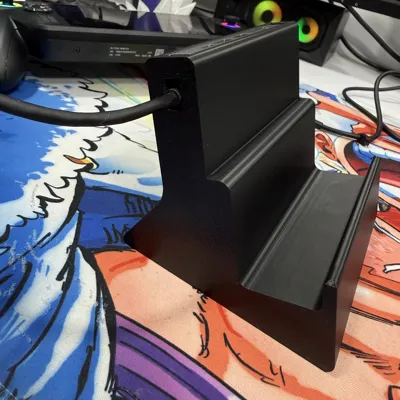

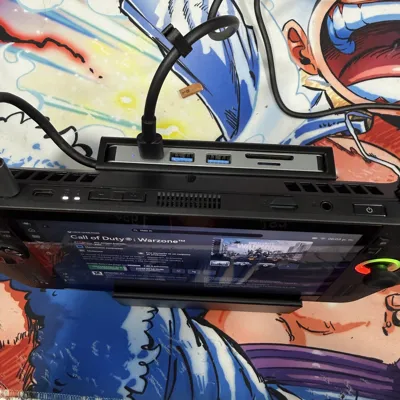

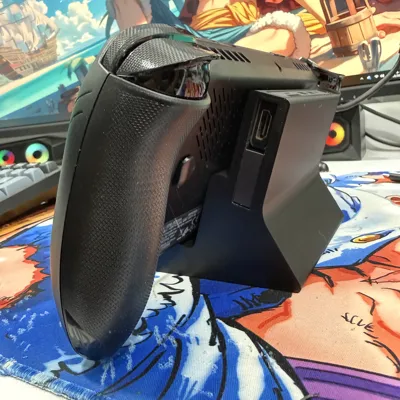

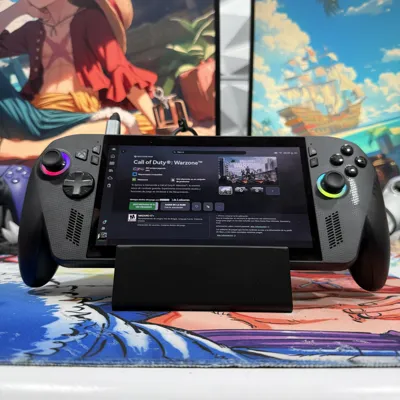

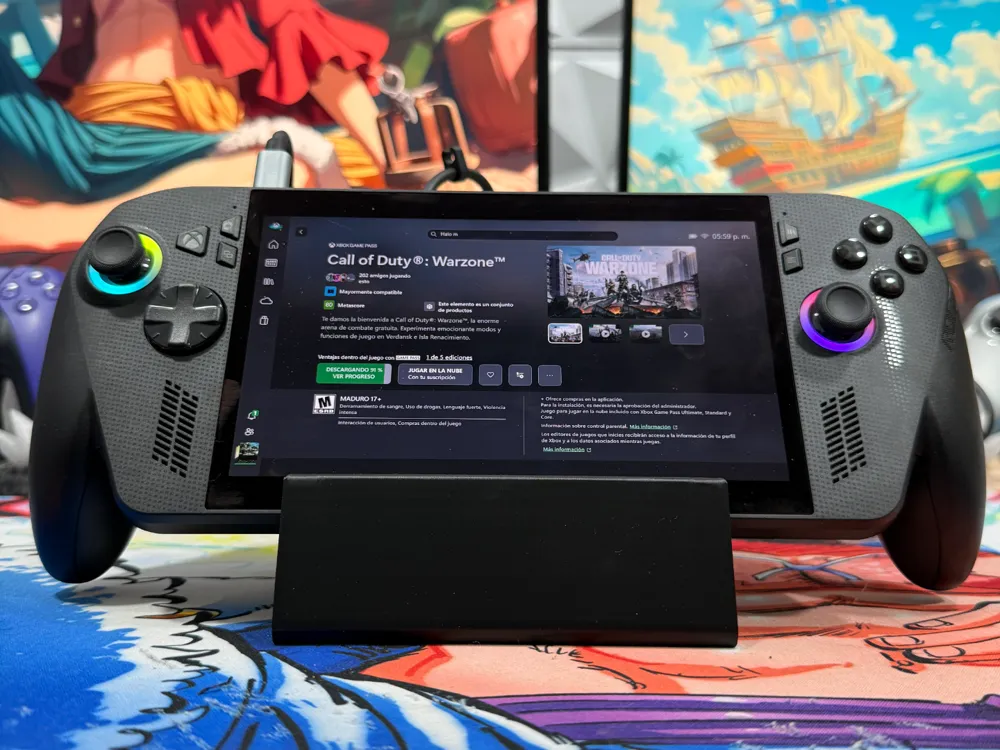

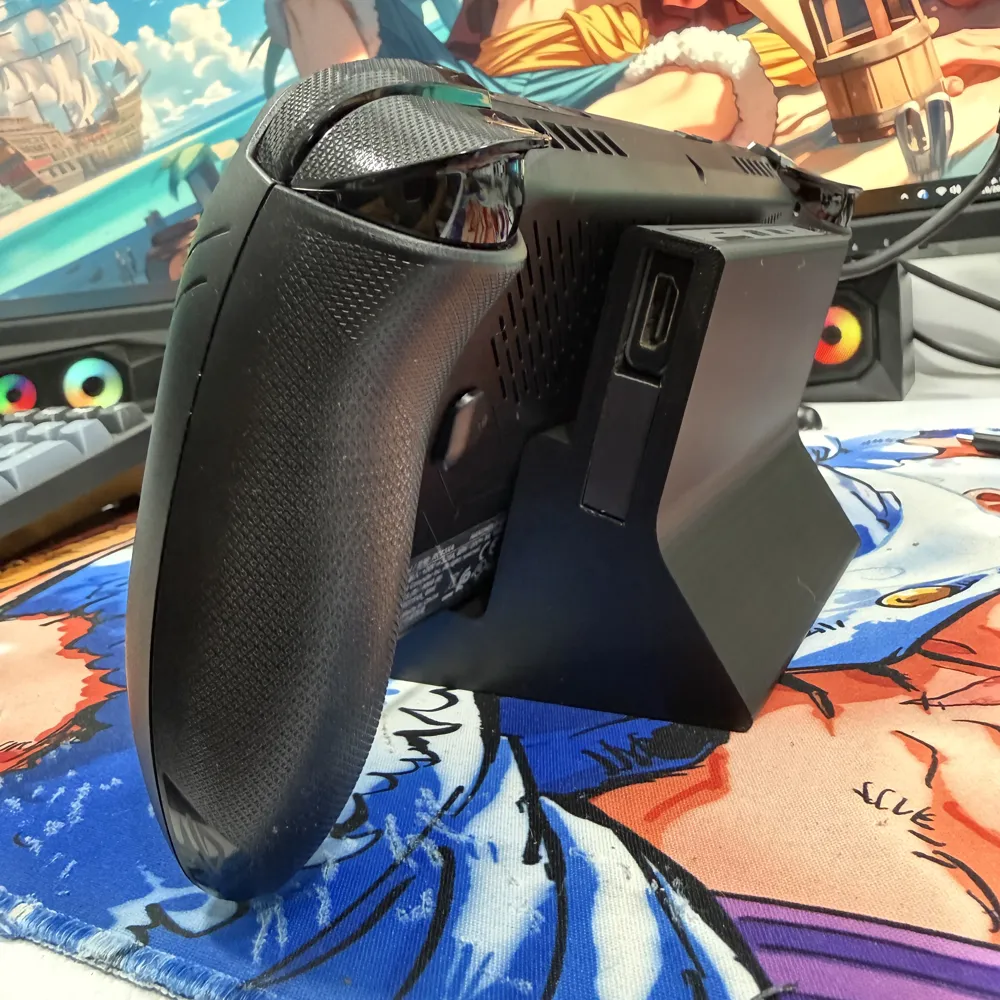

This model is a Stand/Dock that serves both to hold our Rog Xbox Ally and provide a good viewing angle, as well as to add a type-c input port hub and add more inputs to our console while we work.&nbsp;This model is not only for the Rog Xbox Ally X, but also for all ROG ALLY models, as well as the Steam Deck and similar consoles.&nbsp;I bought the Hub I used at a convenience store, but I found similar hubs on different pages. These will be compatible as long as they have these measurements: 114mm x 28mm. It has a one-millimeter tolerance for other models to fit, however, it is recommended to use these measurements. It is not that difficult to find hubs of these sizes; in my case, I had 3 different hubs bought at different times and brands, and all fit correctly.&nbsp;&nbsp;I made the piece called “cable holder” to give stability to the entire hub. Without this piece, the dock can be used perfectly, however, every time we connect it, it will lift slightly and look odd. This piece is placed where the cable enters to apply pressure.&nbsp;I made the piece called “Support” so that the hub presses upwards and does not lose stability; it feels very firm with this piece.&nbsp;&nbsp;&nbsp;

Print Profile(2)

Description

Comment & Rating (19)

License

Remixes (1)

Related Models

ROG XBOX ALLY DOCK
