TBS Source one V5 SMA / XT60 / ELRS holder
Print Profile(1)
Bill of Materials
Description

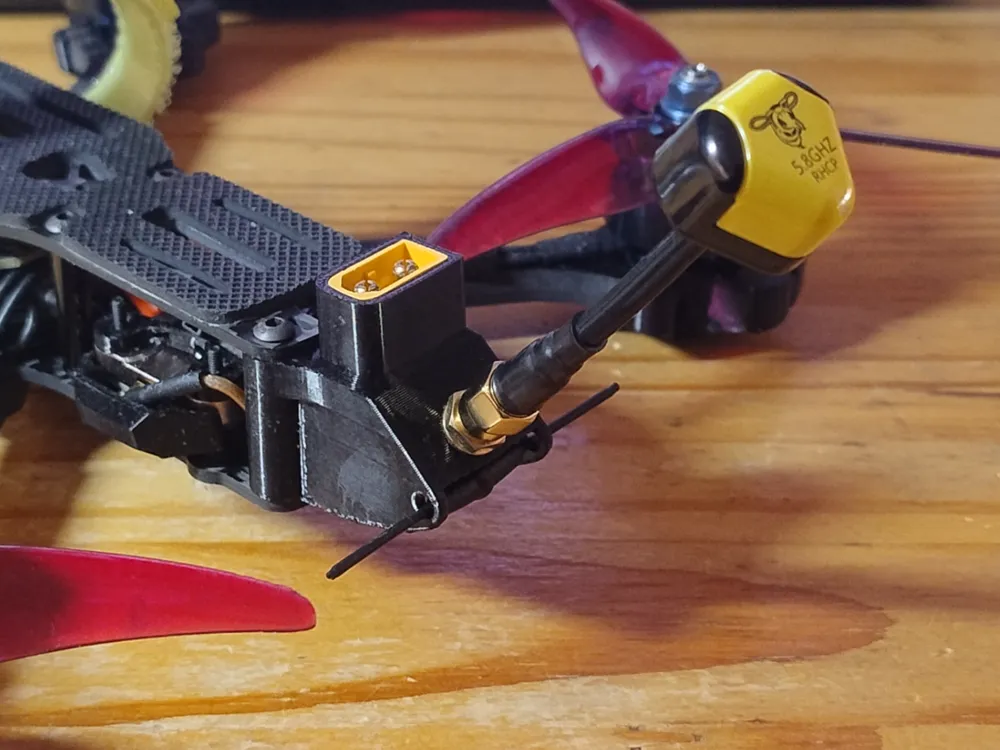

I couldn't find any good existing mounts for the TBS Source one which fit an SMA antenna, ELRS (2.4GHz) antenna and my XT60 connector, so decided to design my own.

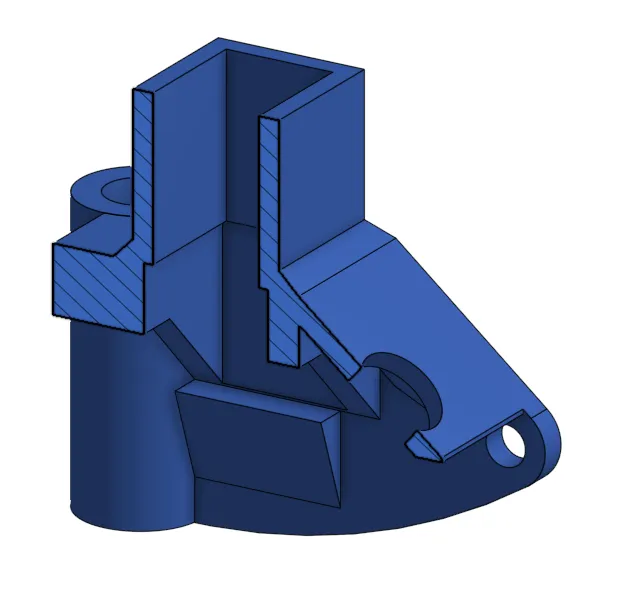

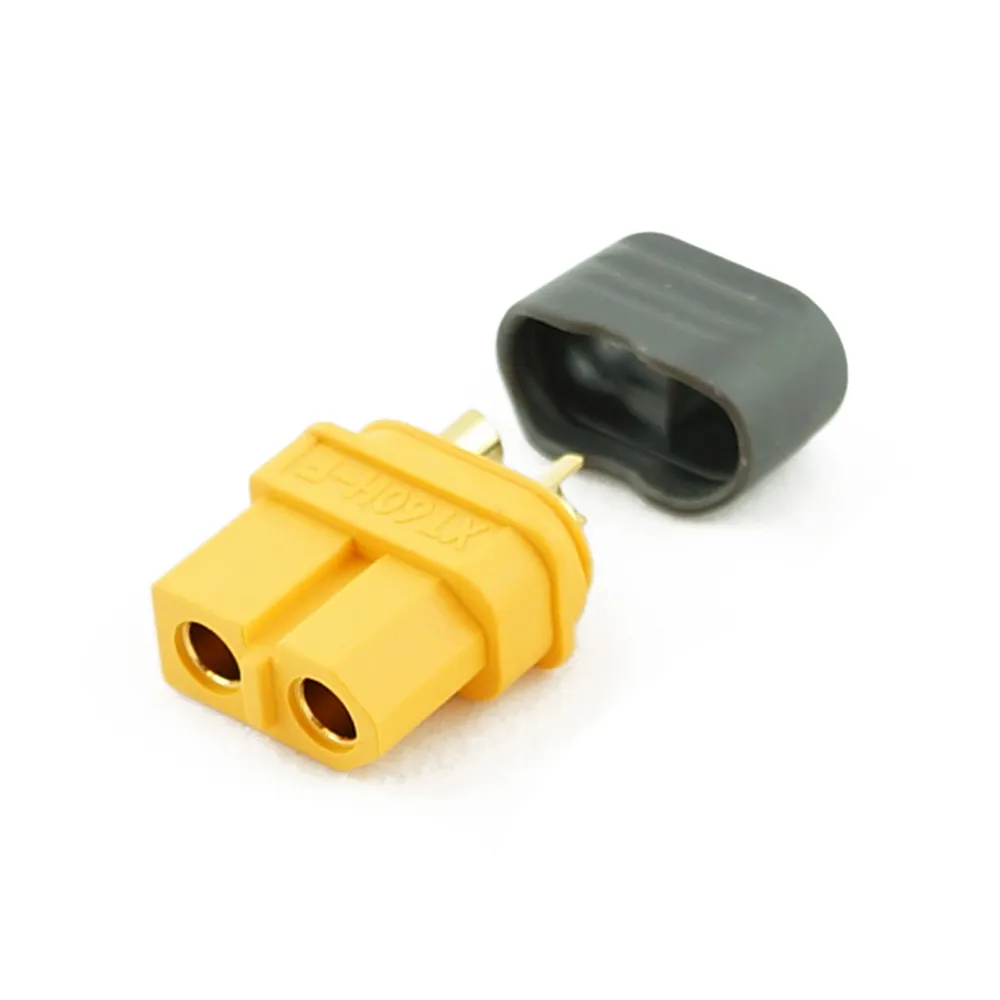

The model is designed around this type of XT60 connector (see image), and holds it securely in place. You can remove the XT60 by sliding the mount off the standoffs. This type of connector comes with the SpeedyBee F405 (v4) pigtail.

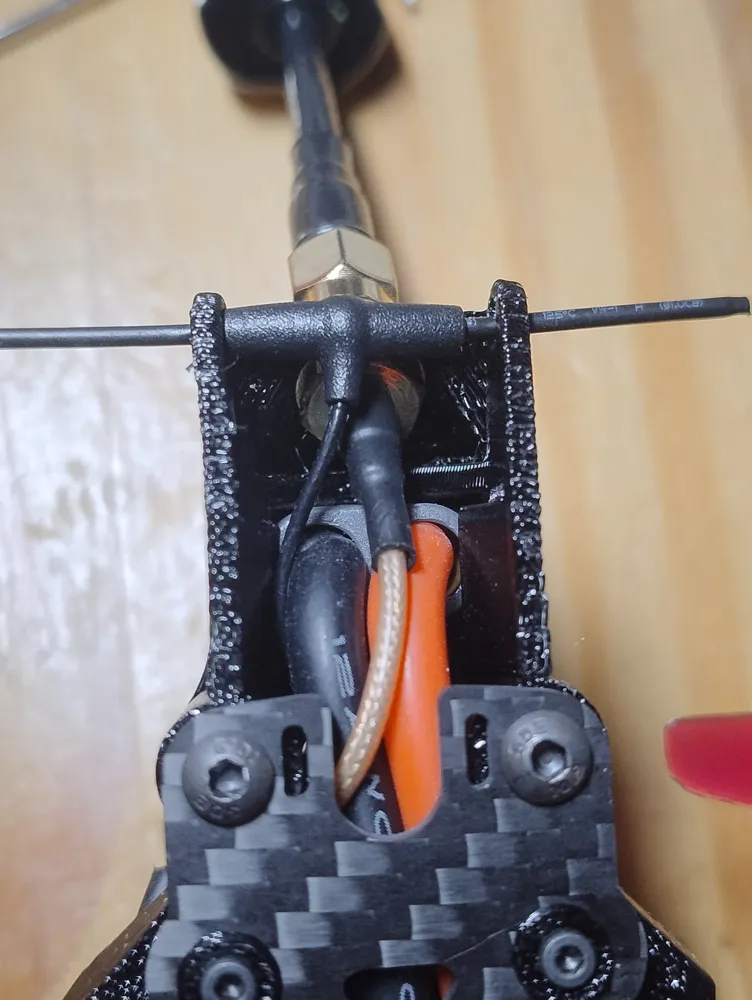

If the ELRS antenna is too tight to fit into the print, you can cut open the holes and it should still hold fine.
The curve at the bottom is purely aesthetic, and is the only feature that needs supports.
Print in TPU.
