3D Printed Essential Focusing Soft Light for Photography

• Required accessories:
• M3X10 self-tapping screws X4 (non-self-tapping screws are also fine)
• One sheet of photographic tracing paper optional (You can buy a large sheet for a few yuan on Taobao, here we only need one sheet larger than 80X80mm, you can cut it yourself)
• One 1/4-20*8*8 injection molded nut (Most phone holders use this model, you can search and buy it yourself)

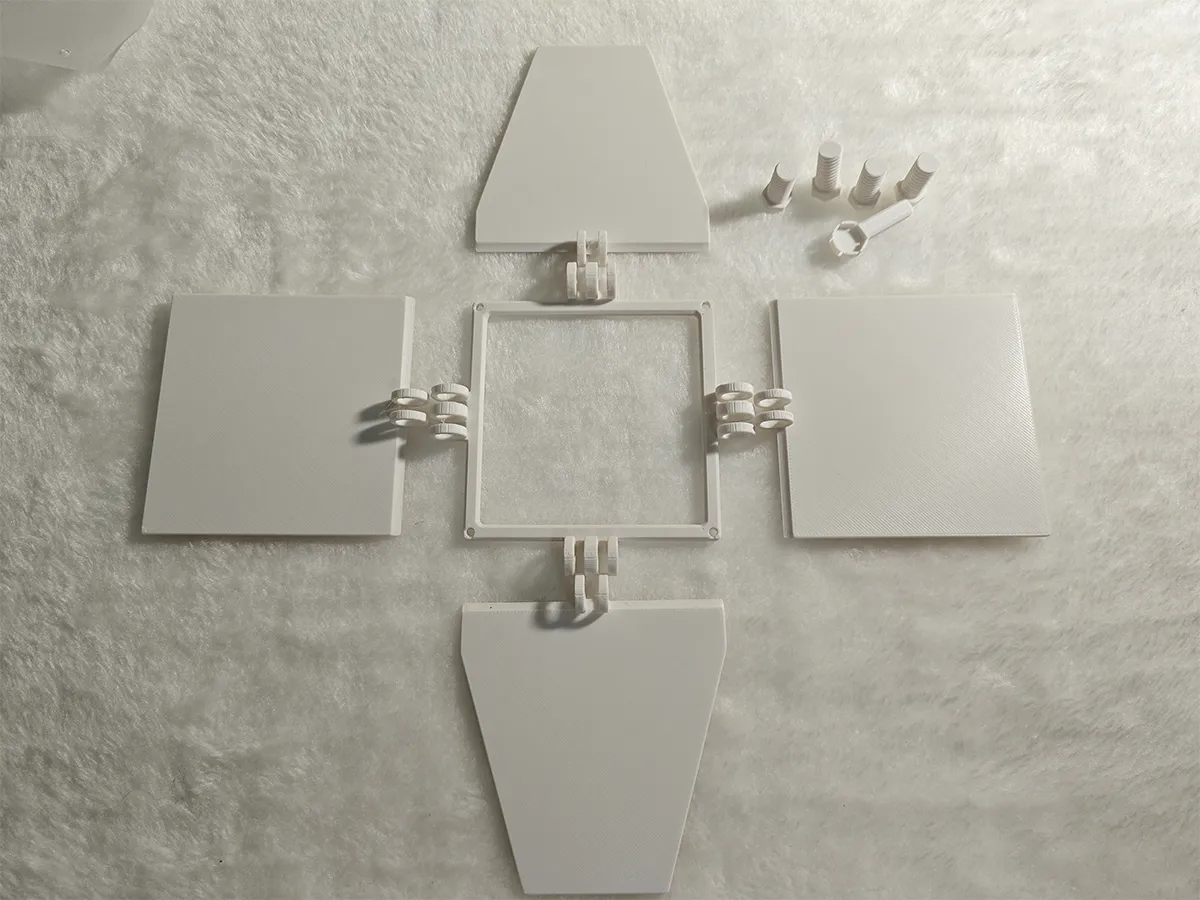

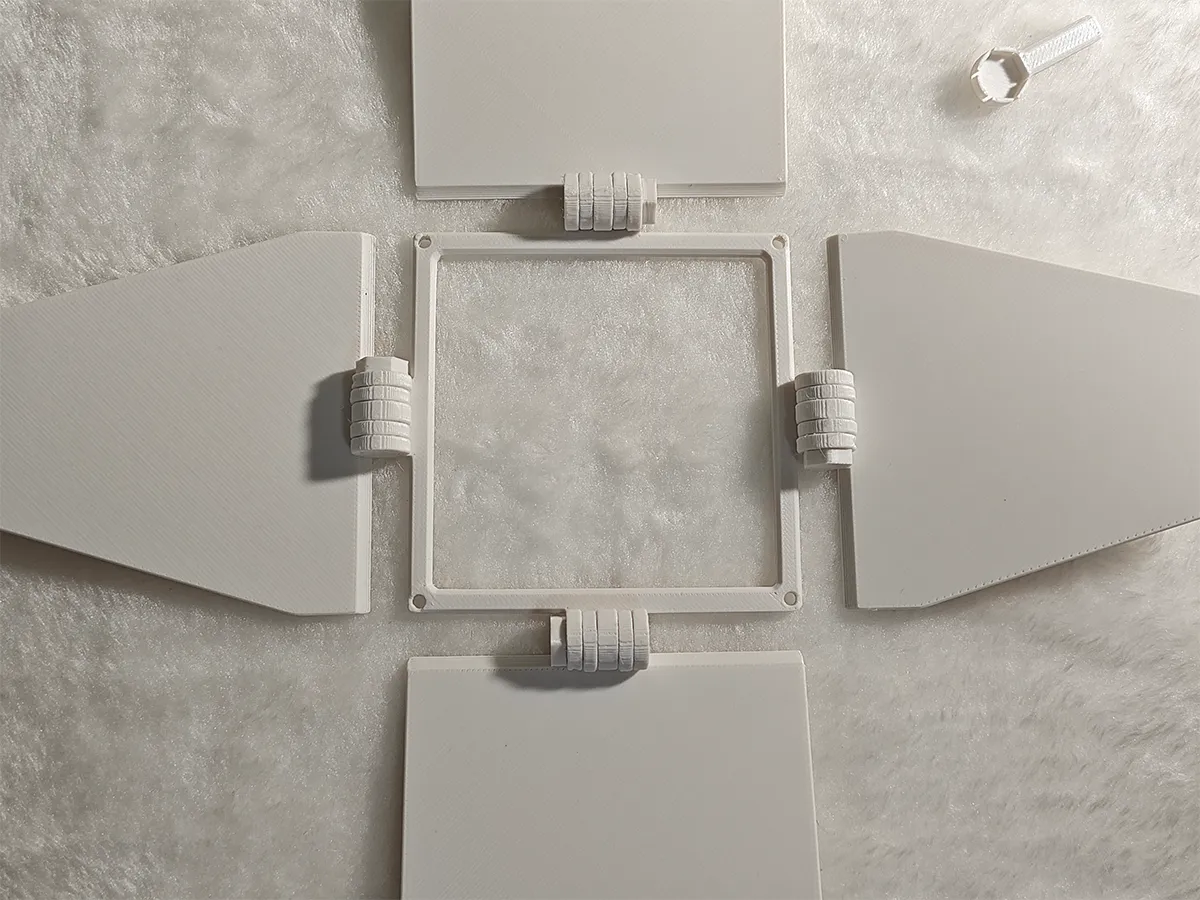

Assembly diagram:

There is an auxiliary small wrench, but it's usually not needed, you can fully tighten it by hand

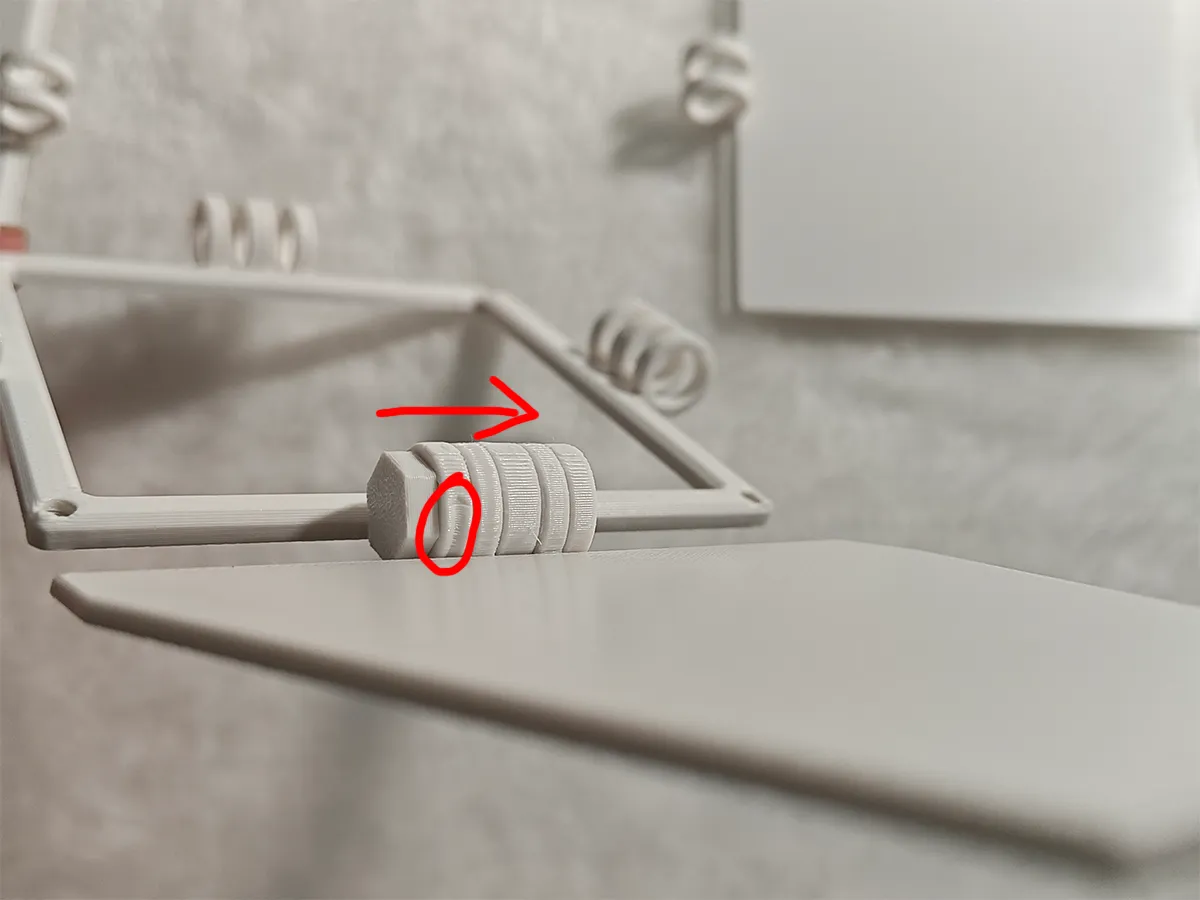

The printing screw direction is as shown in the figure, just insert it from the side with the mark and screw it in (The tightness of the baffle can be adjusted by the tightness of the printing screw itself)

Done

Cut a piece of photographic tracing paper (Actually, you can skip this if you don't need softer light)

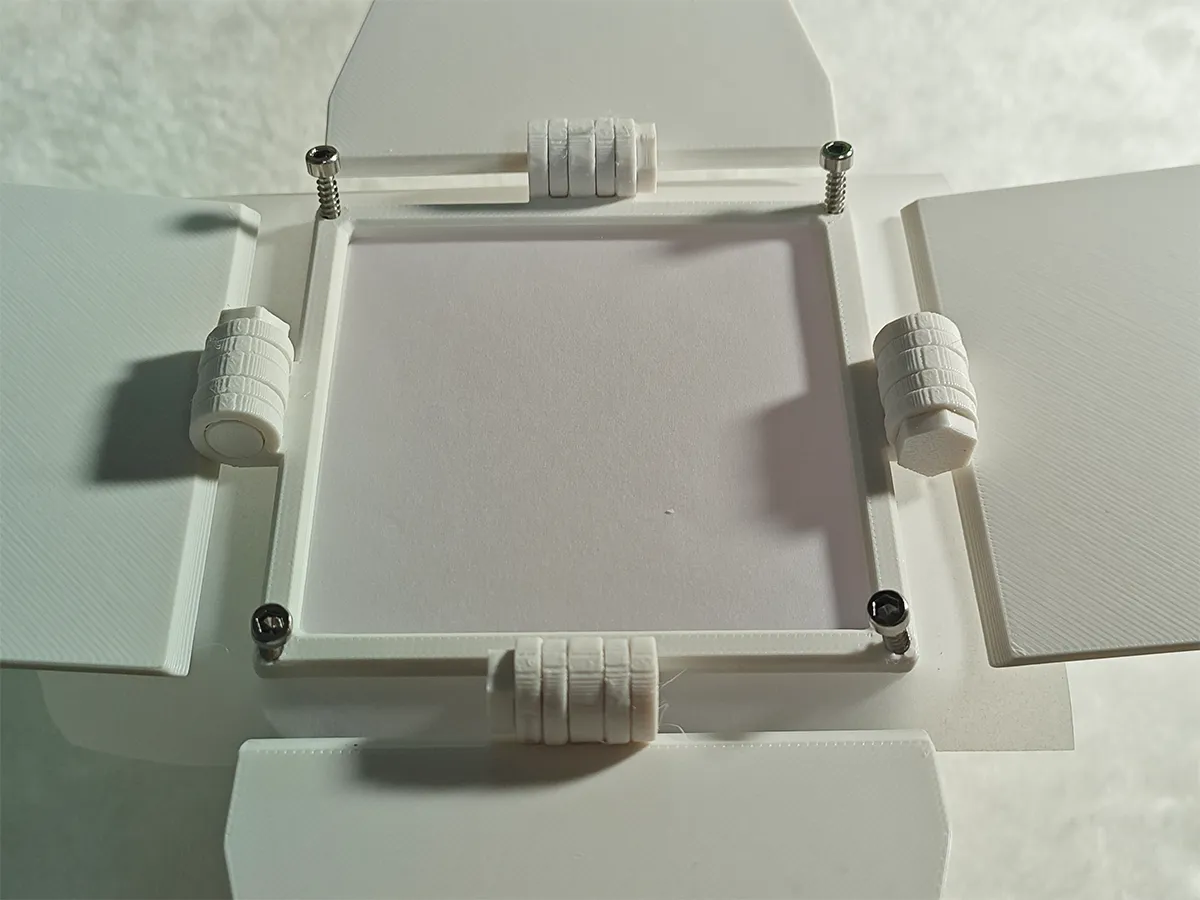

M3X10 self-tapping screws or non-self-tapping screws are also fine as long as they can be tightened

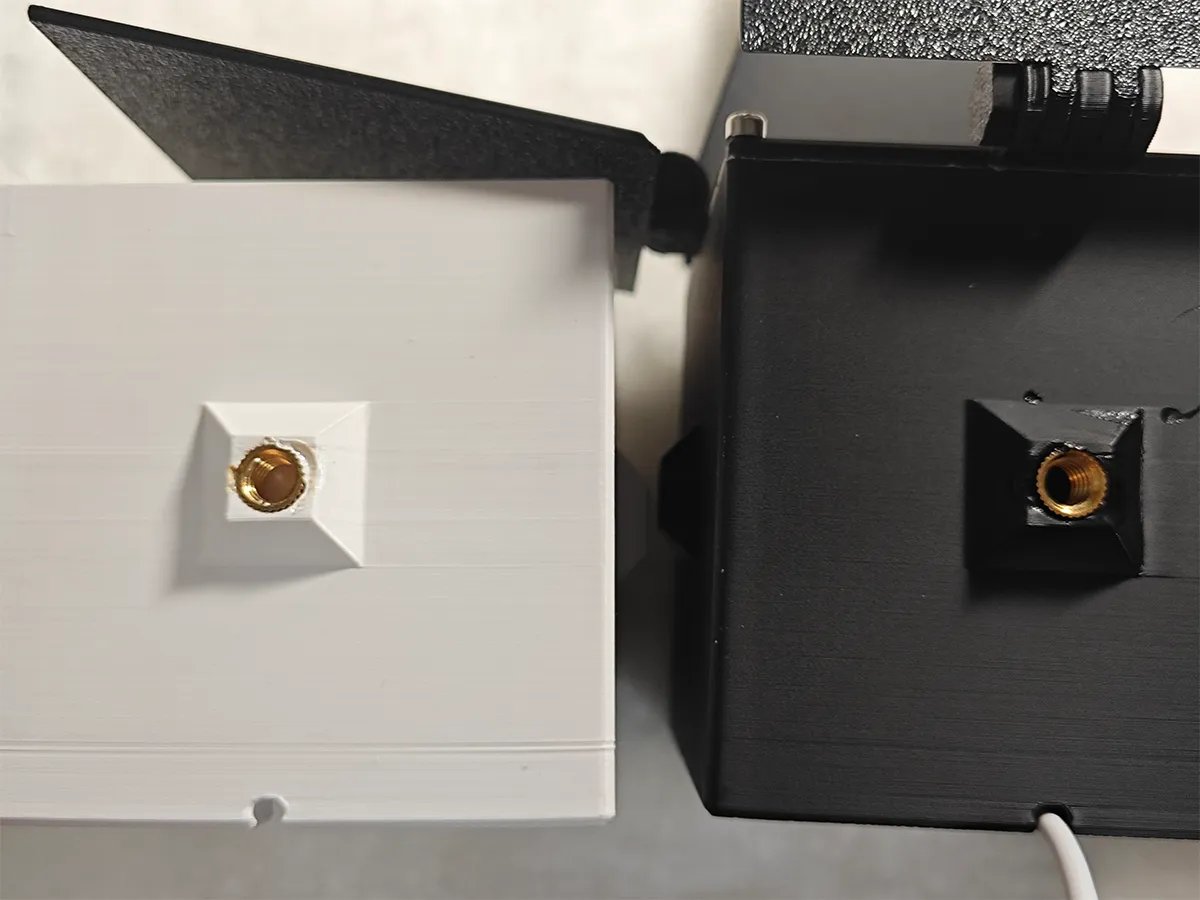

Melt the heat-set nut in with a soldering iron (Please ignore my technique...)

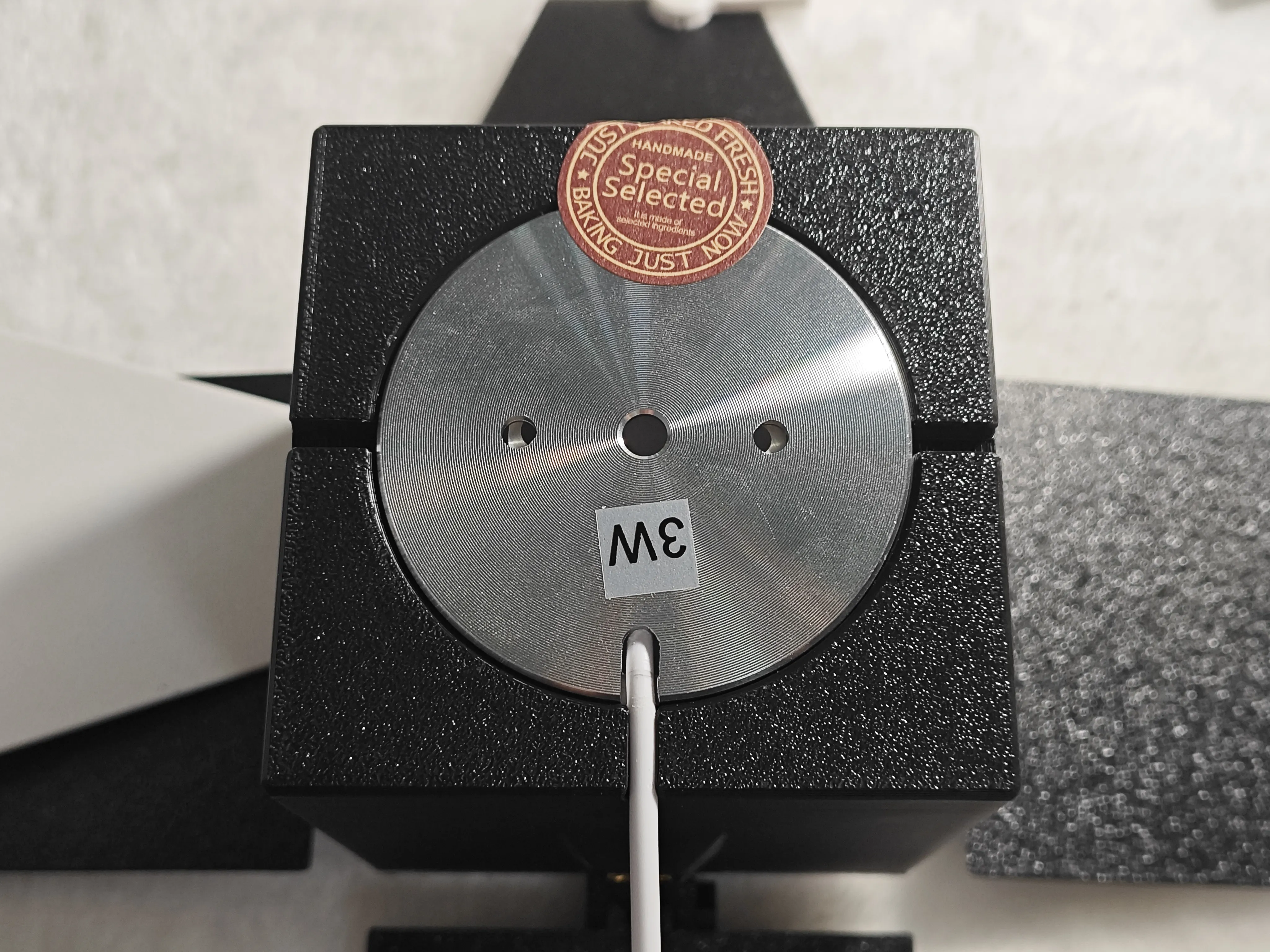

The last step is to install the light, after the wire is inserted into the reserved hole, it actually won't fall out, but the top might easily lift up so it's recommended to use a sticker to secure it

Done!
