Sandal Shoes - Fully 3d-printed

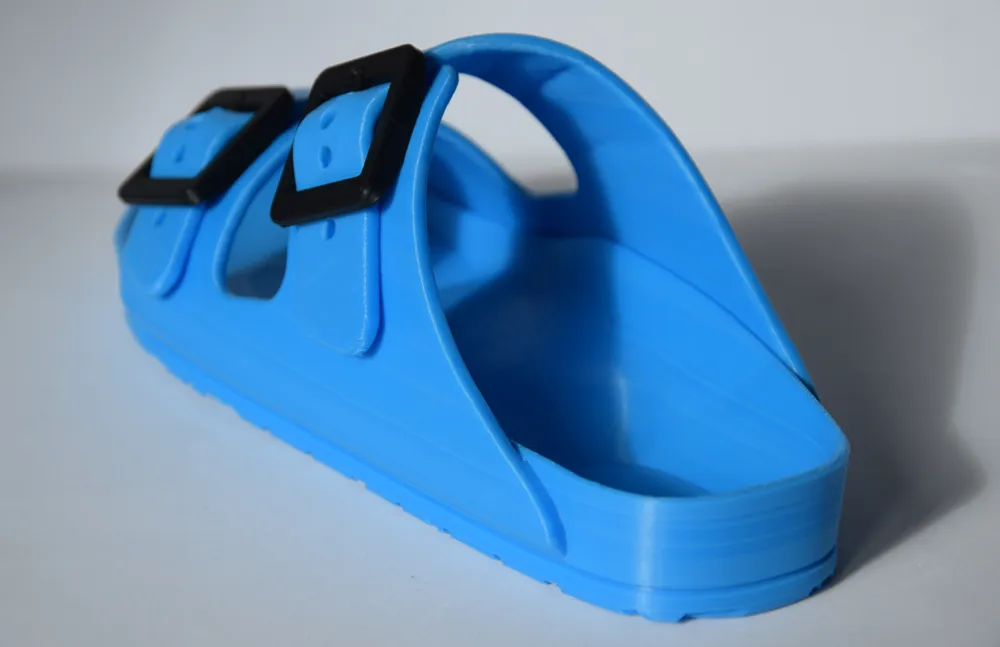

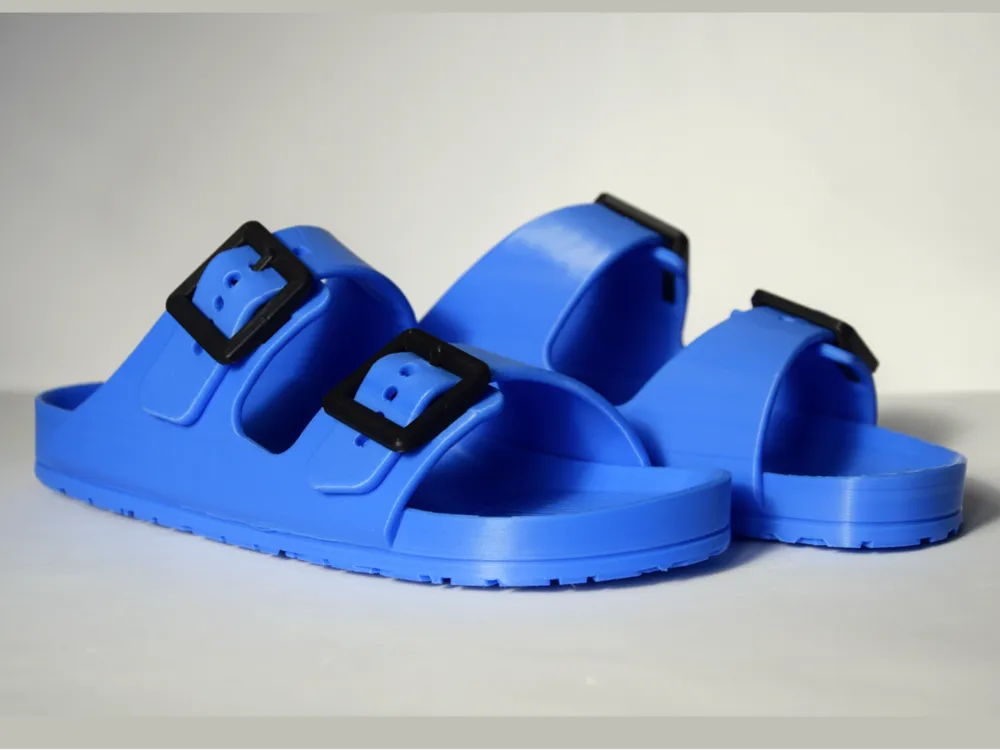

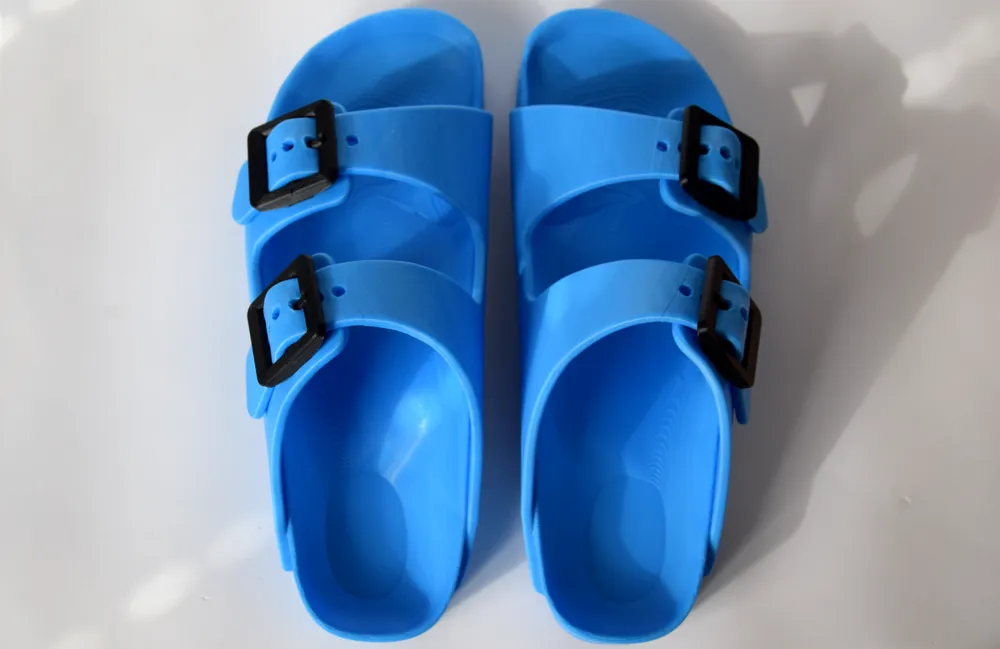

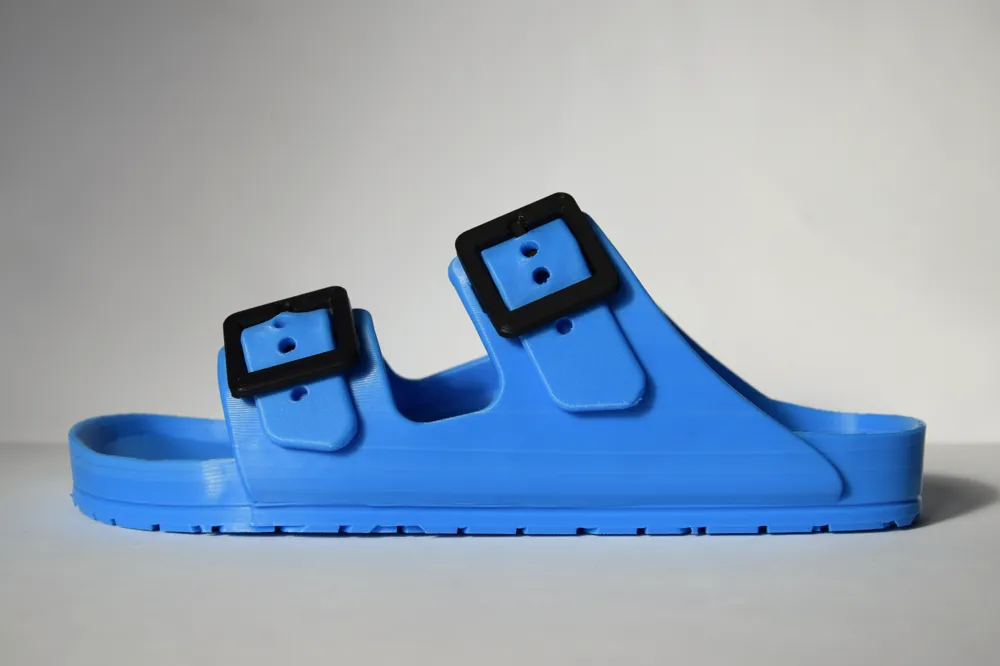

Fully 3d printed sandal shoes

-------------------------------------------------

• I printed the shoe with BIGTREETECH MorPhlex TPU Filament, which prints at 90A and then drops to 75A, therefore you end up with a very soft and comfortable shoe but without the warping and bad print quality as other soft filaments
  • if you also want to use this filament: https://tidd.ly/4mnOVXm (affiliate link)

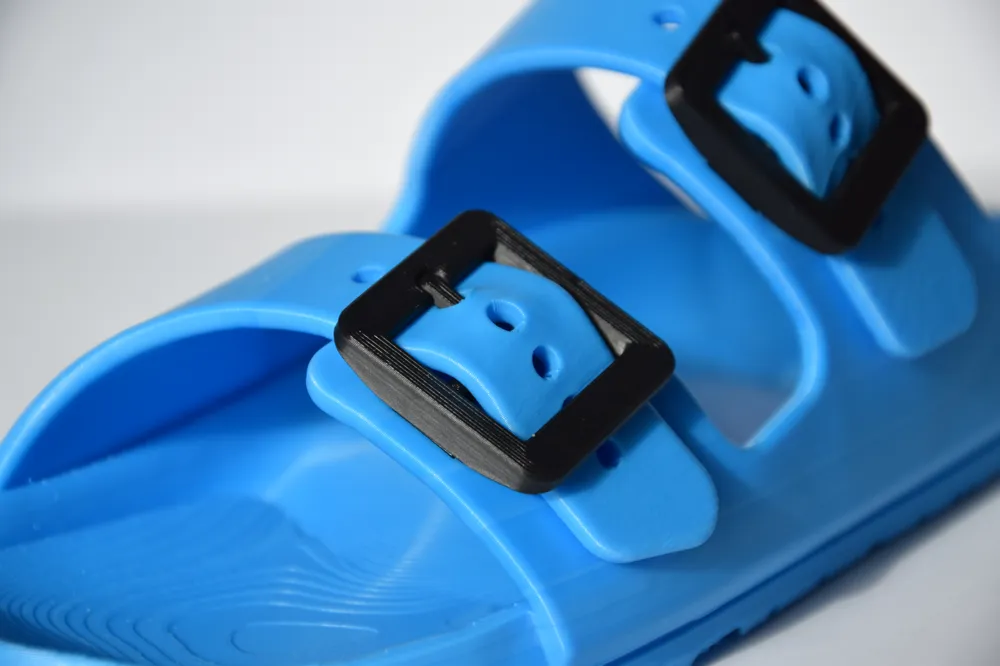

• The print-in-place buckles are printed with PLA

-------------------------------------------------

Important notes:

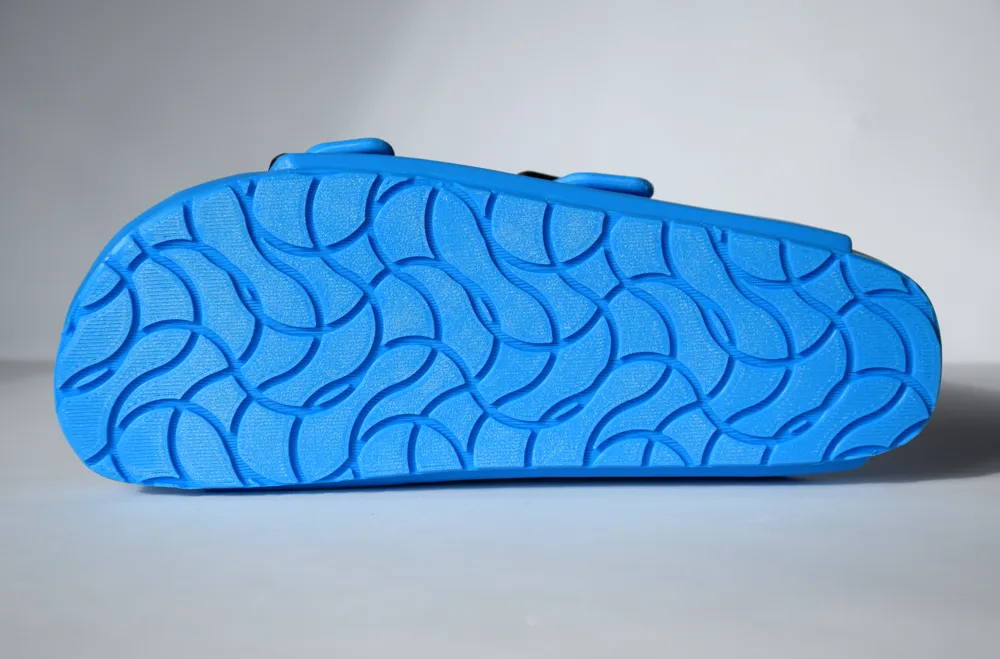

• You can adjust the hardness of the sole through the infill. For soft filament (75A), I recommend 15% or higher, and significantly less for harder filament

• you can scale them to your size in your Slicer (use uniform scaling):

  Shoe Size	Scale Factor (%)	Foot Length (cm)
  30	90.5 %	19.0
  31	93.8 %	19.7
  32	96.7 %	20.3
  33	100.0 %	21.0
  34	100.0 %	21.0
  35	106.2 %	22.3
  36	109.5 %	23.0
  37	112.9 %	23.7
  38	115.7 %	24.3
  39	119.0 %	25.0
  40	122.4 %	25.7
  41	125.2 %	26.3
  42	128.6 %	27.0
  43	131.9 %	27.7
  44	134.8 %	28.3
  45	138.1 %	29.0
  46	141.4 %	29.7
  47	144.3 %	30.3
  48	147.6 %	31.0

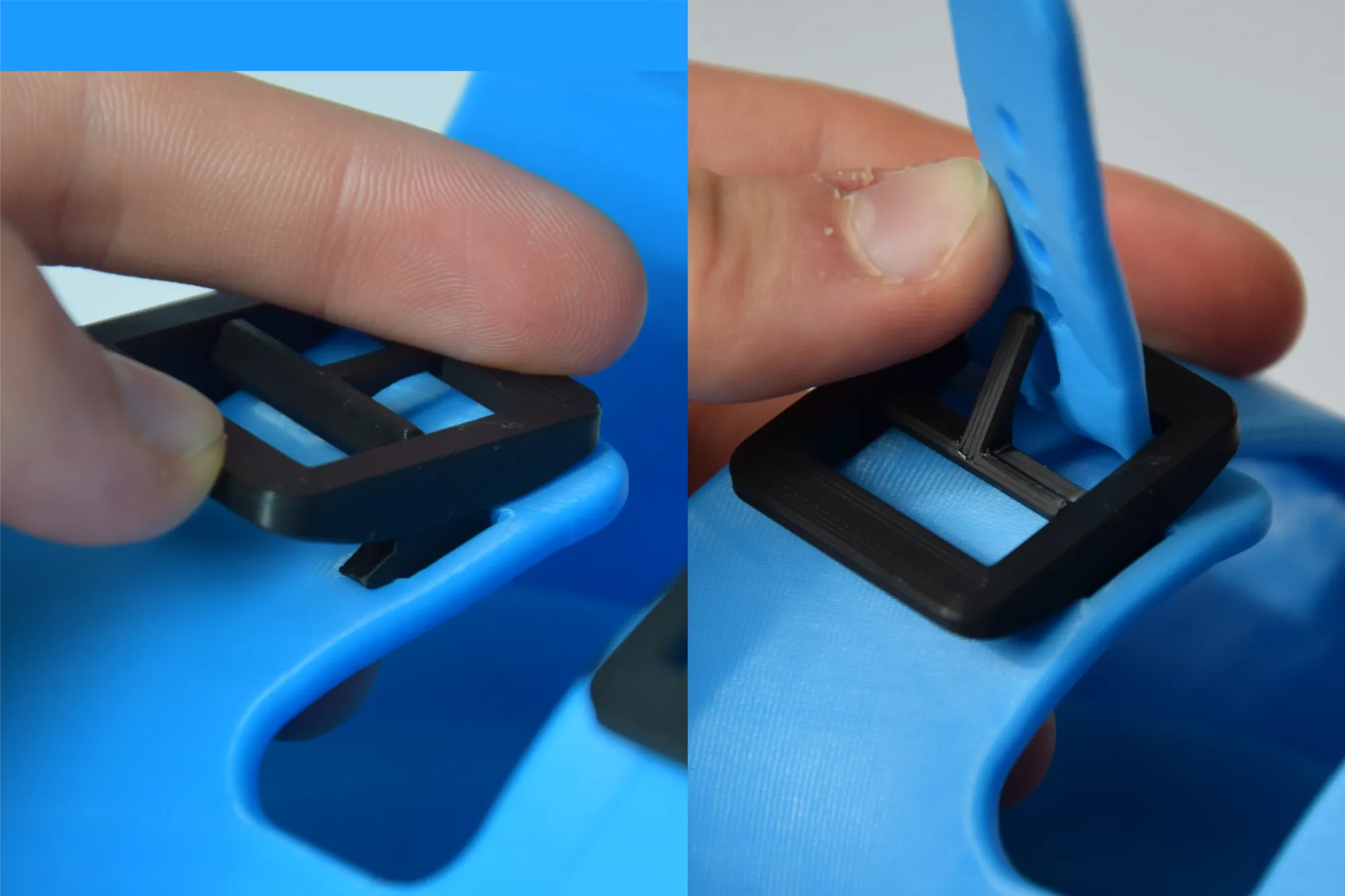

• The buckle is printed in one piece, you have to apply some force to make it moveable

  • it is clicked into the shoe



-------------

If you want to sell printed parts from my designs or want to get the .step files of my models you can become a member of my Patreon: https://www.patreon.com/c/makerversedesigns

You like my free 3D models? I also create custom 3D designs for 3D printing: https://www.fiverr.com/s/yvRqgr6

-------------

Have fun with it and leave a like or subscribe and boost if you like it!

If there are any suggestions for improvement, feel free to write a comment.
