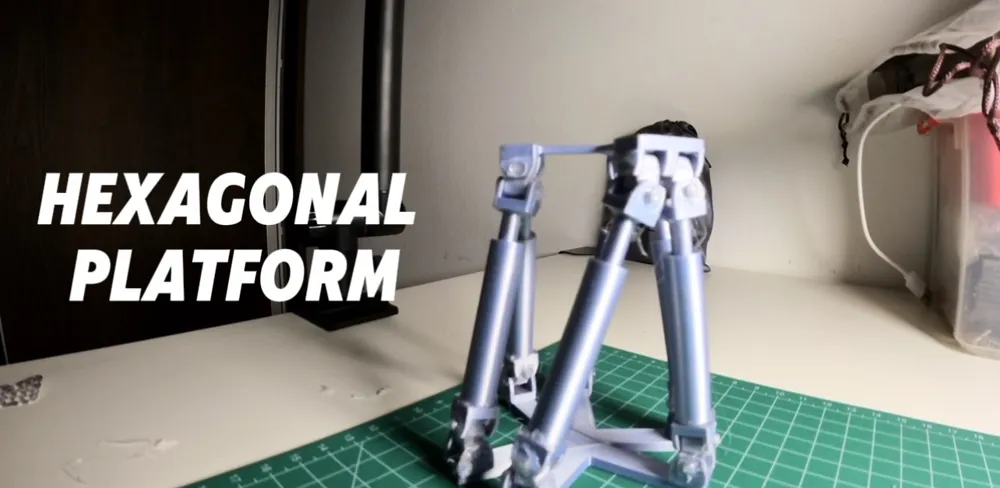

Hexagonal Platform
Print Profile(2)
Description
Hello, Glad you're here!
Hello Makerworld Community!
Introduction :

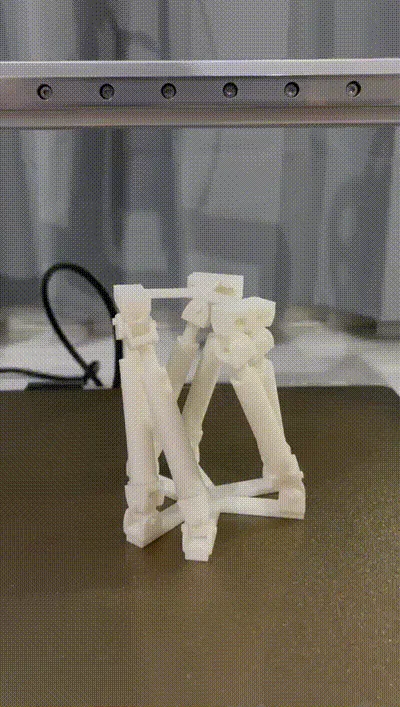

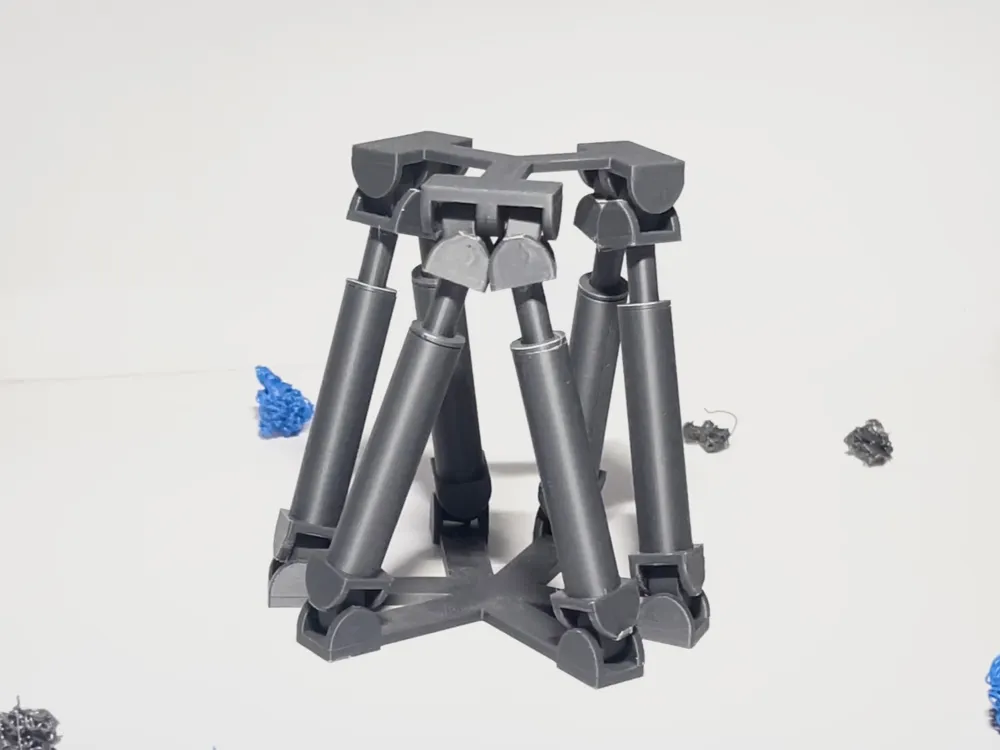

This is an educational model of a steward platform(Hexagonal Platoform). I made it into a simplified version which is much smaller but still have the same funtions such as the 6DOF which can rotate with a wide range of movement.
When you print this model there
should be a certain list of the 3D printed parts which is :
-6 Hydraulics (with internal and external)
-6 Hydraulic bottom cover
-12 Joint connectors
-12 Joint Blocks
-18 short Pins
-3 Long Pins
Tools you will use to assemble
-Hot Glue Gun
Steps To Assemble the Hexagonal Platform (See STL to see part names):
1. First, Take 6 hydraulic internal and external, then put the bigger back of the hydraulic to the bottom of the hydraulic
2. After, insert the internal hydraulic part to the external hydraulic part.
3. then, put on the hydraulic bottom cover on the bottom of the external part and glue it using the hot glue gun.
4. then, glue the joint block on to the bottom as well as the top part (Which should be sticking out of the external hydraulic part when flipped over) of the hydraulic.
5. Next, put the Joint connector and place it between the joint block.
6. Sixth, Insert the short pin between the joint block and the Join connector through the hole(Bottom Hydraulic)
7. Seventh, Put the Joint block(bottom base) and the joint connector(hydraulic) then lock it using the short pin into to the bottom base
8. Eight, Insert the short pin between the joint block and the Join connector through the hole(Top hydraulic)
9. Ninth, Put the Joint block(Top base) and the joint connector(hydraulic) then lock it using the long pin into the Top base
10. Congrats, You've Done it!
Assembly Video
https://youtu.be/UllFnFKCjCc?si=K90bDnxud3vvhuhK
Troubleshooting
- Parts Not Moving
Make sure that glue is not attached to the hydraulics so that the hydraulics doesnt attach and cling on to anything.
- Glue not sticking
Use stronger glue any other than hot glue gun is fine.
Thank You for supporting my creation!
You're interest in my project helps me to keep growing!
Boost Me (for free)
Every boost counts, thanks for Yours!
