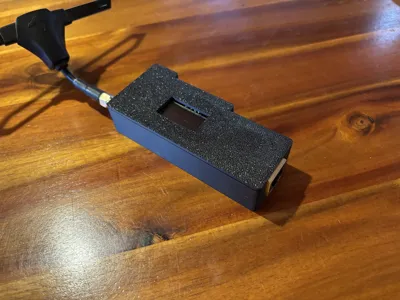

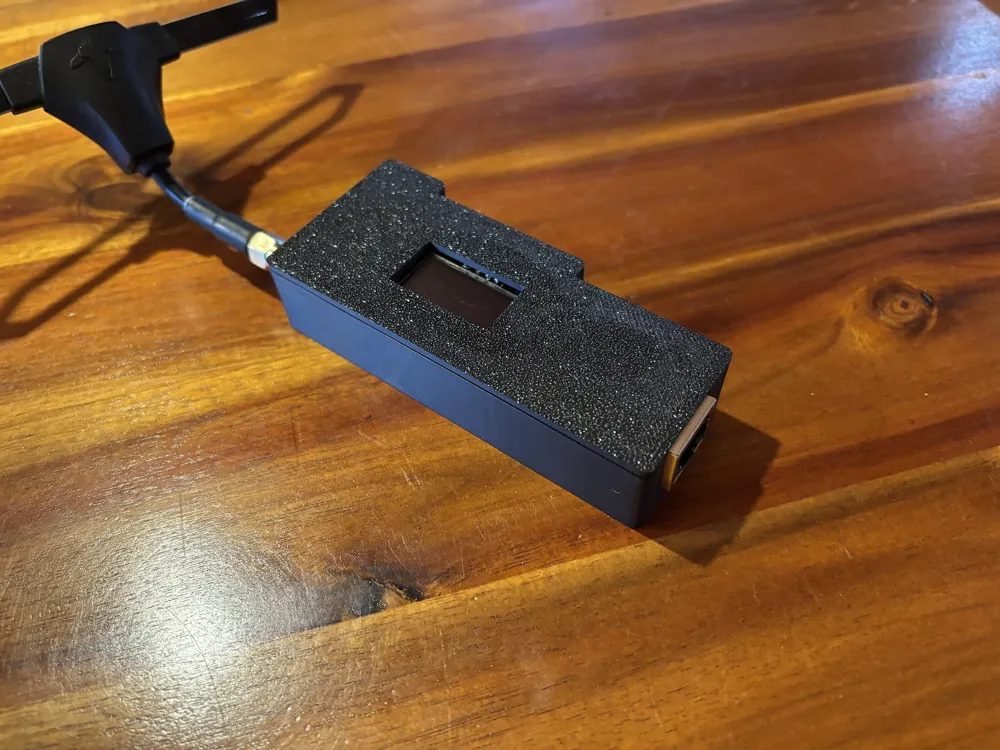

I was missing an enclosure for the RAK19007 that is compatible with the ethernet board RAK13800.

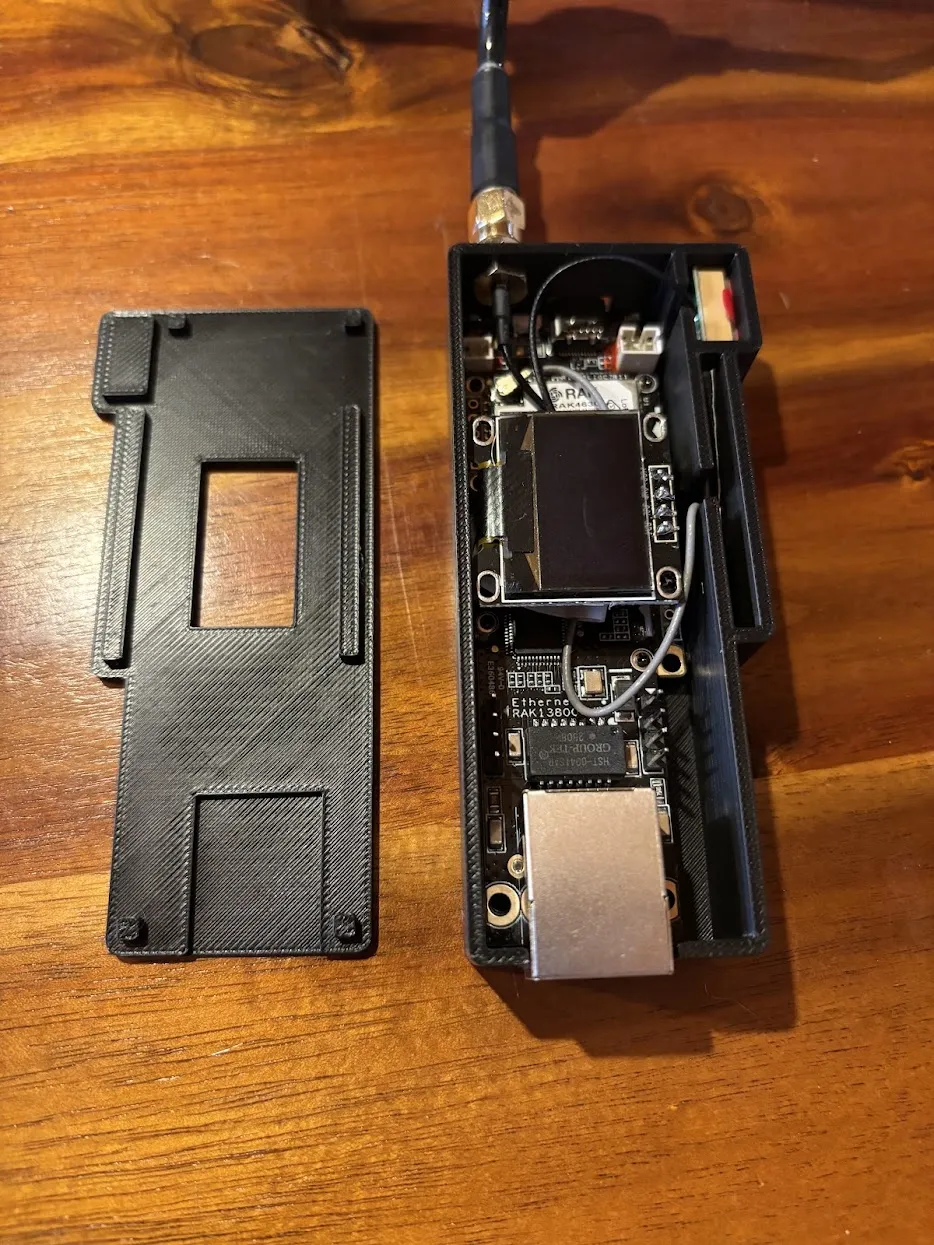

In my setup I also use a RAK1921 OLED display and RAK12501 GNSS module.

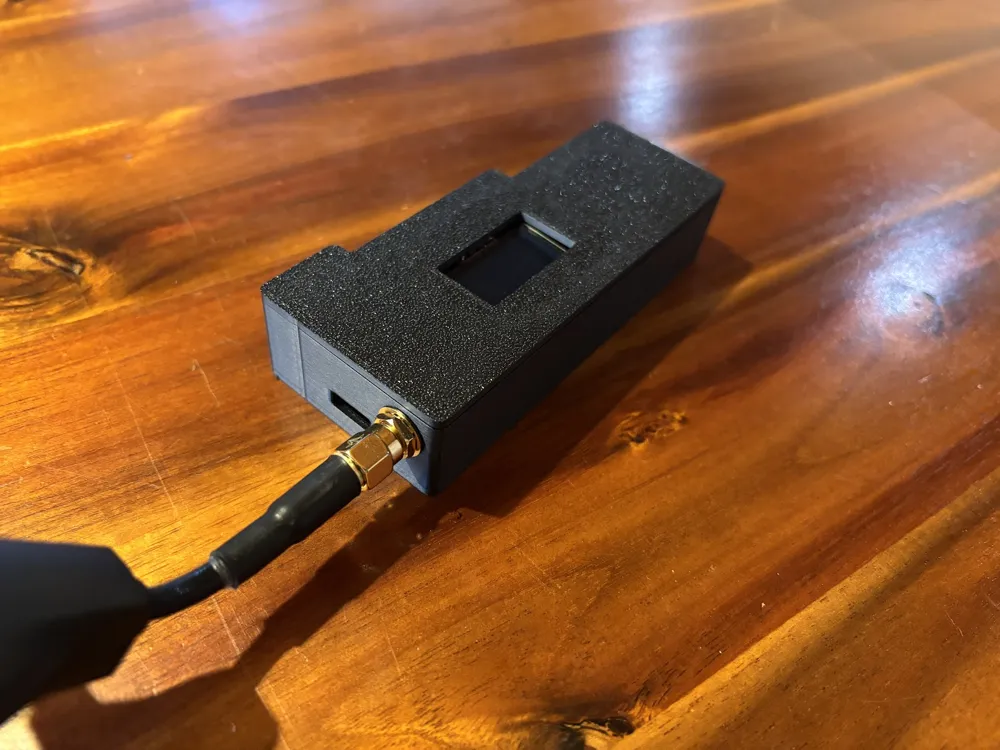

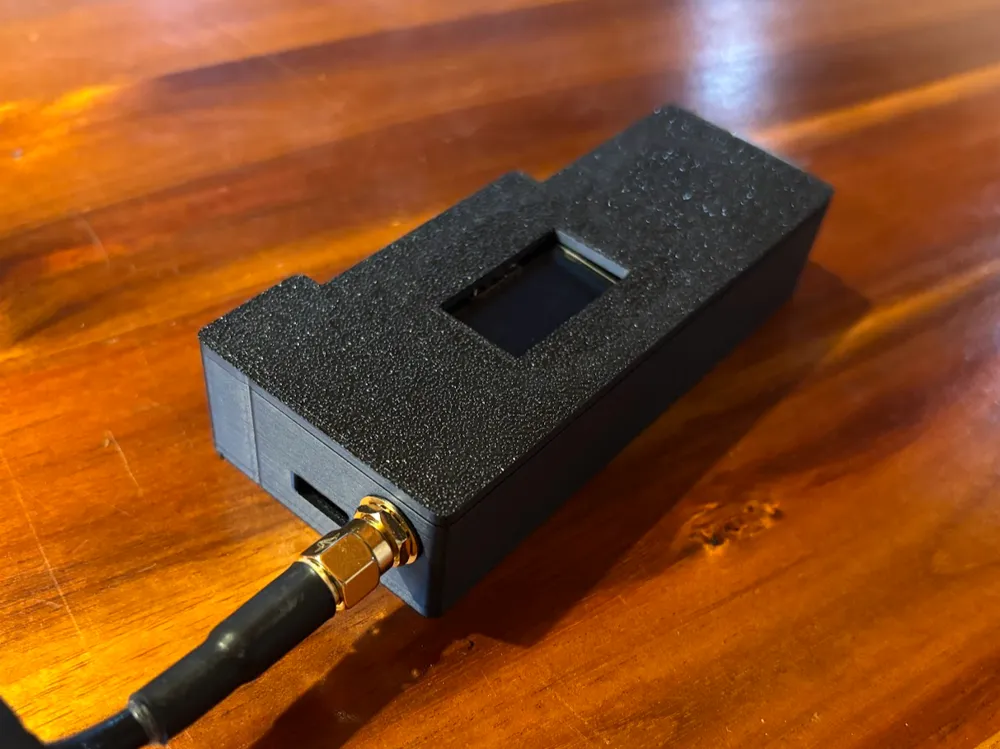

The pockets at the side are for the bluetooth and GPS antenna.
My use-case is a simple enclosure so that my “base station” is not lying bare on my shelf. → This is not intended for mobile / outdoor use.

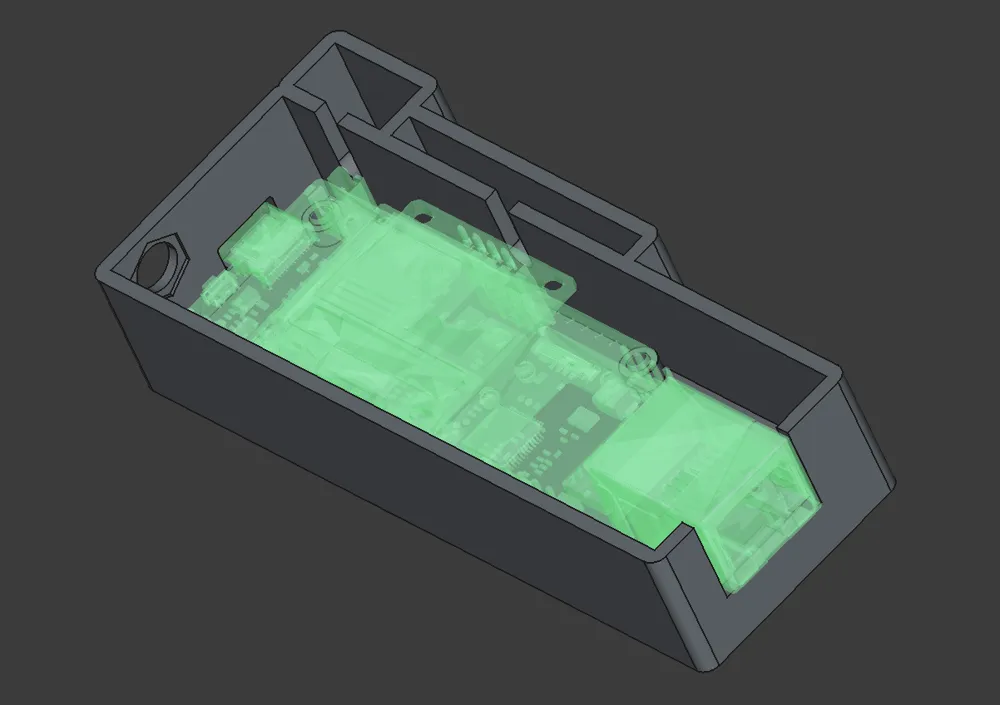

But feel free to edit my FreeCAD project!
Great thanks to FreeCAD: Your own 3D parametric modeler to make such an awesome software available for free.
Also thanks to https://meshtastic-designer.rakwireless.com for providing a 3D model of my RAK board which made modelling easier.
